Yukon 60 Ton 420cc Petrol Hydraulic Log Splitter

The Yukon 60 Ton 420cc Petrol Hydraulic Log Splitter makes light work of tough wood splitting jobs, with a massive 60-tonne peak splitting force and the flexibility of vertical or horizontal operation. Powered by a 420cc four-stroke petrol engine, it handles large logs quickly and reliably.

Key Features

• Massive 5.5-inch ram
• Peak splitting force of 60 tonnes and continuous force of 50 tonnes

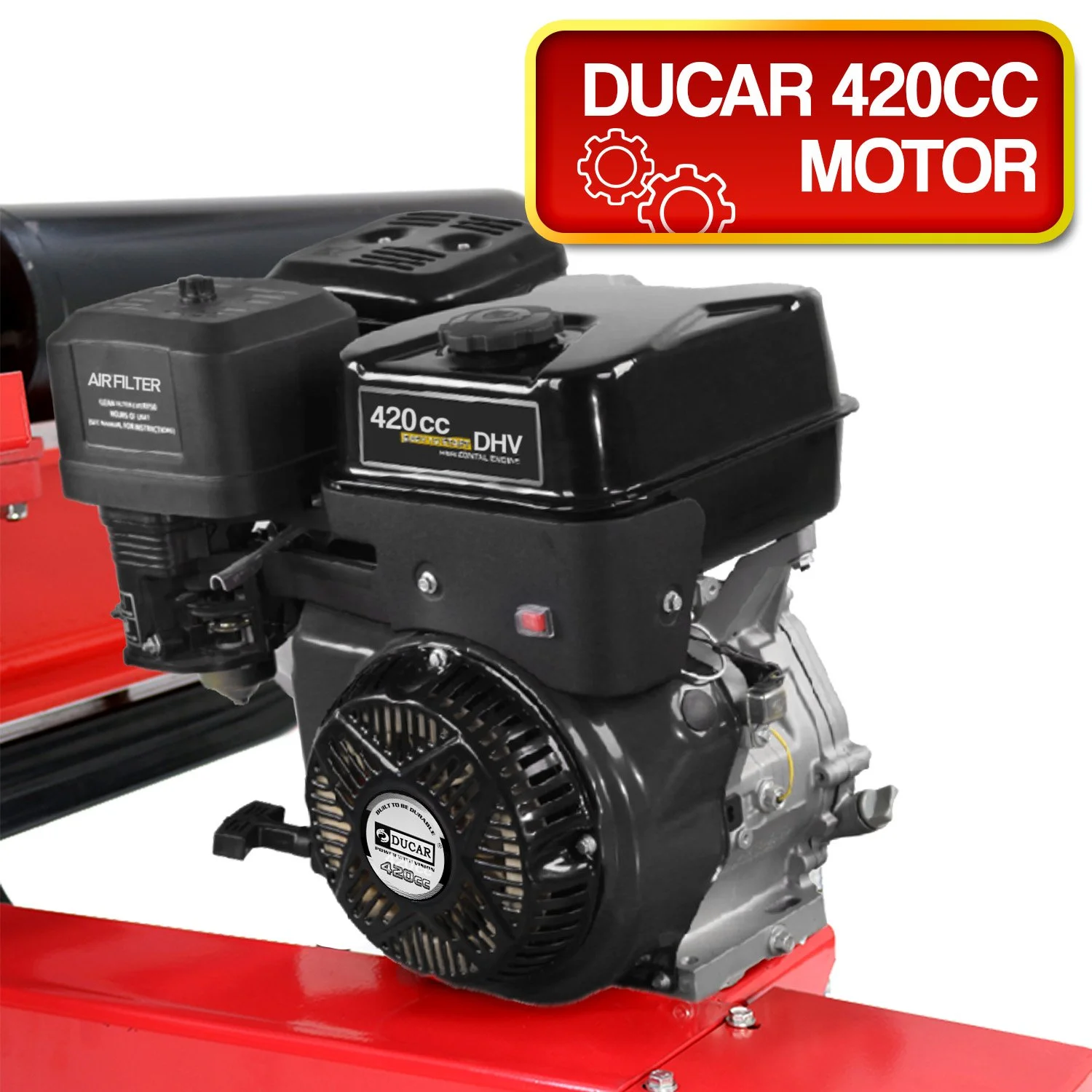

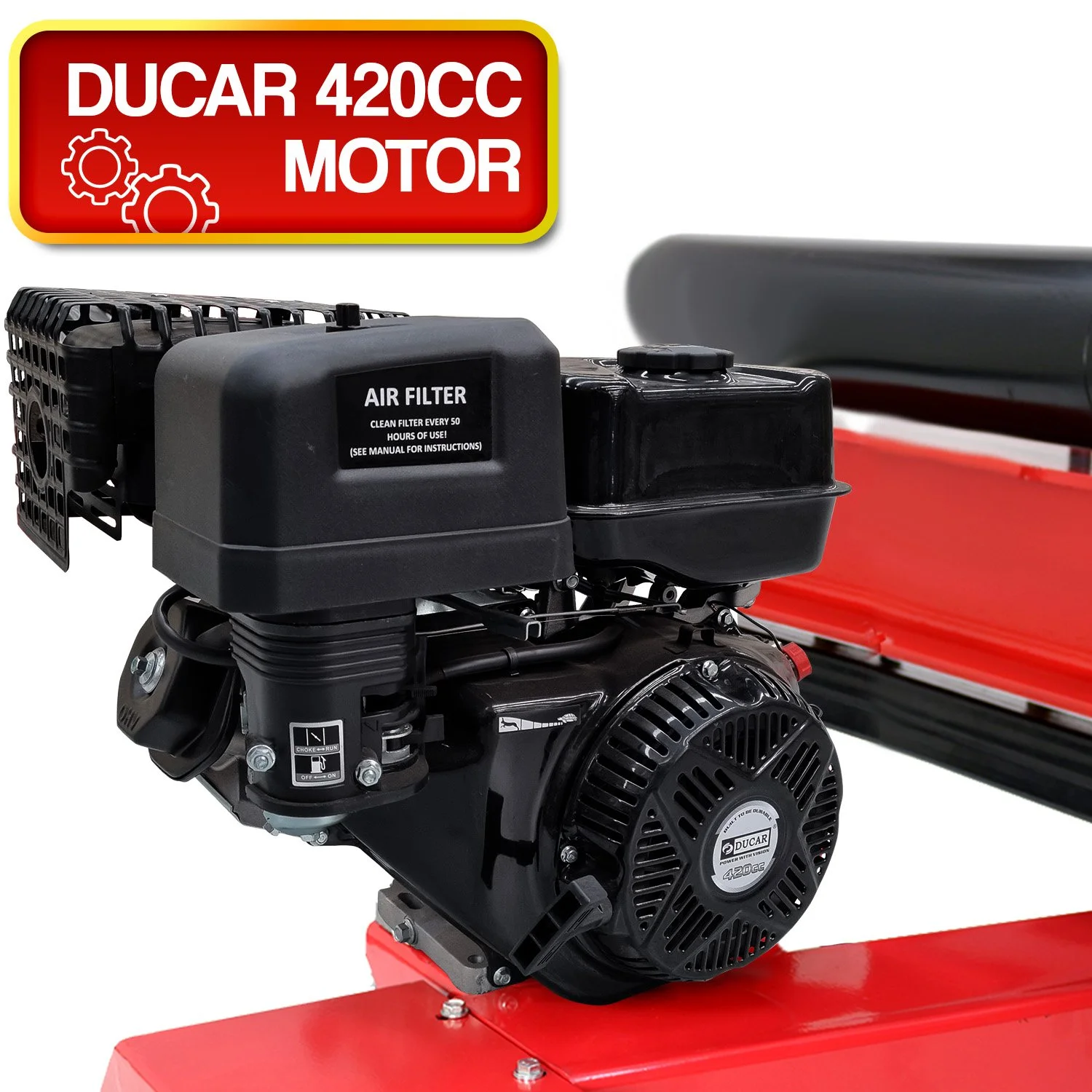

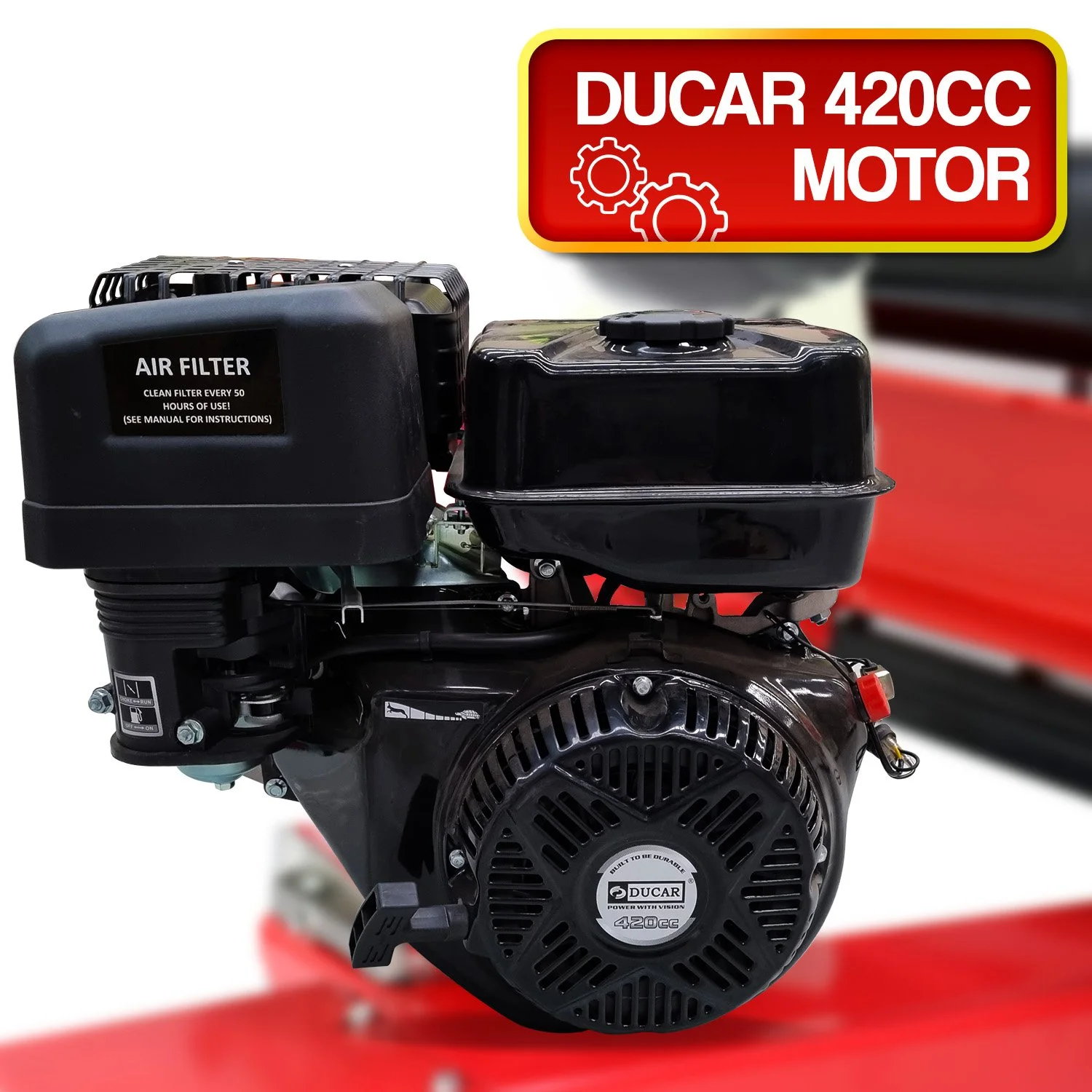

• 420cc four-stroke petrol engine
• Maximum torque of 25N.m at 2500rpm
• Two-stage pump

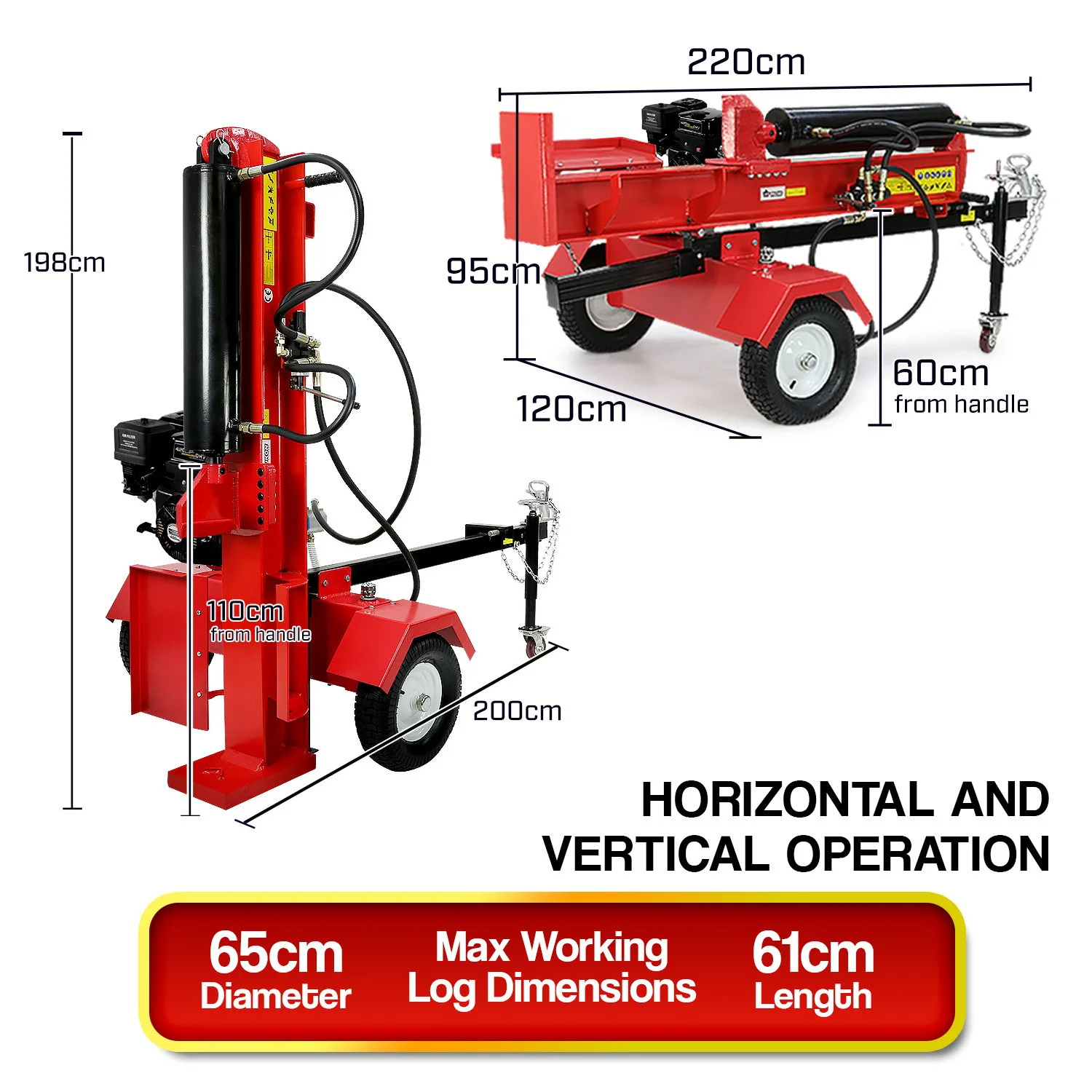

• Vertical and horizontal operation
• Automatic cylinder return
• Tow ball mount
• Hydraulic fuel gauge
• Adjustable jockey wheel
• Solid steel frame

Specifications

• Brand: Yukon
• Type: Petrol engine
• Frame: Solid steel
• Maximum splitting force: 60 tonnes (peak)
• Maximum splitting length: 610mm
• Log diameter: Up to 650mm
• Log length: 610mm
• Cycle time: 20 seconds
• Hydraulic oil capacity: 32L
• Minimum hydraulic oil: 25 litres of Shell Tellus 32 or equivalent
• Engine oil: 1 to 1.5 litres of standard engine oil
• Fuel tank: 6 litres
• Fuel type: Petrol

What's in the Box

• 1 x 60 Tonne Petrol Log Splitter
• 1 x User's Manual
• Package dimensions: 220 x 60 x 55cm

Assembly and Handling Notes

• This unit cannot be lifted by hand.
• It arrives disassembled in four major sections with no hydraulic oil, engine oil or fuel included.
• Some assembly is required and the hydraulic lines need to be connected.
• A forklift is required to unload at the destination.
• The unit is not suitable for registration for road use.
• Hard wood requires higher splitting forces and may not be suitable up to the maximum rated diameter.
