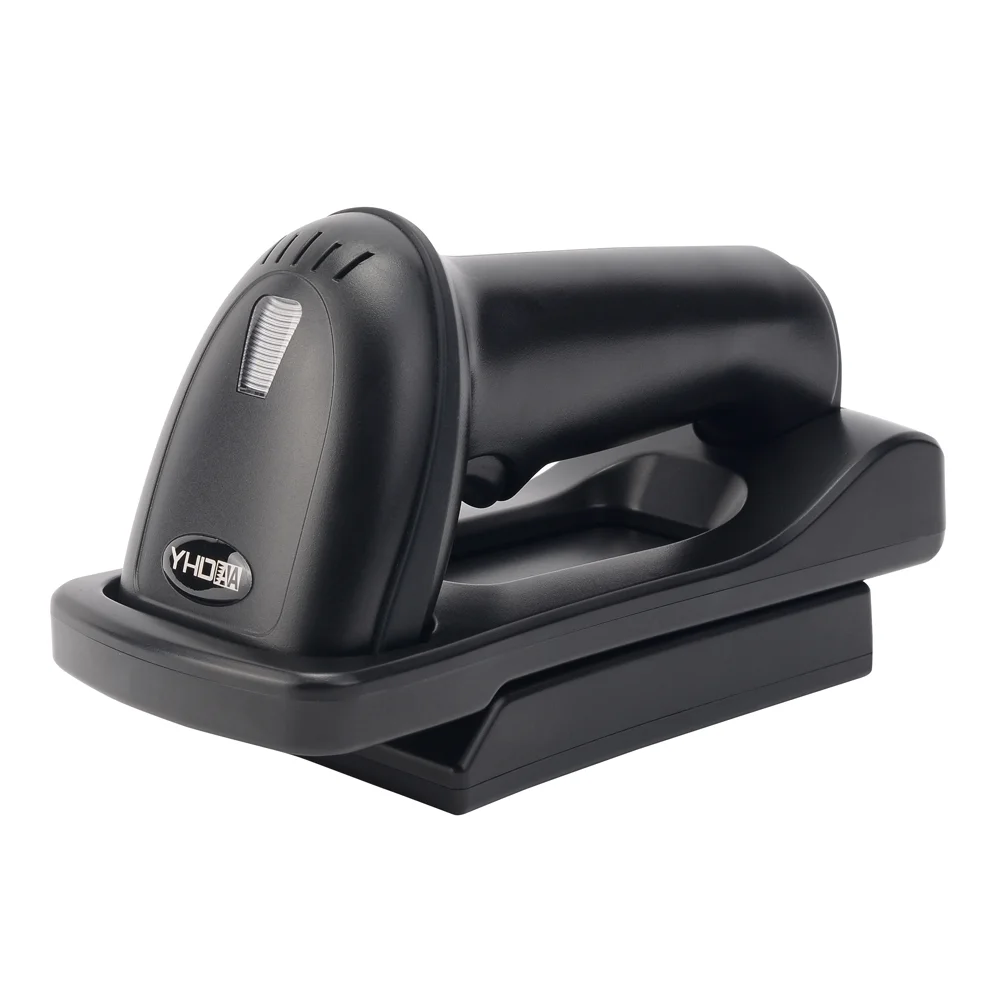

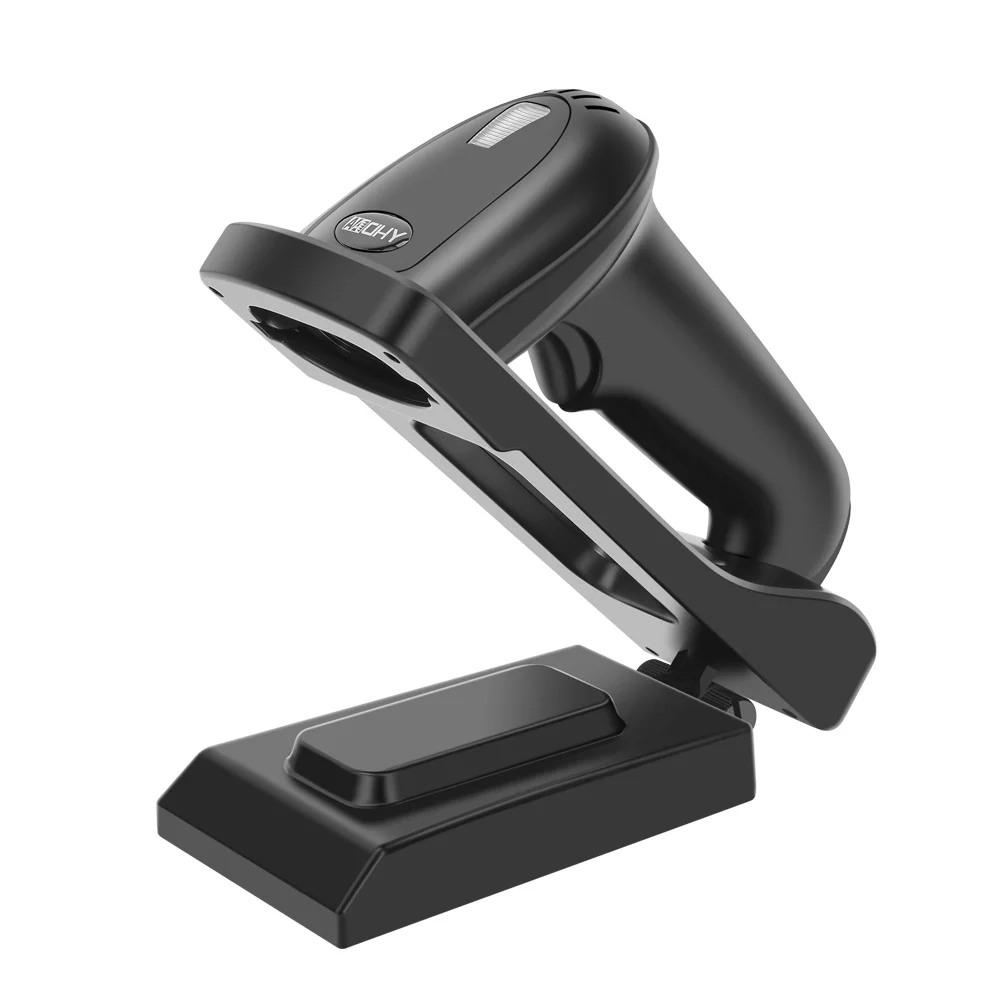

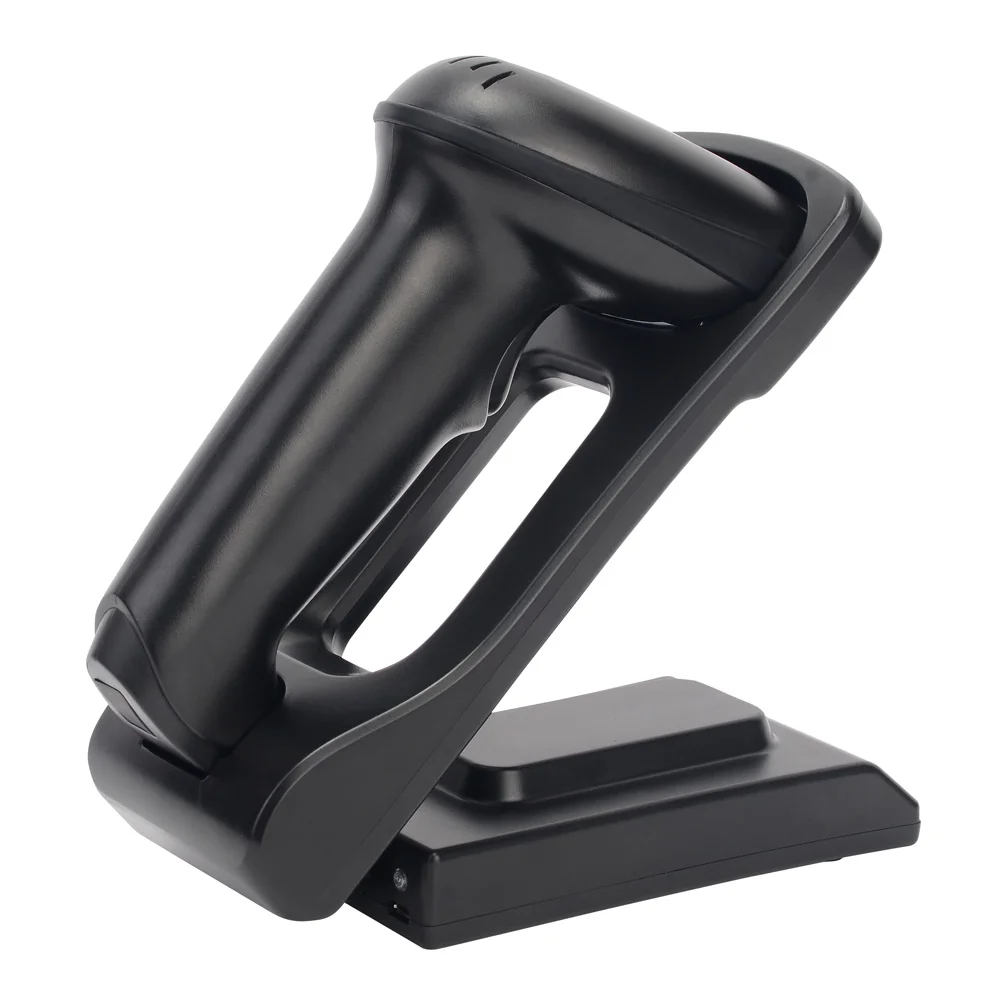

YHDAA YHD-5800DB 2D Wireless Bluetooth Barcode & QR Code Scanner with Stand, Black

The YHDAA YHD-5800DB is a 2D wireless barcode and QR code scanner that reads both 1D and 2D codes from paper labels and digital screens. With Bluetooth, 2.4G wireless and wired options plus an adjustable stand, it suits retail, warehouse and office scanning tasks.

Key Features

• HID/SPP mode with switchable operation
• Bluetooth and 2.4G wireless support, with wired option
• Handheld, continuous and auto-induction trigger modes
• Supports keyboard layouts for over sixteen countries
• High-speed decoding with low error rate
• Built-in 2600mAh battery for extended standby
• Adjustable scanner stand with base for data transmission and battery charging
• Works with smartphones, tablets and computers; compatible with Windows, Android and iOS
• Reads 1D barcodes on paper plus barcodes on mobile phone and computer screens, and 2D barcodes

Specifications

• Product specification: YHD-5800DB 2D wireless Bluetooth barcode scanner
• Transmission mode: Bluetooth/2.4G/wired
• Storage: 100,000 barcodes
• Distance: 50m/100m/1.5m
• Sensor: 640 x 480 CMOS
• CPU: ARM 32-bit Cortex
• Battery: 3.7V-2600mAh
• Indication: buzzer and LED
• Light aimer: 617nm LED
• Resolution: 4mil
• Anti-interference: 0-100000Lux max
• Decoding speed: 500 scans/sec
• Illumination: 6500K LEDs
• Printing contrast: ≥25%
• Interface: USB, USB-COM
• Button life: 8,000,000 times
• Material: ABS+PC
• Trigger mode: handheld, continuous, auto-induction
• Depth of field: 13mil-EAN13 50-250mm; 4mil-Code39 60-100mm; 20mil-QR 40-300mm; 10mil-PDF417 40-280mm
• Decode capability 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI Plessey, RSS and more
• Decode capability 2D: QR Code, Data Matrix, PDF417, Aztec Code, Maxicode and more
• Scanning angle: rotation 360°, inclination ±65°, declination ±60°
• Working current: 3.3V x 200mA
• Standby current: 18uA-5mA
• Working time: 3 to 10 days
• Charging power: 5V-400mA
• Certificates: CE, FCC, RoHS, IP54
• Drop test: 2m
