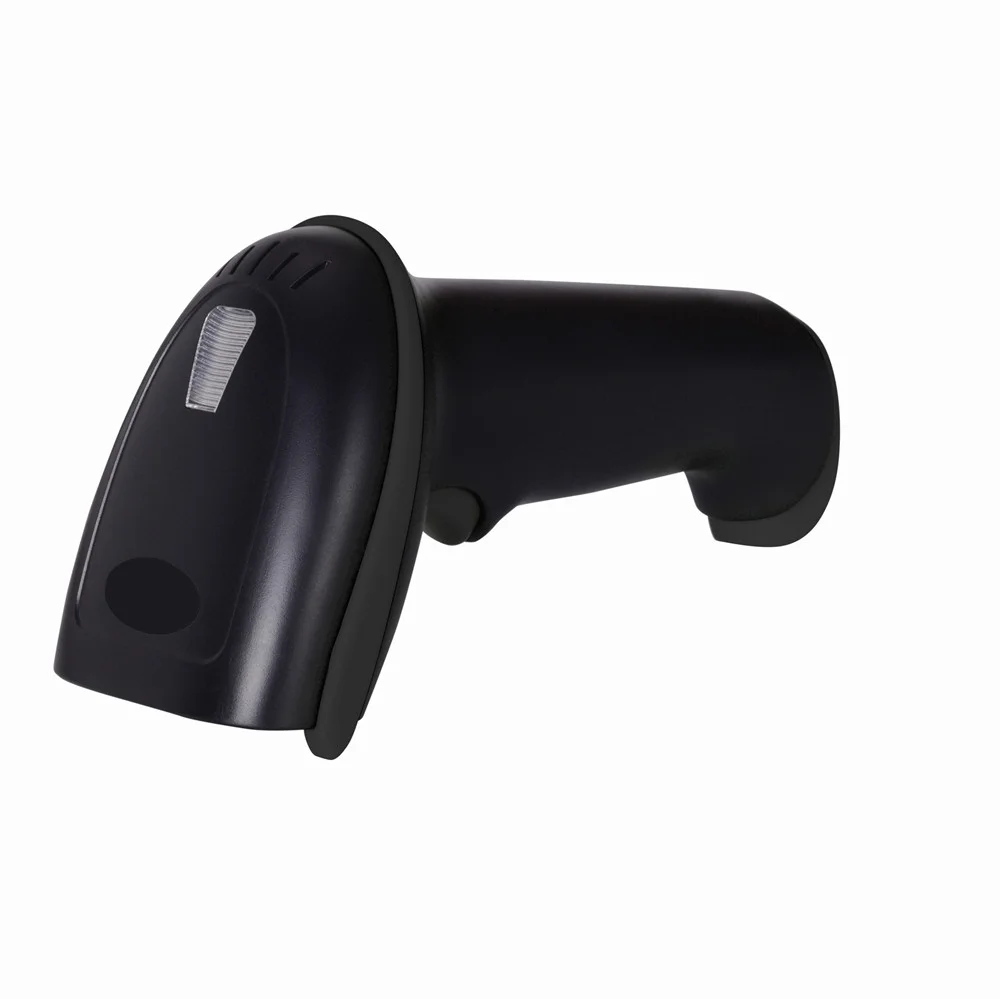

YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode & QR Scanner

The YHDAA YHD-5700DB is a 2D wireless barcode scanner that reads both 1D and 2D codes from paper, phone and computer screens. With Bluetooth, 2.4G and wired connectivity plus a 2600mAh battery, it suits retail, warehouse and office scanning tasks.

Key Features

• Three transmission modes: Bluetooth, 2.4G and wired
• HID/SPP mode with switchable operation
• Three trigger modes: handheld, continuous and auto-induction
• Reads 1D barcodes on paper plus 1D and 2D codes on phone and computer screens
• Supports keyboard layouts for over sixteen countries
• High-speed decoding with low error rate
• Built-in 2600mAh battery for long standby
• Compatible with smartphones, tablets and computers running Windows, Android or iOS
• Buzzer and LED indication

Specifications

• Model: YHD-5700DB
• Transmission mode: Bluetooth/2.4G/Wired
• Storage: 100,000 barcodes
• Distance: 50m/100m/1.5m
• Sensor: 640 x 480 CMOS
• CPU: ARM 32-bit Cortex
• Battery: 3.7V-2600mAh
• Indication: buzzer and LED
• Light aimer: 617nm LED
• Resolution: 4mil
• Anti-interference: 0-100000Lux max
• Decoding speed: 500 scans/sec
• Illumination: 6500K LEDs
• Printing contrast: ≥25%
• Interface: USB, USB-COM
• Button life: 8,000,000 times
• Material: ABS+PC
• Trigger mode: handheld, continuous, auto-induction
• Depth of field: 13mil-EAN13 50-250mm; 4mil-Code39 60-100mm; 20mil-QR 40-300mm; 10mil-PDF417 40-280mm
• Decode capability 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI Plessey, RSS and more
• Decode capability 2D: QR Code, Data Matrix, PDF417, Aztec Code, Maxicode and more
• Scanning angle: rotation 360°, inclination ±65°, declination ±60°
• Working current: 3.3V x 200mA
• Standby current: 18uA-5mA
• Working time: 7 to 10 days
• Charging power: 5V-400mA
• Certificate: CE, FCC, RoHS, IP54
• Drop test: 2m
