X-BULL 5000lb 12V Electric Winch with 15.2m Synthetic Rope and Wireless Remote

The X-BULL 5000lb electric winch is a 12V recovery winch built for ATV, UTV, 4WD and boat use, pairing a pure copper motor with a 3-stage planetary gear train and 15.2m synthetic rope. It comes with both a wireless remote and a hand remote, plus an aluminium hawse fairlead and clevis hook for straightforward recovery setups.

Key Features

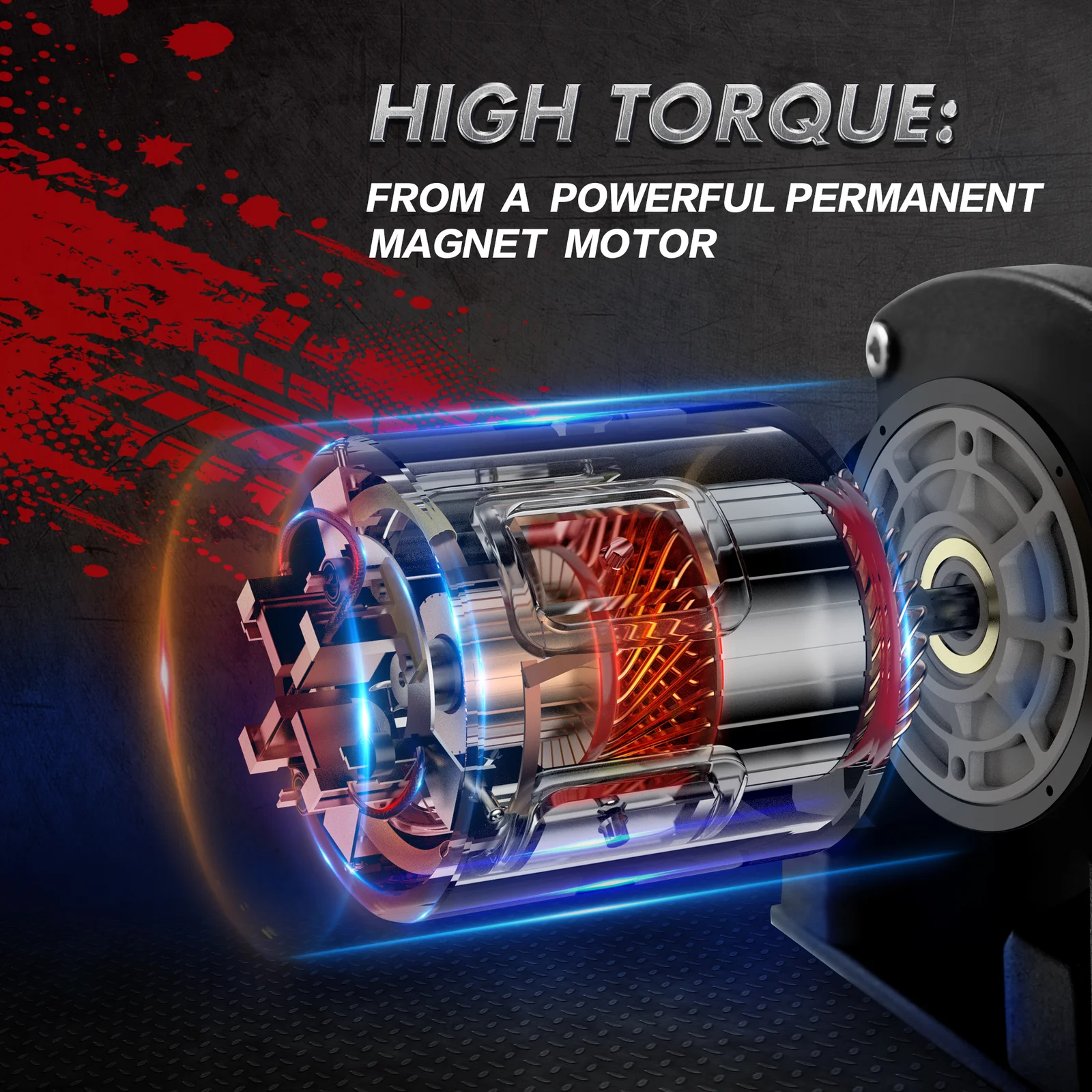

• Pure copper motor for high power, high efficiency and safe operation

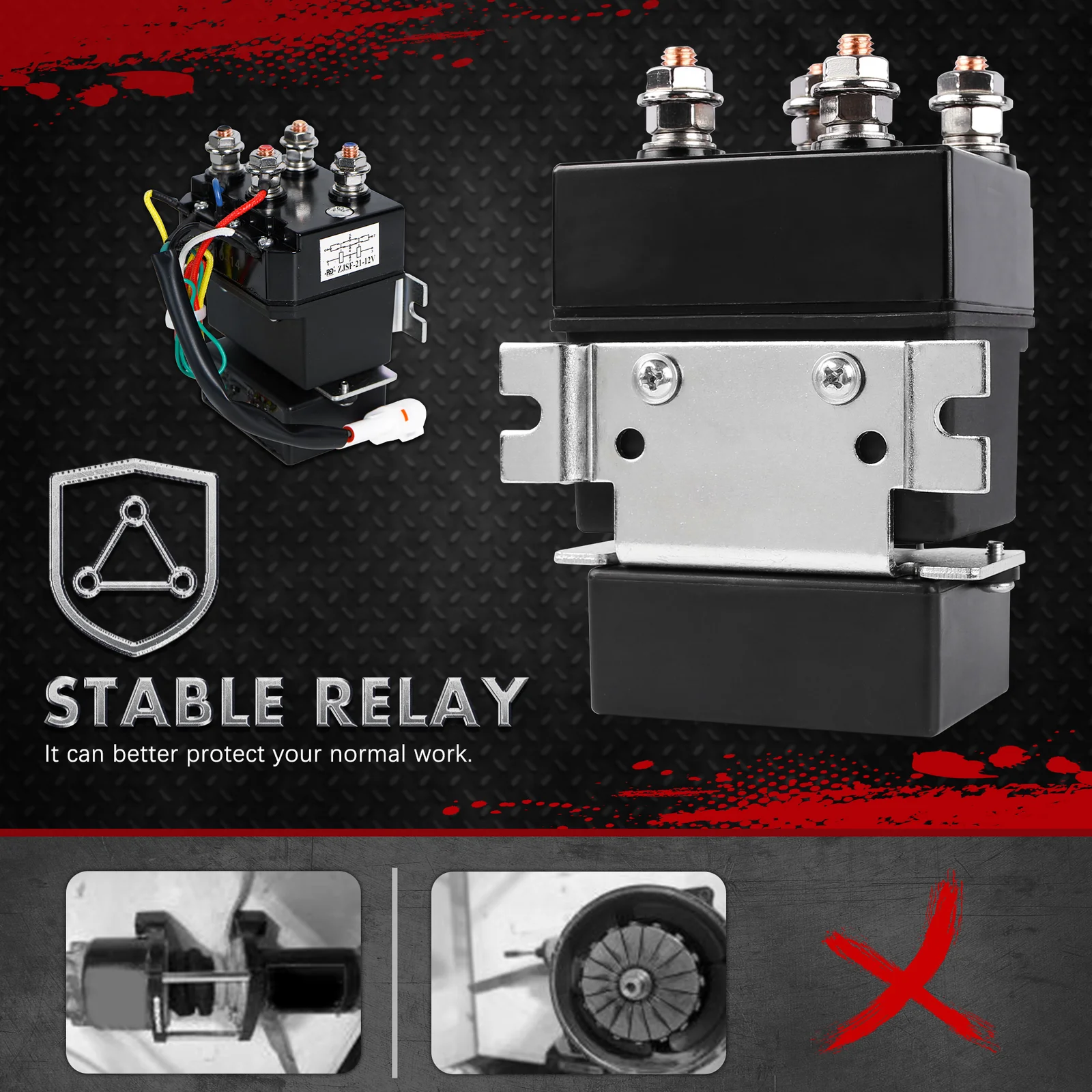

• 500A solenoid relay for durable, stable performance

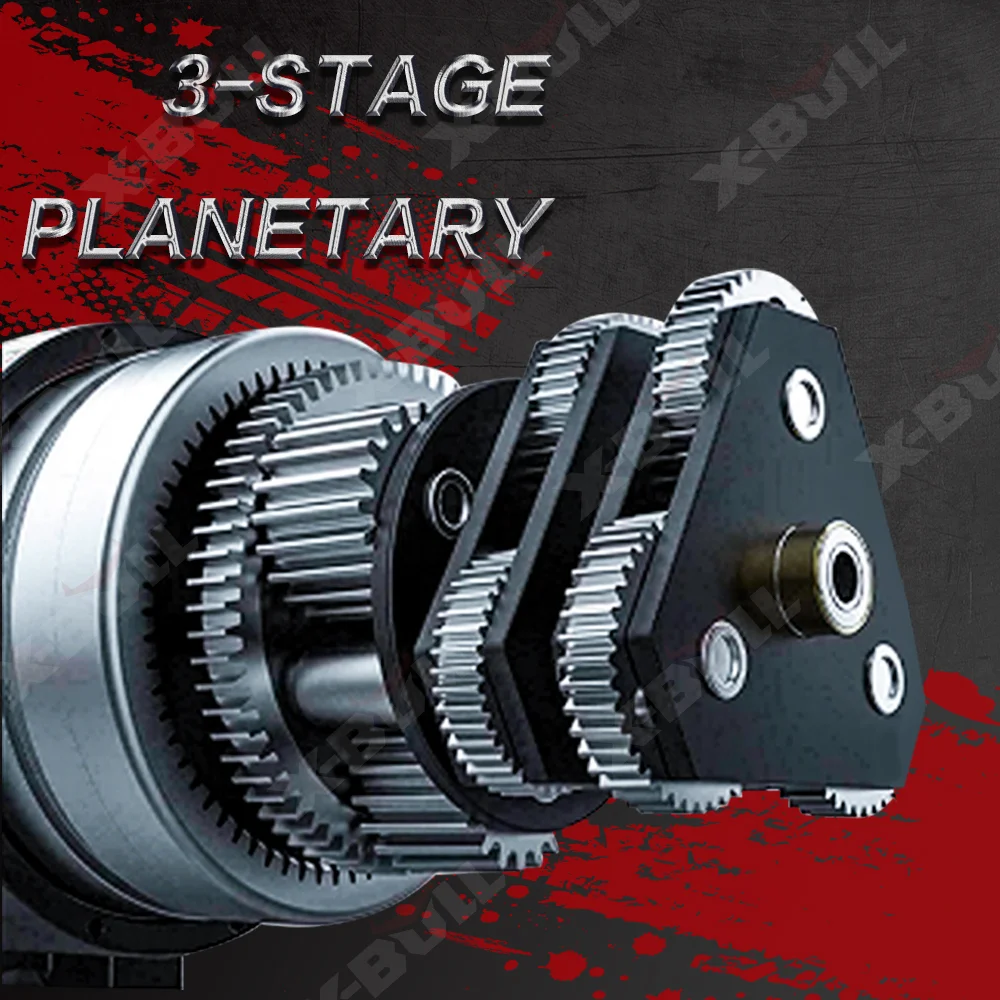

• 3-stage planetary gear train for differential, deceleration and reversal

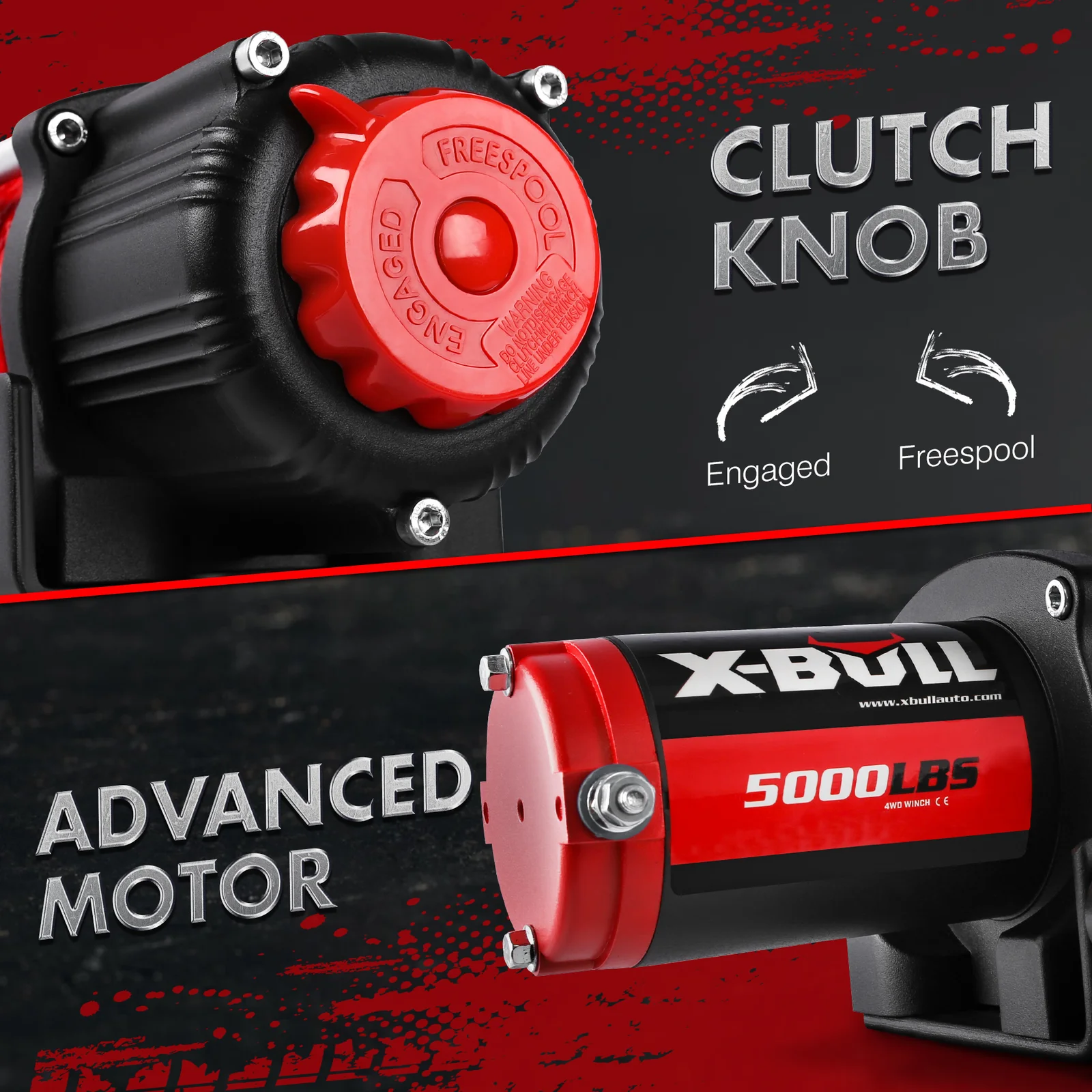

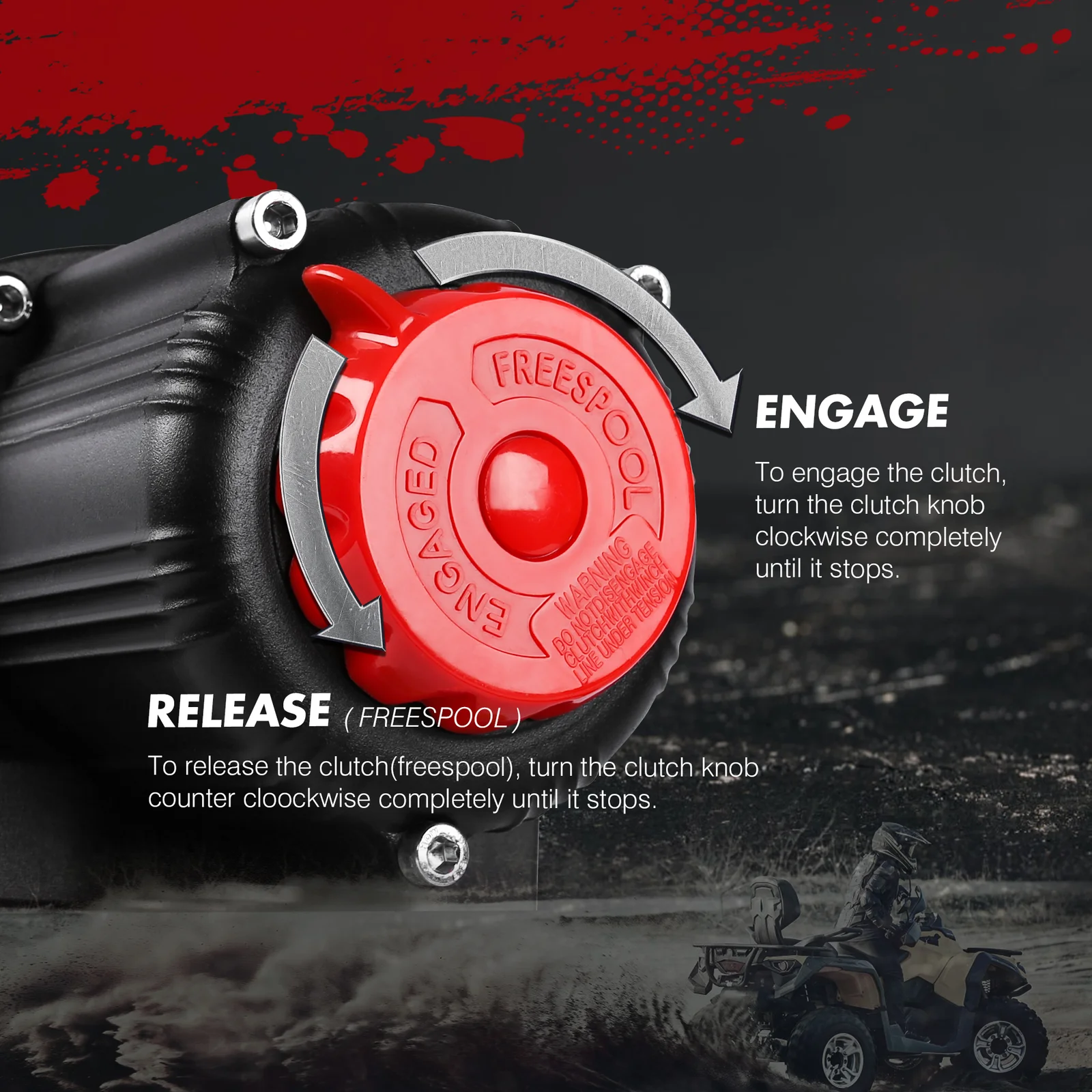

• Cam-activated freespool
• Wireless remote control and hand remote control included
• Aluminium hawse fairlead
• 1/4" clevis hook with spring-loaded safety latch
• IP66 rating on winch and controls (except remote switch, resistant to powerful water jets)

Specifications

• Rated single line pull: 5000lb (2268kg)

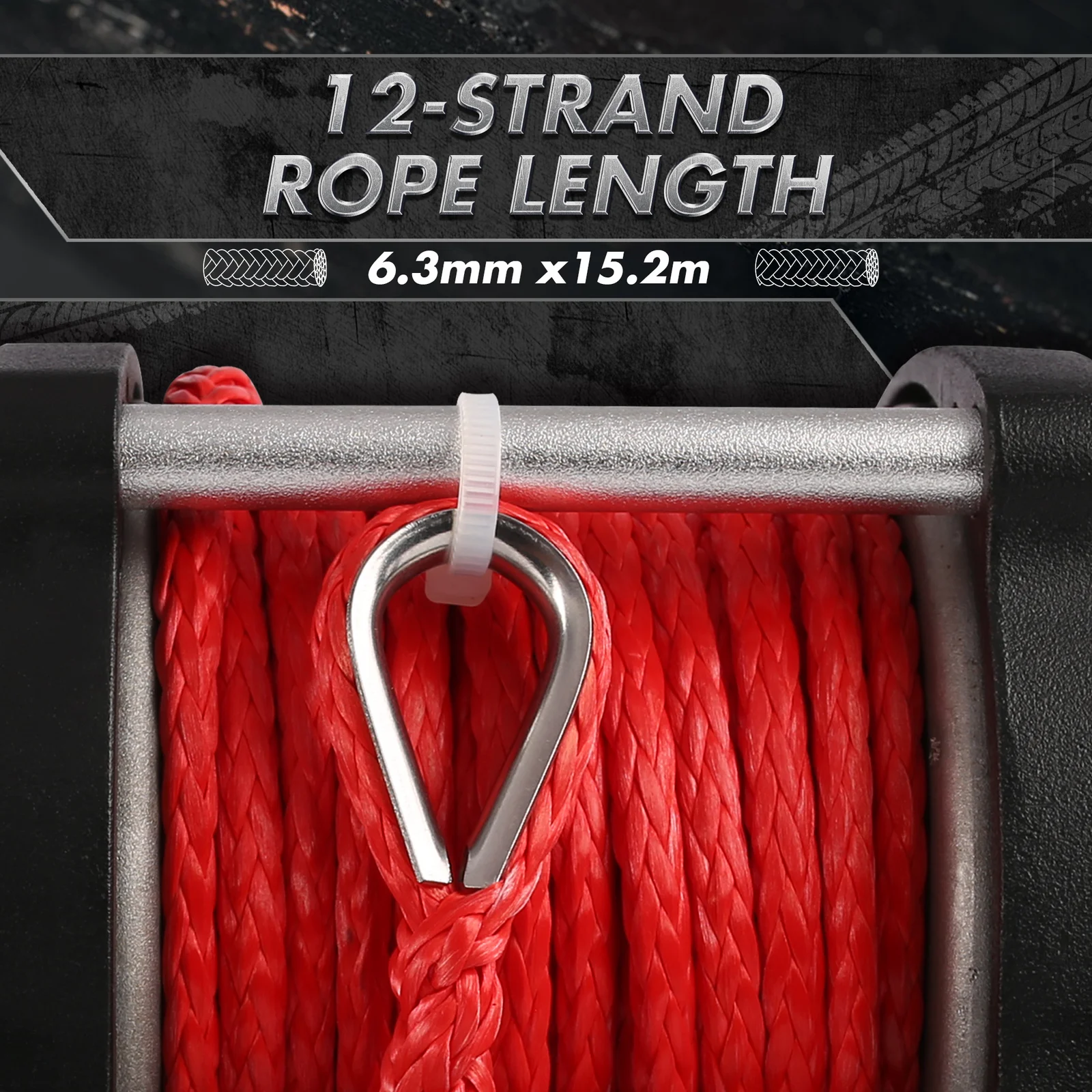

• Synthetic rope: 1/4" x 50' (6.3mm x 15.2m)
• Winch certification: CE
• Battery: 12VDC, minimum 12Ah
• Duty cycle rating: 5% (45 sec at max rated load, 14 min 15 sec rest)
• Overall dimensions (L x D x H): 15.8" x 4.6" x 4.7" (400 x 116 x 119mm)
• Solenoid: 6 gauge, 3' (0.92m) long
• Application: ATV/UTV/boat
• Mounting pattern: 3" x 6.6" (76.2mm x 167.6mm)
• Gear train: 3-stage planetary
• Adaptor plate: 2x G8, M8-1.25 x 25mm
• Fairlead: 2x G8, M8-1.25 x 20mm
• Hook: 1/4" clevis with spring-loaded safety latch
• Sound rating: 85 dB
• Weight: 26.45lb (12kg)

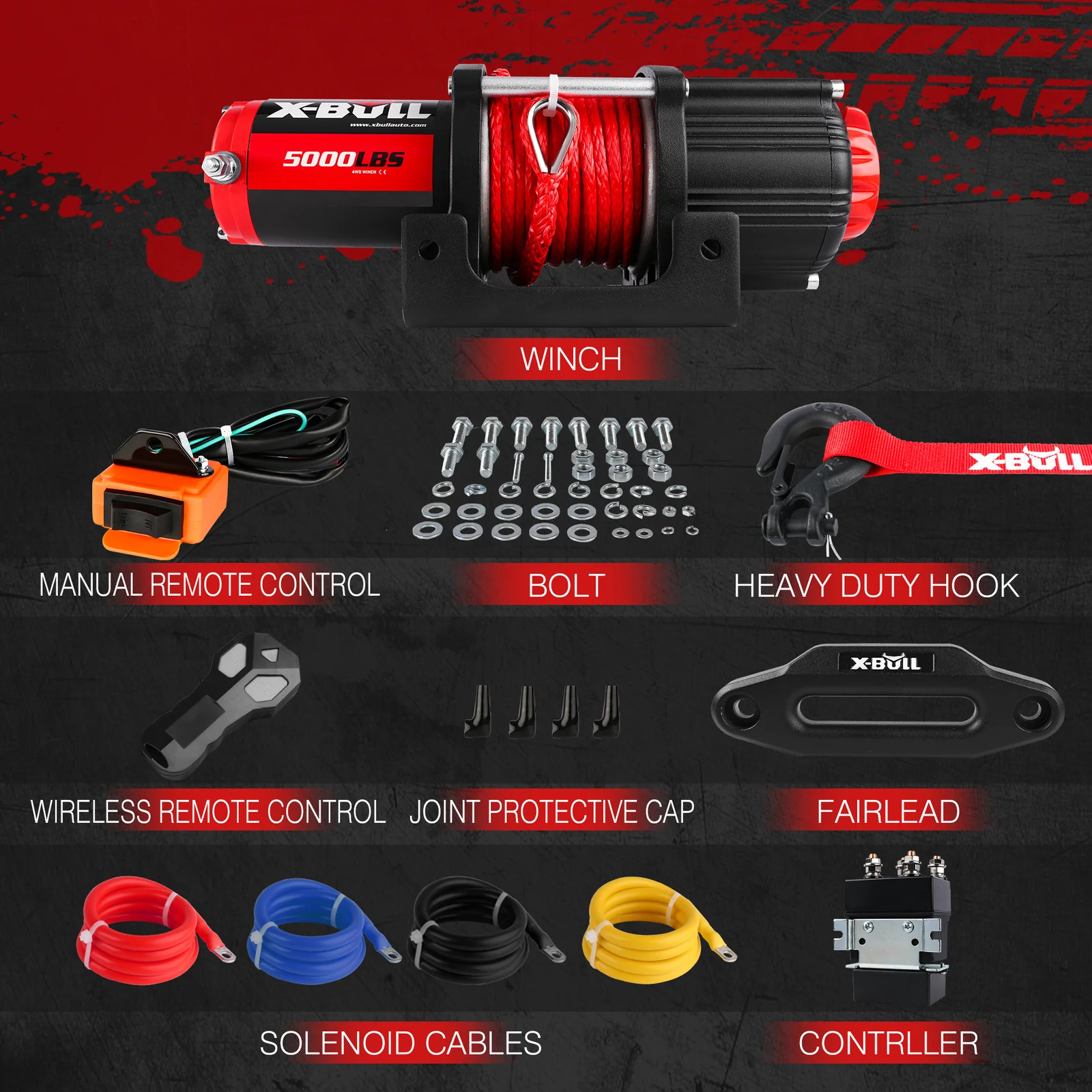

What's in the Box

• 5000lb winch x1
• Wireless remote control x1
• Hand remote control x1
• User manual x1
• Aluminium hawse fairlead x1
• Joint protective cap x4
• Controller (solenoid + receiver) x1
• Winch mounting plate x1
• Solenoid cables x4
• Set of bolts x1
• Clevis hook x1
