The X-BULL 4500lb 12V electric winch is a high-efficiency winch built for ATV and UTV recovery, featuring synthetic rope, a wireless remote and a 500A solenoid relay for dependable pulling power. With an IP68-rated winch and controls, it is designed to handle demanding off-road conditions.
Key Features
- Pure copper motor for high power, high efficiency and safe operation

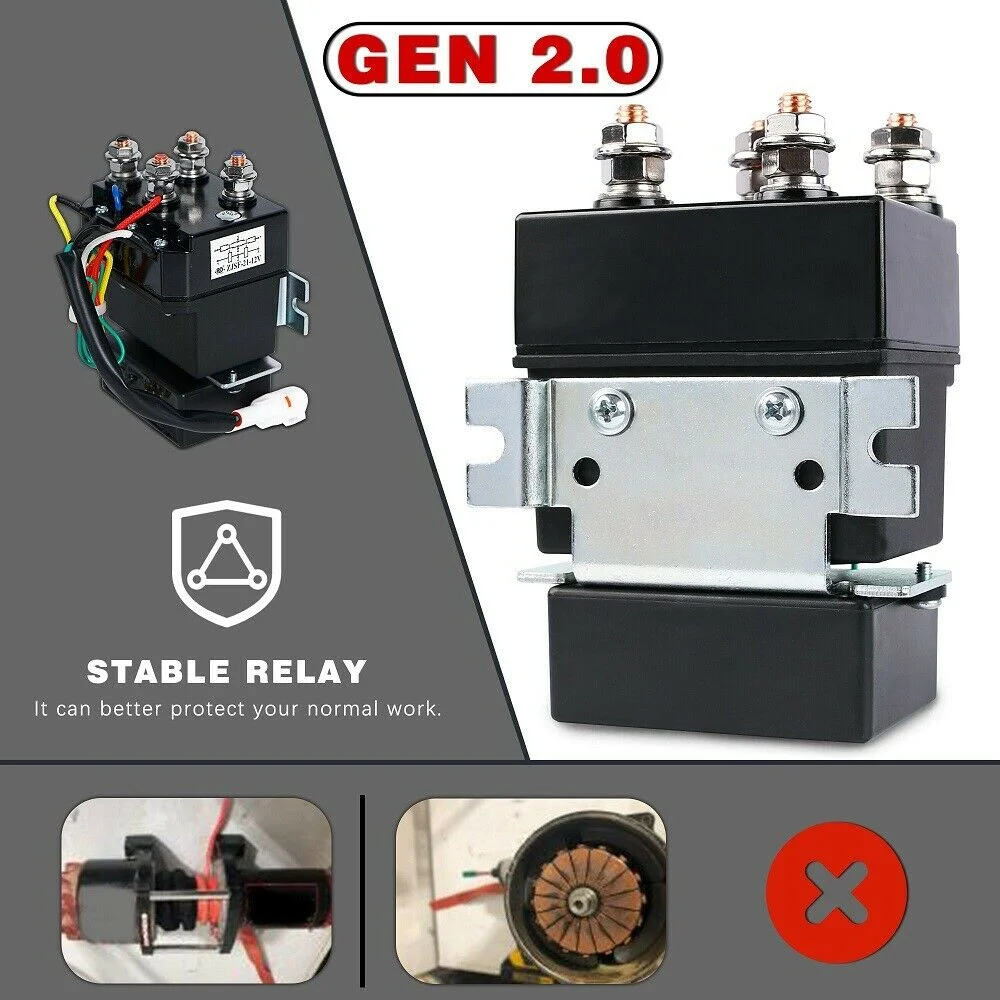

- 500A solenoid relay for durable, stable performance
- 3-stage planetary geartrain for smooth deceleration and reversal
- Power in and power out operation

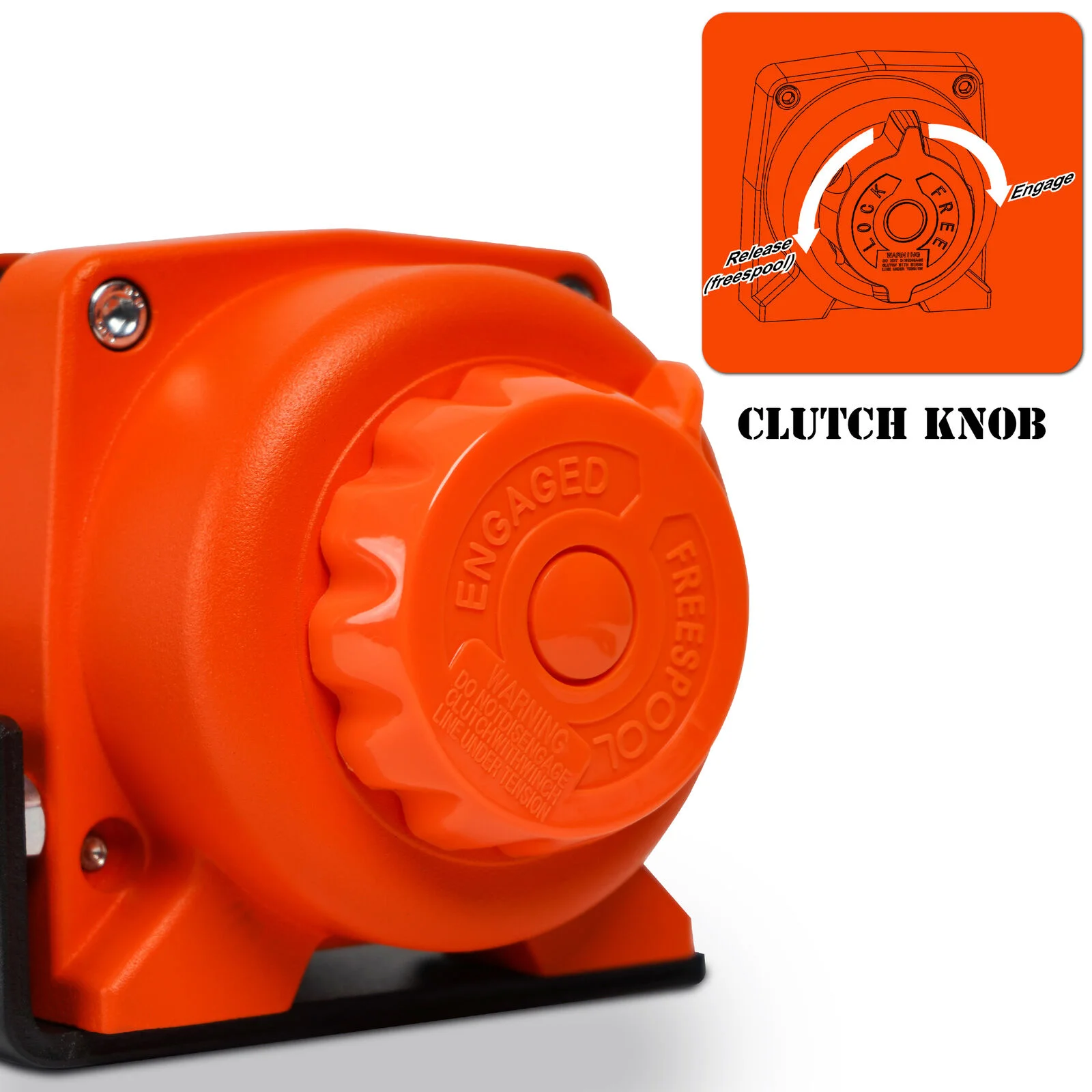

- Cam-activated freespool
- Automatic load-holding mechanical brake
- IP68-rated winch and controls (except remote switch, resistant to immersion up to 3')
- Spring-loaded safety latch on the clevis hook
Specifications
- Rated single line pull: 4500lb (2041kg)

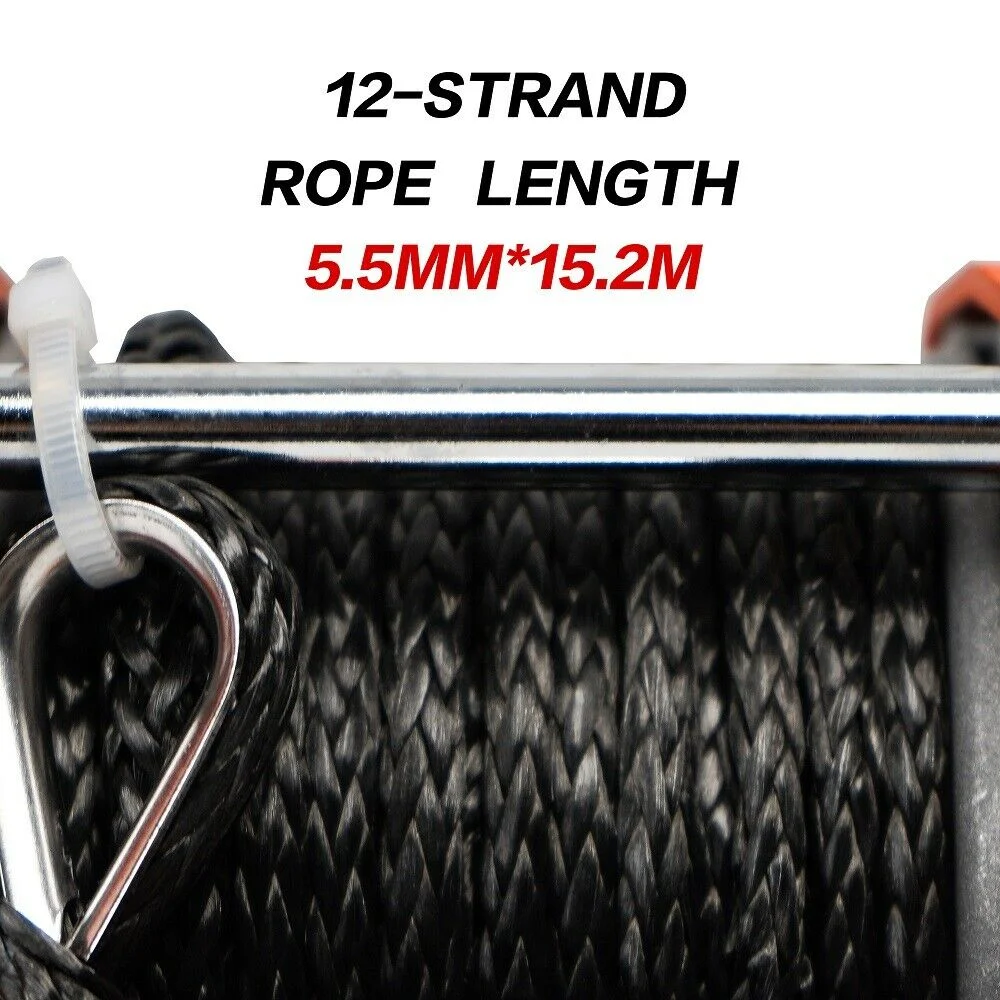

- Rope: 5.5mm x 15.2m

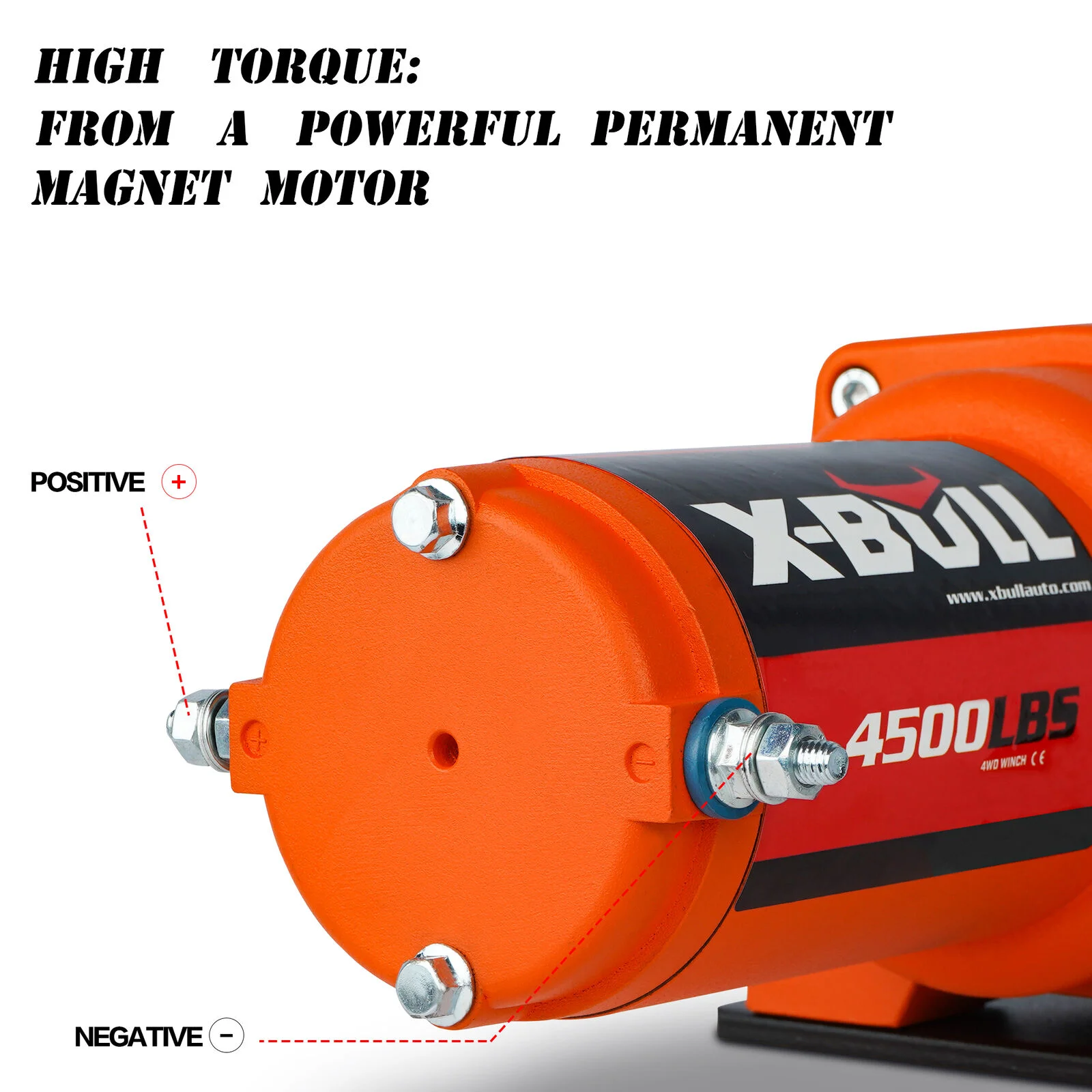

- Motor: 12V DC 1.9 HP permanent magnet
- Battery: 12VDC, minimum 12Ah
- Duty cycle rating: 5% (45 sec at max rated load, 14 min 15 sec rest)
- Geartrain: 3-stage planetary
- Brake: automatic load-holding mechanical

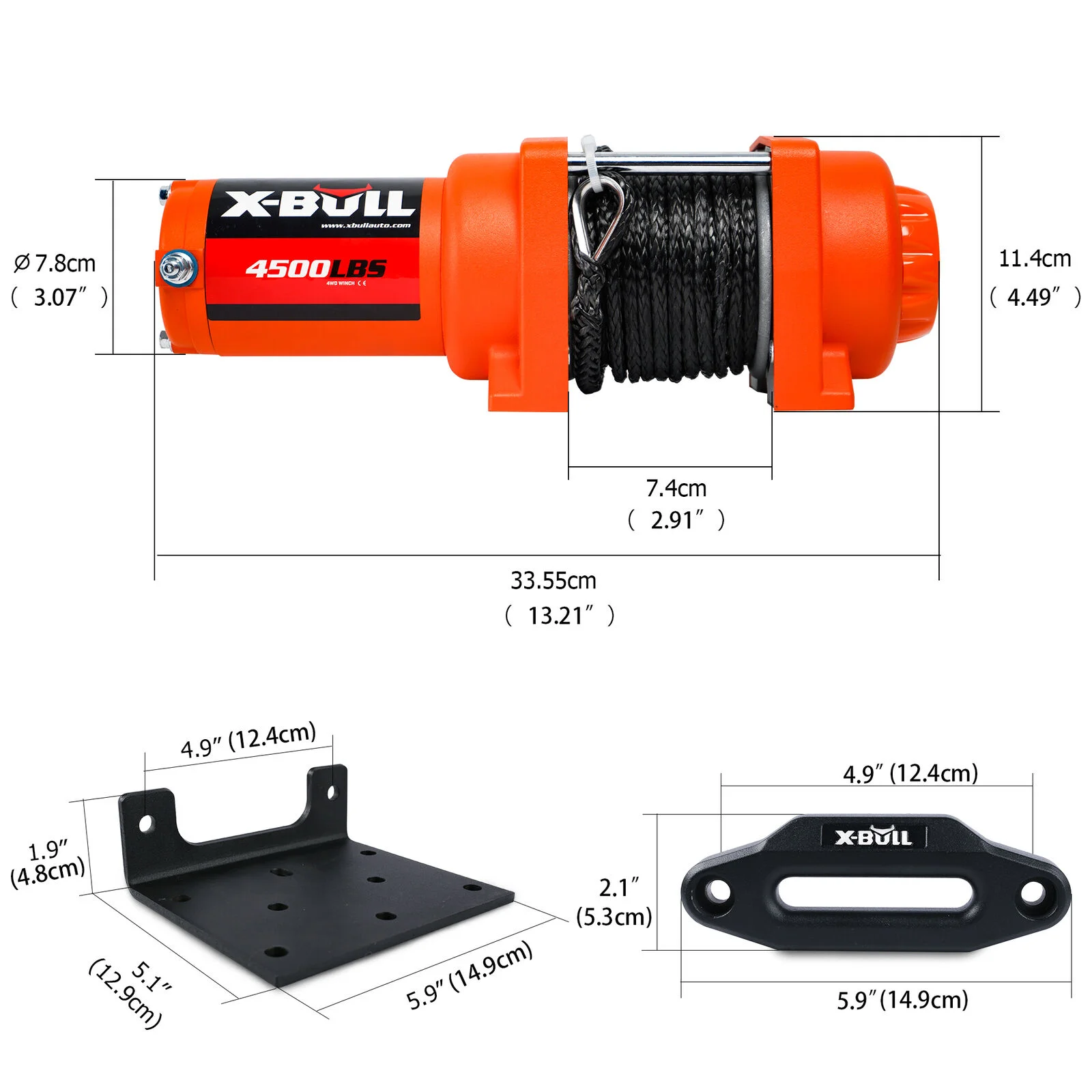

- Drum: 50mm x 74mm
- Hook: 1/4" clevis with spring-loaded safety latch
- Overall dimensions: 338 x 108 x 114mm
- Mounting pattern: 76.2mm x 124mm
- Sound rating: 85 dB
- Winch certification: CE
- Weight: 11.3kg / 9.8kg
- Application: ATV/UTV

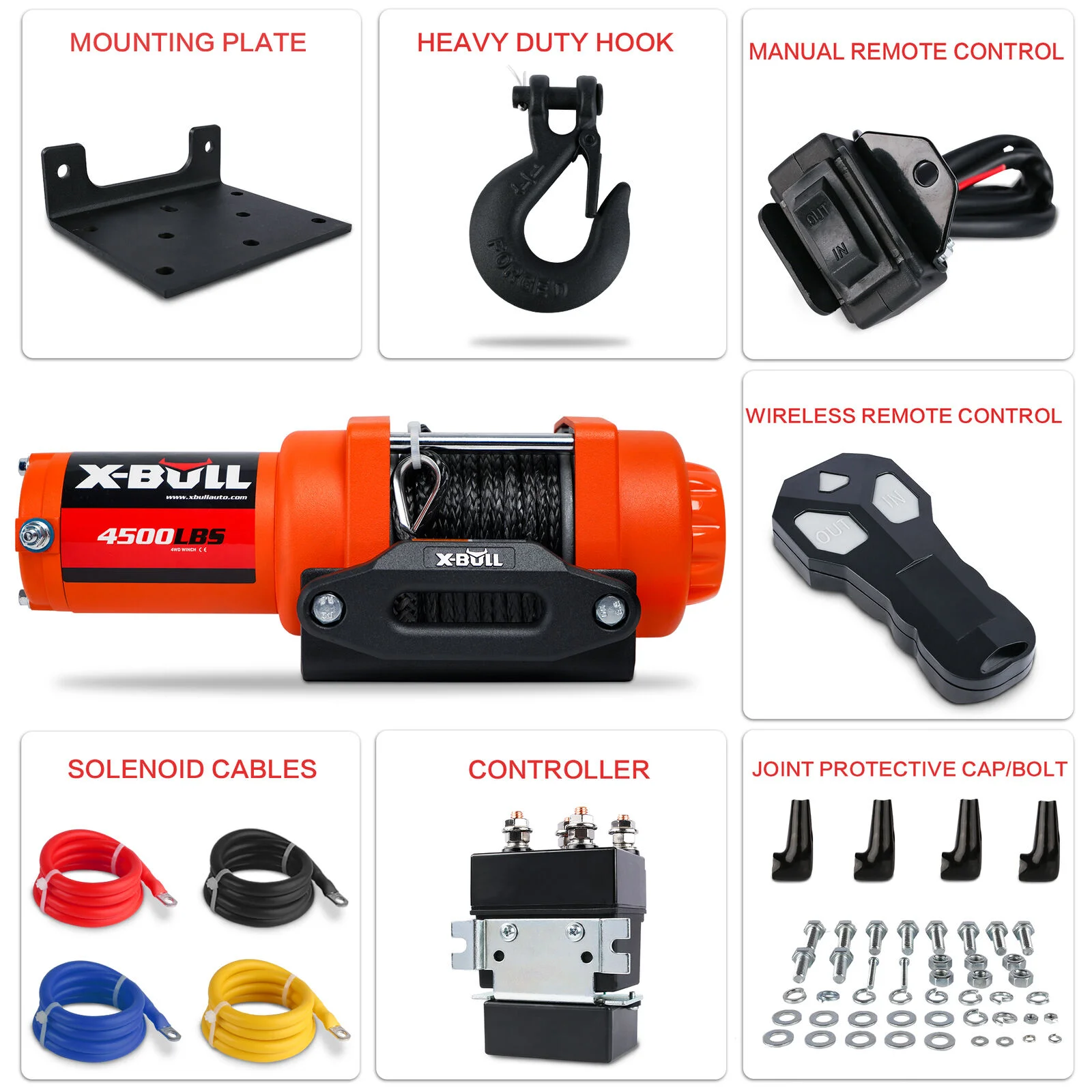

What's in the Box

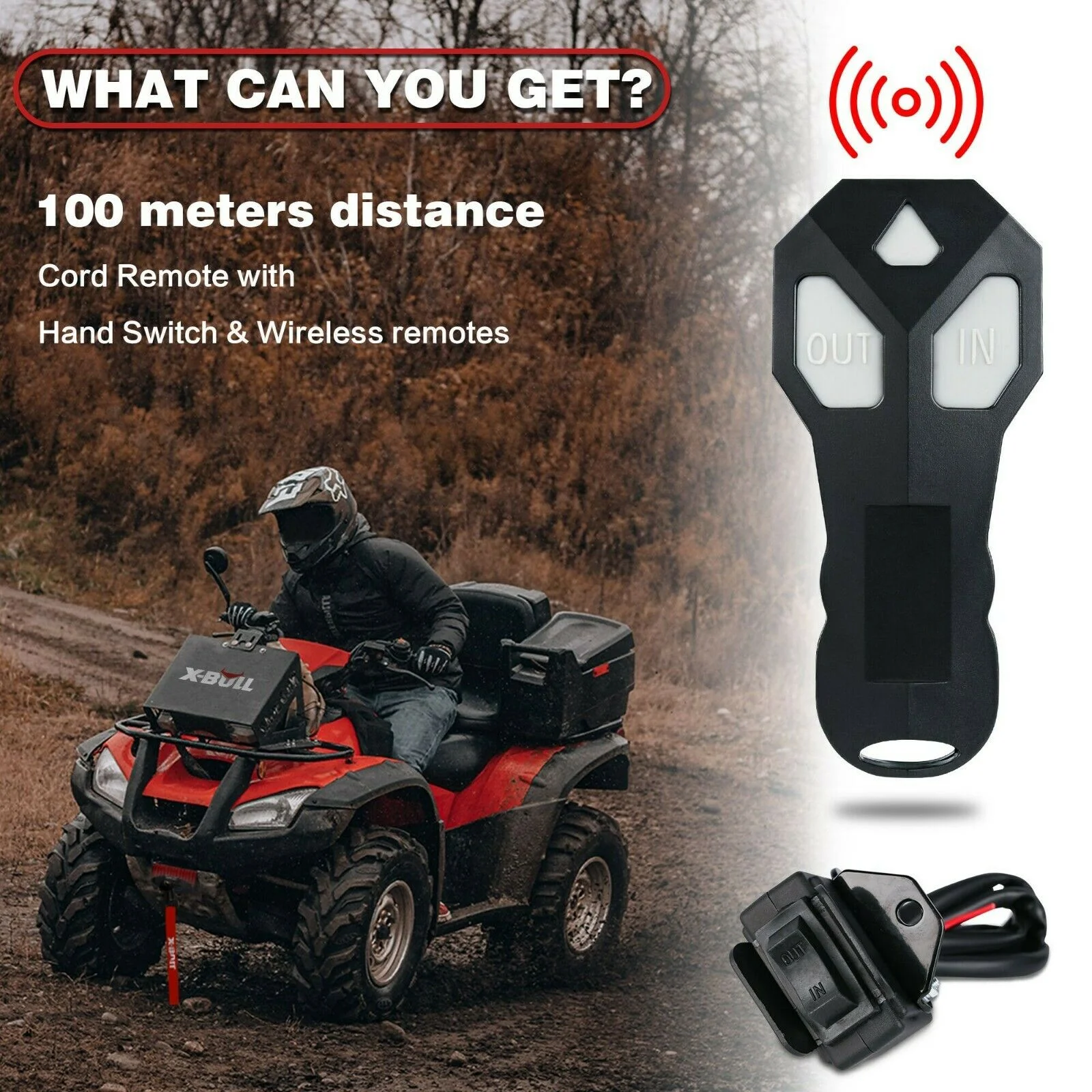

- Wired remote control, 3.7m long
- Battery cables, 6 gauge, 1.83m long
- Handlebar controller, wired, 2.4m long
- Solenoid cables, 6 gauge, 0.92m long
