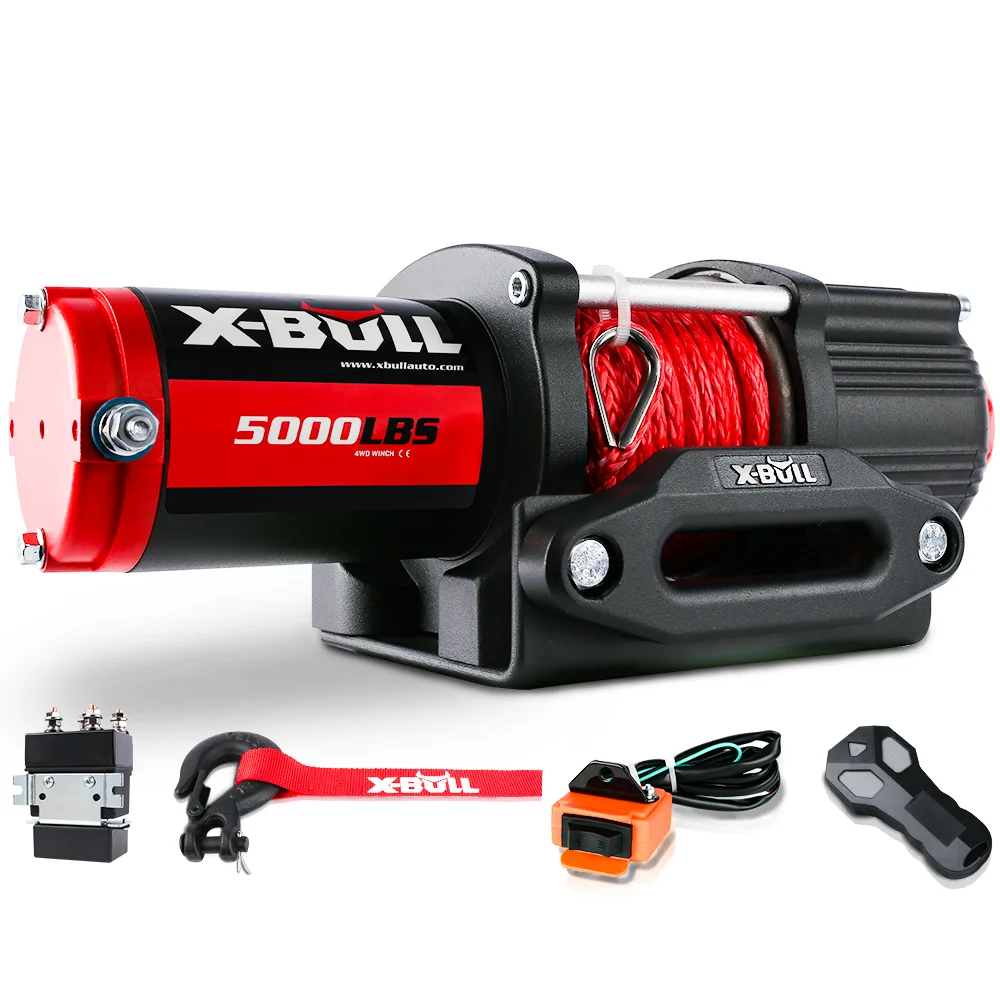

X-BULL 12V 5000lb Electric Winch with Synthetic Rope & Wireless Remote

The X-BULL 12V 5000lb electric winch is a high-efficiency recovery winch built for ATV, UTV, boat and trailer use. With a pure copper motor, a genuine 3-stage planetary gear train and a 500A solenoid relay, it delivers reliable pulling power for off-road and everyday recovery tasks.

Key Features

• Pure copper motor for strong power, high efficiency and heat resistance
• 500A solenoid relay for durable, stable and insulated operation
• Genuine 3-stage planetary gear train for smooth deceleration and reversal
• Cam-activated freespool for easy rope handling
• Wireless remote control plus hand remote control included
• IP66-rated winch and controls (remote switch excluded)

Specifications

• Rated single line pull: 5000lb (2268kg)
• Steel cable: 1/4'' x 50' (6.3mm x 15.2m)
• Winch certification: CE
• Battery: 12VDC, minimum 12Ah
• Duty cycle rating: 5% (45 sec at max rated load; 14 min, 15 sec rest)
• Overall dimensions (L x D x H): 15.8'' x 4.6'' x 4.7'' (400 x 116 x 119mm)
• Solenoid: 6 gauge, 3' (0.92m) long
• Application: ATV/UTV/boat
• Mounting pattern: 3'' x 6.6'' (76.2mm x 167.6mm)
• Gear train: 3-stage planetary
• Adaptor plate: 2x G8, M8-1.25 x 25mm
• Freespool: cam activated
• Fairlead: 2x G8, M8-1.25 x 20mm
• Hook: 1/4'' clevis with spring-loaded safety latch
• Sound rating: 85 dB
• Weight: 26.45lb (12kg)
• IP rating: IP66 winch and controls (except remote switch, resistant to powerful water jets)

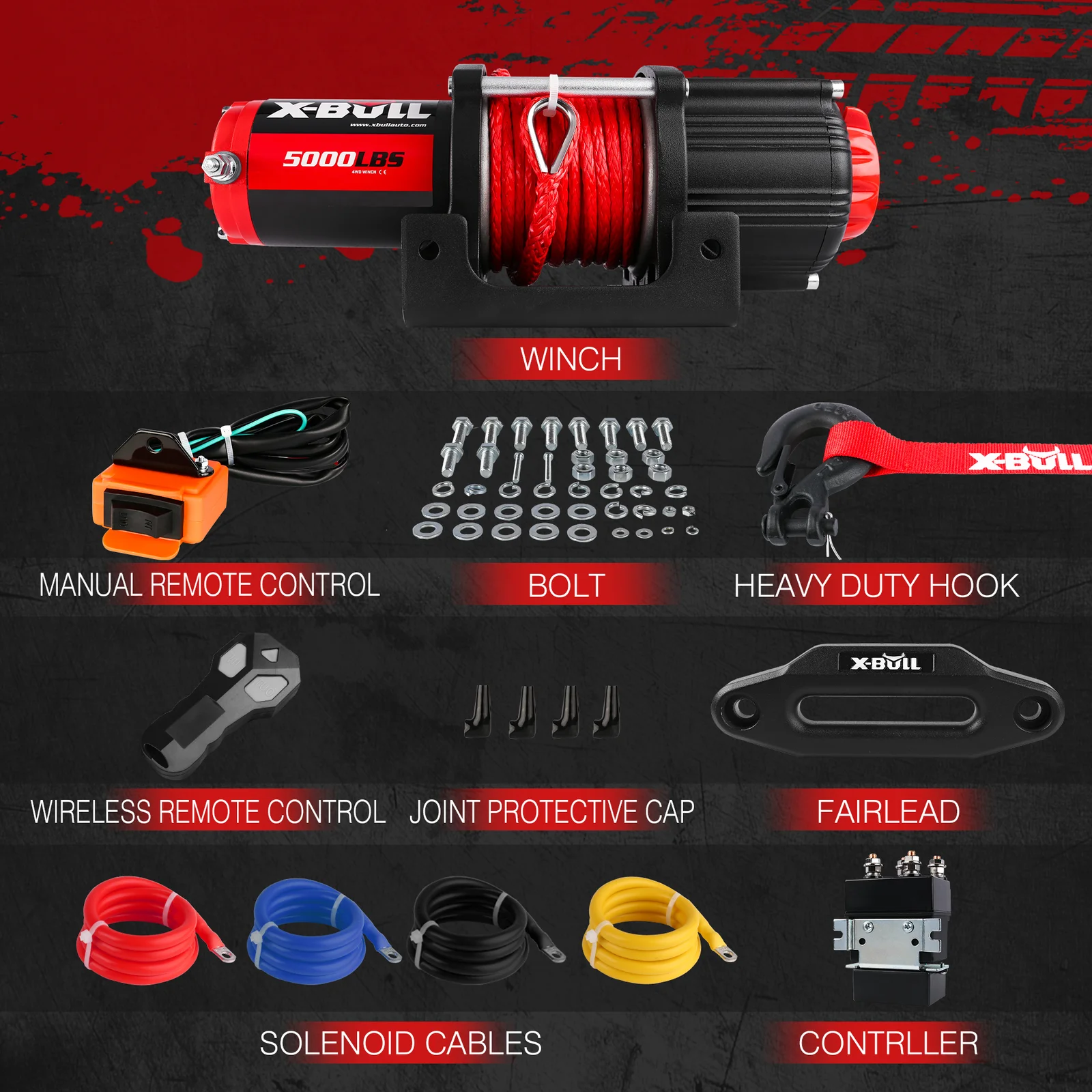

What's in the Box

• 5000lb winch x1
• Wireless remote control x1
• Hand remote control x1
• User manual x1
• Aluminium hawse fairlead x1
• Joint protective cap x4
• Controller (solenoid + receiver) x1
• Winch mounting plate x1
• Solenoid cables x4
• Set of bolts x1
• Clevis hook x1
