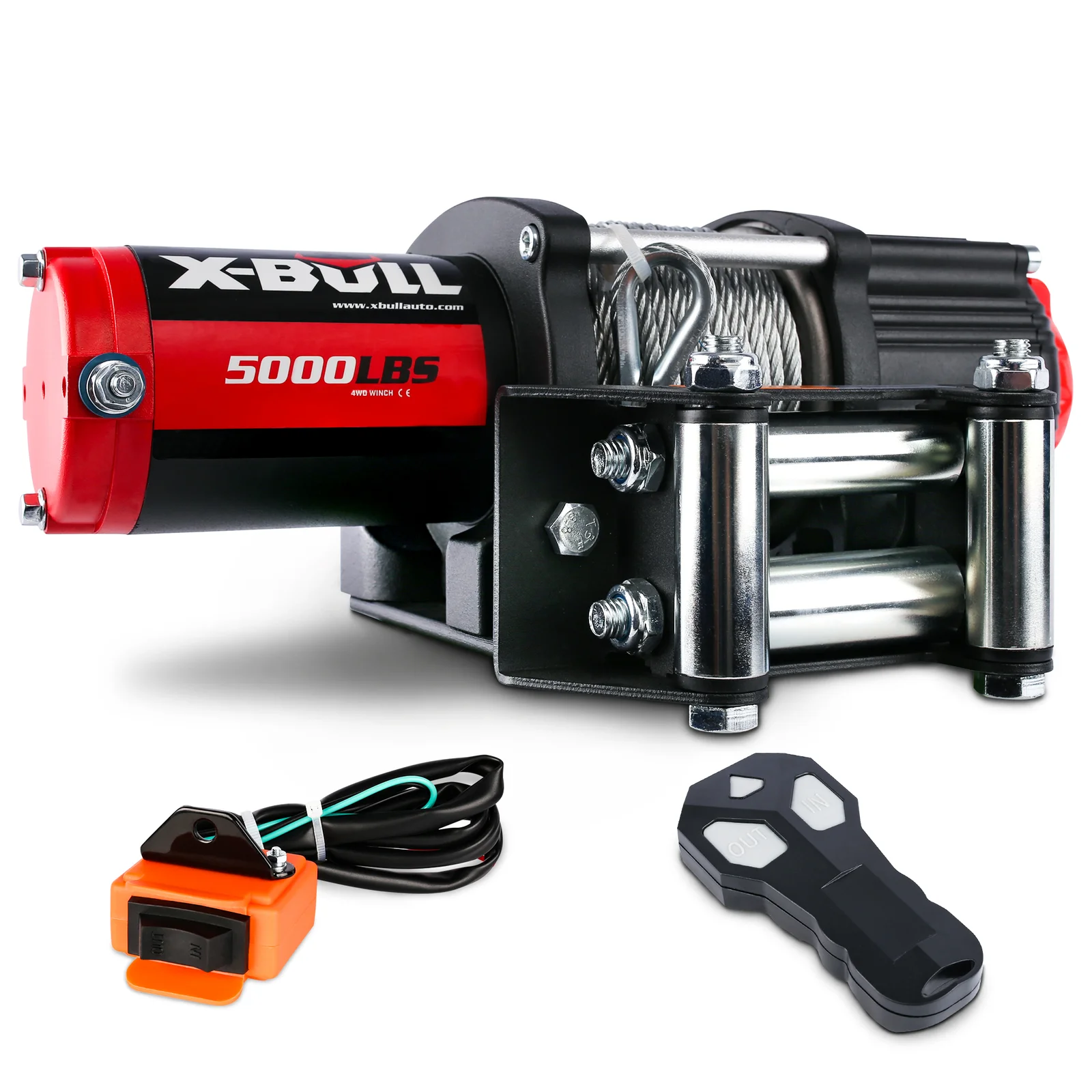

X-BULL 12V Electric Winch 5000lb Steel Cable with Wireless Remote for ATV UTV Boat Trailer

The X-BULL 12V electric winch delivers a 5000lb single-line pull for ATV, UTV and boat trailer recovery, combining a pure copper motor, a 500A solenoid relay and a 3-stage planetary gear train in a compact IP66-rated unit.

Key Features

• Pure copper motor for strong power, high efficiency and heat resistance
• 500A solenoid relay for durable, stable and insulated operation
• 3-stage planetary gear train for smooth deceleration and reversal
• Cam-activated freespool for quick cable payout
• Wireless remote control and hand remote control included
• Roller fairlead with nylon bushings
• IP66 rating on winch and controls (remote switch excluded)

Specifications

• Rated single line pull: 5000lb (2268kg)
• Steel cable: 1/4" x 50' (6.3mm x 15.2m)
• Motor: 12VDC 1.5 HP permanent magnet
• Battery: 12VDC, minimum 12Ah
• Duty cycle rating: 5% (45 sec at max rated load, 14 min 15 sec rest)
• Gear train: 3-stage planetary
• Freespool: cam activated
• Fairlead: roller with nylon bushings
• Hook: 1/4" clevis with spring-loaded safety latch
• Mounting pattern: 3" x 6.6" (76.2mm x 167.6mm)
• Overall dimensions (L x D x H): 15.8" x 4.6" x 4.7" (400 x 116 x 119mm)
• Weight: 26.45lb (12kg)
• Sound rating: 85 dB
• Winch certification: CE
• Application: ATV, UTV, boat

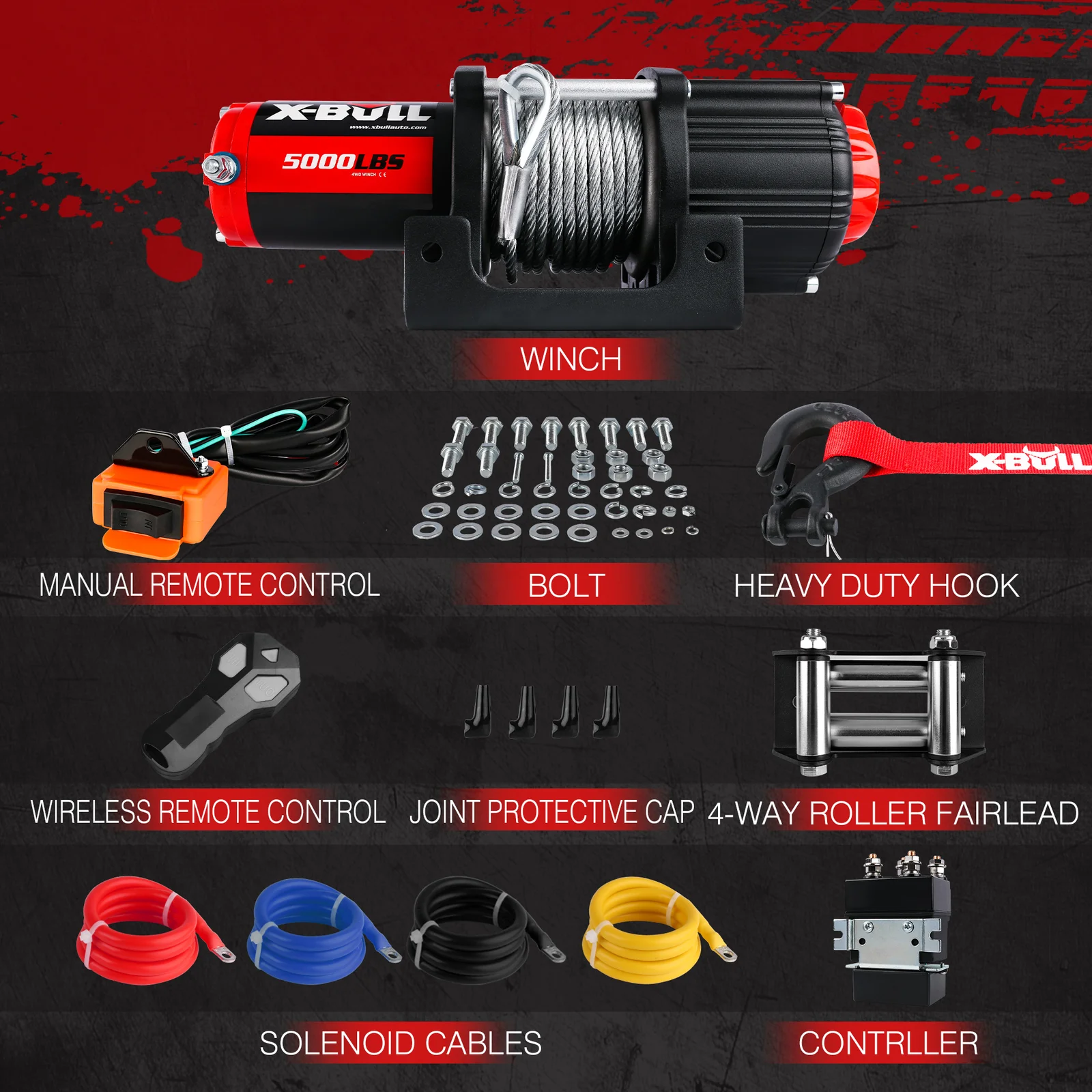

What's in the Box

• 5000lb winch x1
• Wireless remote control x1
• Hand remote control x1
• Controller (solenoid + receiver) x1
• 4-way roller fairlead x1
• Winch mounting plate x1
• Solenoid cables x4
• Set of bolts x1
• Clevis hook x1
• Joint protective cap x4
• User manual x1
