X-BULL 12V Electric Winch 14500lb Synthetic Rope with Winch Cover

The X-BULL 12V electric winch delivers a rated single line pull of 14500 lb (6590 kg), making it a strong choice for vehicle recovery in trucks, SUVs and other off-road vehicles. It comes with synthetic rope, an aluminium hawse fairlead and a winch cover, with a wireless remote and hand switch for convenient operation.

Key Features

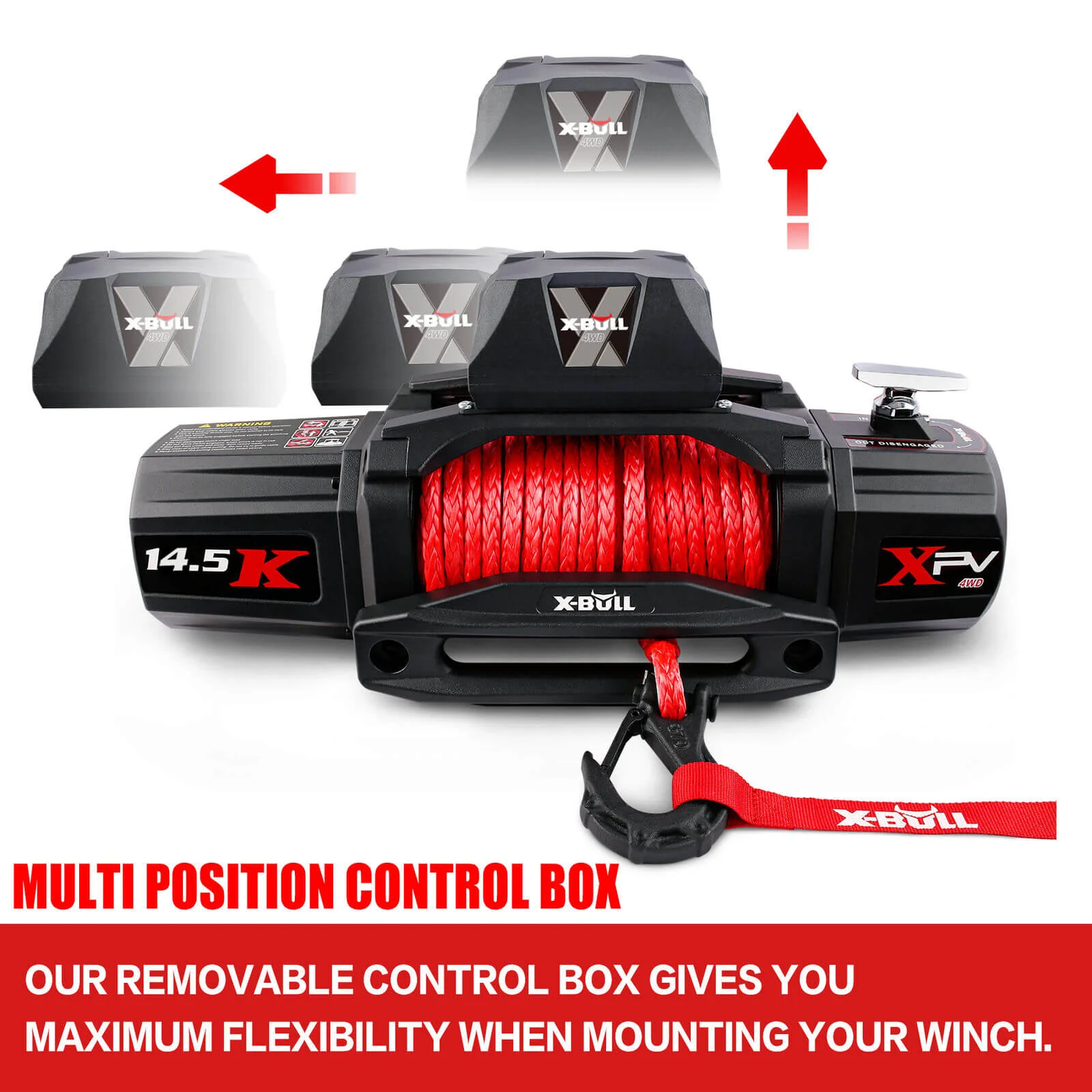

• Multi-position integrated control box with AgCdO contact material for high current conduction and protection against current, voltage and temperature issues
• Pure copper motor for high temperature resistance, strong power and efficient operation
• 3-stage planetary gear train for differential, deceleration and reversal

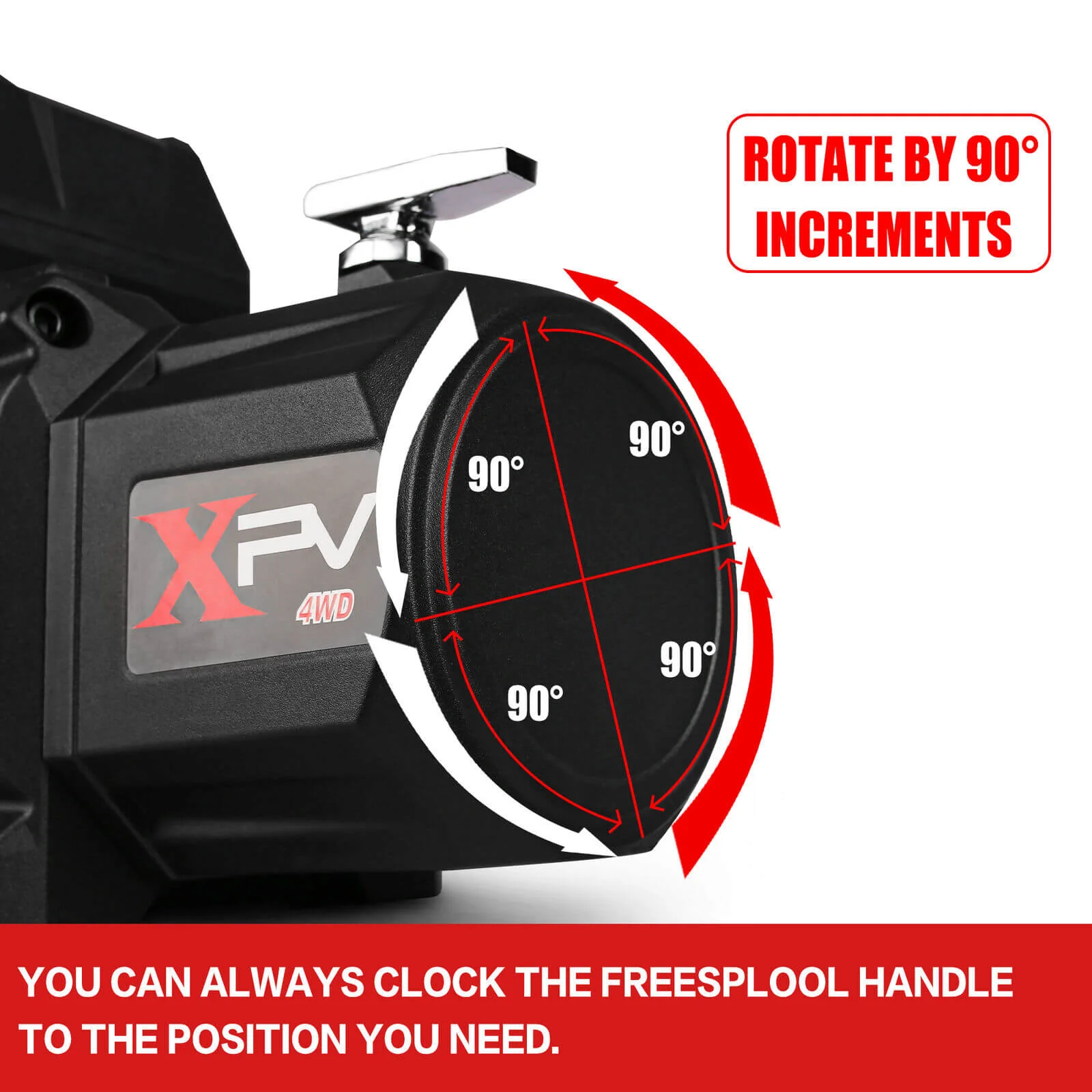

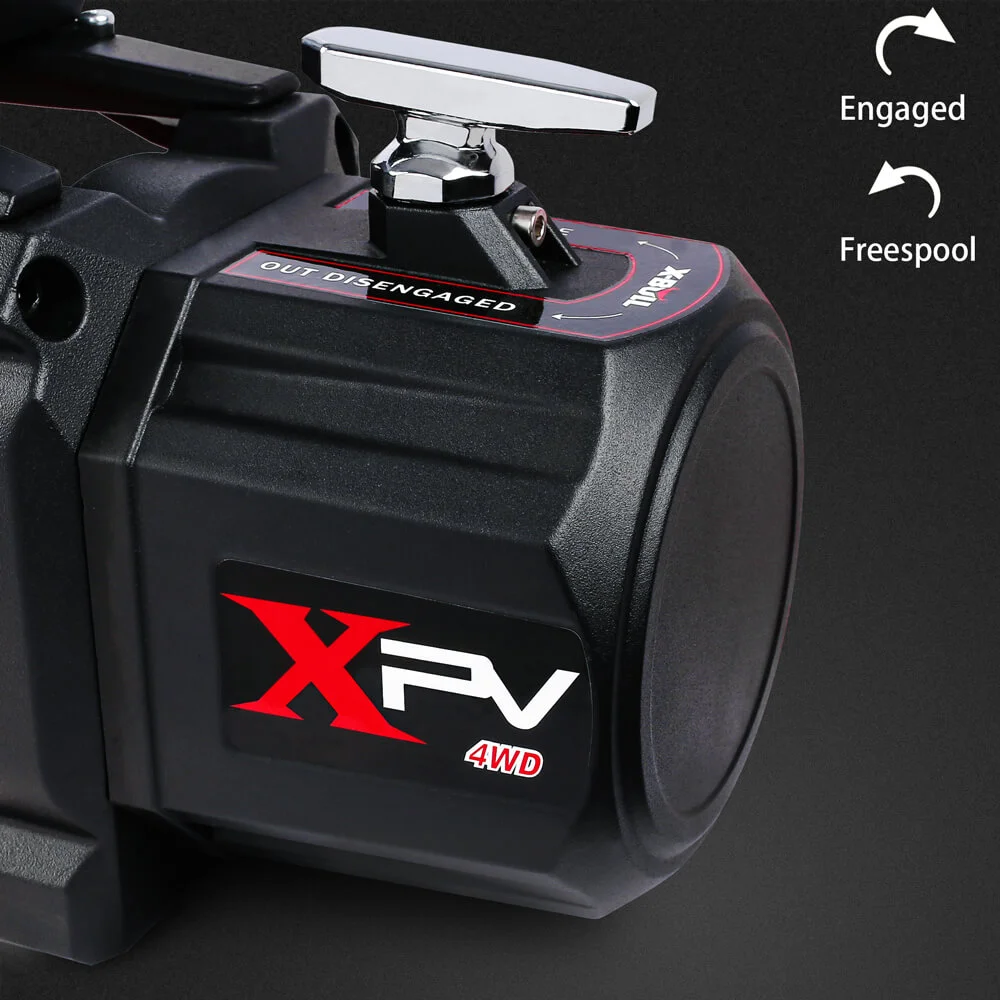

• Clutch rotates every 15 degrees and through 180 degrees to suit different installation angles

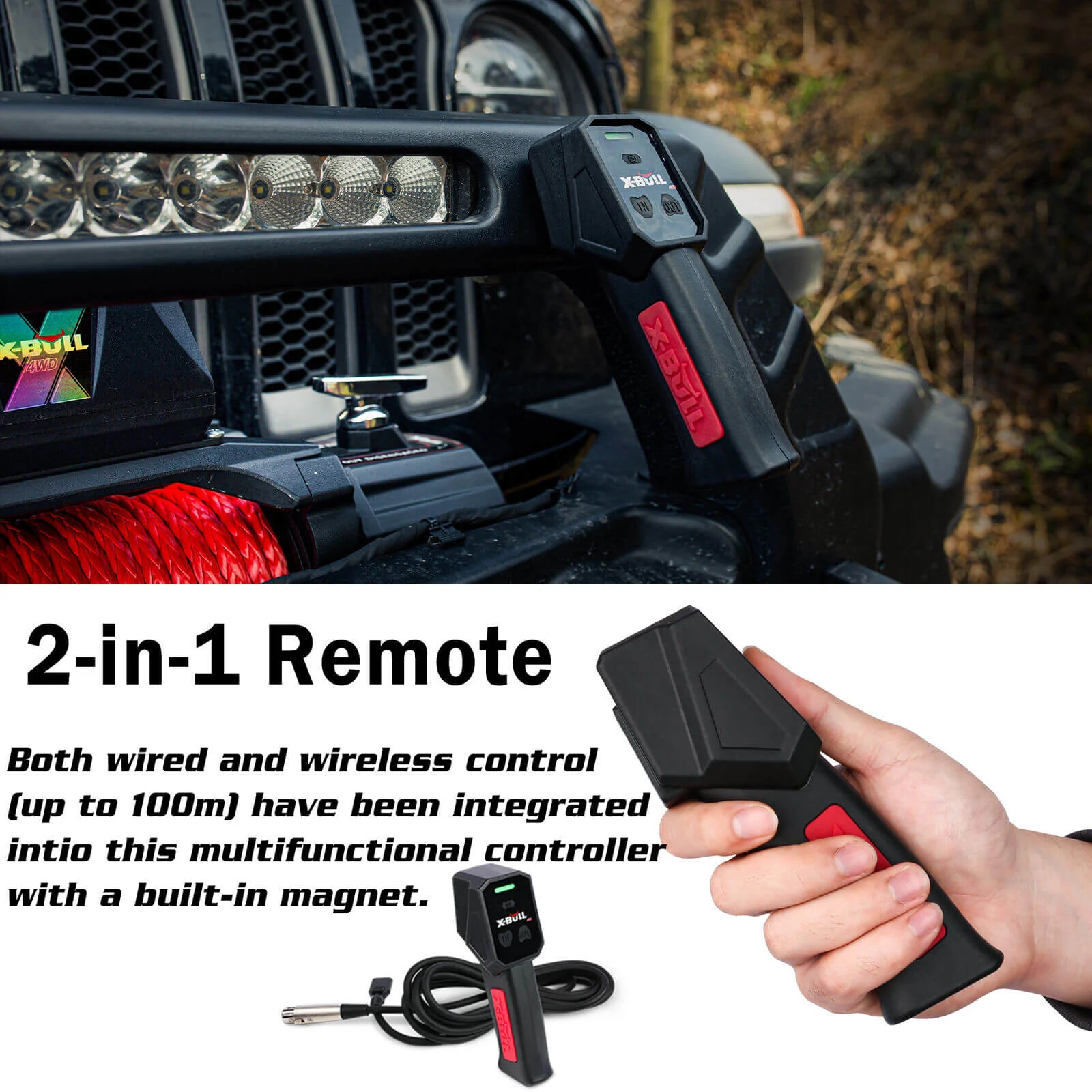

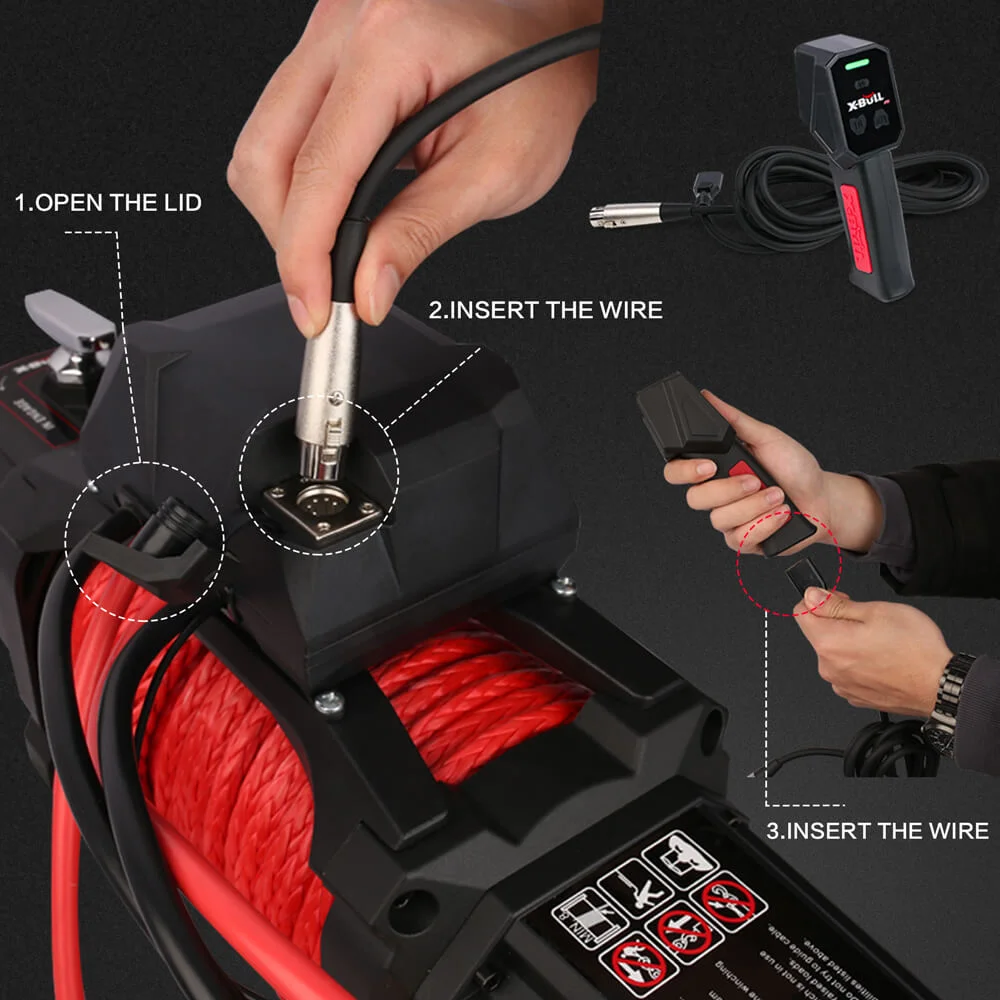

• Wireless remote combined with a hand switch for easier use

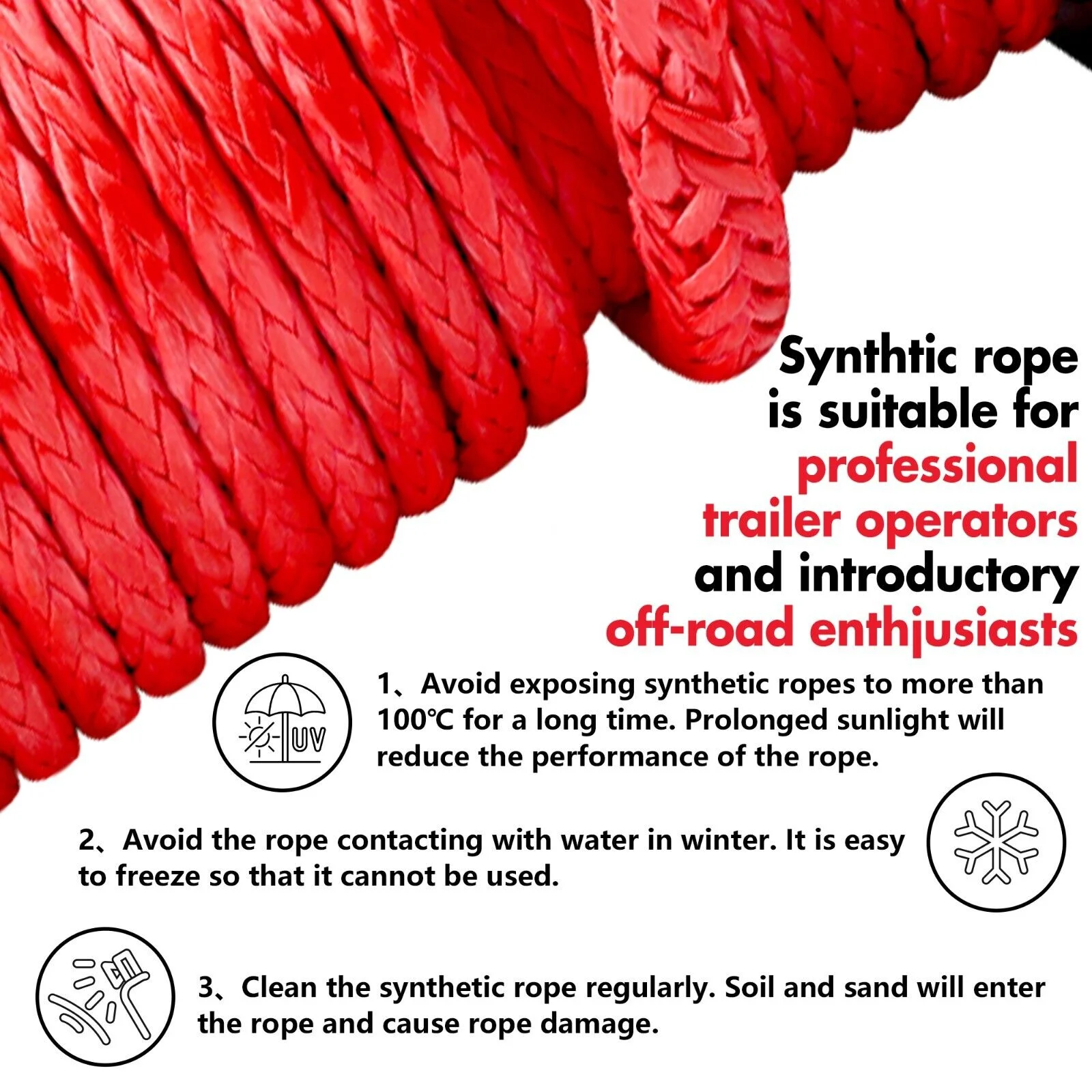

• Synthetic rope with aluminium hawse fairlead and clevis hook
• Includes a winch cover

Specifications

• Rated single line pull: 14500 lb (6590 kg)
• Motor: 12V DC, 6.4 HP
• Battery requirement: 12V DC, minimum 650 CCA
• Gear ratio: 265:1
• Gear train: 3-stage planetary

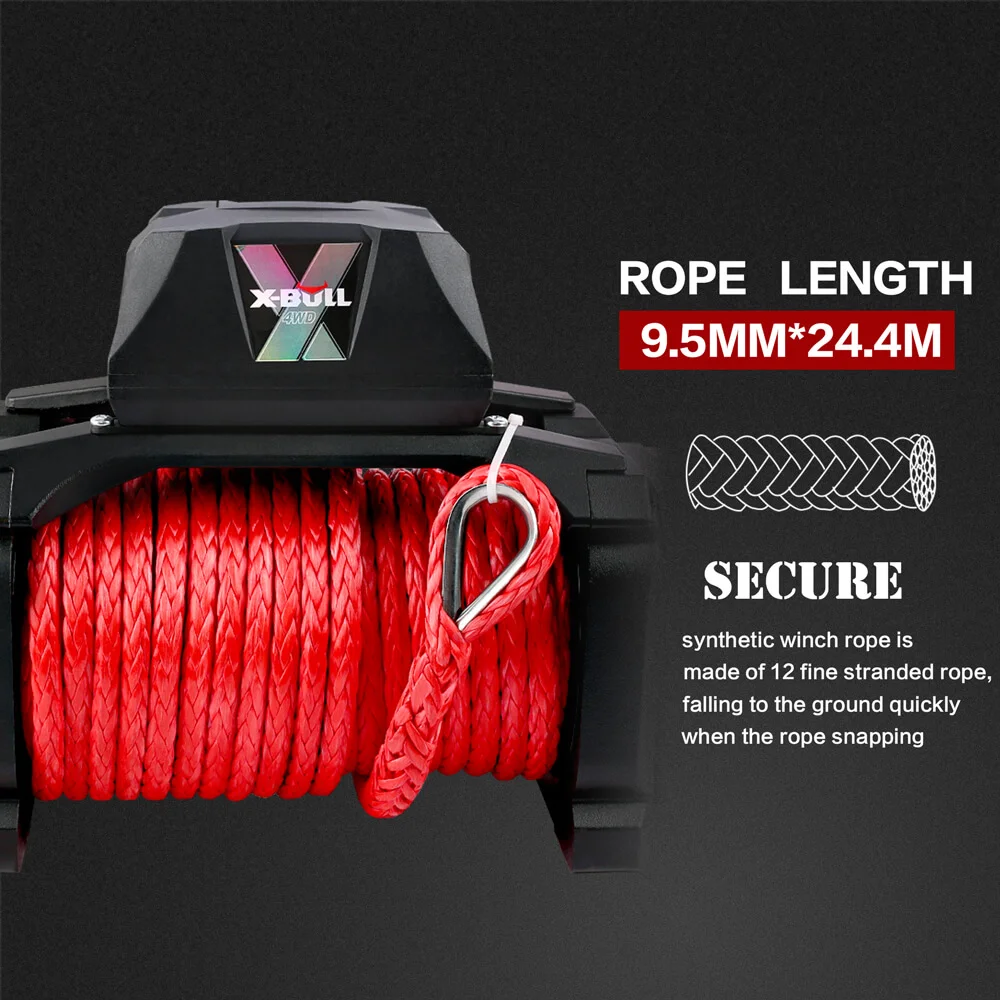

• Rope size: 0.375 x 80 (9.5 mm x 24.4 m)
• Fairlead: aluminium fairlead
• Hook: 3/8, replaceable with spring-loaded safety latch
• Sound rating: 85 dB
• Weight: 59.5 lb (27 kg)

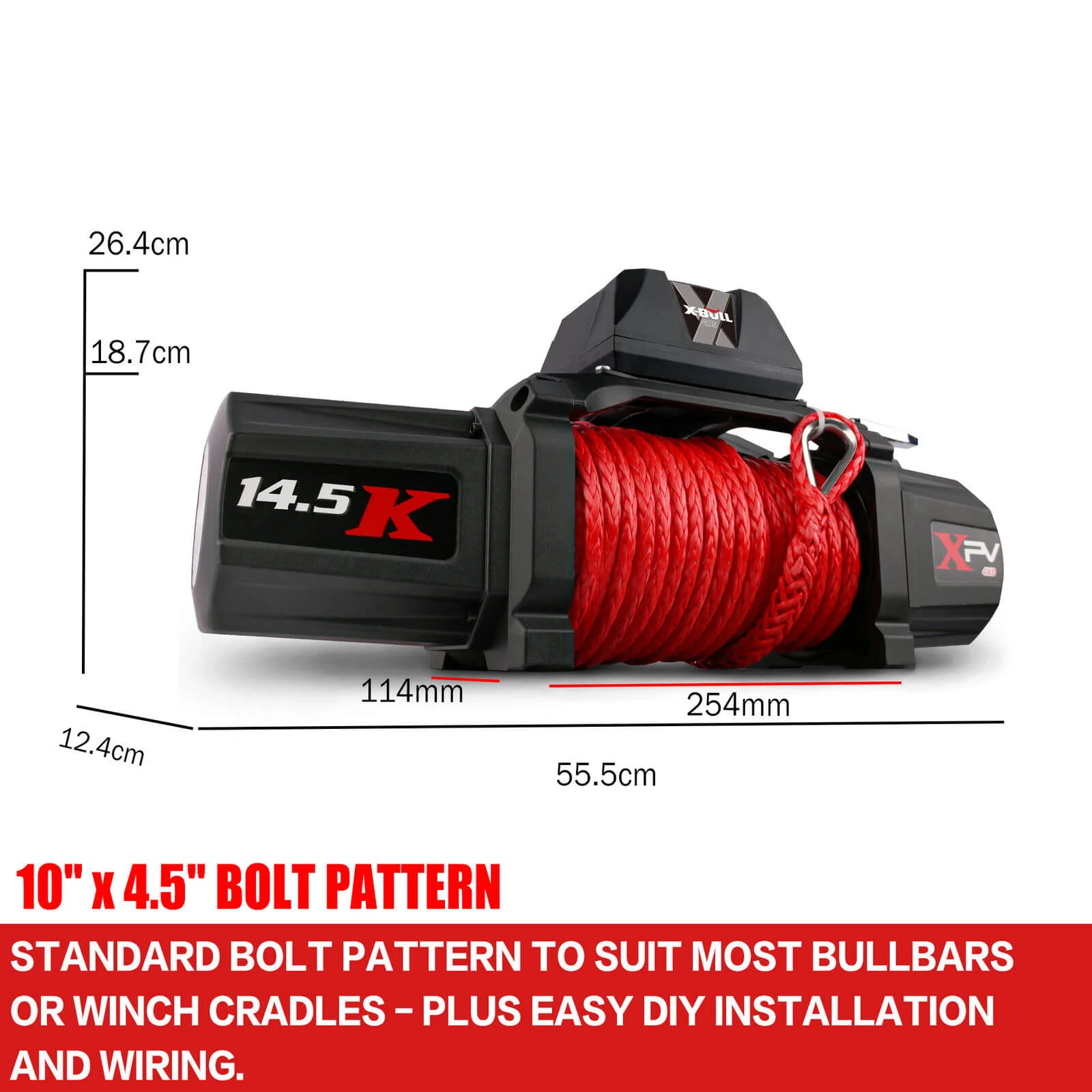

• Overall dimensions (L x D x H): 555 x 124 x 264 mm

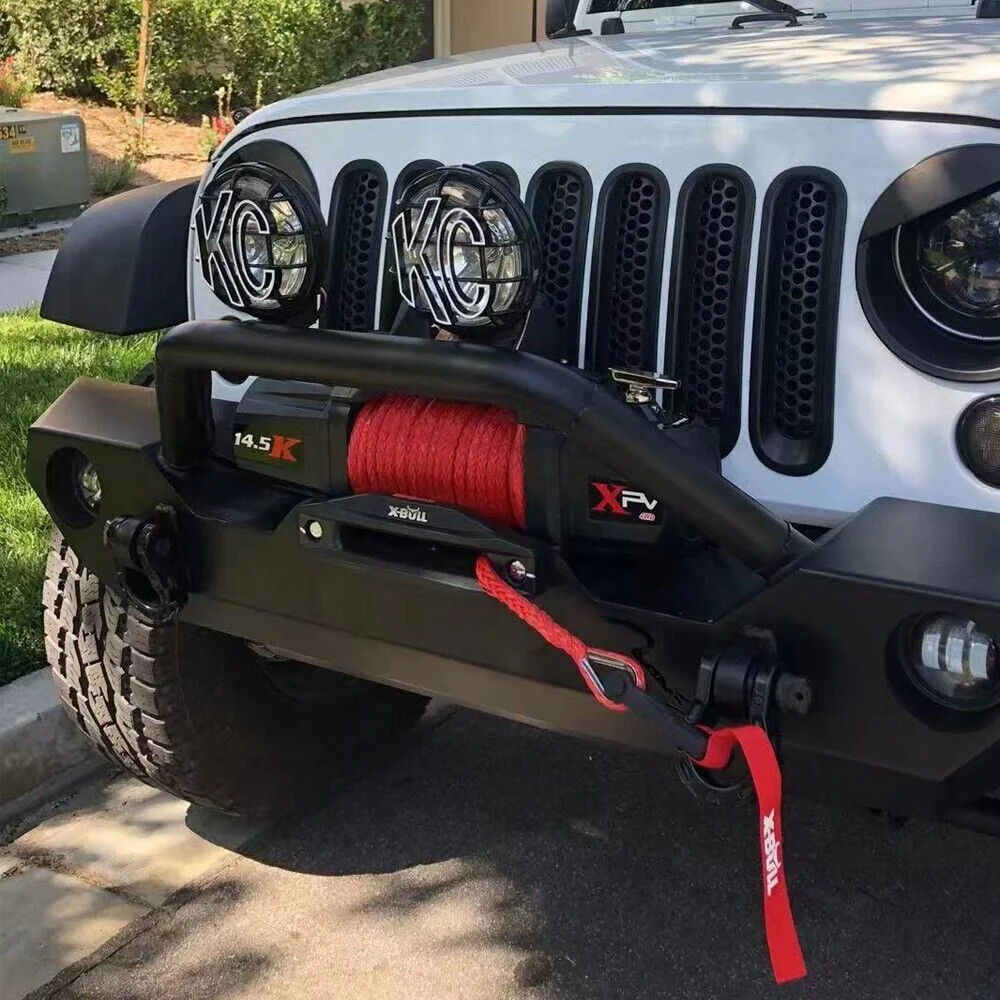

• Application: vehicle recovery for trucks and SUVs and similar vehicles

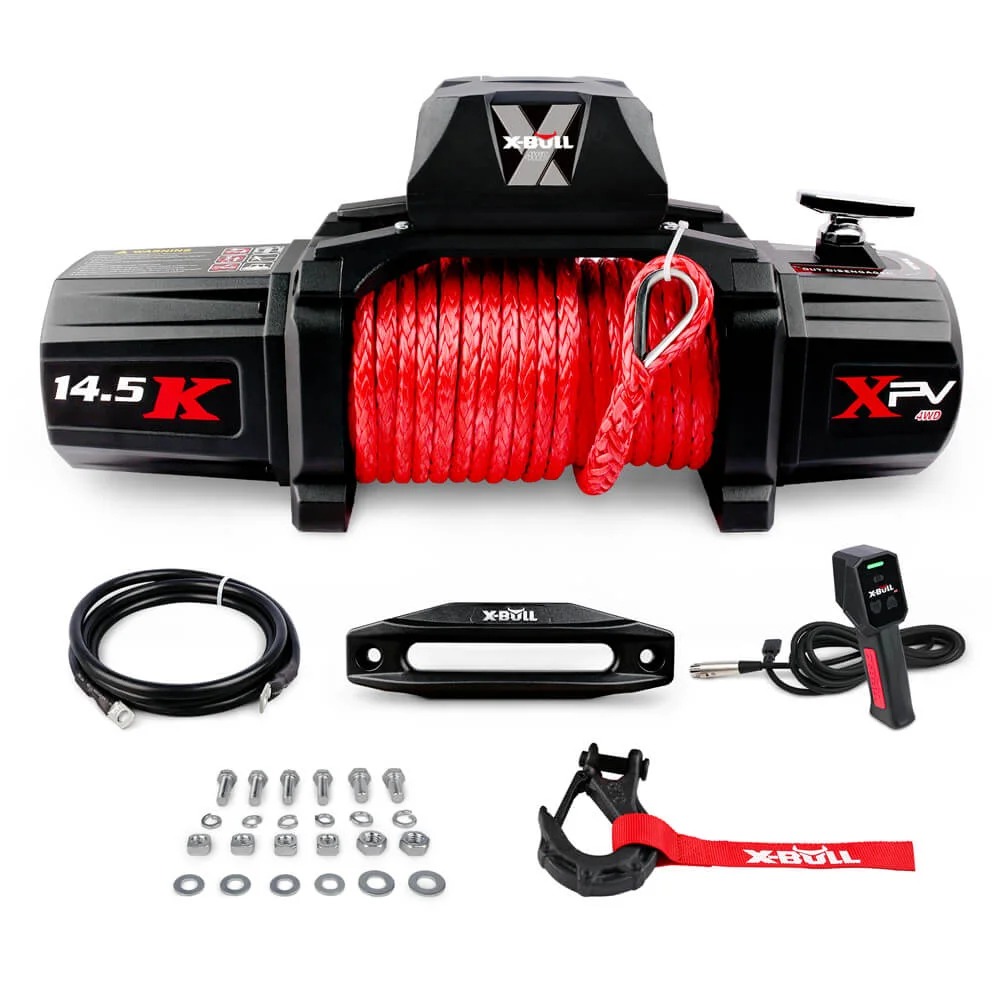

What's in the Box

• 1 x 14500 lb winch
• 1 x winch cover
• 1 x remote control
• 1 x hand switch
• 1 x aluminium hawse fairlead
• 1 x clevis hook
• 1 x control box
• 1 x set of bolts
• 1 x user manual
• 3 x motor leads
• 1 x power lead
