X-BULL 12000lb Electric Winch 12V Synthetic Rope 4WD with Mounting Plate

The X-BULL 12000lb electric winch is a 12V 4WD recovery winch built for dependable vehicle recovery, pairing a 6.0HP series wound motor with synthetic rope and a three-stage planetary gear train. Supplied with a winch mounting plate and both wired and wireless remote controls, it is a complete recovery setup for four-wheel driving.

Key Features

• Pure copper motor offers high temperature resistance, strong power and efficient operation
• Integrated multi-position control box works underwater, with AgCdO contact material for high current conduction and protection against current, voltage and temperature issues
• Three-stage planetary gear train enables differential, deceleration and reversal for a very large speed ratio
• All-steel shell with black frosted spray paint for rust resistance
• Diamond-shaped design helps dissipate heat from the gearbox during long winch operation
• Two-way free spool clutch
• Wire and wireless control options
• Aluminium hawse fairlead

Specifications

• Brand: X-BULL
• Rated line pull: 12000lbs (5454kg) single line

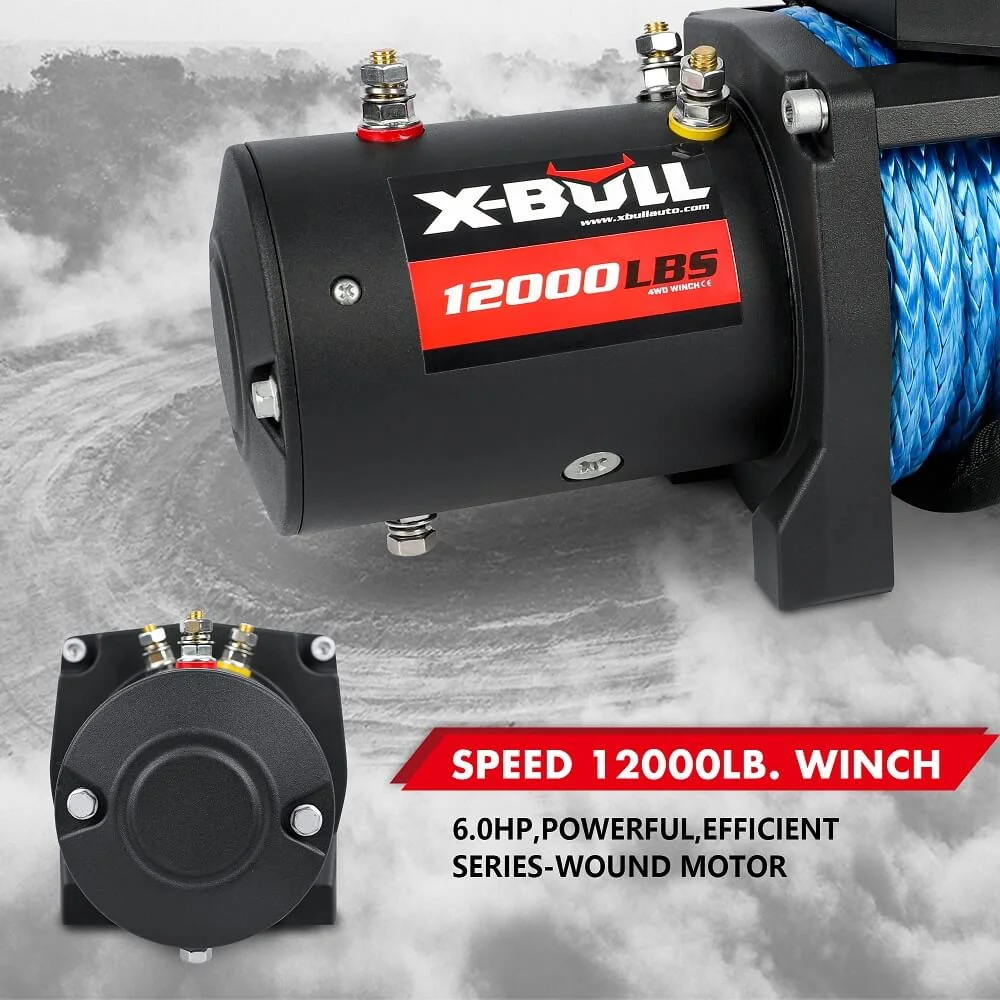

• Motor: 6.0HP output series wound
• Gear reduction ratio: 265:1

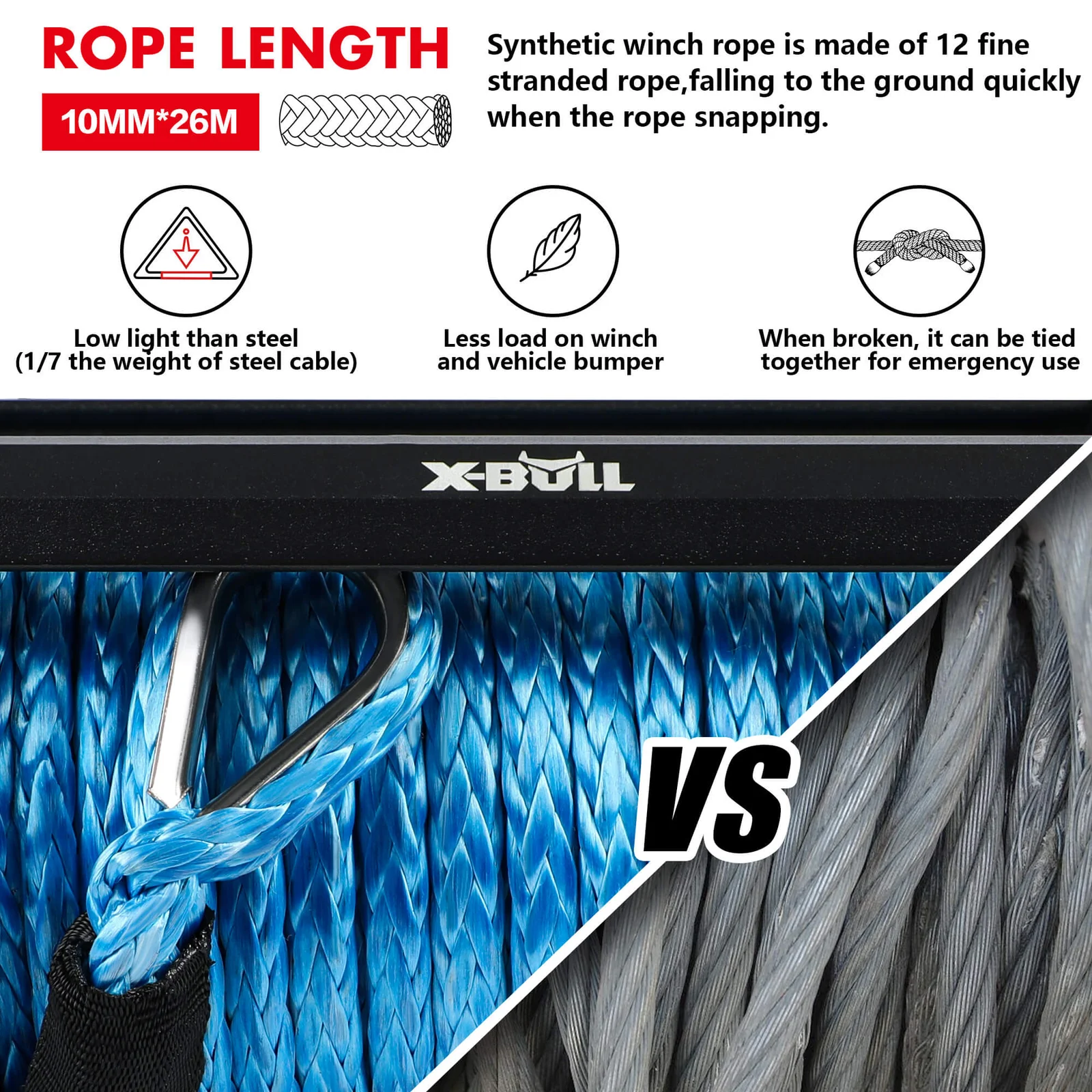

• Cable length: 9.5mm x 26m
• Control: wire/wireless control
• Brake: automatic in-the-drum
• Fairlead: aluminium hawse fairlead
• Gear train: 3 stage planetary
• Drum size: 2.5" x 9.6" (63.5mm x 224mm)
• Voltage: 12V
• Clutch: sliding ring gear
• Weight: 26kg
• Dimensions: 530mm x 160mm x 218mm
• Colour: Blue

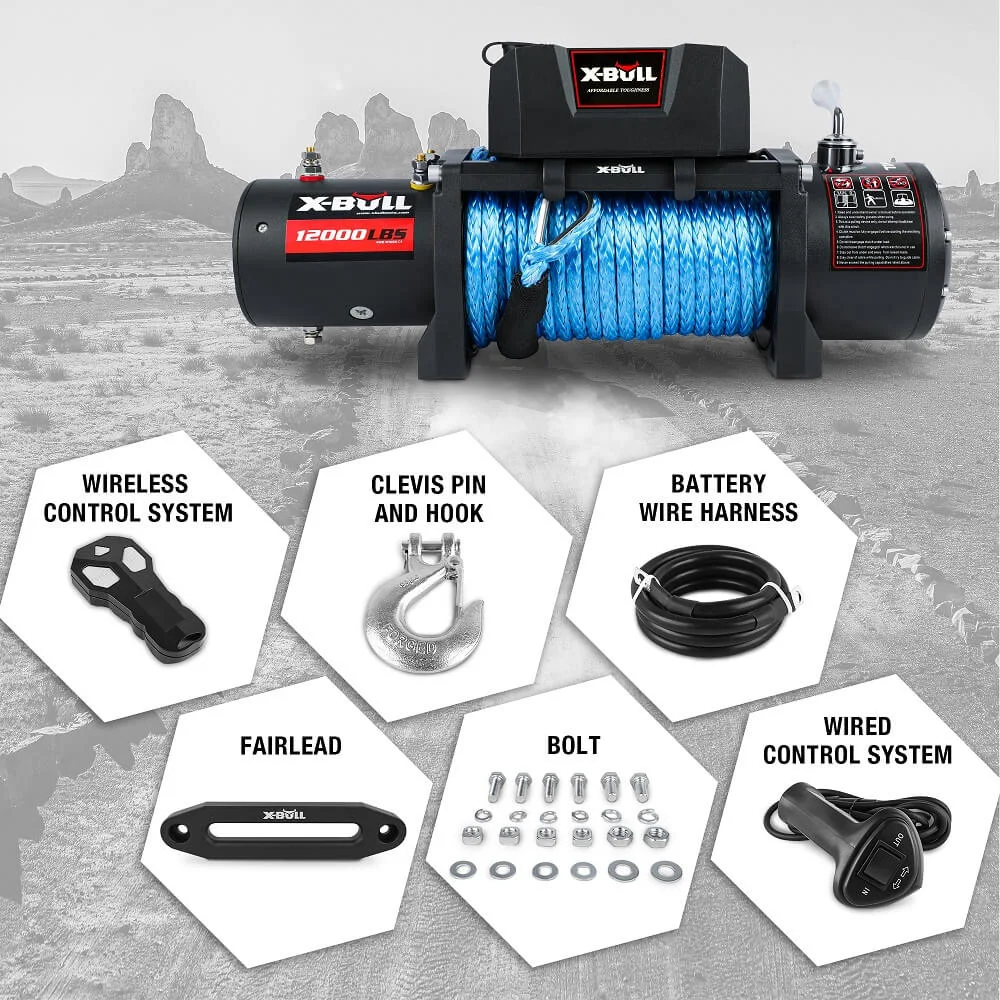

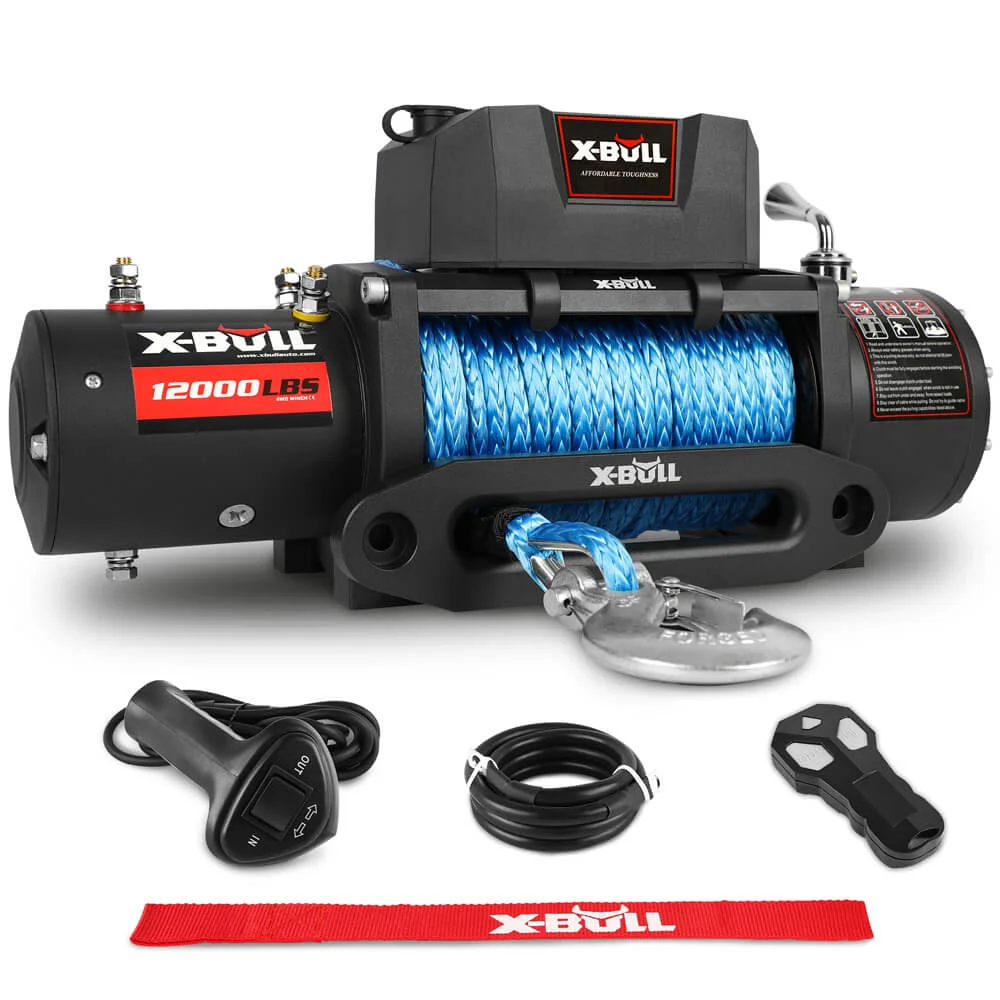

What's in the Box

• 1 x 12000LB winch
• 1 x winch mounting plate
• 1 x aluminium hawse fairlead
• 1 x clevis hook with safety clip and market tab
• 1 x big grip hand held remote control
• 1 x new style wireless remote control
• 1 x winch lanyard
• 1 x control box
• 1 x 26m multi stranded cable fitted to drum
• 1 x set of stainless fitting bolts
• 1 x user manual
