X-BULL 500A 12V Winch Solenoid Relay with 150ft Wireless Remote Kit

Upgrade your 4WD recovery setup with the X-BULL 500A 12V winch solenoid relay, supplied with a twin-handset wireless remote control that works with any 12V solenoid-operated winch. The sealed, corrosion-resistant solenoid delivers reliable heavy-duty switching, while the long-range wireless remote lets you operate your winch from a distance.

Key Features

• Wireless winch remote control with twin handsets
• Works with any 12V solenoid-operated winch
• Heavy-duty long-range model
• Visual indicator light shows remote operation
• 500A 12V winch solenoid
• Sealed and corrosion resistant
• Solid heavy-duty construction
• Wireless remote compatible
• Suitable for 9500lbs to 17000lbs series wound and permanent magnet winches

Specifications

• Remote range: approx. 45 metres
• Power voltage: 12V
• Working frequency: 315MHz/433.92MHz
• Coil rated voltage: 6-110V DC
• Operating power: 15W
• Contact circuit voltage and loading current: 80V DC max, 250V AC, 500A
• Mechanical life: 100,000 operations
• Electrical life: 50,000 operations
• Environment temperature: -40°C to 85°C
• Frequency: 10Hz-200Hz
• Speed: 60-100 per minute
• Operation regulation: continuous
• Installation direction: random

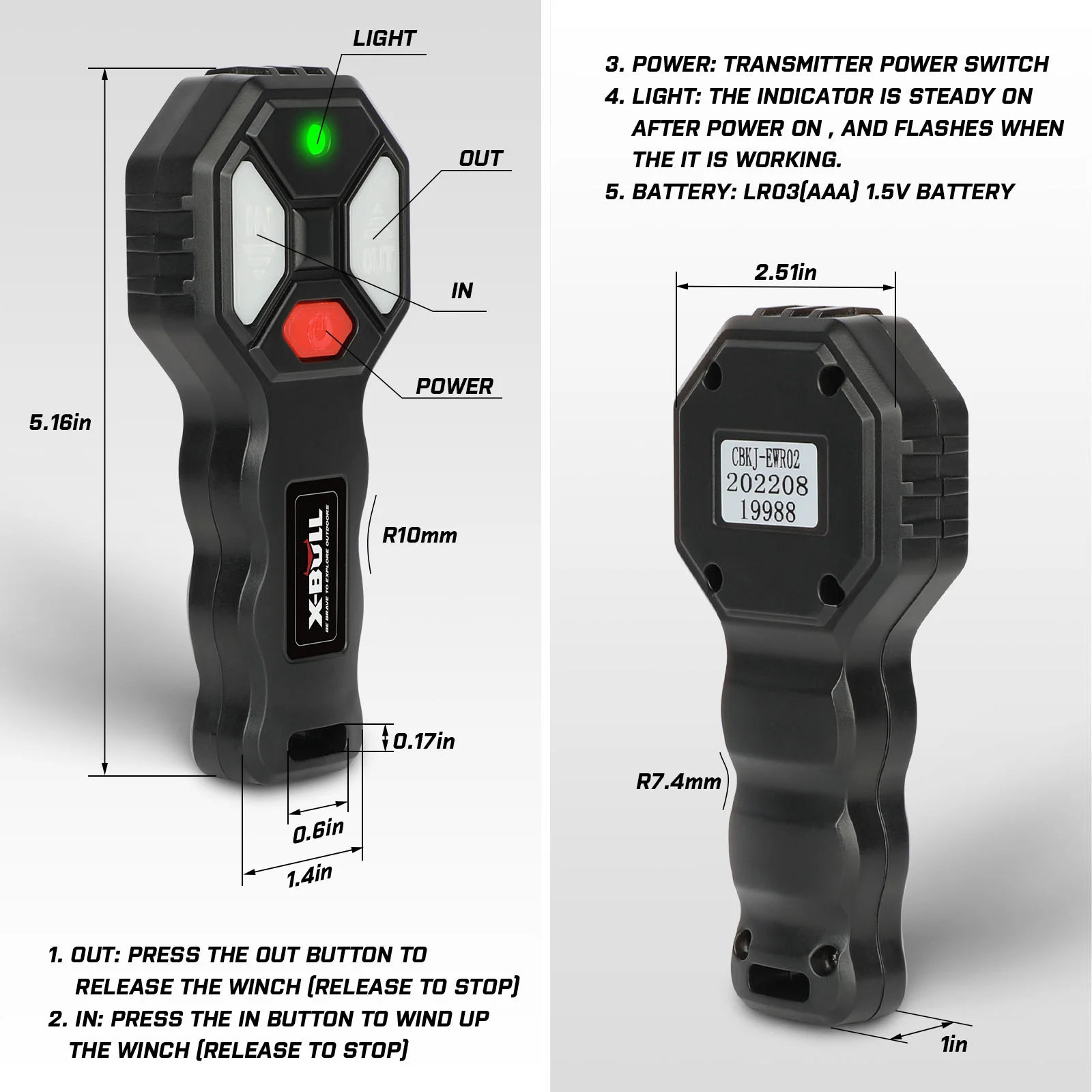

Remote Control Activation

To activate: press both buttons at the same time for 5 seconds until the LED lights up.
To turn off: press both buttons at the same time for 5 seconds until the LED turns off.

Caution: the remote will power off automatically after 2 minutes.

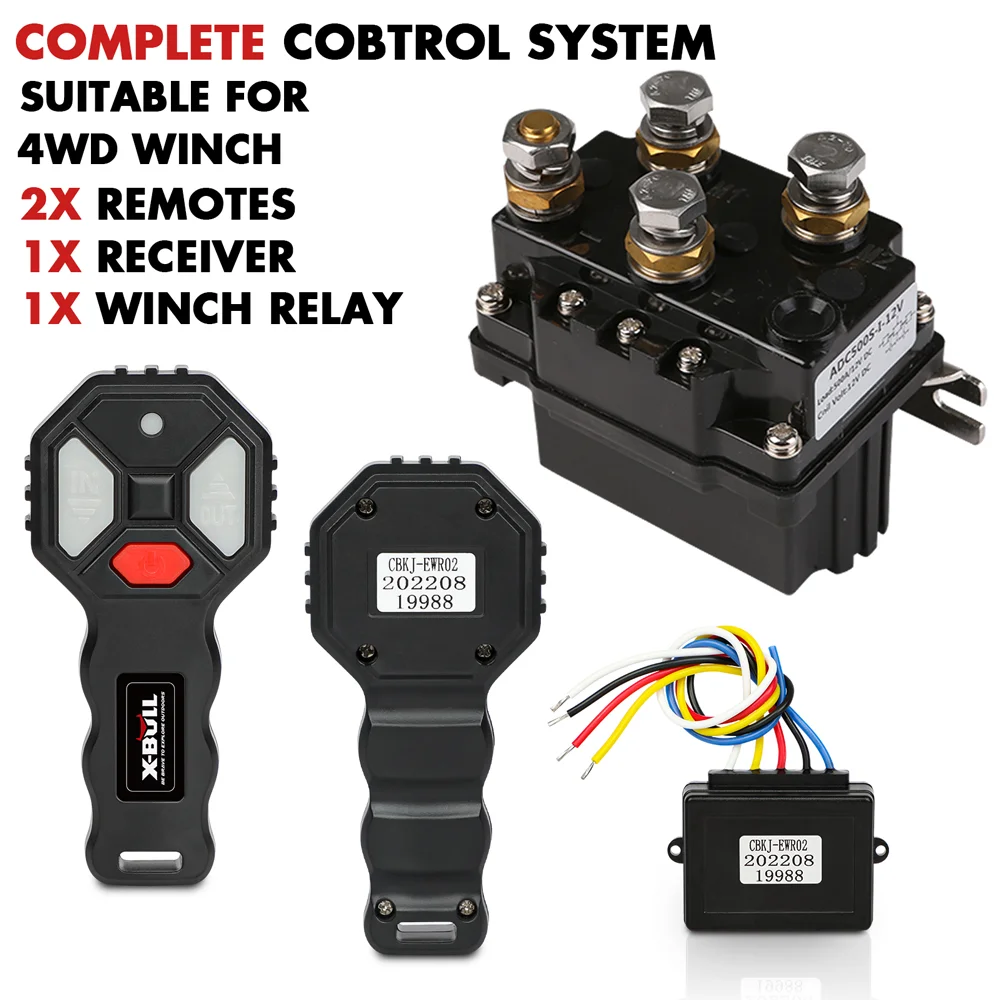

What's in the Box

• 2 x remotes
• 1 x receiver
• 1 x user manual and battery included
• 1 x winch solenoid
