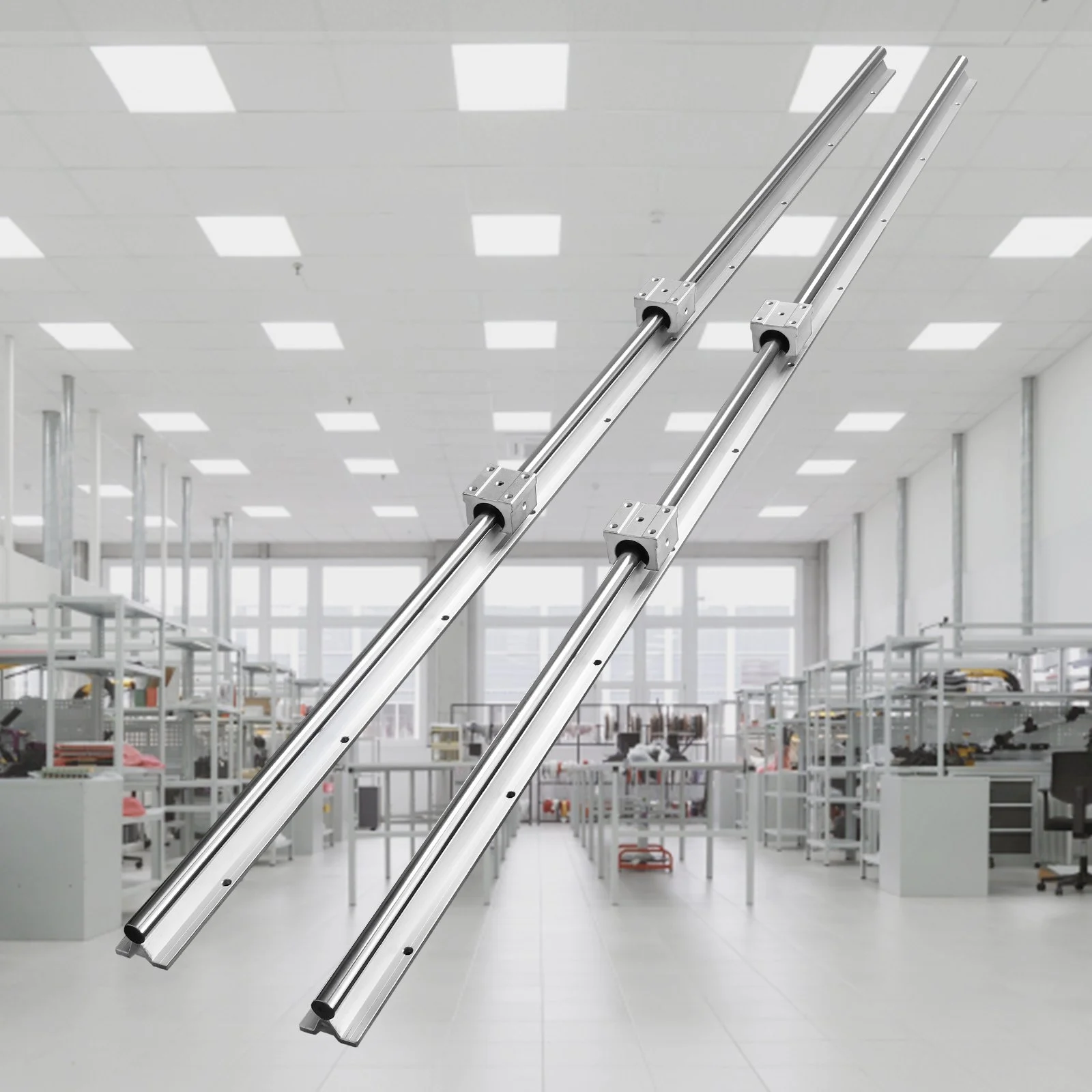

VEVOR SBR20 Linear Guide Rail Set, 1500mm Rails with 4 SBR20UU Blocks

Build smooth, accurate linear motion into automated machines and DIY projects with this VEVOR SBR20 linear guide rail set. The kit pairs two 1500 mm rails with four SBR20UU slide blocks for low-friction, high-precision sliding.

Key Features

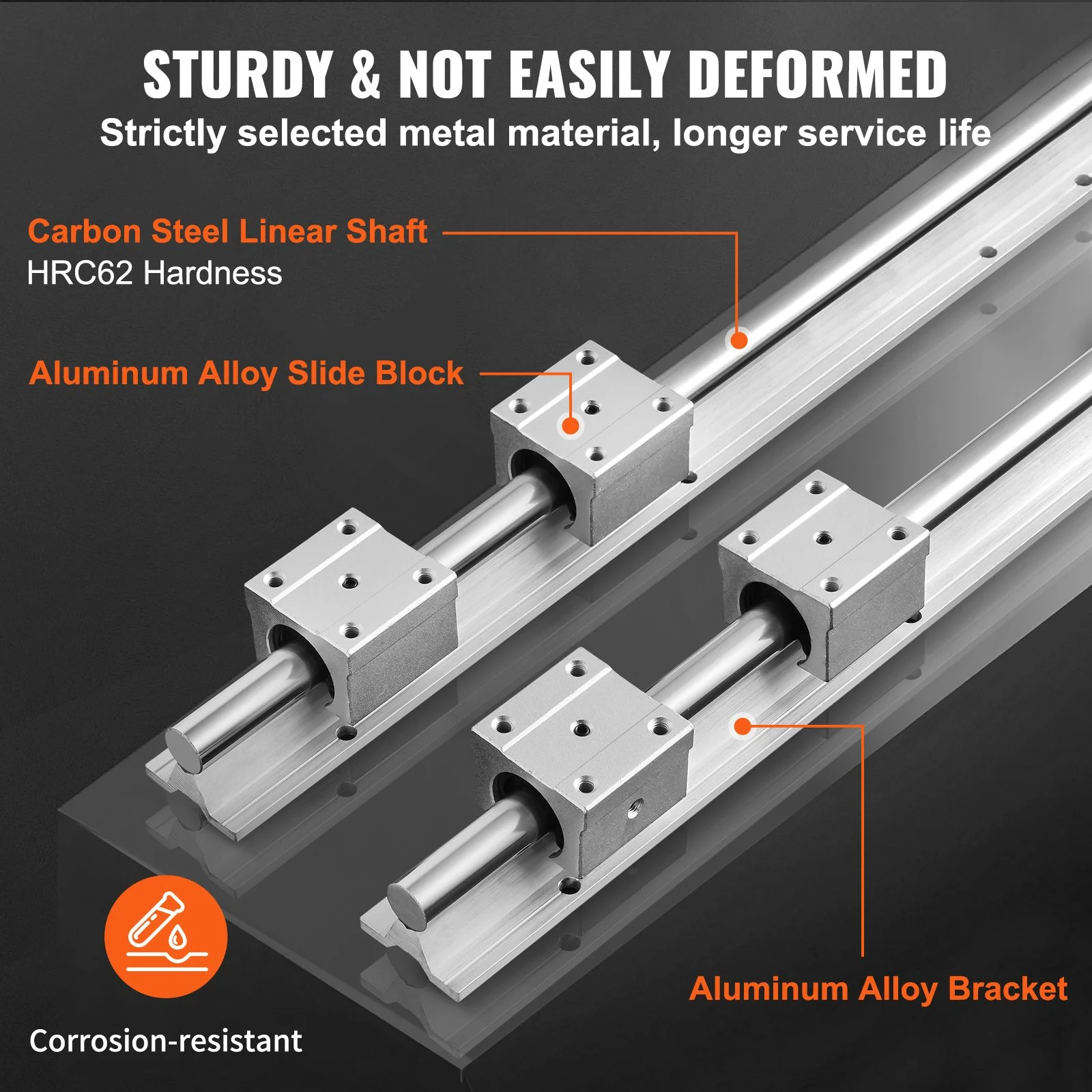

• Carbon steel and aluminium construction with a chrome-plated surface for rust resistance and durability

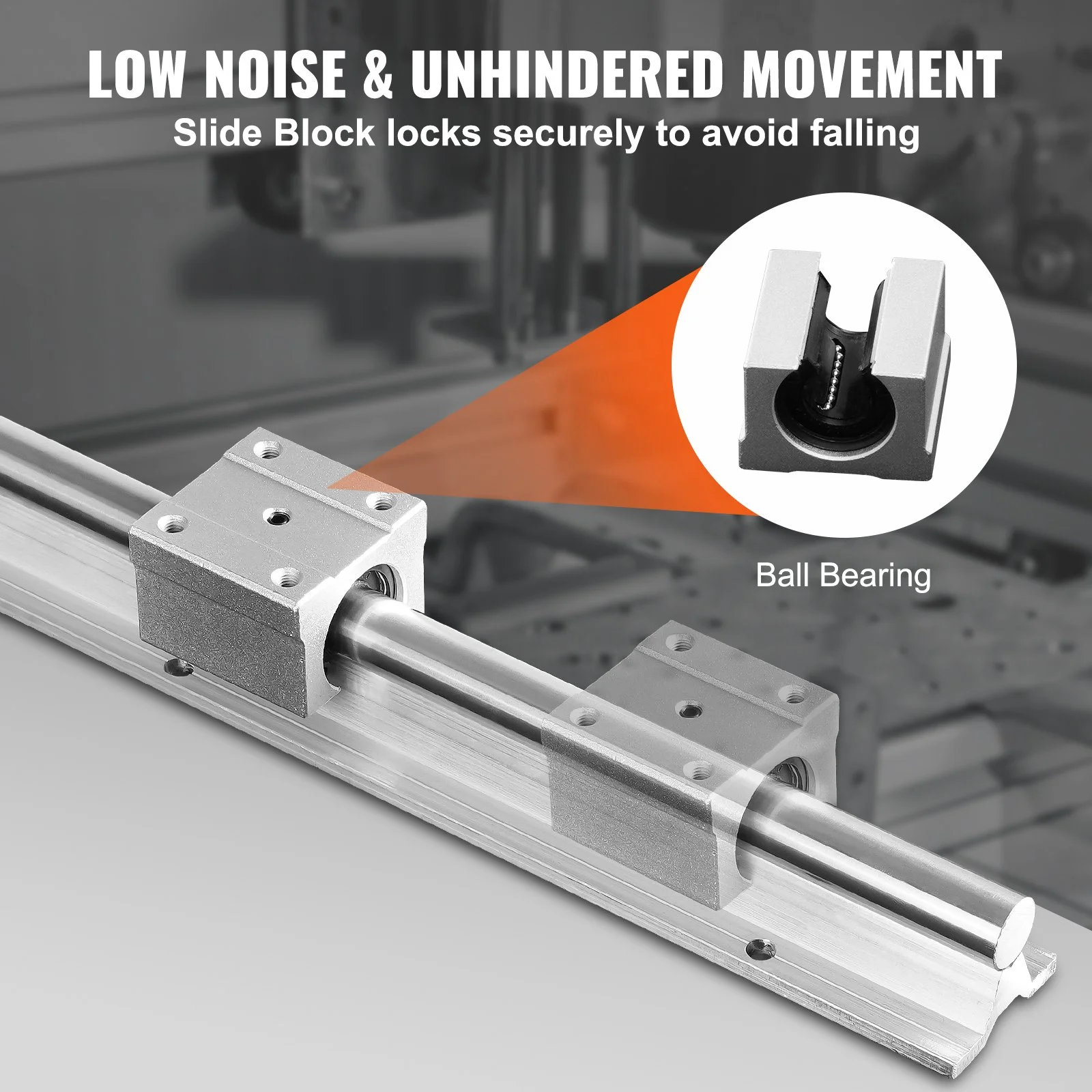

• Four aluminium slide blocks with built-in ball bearings for smooth, unobstructed sliding
• Low-friction movement that stays smooth and does not tilt for easier control
• Precise circular shaft dimensions and straightness for high accuracy, repeatability and stability
• Sturdy aluminium base and slide blocks with accurate mounting holes for reliable installation and connection

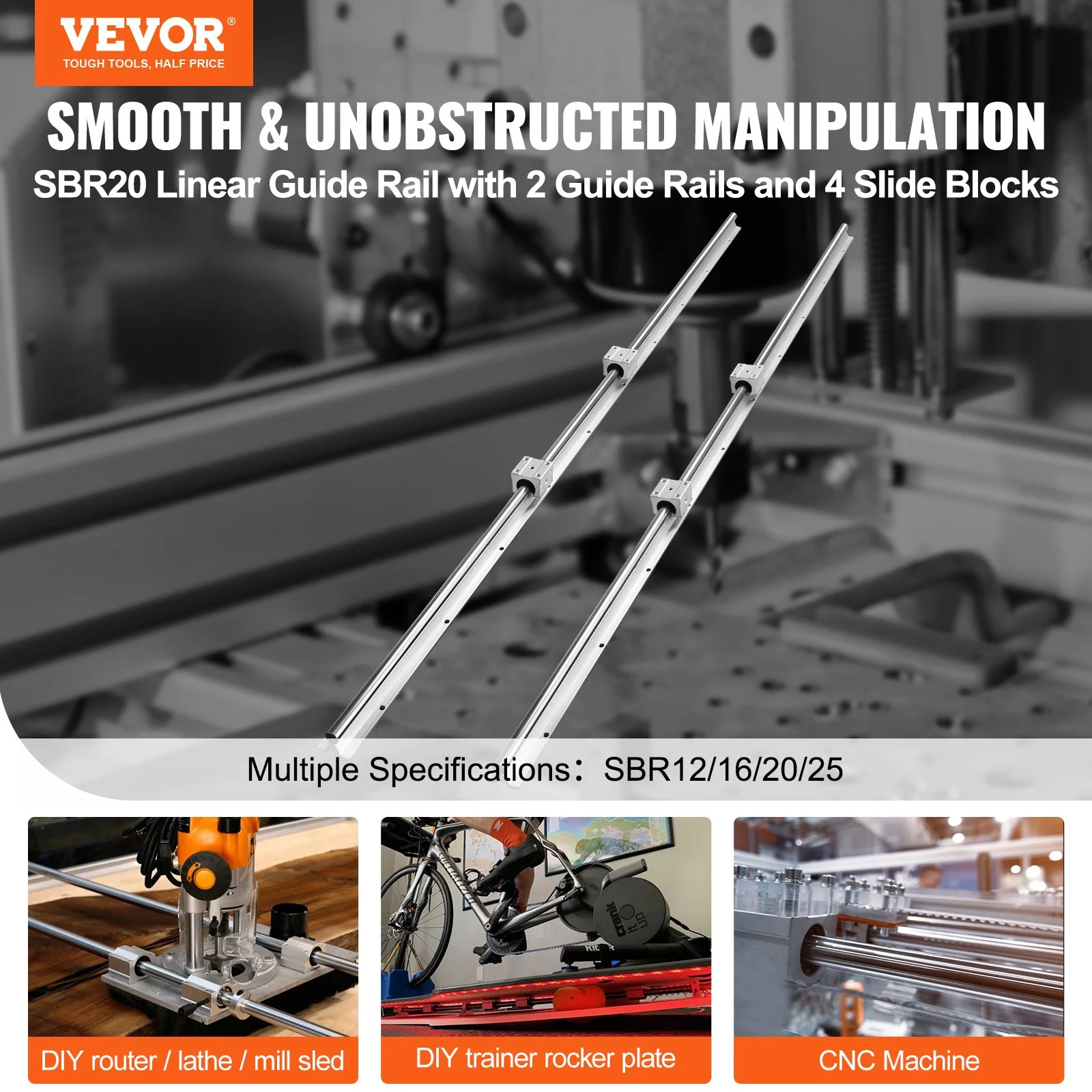

• Suitable for high-load automation equipment and DIY projects such as router, mill and lathe sleds, 3D printers, laser engravers, CNC machines and trainer rocker plates

Specifications

• Model: SBR20
• Rail length: 1500 mm (59 in)
• Dynamic load per block: 882 N
• Static load per block: 1370 N
• Rail material: carbon steel with chrome-plated surface
• Slide block material: aluminium

What's in the Box

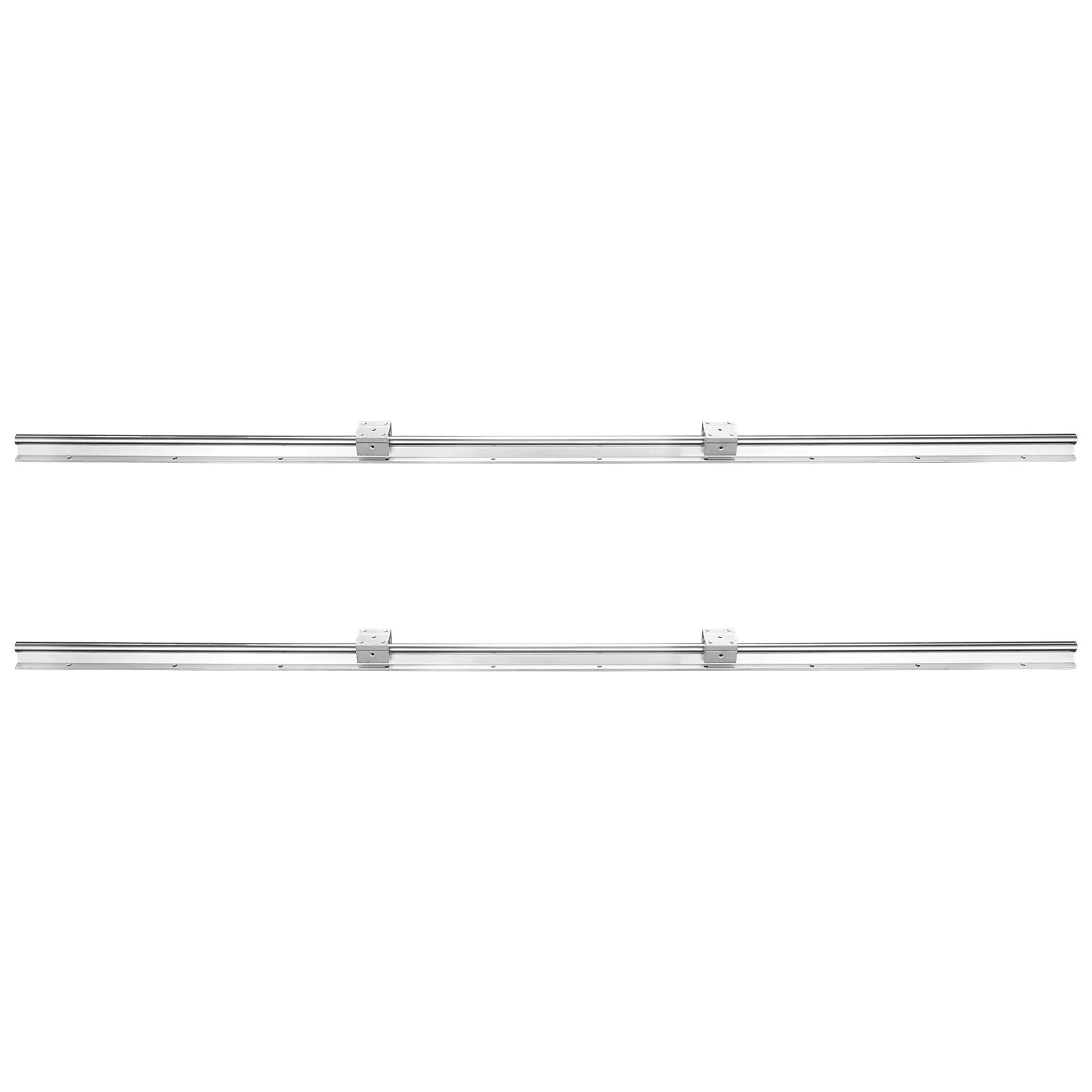

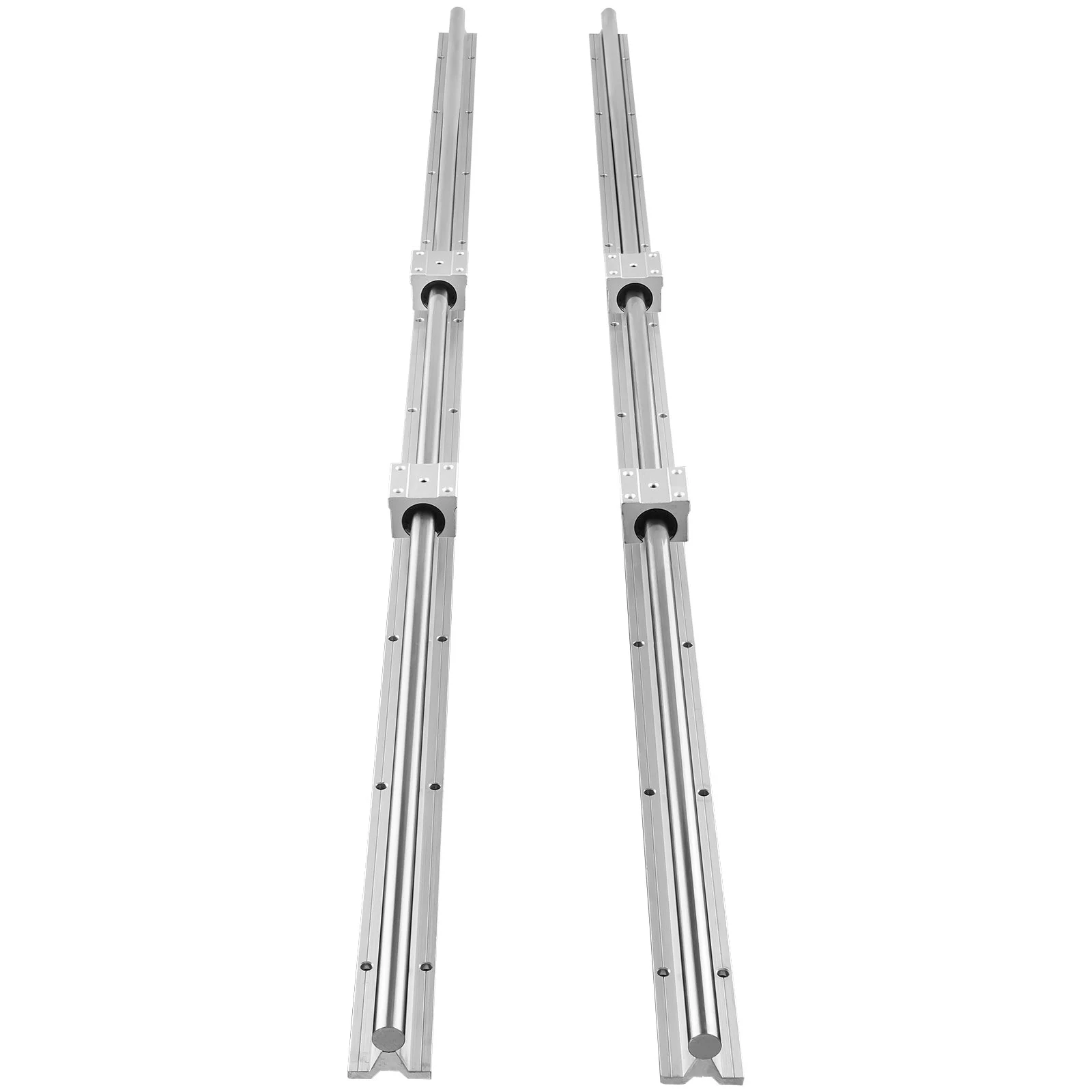

• 2 x 1500 mm SBR20 guide rails
• 4 x SBR20UU slide blocks
