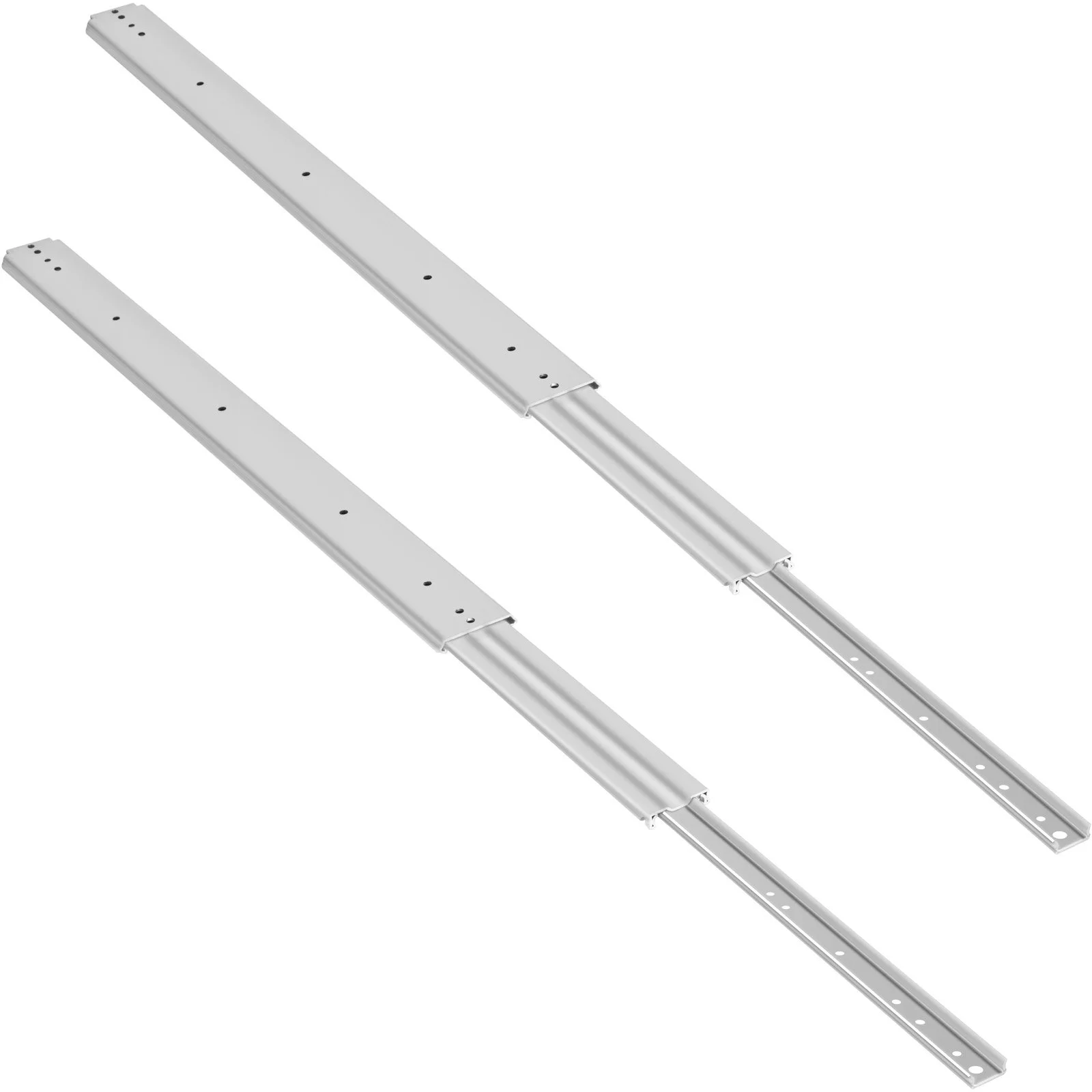

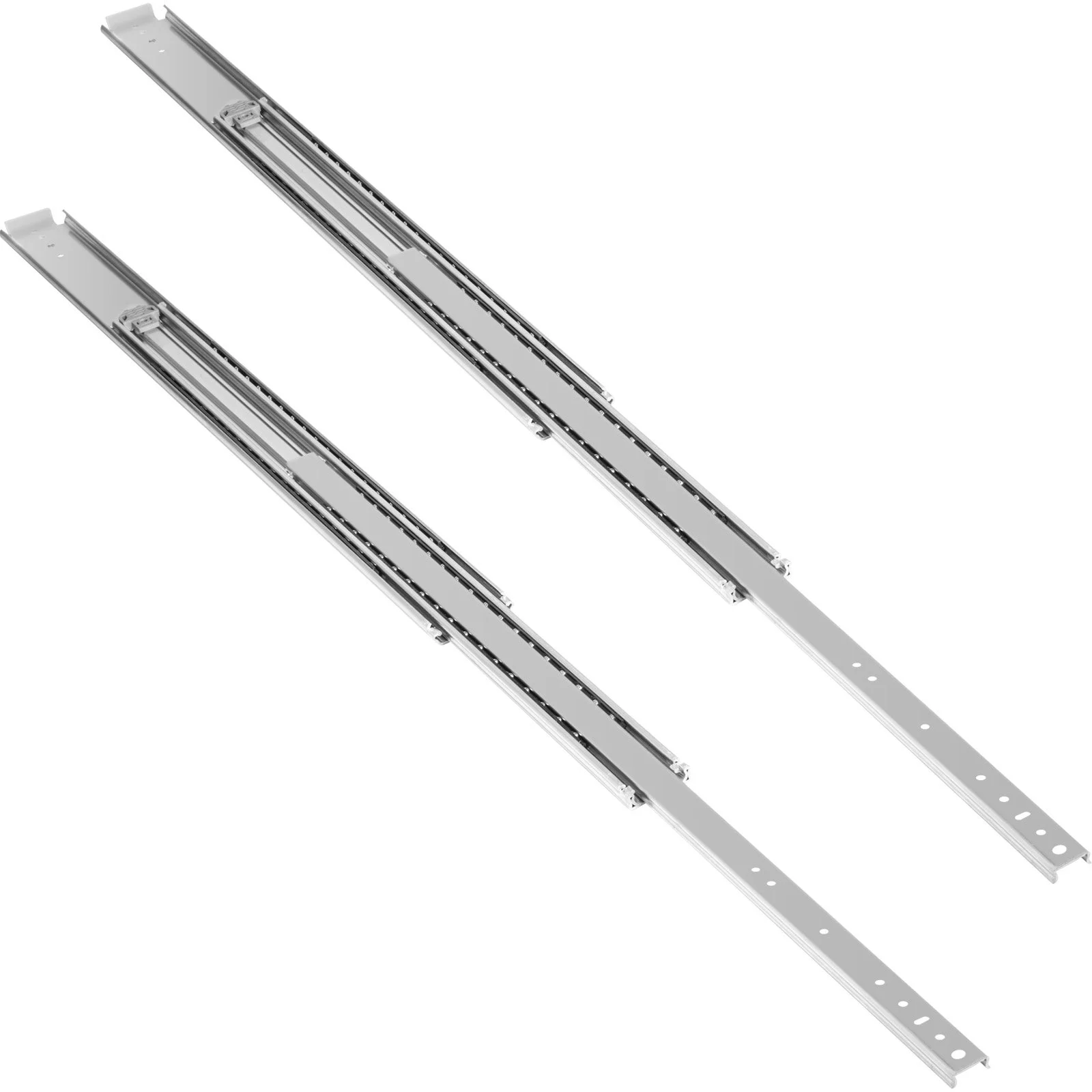

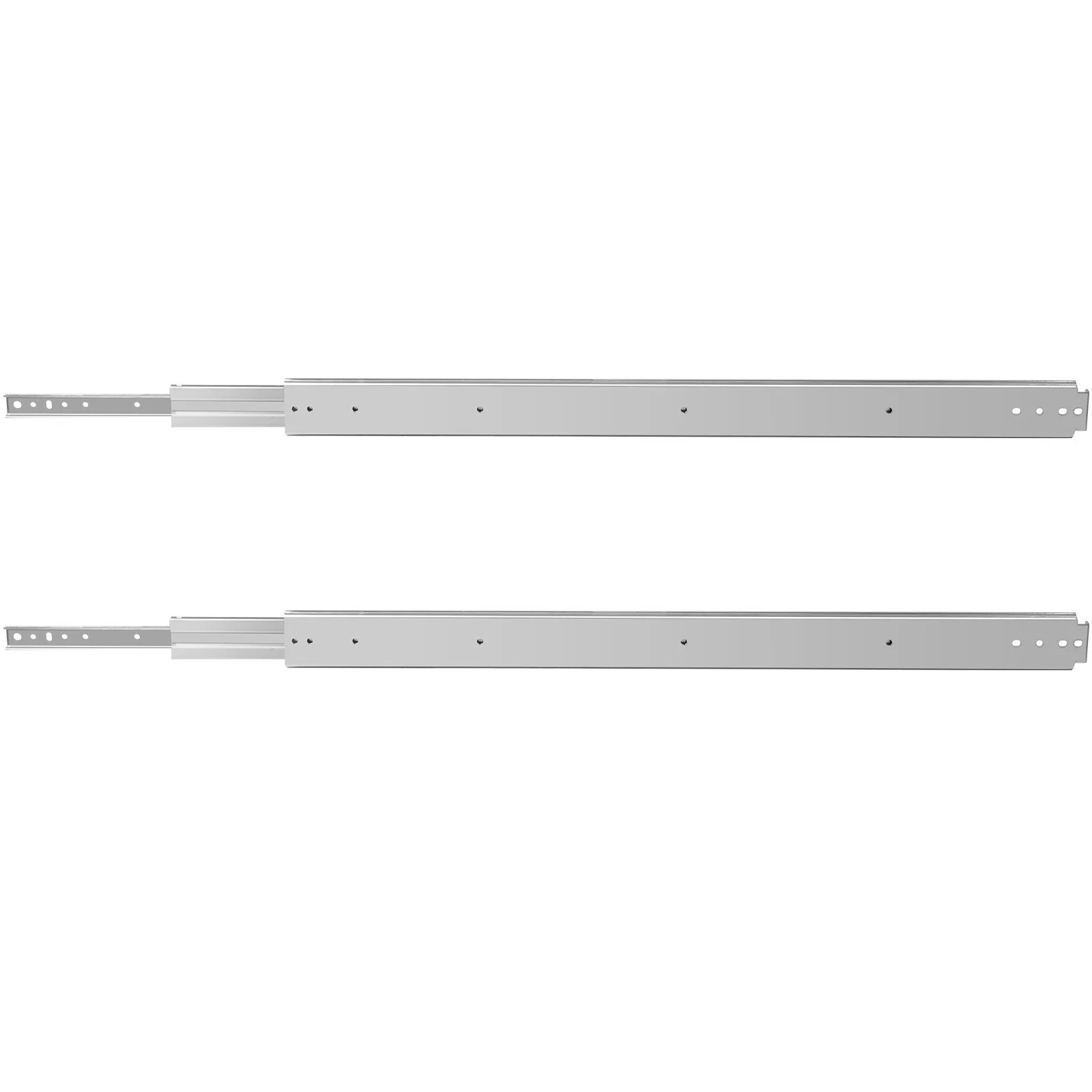

VEVOR 48" Soft Close Drawer Slides, 500 lb Ball Bearing Full Extension, 1 Pair

These VEVOR heavy-duty drawer slides are a pair of 48" full extension ball bearing runners with a 500 lb load capacity, built for smooth, quiet soft close drawer operation in workshops, offices and commercial equipment.

Key Features

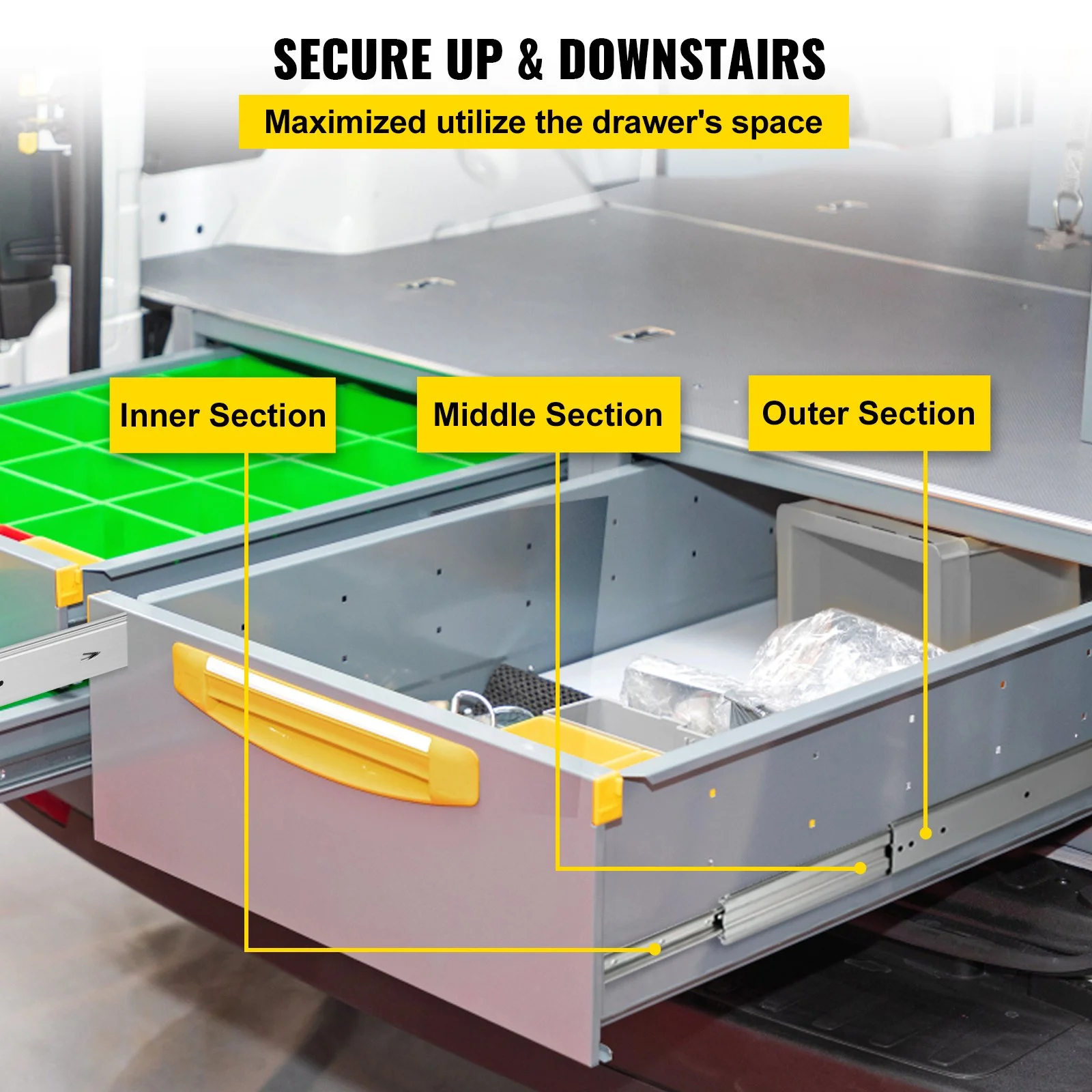

• Three-section full extension design pulls out completely to make use of the drawer's full space

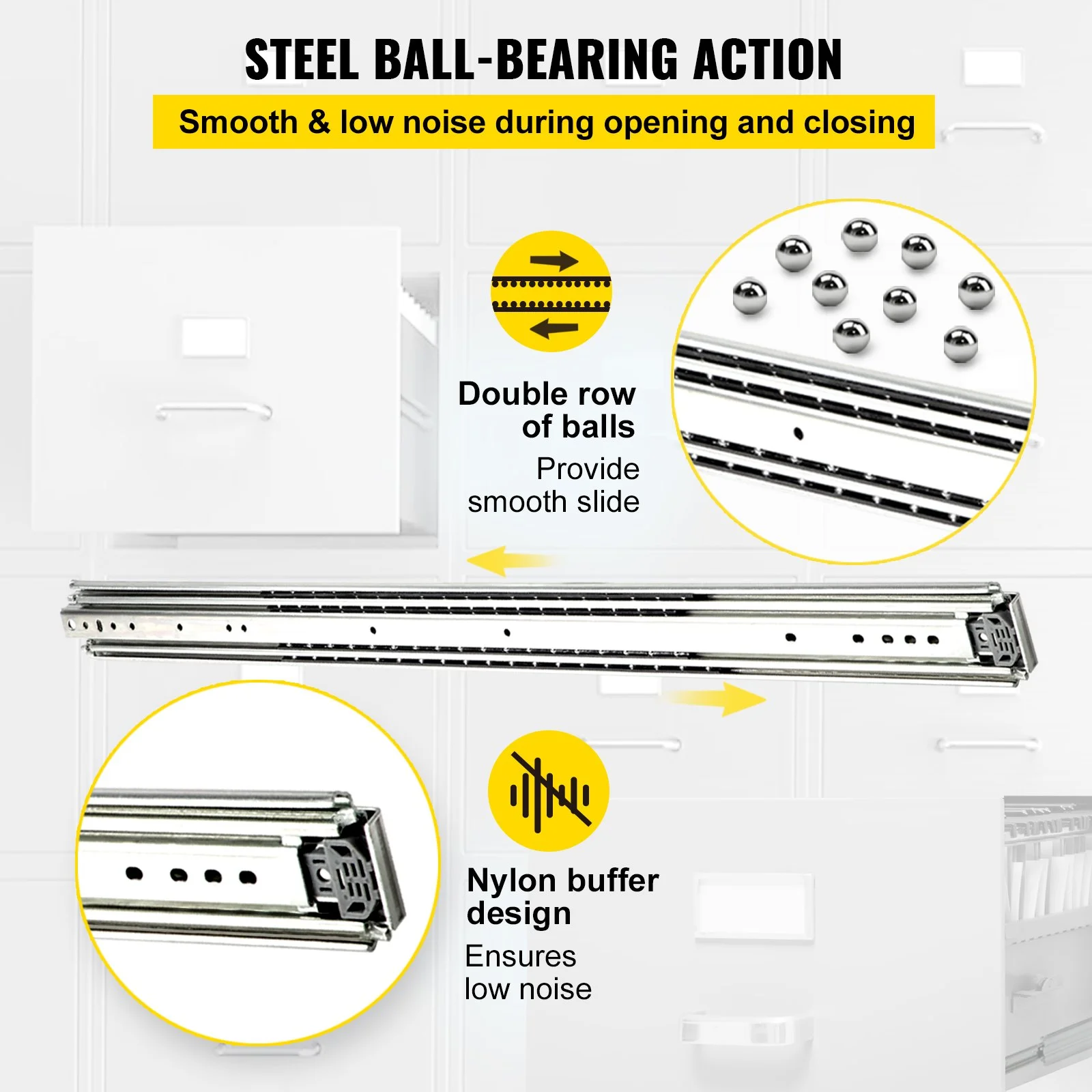

• Soft close action with a nylon buffer on the second section reduces noise and friction when opening and closing
• Ball bearing action for smooth, quiet sliding

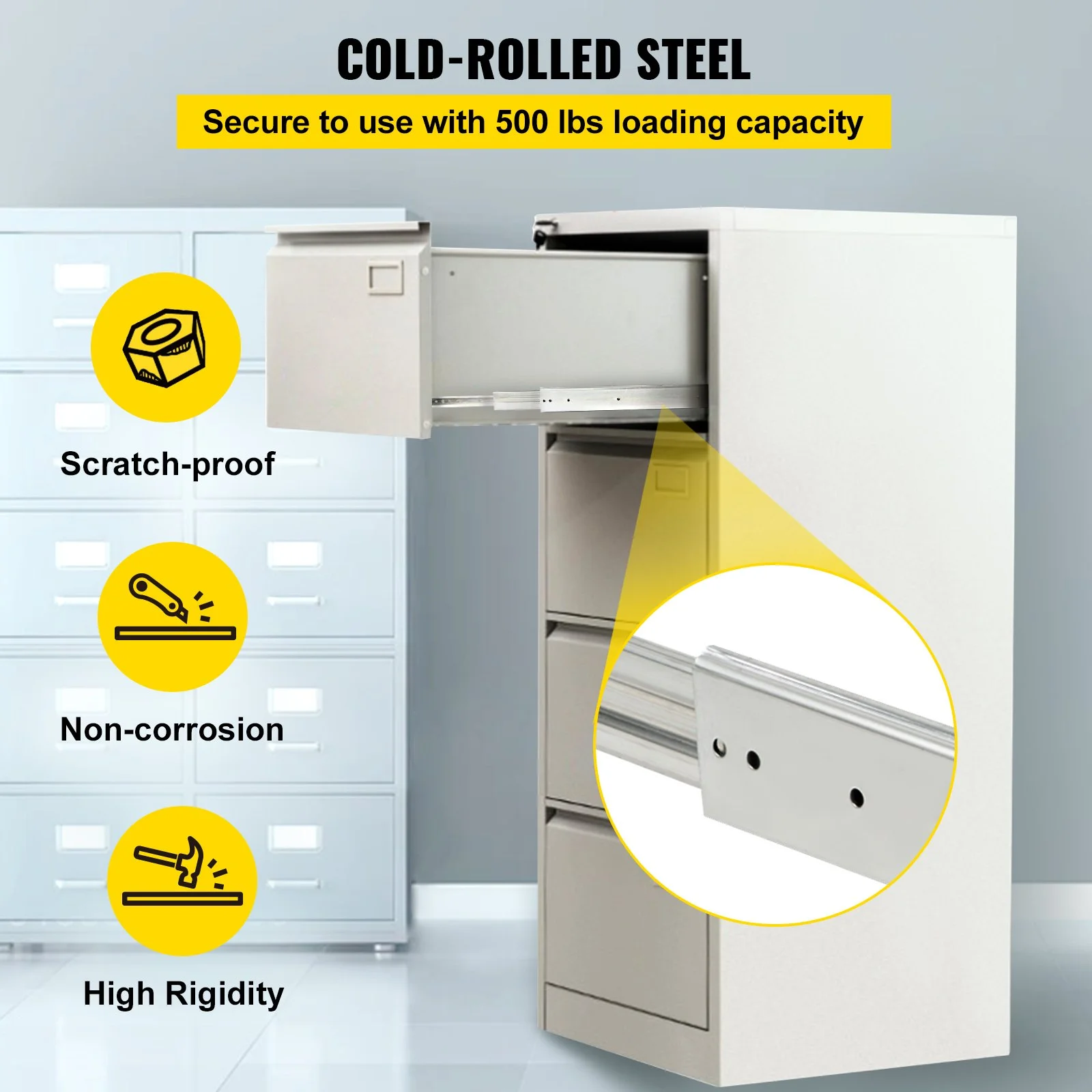

• Thick cold rolled steel (CRS) plates for a strong 500 lb bearing capacity
• Zinc plated surface for rust and abrasion resistance over long-term service
• Suits heavy wooden or iron drawers and contents

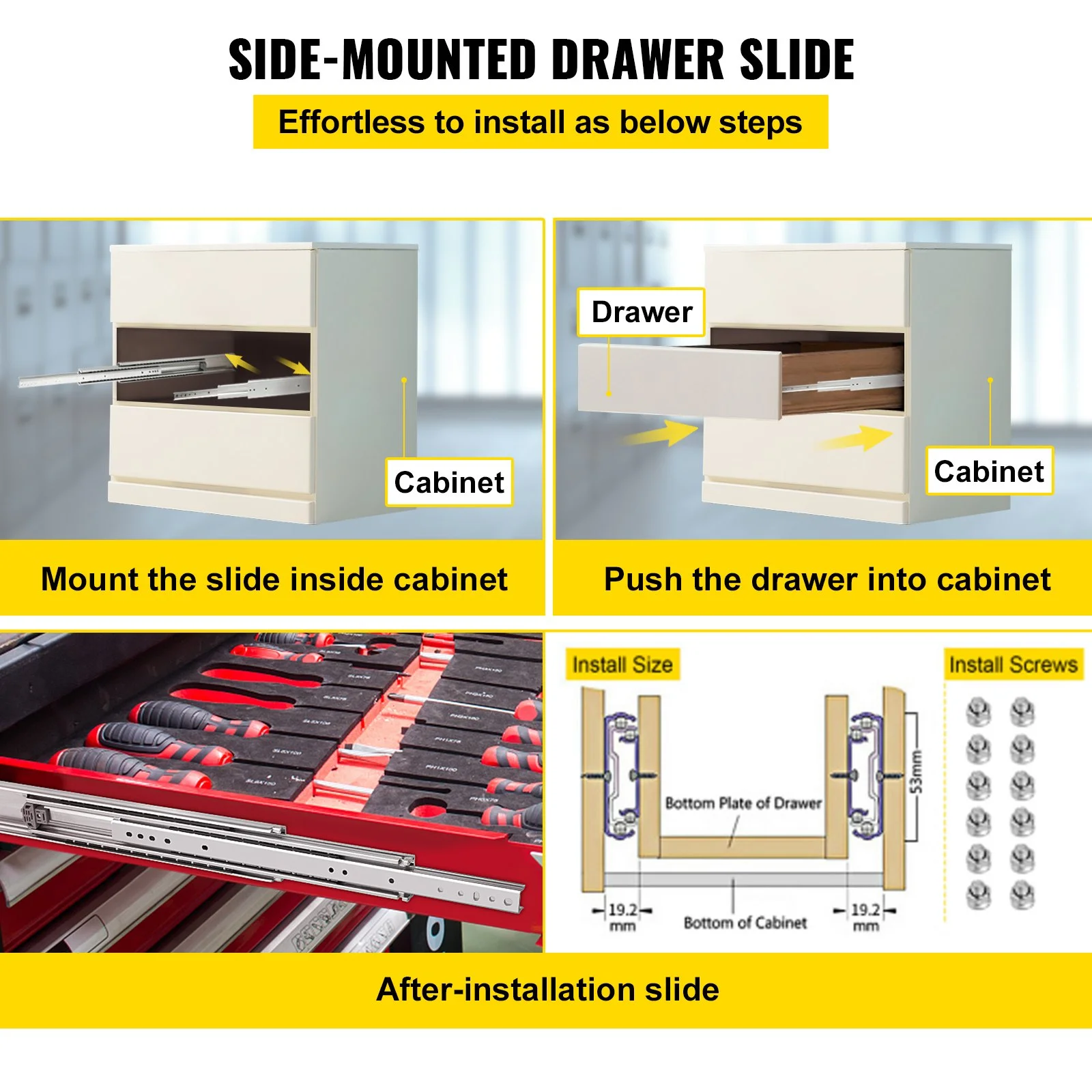

• Can be installed on the side of cabinets or machine parts
• All included screws and bolts make installation quick and easy
• Suitable for industrial and commercial equipment, factory machines, offices and vehicles

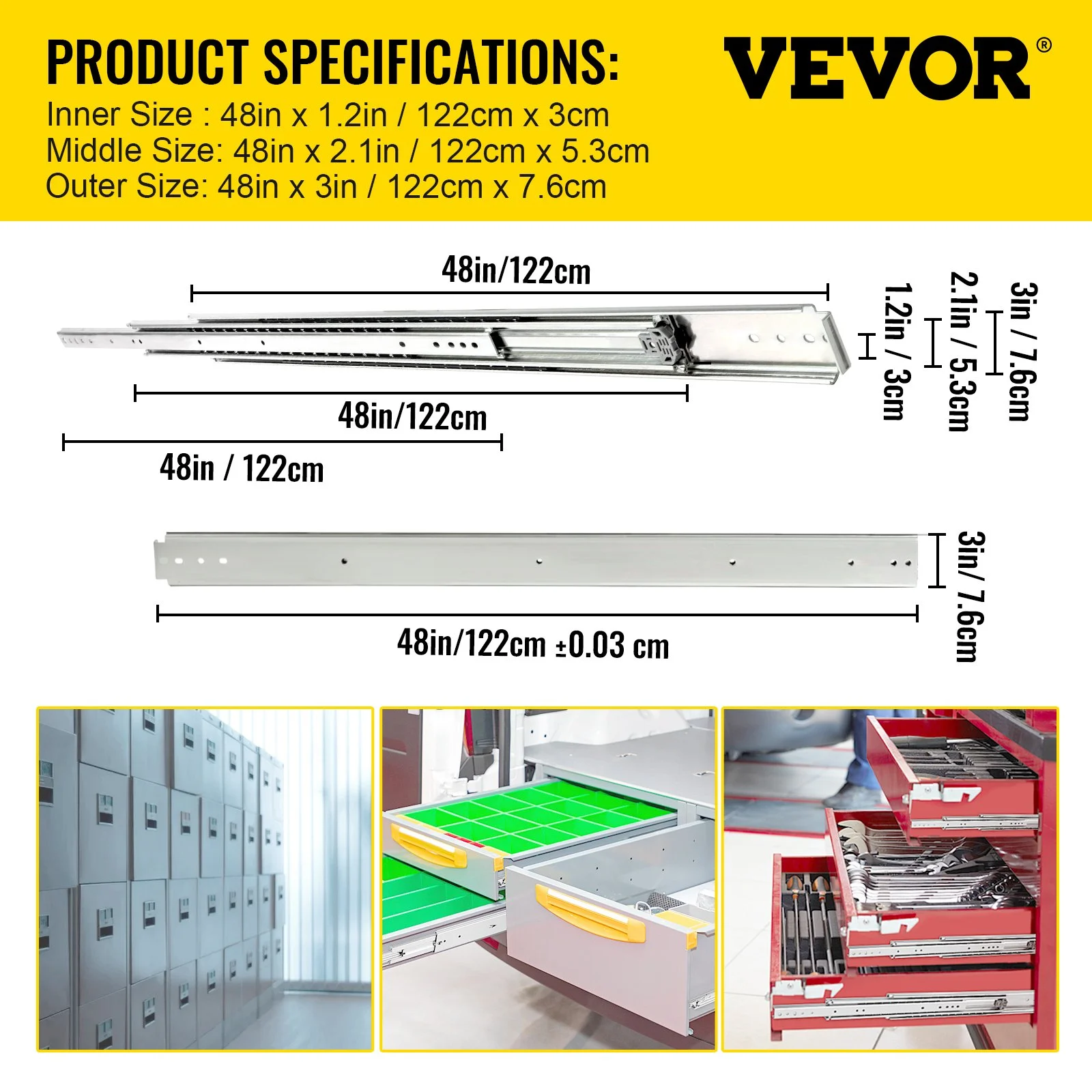

Specifications

• Quantity: 1 pair
• Length: 48" / 121.92 cm
• Extended length: 96" / 243.84 cm
• Width: 3" / 7.6 cm
• Thickness: 0.75" / 1.9 cm
• Install distance (each side): 0.76" / 19.5 mm
• Load capacity: 500 lbs
• Material: thick cold rolled steel (CRS) with zinc plating
• Design: three-section, full extension, ball bearing, soft close

What's in the Box

• 1 pair of drawer slides
• Screws and bolts

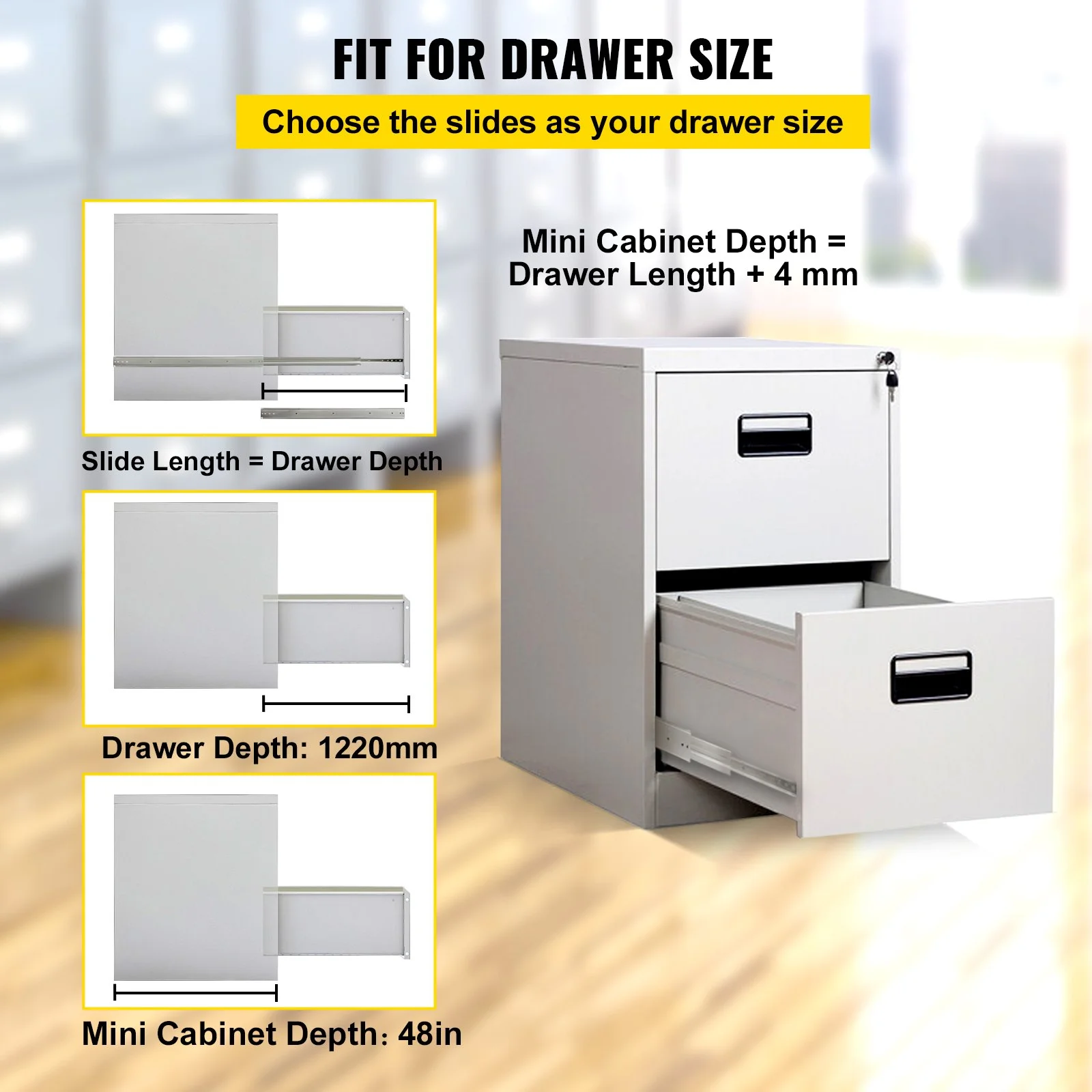

Choosing the Right Size

Measure the length of the drawer without the frame board first. The length of the slides should be less than or equal to the drawer depth minus 4 mm.
