Air-Operated Double Diaphragm Pump 24 GPM 1 Inch Inlet And Outlet
$344.55AUD
In Stock
Product Description
Premium Double PTFE Diaphragms
Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate: 24 GPM; Max Head Lift: 229.6 ft/70 m±15%.

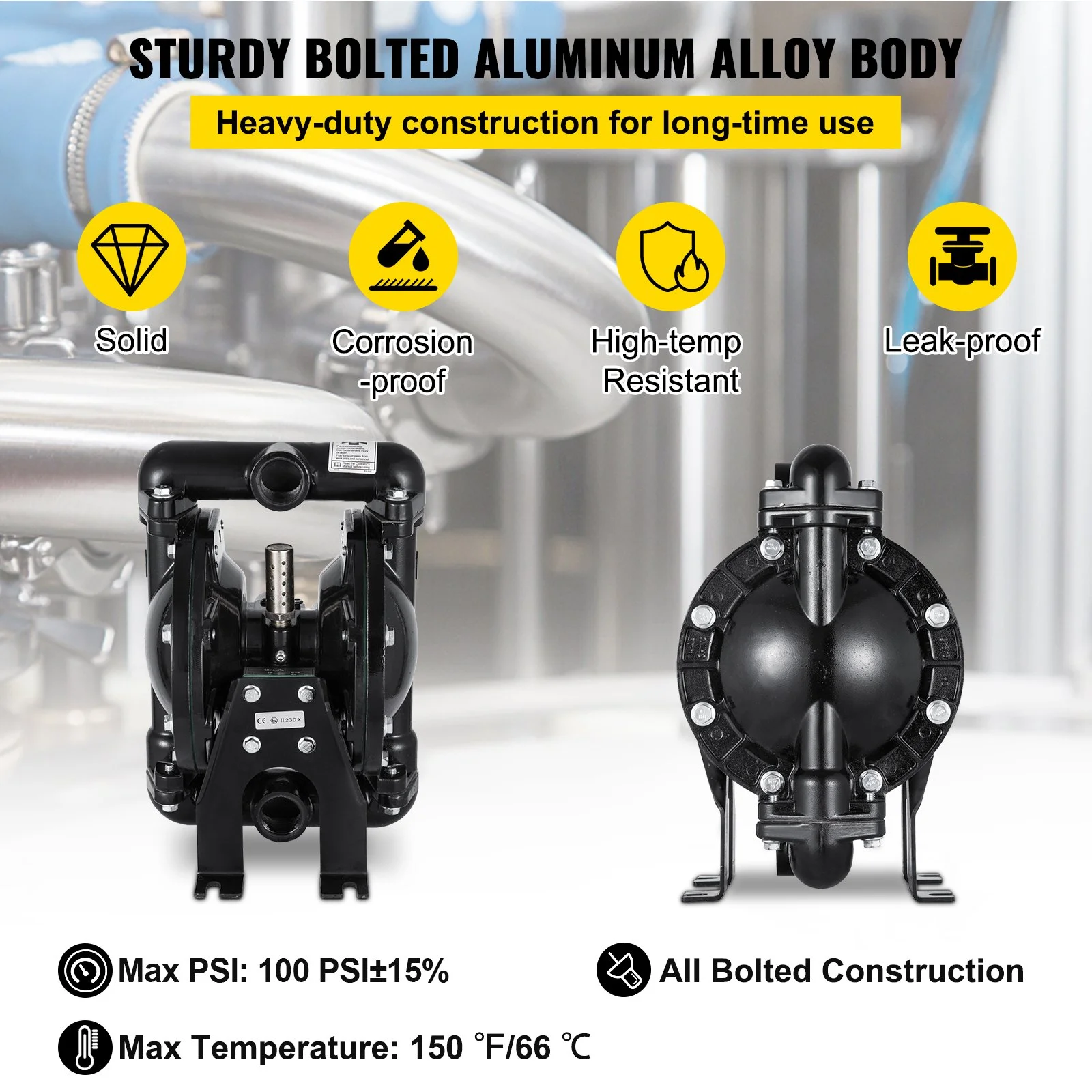

Sturdy & Leak-proof Construction
The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
Excellent Air-operated Performance

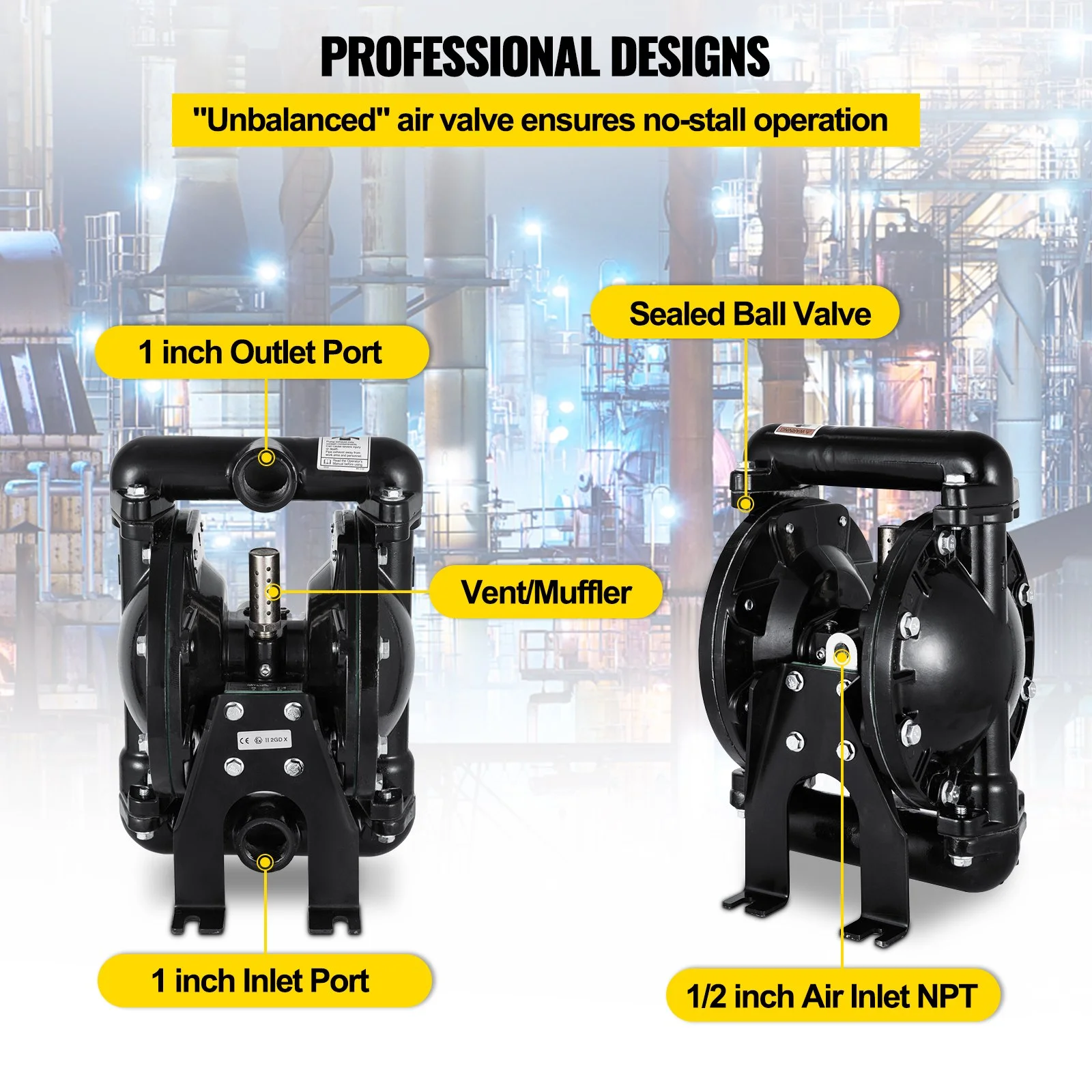

Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
Unique & Professional Designs
Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.

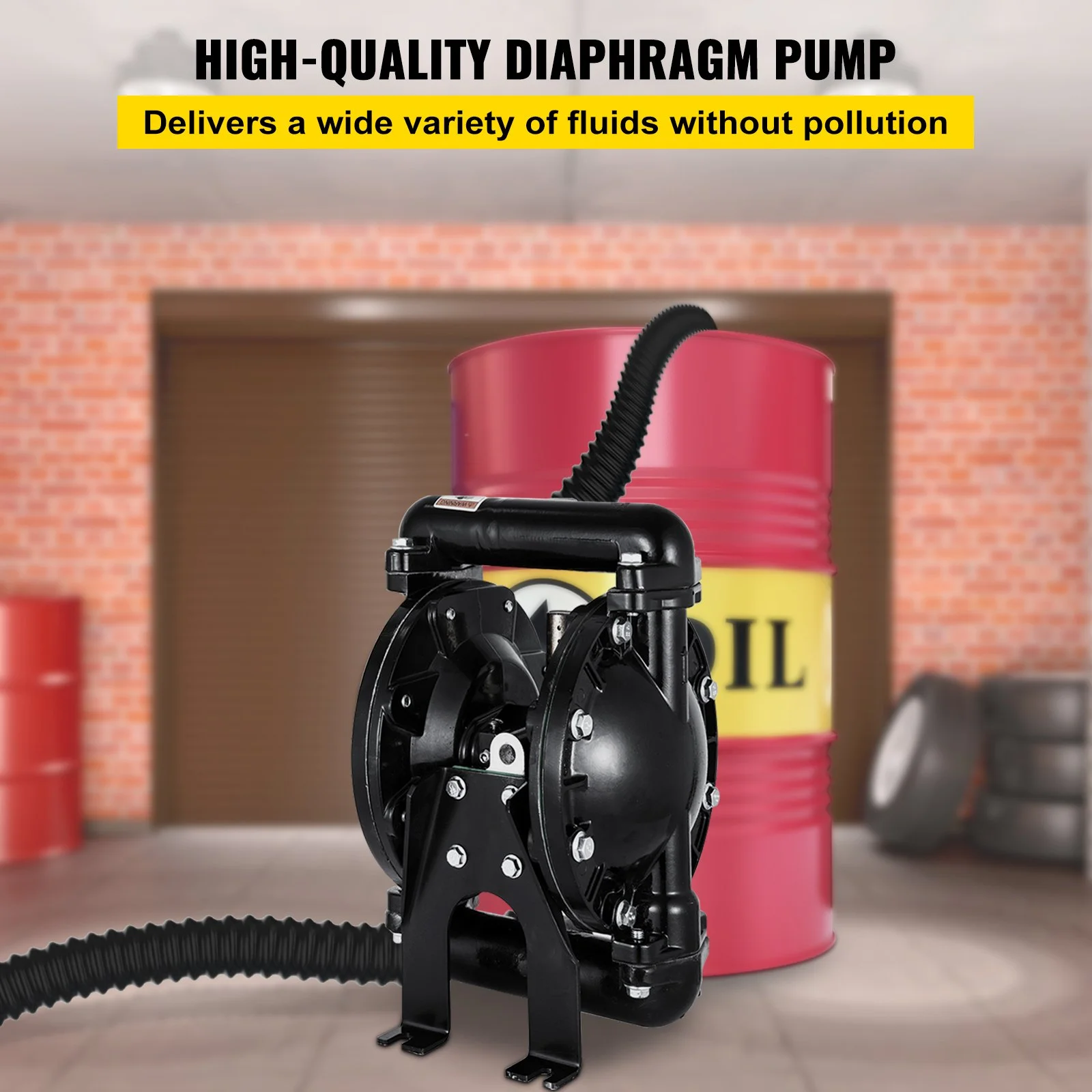

Wide Applications
This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Specifications
| Brand | VEVOR |
| Weight | 8.55 kg |
| Dimensions | 38.5×29×25.5 cm |
| EAN Code | 840281568154 |
