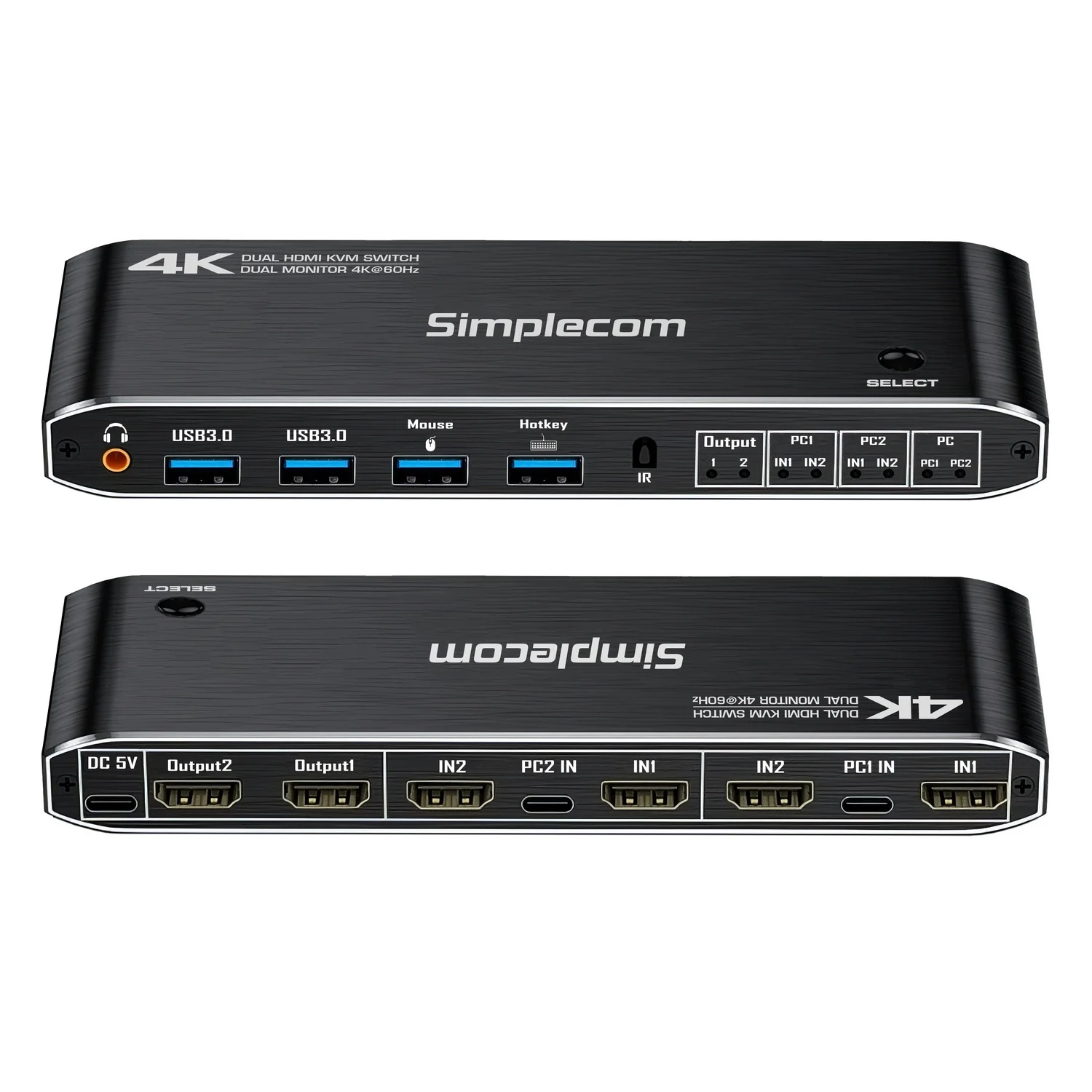

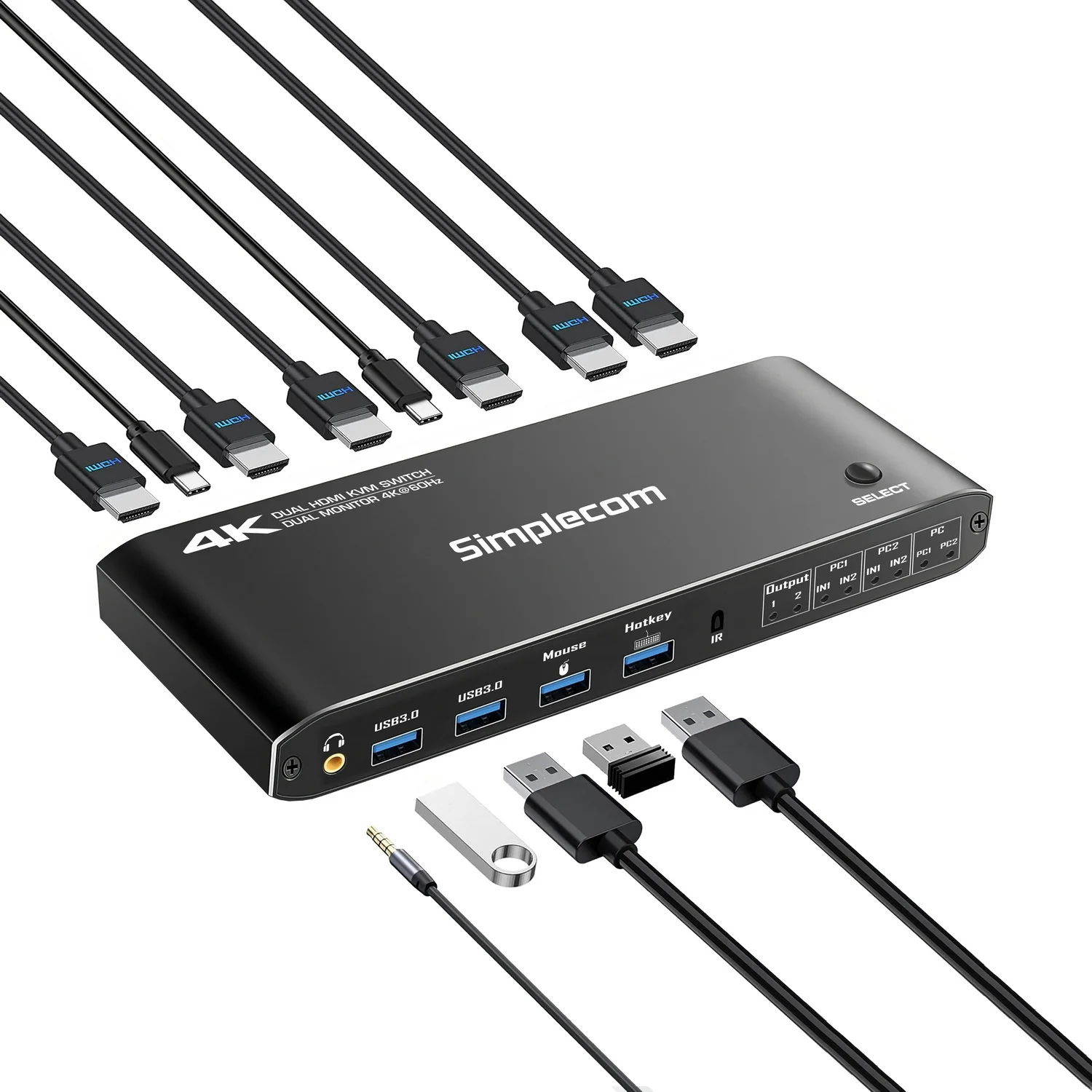

Simplecom KM430 Dual HDMI KVM Switch, 2 Computers, 4-Port USB Hub, 4K@60Hz

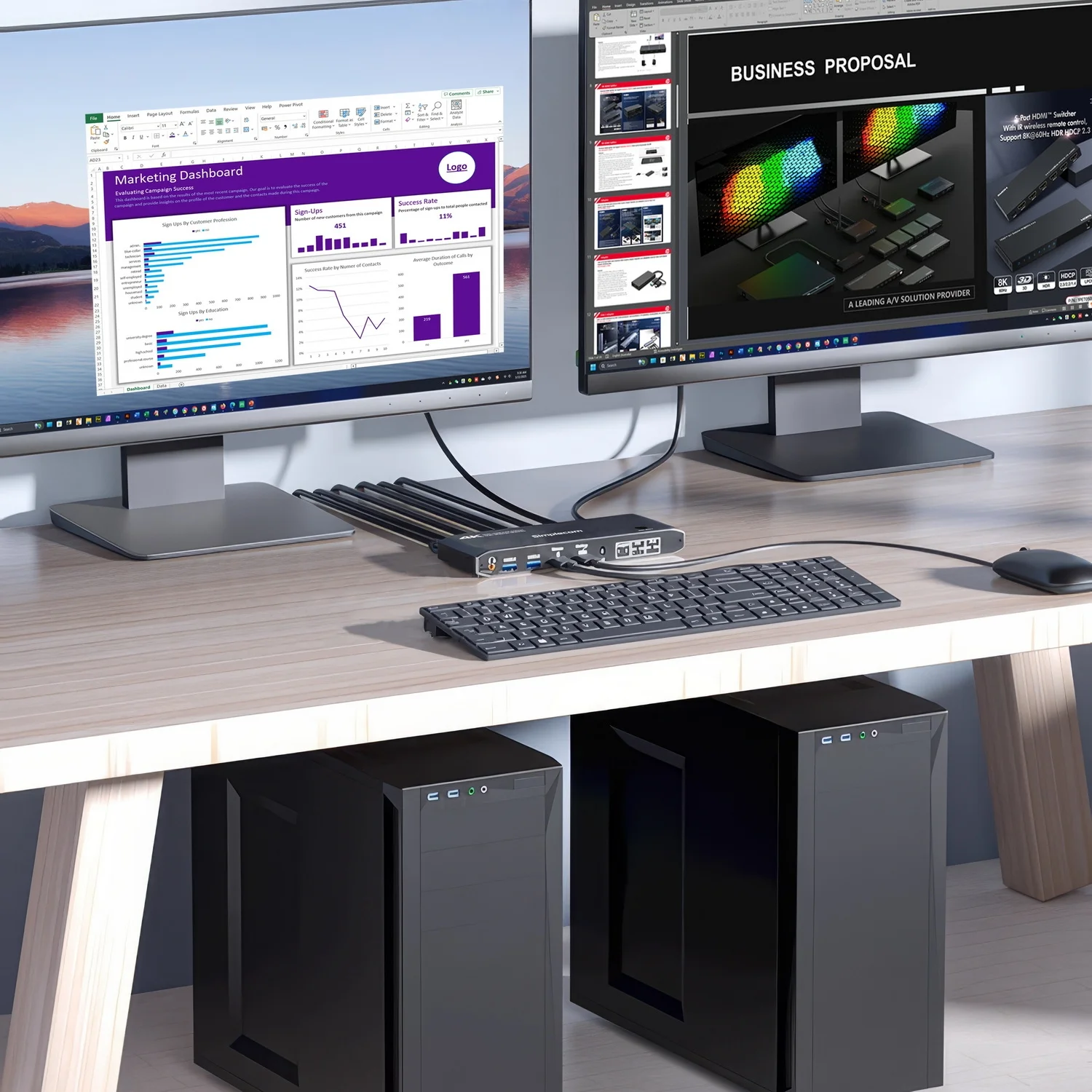

The Simplecom KM430 Dual HDMI KVM Switch lets you control two computers with one keyboard, mouse and dual monitors, making it ideal for multitasking across workstations or home setups. It supports extended and mirrored display modes with HDMI 2.0 compliance and video resolution up to 4K@60Hz on both screens.

Key Features

• Dual HDMI KVM switch allows 2 computers to share 2 displays and 4 USB ports
• Supports dual monitors in extended or mirrored modes
• HDMI 2.0 compliant, supports video resolution up to 4K@60Hz
• Integrated 4-port USB hub toggled with the display simultaneously
• Two SuperSpeed USB 3.0 ports support up to 5Gbps data transfer rate
• Two USB 2.0 ports for connecting a mouse and keyboard
• Switch by pressing the toggle button on the KVM switch or using the remote control
• USB port for keyboard supports hotkey function to switch computers
• 3.5mm audio output port for connecting speakers or headphones
• Plug and play, no driver required, with multi-platform compatibility
• Durable aluminium alloy casing that also efficiently dissipates heat
• Powered by USB, no additional power adapter required
• LED lights indicating the status of each computer

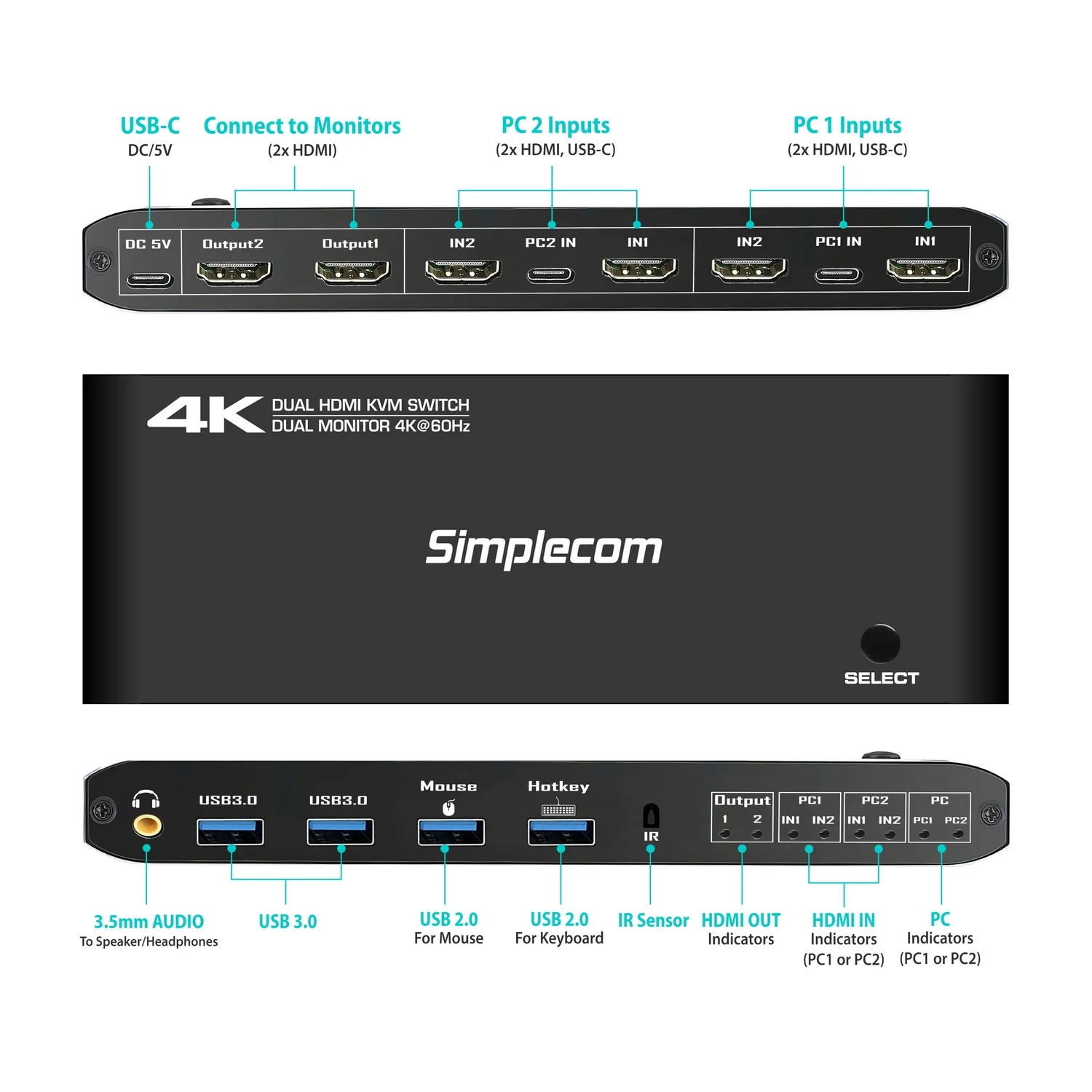

Specifications

• Model: KM430
• USB Upstream Ports: USB-C x2 (connect to PC1 and PC2)
• USB Downstream Ports: USB 3.0 x2, USB 2.0 x2 (keyboard and mouse)
• Monitor Input: HDMI 2.0 x4 (connect to PC1 and PC2)
• Monitor Output: HDMI 2.0 x2 (connect to two displays)
• Power Input: USB-C, DC 5V (backup power only, not required)
• Audio Output: 3.5mm audio jack (extracted from HDMI Output1 port)
• USB Max Bandwidth: 2x USB 3.0 up to 5Gbps, 2x USB 2.0 up to 480Mbps
• Video Max Bandwidth: up to 18Gbps
• Max Video Resolution: 4K@60Hz (3840x2160), 2K@120Hz (2560x1440), 1080p@144Hz (1920x1080)
• Max Cable Length for Input/Output: 5m or less
• Operating Temperature Range: -5C to 45C
• Operating Humidity Range: 5 to 90%RH (no condensation)
• Dimensions (L x W x H): 17.5 x 5.7 x 2.1cm
• Weight: 170g
• Operating System Support: Windows, macOS, Linux, Chrome OS

What's in the Box

• 1x Dual HDMI KVM Switch
• 2x USB-C to USB-A 5Gbps Data Cables
• 1x USB-C to USB-A Power Cable
• 1x Remote Control

Important Notes

• Powered via USB (connects PC and switch with a USB data cable), no extra power adapter needed. The DC 5V port is for backup power only, in case the PC's USB port cannot provide sufficient power.
• For stable performance, use High-Speed HDMI cables supporting 18Gbps bandwidth.
• This dual HDMI KVM switch also works in single monitor mode.
• It is recommended to adjust to the same resolution and refresh rate on both computers for smooth switching.
