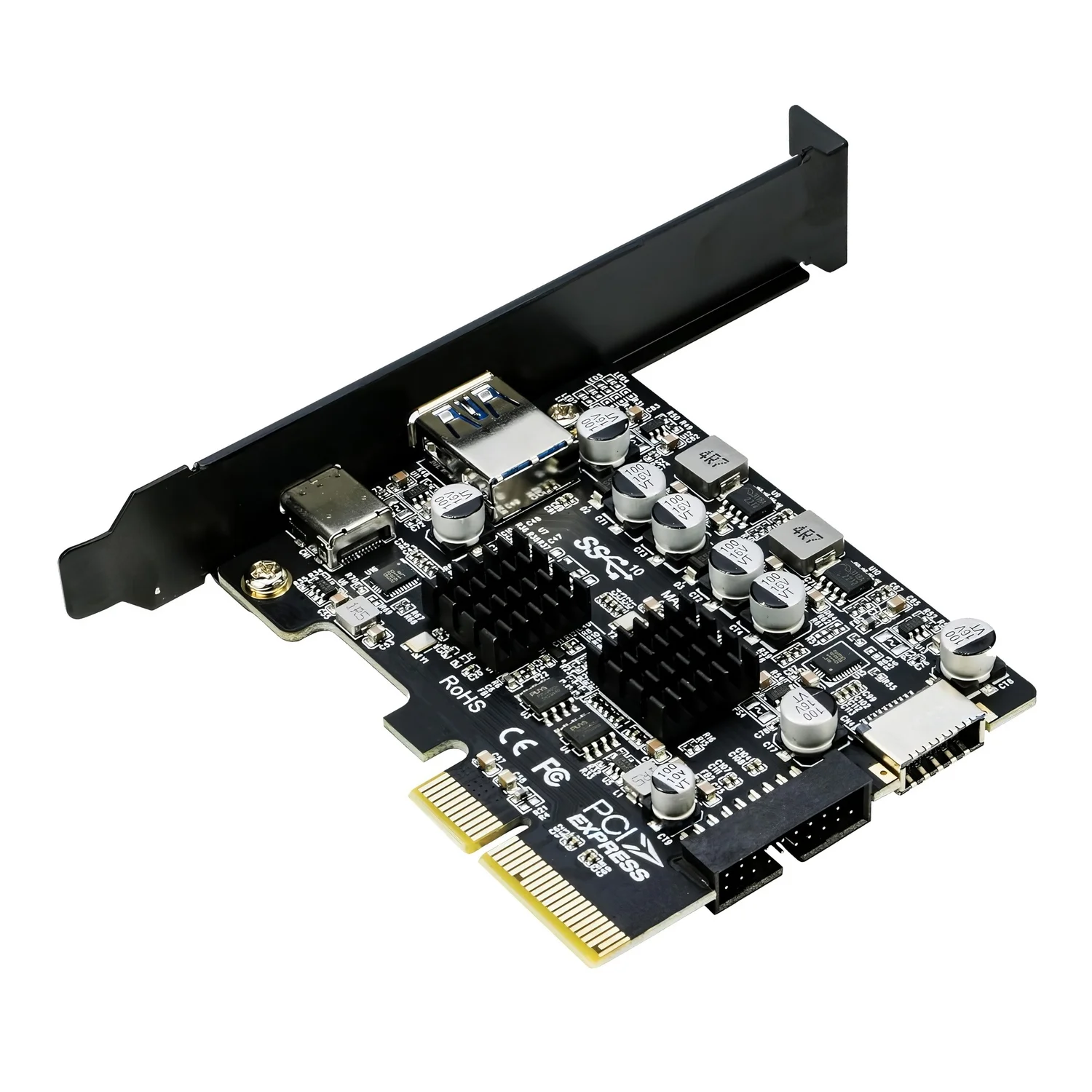

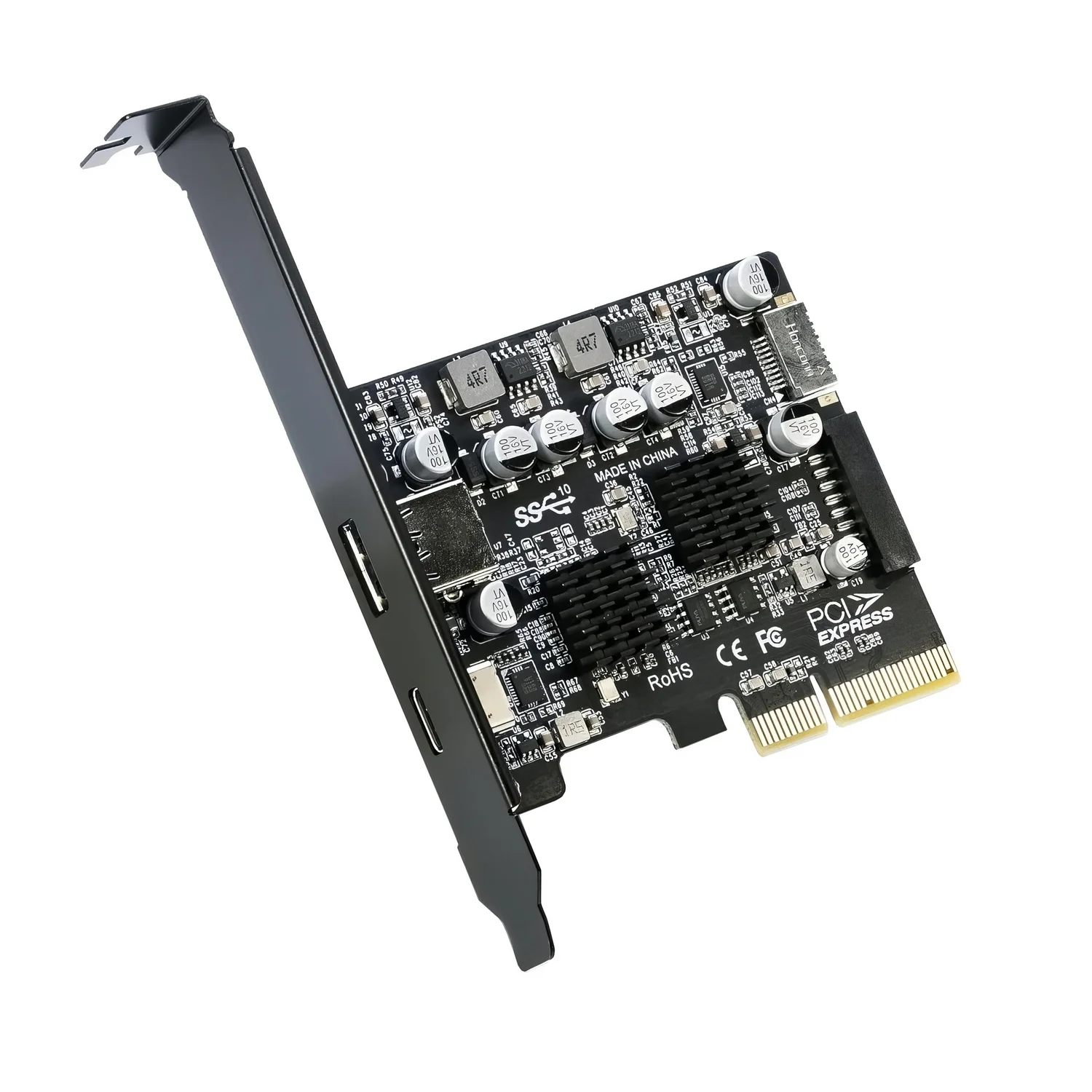

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen 2 10Gbps Card with USB-C and USB-A

The Simplecom EC315 is a PCIe x4 expansion card that adds high-speed USB 3.2 Gen 2 connectivity to your desktop, with data transfer rates of up to 10Gbps. It provides both rear-panel USB-C and USB-A ports plus internal front-panel connectors, so you can run external and front-panel USB ports at the same time.

Key Features

• PCIe x4 expansion card, also compatible with PCIe x8 or x16 slots
• USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps
• Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller

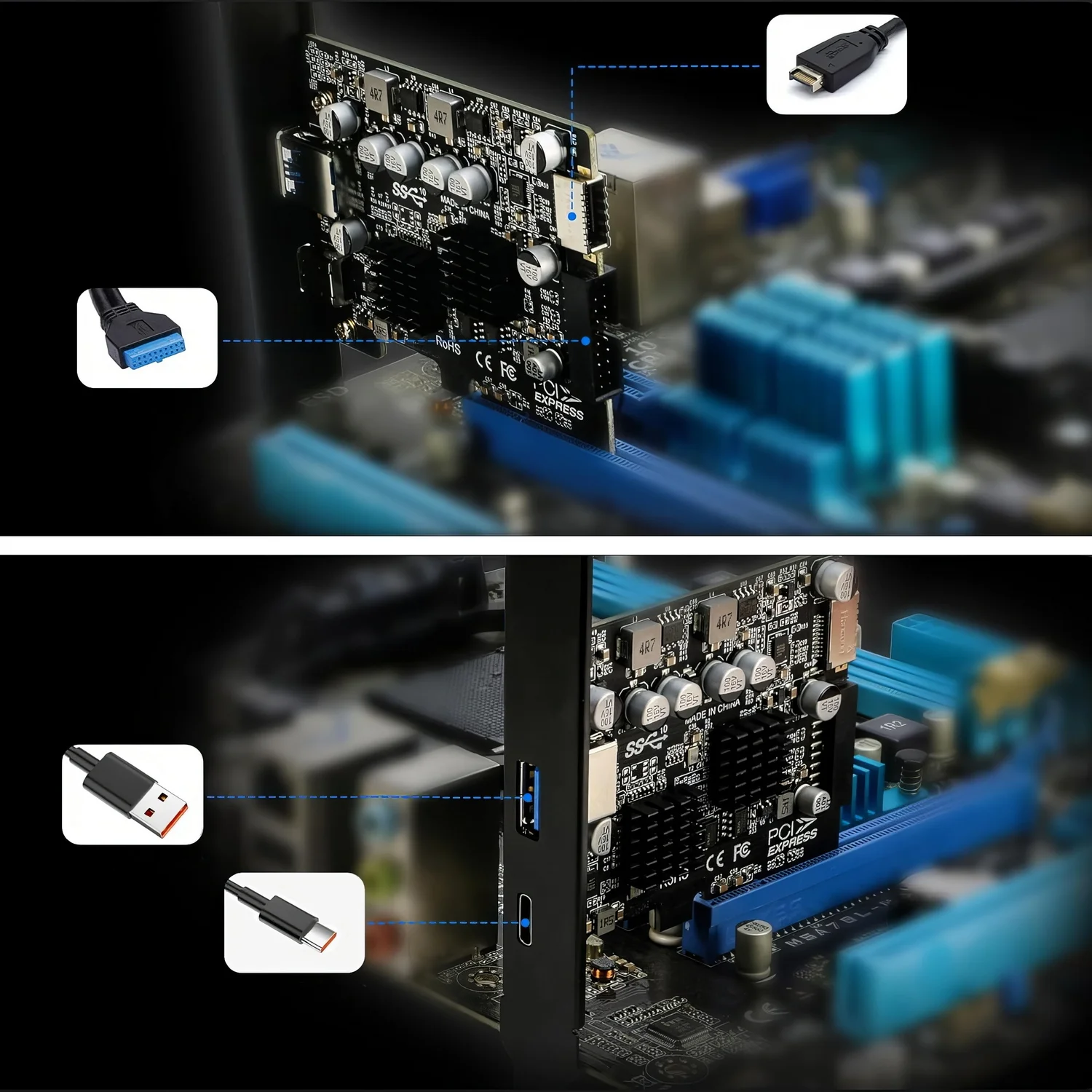

• Rear-panel and front-panel USB ports can operate simultaneously
• Two rear-panel connectors: 1x USB-C and 1x USB-A port
• Two internal front-panel connectors: USB 3.0 19/20-Pin and Key-A (Type-E)
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Built-in over current protection on each USB port
• Powered by PCIe, no external power required
• Built-in PCIe 12V to 5V modules provide power to the USB ports
• Plug and play with automatic installation on Windows

Specifications

• PCIe Interface: PCIe 3.0 x4, compatible with PCIe x8 or x16 slots
• USB Standard: USB 3.2 Gen 2 10Gbps
• Rear Panel Connectors: 1x USB-A, 1x USB-C
• Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (front USB-A), 1x Key-A (Type-E) connector (front USB-C)
• USB Speed Support: SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), HiSpeed (480Mbps), Full Speed (12Mbps)
• USB Power Source: Integrated PCIe 12V to 5V module
• Operating System Support: Windows 7 and above

System Requirements

• 1x available PCIe 3.0 or higher x4/x8/x16 slot on the motherboard; note that PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps
• Plug and play for Windows 8 and above; Windows 7 requires driver installation

What's in the Box

• 1x USB 3.2 Gen 2 Expansion Card

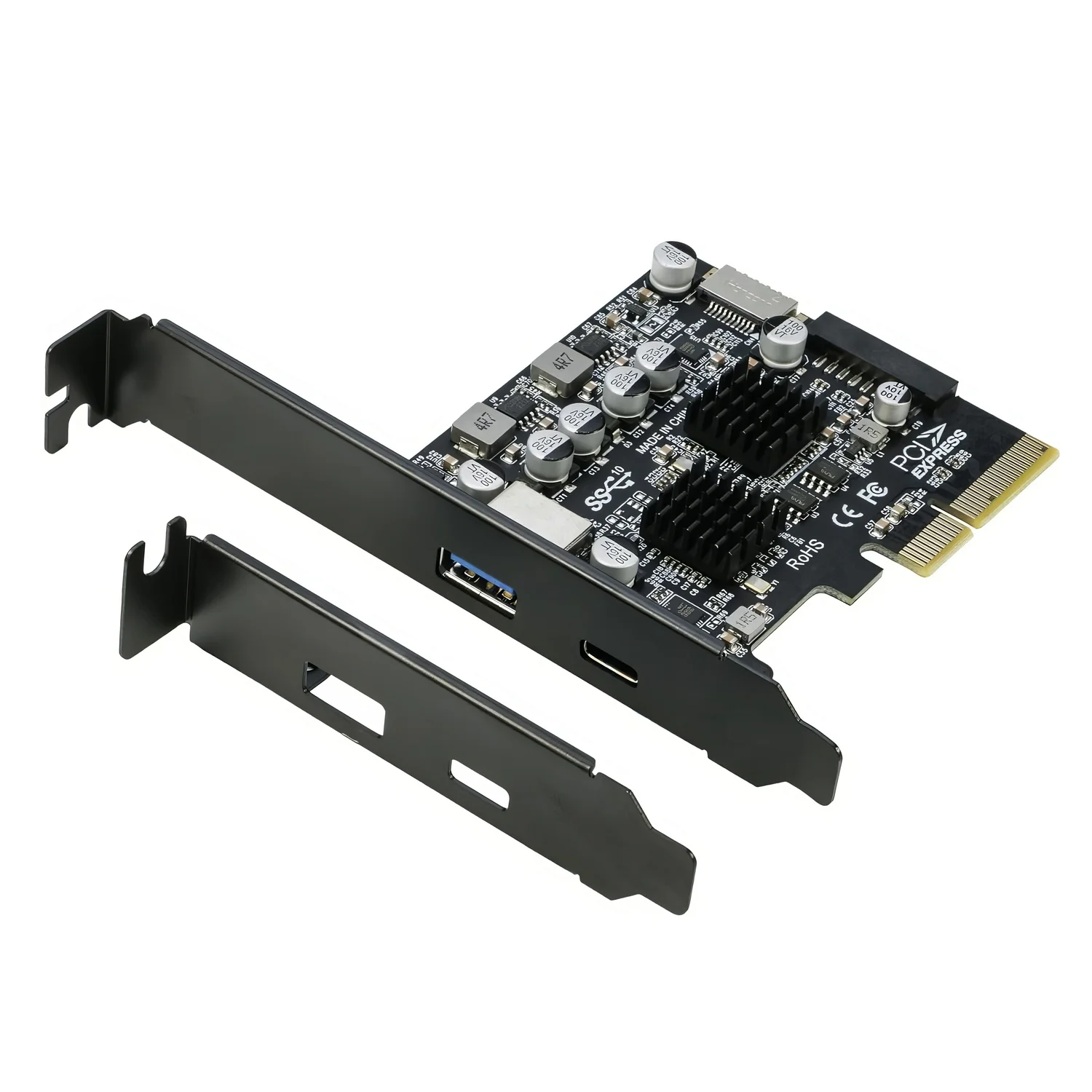

• 1x Low Profile Bracket
