Seasonic VERTEX GX-1000 1000W 80 PLUS Gold Fully Modular ATX 3.0 PSU

The Seasonic VERTEX GX-1000 is a 1000 W fully modular power supply with 80 PLUS Gold efficiency, ATX 3.0 support and a 16-pin PCIe Gen 5 (12VHPWR) cable. It delivers stable, efficient power for high-performance PC builds, with tight voltage regulation and premium fan control for quiet operation.

Key Features

• 80 PLUS Gold certified efficiency

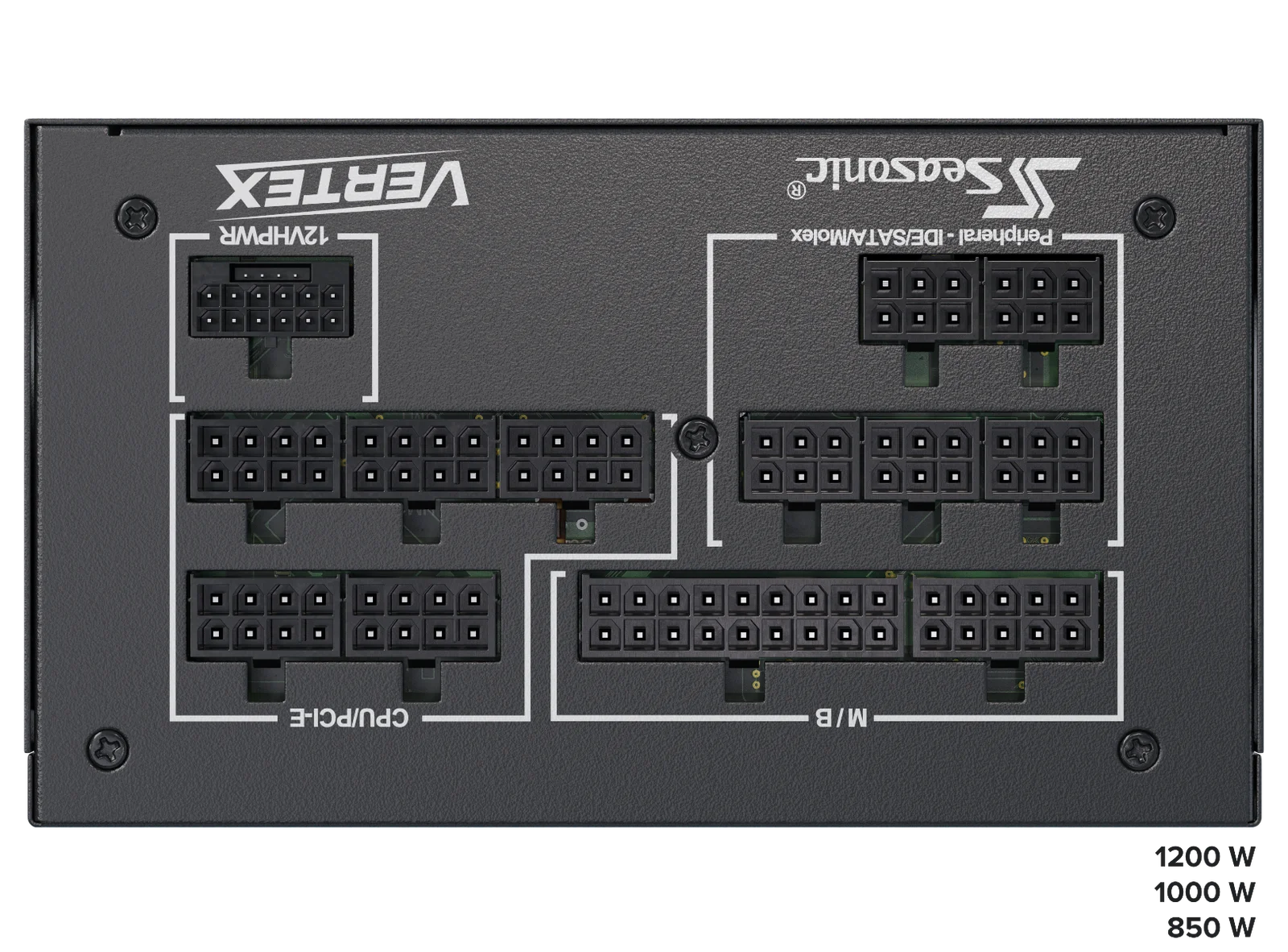

• Fully modular design with flat black cables
• ATX 3.0 with 16-pin PCIe Gen 5 cable (12VHPWR)
• 135 mm fluid dynamic bearing fan
• Premium Hybrid Fan Control
• Tight voltage regulation on 12 V, 5 V and 3.3 V rails (±3%)
• Gold plated high current terminals (MB, CPU and PCIe)
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

Specifications

• Form factor: Intel ATX 12 V
• Dimensions: 160 mm (L) x 150 mm (W) x 86 mm (H)
• Total continuous power: 1000 W
• AC input: 100 V – 240 V, 13 – 6.5 A, 50 Hz – 60 Hz
• DC output: +3.3 V (25 A), +5 V (25 A), +12 V (83 A), -12 V (0.3 A), +5 VSB (3 A)
• Combined +3.3 V and +5 V output: 125 W
• +12 V output: 996 W
• Fan size: 135 mm
• Fan bearing: Fluid Dynamic Bearing
• Fan life expectancy: 50,000 hours at 40 °C, 15% – 65% RH
• Operating temperature: 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
• MTBF at 25 °C (excluding fan): 150,000 hours
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 10 years
