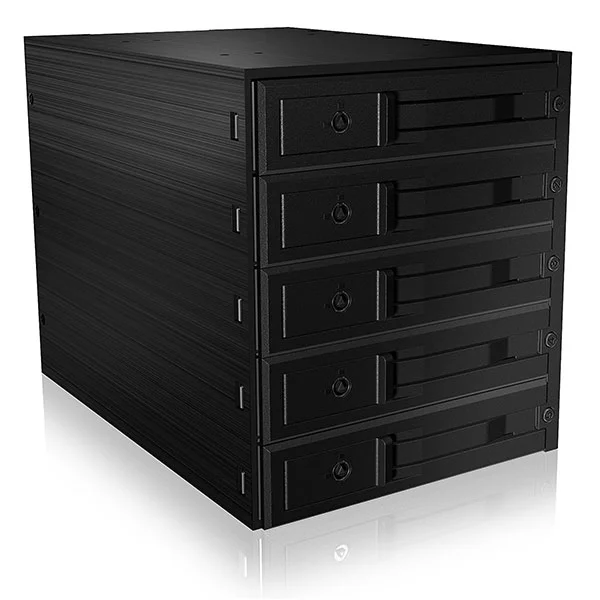

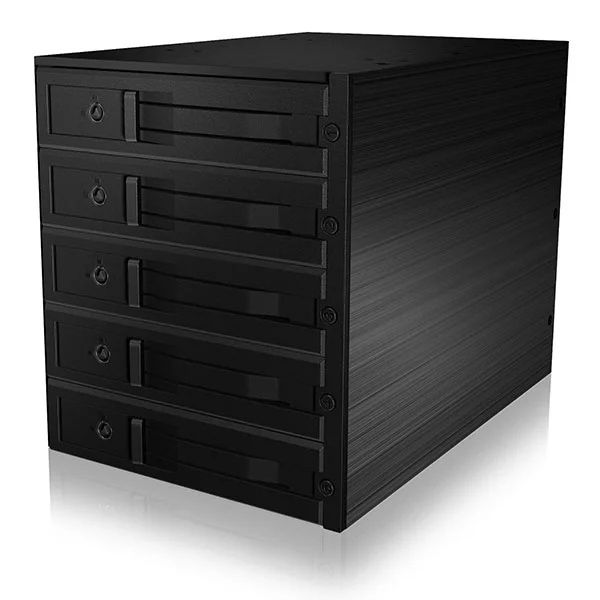

The ICY BOX IB-565SSK backplane lets you install up to five 3.5" SATA or SAS hard drives in three 5.25" bays, making it a practical storage solution for RAID systems and demanding server environments. Built from robust materials with an 80 mm fan and temperature monitoring, it keeps drives cool and protected under heavy use.
Key Features

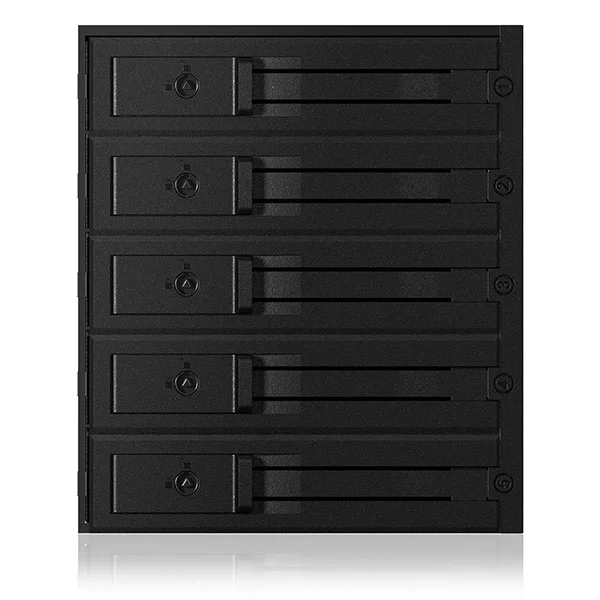

- Houses up to five 3.5" SATA or SAS HDDs in three 5.25" bays
- Proven in extremely hard server duty and suitable for RAID systems
- Aluminium parts dissipate heat and are electropolished

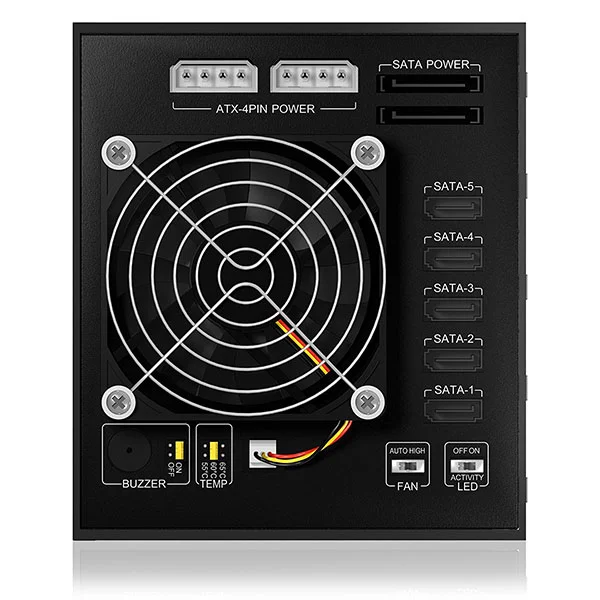

- 80 mm fan operates reliably and silently with adjustable operating mode
- Optical and acoustic warning signals when high temperature is detected
- Temperature alarm signal selectable at 55°C, 60°C or 65°C
- HDD and fan state alerts via optical and auditory signals
- Lock added for additional security
- Moving parts and locking mechanism designed for strongest strain
- Trays slide without resistance
- Compact size allows installation in small media centre PCs
Specifications
- Model: IB-565SSK
- Drive support: 5x 3.5" SATA or SAS HDD
- Bay requirement: 3x 5.25"
- Fan: 80 mm
- Temperature alarm settings: 55°C, 60°C, 65°C
- Material: Aluminium parts (electropolished)
What's in the Box
- 1x ICY BOX Backplane for 5x 3.5" SATA or SAS HDD in 3x 5.25" bay (IB-565SSK)
