Baumr-AG BCX-750 Plate Compactor 94kg 420x540mm with Sprinkler System

The Baumr-AG BCX-750 Site-Mate Series Plate Compactor is a vibratory compactor built for paving projects such as driveways, landscaping and preparing foundations for concreting. Its powerful engine, large steel base plate and integrated sprinkler system make it a practical choice for compacting sand, soil and gravel.

Key Features

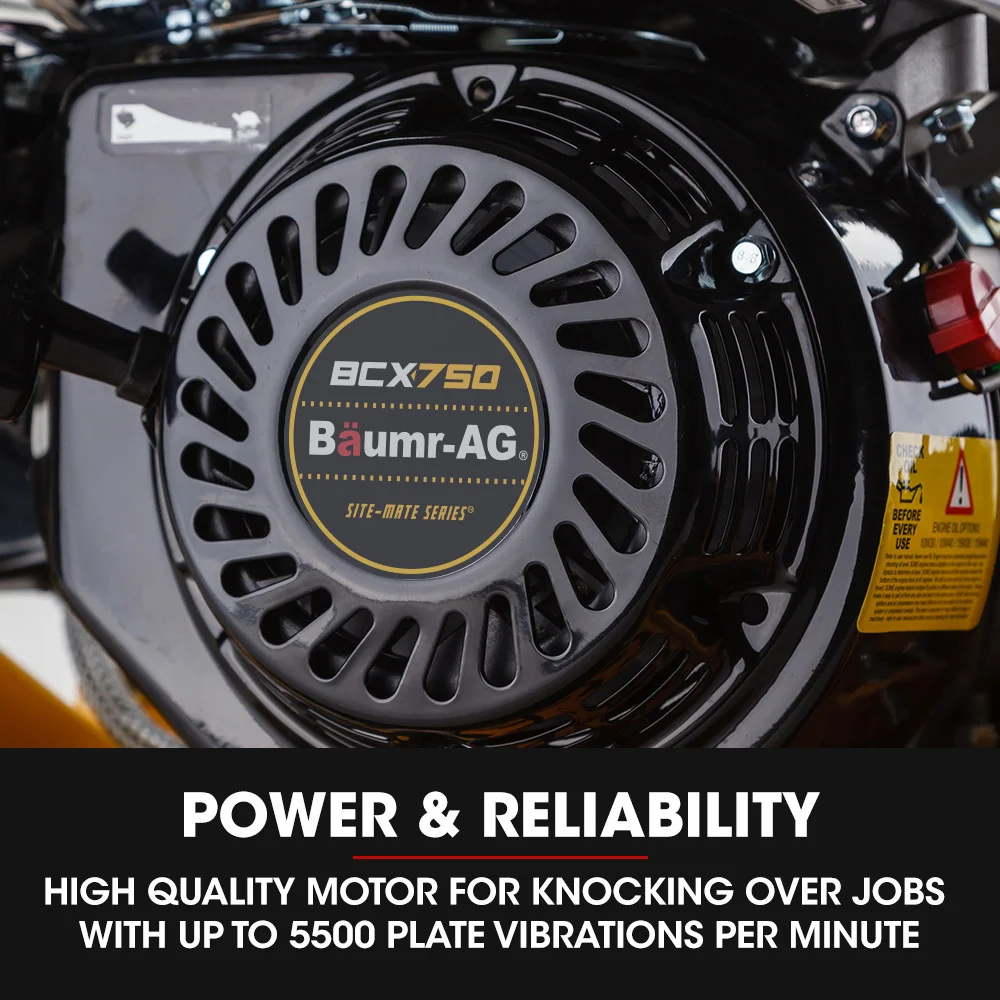

• Air-cooled 6.5HP 4-stroke engine for reliable, efficient power
• Up to 5500 plate vibrations per minute
• One-piece prime strength steel base plate with tapered edges for manoeuvrability in confined spaces
• 94kg maximum operating weight for firm, level soil compression to a 300mm depth

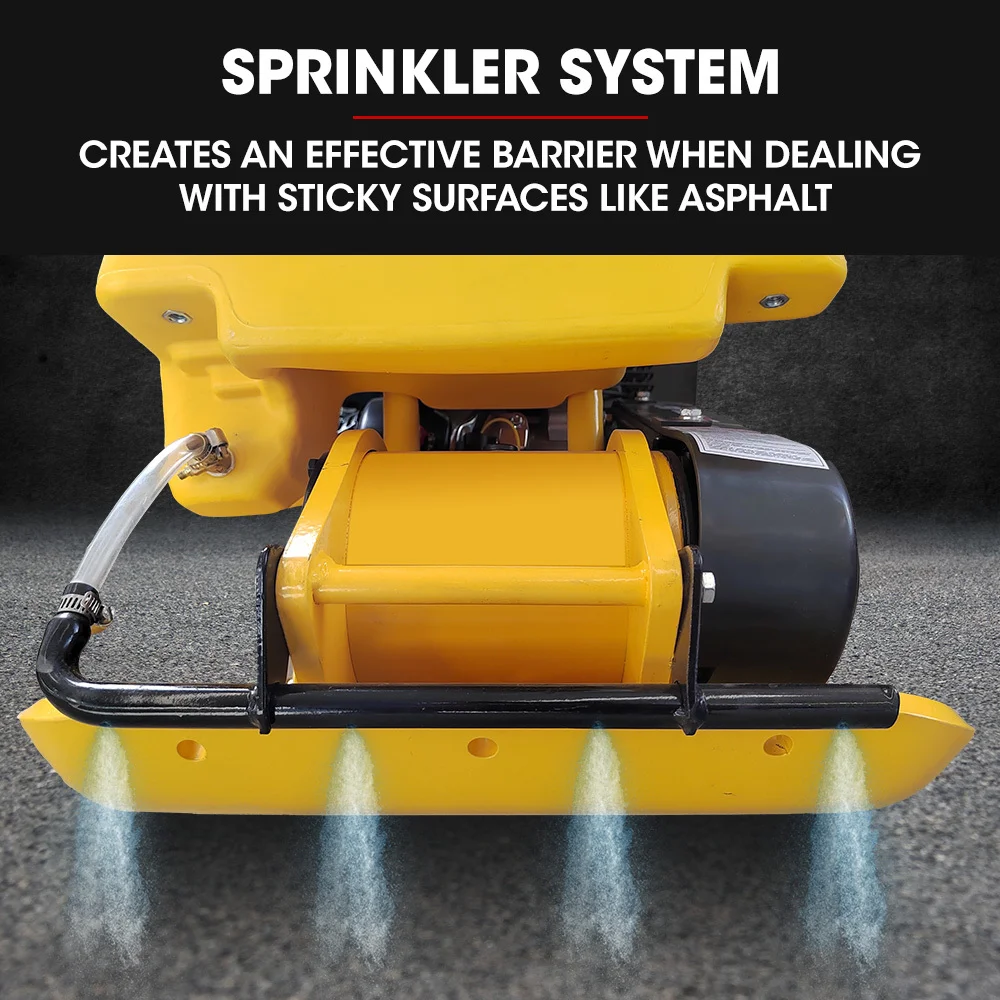

• Integrated sprinkler system connected to a 13L water tank to help create a barrier against sticky surfaces like asphalt
• Oversized shock-absorption system in the handles and soft rubber grip for fatigue-free operation

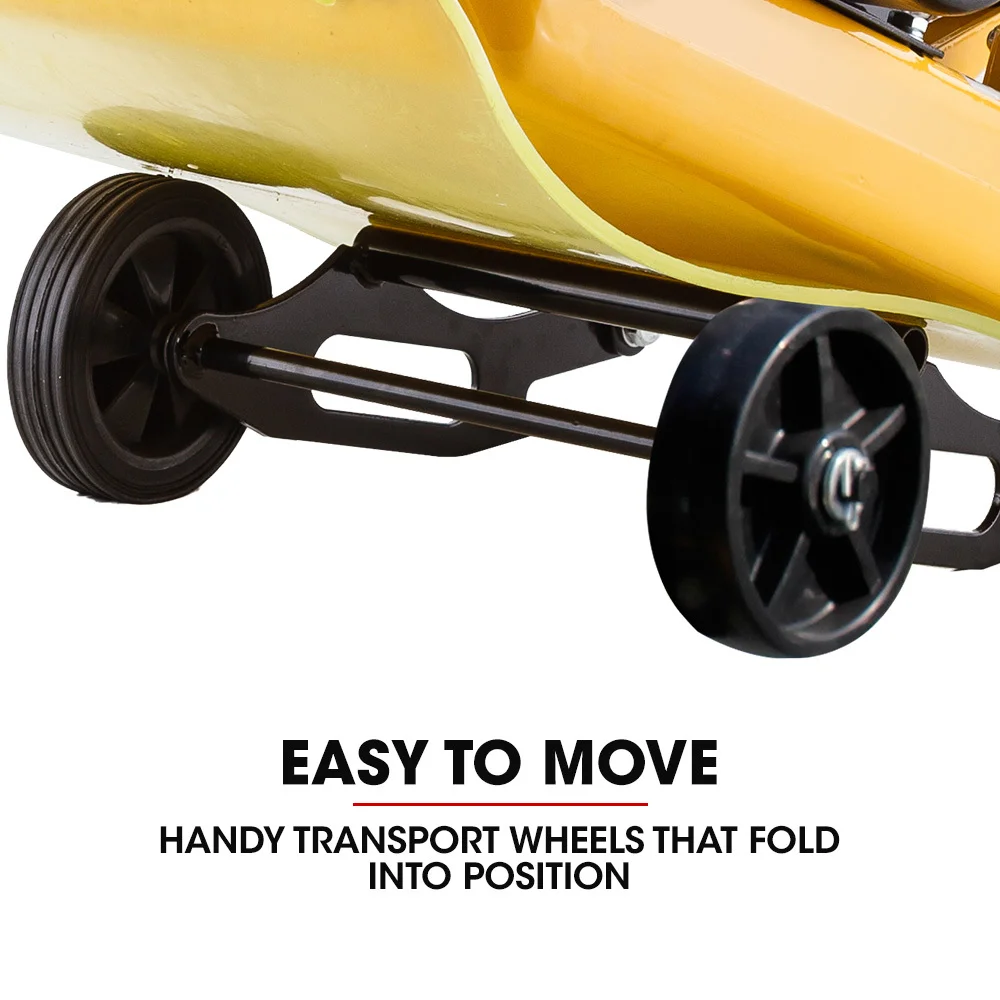

• Retractable wheels and lifting points for easier transport between jobs

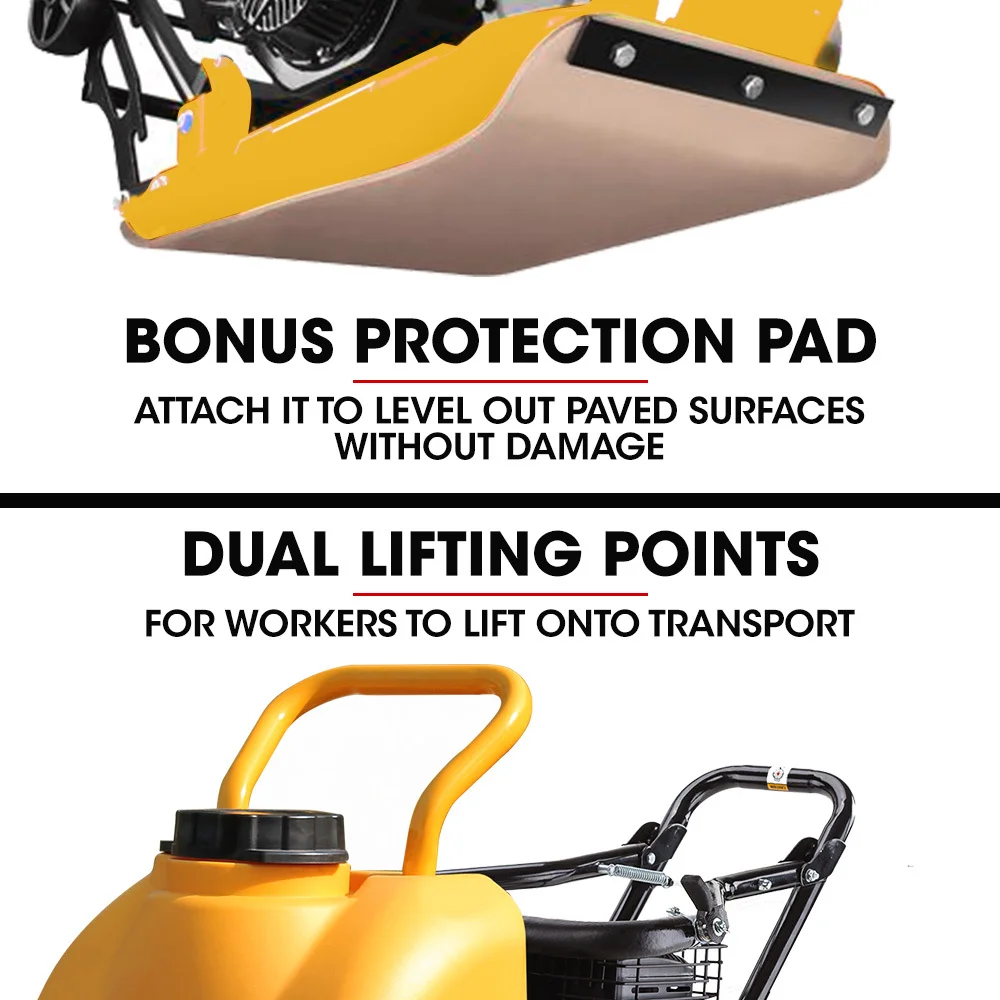

• Bonus paving pad for levelling pavers with minimal risk of damage

Specifications

• Brand: Baumr-AG
• Model: BCX-750
• Engine Type: 6.5HP
• Displacement: 196cc
• Type: Vibratory
• Starting System: Recoil Pull Start
• Fuel Type: Unleaded 95+ RON
• Fuel Tank Capacity: 3.6L
• Oil Capacity: 0.6L
• Operation Mass: 94kg (with full tanks)

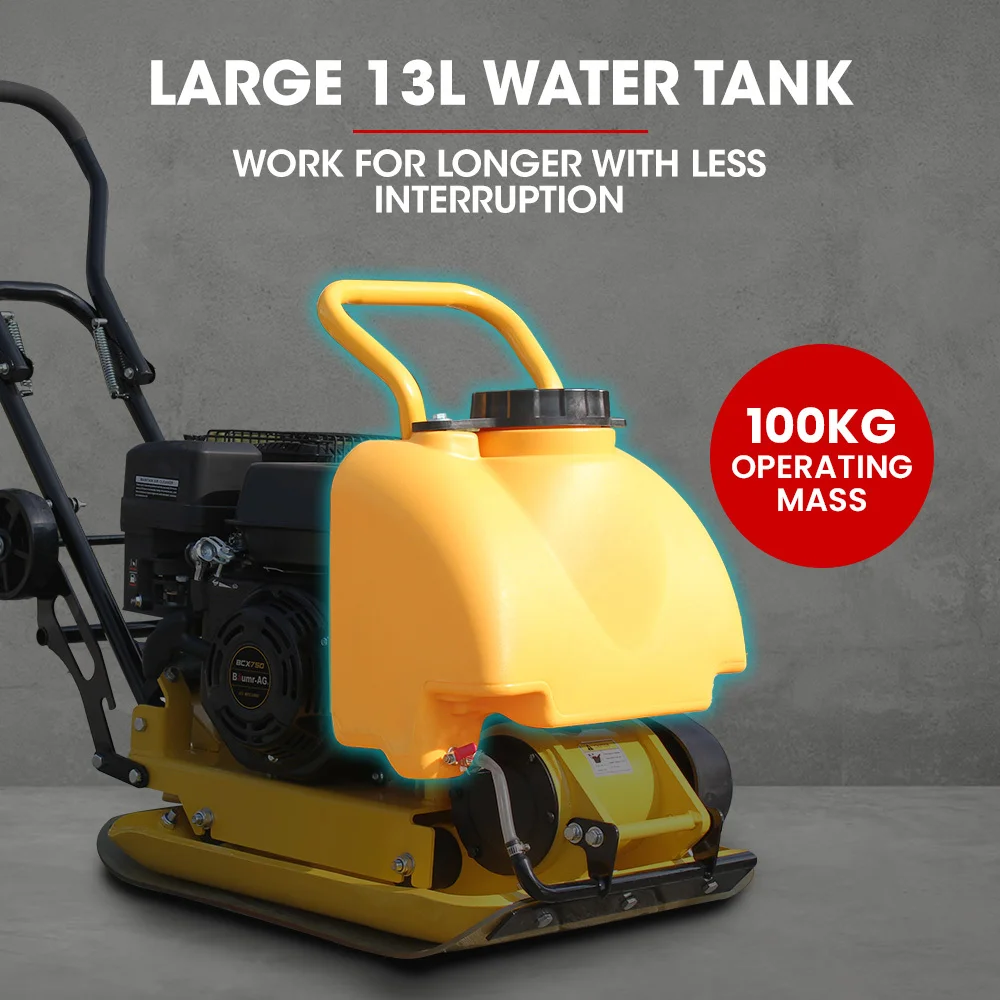

• Water Tank Capacity: 13L
• Centrifugal Force: 13kN
• Walk Speed: 15m/min
• Plate Size: 420 x 540mm
• Compaction Depth: 300mm (Soil)
• Frequency: 5500vpm
• Dry Weight: 82kg
• Product Dimensions (W x L x H): 42 x 117 x 85cm
• Product Weight: 82kg
• Carton Dimensions (W x L x H): 47 x 76 x 74cm
• Carton Weight: 85kg

What's in the Box

• 1 x Baumr-AG BCX-750 Plate Compactor
• Note: User Manual is accessible online
