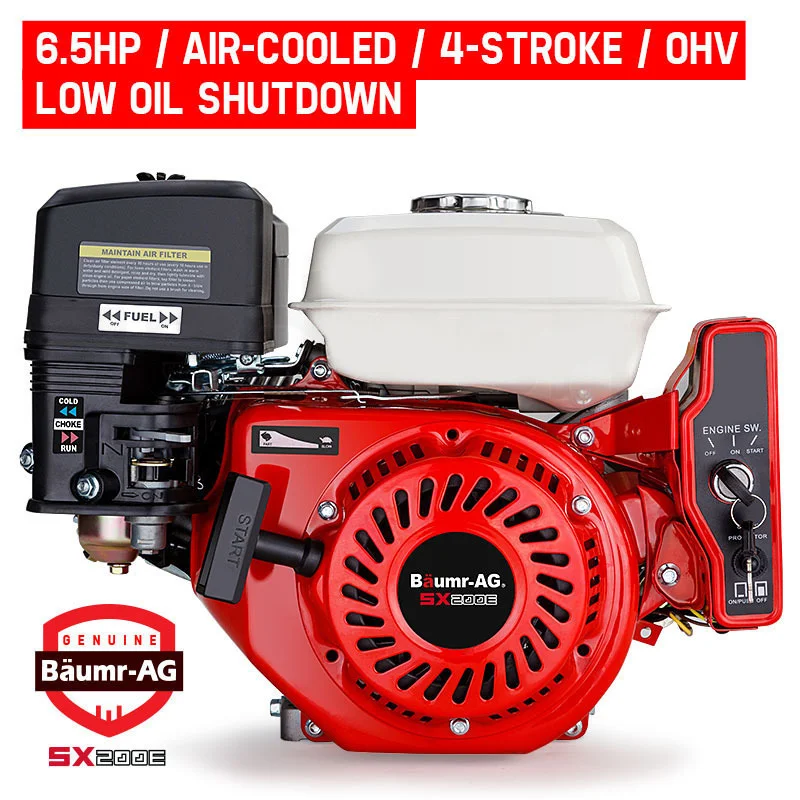

Baumr-AG 6.5HP Petrol Stationary Engine OHV Horizontal Shaft Electric Start

The Baumr-AG 6.5HP petrol stationary engine is a reliable replacement motor for generators, water pumps, air compressors, log splitters, high pressure cleaners, go karts and a wide range of construction and agricultural equipment. With a 196cc OHV four-stroke design and electric start, it delivers consistent output and good fuel economy for industrial, agricultural and domestic use.

Key Features

• 196cc single-cylinder, four-stroke, air-cooled OHV engine
• Electric starting system with recoil backup

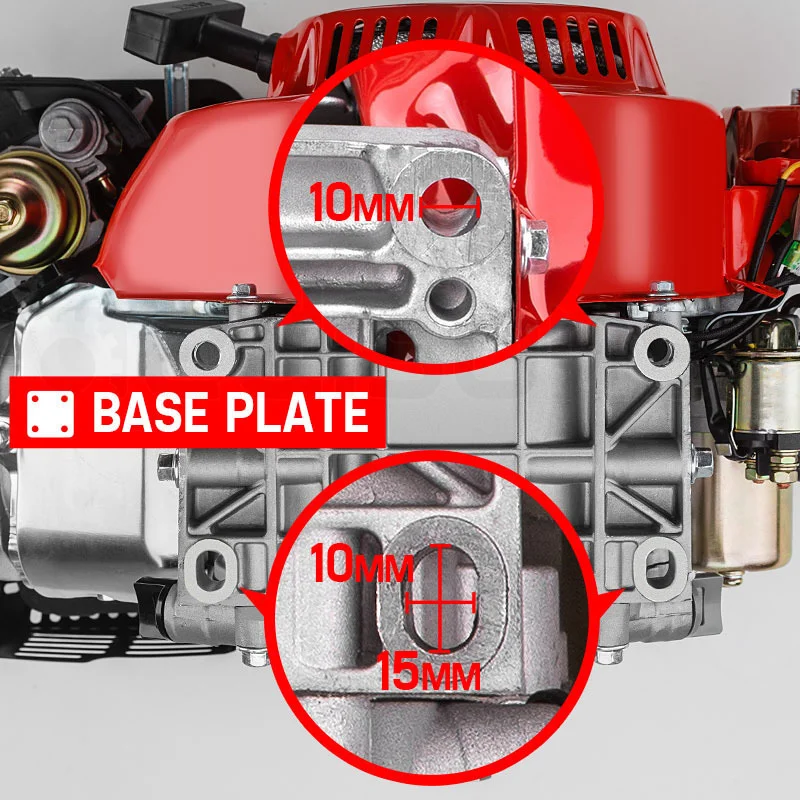

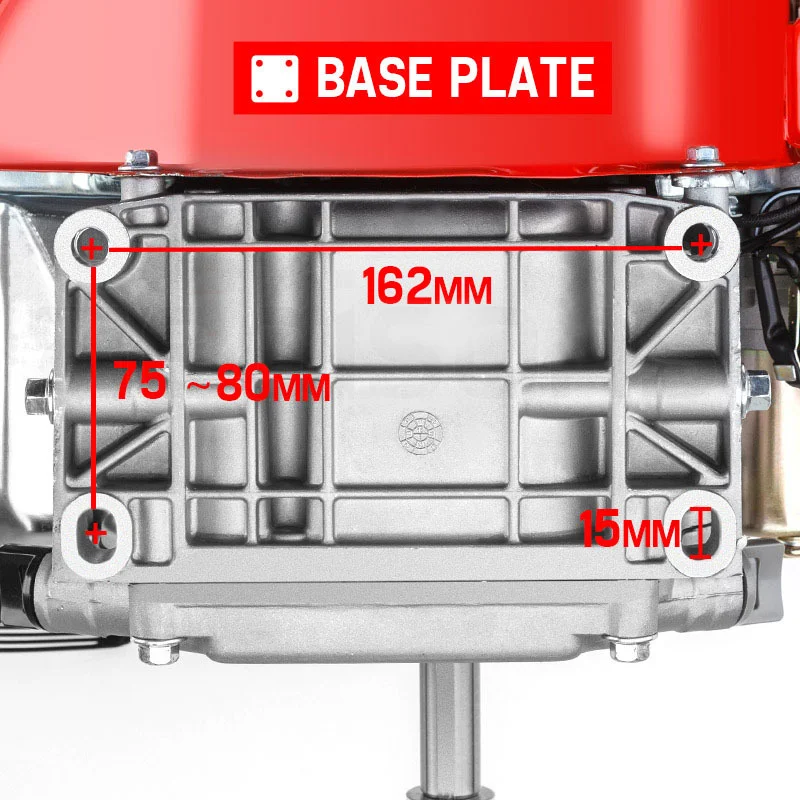

• Standard imperial shaft and footprint compatible with most engines on the market, including Briggs and Stratton and Honda
• Low oil shut-down for added protection
• High power to displacement ratio for reliable, consistent output
• Purpose-built components for reliability, fuel economy and low oil usage
• Manufactured to stringent standards using high-grade materials

Specifications

• Engine Type: 1-cylinder, 4-stroke, air-cooled, OHV
• Bore x Stroke: 68 x 45mm
• Displacement: 196cc
• Compression Ratio: 8.5:1

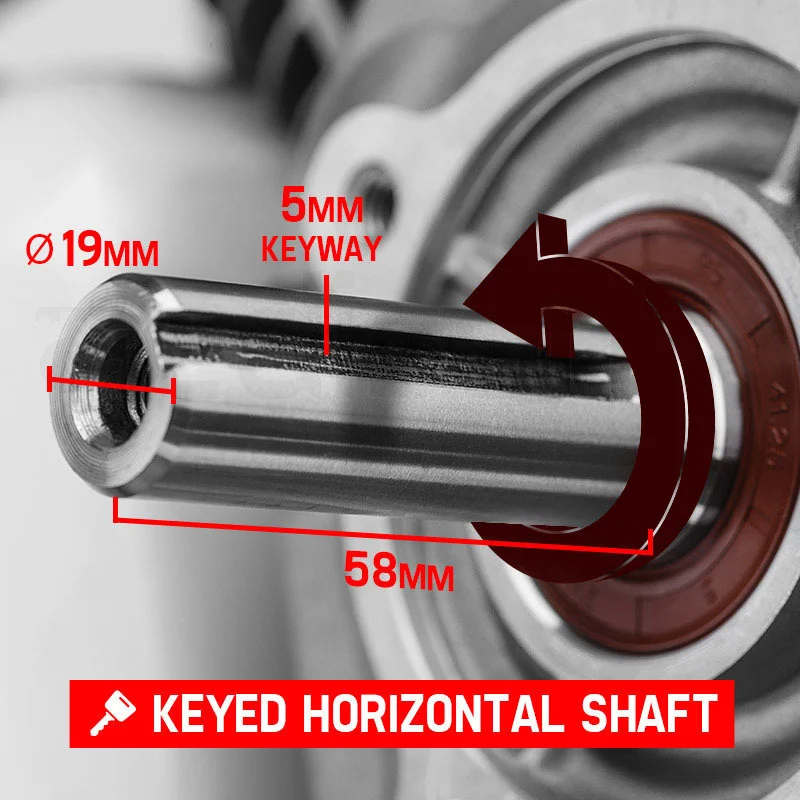

• Shaft Diameter: 19mm (imperial)
• Shaft Length: 58mm
• Keyway: 5mm wide
• Compatible Battery: 12V 18Ah (not supplied)
• Maximum Power Output: (6.5HP) 4.8kW
• Rated Power Output: (5.7HP) 4.2kW
• Speed: 3600rpm
• Maximum Torque: 14N.m
• Ignition System: Transistor magneto

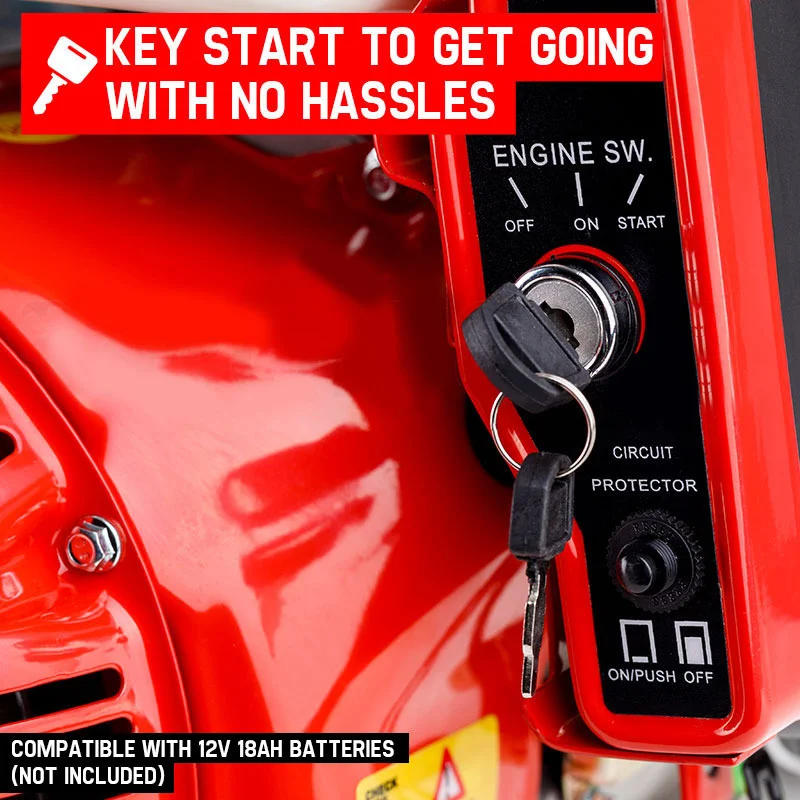

• Starting System: Electric
• Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included)
• Engine Oil System Capacity: 0.6 litres

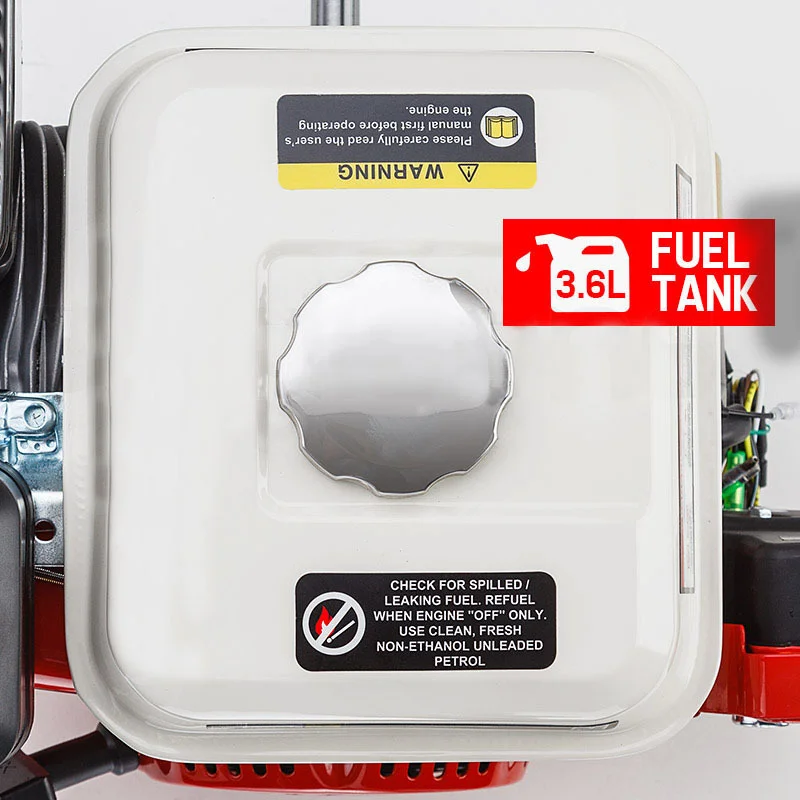

• Fuel Capacity: 3.6 litres
• Fuel Type: Regular unleaded 95+ RON
• Min. Fuel Consumption: 360g/kW/h
• Output Axle Steering: Left
• Air Cleaner: Semi-dry, silent, cyclone
• Note: Battery not included

What's in the Box

• 1x Baumr-AG SX200E Stationary Petrol Engine

Size and Weight

• Carton Weight: 19kg
• Carton Dimensions (L x W x H): 41 x 39 x 39cm
• Product Weight: 17kg

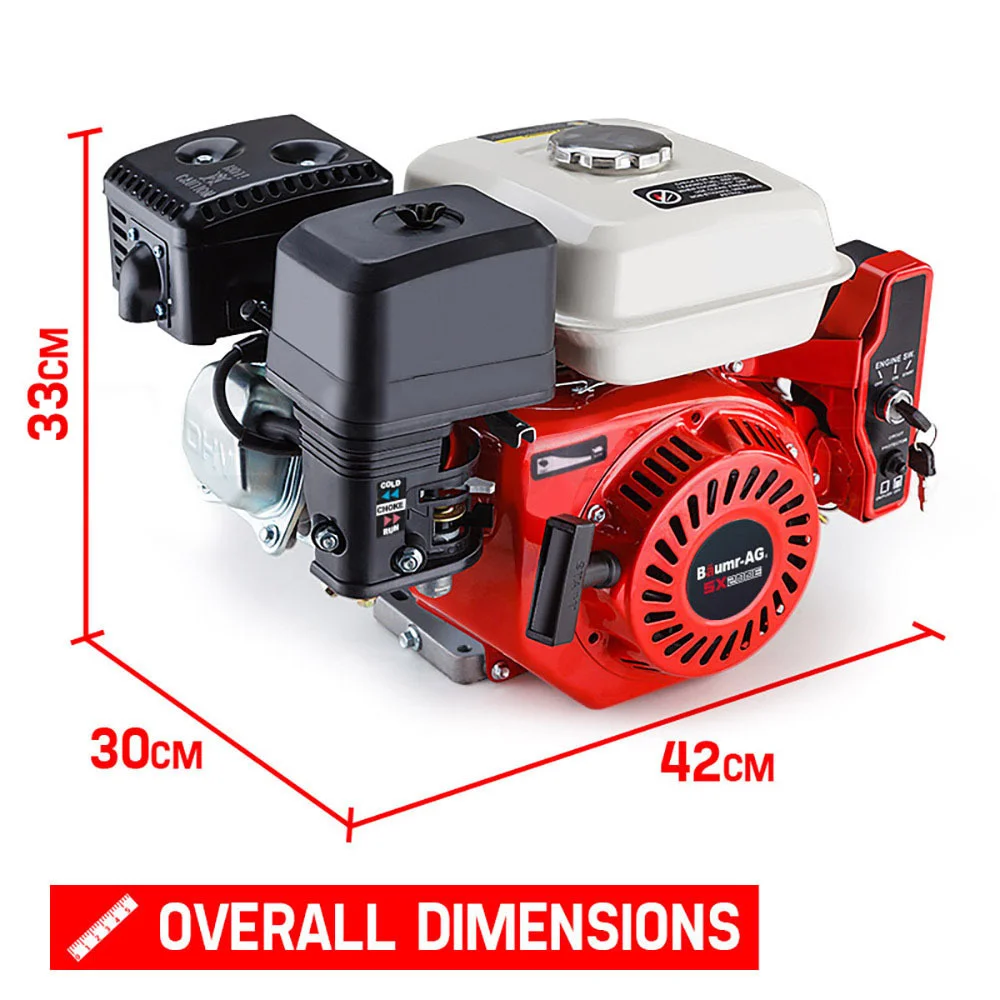

• Product Dimensions (L x W x H): 42 x 30 x 33cm
