Baumr-AG 254mm Dual Bevel Sliding Compound Mitre Saw 2000W

The Baumr-AG DBR-255 dual bevel sliding compound mitre saw combines a 2000W motor with a 254mm tungsten carbide tipped blade for fine, flush cuts. Its dual bevel head, laser guide and smooth double bearing rail sliding action make complex compound cuts quick and accurate.

Key Features

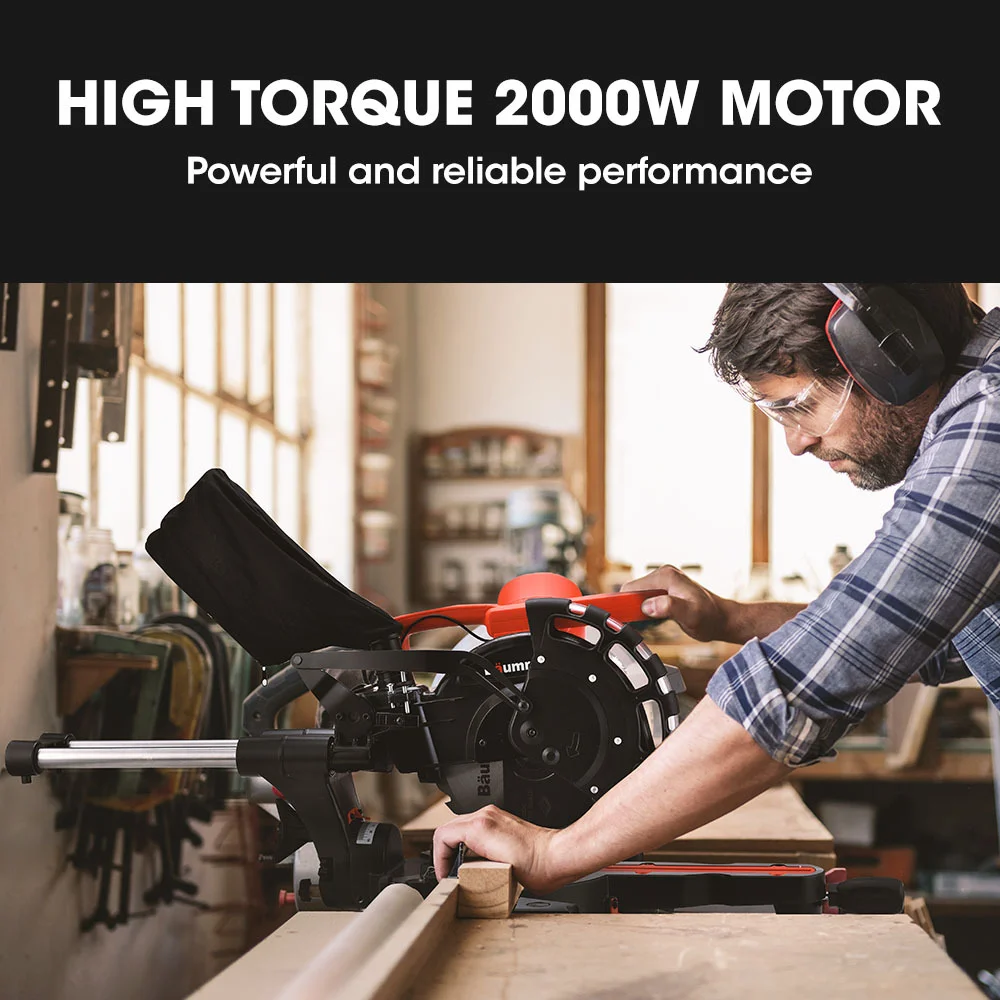

• 2000W motor with 5500rpm no-load speed

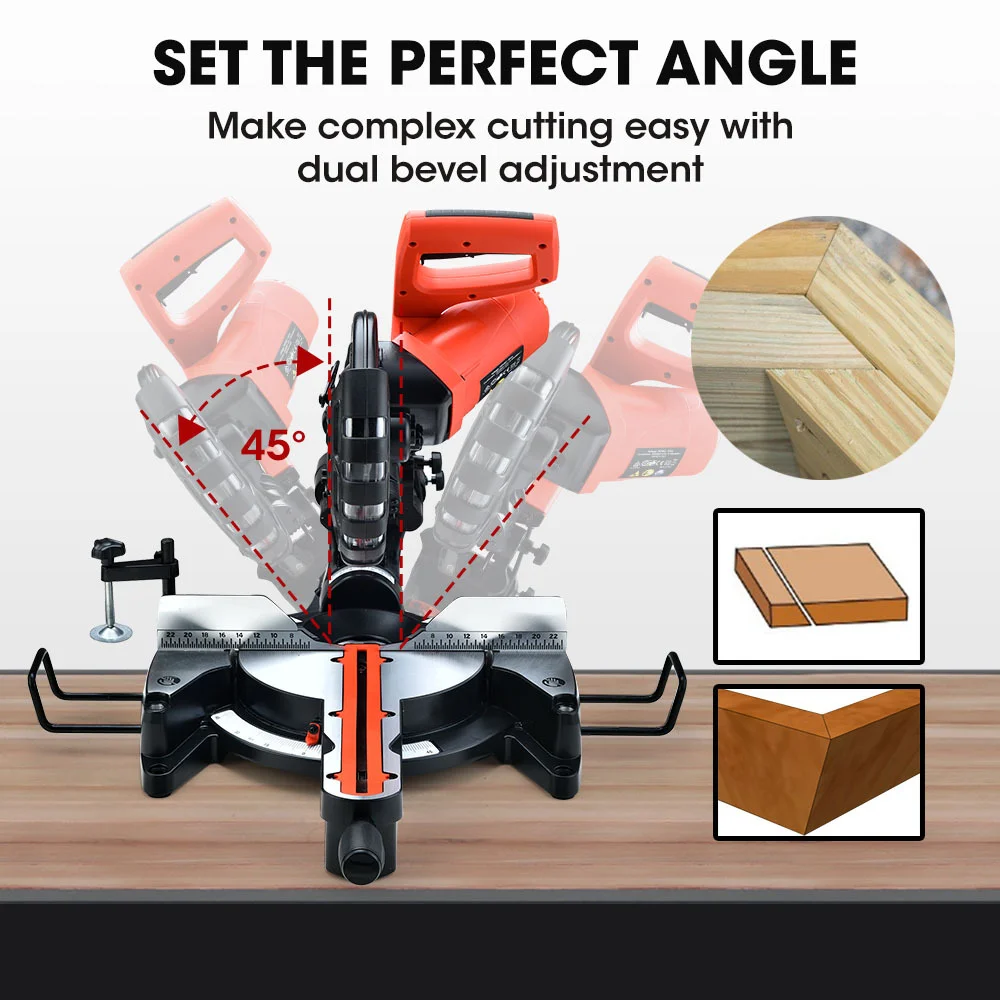

• Dual bevel head for fast, accurate compound cuts

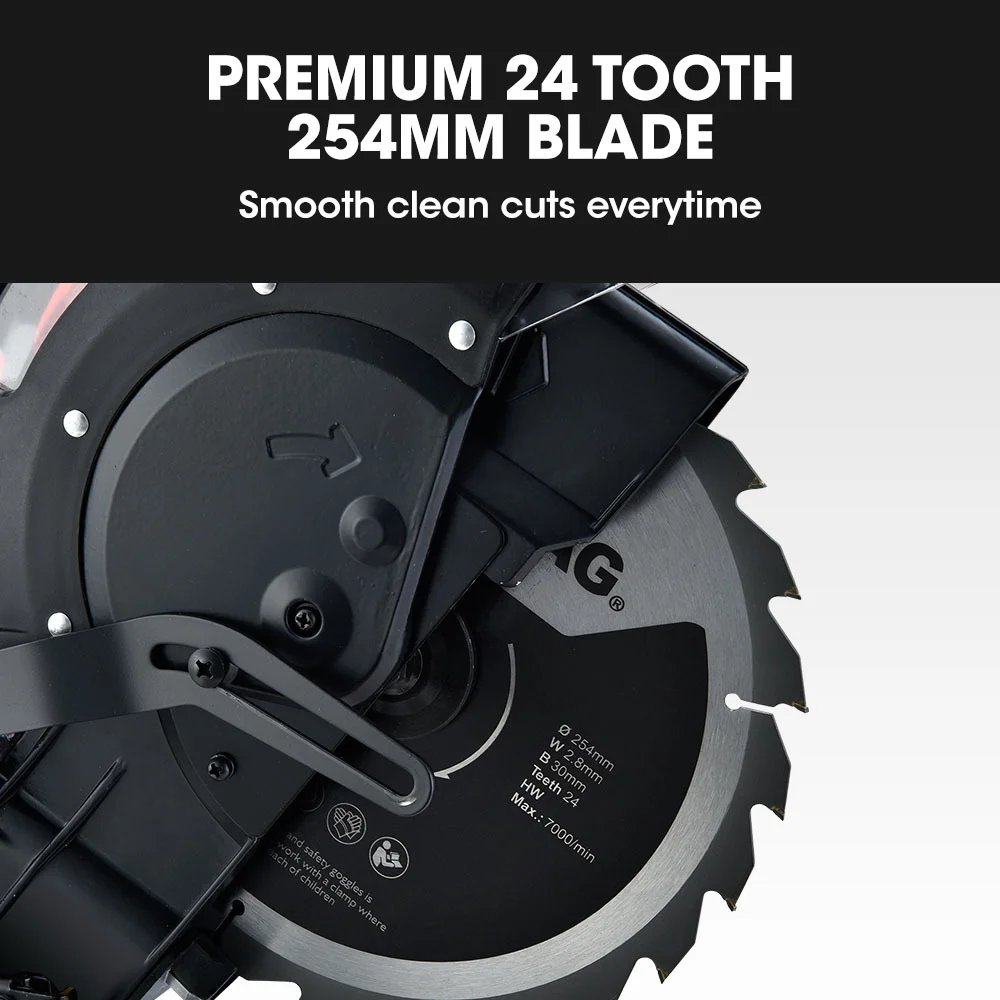

• 254mm (10 inch) 24T tungsten carbide tipped blade

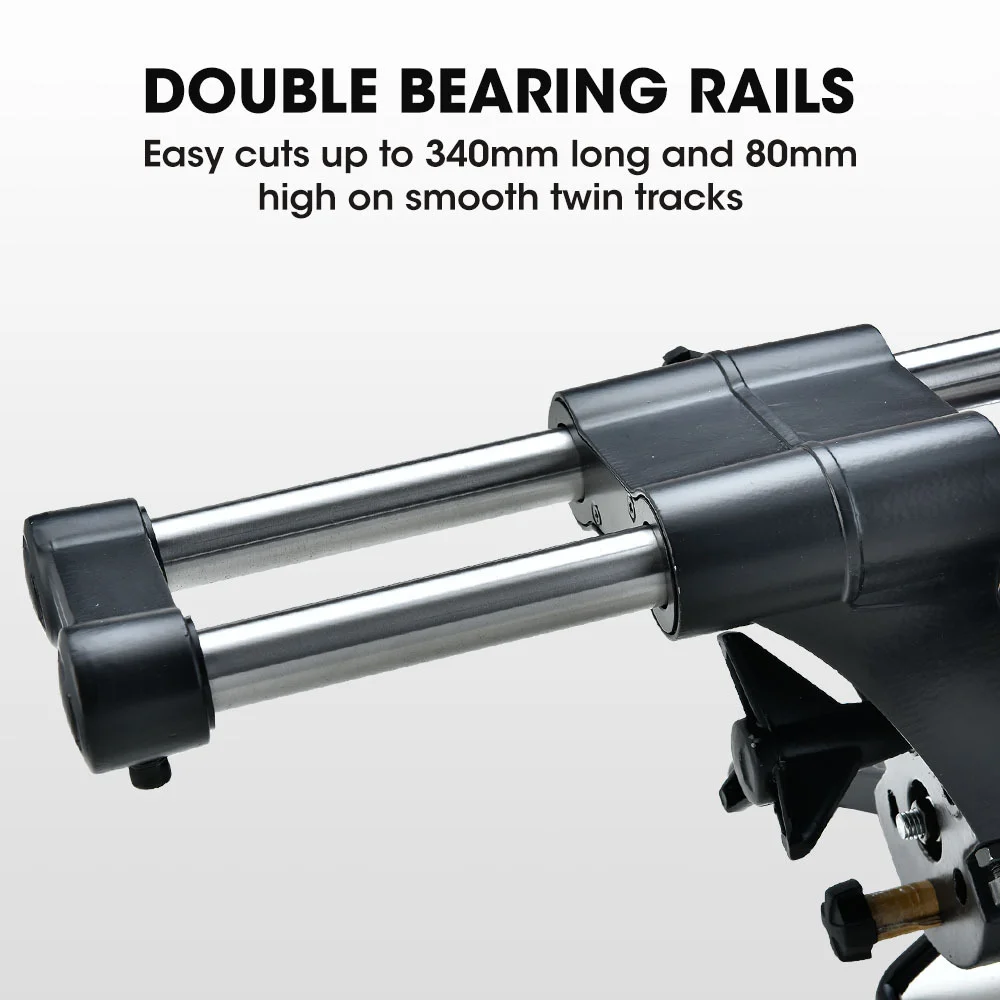

• Double bearing rail with 13.5 inch reach for large cross cuts and an ultra smooth sliding action
• Work table with 22.5° reference marks for precise dado, bevel and mitre cuts up to ±45°
• Adjustable depth limiter for mitre, bevel and groove cutting

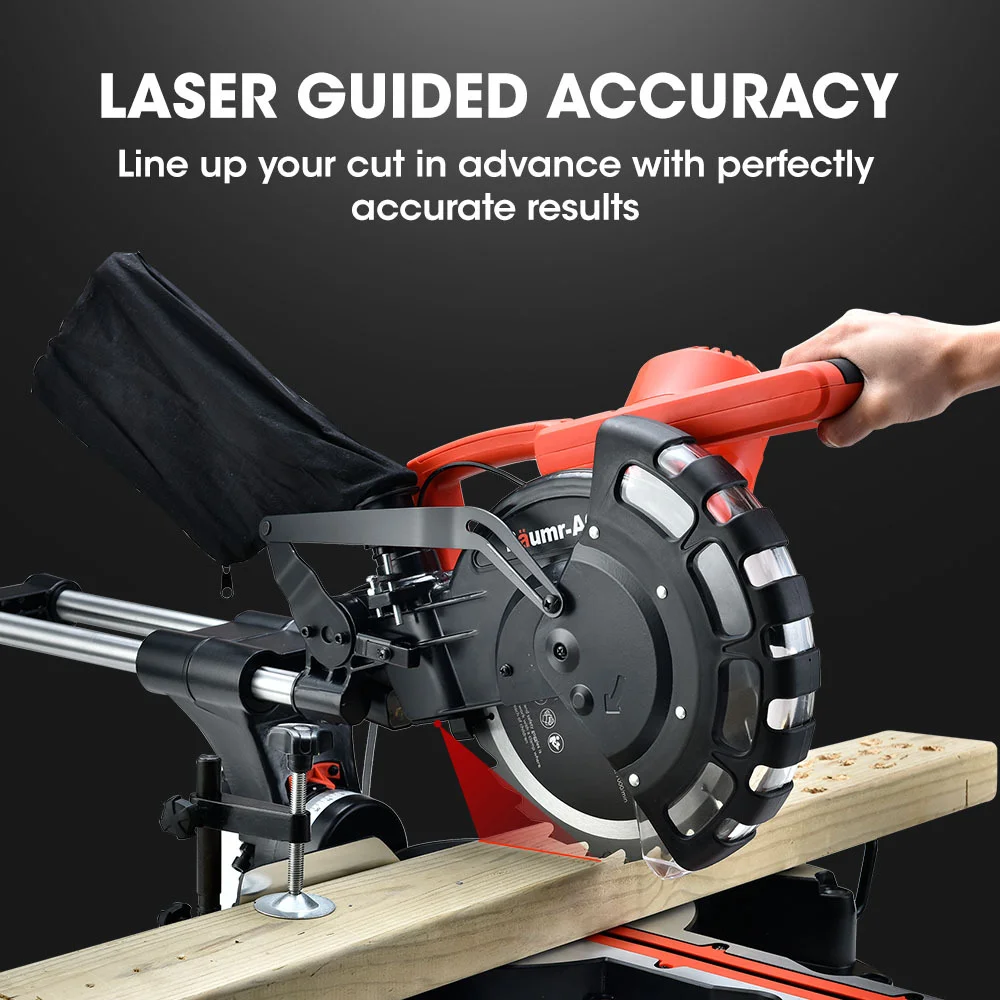

• Built-in laser guide for precision alignment

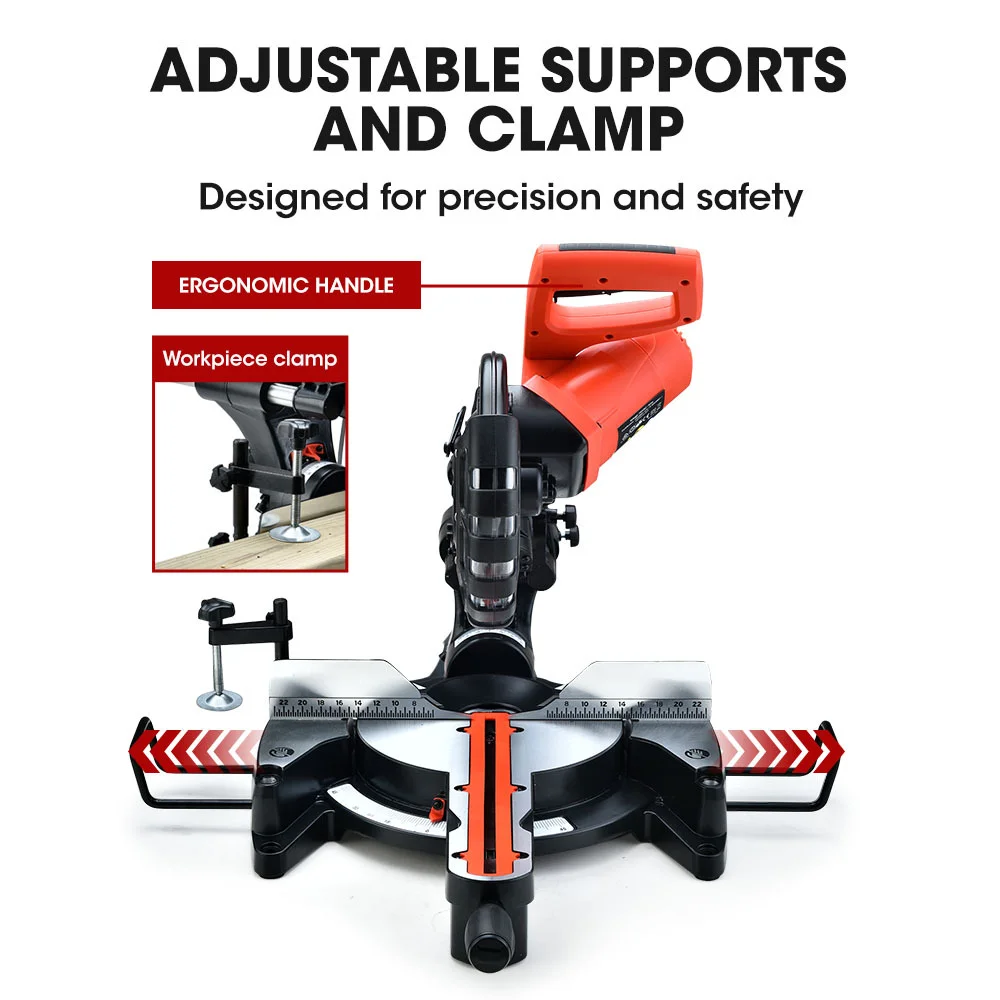

• Cast aluminium base, extendable work table supports and securing clamp
• Quick release table with blade and guard lock for safe, easy transport
• Sawdust collection bag included, with the option of attaching a Baumr-AG BM-DD5 vacuum for extraction and collection
• Can be mounted on a purpose-built mitre saw stand or secured to a bench

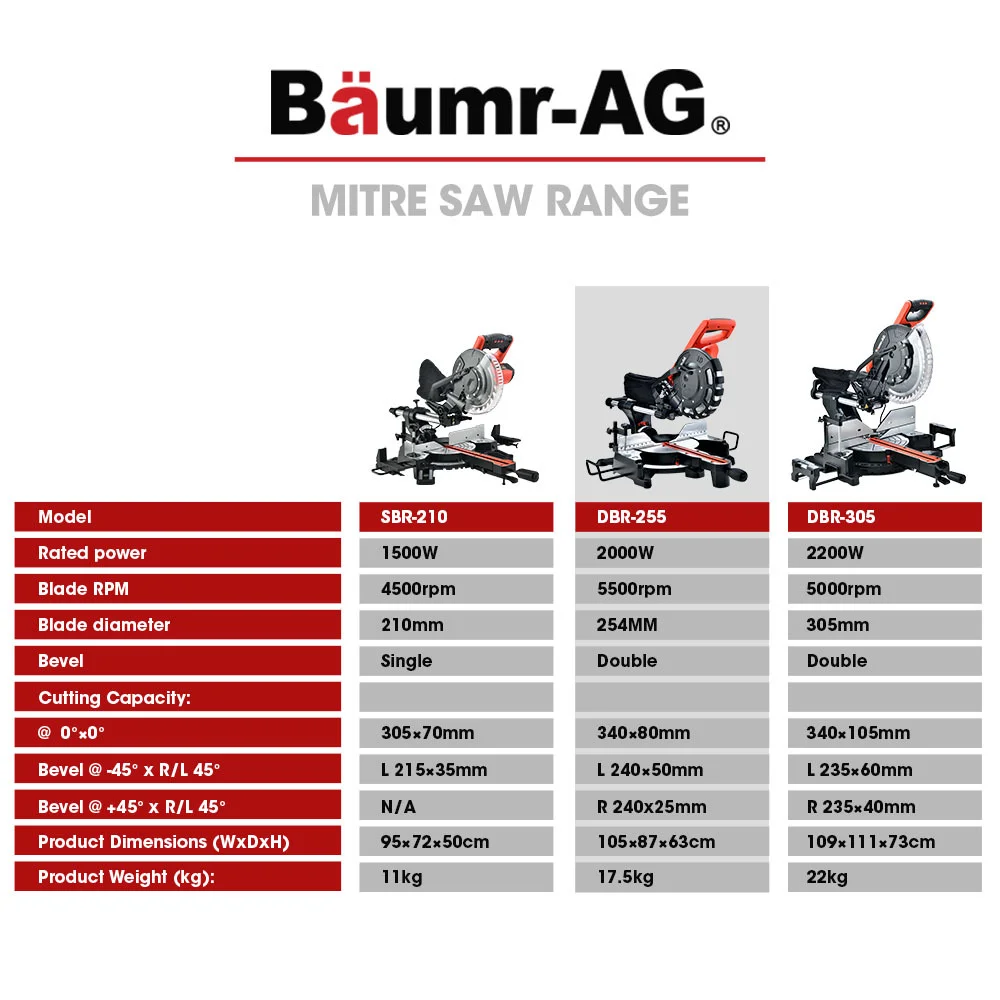

Specifications

• Brand: Baumr-AG
• Model: DBR-255
• Rated power: 2000W
• No-load speed: 5500 rpm
• Blade diameter: 254mm (10 inch)
• Blade teeth: 24T
• Swivel range: ±45°
• Bevel tilt range: ±45°
• Laser class: 2
• Input voltage: 220-240V / 50Hz
• Power plug: Australian standard
• Product dimensions (W x D x H): 87 x 105 x 63cm
• Product weight: 17.5kg
• Carton dimensions (W x L x H): 56.5 x 92 x 38cm
• Carton weight: 22kg

Cutting Capacity

• 0° x 0°: 340 x 80mm
• 45° x 0°: 240 x 80mm
• 0° x 45°: L 340 x 50mm, R 340 x 25mm
• 45° x 45°: L 240 x 50mm, R 240 x 25mm

What's in the Box

• 1 x Baumr-AG 2000W compound mitre saw
• User manual is accessible online

Minimal assembly required.
