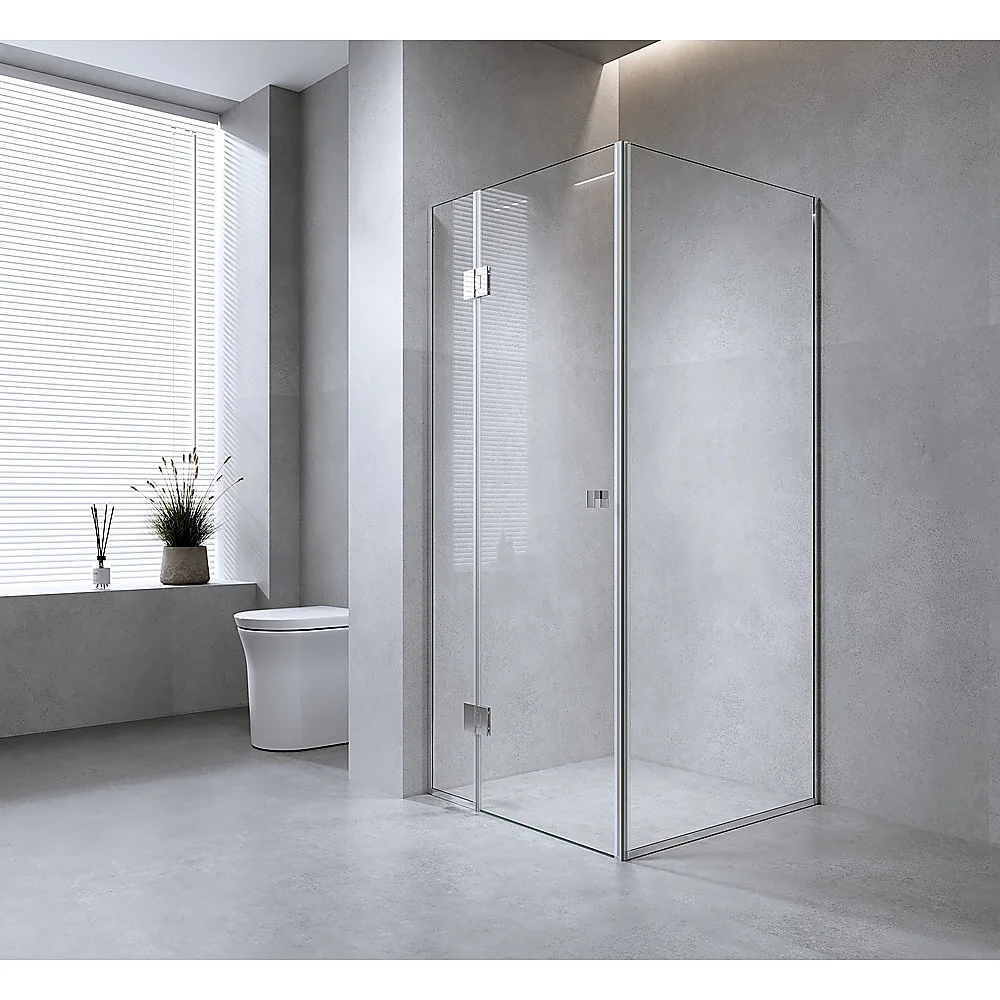

Della Francesca 90x70cm Chrome Corner Frameless Shower Screen with Wall Channels, Hinges & Square Knob Handle

Create a bright, open corner shower with this Della Francesca frameless shower screen, supplied with chrome wall channels, stainless steel hinges and a square knob handle. Made from 10mm toughened safety glass, it delivers a clean, minimalist look while helping to contain water within your shower area.

Key Features

• Frameless corner design for an open, light-filled bathroom feel
• 10mm toughened safety glass compliant with AS/NZS 2208

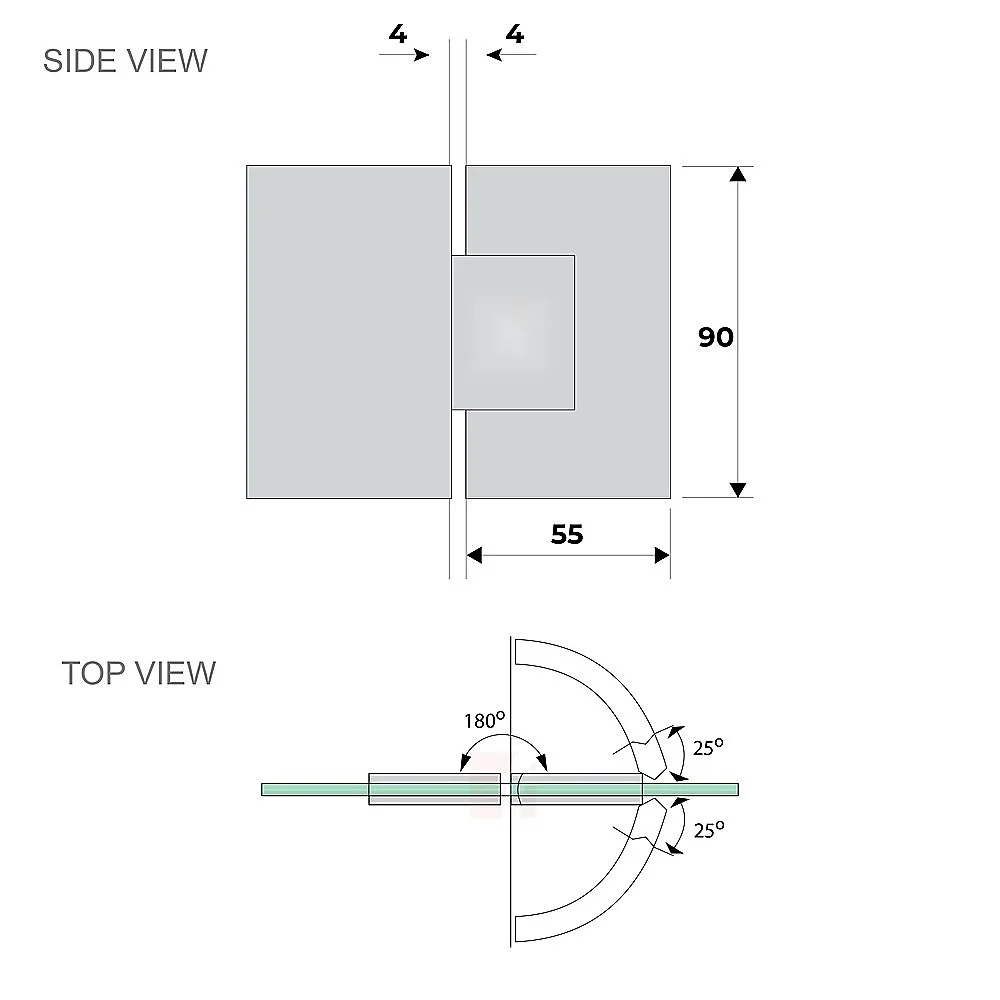

• Stainless steel hinges with squared edges and dual-action swing that opens inwards and outwards
• Hinges self-centre within 25 degrees and close automatically
• Chrome wall channels for a secure, watertight fit
• Solid brass square knob handle with a smooth chrome finish
• Handle suits 6mm, 8mm, 10mm and 12mm thick glass
• Space-saving layout suited to corner or wall-to-wall installations

Specifications

• Size: 90x70cm
• Colour: Chrome
• Bracket type: Wall channel
• Handle type: Square knob

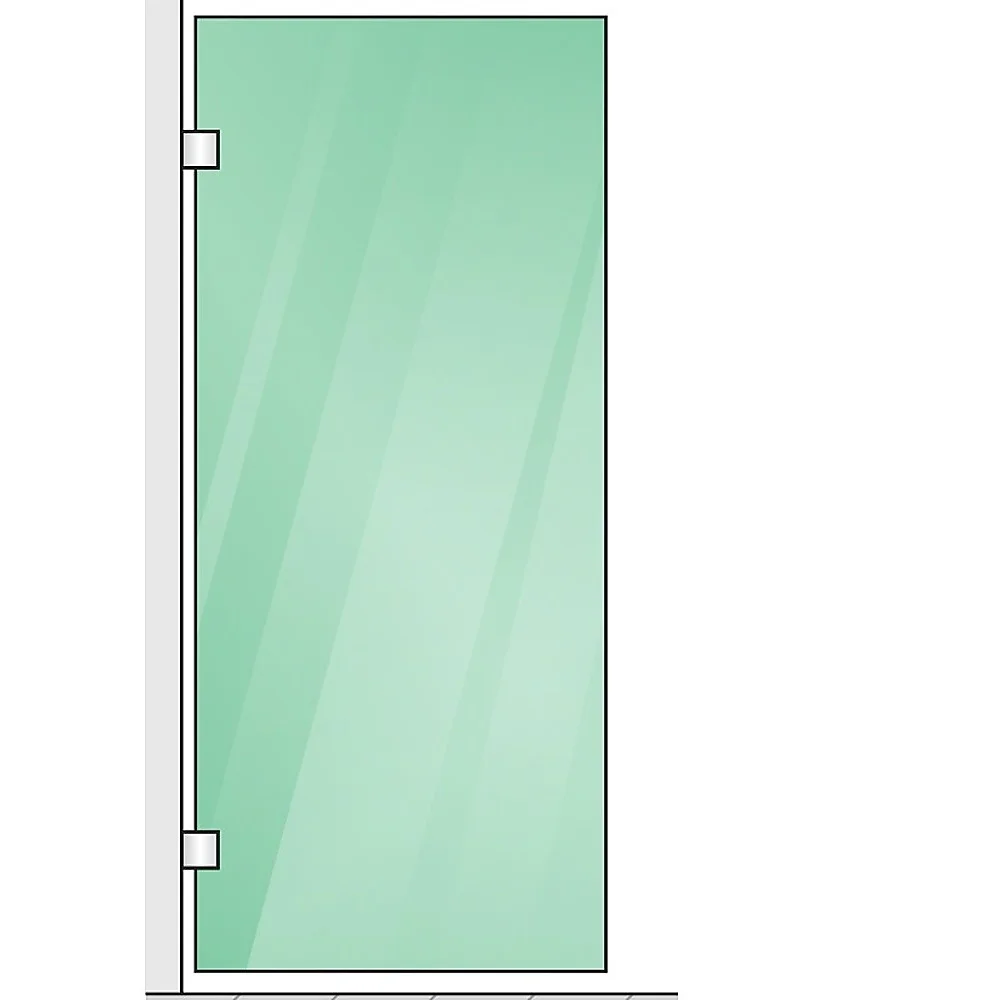

• Door panel: 610 x 1990mm, 10mm AS/NZS 2208 standard glass, 10mm door handle hole
• Hinge panel: 280 x 2000mm, 10mm AS/NZS 2208 standard glass

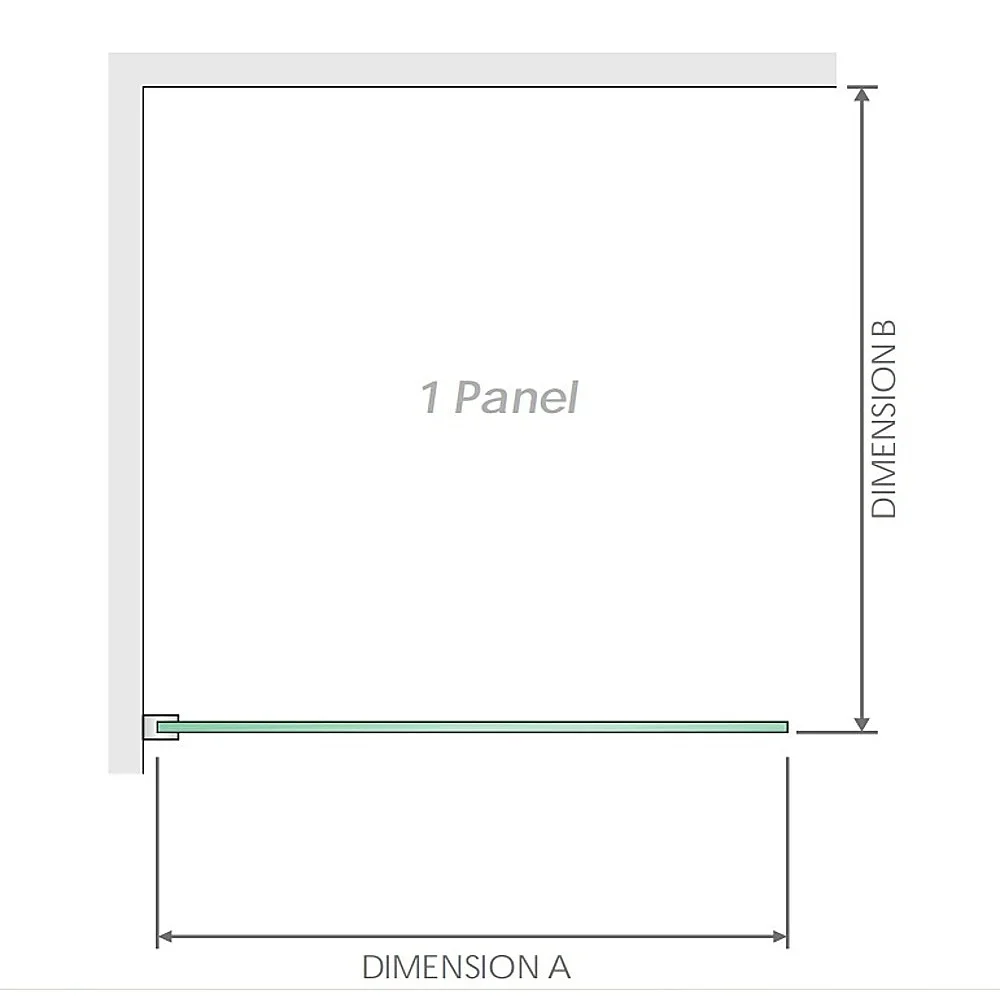

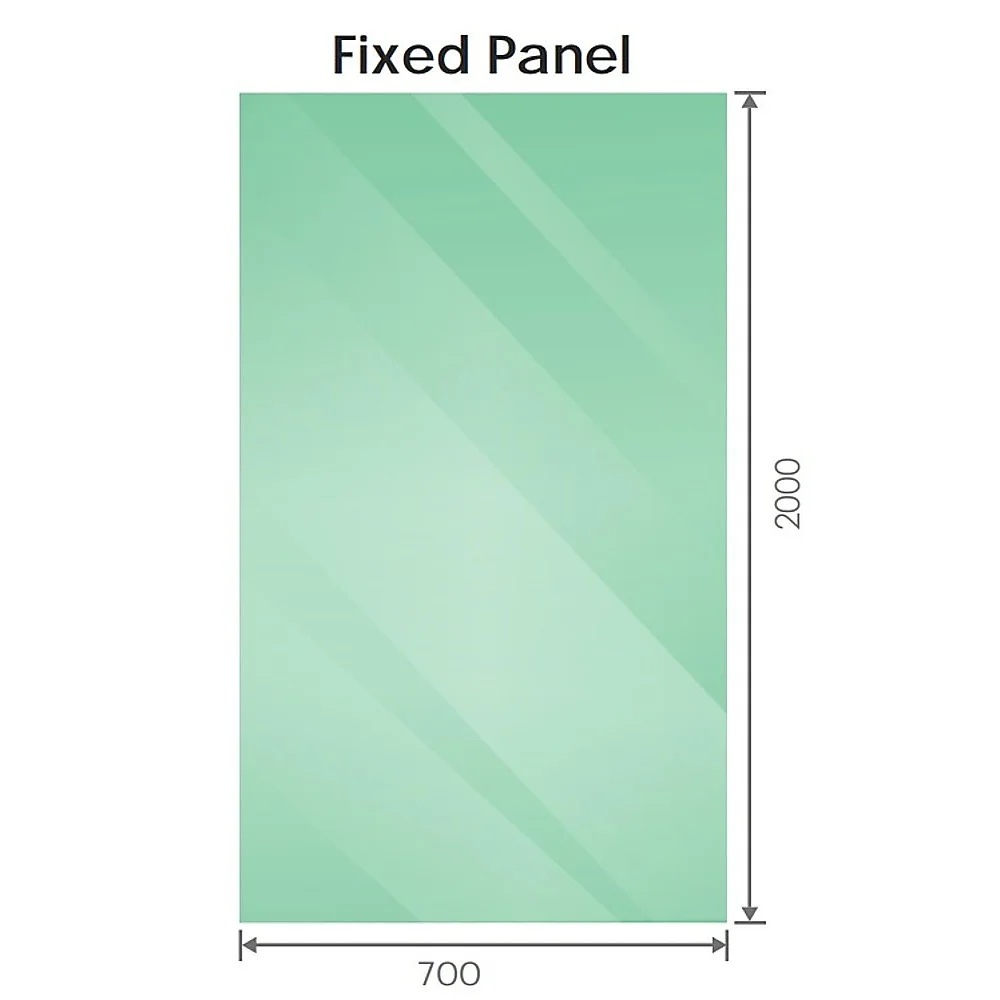

• Single panel: 700 x 2000mm (W x H), 10mm toughened safety glass, complies with AS/NZ 2208:1996 Safety Glazing Materials in Buildings

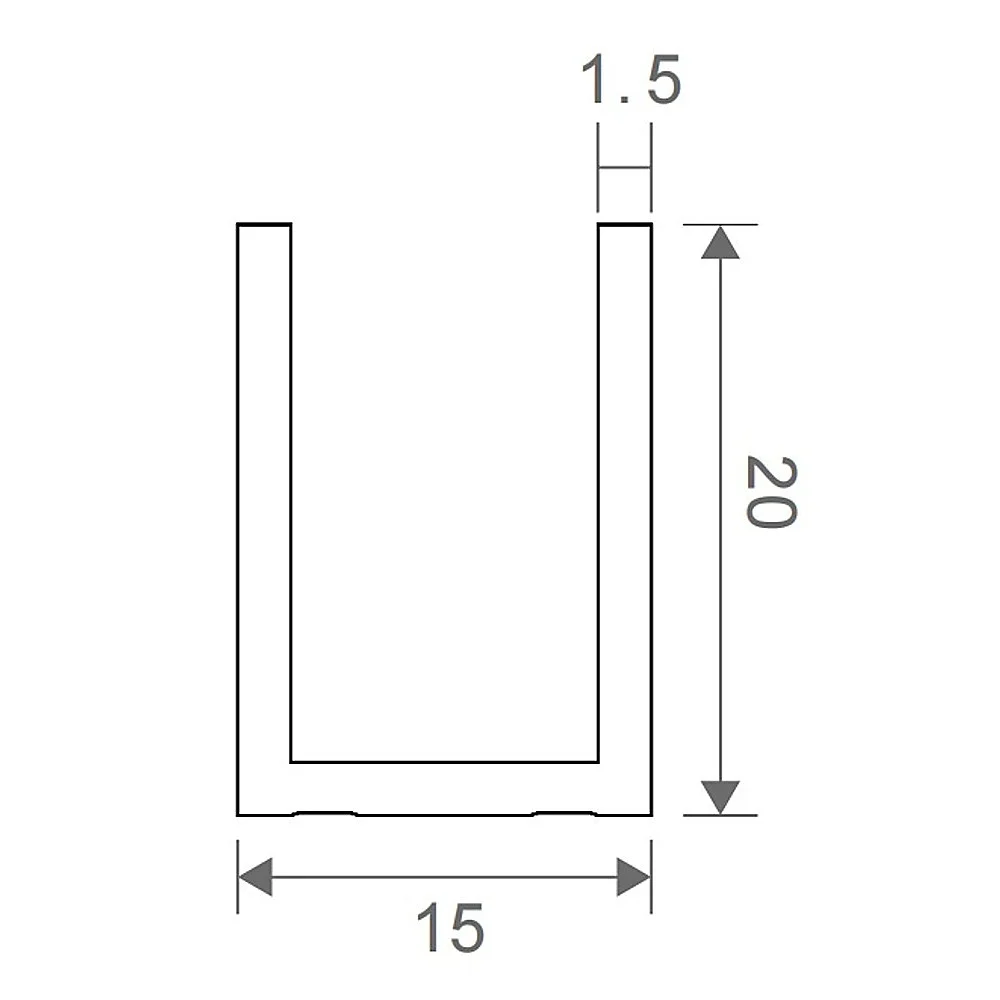

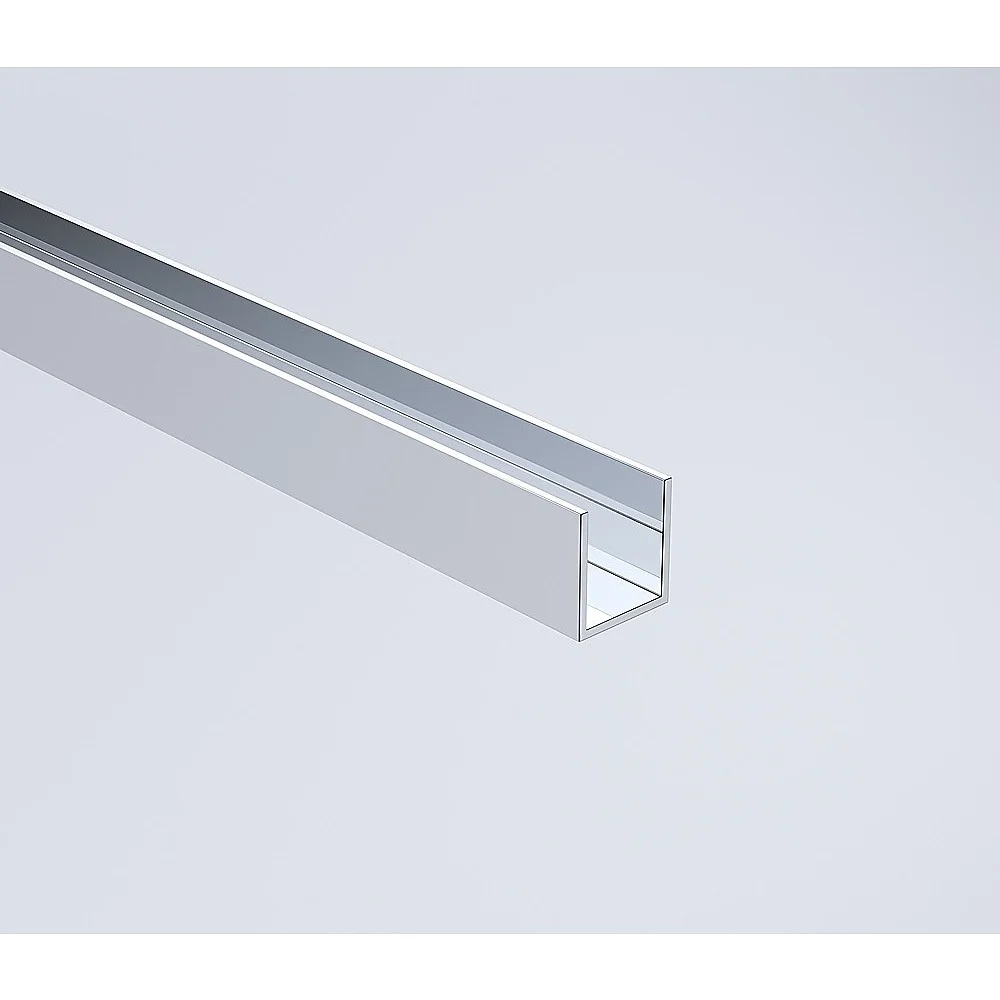

• Wall channel: 2100mm length, cut to size upon installation where applicable; anodised aluminium; chrome colour; 21.5mm height; 15mm width; 1.5mm thickness; suits 10mm glass

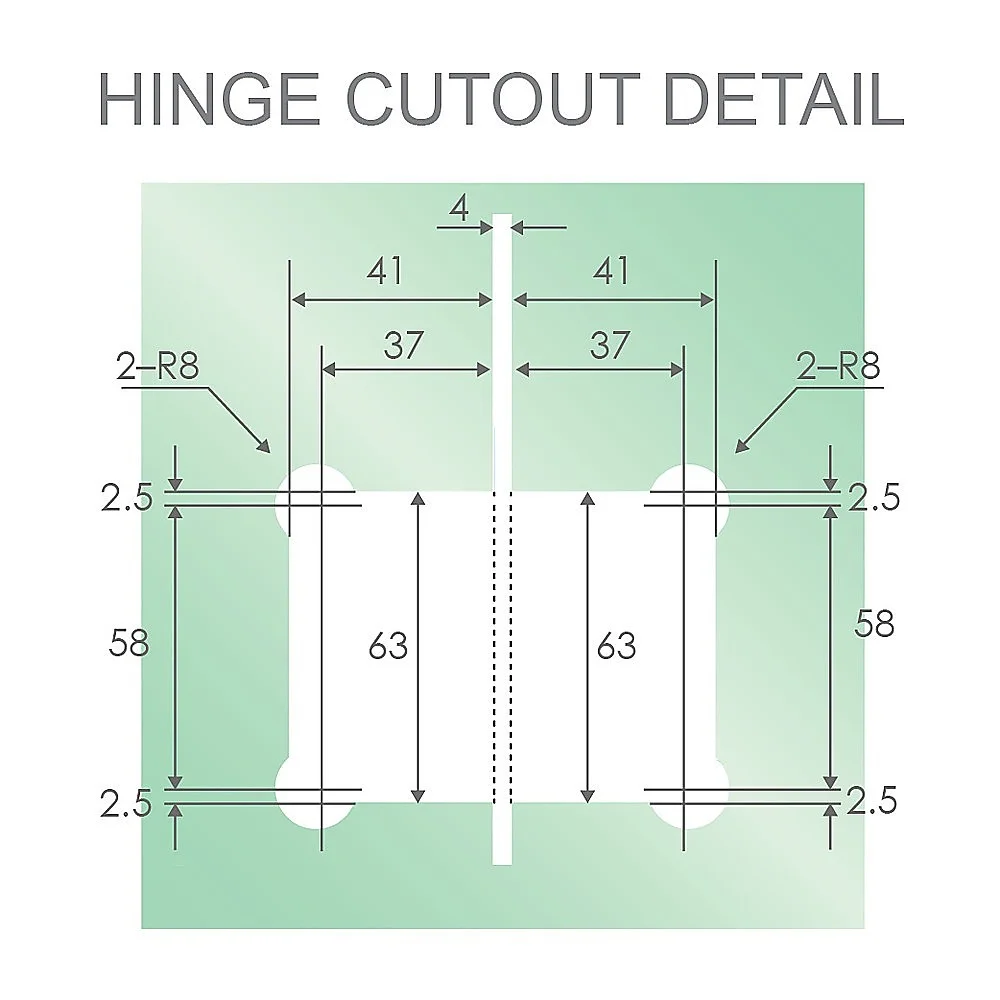

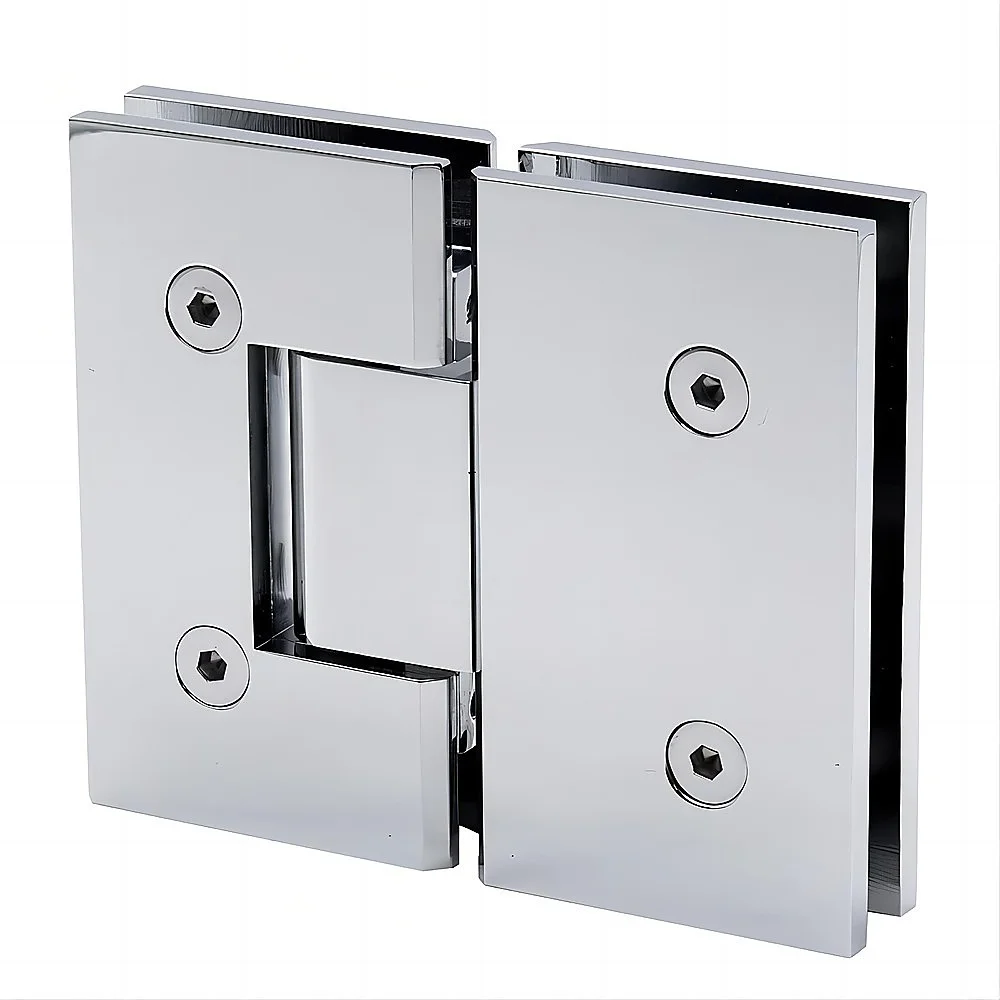

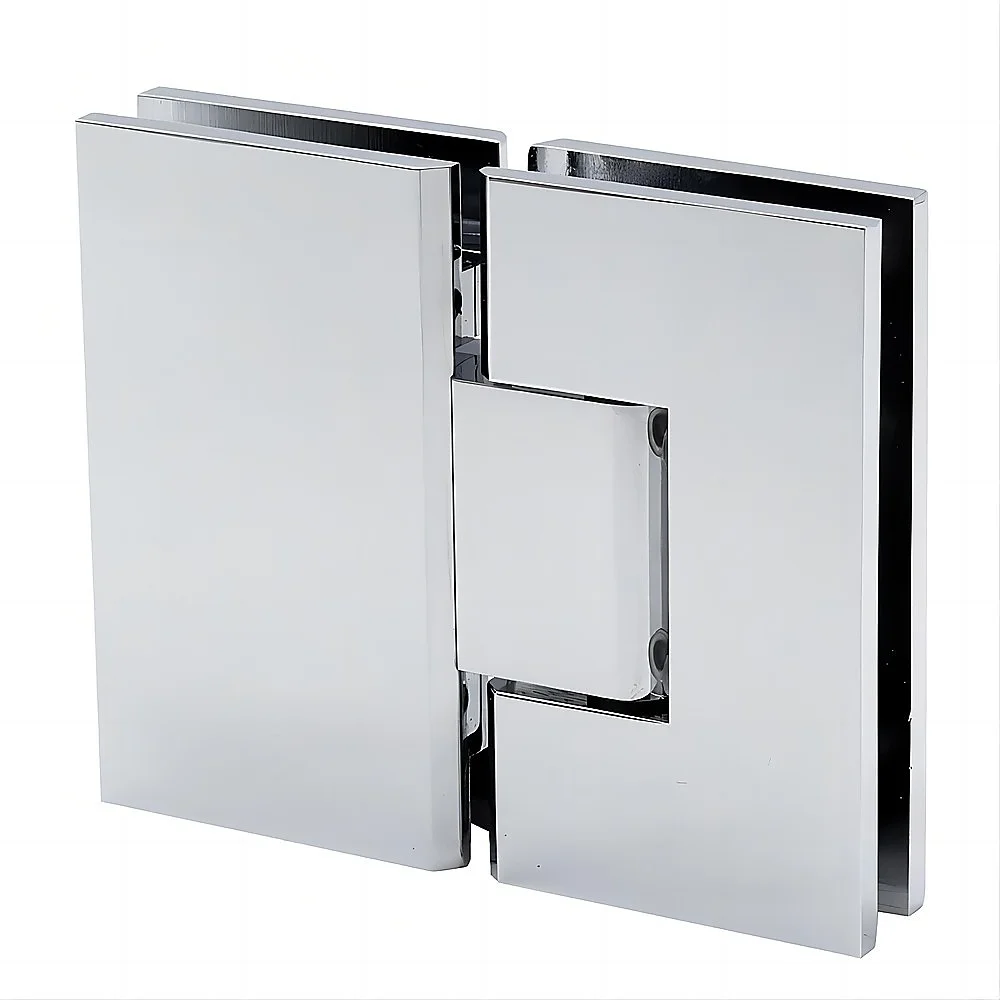

• Hinge: stainless steel, electroplated, chrome finish; for 10mm glass; clamping plates pre-glued with EPDM 119mm gaskets; maximum weight capacity 45kg; quantity 1 pair (2pcs)

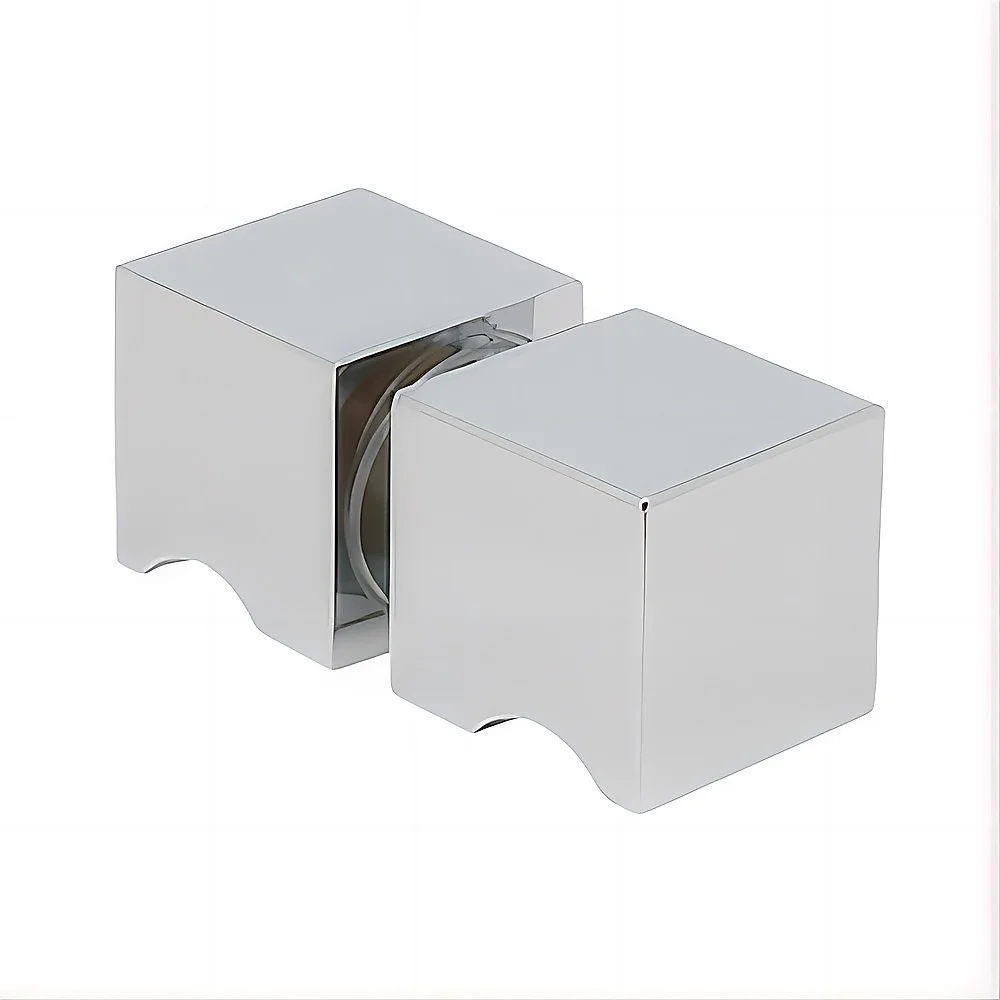

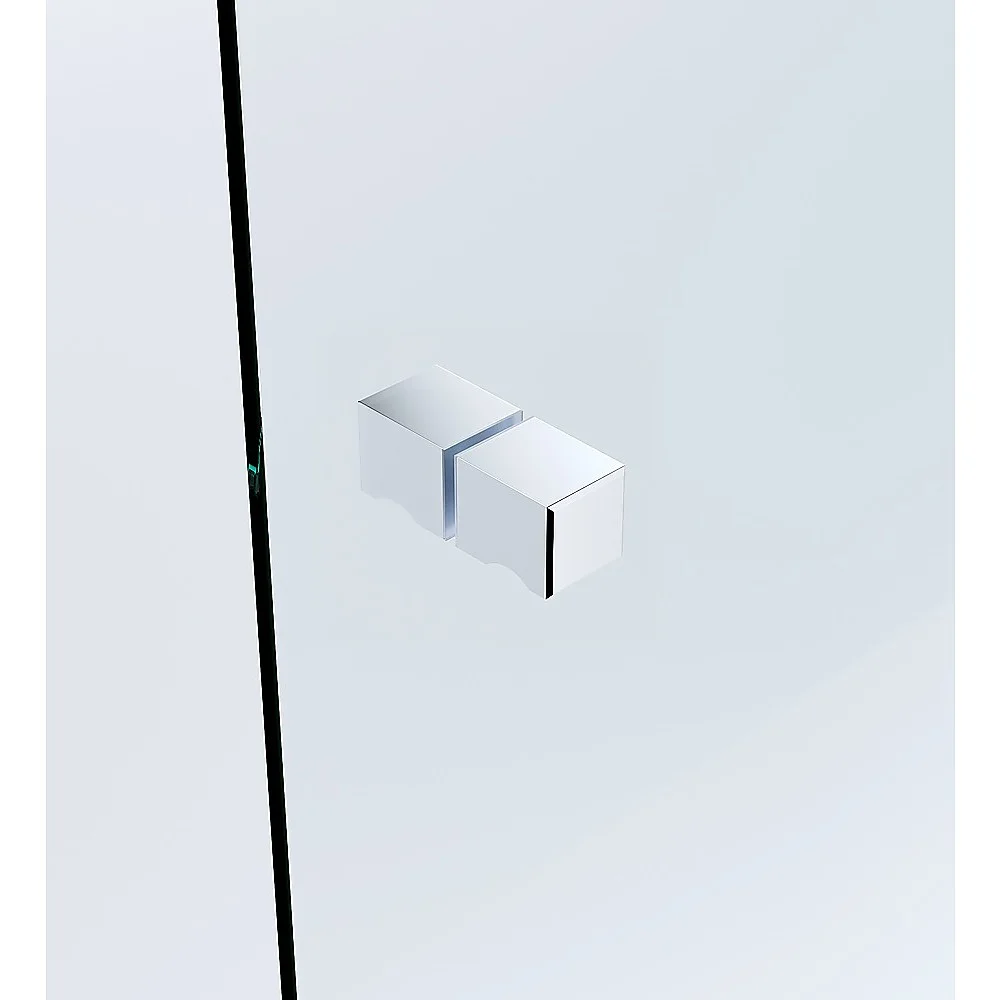

• Handle: 25mm square knob button pull; brass; chrome finish; includes plastic gaskets

What's in the Box

• 1 x 61 x 199cm frameless shower screen door for 10mm door handle
• 1 x 28 x 200cm frameless hinge glass panel
• 1 x 700 x 2000mm frameless bathroom safety glass shower screen
• 2 x chrome wall channels
• 1 x pair (2pcs) 180-degree wall-to-wall shower door hinges in chrome
• 1 x 25mm brass square shower door handle in chrome

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.
