The Della Francesca 90cm frameless diamond shower screen creates an elegant corner enclosure that maximises usable shower space while showing off your tiles. Crafted from 10mm tempered safety glass with matte white hardware, it combines a sleek diamond configuration with smooth dual-action operation.
Key Features
- Diamond corner configuration adds architectural flair while optimising shower space
- 10mm AS-NZS2208 standard tempered safety glass
- Stainless steel hinges with squared edges and dual action that opens inwards and outwards
- Frameless design eliminates hard-to-clean channels and corners
- Solid brass double pull handle in matte white
- F-brackets allow quick and flexible installation with no holes in the glass required
Specifications
- Size: 90cm
- Colour: White
- Bracket type: F-Brackets
- Handle type: Square double pull
- Door panel: 615 x 1990mm, 10mm glass

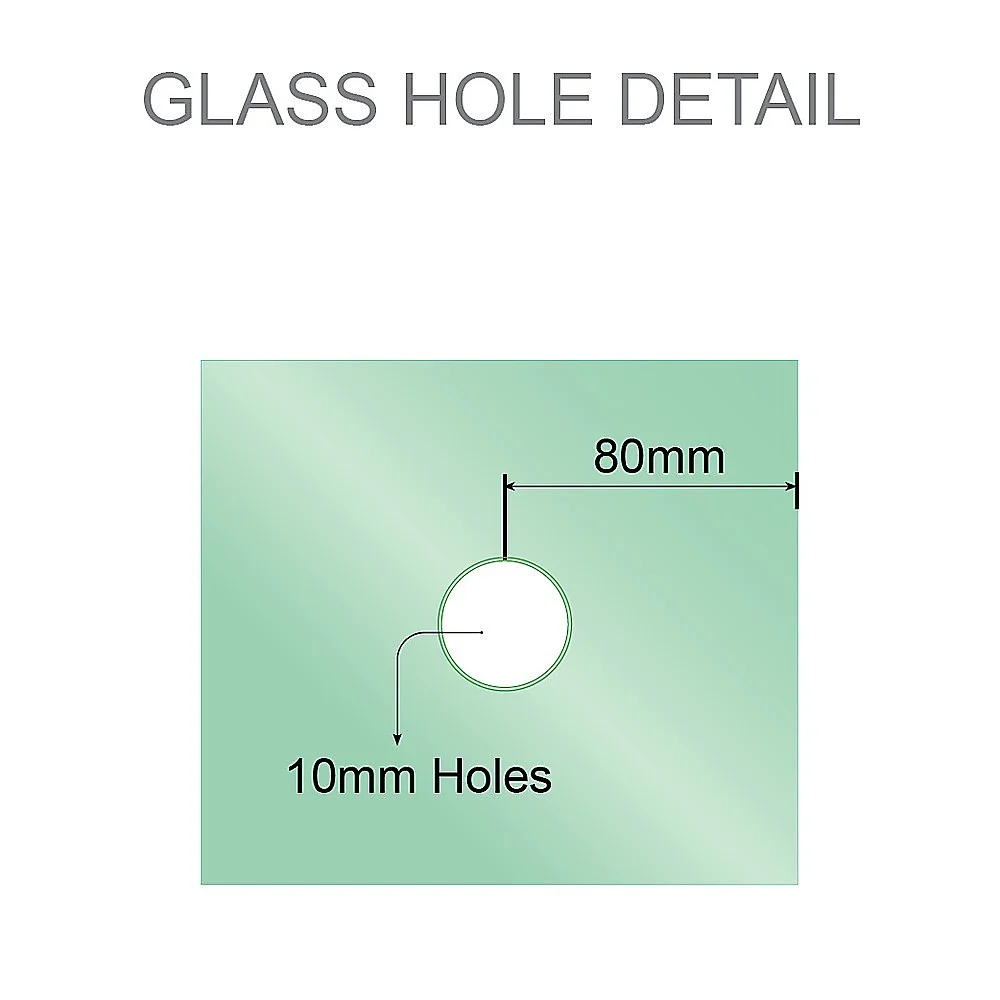

- Door handle hole: 10mm

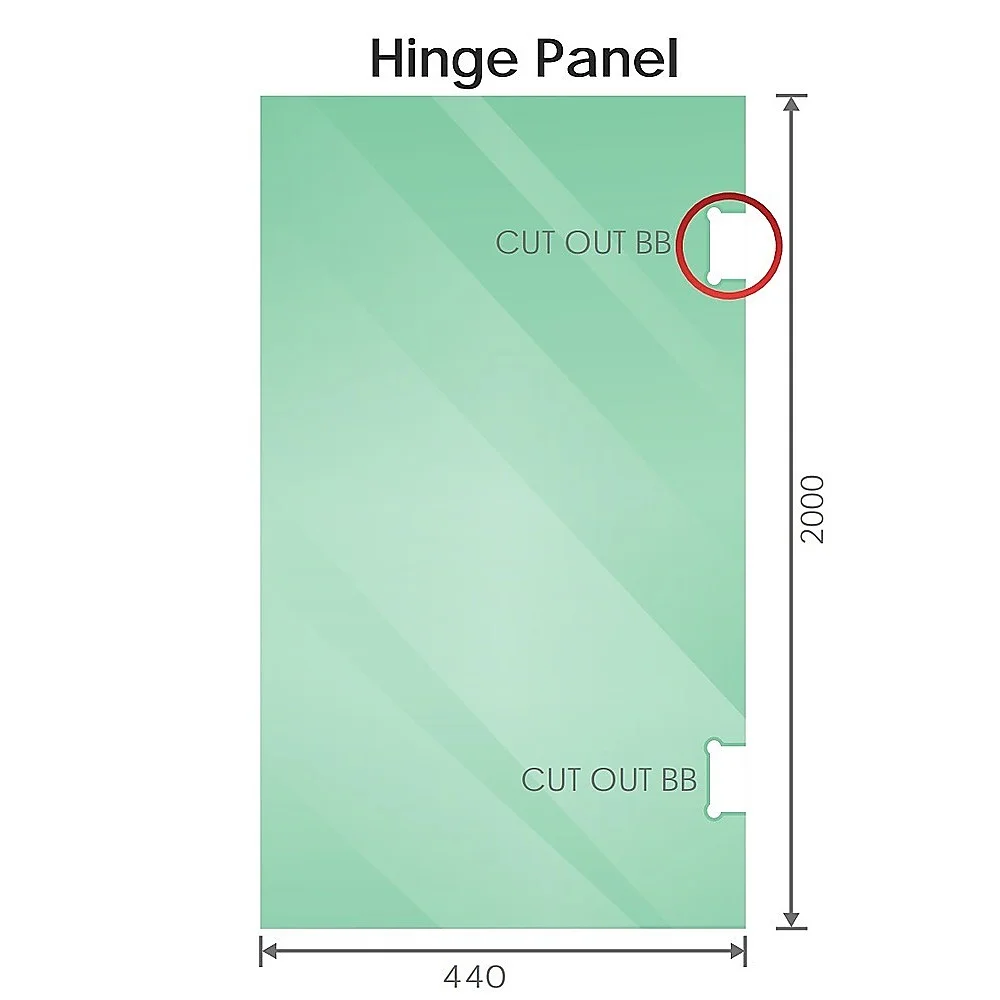

- Hinged panel: 440 x 2000mm, 10mm glass
- Fixed panel: 440 x 2000mm, 10mm glass
- Hinge: 135 degrees glass-to-glass, stainless steel, matte white; suits 10mm glass; self-closes from 25 degree position; maximum weight 45kg

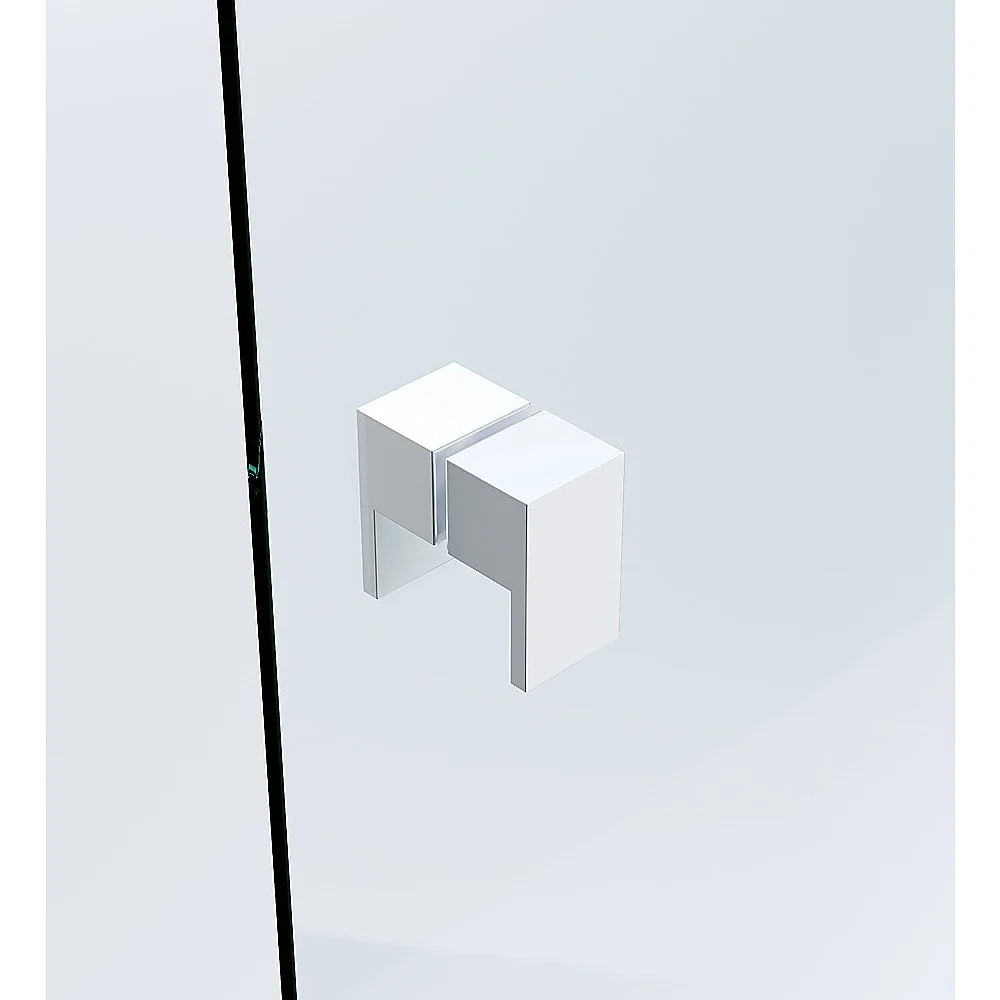

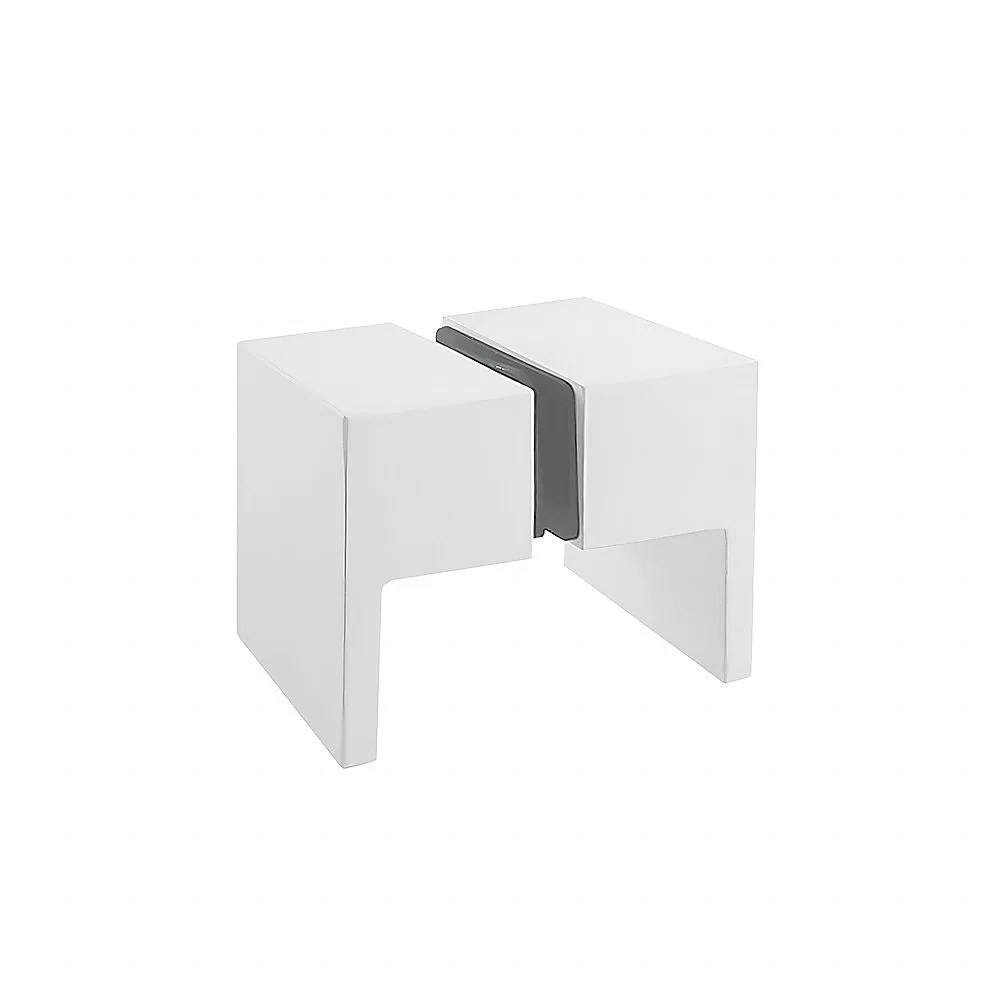

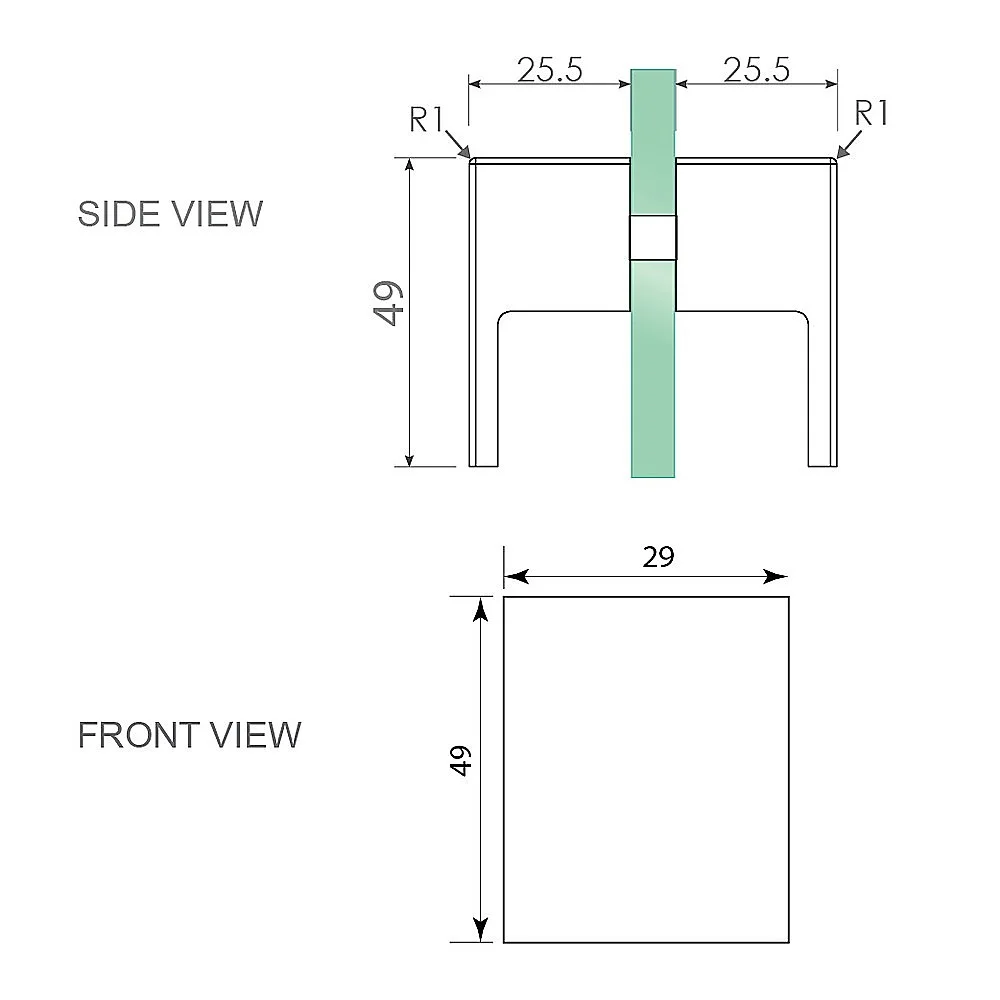

- Handle: 49mm x 25mm double pull knob, solid brass, matte white; suits 6mm, 8mm, 10mm and 12mm thick glass

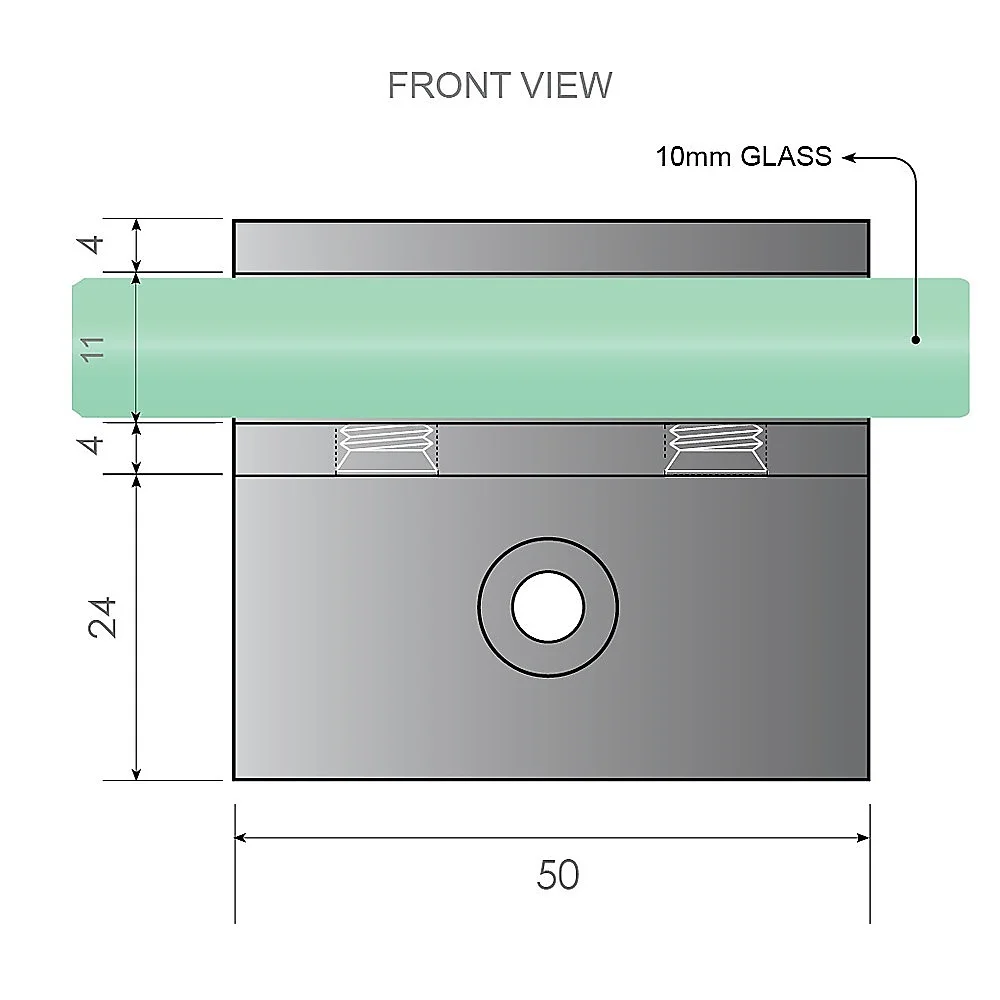

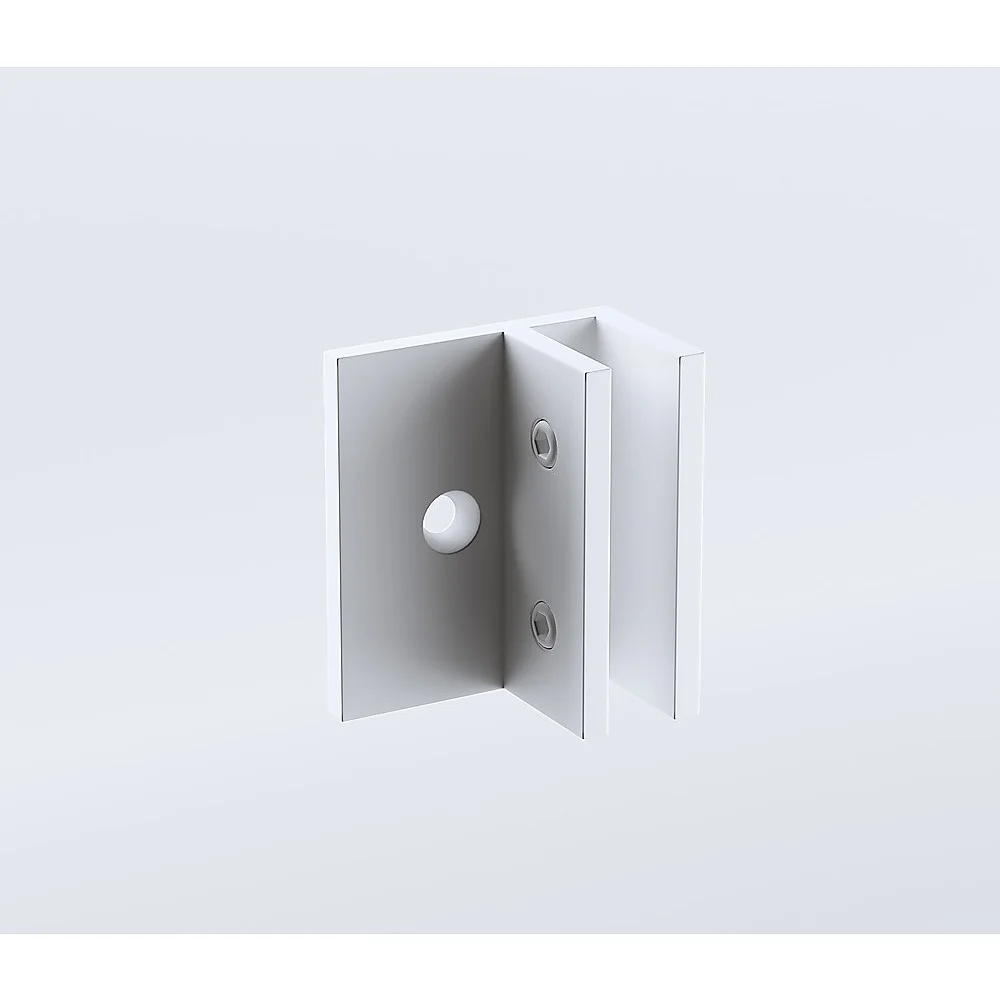

- F-bracket: suits 10mm glass, solid brass in matte white, 2 x compression/friction screws, slimline 2mm rear wall reduces silicone gap
What's in the Box
- 1 x 61 x 199cm frameless door panel for diamond corner shower screen
- 1 x 440mm clear glass fixed and hinged panels for diamond shower screen
- 1 x 135 degree glass-to-glass stainless steel square shower hinge in matte white
- 1 x 25mm brass shower door double pull handle in matte white
- 4 x glass-to-wall/floor offset F-brackets in matte white, each with 1 x fixing screw and clear gaskets
Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.
