600-Piece Deutsch DT Connector Plug Kit with Genuine Crimp Tool

This 600-piece Deutsch DT connector plug kit gives you a complete waterproof and dustproof wiring solution for automotive, marine and powersport electrical work. The set pairs DT Series connectors with genuine Deutsch crimp tooling and high-precision terminals for reliable, secure connections.

Key Features

• DT Series connectors offer rugged reliability with optional flange mounting, multi-pin arrangements and design flexibility
• Waterproof and dustproof design holds up without loss of electronic qualities or leakage once installed
• Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it slipping out, while allowing easy removal when needed
• High-precision terminals use a phos-copper plating process to improve conductivity and are easy to install under soldering and crimping
• Connector plugs made from high-quality, environmentally friendly nylon that is corrosion-resistant, wear-resistant and durable for long-term use
• Suitable for wiring on motorcycles, scooters, cars, trucks, quad bikes, caravans, marine and other automotive equipment

Specifications

• Case package size: 31.5cm x 6cm x 25cm
• Green band pins: 0.2cm x 2cm
• Green band sockets: 0.2cm x 2.1cm

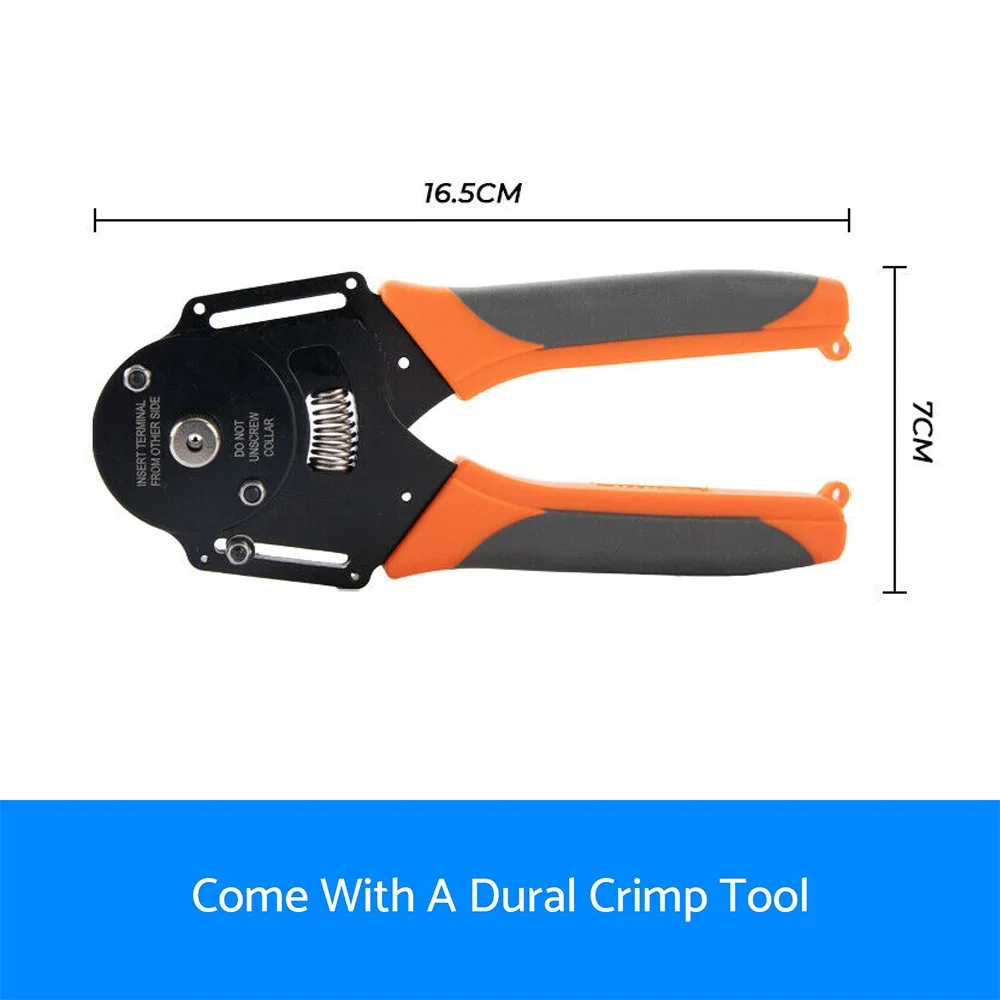

• Crimp tool size: 7cm x 16.5cm
• Weight: 1.7kg

What's in the Box

• 16 x DT04-2P 2-way receptacle with wedgelock
• 16 x DT06-2S 2-way plug with wedgelock
• 6 x DT04-3P 3-way receptacle with wedgelock
• 6 x DT06-3S 3-way plug with wedgelock
• 6 x DT04-4P 4-way receptacle with wedgelock
• 6 x DT06-4S 4-way plug with wedgelock
• 6 x DT04-6P 6-way receptacle with wedgelock
• 6 x DT06-6S 6-way plug with wedgelock
• 2 x DT04-8P 8-way receptacle with wedgelock
• 2 x DT06-8S 8-way plug with wedgelock
• 1 x DT04-12P 12-way receptacle with wedgelock
• 1 x DT06-12S 12-way plug with wedgelock
• 120 x 0460-215-16141 #16 Green band pins to suit 2.00mm 2 wire
• 120 x 0462-209-16141 #16 Green band sockets to suit 2.00mm 2 wire
• 160 x 114017 White sealing blanks
• 6 x 1011-026-0205 Mounting brackets (suits all but 8 way)
• 1 x Deutsch crimp tool
• 1 x 15 compartment heavy duty case with removable partitions

Please allow 1-2cm error due to manual measurement. Due to different monitor and light effects, the actual colour of the item may differ slightly from the pictures.
