Heavy Duty Locking Trailer Drawer Slides 56in Pair 150kg Capacity

These heavy duty locking drawer slides are a robust full-extension rail system for drawers, trays and pull-out platforms, with a 150kg per pair load capacity and a secure hold-still lock for stable, controlled access.

Key Features

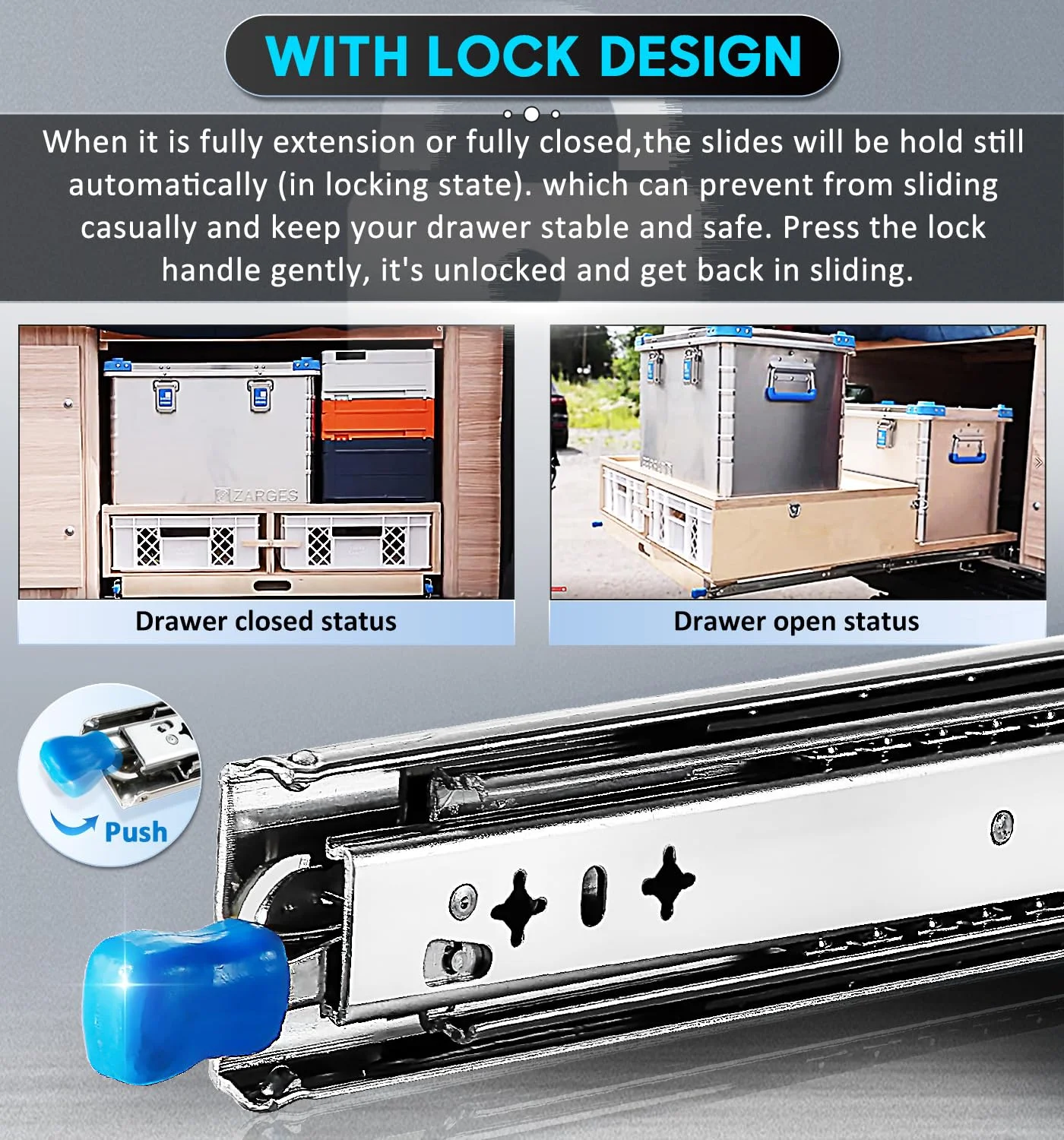

• Locking design secures the drawer in place and prevents sliding
• Hold-still lock engages automatically at full extension or full closure
• Blue handle releases the lock for free sliding
• Detachable third track allows the drawer to be installed and removed
• 3-fold full extension gives access to the entire drawer
• Solid ball bearing design for smooth, quiet, friction-free movement

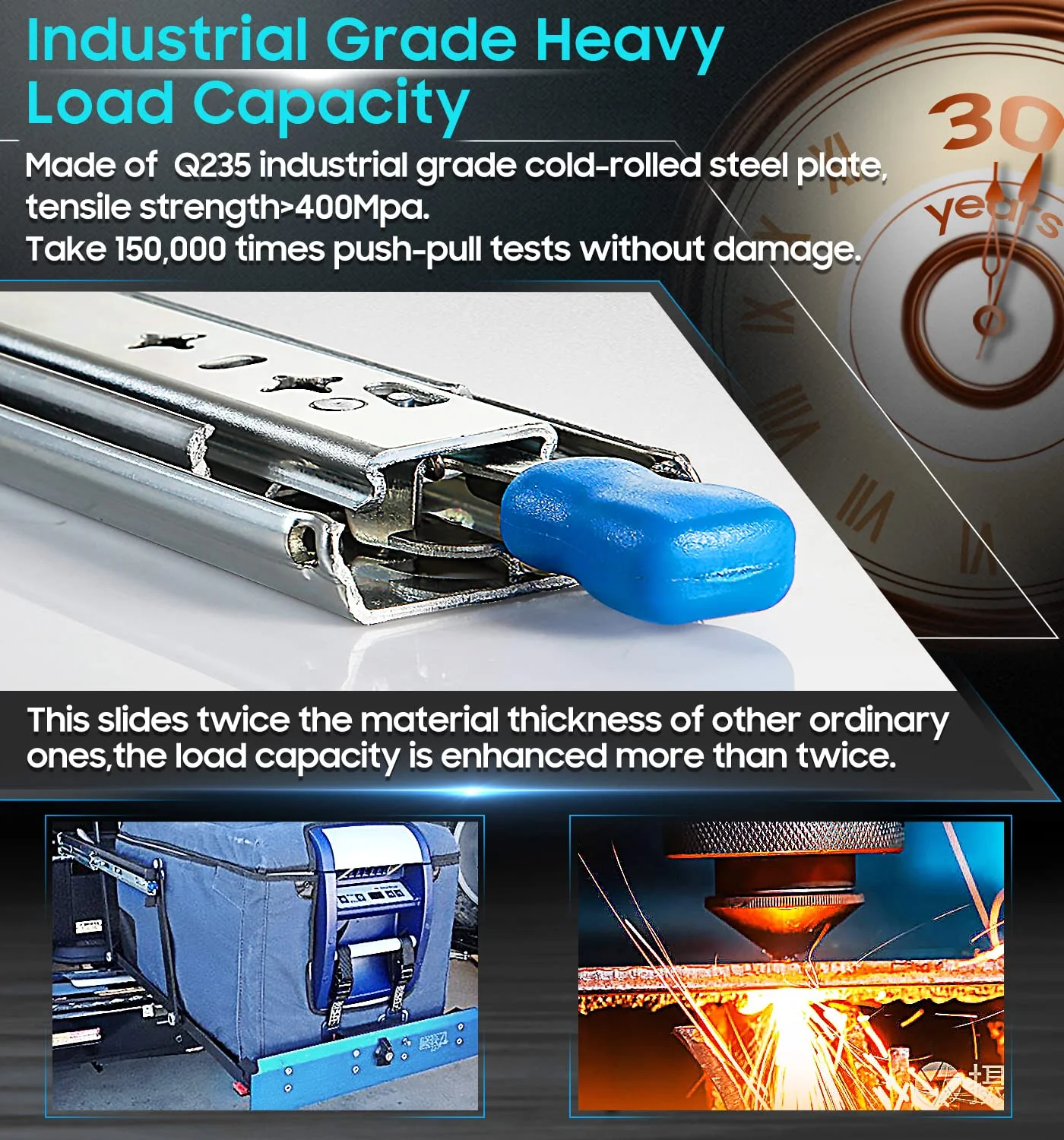

• Double thickening with 2.0mm high-density thickened steel
• Anti-oxidation and high anti-rust properties
• Rated to 100,000 opening and closing cycles

Specifications

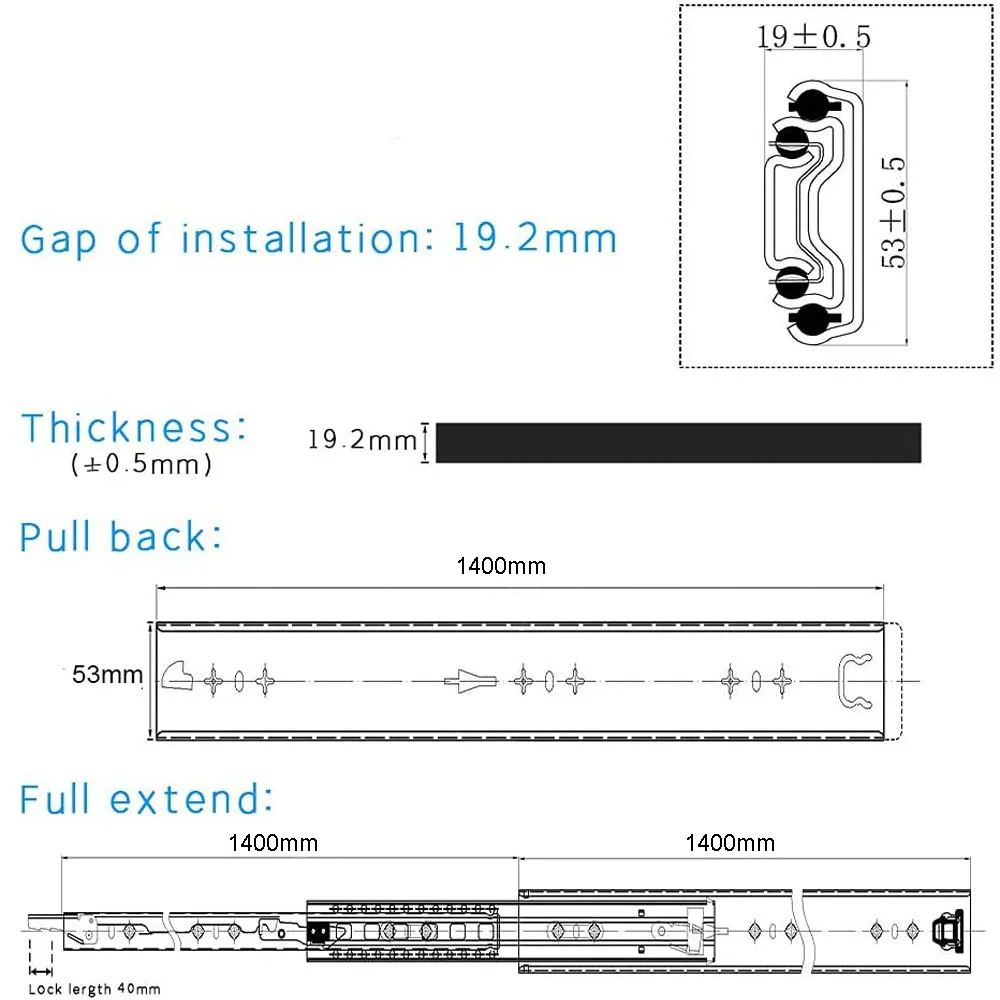

• Length: 56in (1400mm - 2800mm)
• Configuration: pair
• Maximum load capacity: up to 150kg per pair
• Material: 2.0mm high-density thickened steel
• Extension: 3-fold full extension
• Note: installation screws are not included; M5 screws can be purchased to suit your installation

What's in the Box

• 1 pair of 56in (1400mm - 2800mm) drawer slides

Applications

• Goods shelves and cabinets
• Industrial drawers

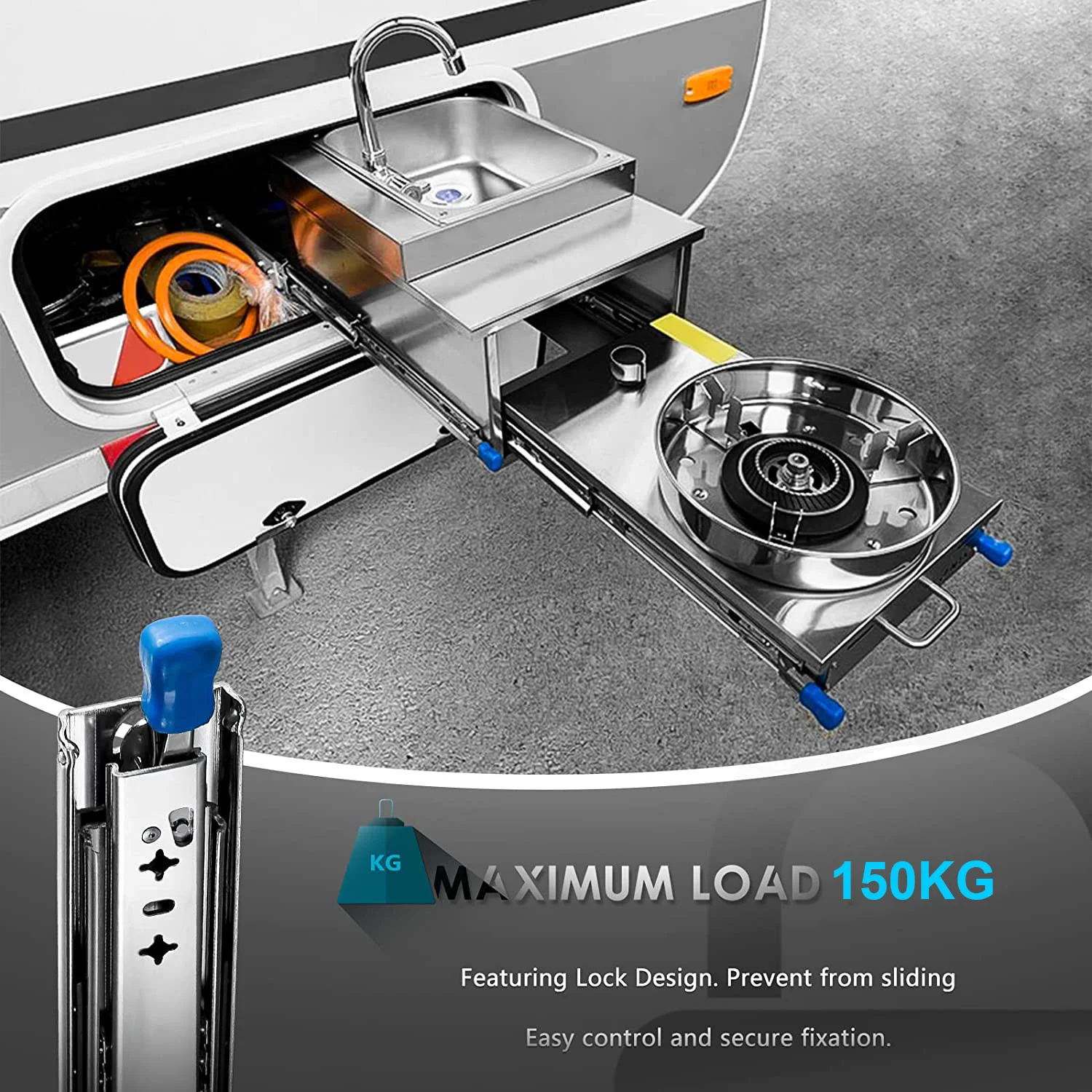

• RV and truck fit-outs
• Vending machines
