King Tech GX35 35.8cc 4-Stroke Engine for Brushcutter and Trimmer

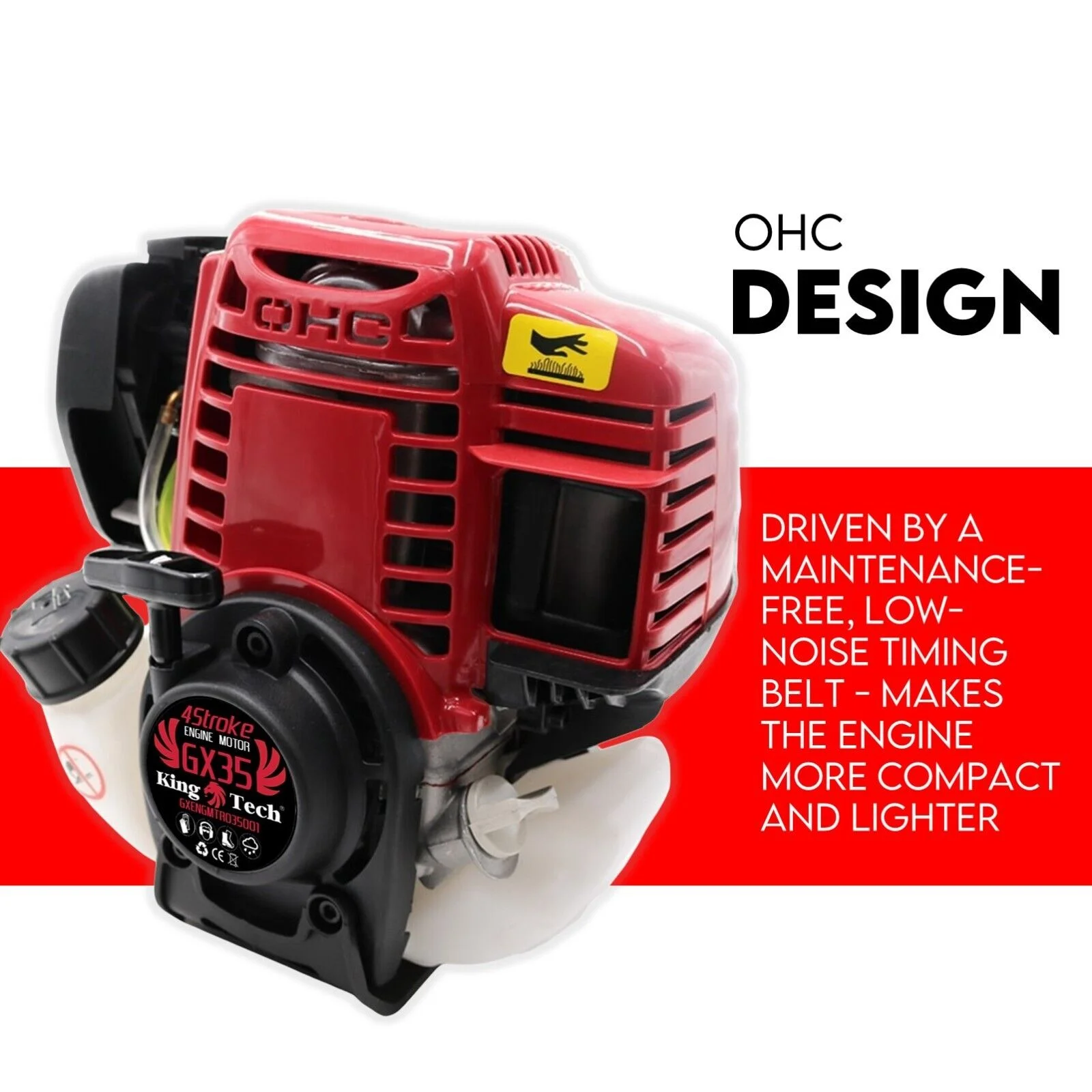

The King Tech GX35 is a 35.8cc 4-stroke petrol engine built for brushcutters, trimmers and other handheld power equipment. Its 360° any-side-up operation lets you run and store it in any position, while the oil-immersed timing belt OHC design keeps weight and bulk down.

Key Features

• Full 360° any-side-up operation – use and store in any position
• Efficient port configuration and large diameter valves maximise power output
• Precision engineered components reduce vibration
• Lighter piston minimises vibration

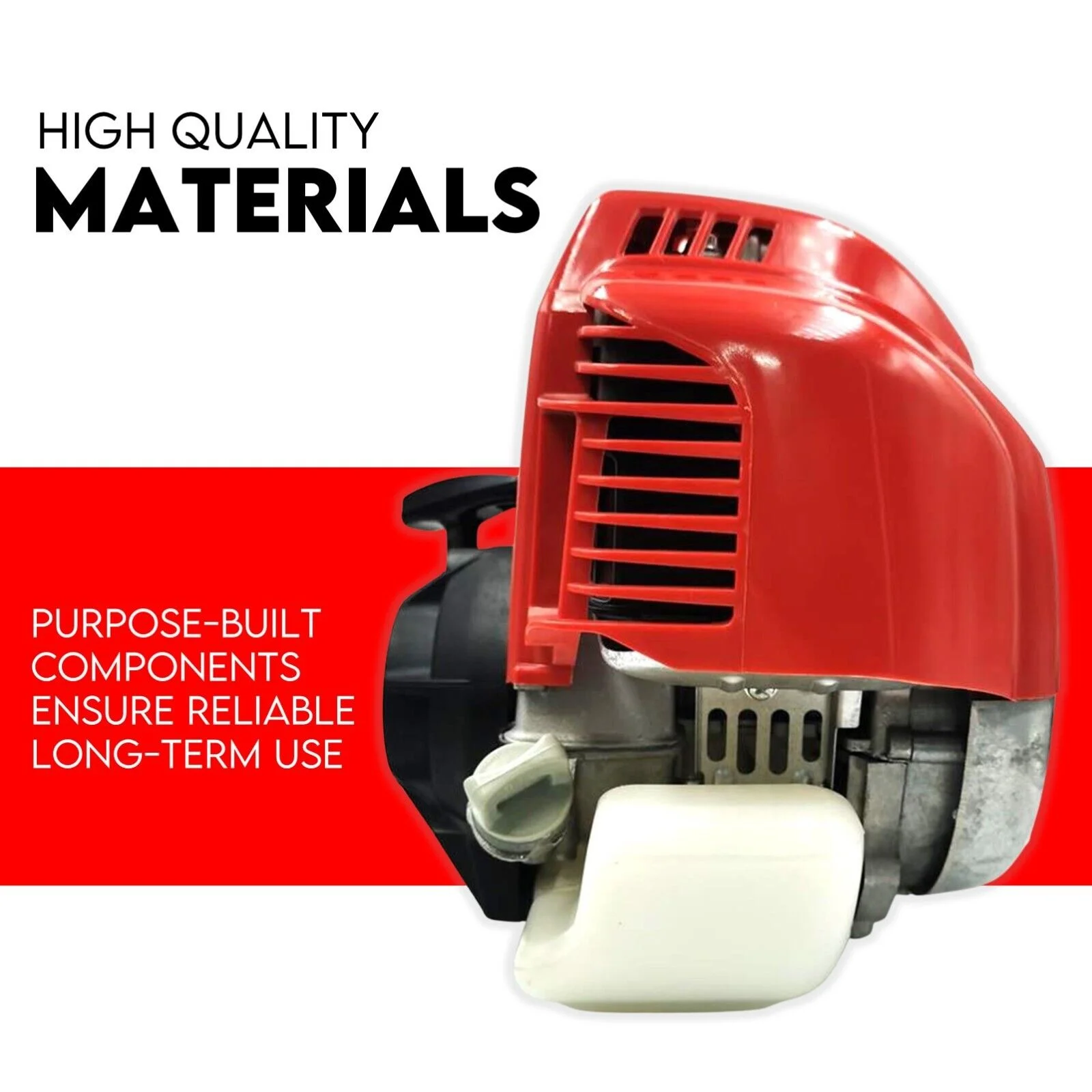

• High quality materials, fit and finish
• Easy starting
• Exceptionally quiet operation

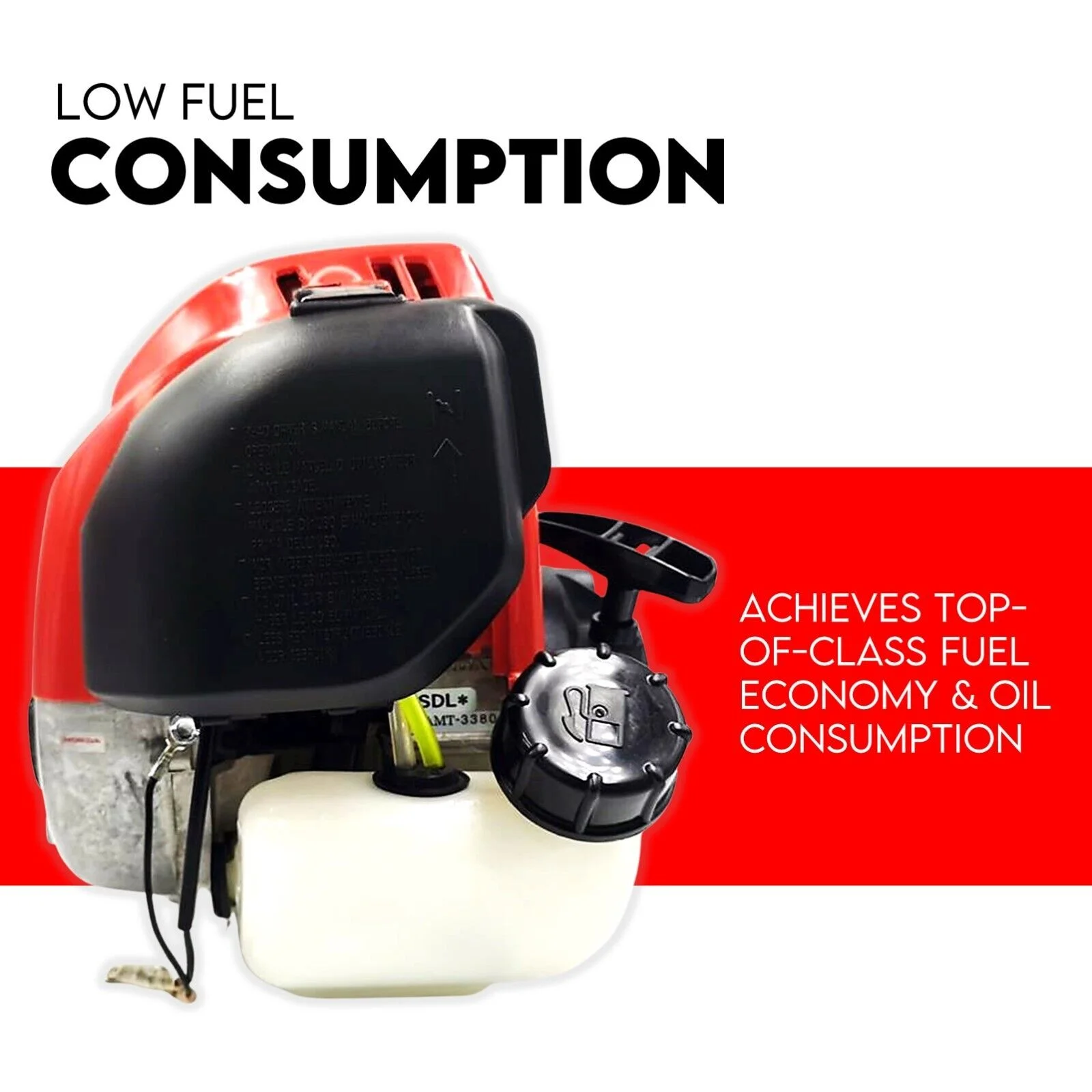

• Fuel efficient, high output operation
• Smooth performance

Specifications

• Engine type: 4-stroke single cylinder OHC petrol engine
• Bore x stroke: 39 mm x 30 mm
• Displacement: 35.8 cm3
• Max power output: 1.5 kW @ 7,000 rpm
• Max torque: 1.6 Nm @ 5,500 rpm
• Max rotation: no load @ 10,000 rpm
• PTO shaft rotation: counter clockwise
• Ignition system: transistorised magneto
• Starting system: recoil
• Cooling system: forced air
• Air cleaner: semi-dry
• Oil capacity: 0.08 litres
• Fuel: unleaded 90 or higher
• Fuel tank capacity: 0.65 litres
• Weight: 4.2 kg

Common Applications

• Commercial lawn and garden equipment
• Tillers and cultivators
• Construction and industrial equipment
• Agricultural equipment
• Water pumps

What's in the Box

• 1 x GX35 engine
• 1 x manual
