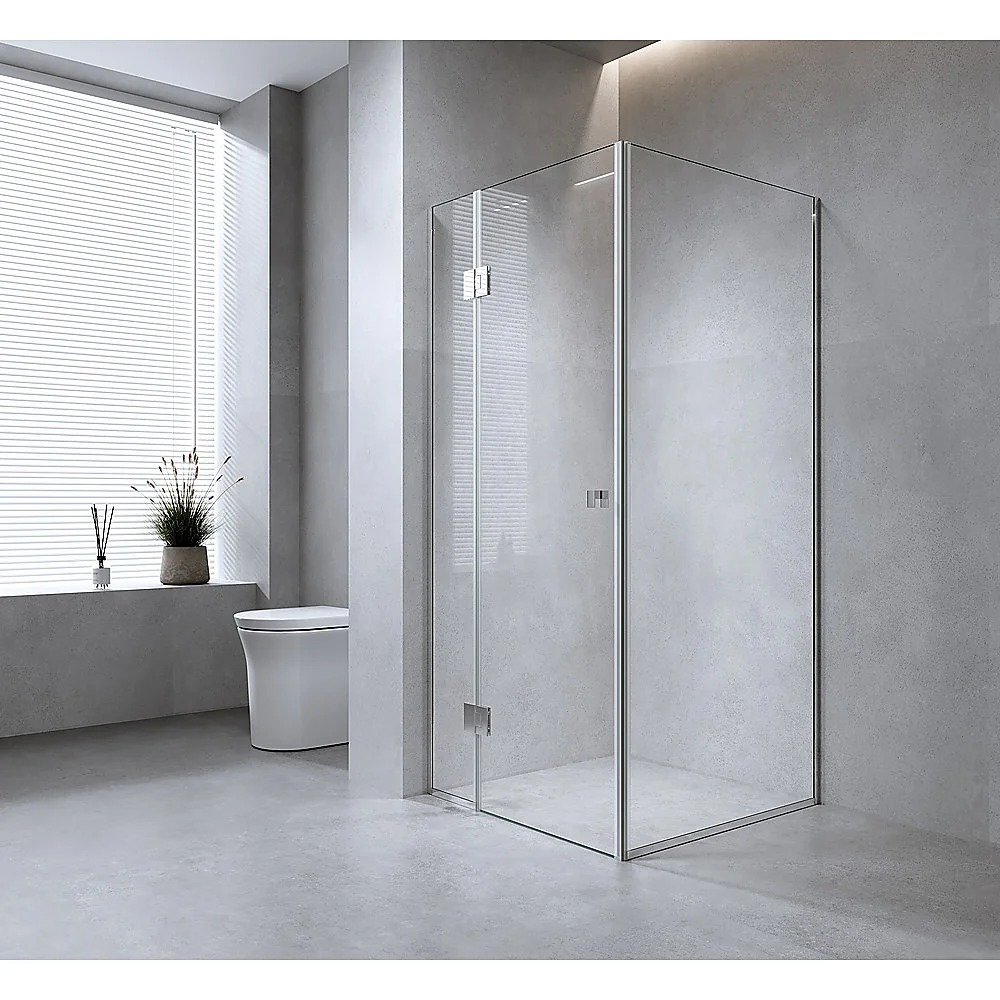

Create a sleek corner shower enclosure with this Della Francesca frameless shower screen, supplied with brushed gunmetal wall channels, stainless steel hinges and a round knob handle. The toughened safety glass and minimalist frameless design keep the space bright and open while helping contain water.
Key Features
- Frameless corner design for a clean, open look
- Toughened safety glass for durability and peace of mind
- Brushed gunmetal wall channels for a secure, watertight fit

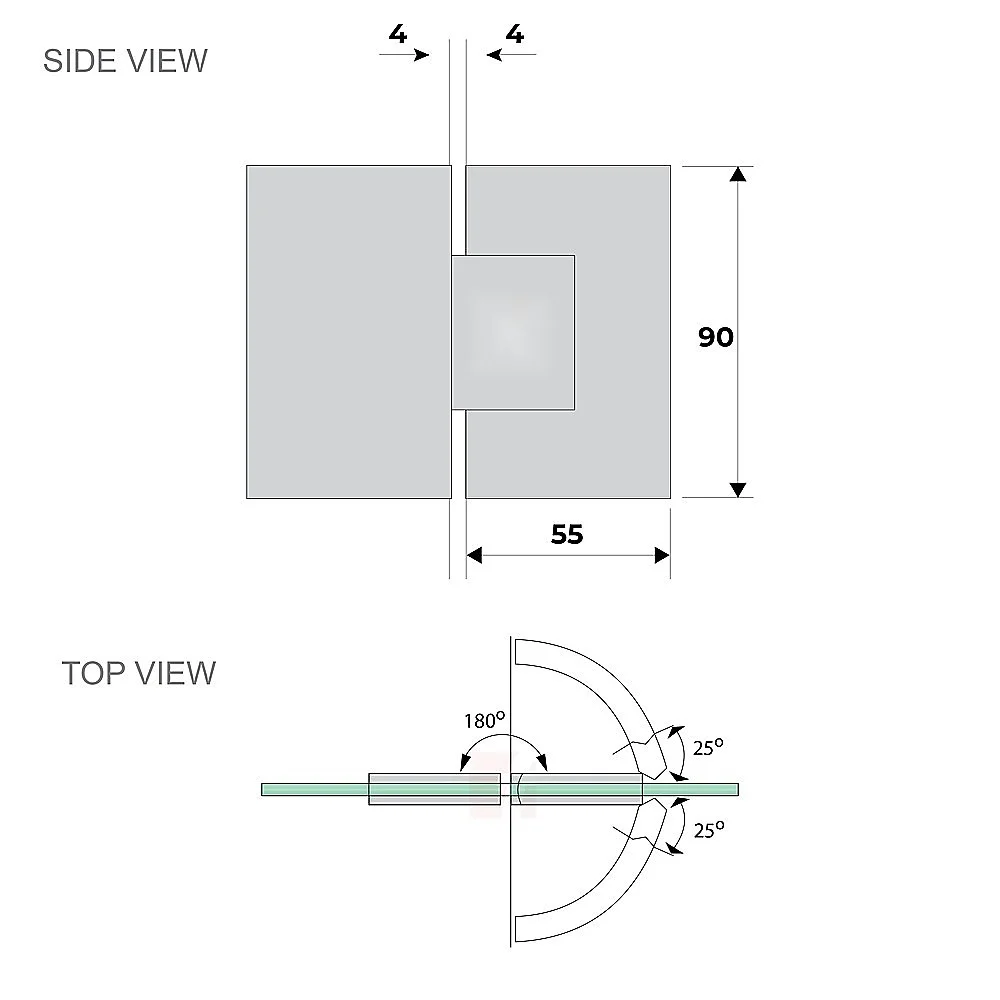

- Stainless steel hinge with dual action opening inwards and outwards
- Hinge self-centres within 25 degrees and closes automatically
- Round brass knob handle with a slimline, minimalist profile
- Handle suits 6mm, 8mm, 10mm and 12mm thick glass
Specifications
- Size: 100x100cm
- Colour: Gunmetal
- Bracket type: Wall channel
- Handle type: Round knob
- Glass: 10mm AS-NZS2208 standard toughened safety glass
- Door panel: 650 x 1990mm
- Door handle hole: 10mm

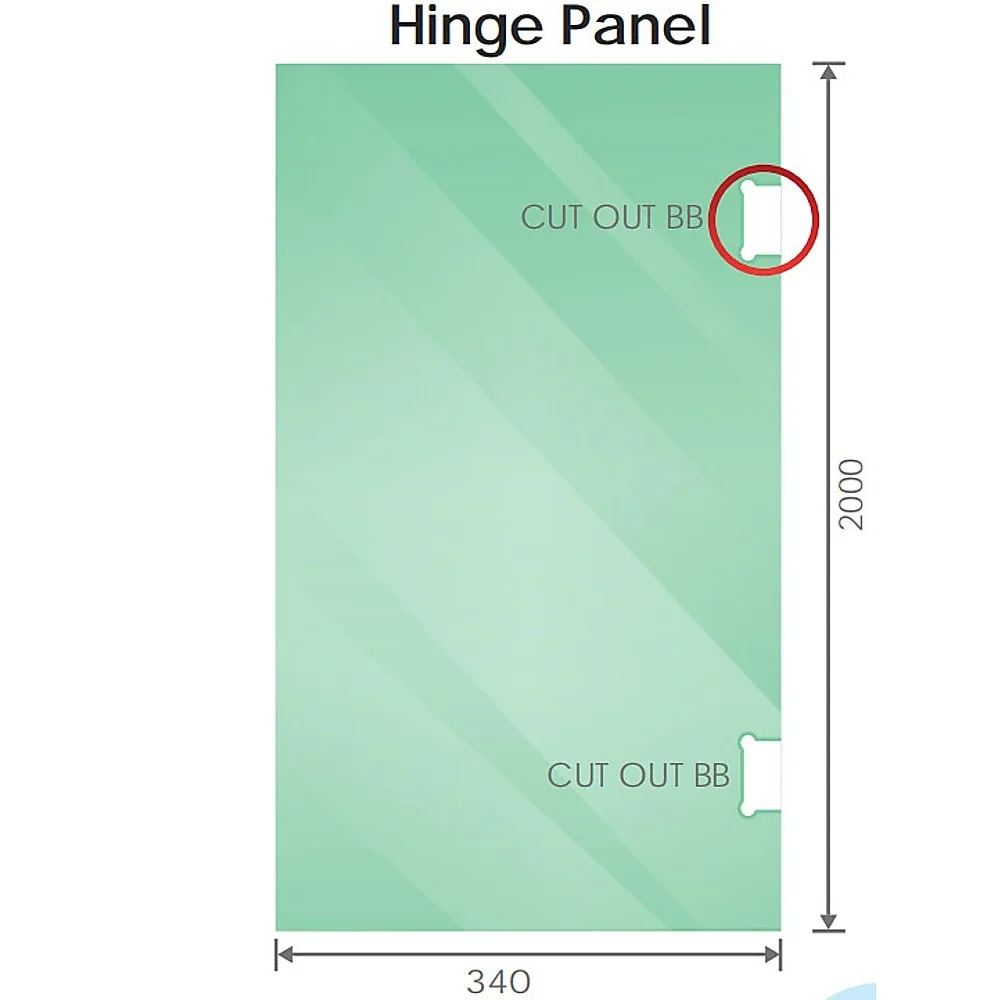

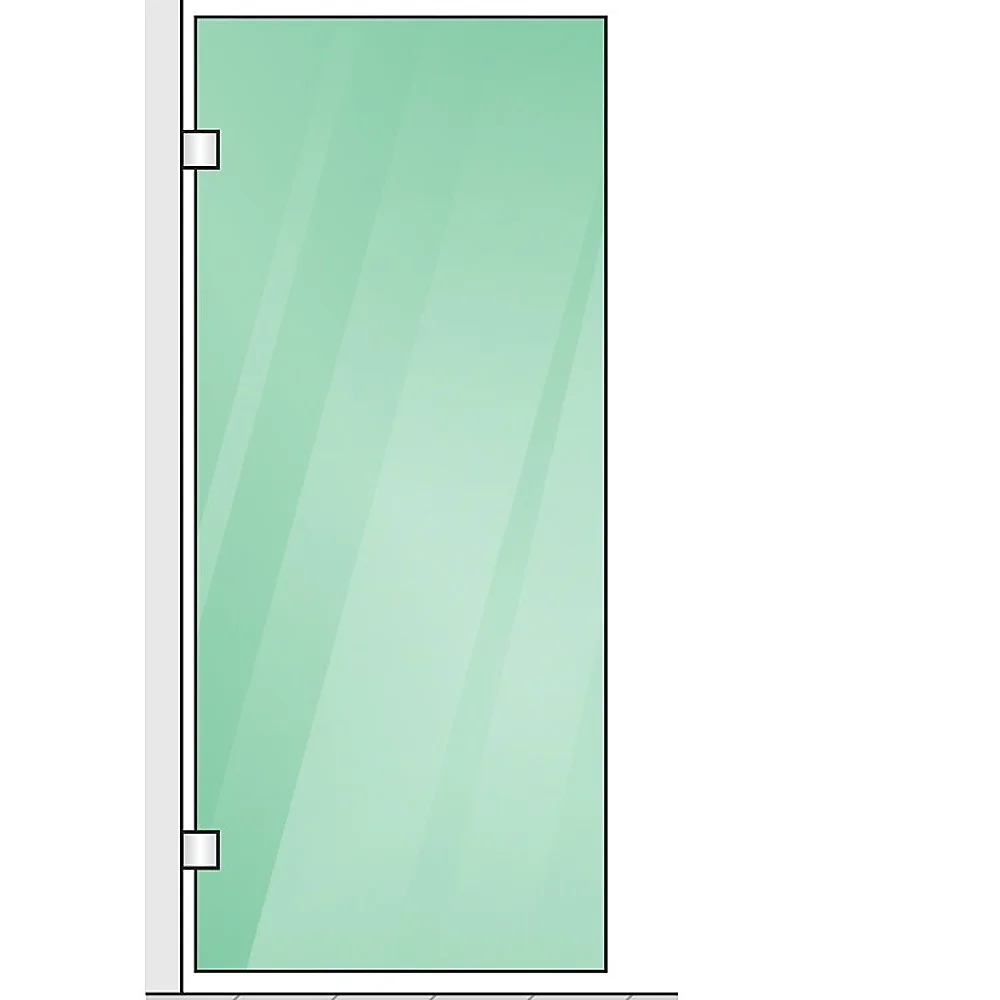

- Hinge panel: 340 x 2000mm

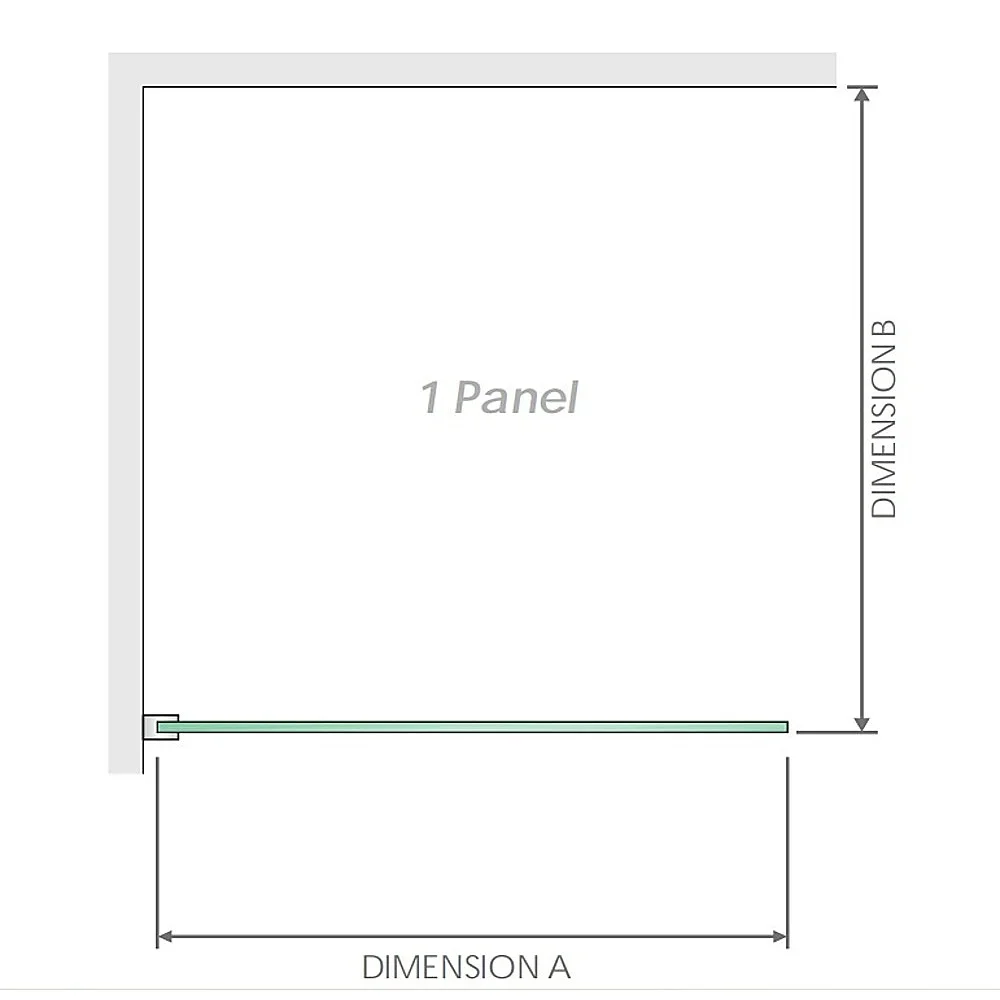

- Single panel: 1000 x 2000mm (W x H)
- Glass complies with AS/NZ 2208:1996 Safety Glazing Materials in Buildings
- Wall channel: 2100mm length, to be cut to size on installation where applicable

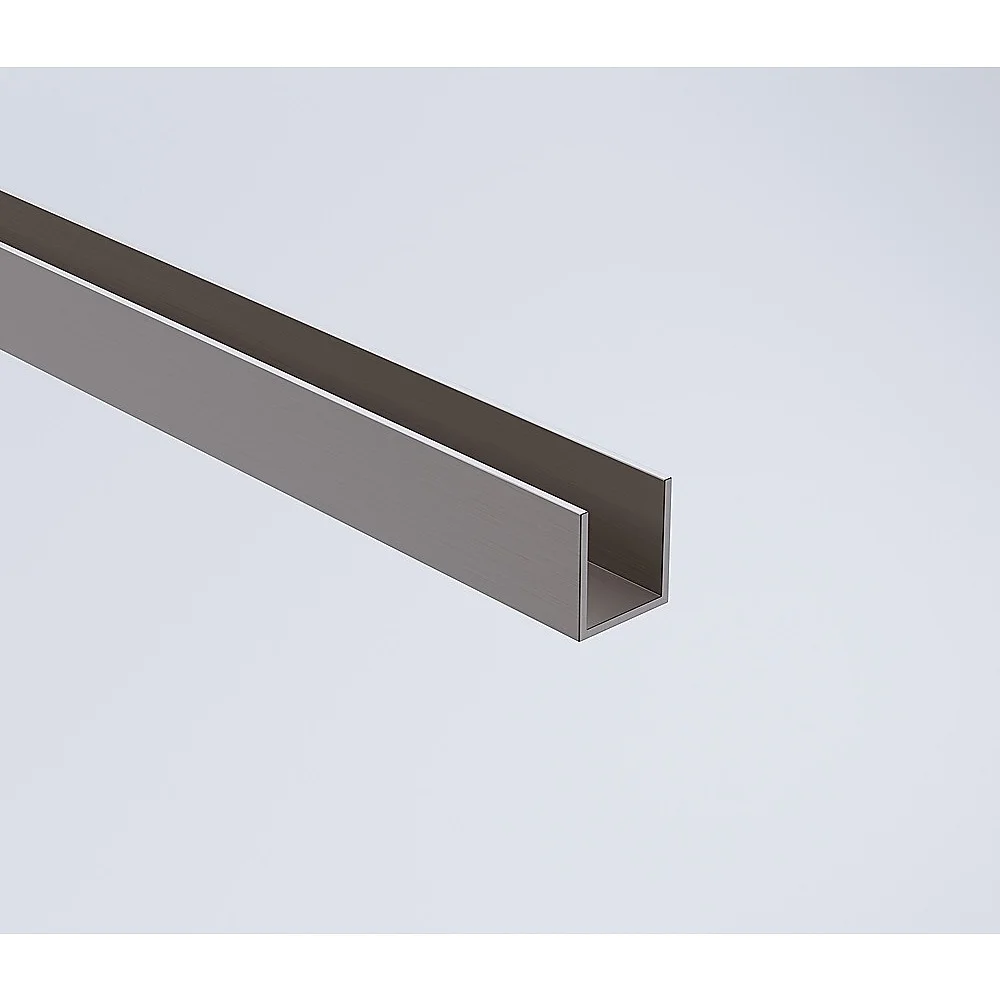

- Wall channel material: brushed gunmetal anodised aluminium

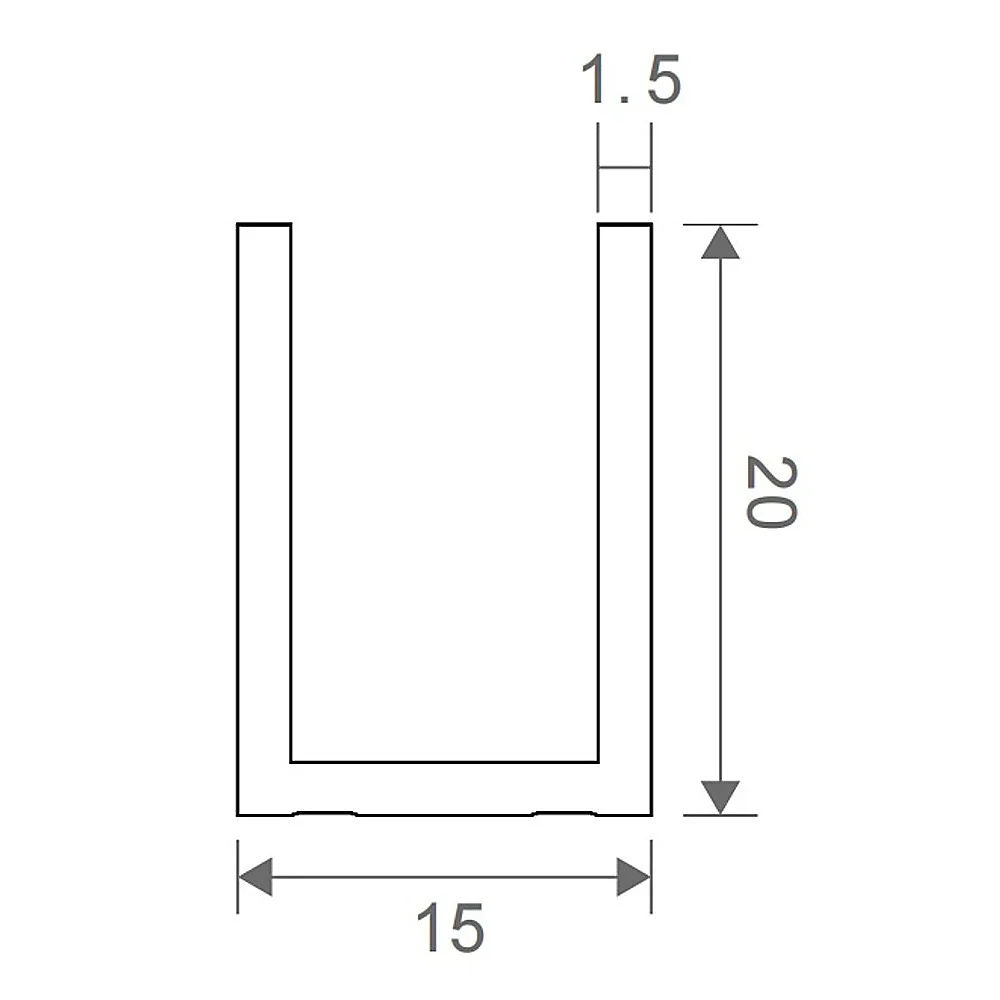

- Wall channel dimensions: 21.5mm height x 15mm width x 1.5mm thickness
- Wall channel suits 10mm glass thickness

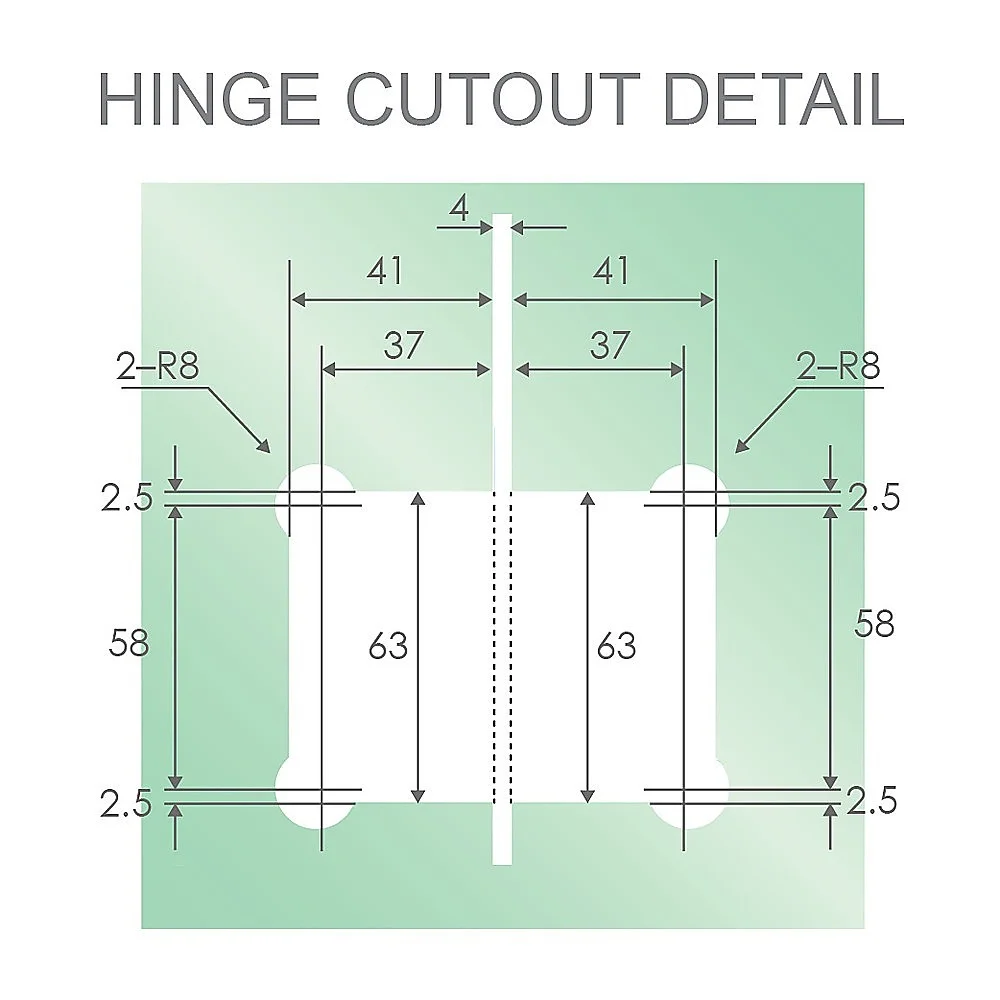

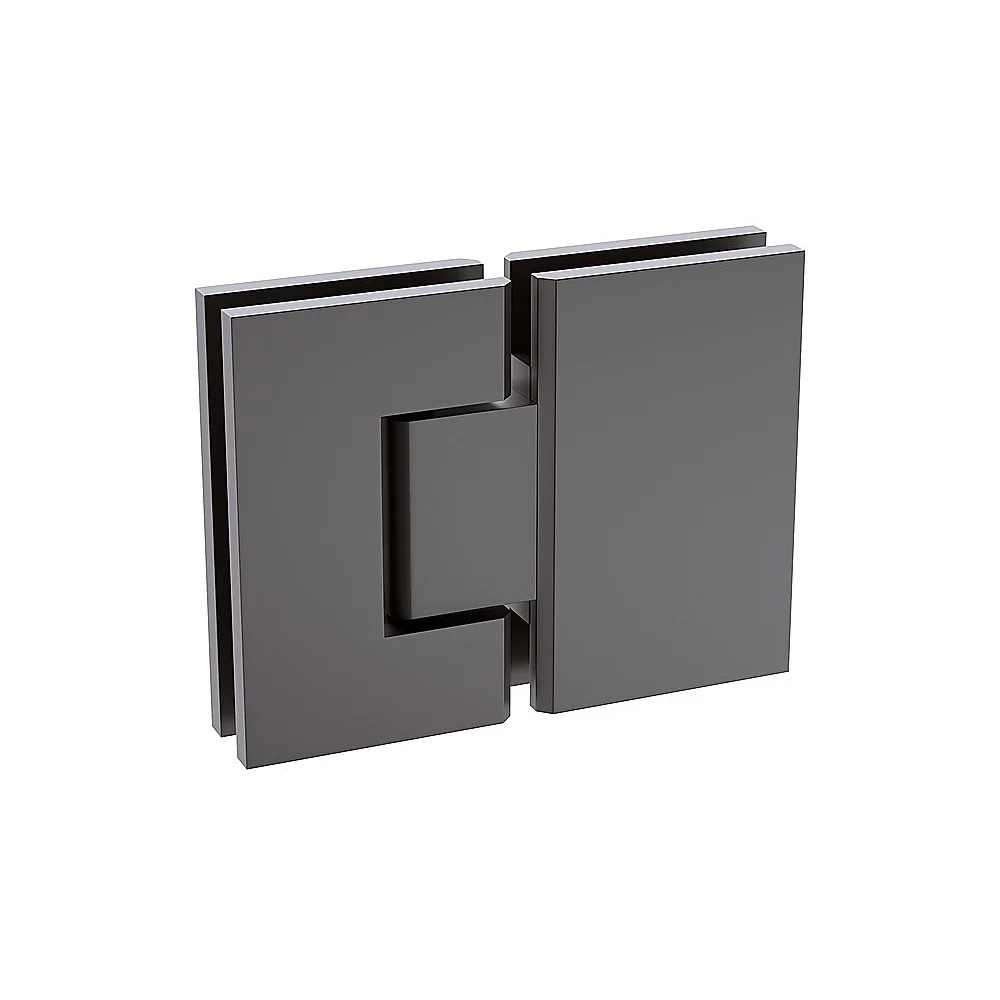

- Hinge: stainless steel with squared edges, electroplated, for 10mm glass
- Hinge clamping plates pre-glued with EPDM 119mm gaskets
- Hinge maximum weight capacity: 45kg
- Hinge quantity: 1 pair (2pcs)

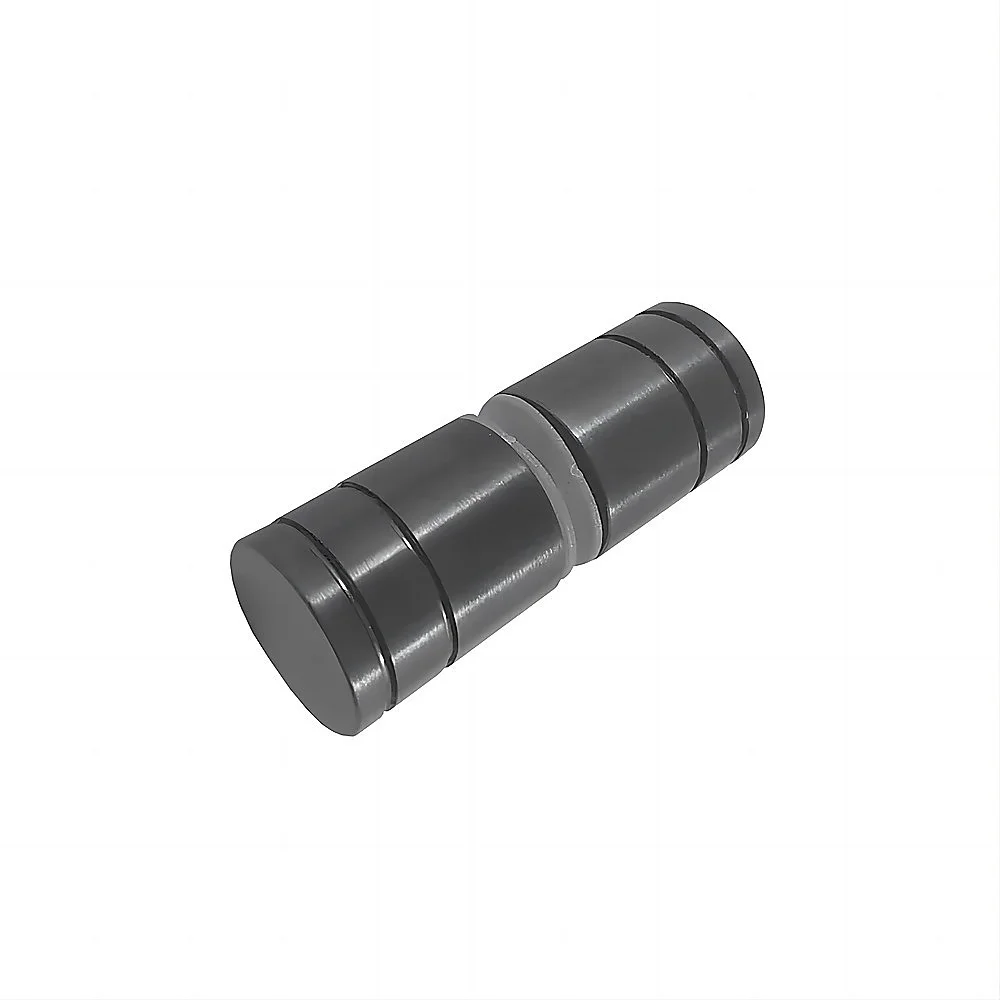

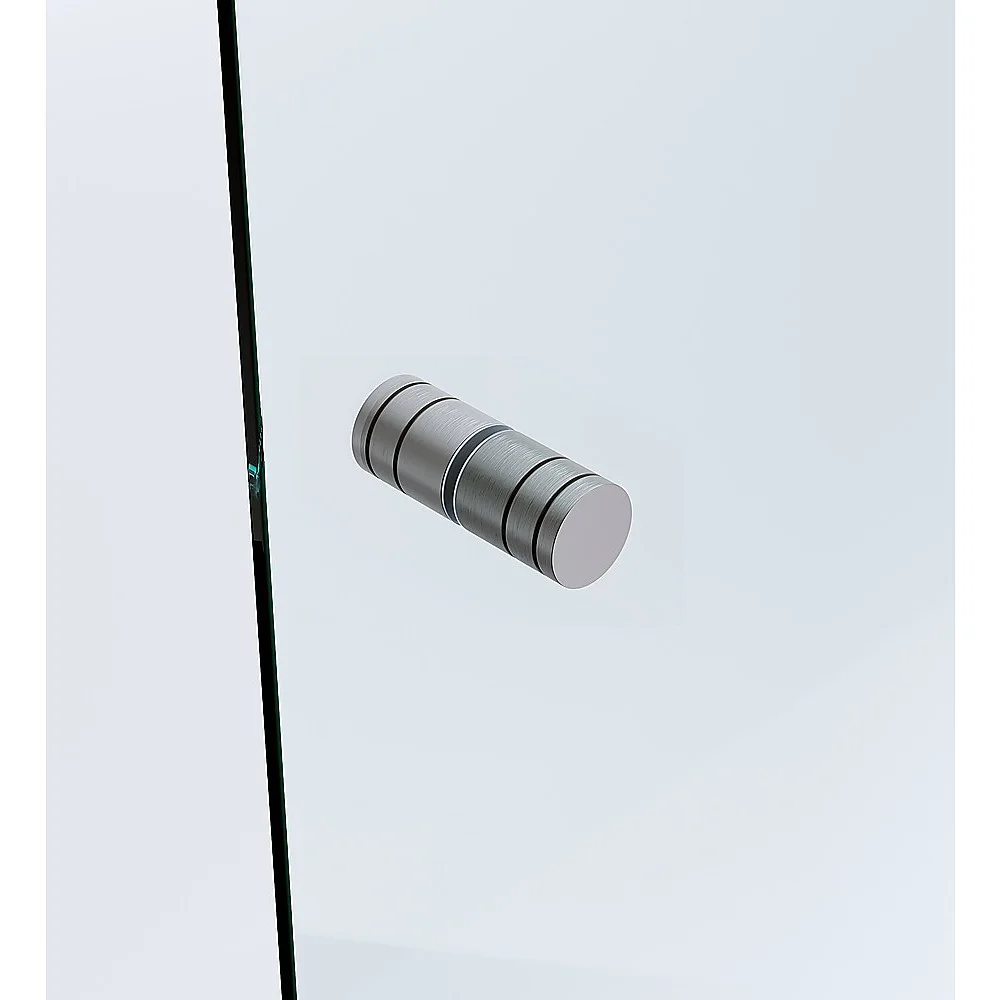

- Handle: Ø24mm round knob with two circular grooves, solid brass
- Handle includes plastic gaskets for added glass protection
- Finish: brushed gunmetal (colour intensity may vary from actual due to different lighting conditions)
What's in the Box
- 1x Frameless shower screen door panel: 650 x 1990mm, 10mm glass, 10mm door handle hole
- 1x Frameless hinge glass panel: 340 x 2000mm, 10mm glass
- 1x Single-panel safety glass screen: 1000 x 2000mm, 10mm toughened glass
- 2x Wall channels in brushed gunmetal
- 1x 180-degree wall-to-wall shower door hinge in brushed gunmetal (1 pair, 2pcs)
- 1x 24mm brass round shower door handle in brushed gunmetal
Note: Images may show optional accessories for illustrative purposes only. Only the accessories and colour specified above are included.
