Della Francesca 100cm Frameless Diamond Shower Screen with Nickel U-Brackets, SS Hinges & Round Knob Handle

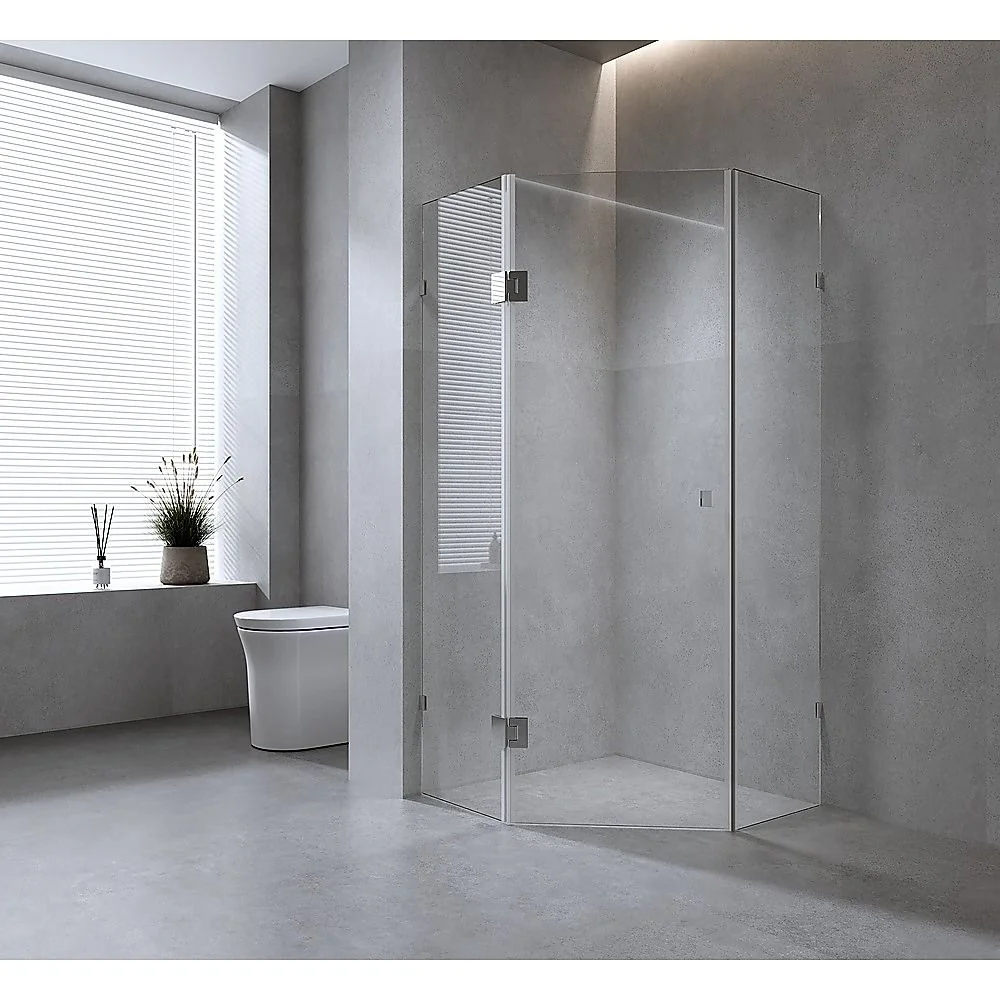

The Della Francesca 100cm frameless diamond shower screen brings architectural flair to your bathroom while making the most of the available shower space. Its diamond corner configuration and clear tempered glass keep the enclosure open and bright, so your tiles and fixtures stay on show.

Key Features

• Frameless diamond corner configuration that maximises usable shower space
• 10mm tempered safety glass to AS-NZS2208 standard
• Stainless steel glass-to-glass square hinges with dual action that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

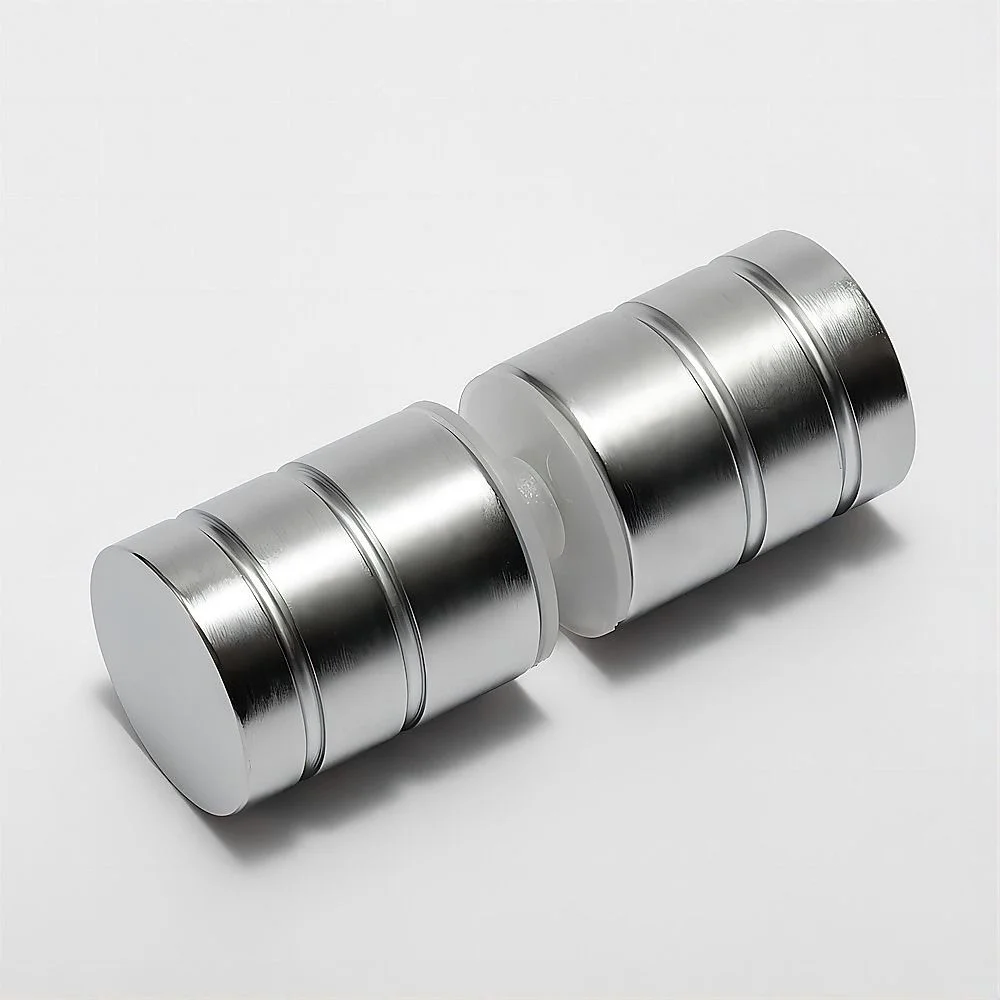

• Solid brass round knob handle with a slimline 24mm double pull design
• Brushed nickel U-brackets with concealed fixing and no fixed leg
• U-brackets use compression/friction screws, so no holes in the glass are required
• Slimline 2mm rear wall reduces the silicone gap between wall and glass panel
• Frameless design removes hard-to-clean channels and corners

Specifications

• Size: 100cm
• Colour: Nickel
• Bracket type: U-brackets
• Handle type: Round knob

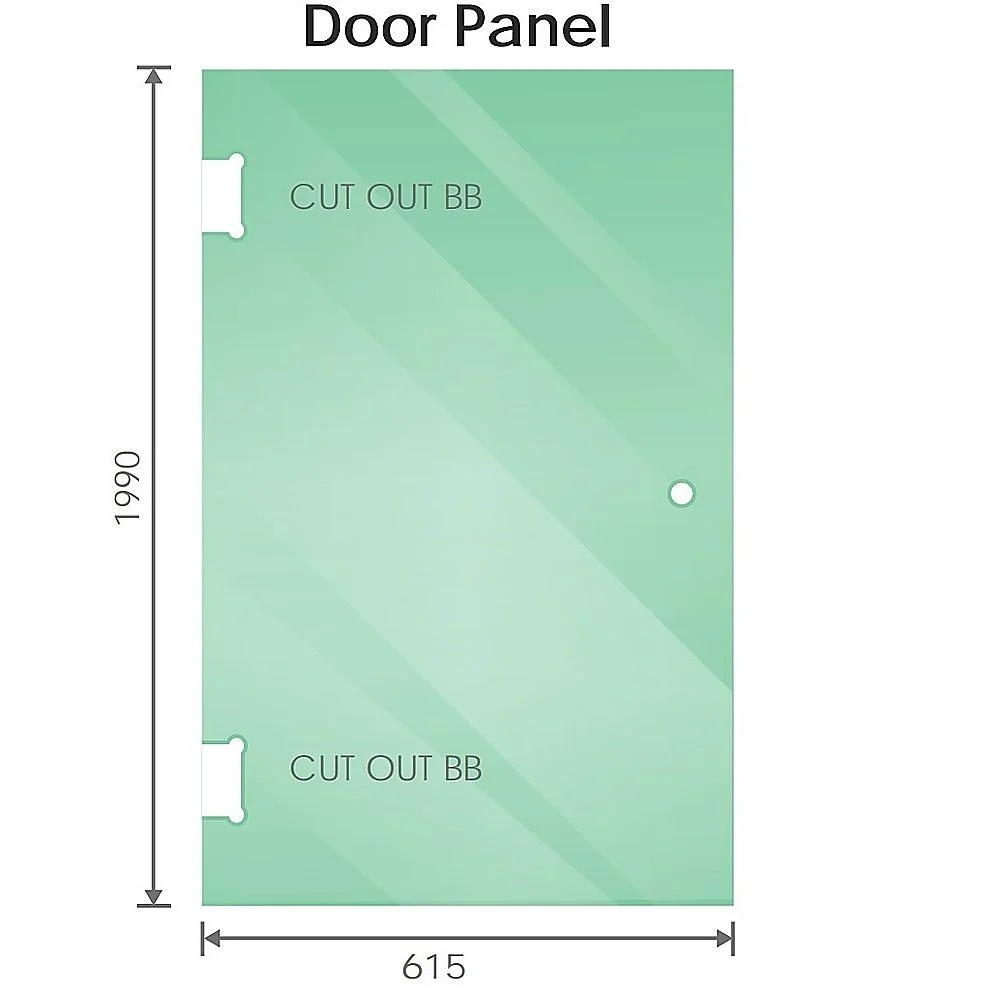

• Door panel: 615 x 1990mm, 10mm glass

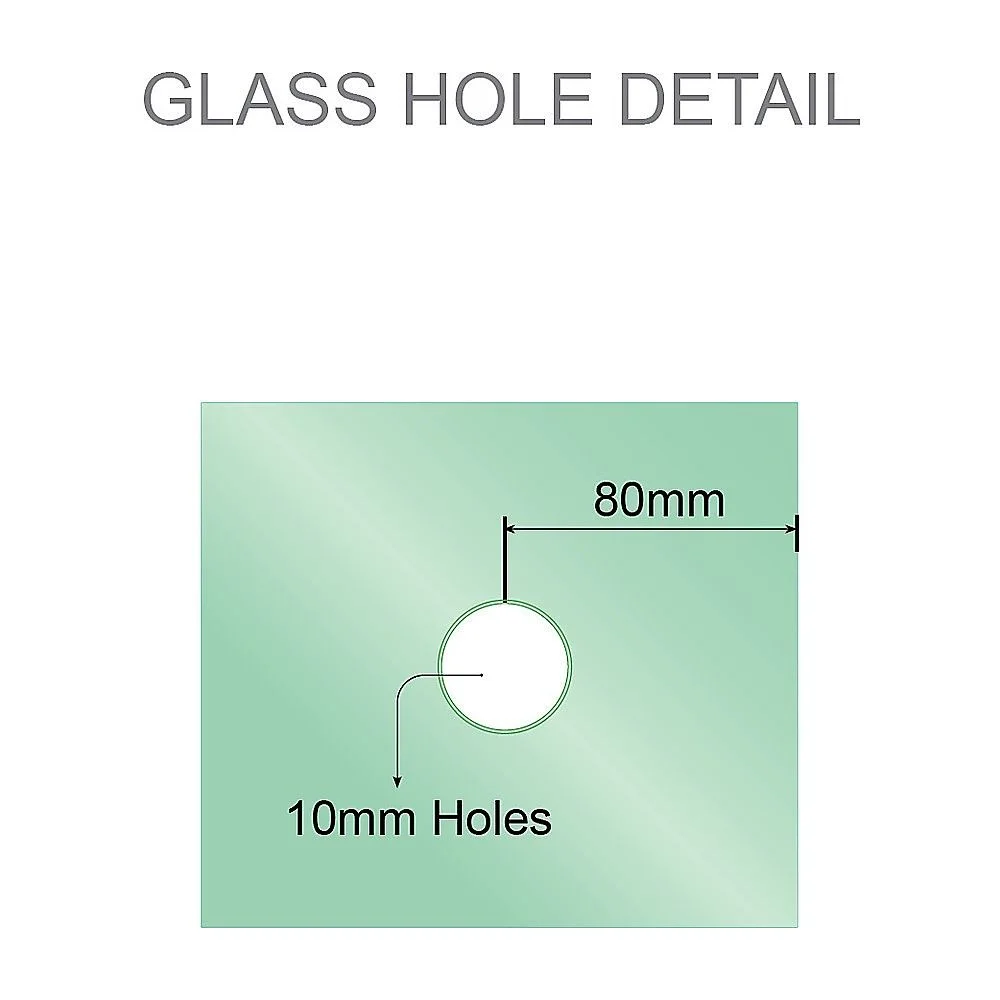

• Door handle hole: 10mm

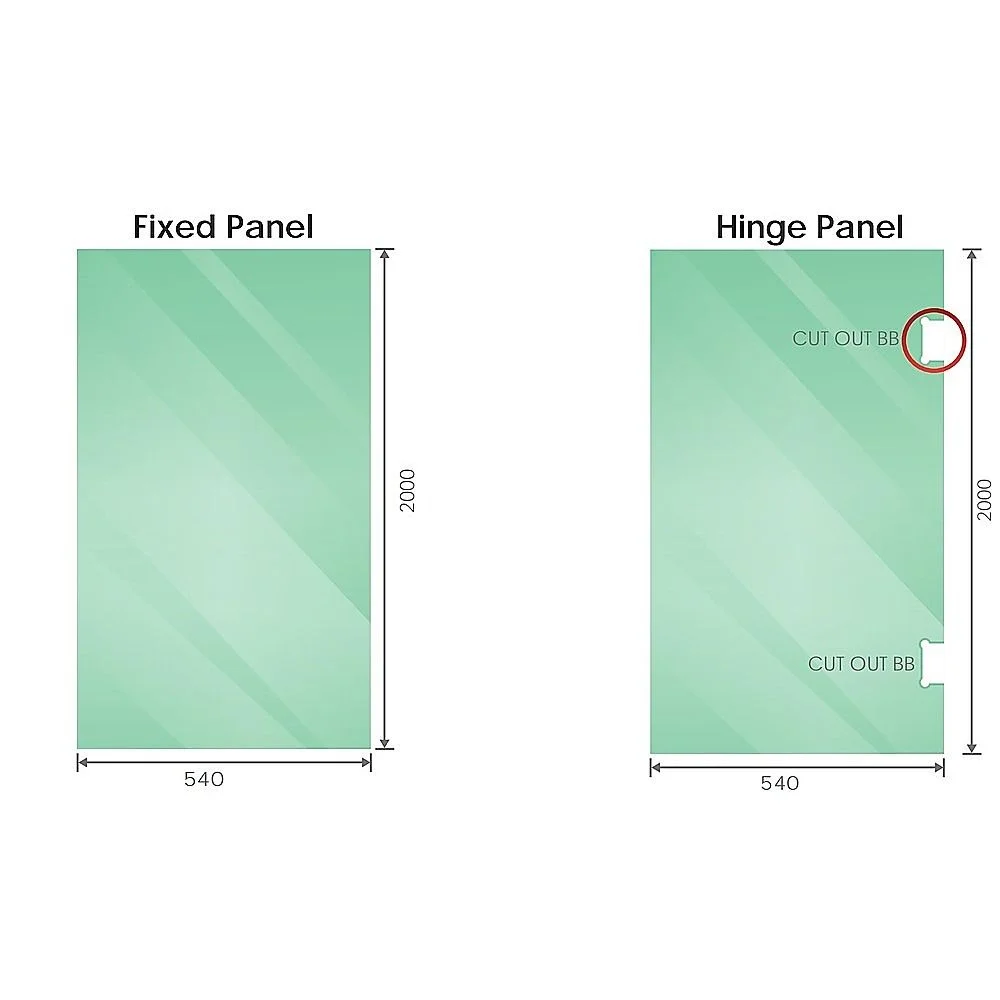

• Hinged panel: 540 x 2000mm, 10mm glass
• Fixed panel: 540 x 2000mm, 10mm glass

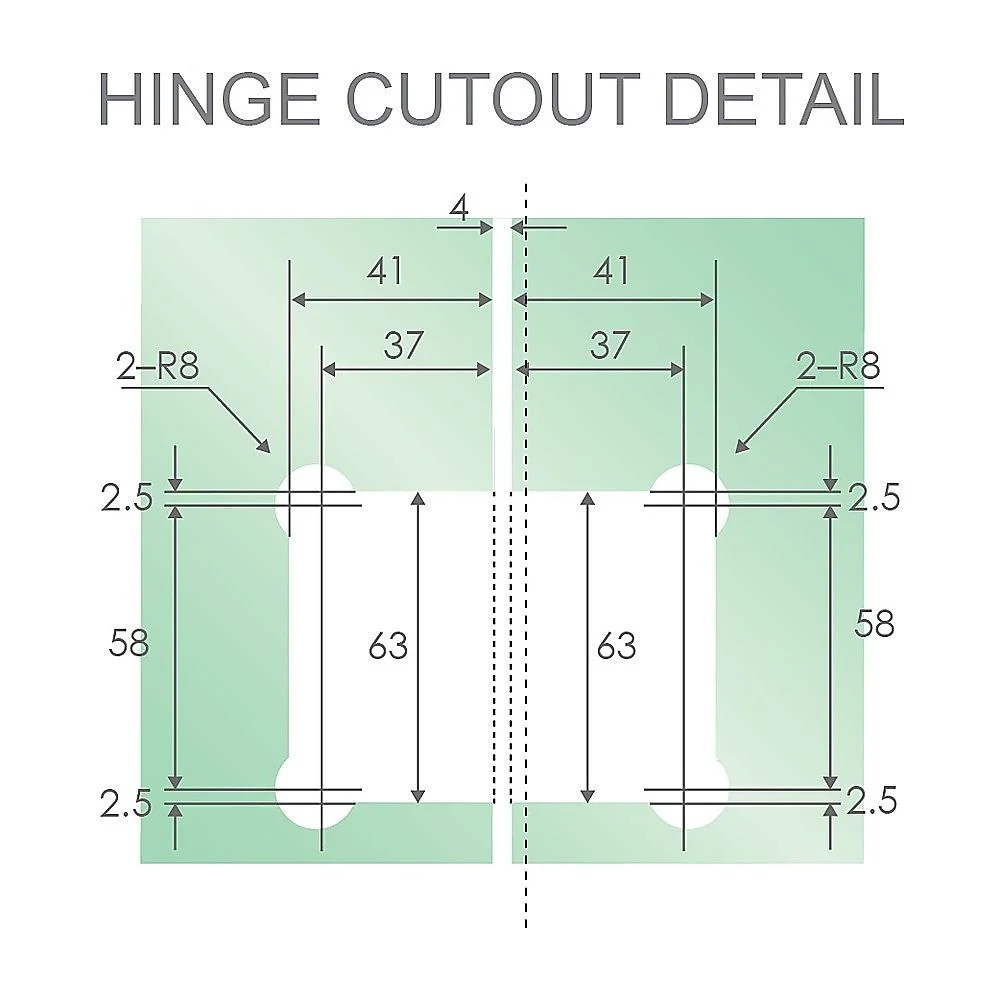

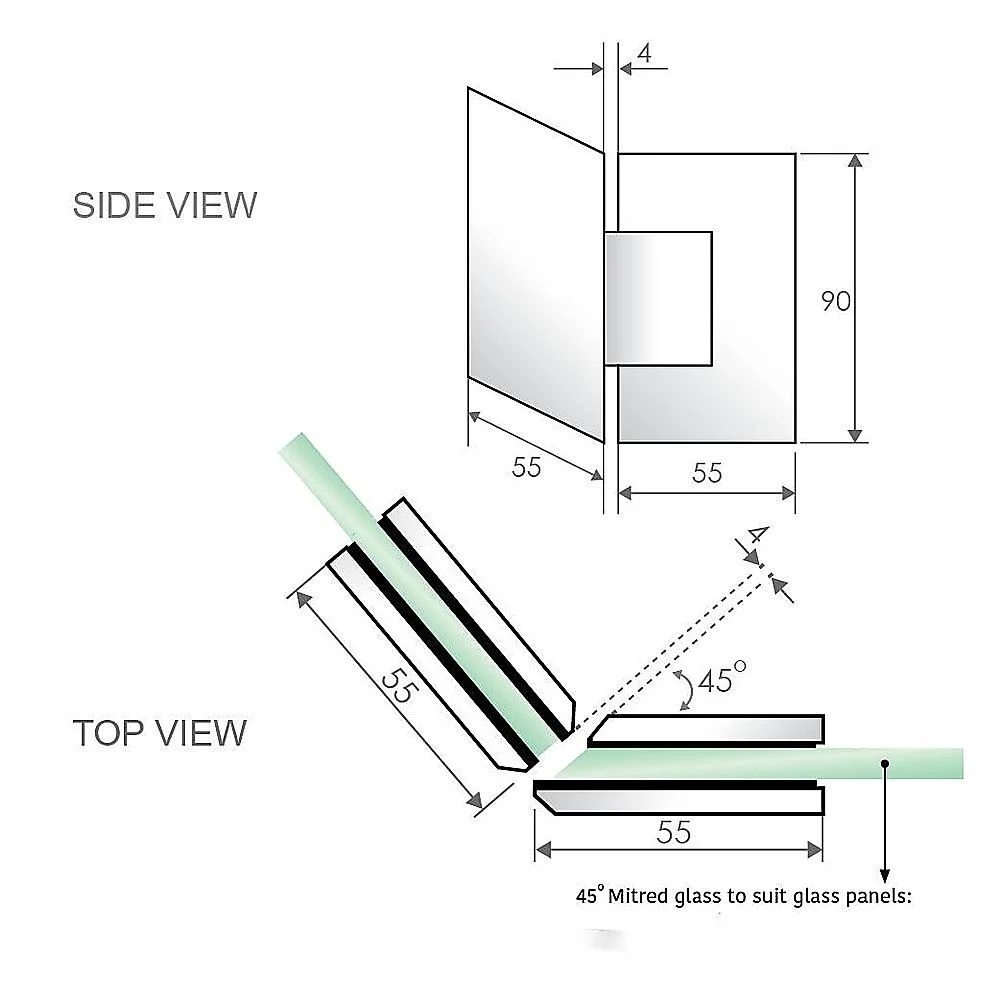

• Hinge: for 10mm glass, maximum weight 45kg, brushed nickel finish

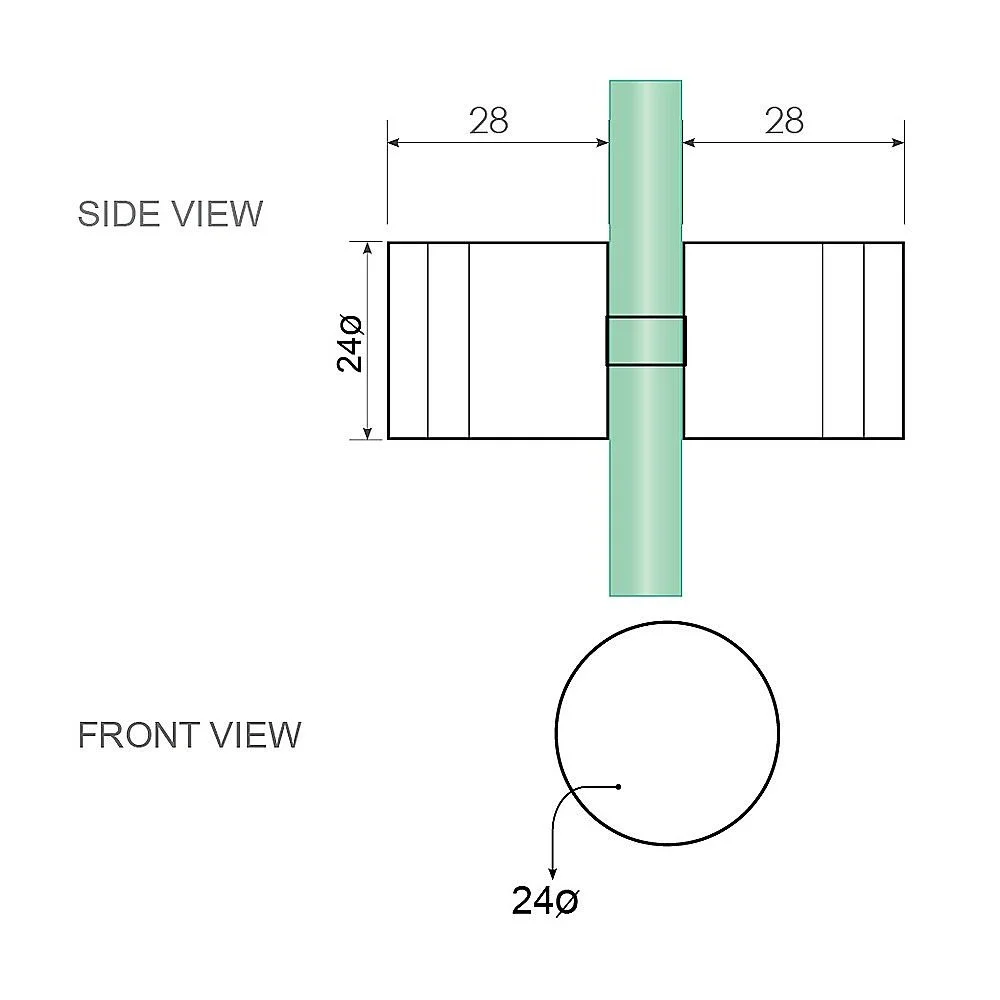

• Handle: solid brass, slimline 24mm double pull knob with two circular grooves, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed nickel finish

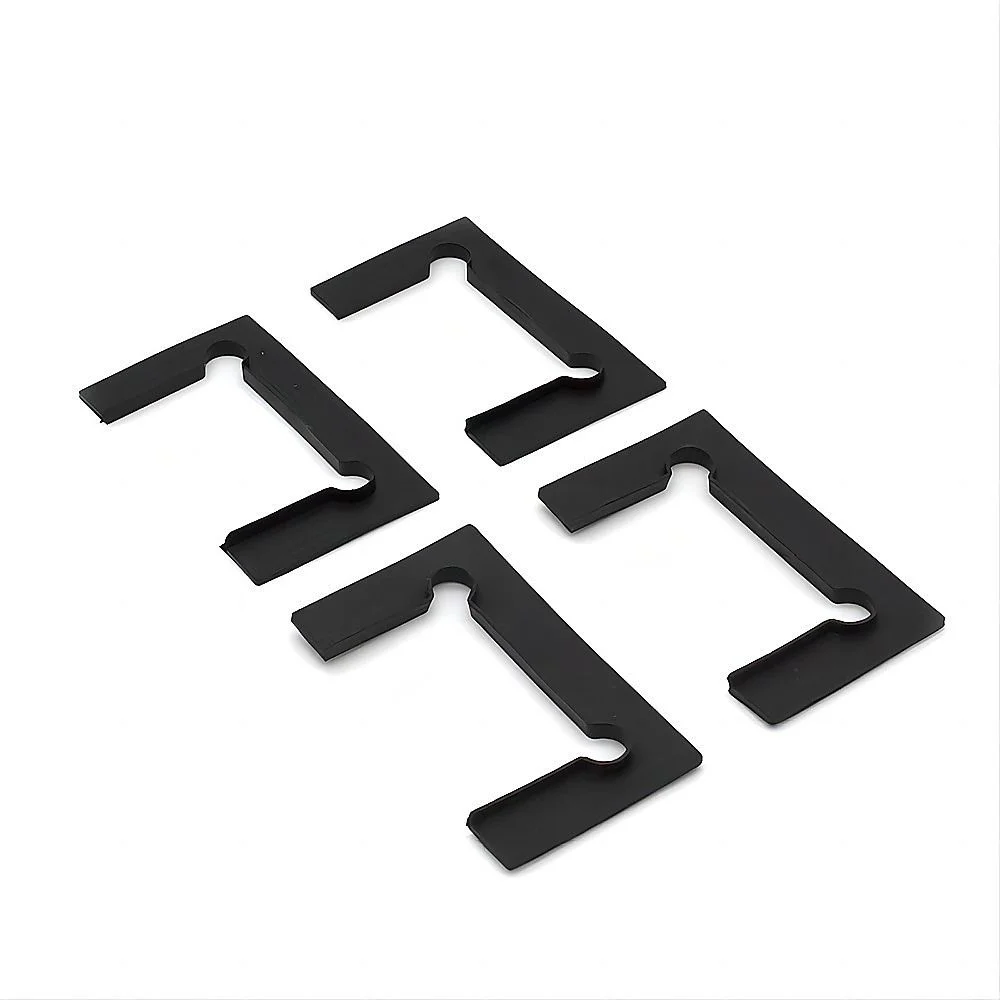

• U-bracket: suitable for 10mm glass, solid brass in brushed nickel finish, concealed fixing, 2 compression/friction screws, 1 fixing screw and clear gaskets supplied

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed panel and 1 x 540mm clear glass hinged panel for diamond shower screen

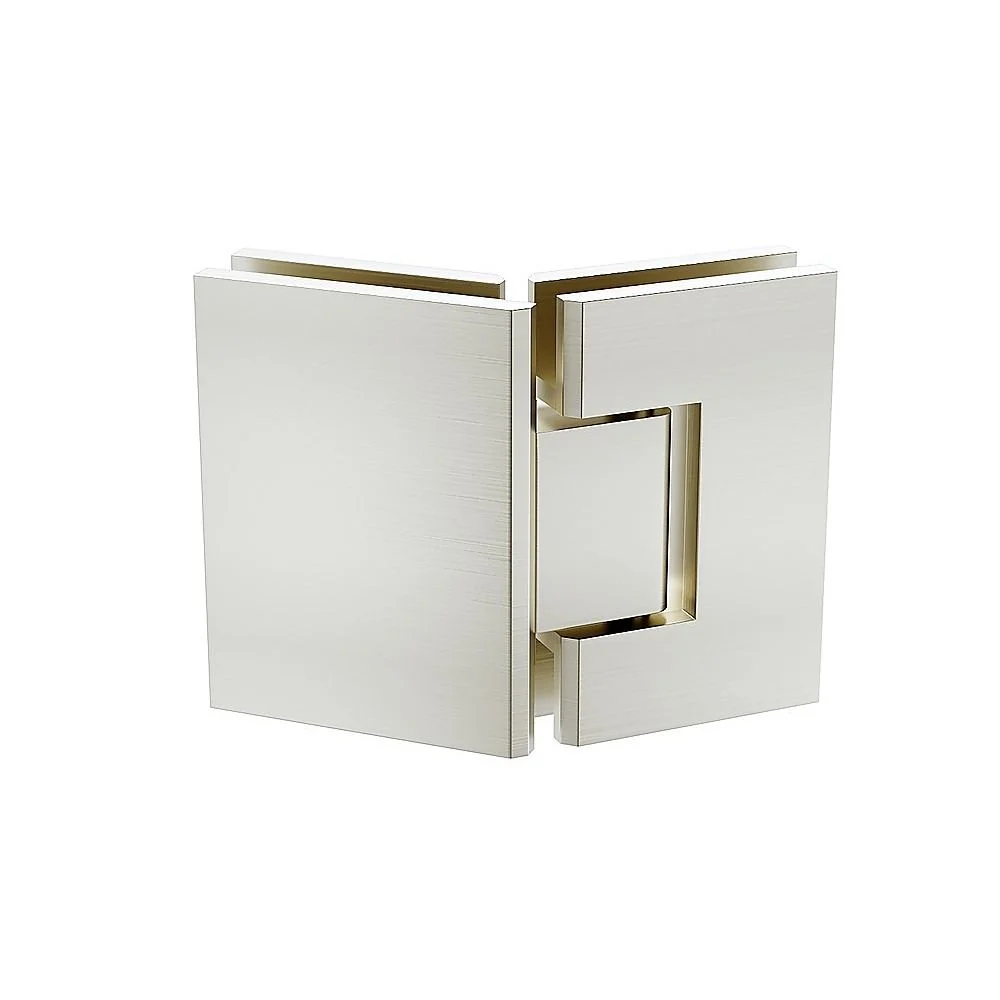

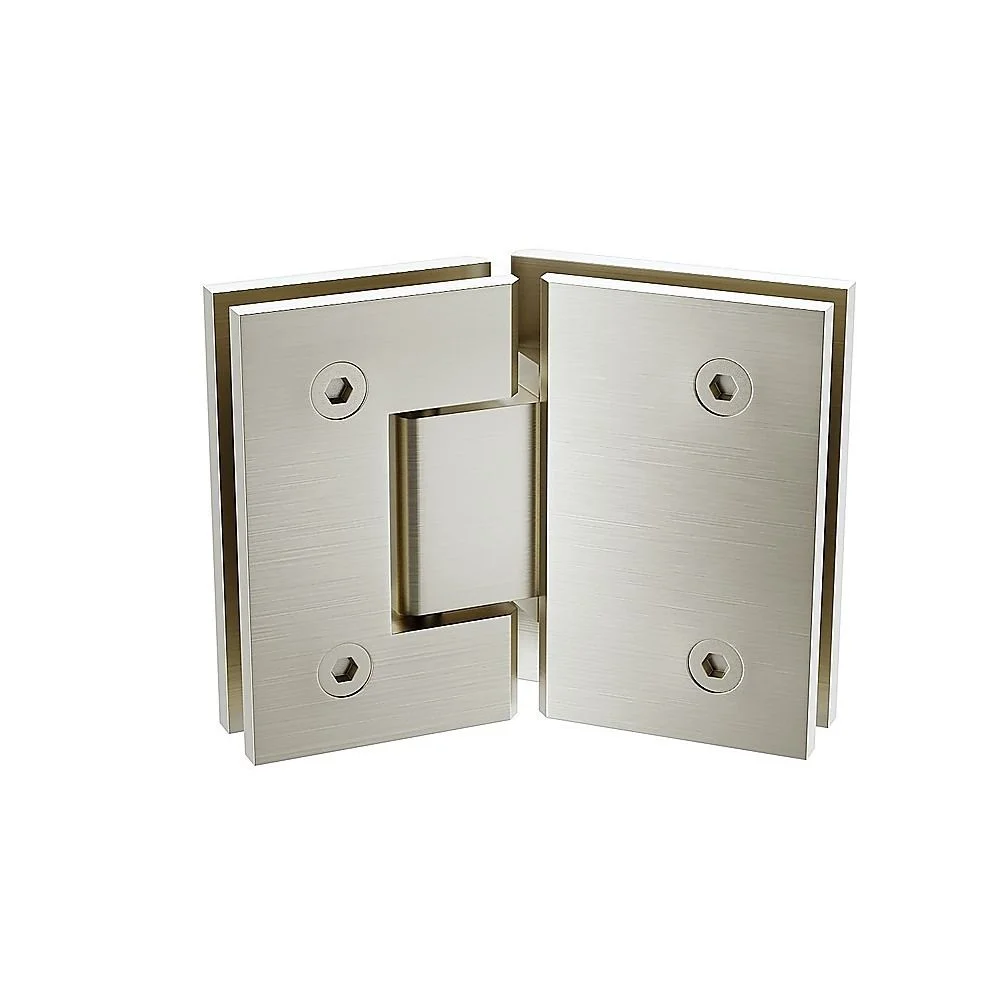

• 1 x 135-degree glass-to-glass stainless steel square shower hinge in brushed nickel

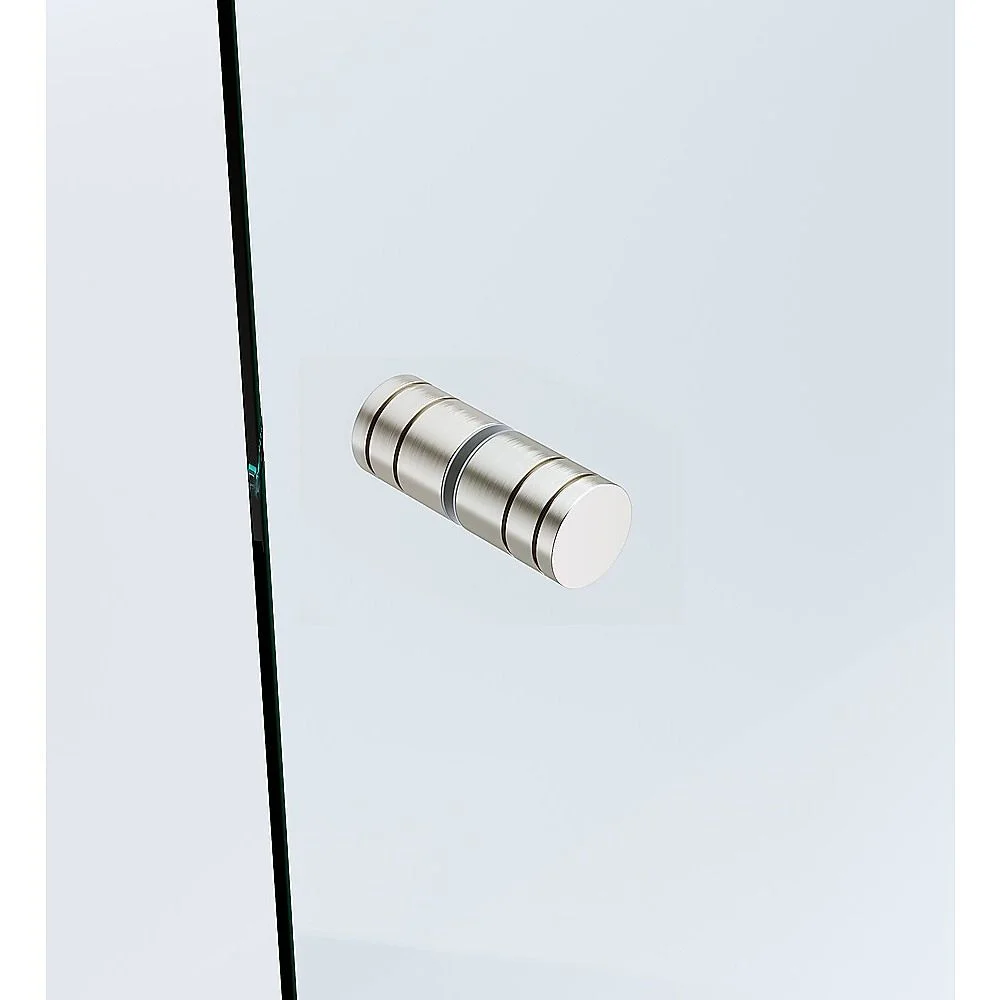

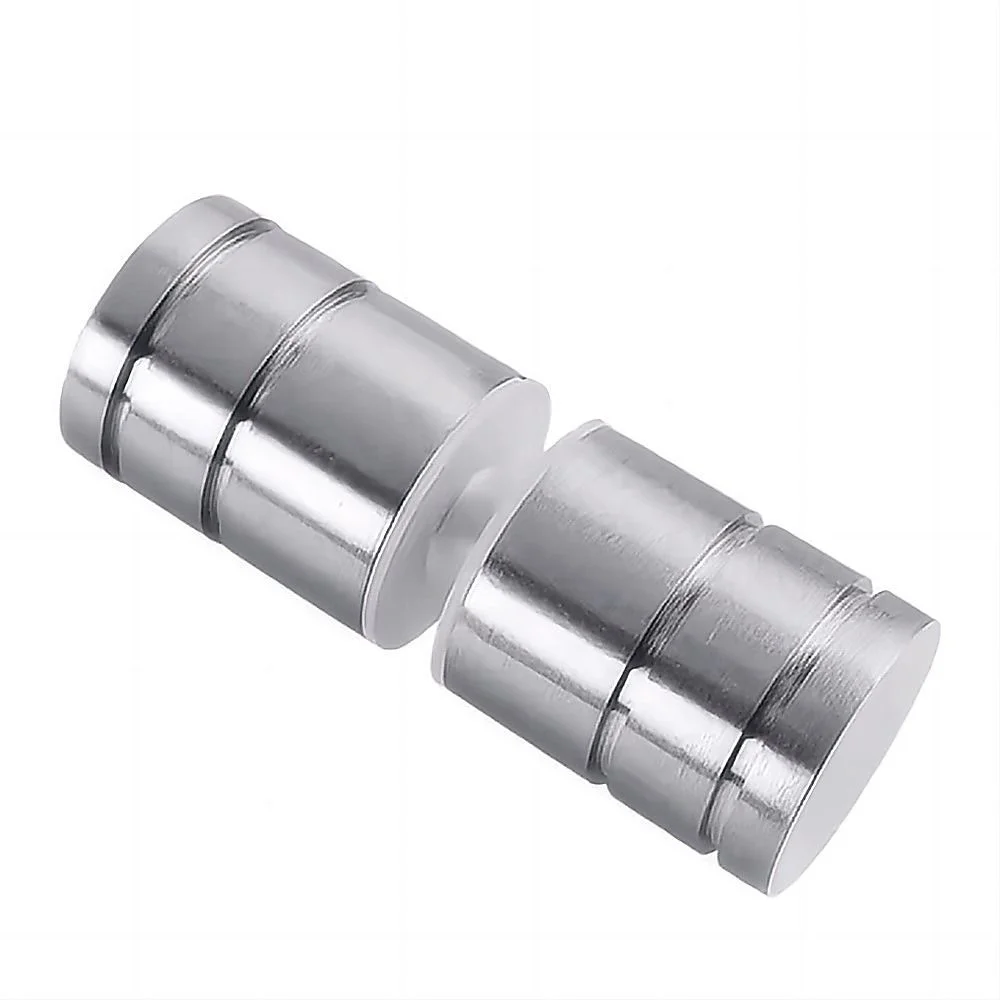

• 1 x 24mm brass shower door round handle in brushed nickel
• 4 x glass-to-wall/floor U-brackets in brushed nickel

Note: images may show optional accessories for illustrative purposes only. Only the accessories in the specified colour as described are included. Colour intensity may vary from actual due to different lighting conditions.
