Della Francesca 100cm Frameless Diamond Shower Screen with Gold U-Brackets

The Della Francesca 100cm Frameless Diamond Shower Screen brings a striking diamond corner configuration to your bathroom, maximising usable shower space while showcasing your tiles through crystal-clear tempered glass. Brushed gold U-brackets, hinges and a round knob handle complete a refined, contemporary look.

Key Features

• Diamond corner configuration adds architectural flair and optimises shower space
• Frameless design removes hard-to-clean channels and corners
• 10mm tempered glass to AS-NZS2208 standard

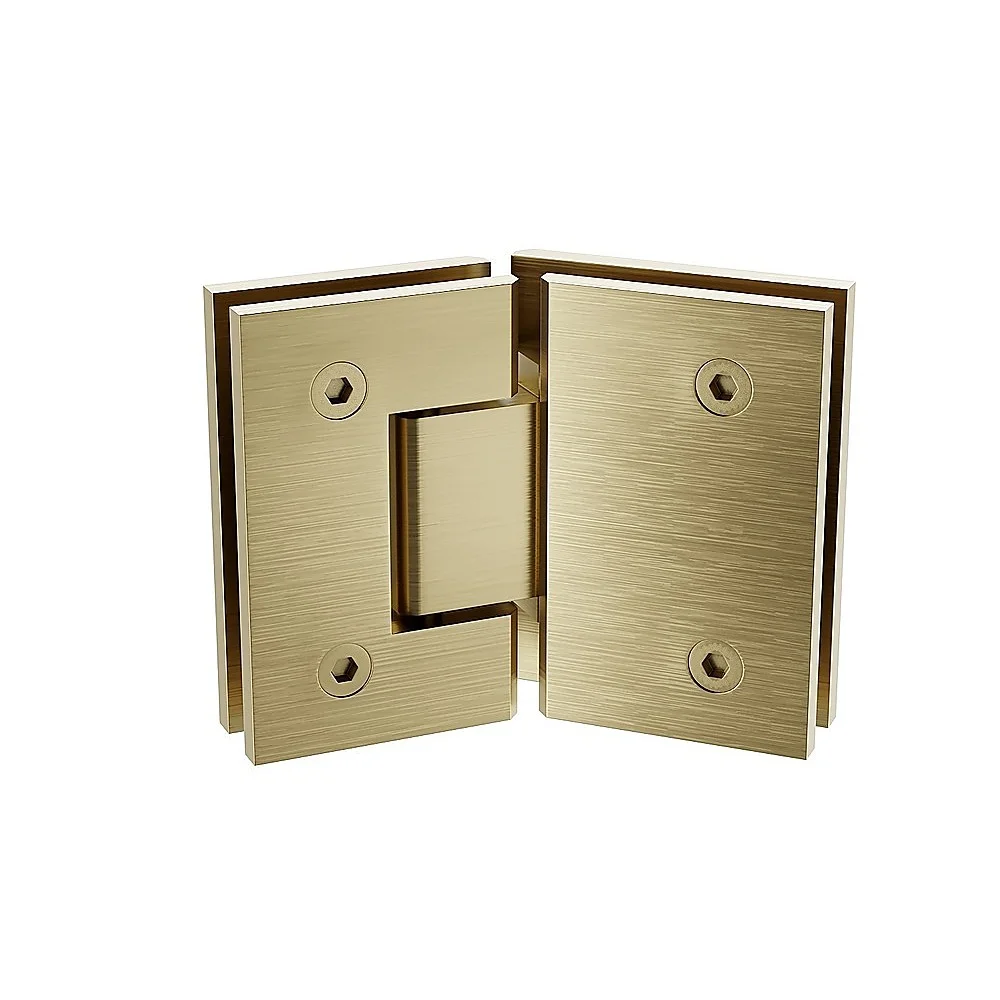

• Stainless steel hinges with squared edges and dual-action swing that opens inwards and outwards
• Hinges self-close from the 25-degree position

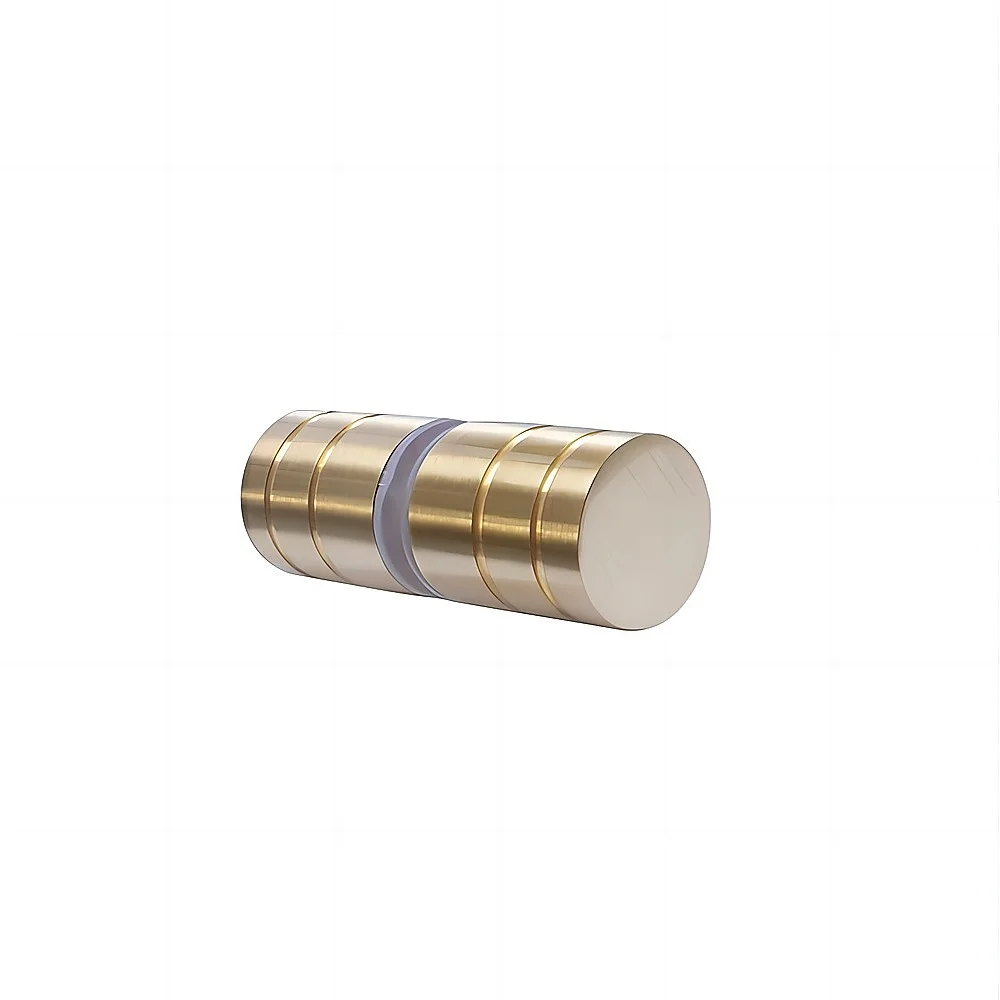

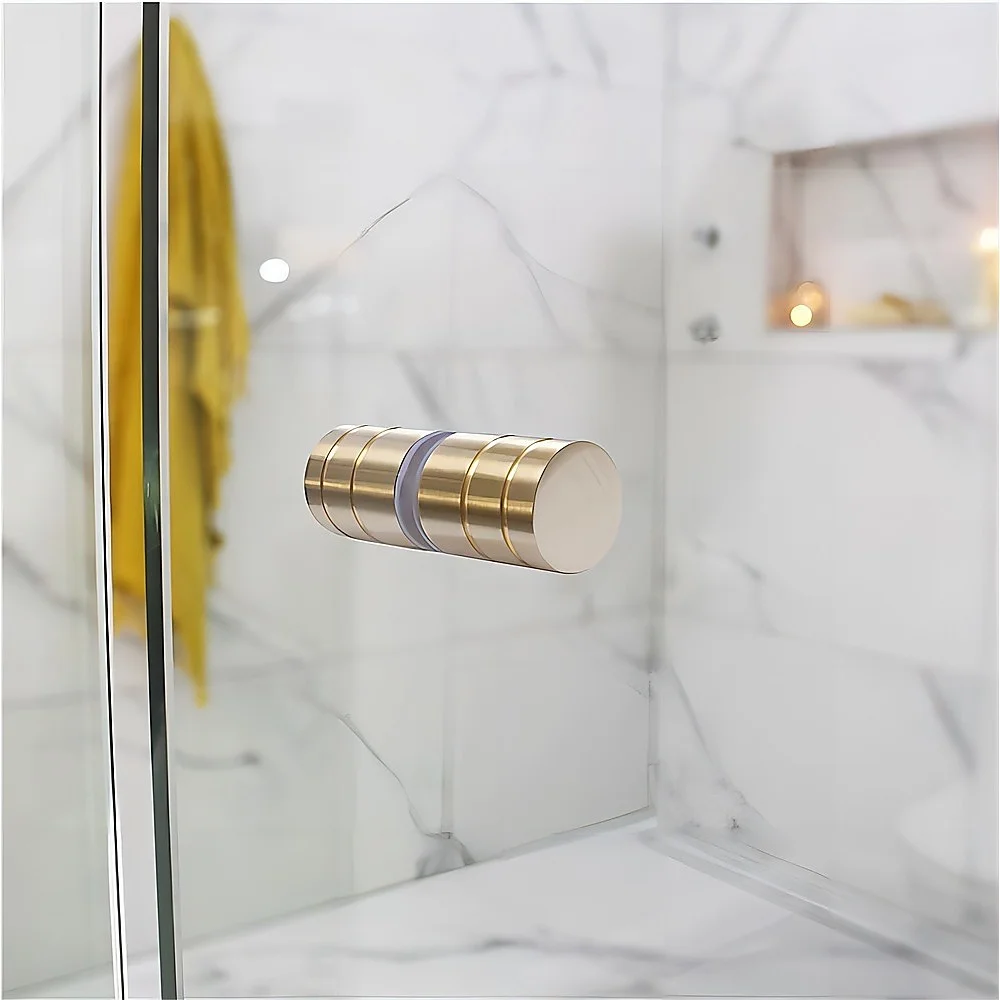

• Solid brass round knob handle with two circular grooves, resistant to rust and corrosion

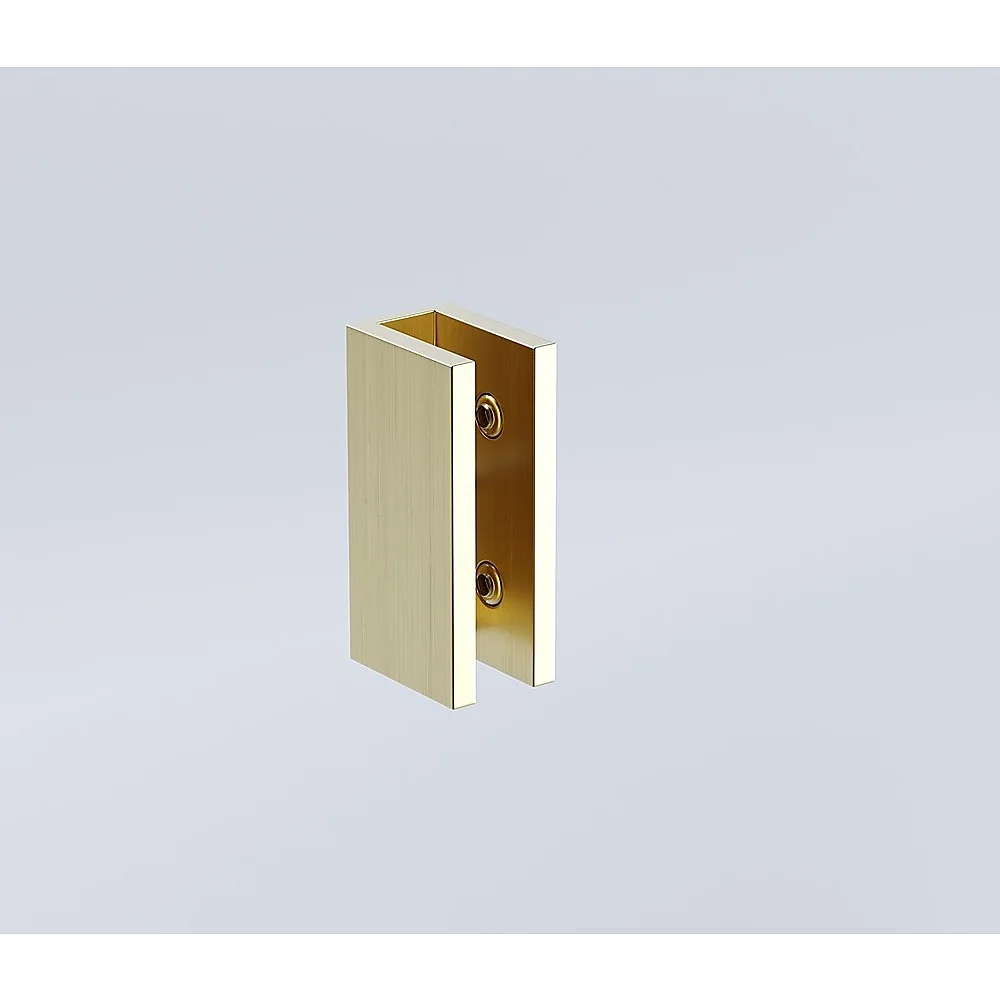

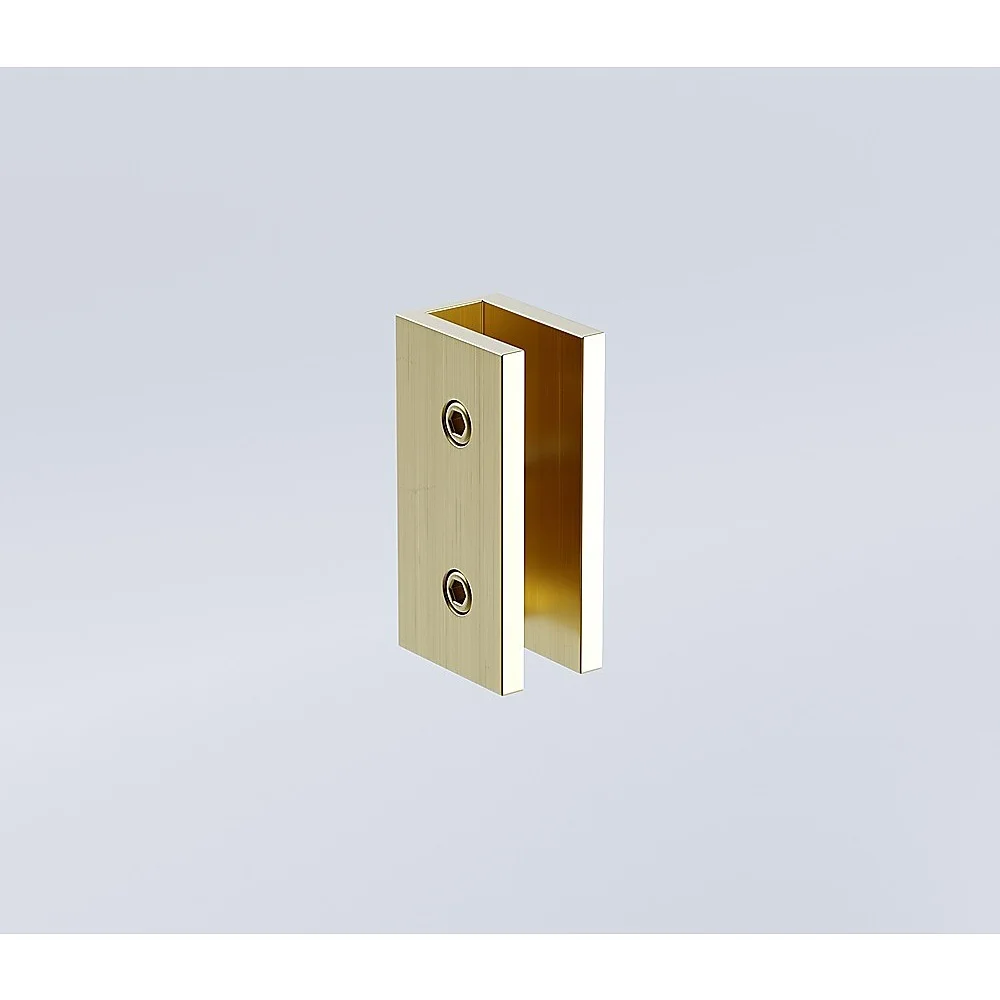

• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• U-brackets secure glass with compression screws, so no glass drilling is required

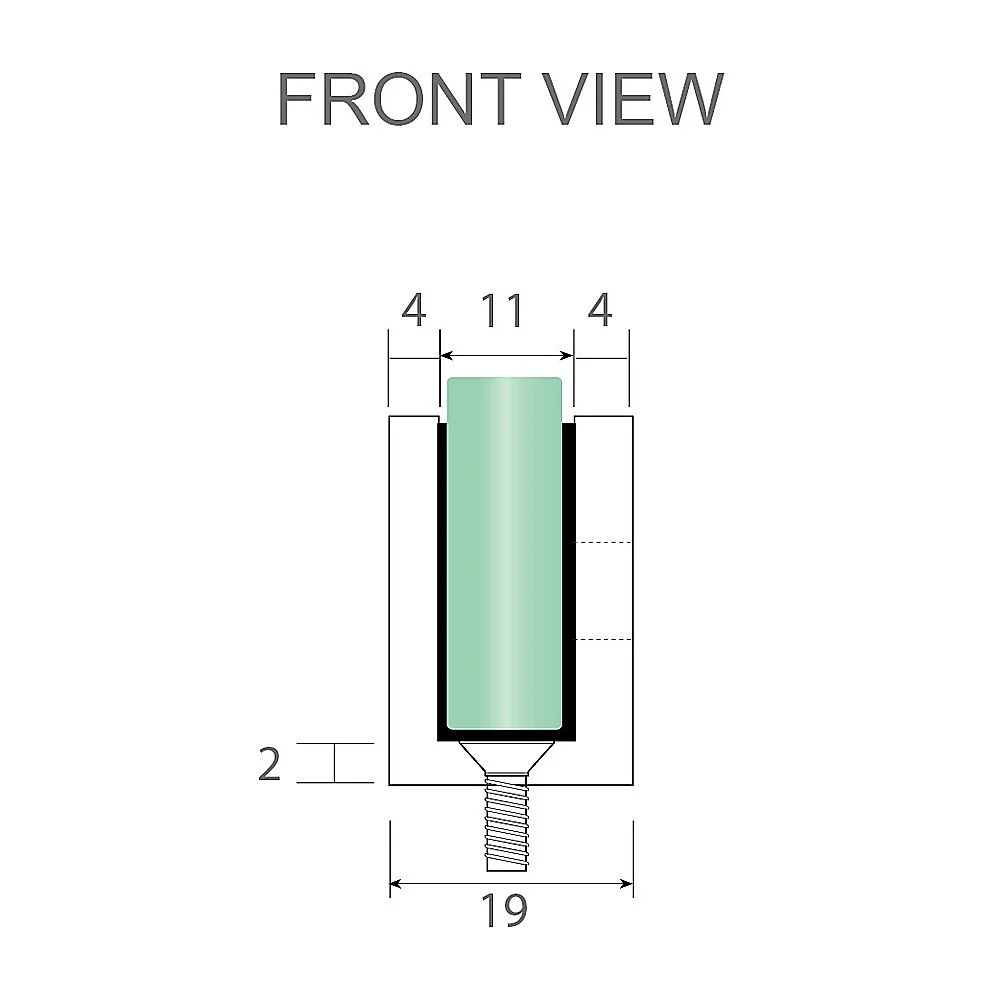

• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint
• Brushed gold finish (colour intensity may vary under different lighting conditions)

Specifications

• Size: 100cm
• Colour: Gold
• Bracket type: U-Brackets
• Handle type: Round Knob
• Door panel: 615 x 1990mm, 10mm glass
• Door handle hole: 10mm

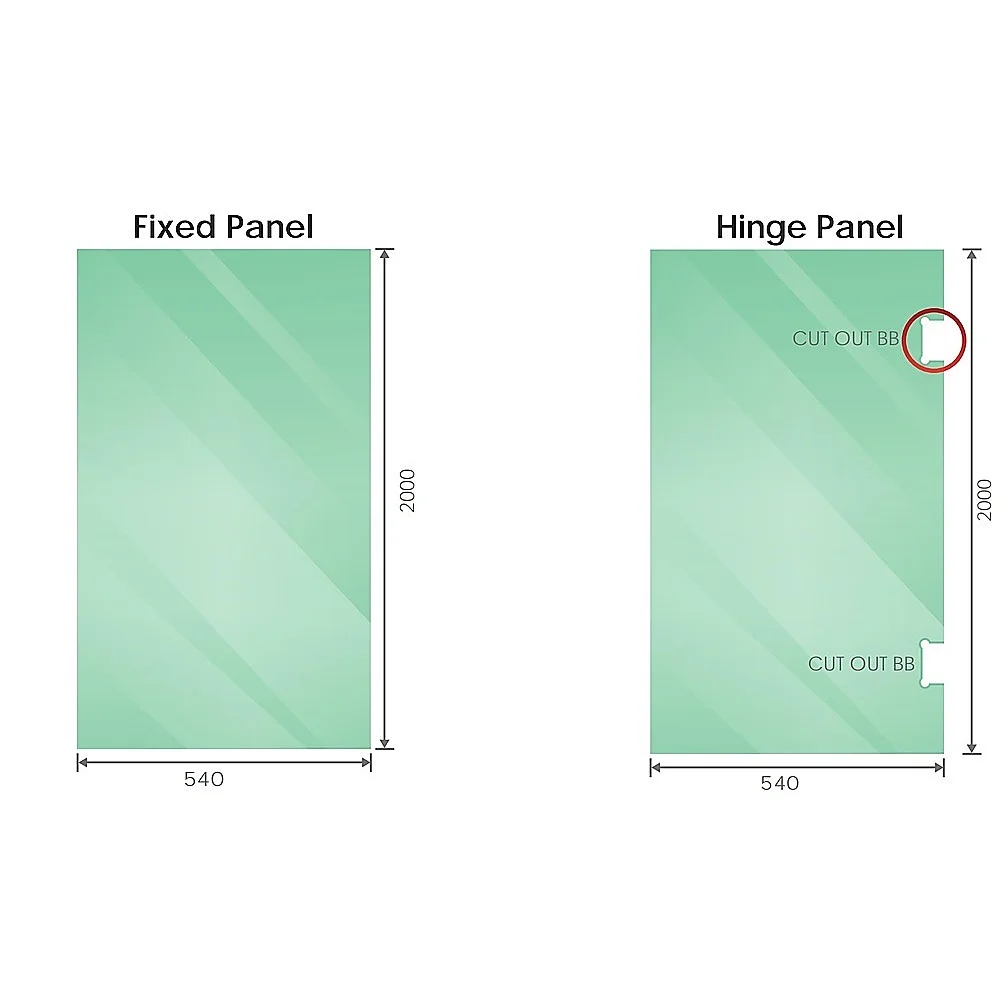

• Hinged panel: 540 x 2000mm, 10mm glass
• Fixed panel: 540 x 2000mm, 10mm glass
• Hinge: for 10mm glass, maximum weight 45kg, brushed gold finish

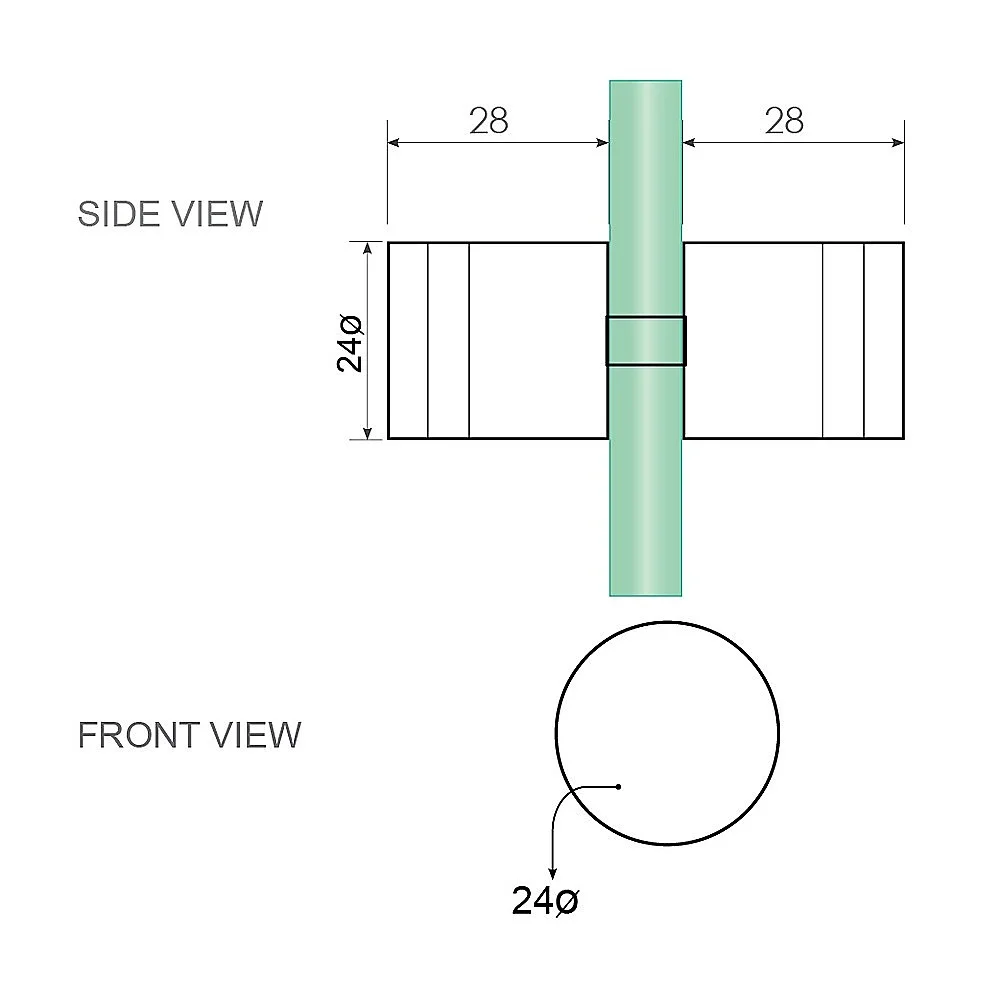

• Handle: slimline 24mm diameter double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass
• U-bracket: for 10mm glass, solid brass, brushed gold finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panels for diamond shower screen (1 x hinged panel 540 x 2000mm, 1 x fixed panel 540 x 2000mm)

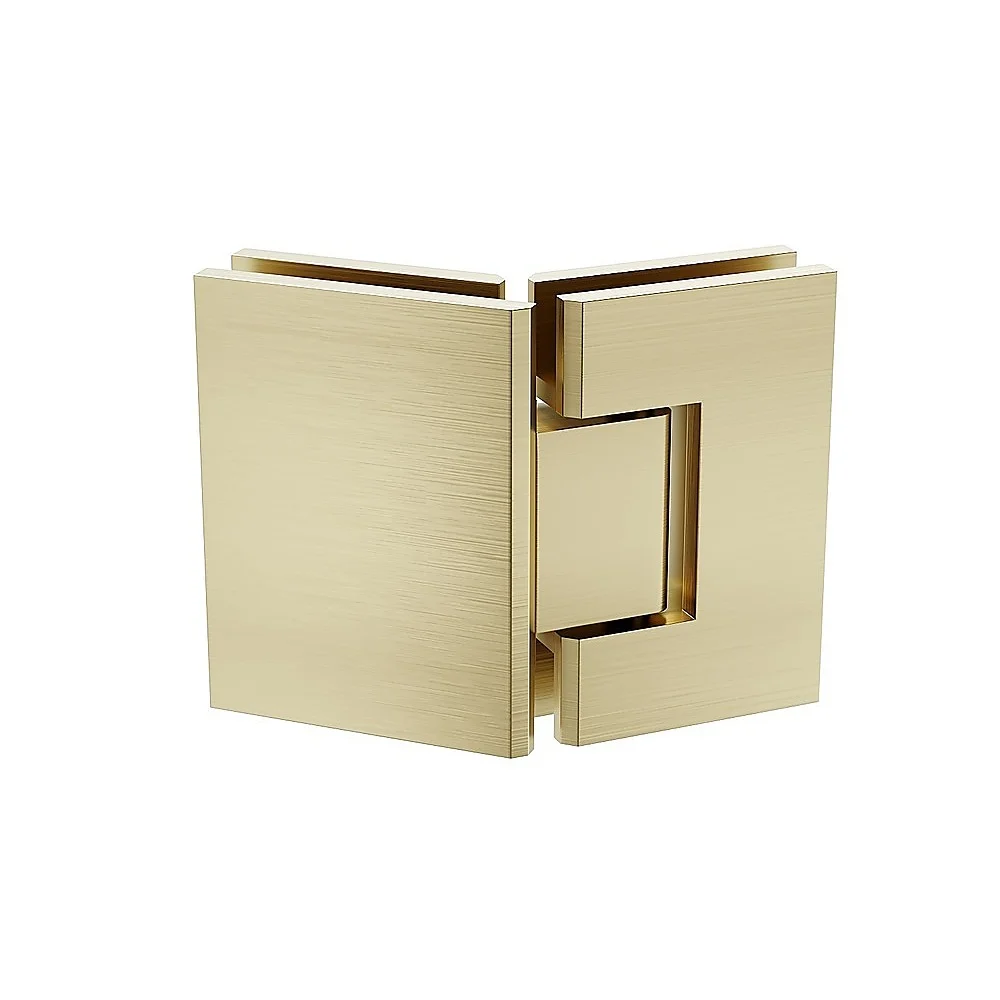

• 1 x 135-degree glass-to-glass square shower hinge in brushed gold
• 1 x 24mm brass shower door round handle in brushed gold
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gold

Images may show optional accessories for illustrative purposes only. Only the accessories and colours specified above are included.
