Della Francesca 100cm Frameless Diamond Shower Screen Brushed Nickel F-Brackets

The Della Francesca 100cm Frameless Diamond Shower Screen brings a striking diamond corner configuration to your bathroom, maximising usable shower space while showcasing your tiles through crystal-clear tempered glass. Finished in brushed nickel with stainless steel hinges and a square double pull handle, it combines a sleek modern look with smooth, hard-wearing operation.

Key Features

• Diamond corner configuration creates an elegant centrepiece and optimises shower space
• Frameless design eliminates hard-to-clean channels and corners for easy maintenance
• 10mm tempered safety glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action opening inwards and outwards
• Self-closing hinges centre automatically from the 25 degree position
• Solid brass double pull handle with a smooth, rust- and corrosion-resistant finish
• Glass-to-wall/floor F-brackets with compression/friction screws for quick, flexible installation with no holes drilled in the glass
• Brushed nickel finish across hinges, handle and brackets

Specifications

• Size: 100cm
• Colour: Nickel
• Bracket type: F-Brackets
• Handle type: Square double pull
• Glass thickness: 10mm (AS-NZS2208 standard)
• Door panel: 615 x 1990mm

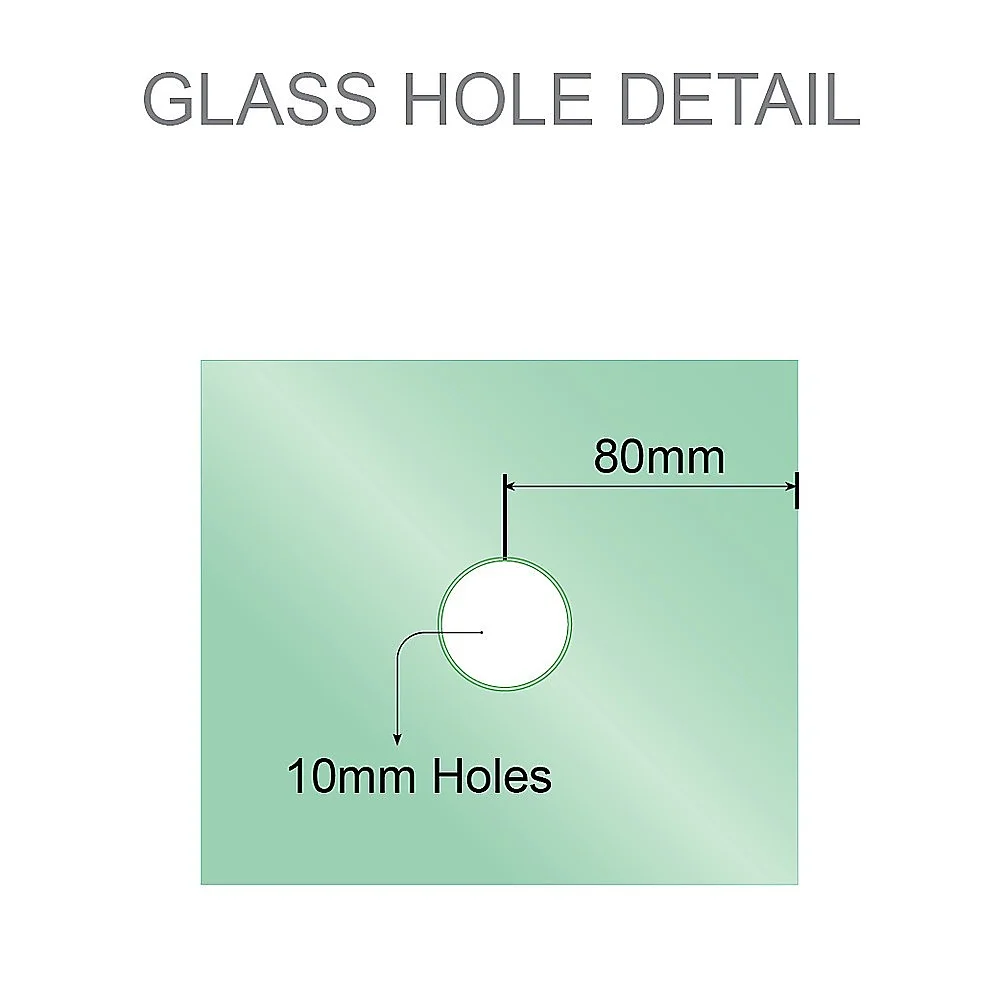

• Door handle hole: 10mm

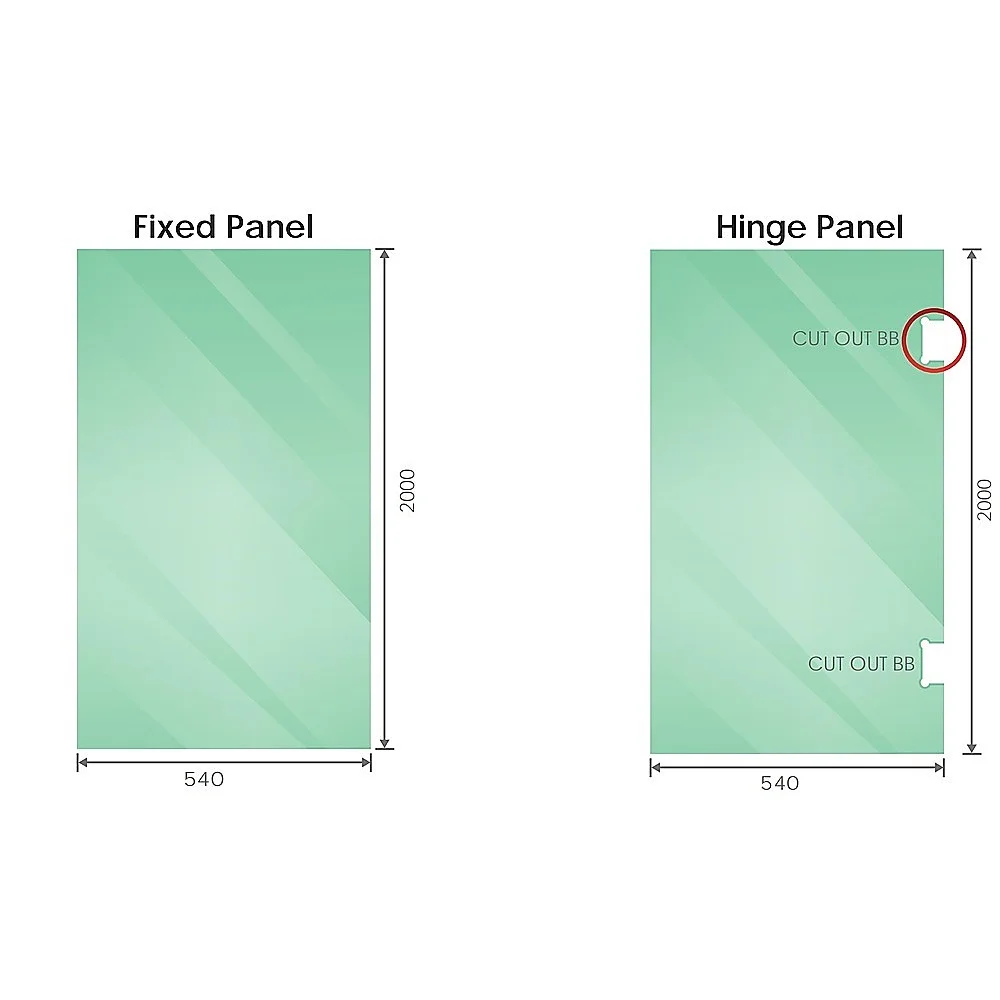

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm
• Hinge: glass-to-glass, 135 degree, for 10mm glass, dual action, self-closes from 25 degree position, maximum weight 45kg, brushed nickel

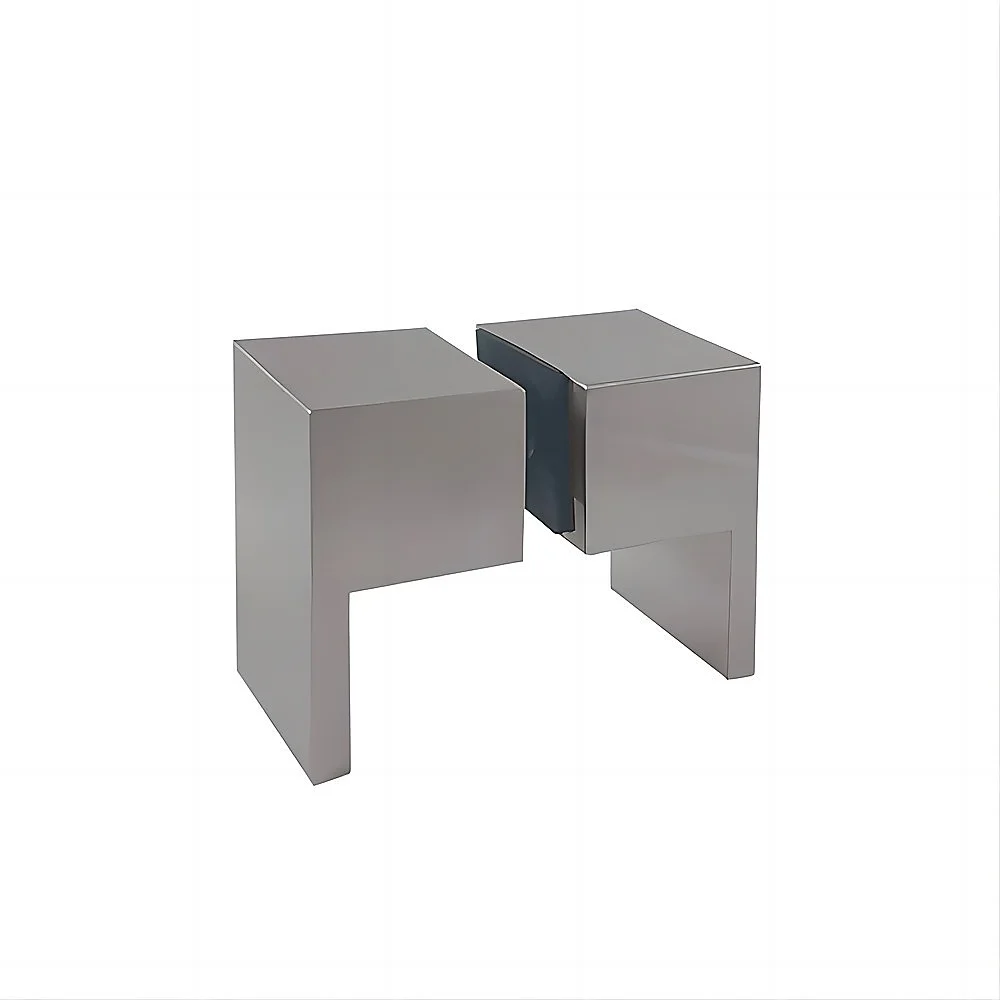

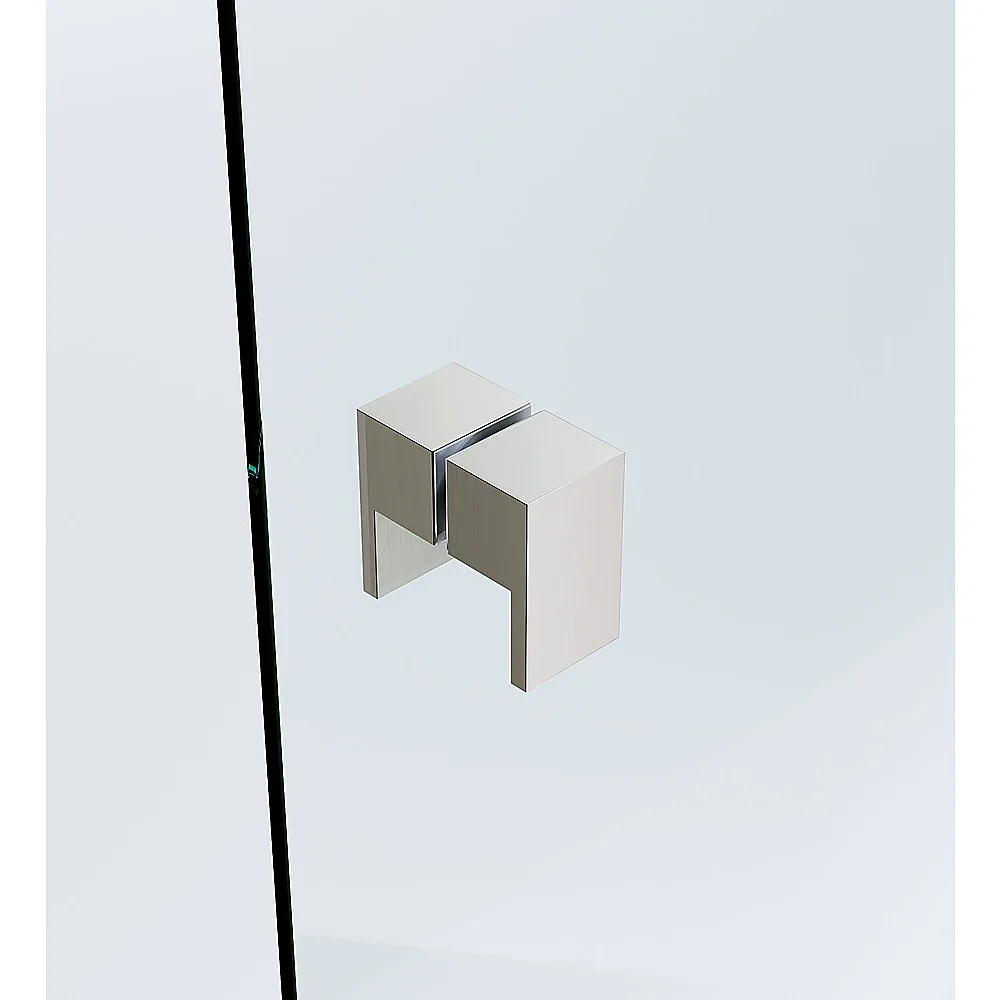

• Handle: 49mm x 25mm double pull knob, suits 6mm, 8mm, 10mm and 12mm thick glass, solid brass, brushed nickel

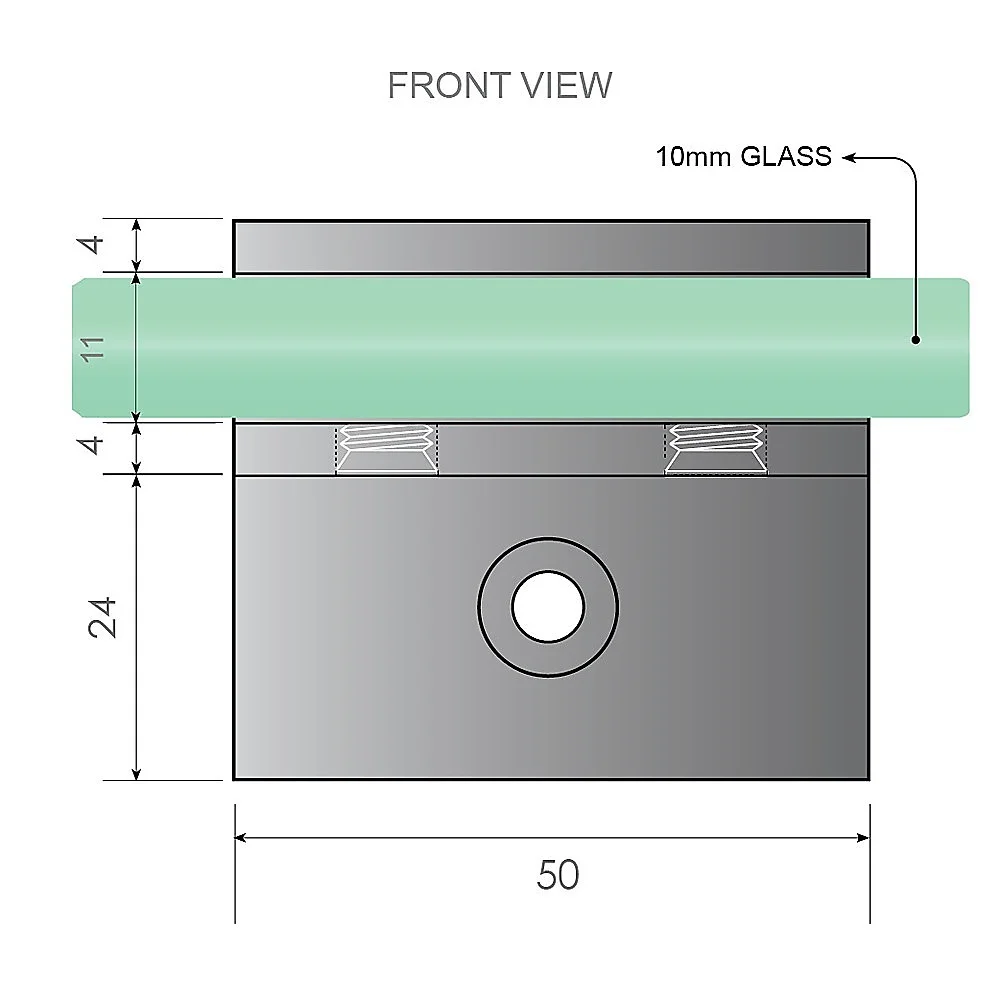

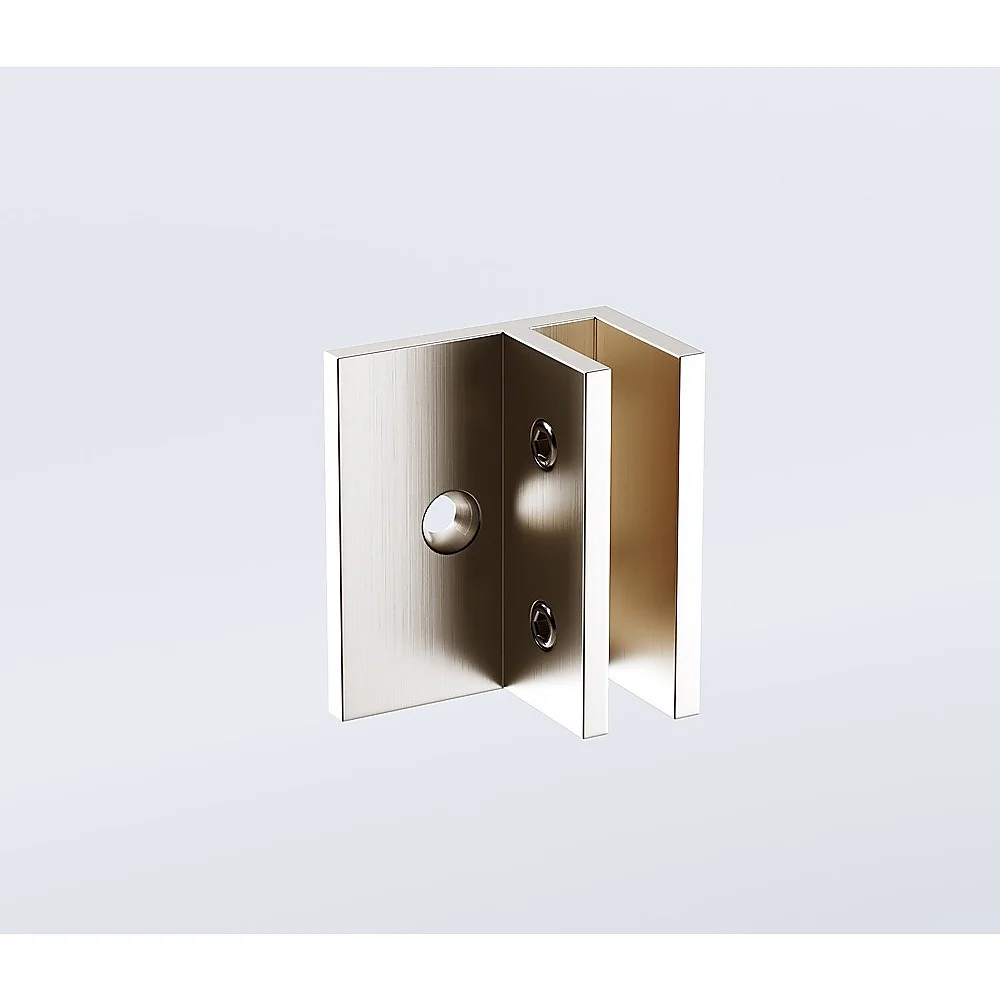

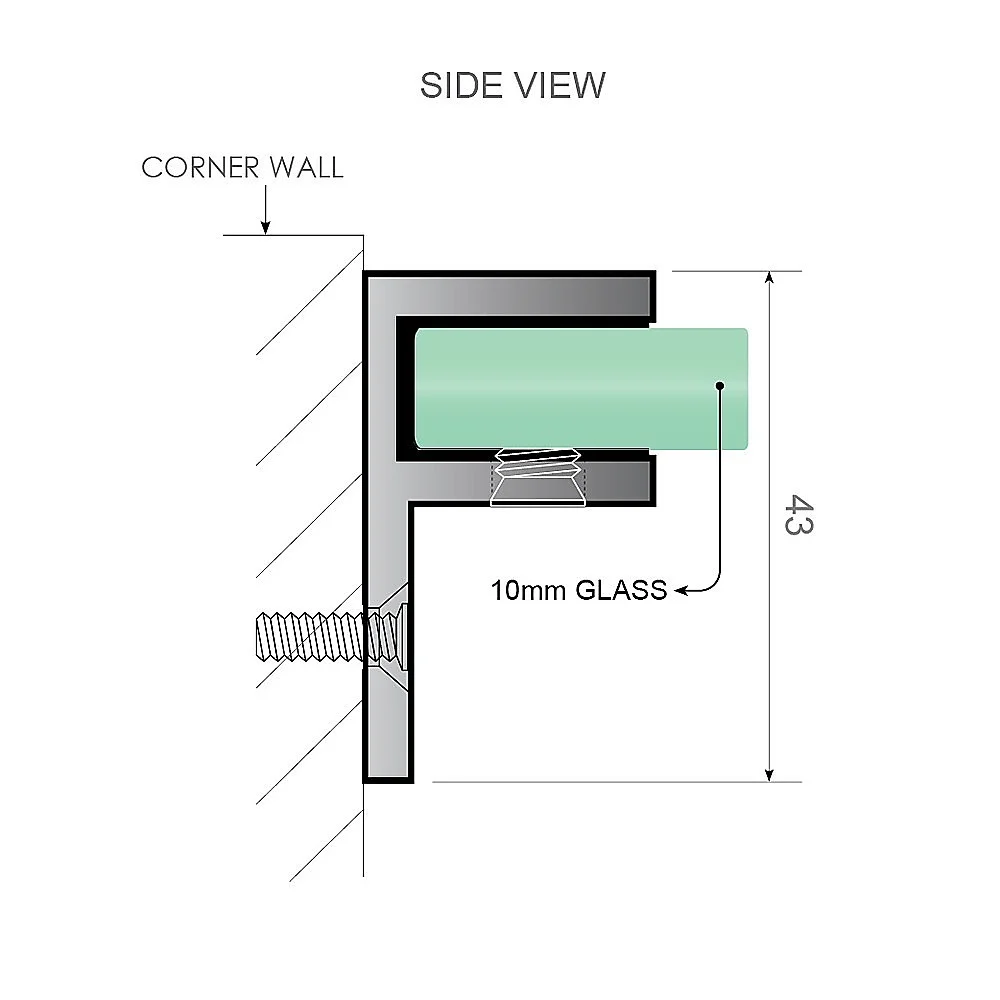

• F-bracket: suitable for 10mm glass, 2 x compression/friction screws, solid brass in brushed nickel, 1 x fixing screw and clear gaskets, slimline 2mm rear wall reduces the silicone gap between wall and glass panel

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen
• 1 x 135 degree glass-to-glass stainless steel square shower hinge in brushed nickel
• 1 x 25mm brass shower door double pull handle in brushed nickel
• 4 x glass-to-wall/floor offset F-brackets in brushed nickel

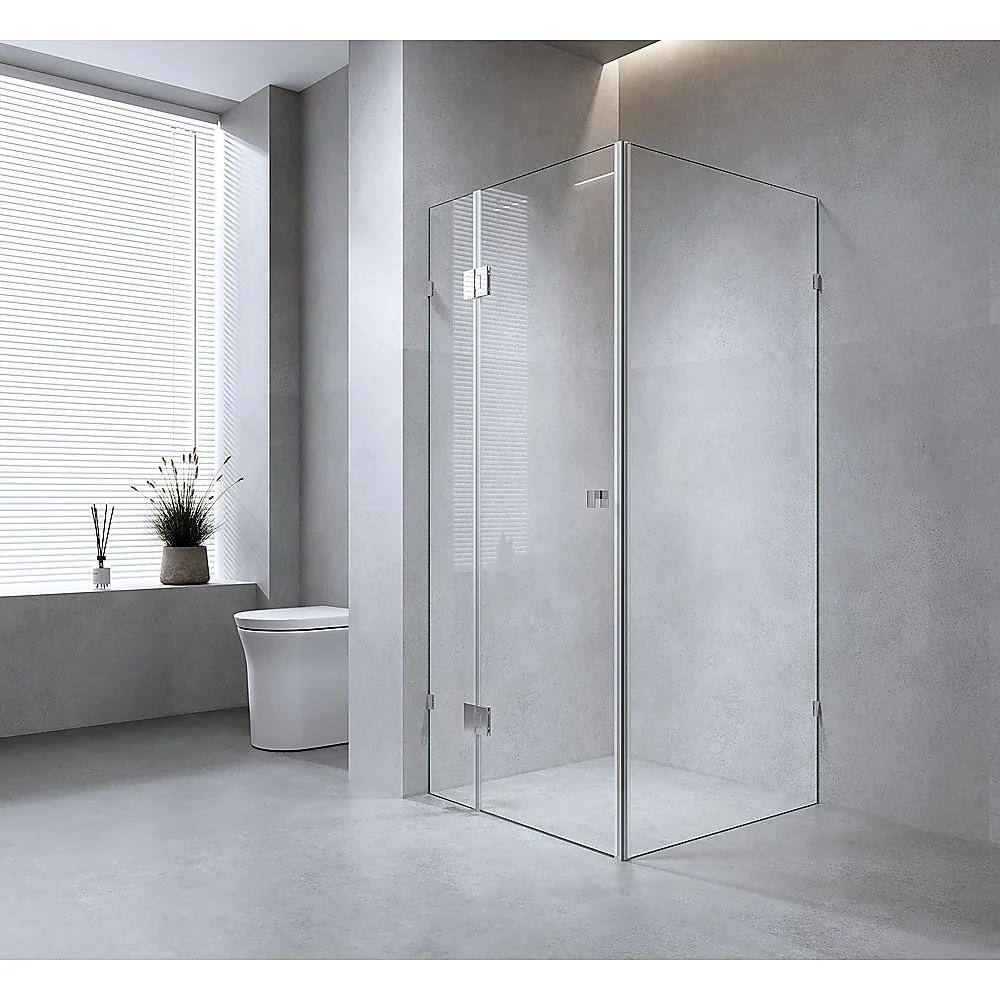

Note: images may show optional accessories and are for illustrative purposes only. Only the accessories indicated above, in the specified colour, are included. Colour intensity may vary from actual due to different lighting conditions.
