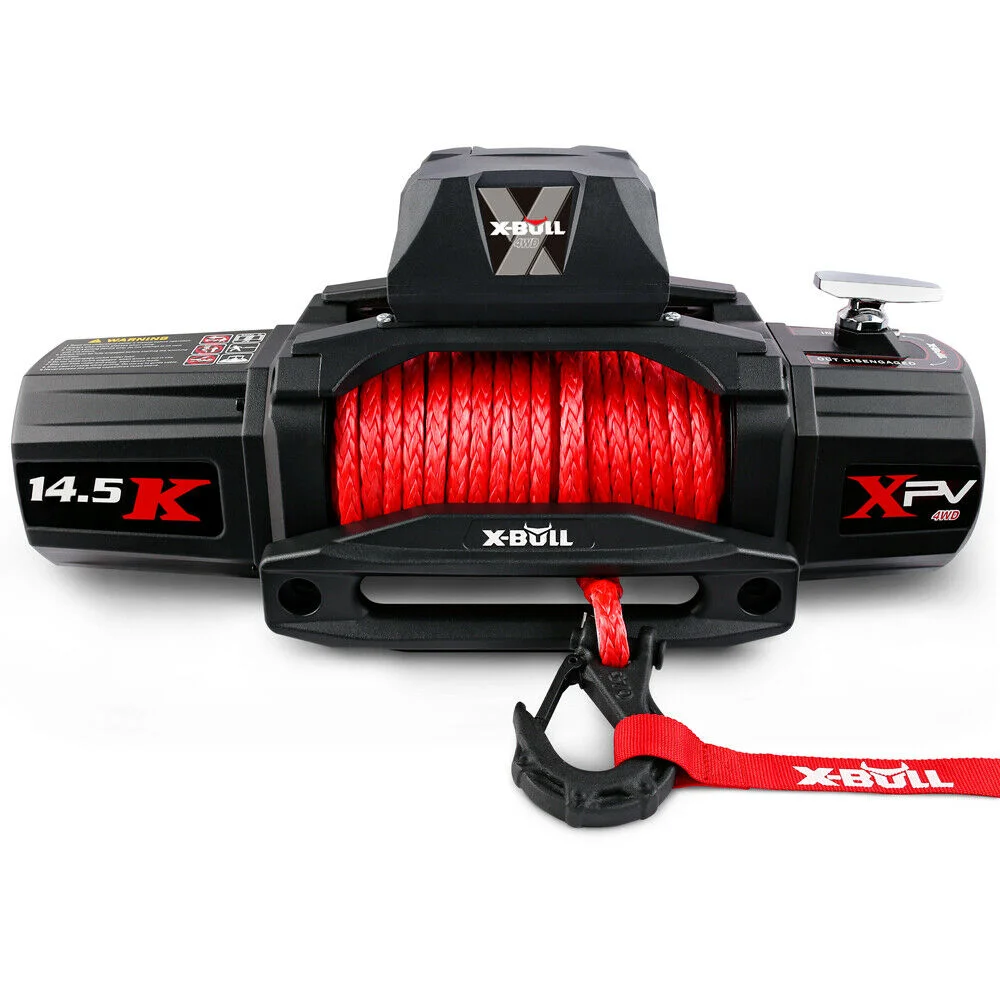

X-BULL 14500LB 12V Electric Winch with Synthetic Rope and Wireless Remote

The X-BULL 14500LB electric winch is a high-efficiency 12V recovery winch for 4X4, 4WD, truck, SUV and boat applications, combining a pure copper motor, a three-stage planetary gear train and a wireless remote with hand switch for versatile control. Its synthetic rope, aluminium hawse fairlead and clevis hook make it a practical choice for vehicle recovery.

Key Features

• Multi-position integrated control box works underwater, with AgCdO contact material for high current conduction and protection on current, voltage and temperature

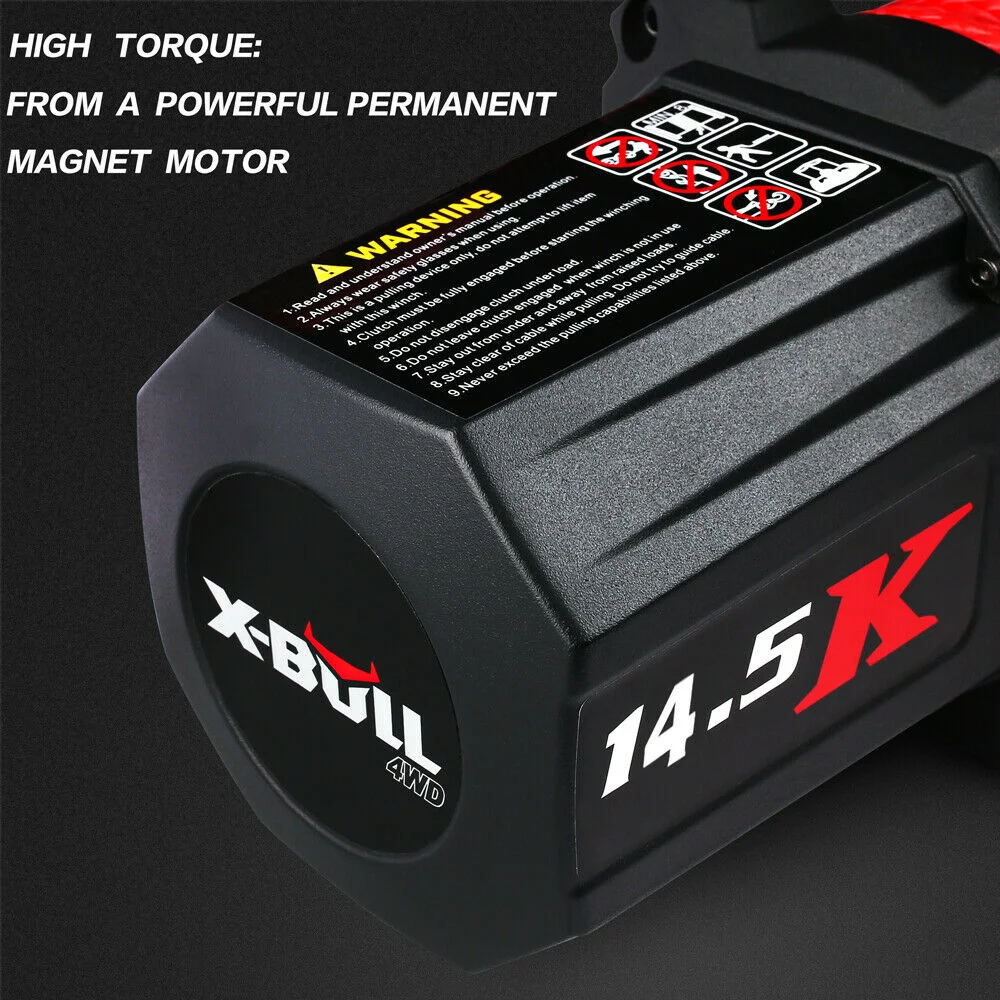

• Pure copper motor for high magnetic inductive melting point, high temperature resistance, strong power, safe operation and high efficiency
• Three-stage planetary gear train enables differential, deceleration (growth) and reversal, with multiple planetary wheel systems achieving a very large speed ratio and coaxial deceleration

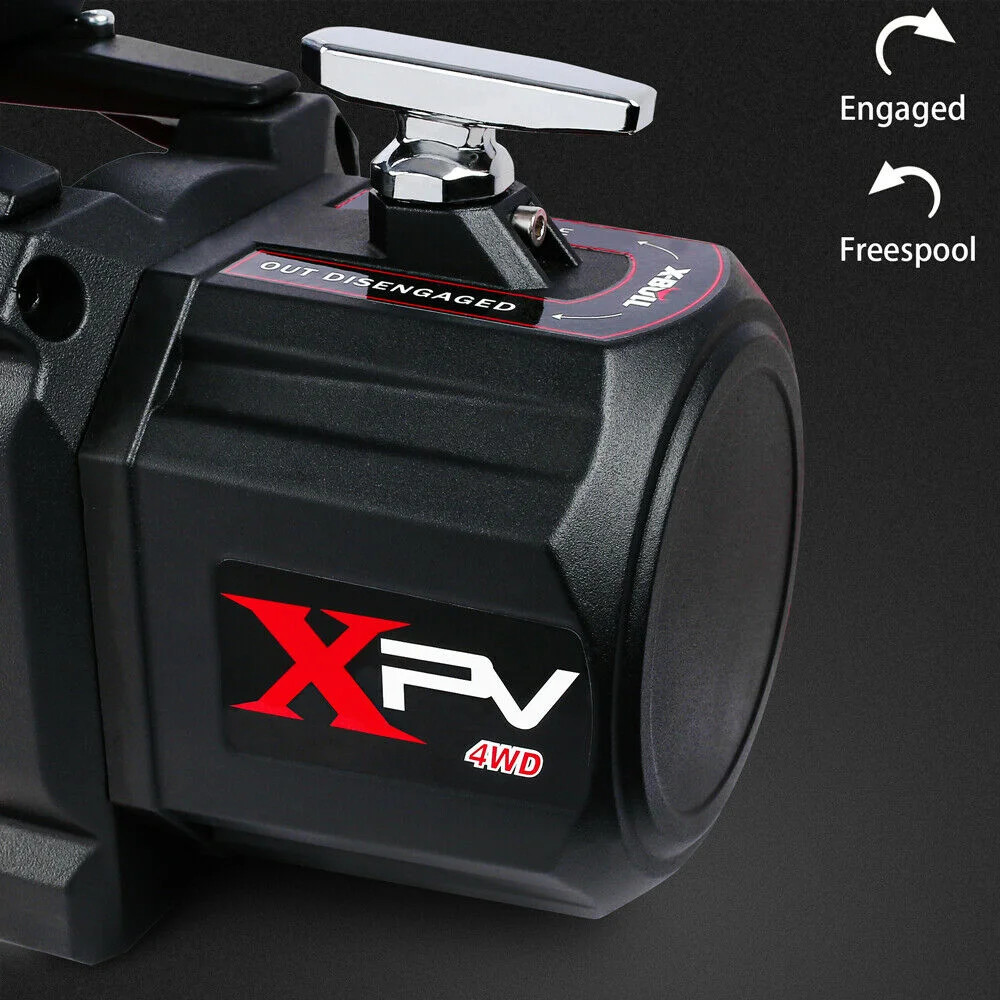

• Clutch rotates every 15 degrees and up to 180 degrees so you can find the right angle for installation

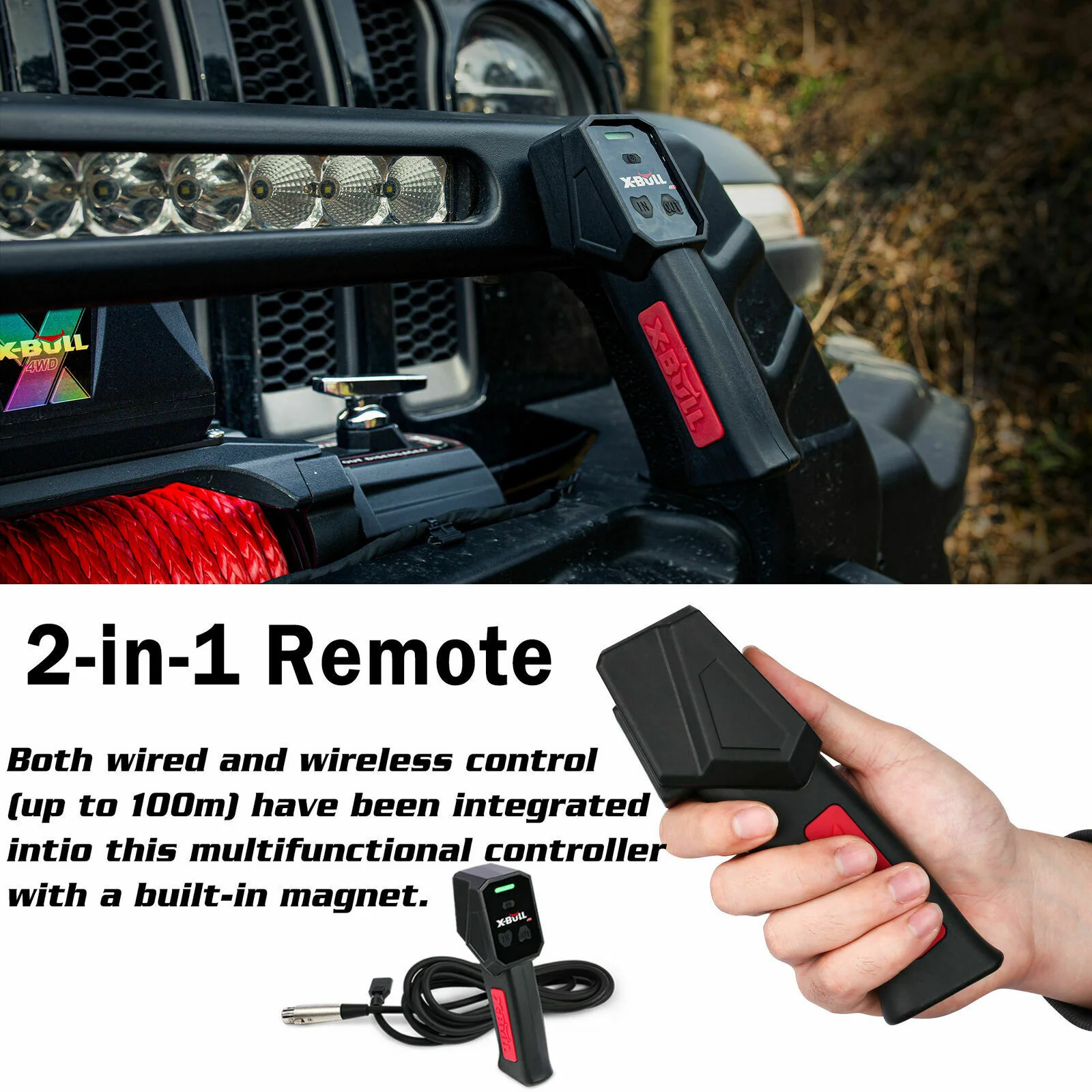

• Wireless remote combined with a hand switch for easier operation
• Synthetic rope with aluminium hawse fairlead and clevis hook with spring-loaded safety latch

Specifications

• Gear ratio: 265:1
• Weight: 59.5 lb (27 kg)
• Sound rating: 85 dB
• Gear train: 3-stage planetary
• Fairlead: aluminium fairlead
• Battery: 12V DC, minimum 650 CCA
• Mounting pattern: 10 x 4.5 (254mm)

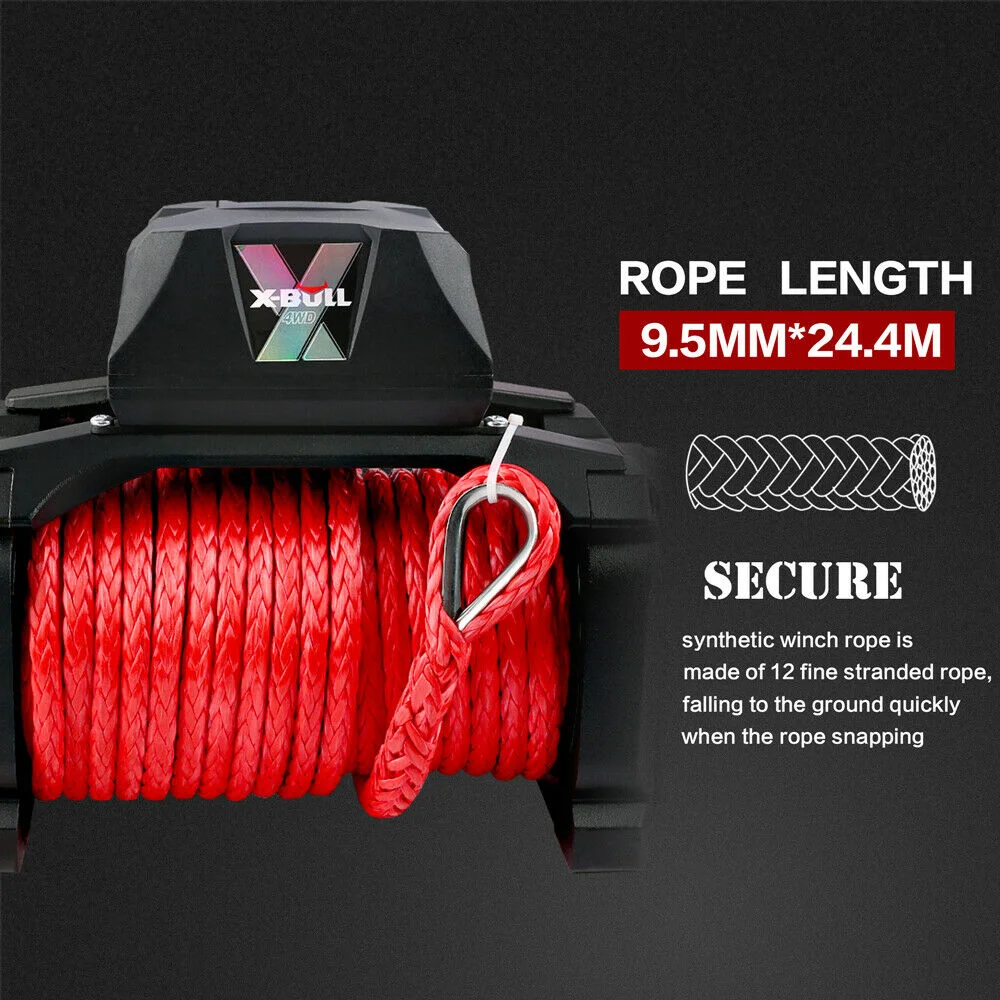

• Rope size: 0.375 x 80 (9.5mm x 24.4m)
• Motor: 12V DC 6.4 HP series wound
• Drum (dia. x L): 2.5 x 9.6 (64mm x 244mm)
• Rated single line pull: 14500 lb (6590 kg)
• Hook: 3/8, replaceable with spring-loaded safety latch

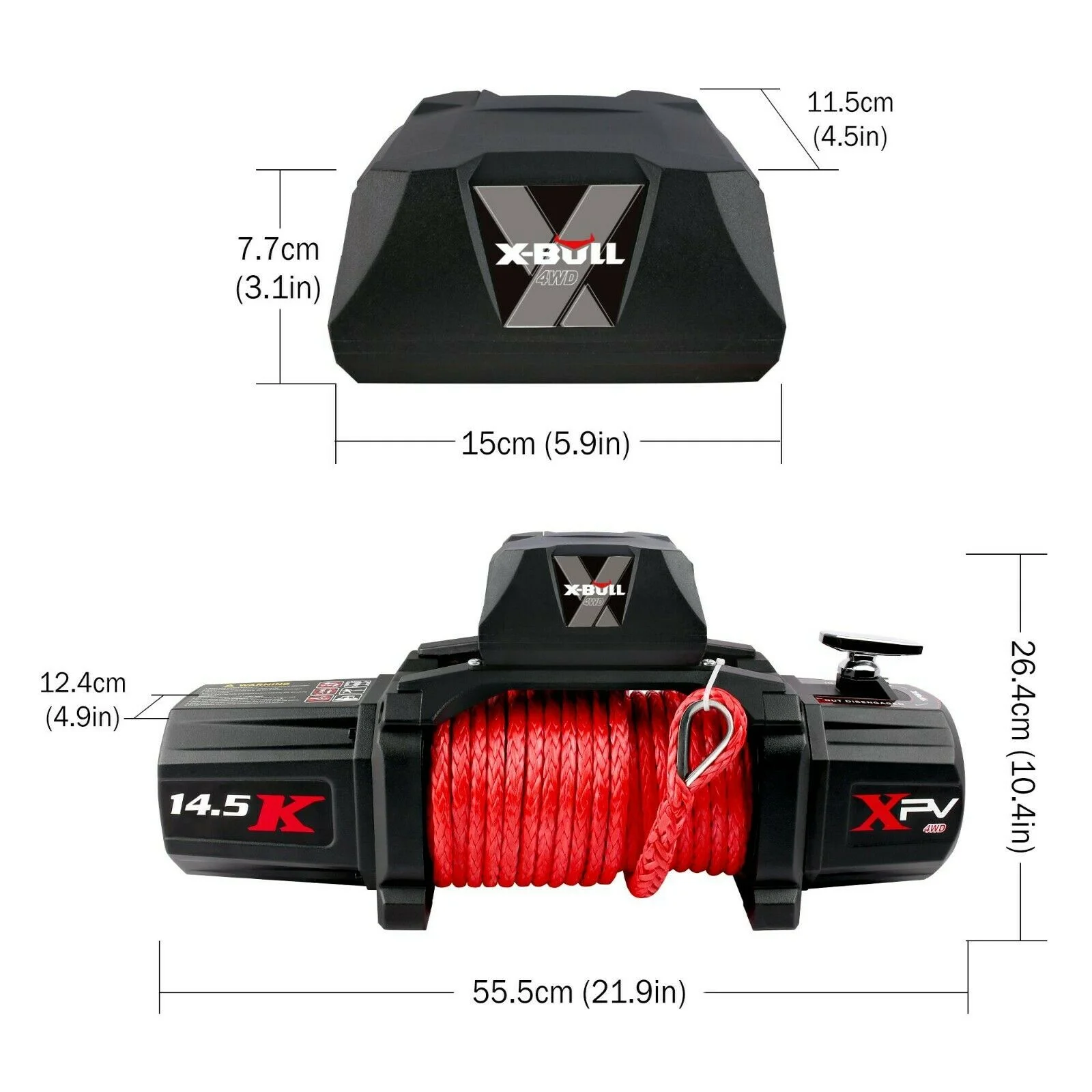

• Overall dimensions (L x D x H): 21.25 x 6.3125 x 10.125 (540 x 160 x 257mm)

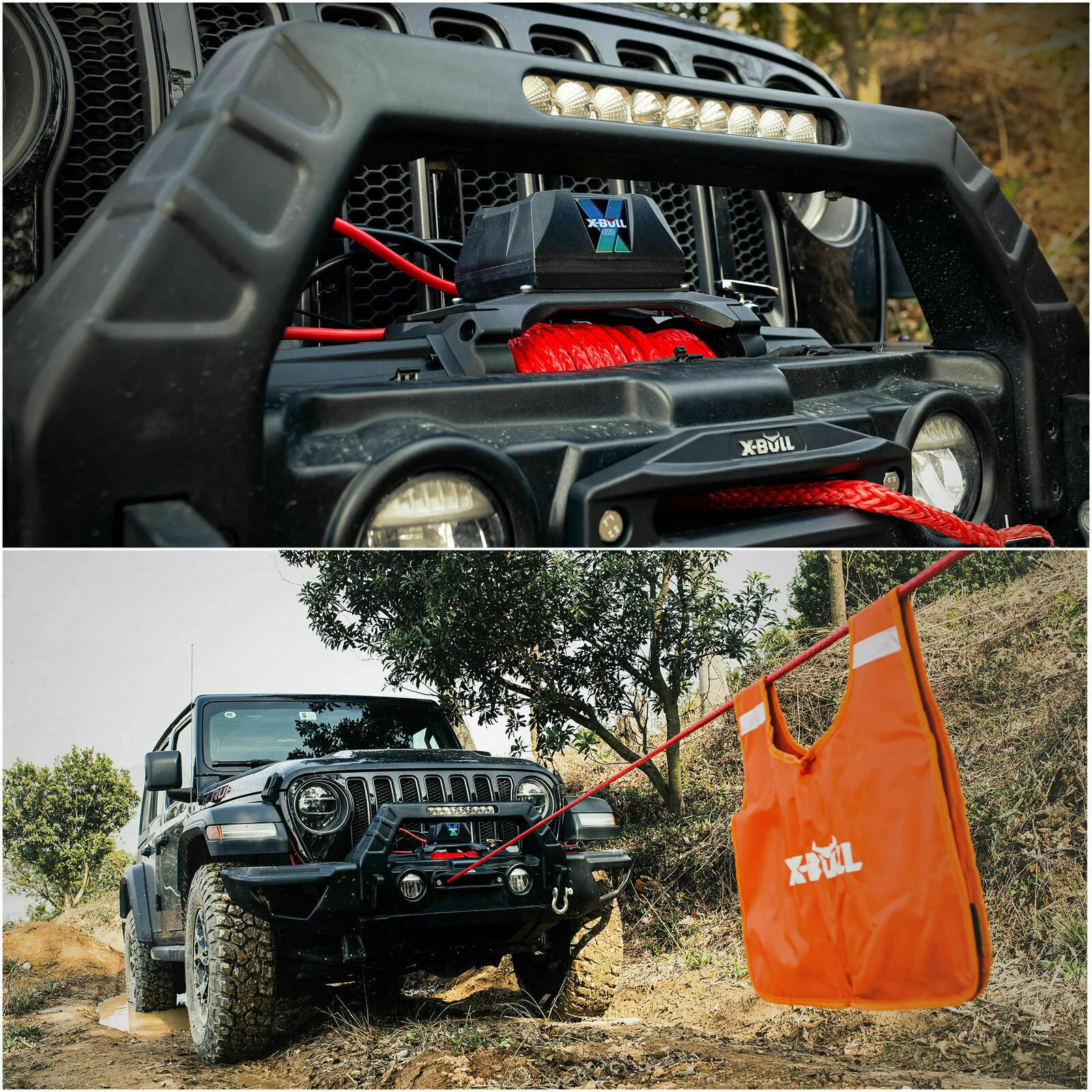

• Application: vehicle recovery for trucks and SUVs and similar vehicles

What's in the Box

• 1 x 14500LBS winch
• 1 x remote control
• 1 x hand switch
• 1 x aluminium hawse fairlead
• 1 x clevis hook
• 1 x control box
• 1 x set of bolts
• 1 x user manual
• 3 x motor leads
• 1 x power leads
