Unimac ACM-1000s 100L Oil-Free Air Compressor, 4.5HP, Twin Nitto Outlets

The Unimac ACM-1000s Quiet Air series is a 100L oil-free air compressor built for trade-level performance with exceptionally quiet operation. With three independent twin-cylinder motors and twin Nitto quick-connect outlets, it delivers a continuous air supply for a wide range of workshop and garage tasks.

Key Features

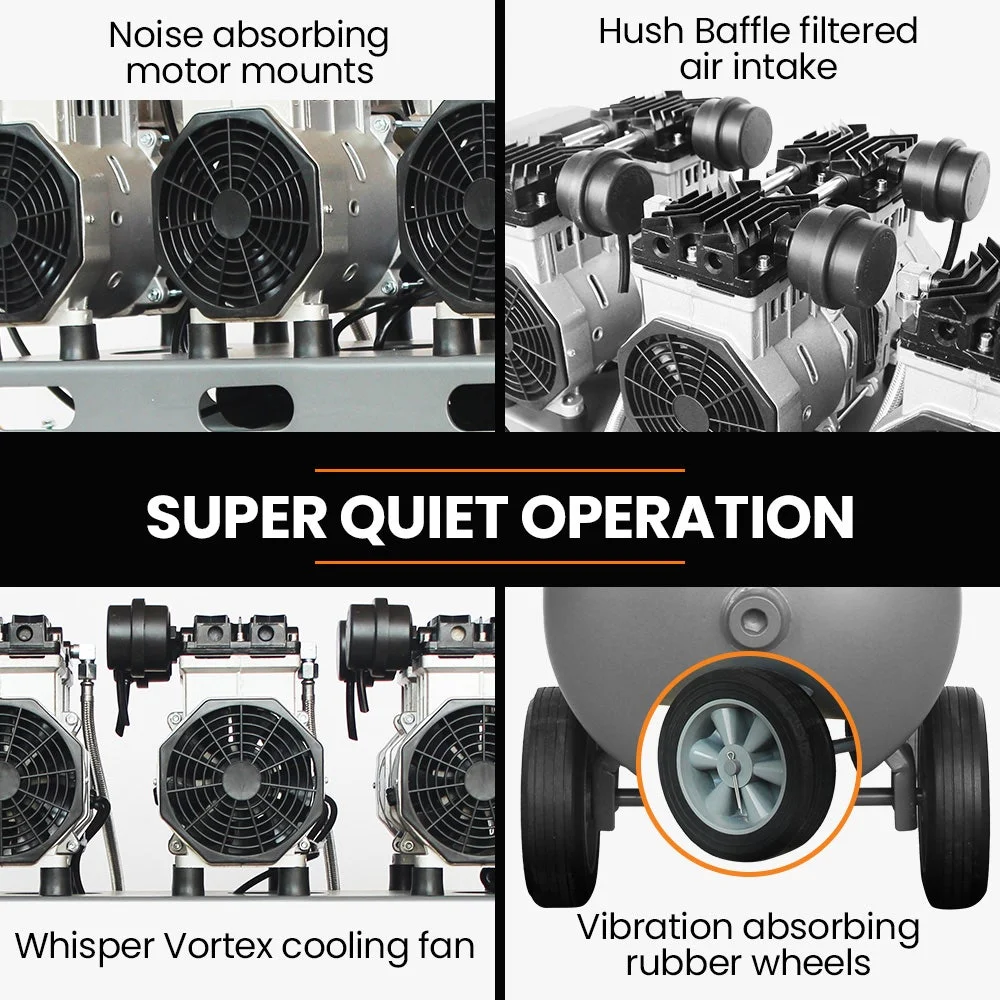

• Ultra-quiet operation with an Lpa of only 65 dBa, thanks to Whisper Vortex cooling fans, Hush Baffle air intakes, and vulcanised rubber motor mounts and tyres

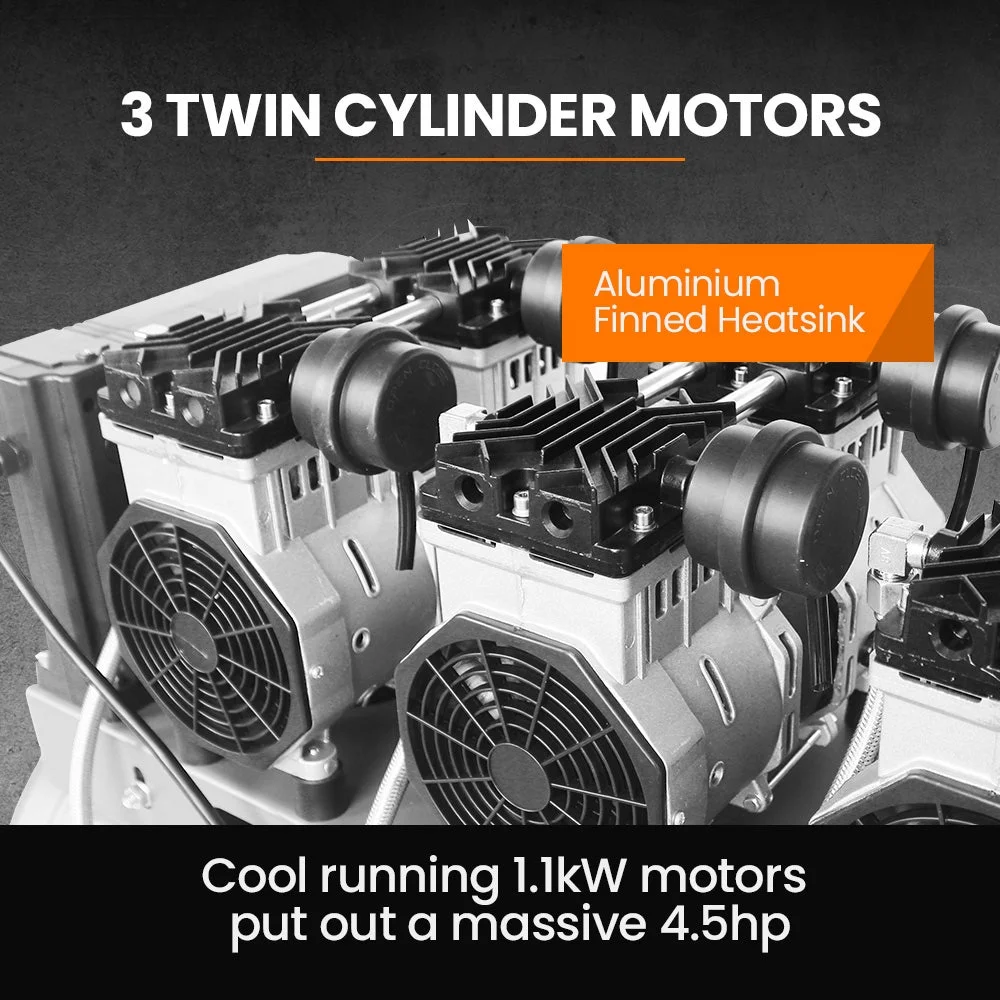

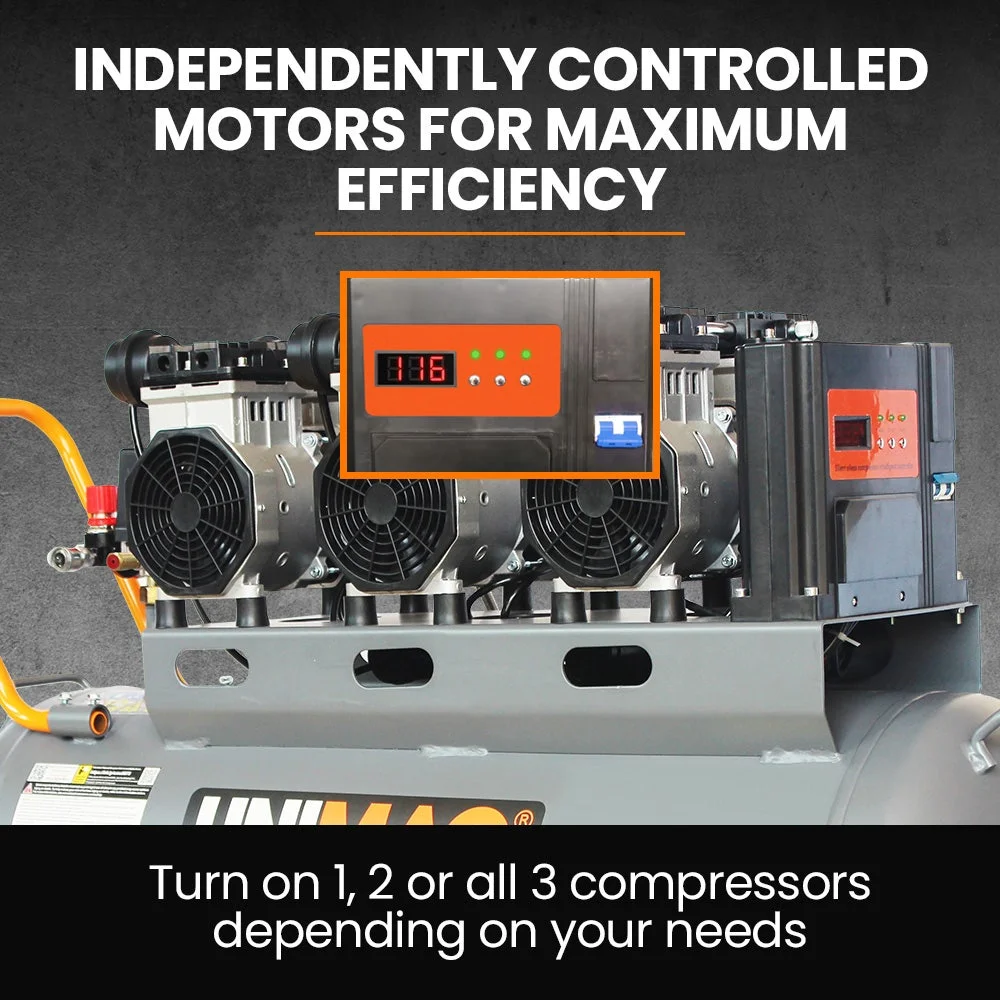

• Three twin-cylinder 1.1kW motors with Independent Motor Start, allowing one motor to start at a time to avoid power surges and accidental overloads
• Combined 4.5HP output for smooth, consistent performance

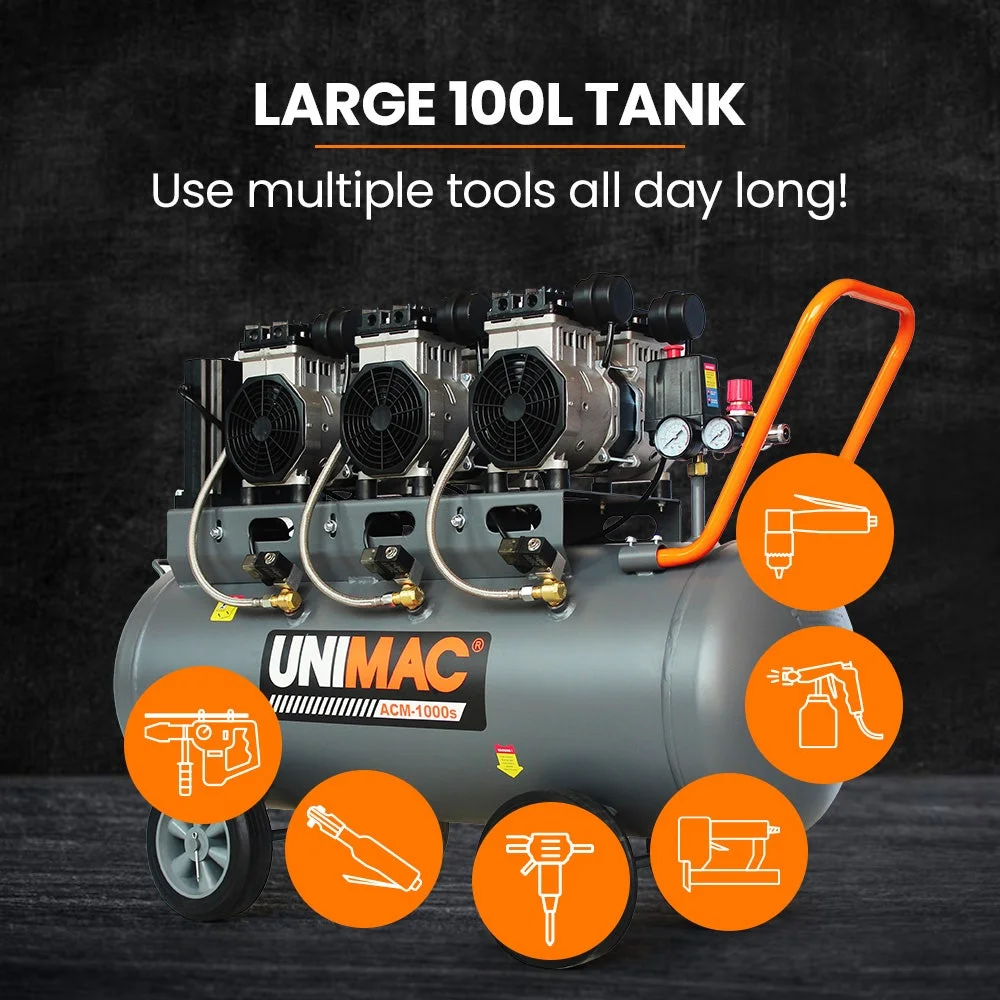

• Massive 100L tank capable of a continuous 300L/min air supply

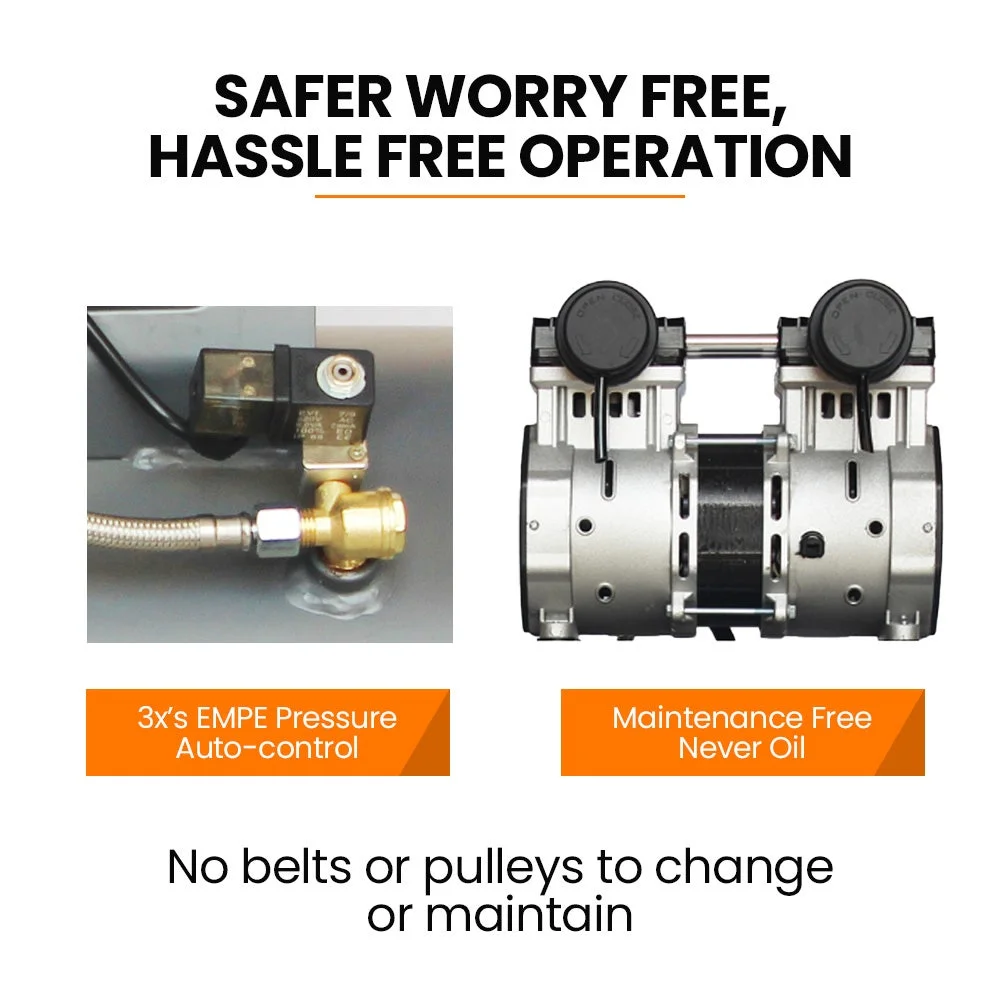

• Service-free oil-free design with no engine maintenance, belts or pulleys to replace

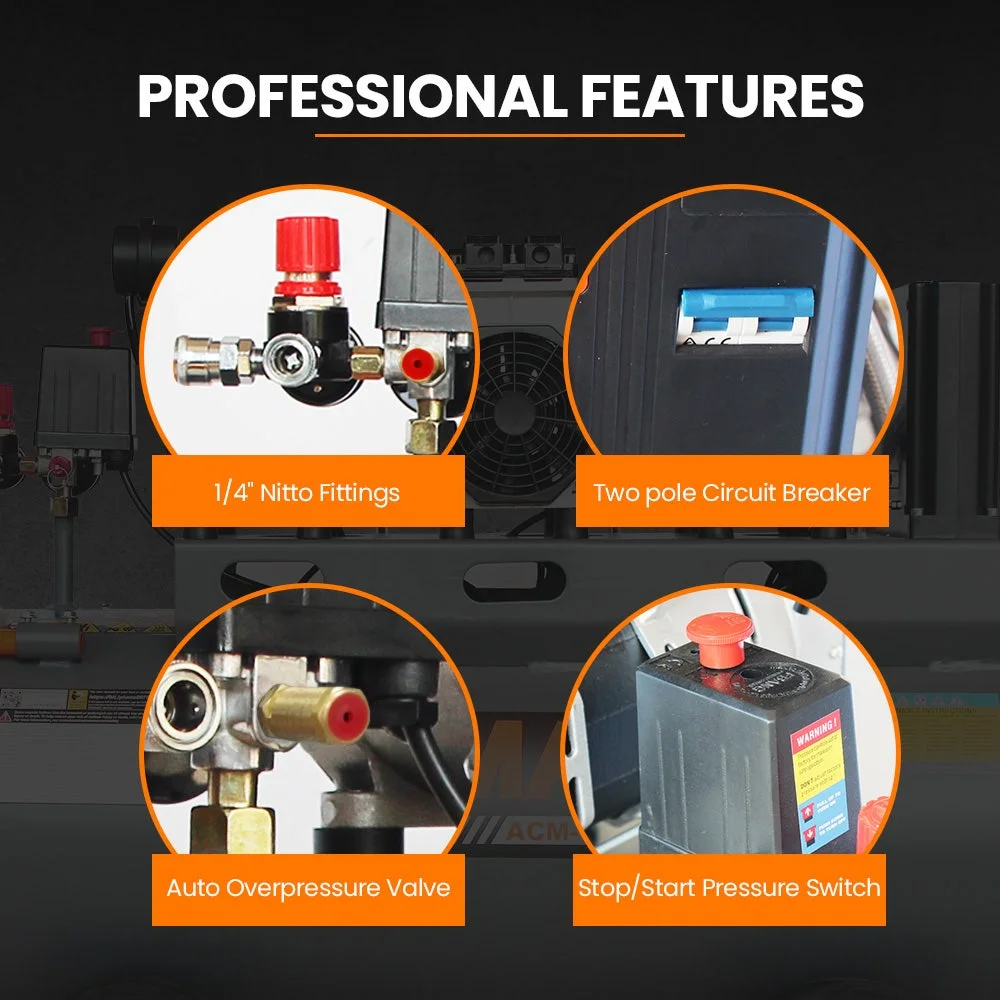

• Twin Nitto quick-connect outlets suit grinders, impact wrenches, welders, nail guns, grease guns, chisels and more
• Automatic on-off pressure control with step start control box and independent pump control

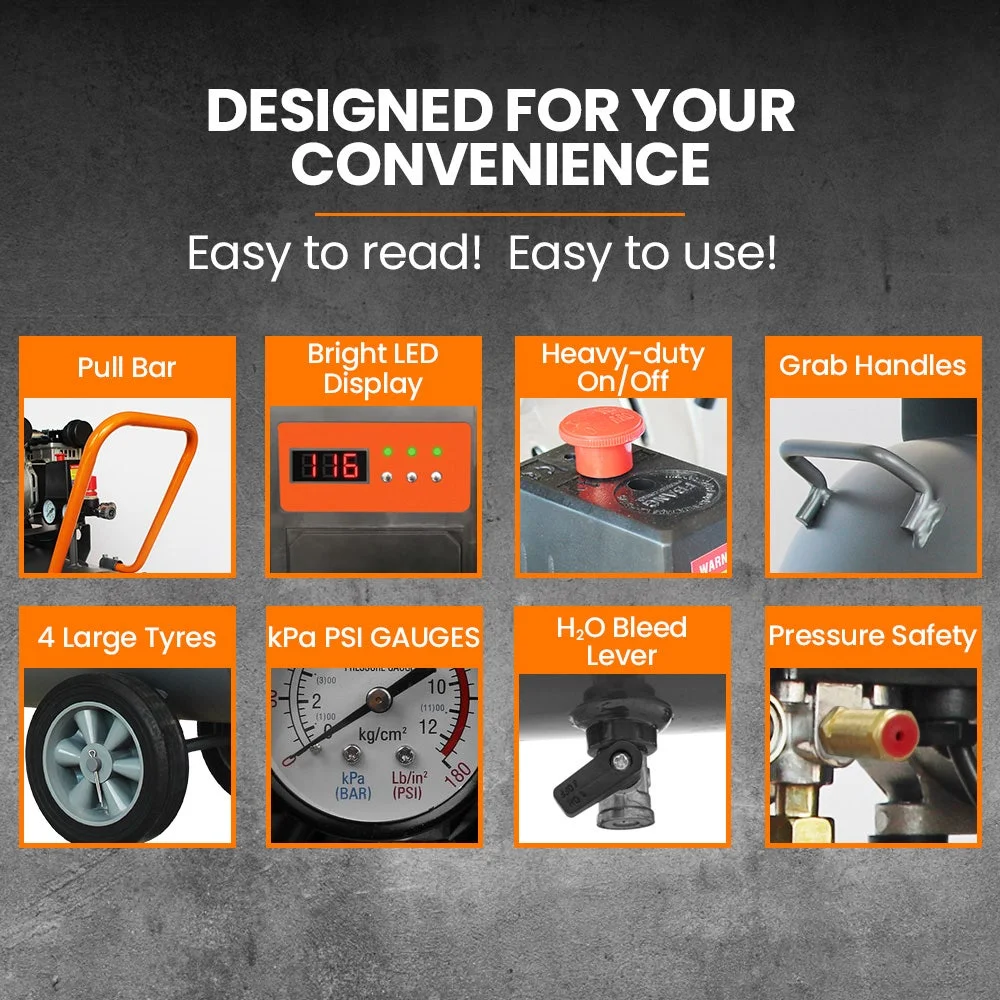

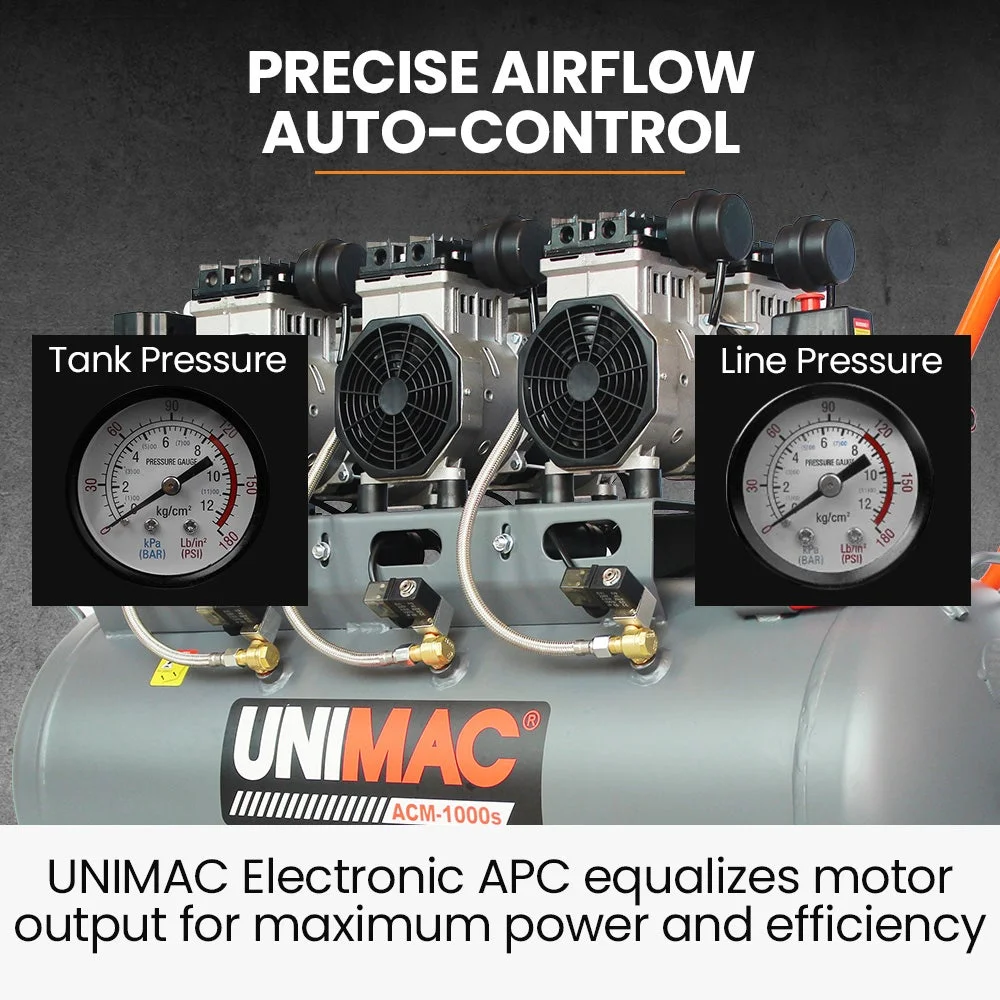

• Easy-to-read tank and line pressure gauges
• Moisture bleed valve, safety off button and air bleed safety
• Portable design with four large easy-roll wheels with rugged airless vulcanised tyres, an extended handle and two additional grab handles

Specifications

• Brand: Unimac
• Model: ACM-1000s Quiet Air series
• Free Air Delivery: 300L/Min (10.6 CFM)
• Air Displacement: 630L/Min
• Receiver Capacity: 100L
• Working Pressure: 116PSI (8bar)
• Restart Pressure: 86PSI (6bar)
• Starting Method: Automatic Pressure Control Switch + Step Start Control Box and Independent Pump Control
• Power Rating: 3 x 1.1kW
• Motor Input: 230-240V 50Hz
• IP Rating: IP20
• Input Voltage: 240V AC
• Power Plug: 15A

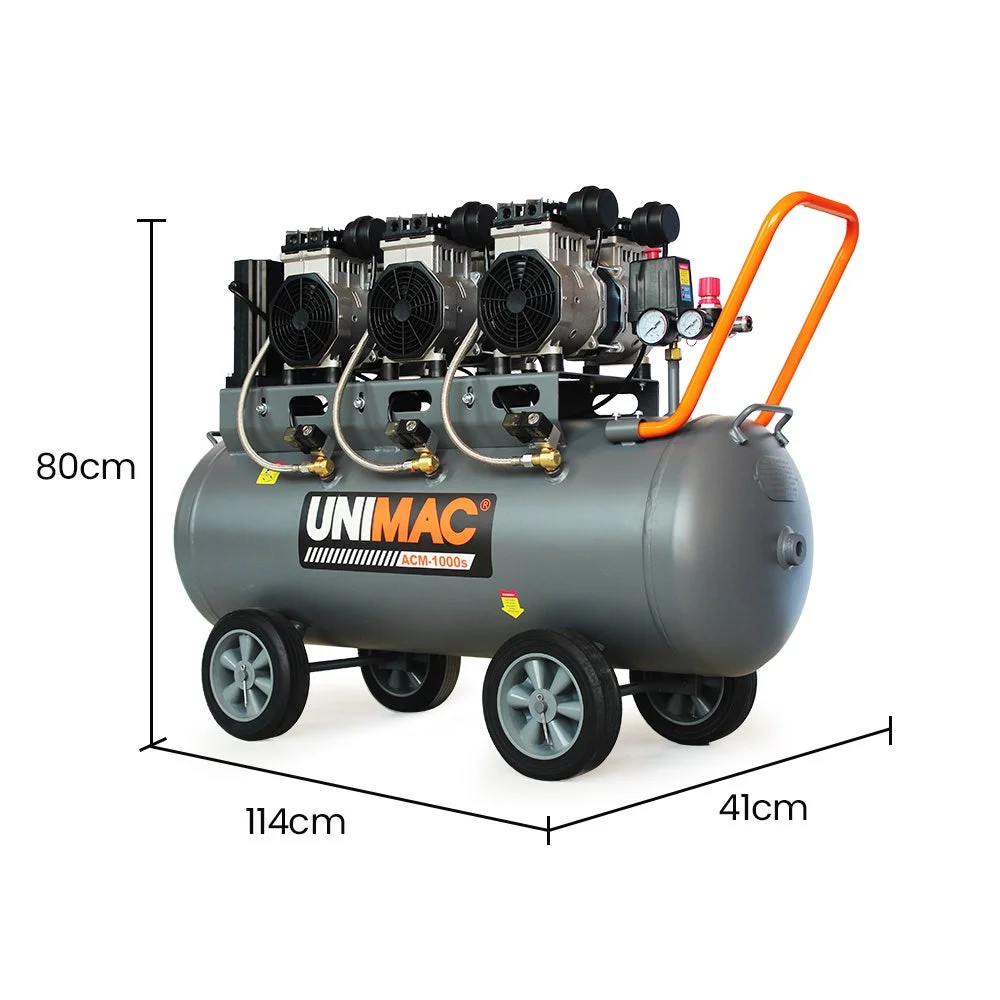

• Product Dimensions (W x L x H): 41 x 114 x 80cm
• Product Weight: 72kg
• Carton Dimensions (W x L x H): 42 x 111 x 85cm
• Gross Weight: 87kg
• Note: Minimal assembly required
• Note: When installing and commissioning this air compressor, it is the buyer's responsibility to check and adjust valves/fittings to prevent air leaks prior to use

What's in the Box

• 1 x Unimac ACM-1000s air compressor
• 4 x 8-inch wheels
• 6 x Air filters
• 1 x Handle
• 1 x User's manual flyer
• Note: User manual is accessible online
