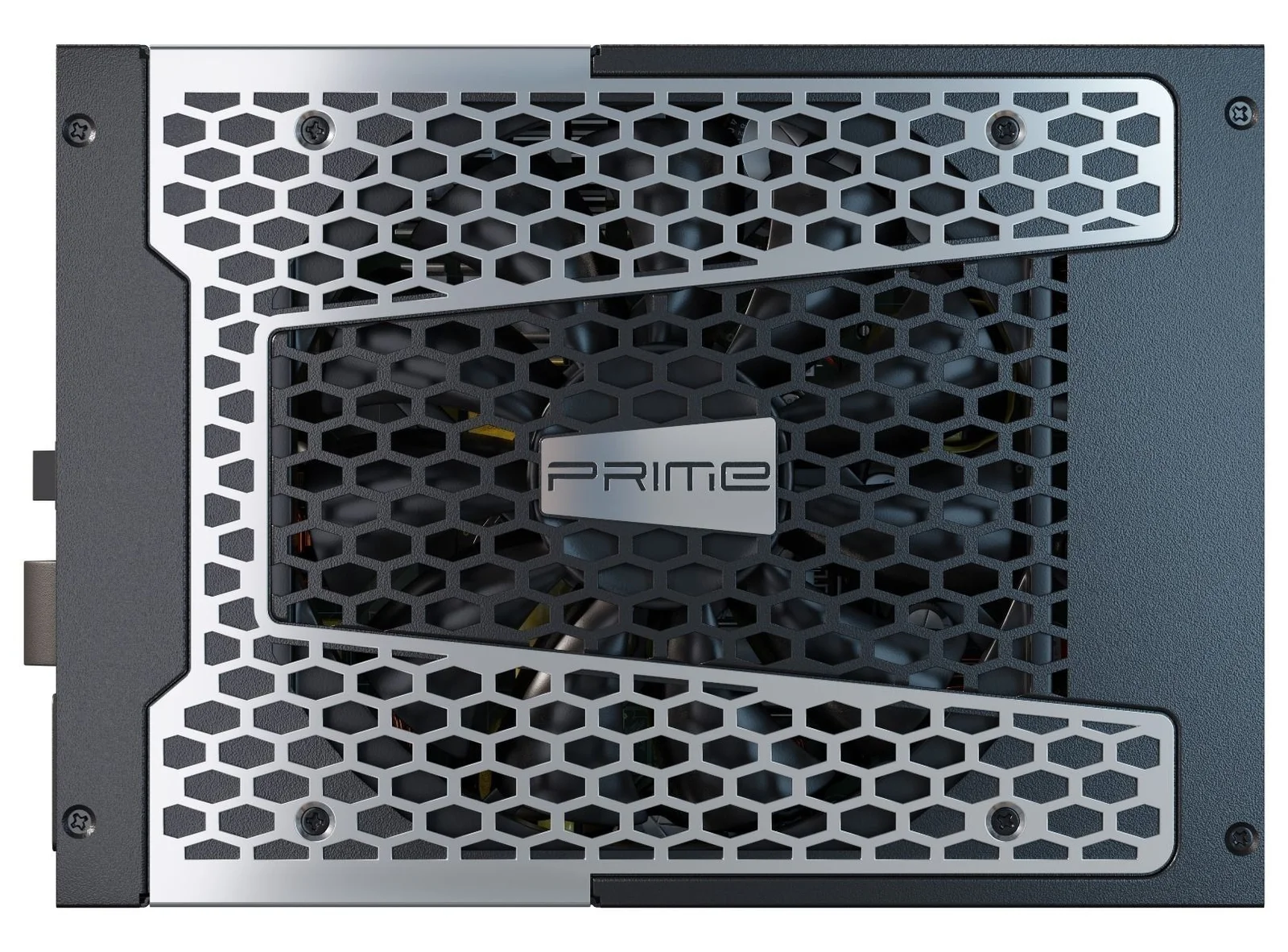

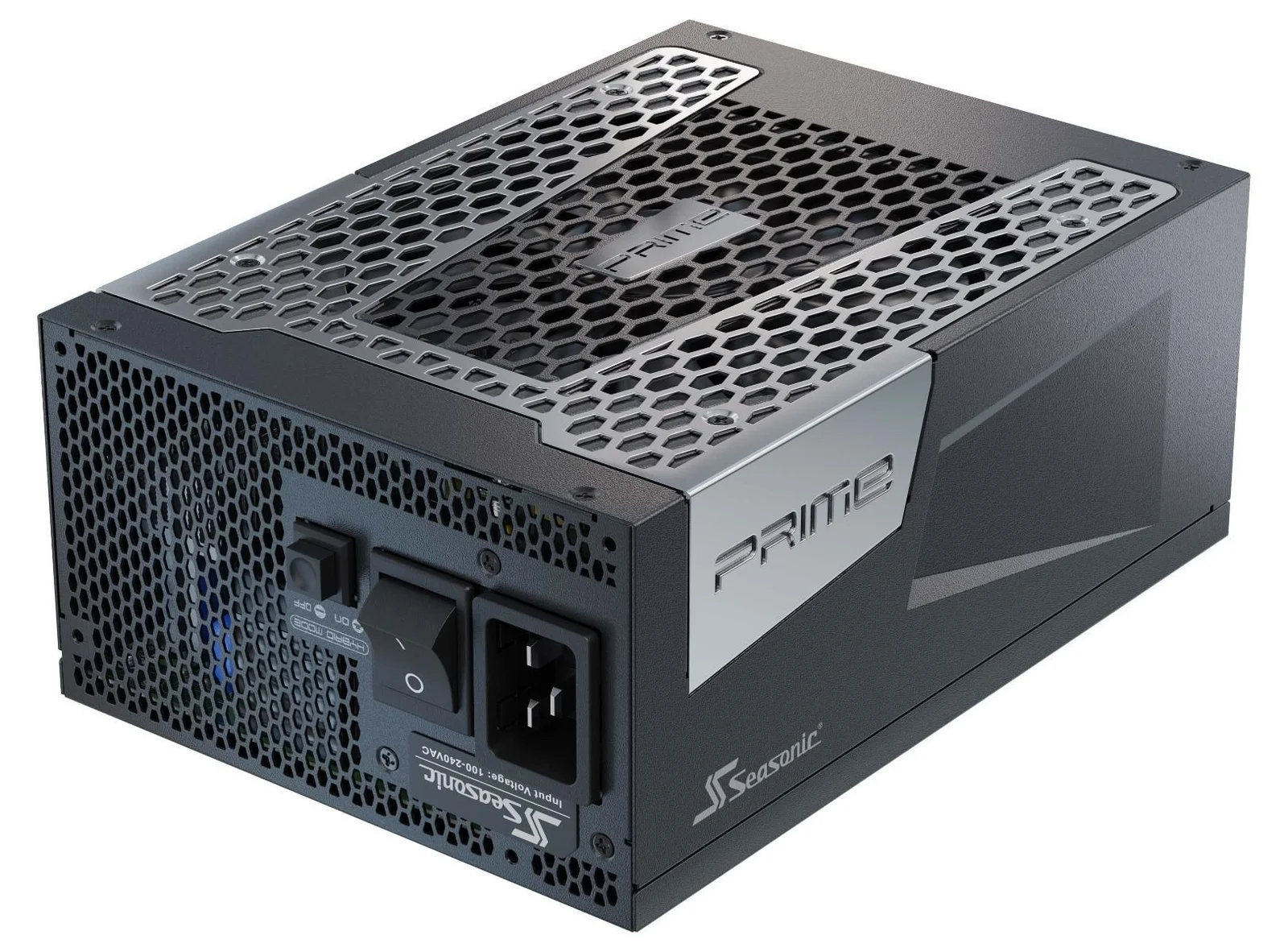

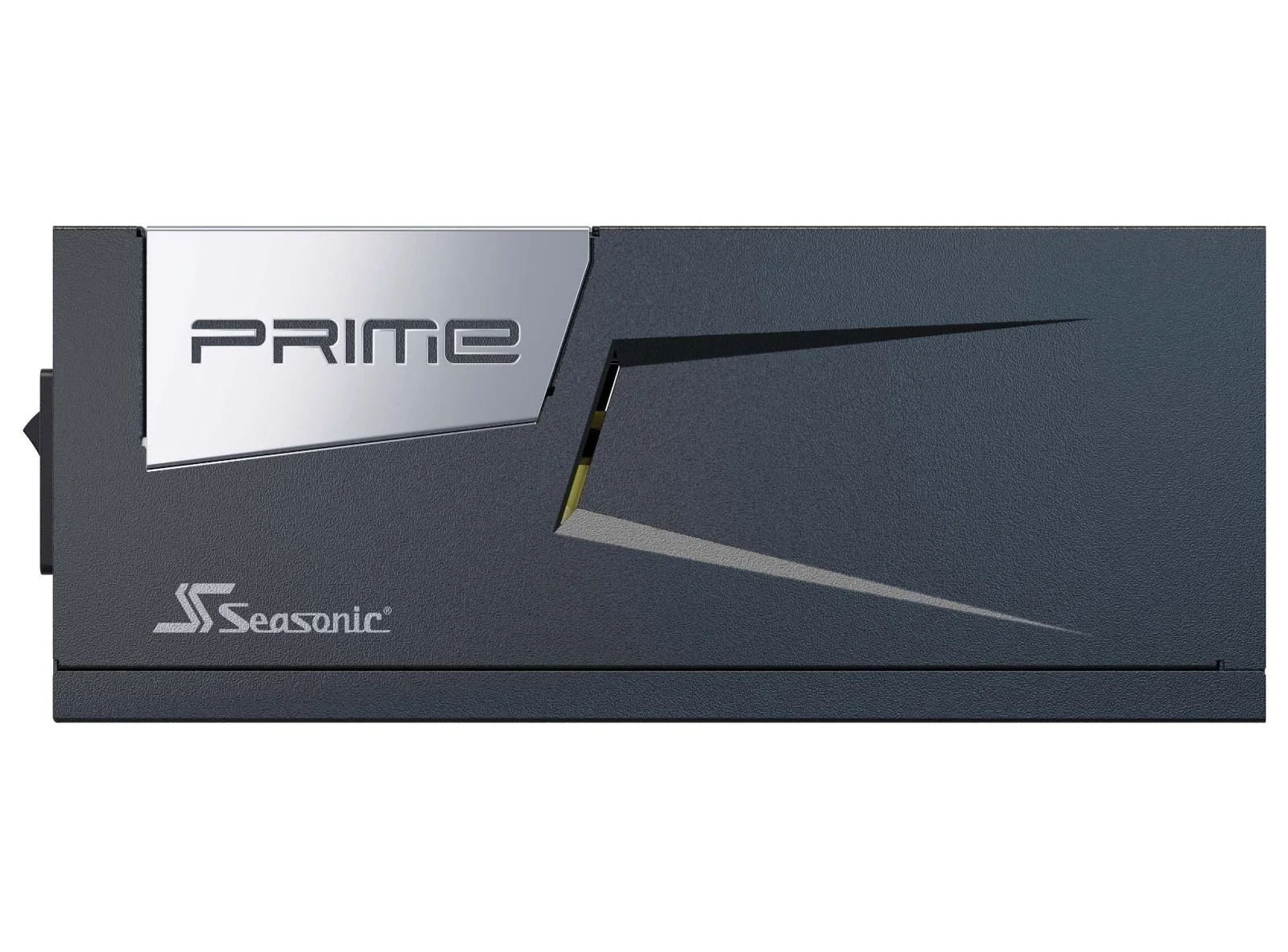

Seasonic PRIME TX-1300 1300W 80 PLUS Titanium Fully Modular PSU

The Seasonic PRIME TX-1300 is a 1300W fully modular power supply with 80 PLUS Titanium certification, built for high-end desktops and multi-GPU setups. Its premium hybrid fan control keeps the unit fanless until 40% load, so your system stays quieter under everyday use.

Key Features

• 80 PLUS Titanium certified efficiency
• Micro Tolerance Load Regulation (0.5%)
• Cable-free connection design
• Premium Hybrid Fan Control — fanless until 40% load
• Multi-GPU setup support
• Gold plated connectors

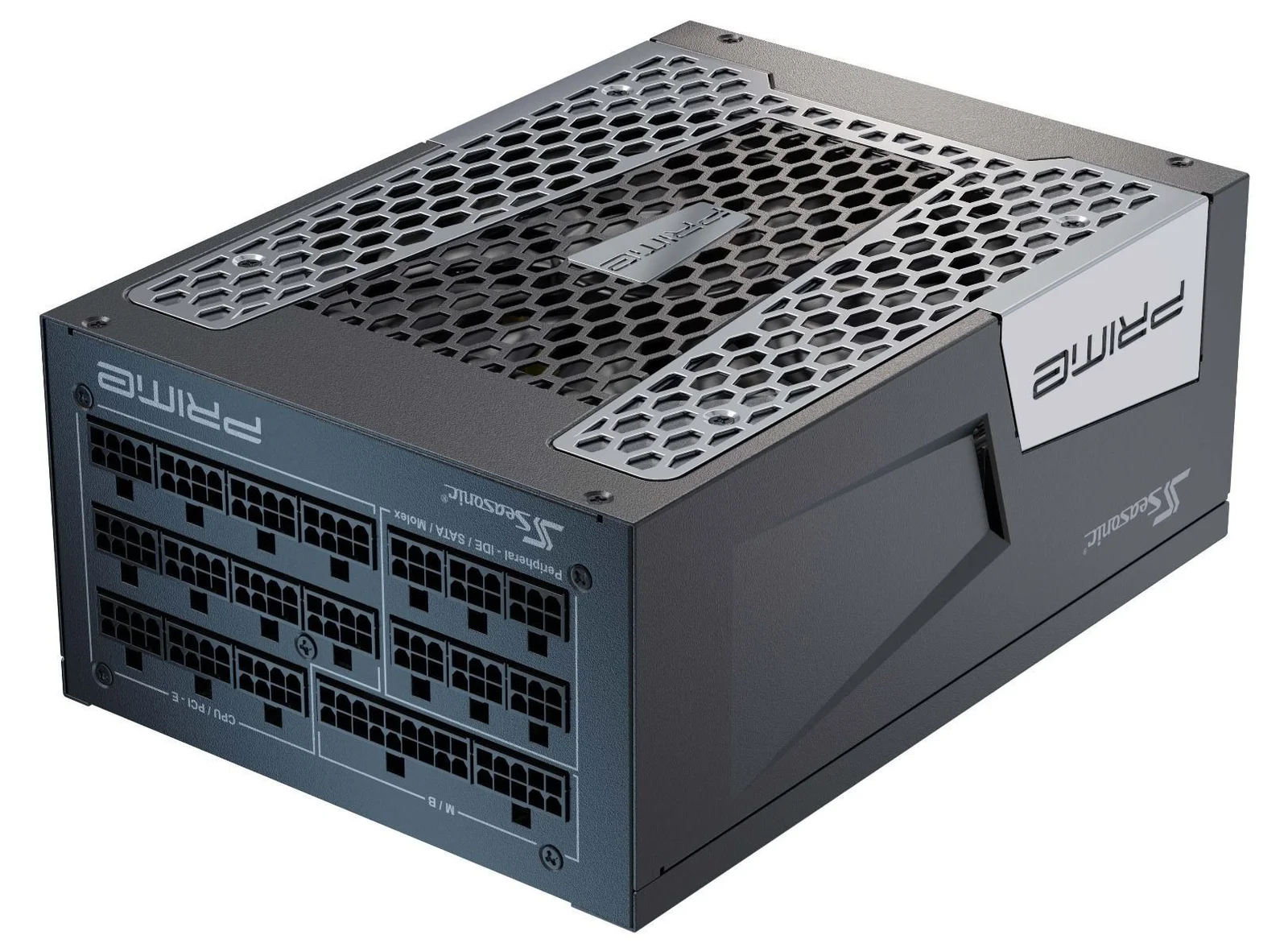

• Fully modular flat black cables

Specifications

• Form factor: Intel ATX 12 V
• Dimensions: 210 mm (L) x 150 mm (W) x 86 mm (H)
• Fan size: 135 mm
• Fan bearing: Fluid Dynamic Bearing
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH
• Operating temperature: 0 - 50 C
• MTBF @ 25 C, excl. fan: 150,000 hours
• AC input: full range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 12 years

Power Output

• AC input voltage: 100 V - 240 V
• AC input current: 15 - 8 A
• AC input frequency: 50 Hz - 60 Hz
• +3.3 V: 25 A
• +5 V: 25 A
• +12 V: 108.3 A
• -12 V: 0.5 A
• +5 VSB: 3 A
• +3.3 V and +5 V combined: 125 W
• +12 V: 1300 W
• -12 V: 6 W
• +5 VSB: 15 W
• Total continuous power: 1300 W
