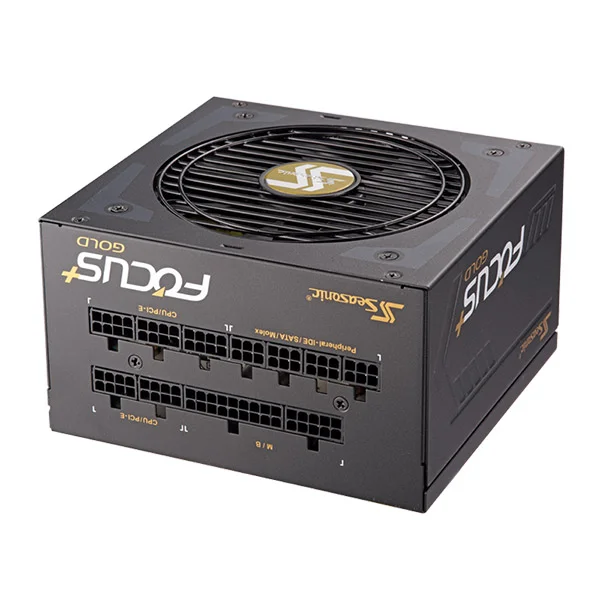

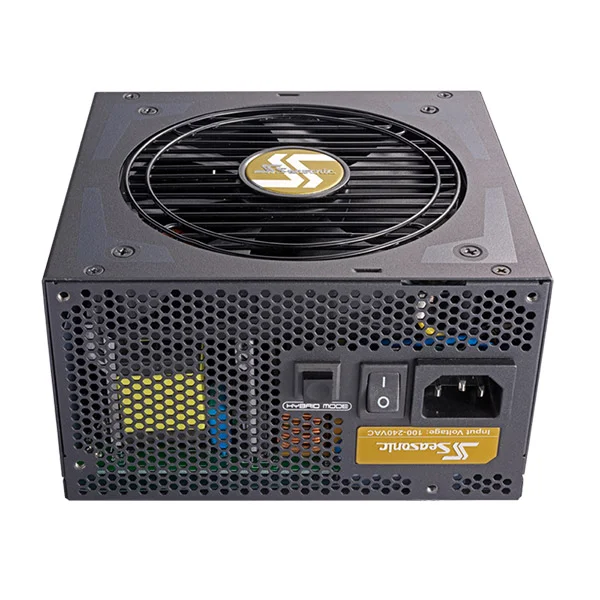

SeaSonic FOCUS PLUS Gold 750W Fully Modular PSU GX-750 SSR-750FX

The SeaSonic FOCUS PLUS Gold 750W power supply delivers high performance and reliable operation for modern desktop builds, with 80PLUS Gold efficiency and a fully modular flat black cable design. It meets the latest ATX and EPS standards and is ready for use with state-of-the-art Intel Core i7 processors.

Key Features

• 80PLUS Gold efficiency
• Fully modular design with flat black cables
• 120 mm fan with Hybrid Silent fan control and Fluid Dynamic Bearing
• Full range AC input
• Comprehensive protection: OPP, OVP, UVP, OCP, OTP, SCP
• Wide range of safety and environmental approvals

Specifications

• Model: GX-750 (SSR-750FX)
• Wattage: 750W
• 80PLUS: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Fan Size: 120 mm
• Fan Control: Hybrid Silent fan control
• Fan Bearing: Fluid Dynamic Bearing
• Fan Life Expectancy: 70,000 hours at 40 °C, 15% - 65% RH
• Modularity: Fully Modular
• Cable Type: Flat black cables
• Operating Temperature: 0 - 50 °C
• MTBF @ 25 °C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

What's in the Box

• 1x SeaSonic 750W FOCUS PLUS Gold PSU
