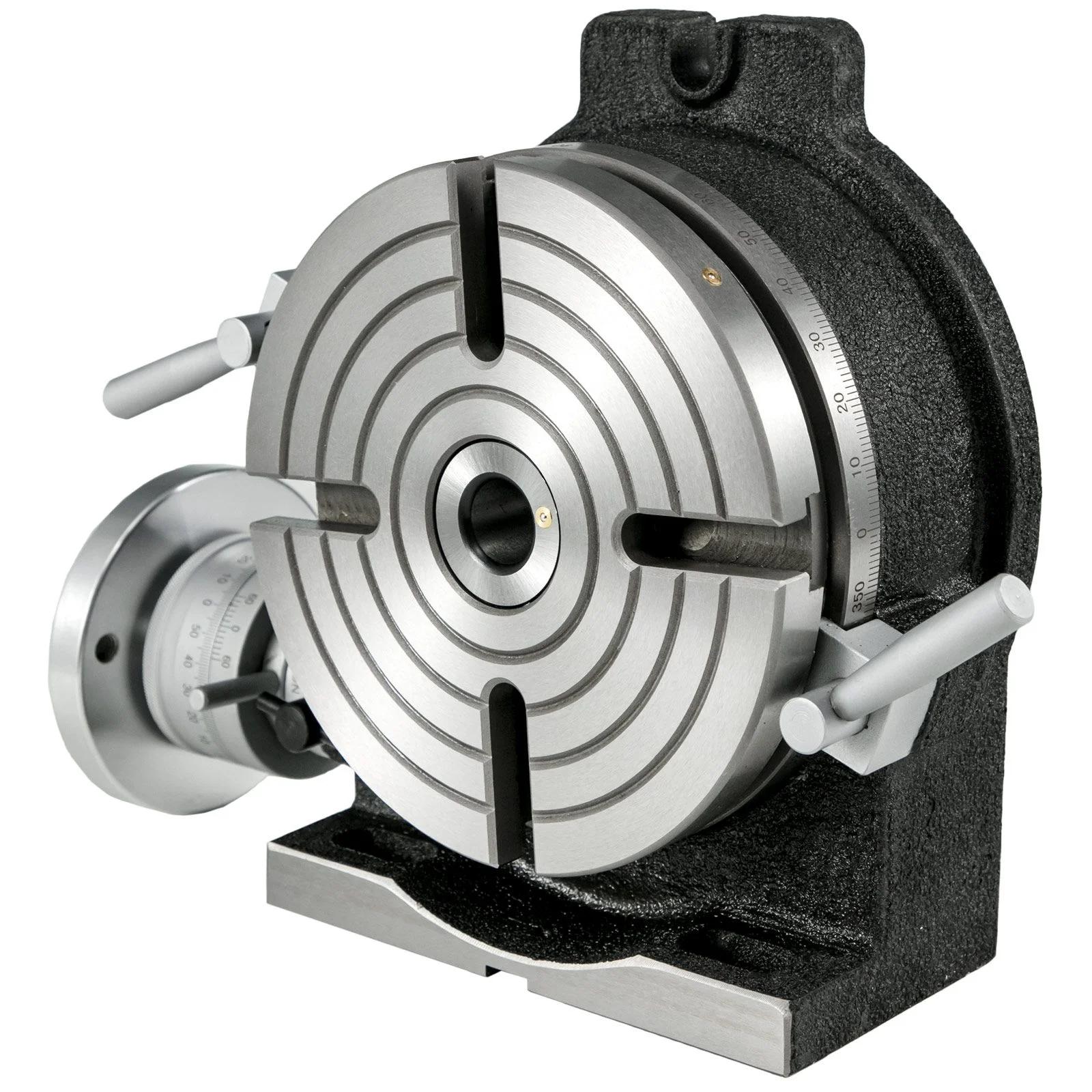

VEVOR HV8 8-Inch Rotary Table Horizontal Vertical 3MT Precision Milling Drilling

The VEVOR HV8 8-inch rotary table is a precision horizontal and vertical table for milling, drilling and boring work. Its HT200 cast body and 360-degree graduated indexing plate make accurate angle setting straightforward in the workshop.

Key Features

• HT200 casting for a durable, shock-absorbing and heat-resistant body
• 8-inch table with 4 slots, usable in both horizontal and vertical positions
• Indexing plate graduated through 360 degrees
• Resetting dial and hand wheel graduated in seconds
• Minimum scale calibrated to 10 seconds for high precision
• Marked dial scale with control handle for simple, convenient adjustment
• Suitable for index boring, milling, circle cutting, spot facing and boring holes

Specifications

• Brand: VEVOR
• Model: HV8
• Table size: 8 inch
• Table slots: 4
• Positions: horizontal and vertical
• Material: HT200 casting
• Morse taper: 3MT
• Indexing plate graduation: 360 degrees
• Minimum scale: 10 seconds
