Rossi CUT-45 Pilot Arc Plasma Cutter 45A Inverter, 240V

The Rossi CUT-45 Pilot Arc Plasma Cutter is a high-power, lightweight DC inverter plasma cutter designed for fast, precise cutting of sheet metal, beams and pipe. Its non-touch Pilot Arc lets you cut painted, rusty, greasy and uneven metals with zero preparation.

Key Features

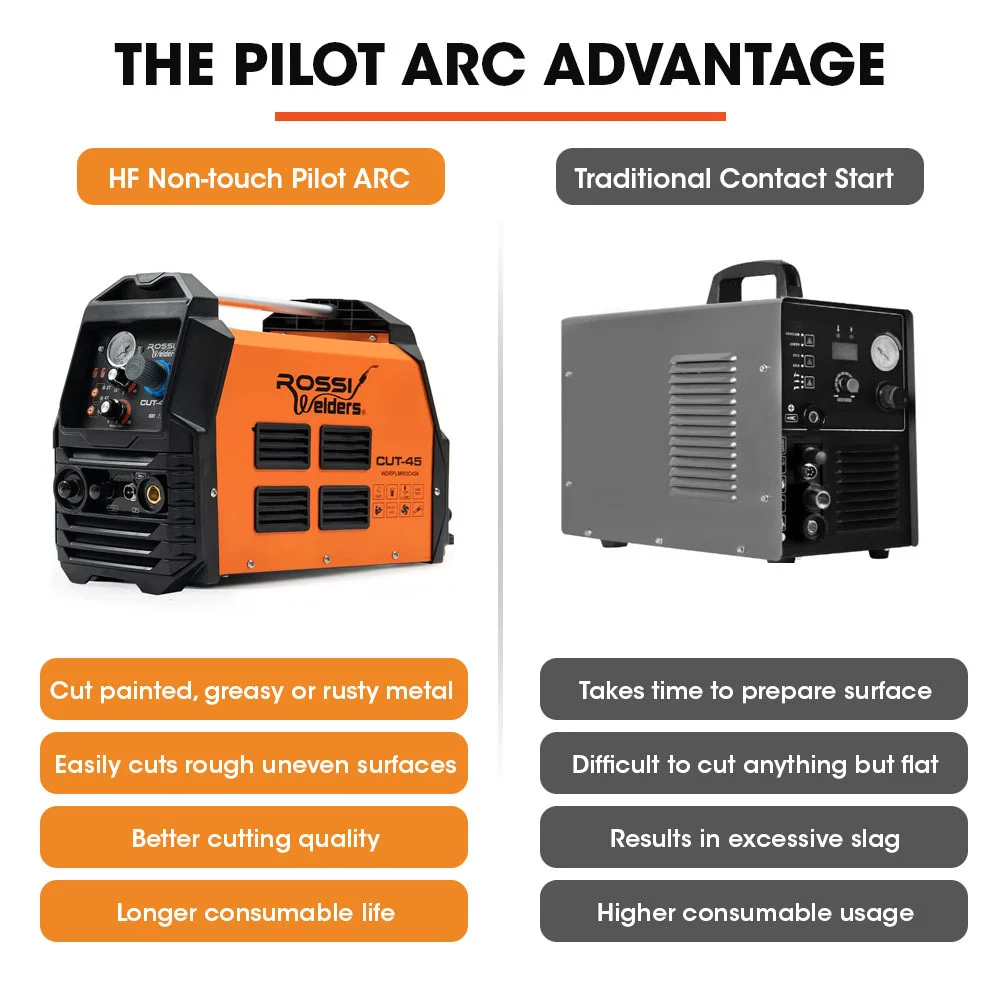

• Pilot Arc non-touch cutting for convenient operation and minimal slag
• Cuts rusty, greasy, painted and uneven metals with zero preparation
• Powerful inverter producing 98V up to 45A with fast-switching IGBT technology for improved efficiency and power conversion
• Smoothly penetrates painted and rusted surfaces and cuts through 8mm of steel, up to 12mm deep with a rougher finish

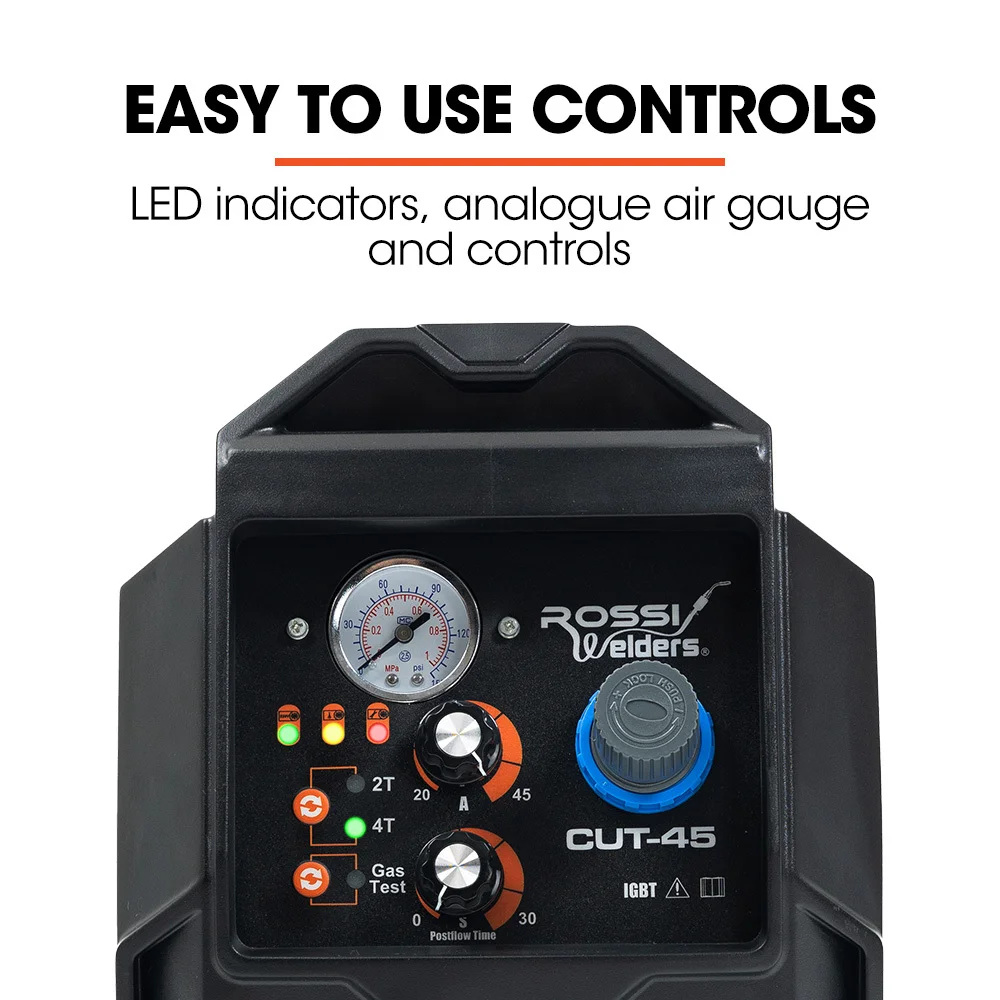

• Easy-to-use interface with gas post-flow setting, onboard pressure gauge, amperage adjustment, gas flow test and 2T/4T trigger settings
• High-pressure air hose and clamps attach easily to the required external compressed air source
• SYN-Weld Technology provides automatic current compensation for more consistent results
• High-speed precision cutting, ideal for ferrous metals and alloys

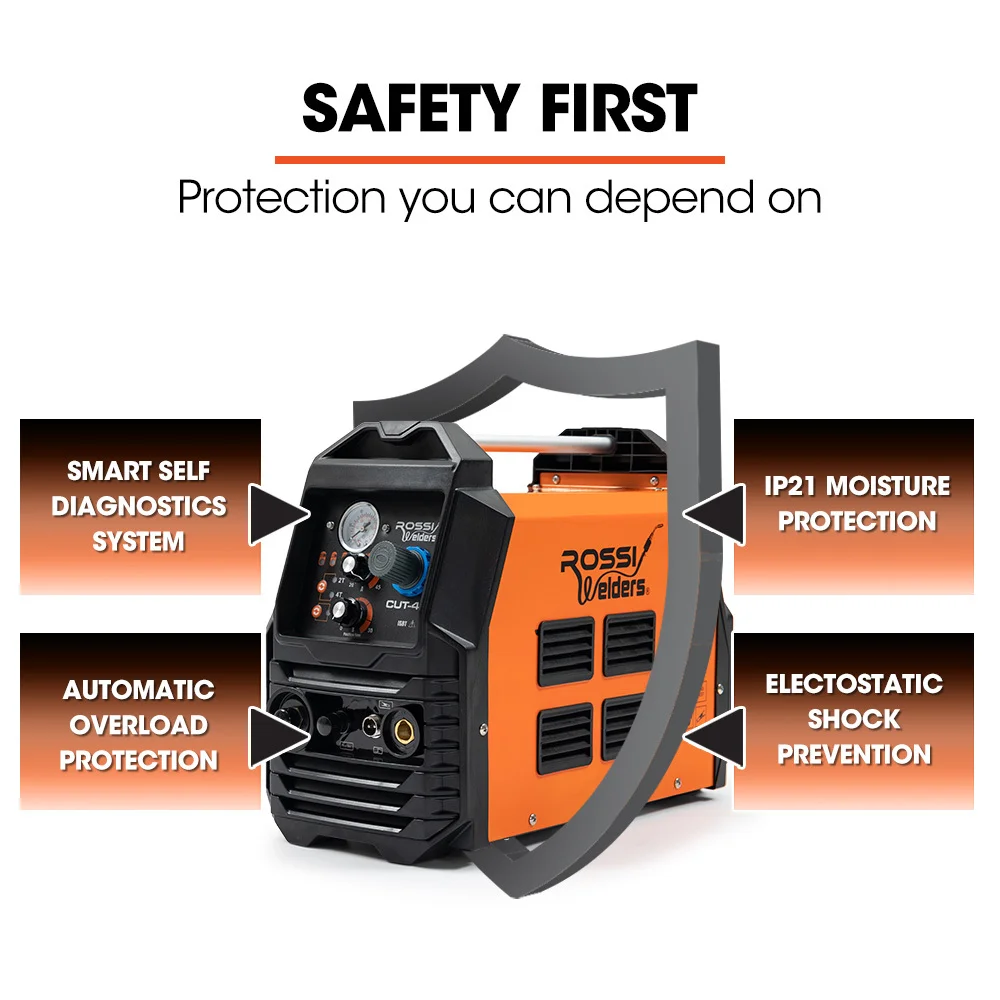

• Engineered for quality and safety with gas testing, overheat and overload protection, and shock, dust and debris resistance

Specifications

• Brand: Rossi
• Model: CUT-45
• Input Voltage: 240V
• Power Cord: 1.8M
• Efficiency: 85%
• Output Voltage: 98V DC

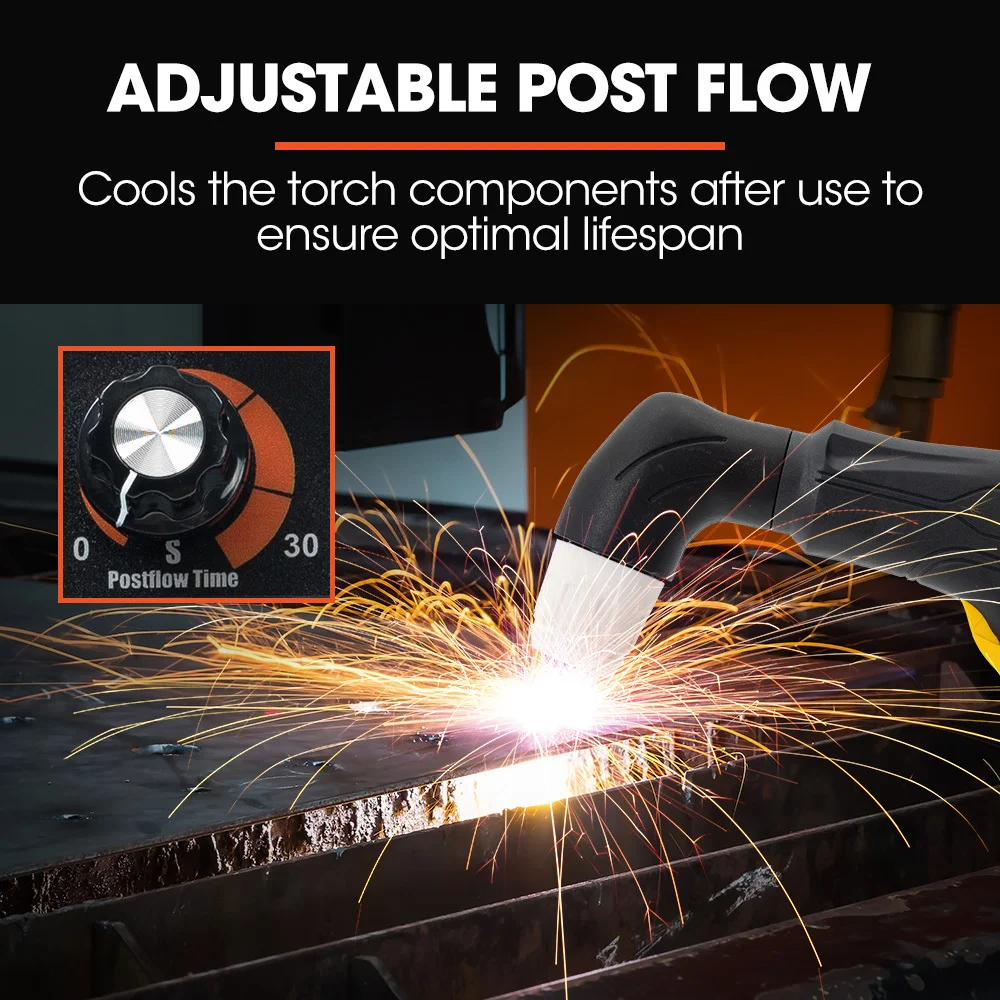

• Post Flow Timer: 10-30 Seconds
• Duty Cycle: 45A 60%, 34A 100%
• Output Current Range: 15-45 ADC
• Pilot Arc Mode: Non-Touch
• Cutting Capacity: 1-12mm
• Earth Clamp Cable: 5M
• Plasma Torch Cable: 5M
• Power Plug: 15A
• Note: Requires external compressed air tank for plasma cutting

What's in the Box

• 1 x Rossi CUT 45 Welder
• 1 x 5M Plasma Torch
• 5 x Electrodes
• 5 x Shield Cup
• 5 x P80 Nozzle
• 1 x 3M 16² 300A Earth Clamp
• 1 x Steel Brush
• 1 x Electrode Holder
• 2 x Hose Clamp
• 1 x 2M Air Gas Hose
• 1 x Welding Goggles
• 1 x Small Wrench

Size and Weight

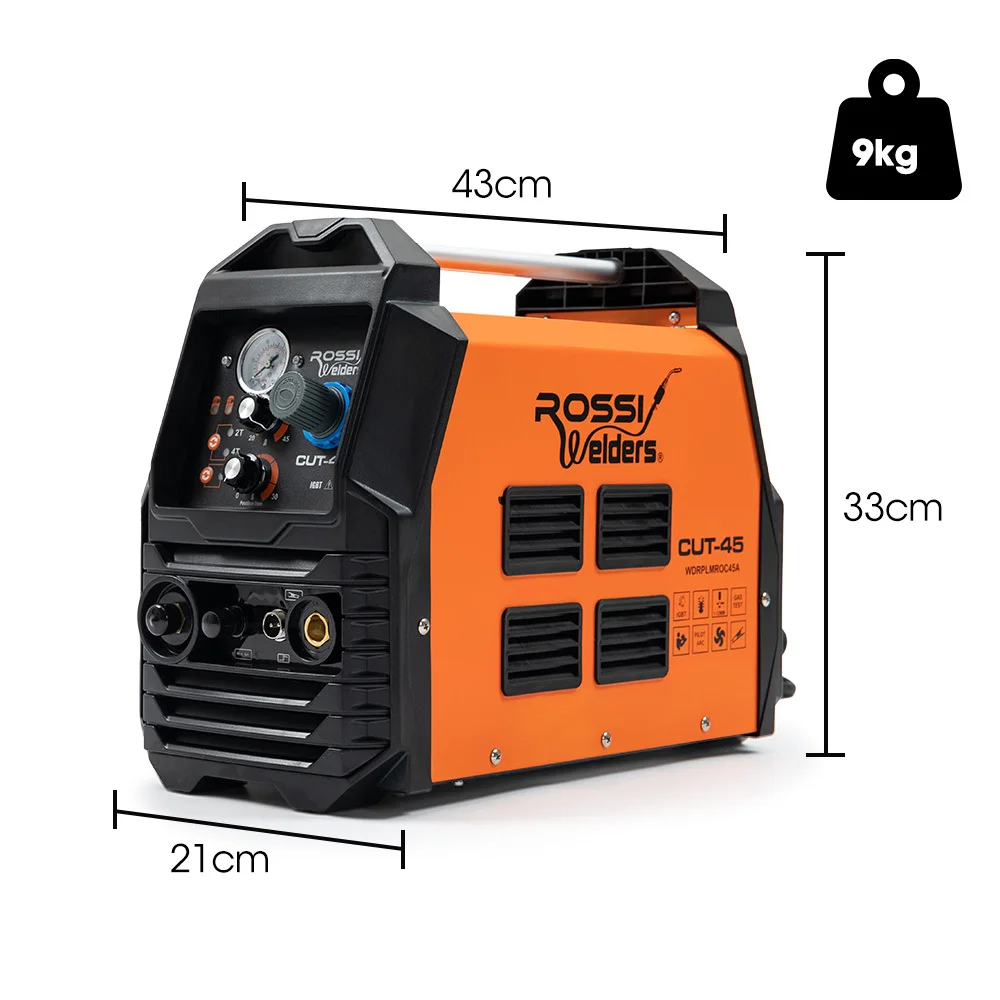

• Product Dimensions (W x L x H): 21 x 43 x 33cm
• Product Weight: 9kg
• Carton Dimensions (W x L x H): 38.5 x 51 x 41.5cm
• Carton Weight: 14kg
