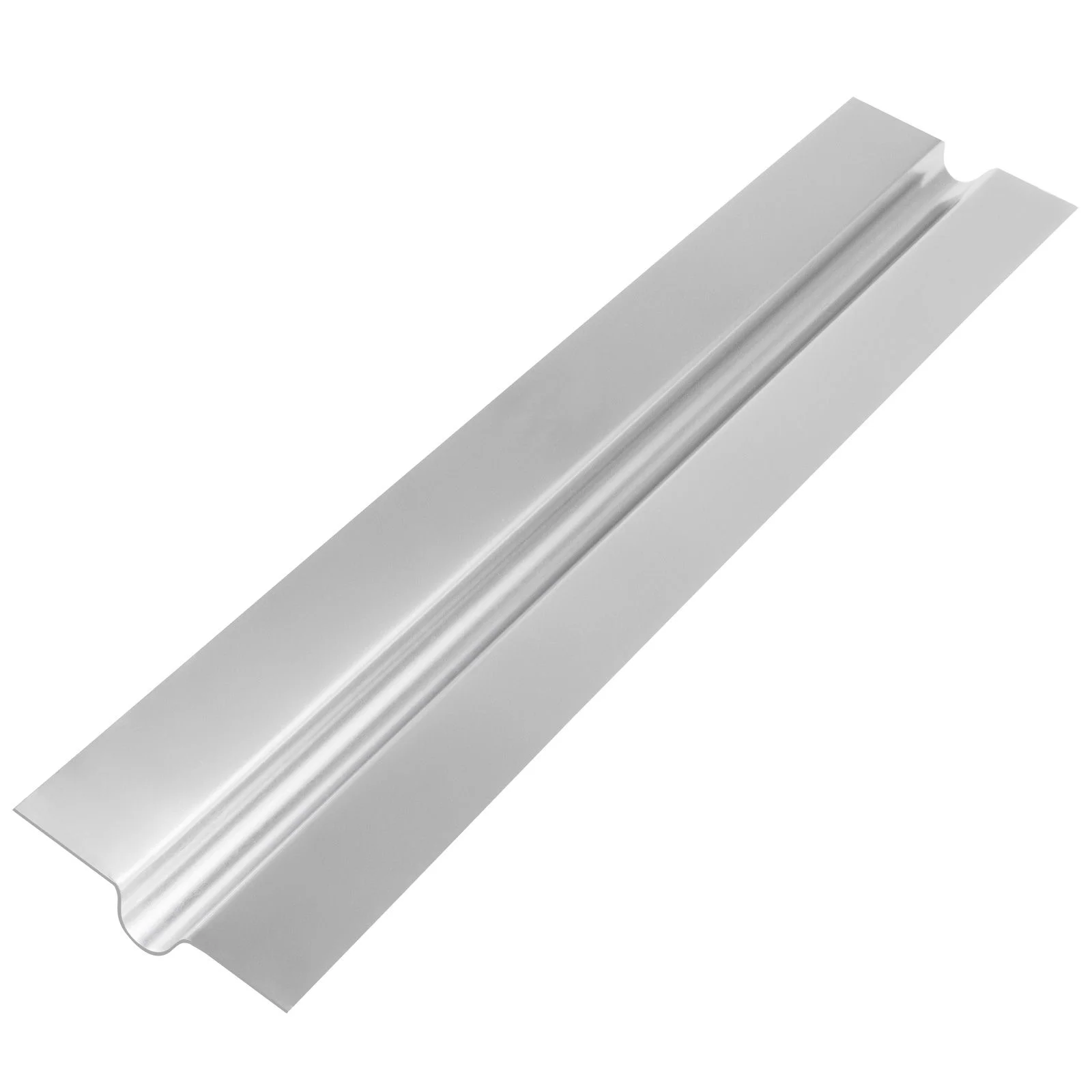

VEVOR Omega Aluminium Radiant Floor Heat Transfer Plates 4ft 50 Pack for 1/2" PEX

These VEVOR aluminium radiant floor heat transfer plates improve heat transfer in hydronic underfloor heating systems and help lower the required water supply temperature. The 50-piece kit suits 1/2" PEX tubing and is suitable for under-floor, sandwich, above sub-floor, wall and ceiling installations.

Key Features

• Aluminium construction for efficient heat transfer in radiant floor systems
• U-shaped design reduces thermal voids that occur from gaps between plates and tubes
• Compatible with most types of 1/2" PEX tubing (5/8" OD), including most brands of PEX, PEX-AL-PEX and EVOH coated oxygen barrier pipes
• Suitable for under-floor (between joist), sandwich, above sub-floor (sleeper), wall and ceiling radiant systems
• Cuttable design to meet different installation needs
• Can be stapled by hand or with a stapler
• Helps improve system heat transfer and lower the needed water supply temperature

Specifications

• Brand: VEVOR
• Quantity: 50 pieces
• Material: Aluminium
• Length: 4 ft
• Width: 4.25"
• Thickness: 0.016"
• Compatibility: 1/2" PEX tubing (5/8" OD)
• Installation note: leave 1-2" spacing between plates when assembling

What's in the Box

• 50 x aluminium heat transfer plates
