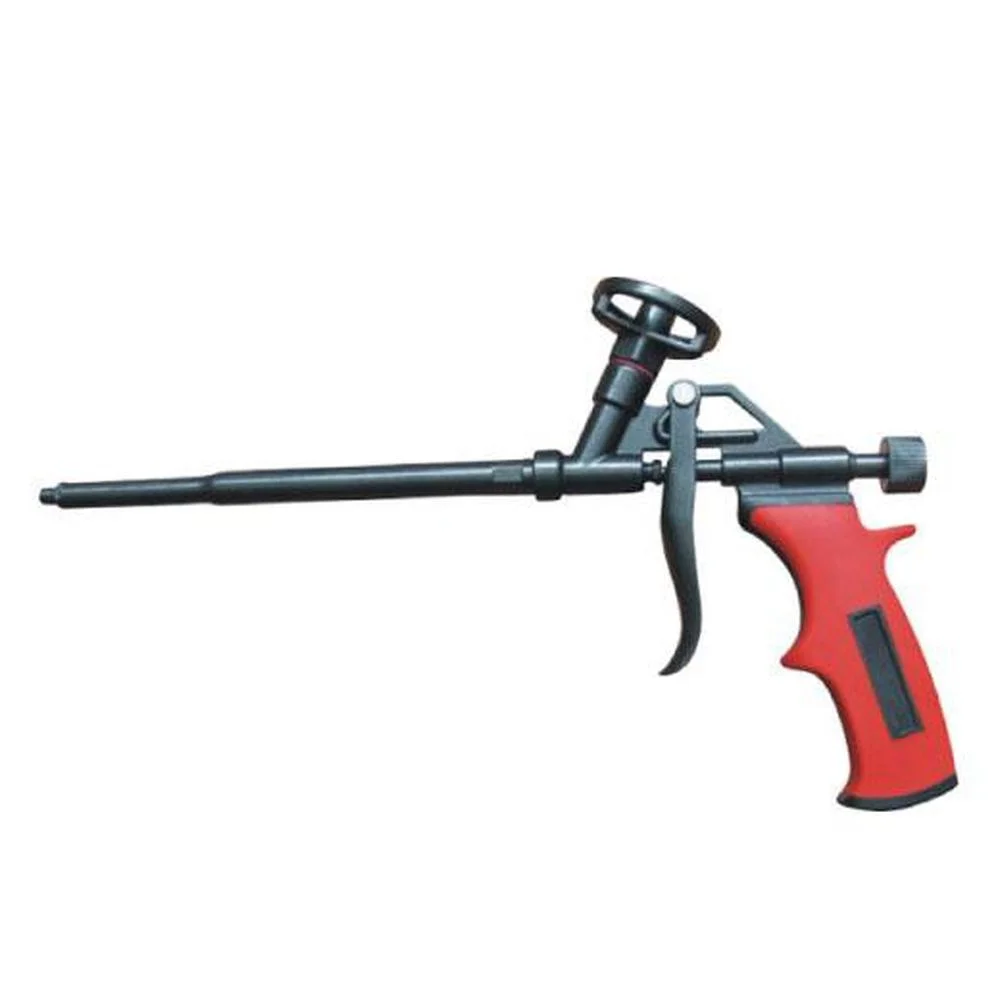

Tooleroo BC-1573 PU Foam Applicator Gun, PTFE Coated, 750ml/500ml

The Tooleroo BC-1573 polyurethane foam applicator gun is a lightweight, durable tool for sealing, filling and insulating small gaps. Its non-stick PTFE coated steel body and sprung trigger give you accurate control of foam flow and make cleaning easier.

Key Features

• Ergonomic design for comfortable use over longer periods
• Double colour rubber handle
• Non-stick PTFE coated for easy, non-scratch cleaning
• Corrosion and wear resistant
• Sprung control trigger for accurate flow control
• CE certified

Specifications

• Model: BC-1573
• Type: Polyurethane foam applicator gun
• Power source: Manual
• Gun trigger material: Steel with non-stick PTFE coating
• Gun tube material: Steel with non-stick PTFE coating
• Size: 750ml and 500ml
• Gun dimensions: 32.5cm (L) x 20cm (W)
• Tube length: 18.5cm
• Nozzle diameter: 2mm
• Gun end nozzle: Brass
• Gun colour: Black and red

What's in the Box

• 1 x PU foam applicator gun
• 1 x plastic tube
• 2 x plastic nozzle
• Packed in a cardboard triangle box

How to Use

1. Take a can of gun foam and shake vigorously.
2. Screw the can onto the adapter of the gun (not too tight).
3. Release the flow adjustment screw lightly and dispense foam immediately to fill the entire gun with foam.
4. The foam gun is now ready to use.
5. Foam output can be controlled with the flow adjustment screw.

After Use

1. Leave the gun filled with foam after use. Always keep a filled can of gun foam on the gun.
2. Tighten the flow adjustment screw completely. Do not empty the gun. The gun must always be filled with foam, otherwise the foam cures due to humidity in the air.
3. Put the can away in a vertical position (gun upwards).

Using the Gun Again

1. Shake the can vigorously (keep hold of the gun).
2. Remove cured foam at the tip of the nozzle carefully with a small, sharp knife.
3. Release the flow adjustment screw lightly and dispense foam immediately until the flow of foam is correct.
4. The gun is now ready to use.
5. Foam output can be controlled with the trigger of the gun.

Replacing the Foam Can

1. Check if the can is empty by dispensing foam into a bin until no more foam is released.
2. Take a new can of gun foam and shake vigorously.
3. Unscrew the empty can (keep the valve opening away from you), remove released foam from the adapter and replace the empty can immediately with a new one.
4. Dispense foam immediately to fill the extension tube.

Cleaning During Interruptions

1. Unscrew the can of gun foam (keep the valve opening away from you).
2. Take a can of gun cleaner and screw the can onto the gun.
3. Pull the trigger again to refill the gun with cleaner.
4. Leave the cleaner in the gun for about 5 minutes.
5. Pull the trigger again to refill the gun with cleaner.
6. Unscrew the can of gun cleaner.
7. Screw the can of gun foam onto the gun.
8. Pull the trigger again until foam is released and the cleaner is completely removed.
9. The gun is now ready to use.
