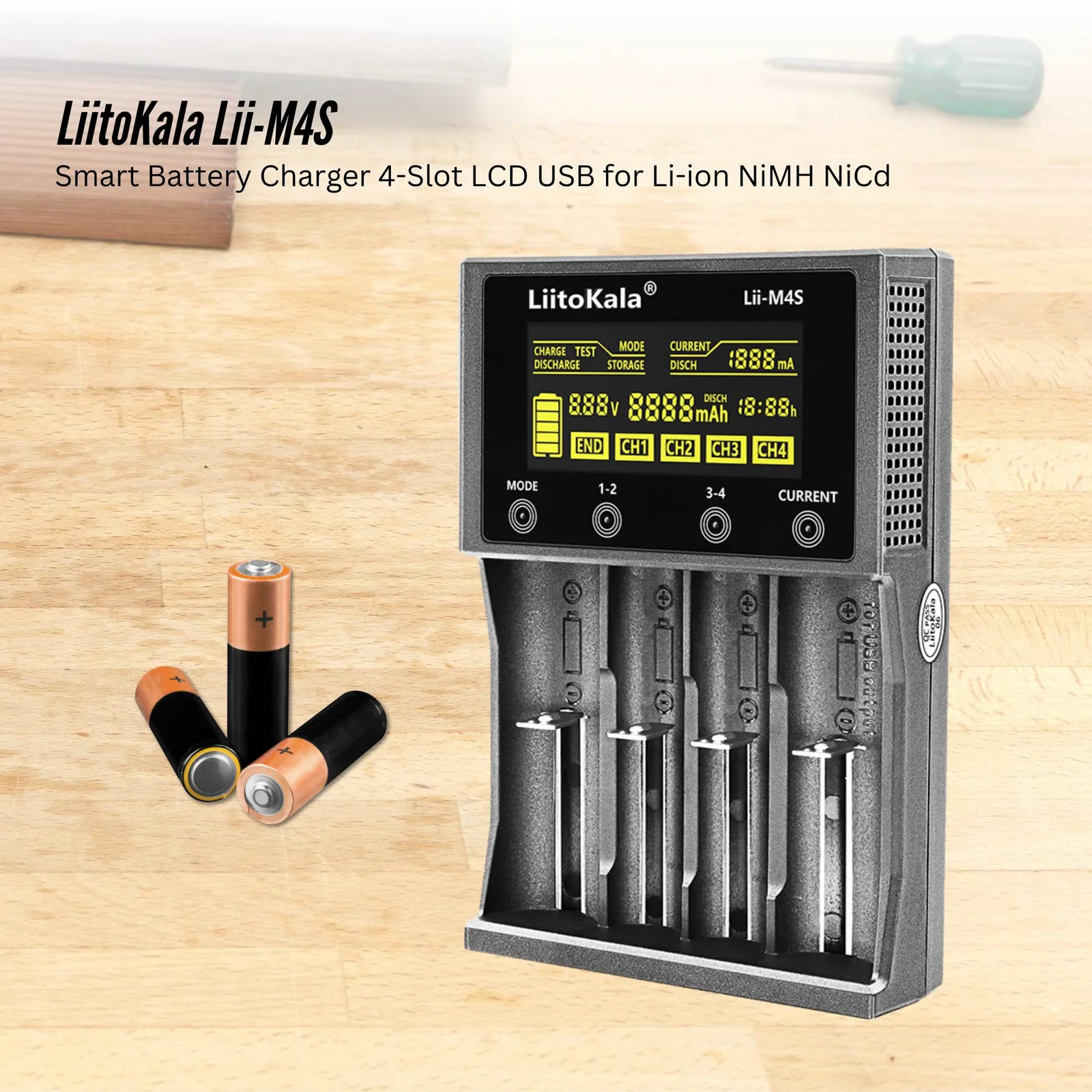

LiitoKala Lii-M4S 4-Slot LCD Battery Charger with USB Output & Test Mode

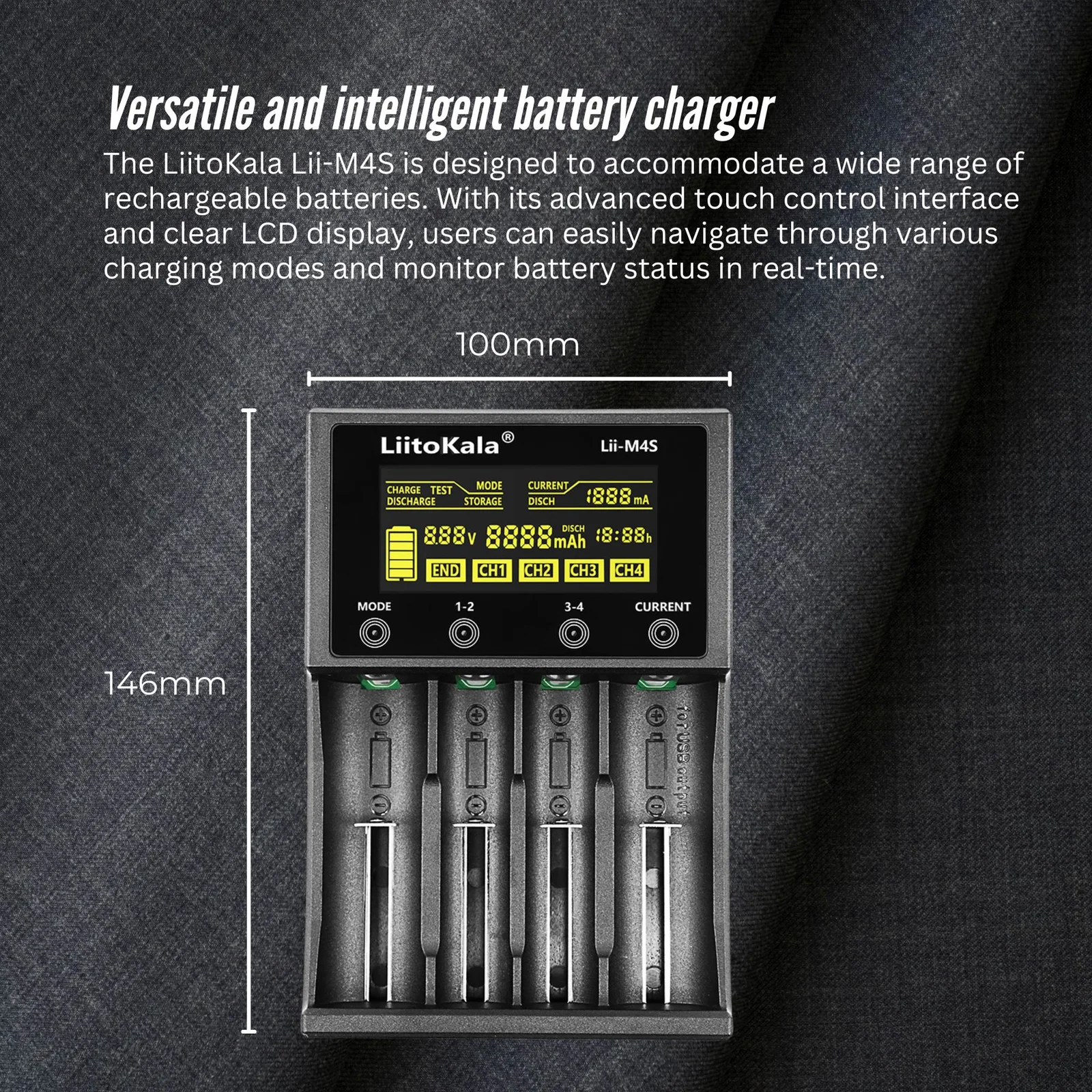

The LiitoKala Lii-M4S is a four-slot intelligent battery charger with an LCD display and touch controls, making it easy to charge, test and maintain a wide range of rechargeable batteries. Each slot runs independently, so you can top up different battery types and sizes at the same time.

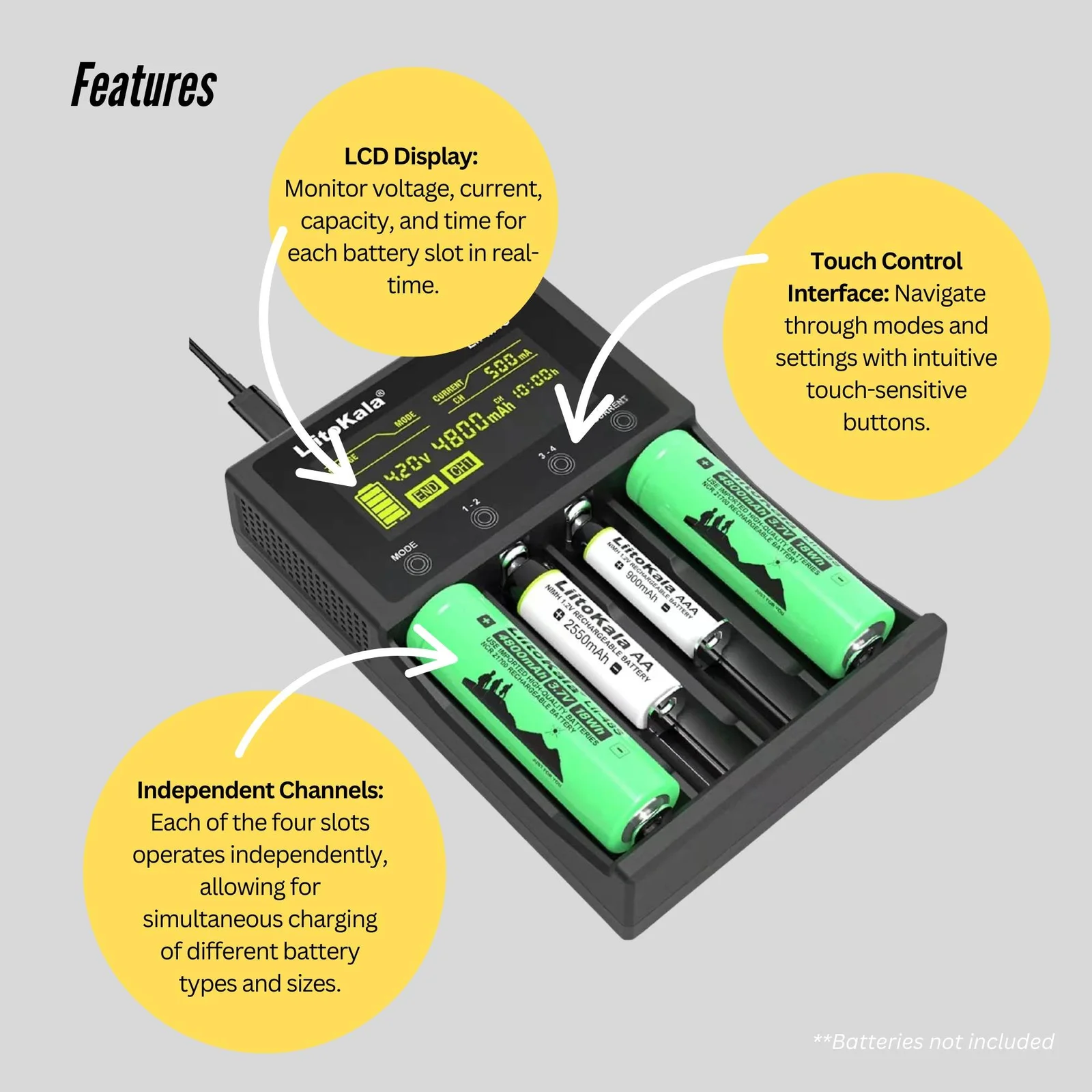

Key Features

• Touch control interface for navigating modes and settings
• Multiple modes: CHARGE, DISCHARGE, TEST and STORAGE
• LCD display shows voltage, current, capacity and time for each slot in real time
• Four independent channels allow simultaneous charging of mixed battery types and sizes

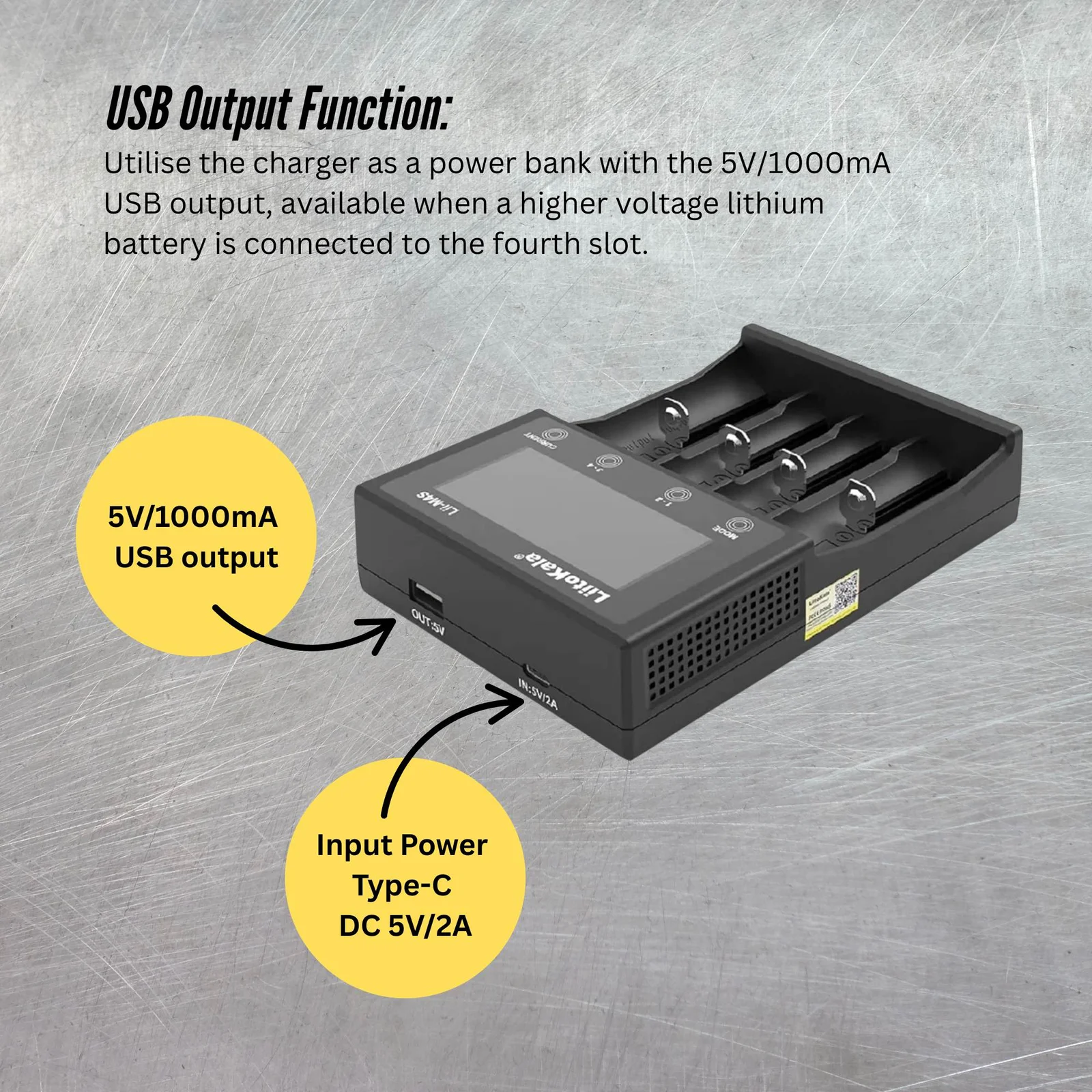

• USB output function lets the charger work as a power bank at 5V/1000mA when a higher voltage lithium battery is connected to the fourth slot

Specifications

• Model: LiitoKala Lii-M4S
• Input Power: Type-C DC 5V/2A
• USB Output: 5V---1000mA (effective when a higher voltage lithium battery is connected to the 4th channel)
• Charging Current (Lithium Batteries): 4.20V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2
• Charging Current (NiMH Batteries): 1.48V at 300mA×4 / 500mA×4 / 700mA×2 / 1000mA×2
• Discharge Current: 500mA
• Compatible Li-ion Batteries: 26650, 22650, 18650, 18490, 18350, 17670, 17500, 17355, 16340, 14500, 10440
• Compatible Ni-MH/NiCd Batteries: A, AA, AAA, SC

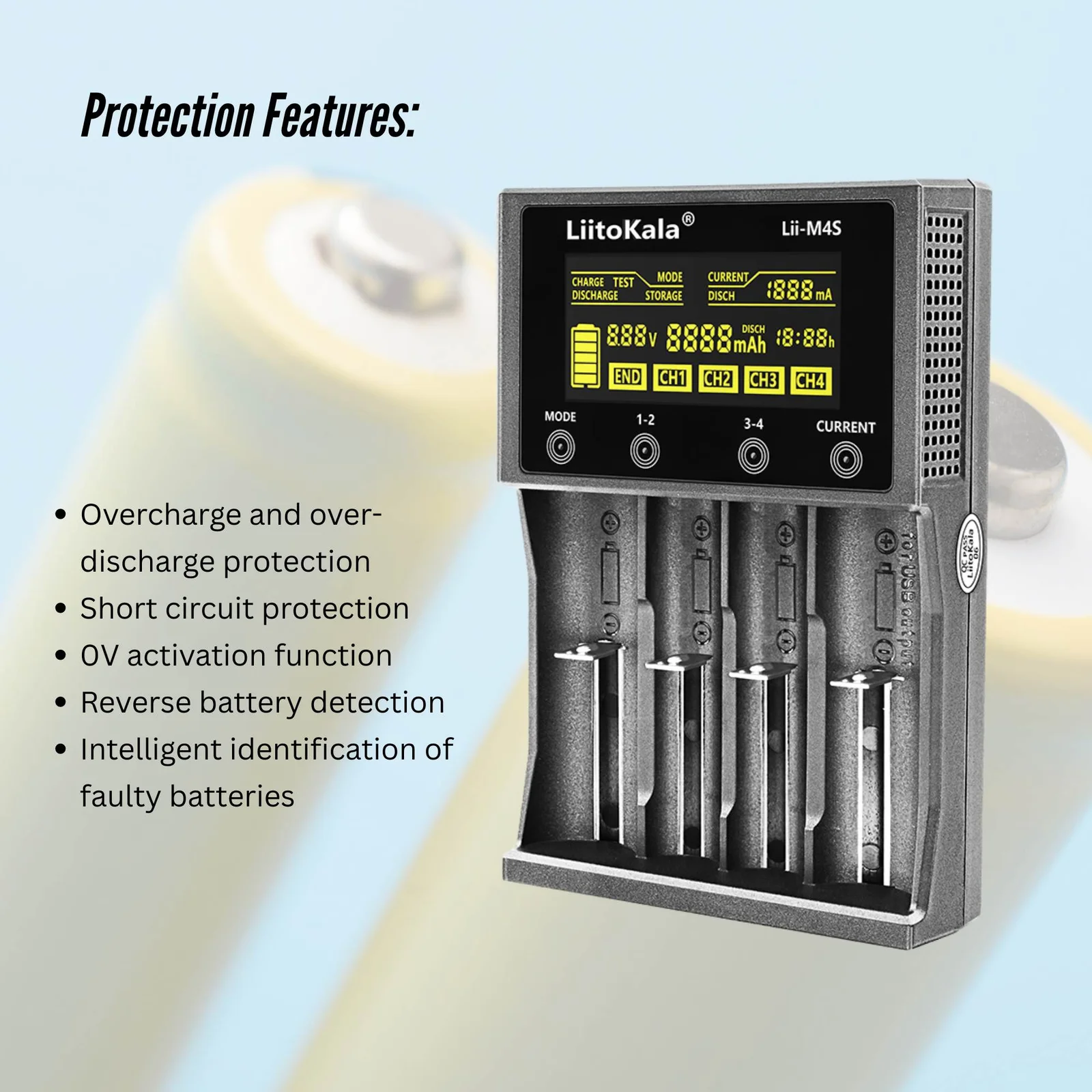

Protection Features

• Overcharge and over-discharge protection
• Short circuit protection
• 0V activation function
• Reverse battery detection
• Intelligent identification of faulty batteries

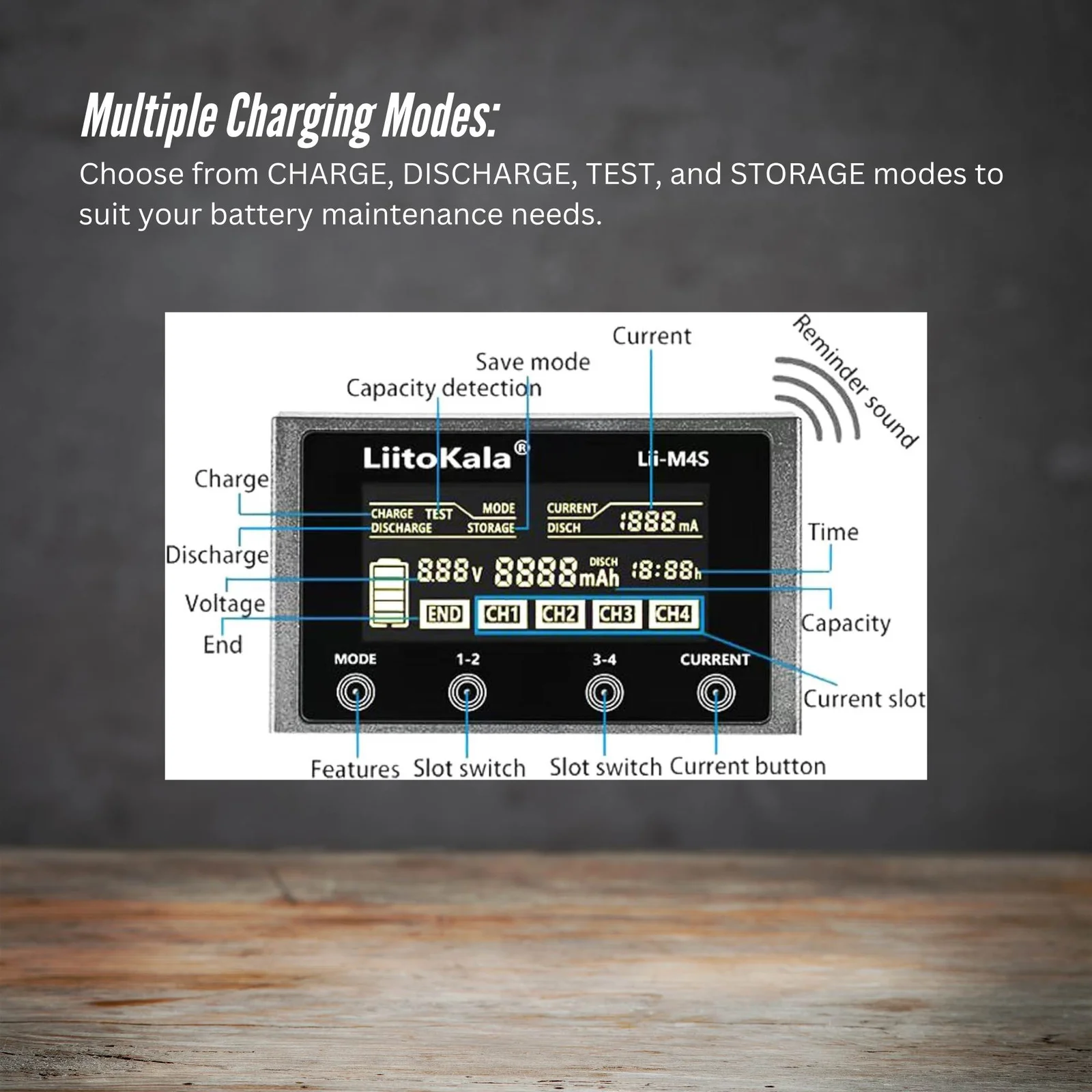

LCD Display Parameters

• Operating mode (MODE)
• Voltage (V)
• Current (mA)
• Time (h)
• Capacity (mAh)

What's in the Box

• 1 × LiitoKala Lii-M4S Charger
• 1 × Type-C Charging Cable
• 1 × User Manual
