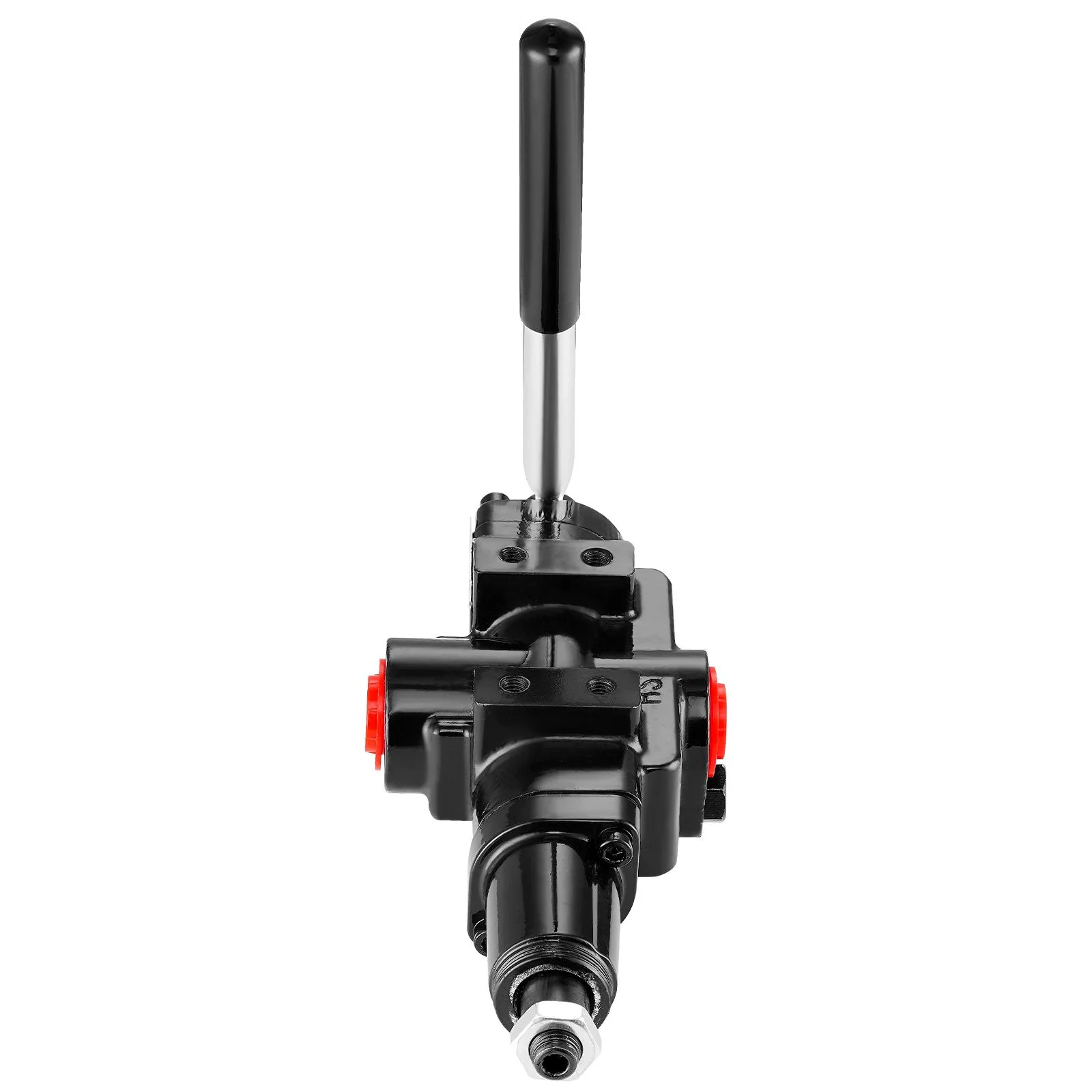

VEVOR 1 Spool Hydraulic Directional Control Valve 25 GPM 3626 PSI

The VEVOR 1-spool hydraulic directional control valve is a reliable replacement for leaking or malfunctioning valves in small to medium-sized hydraulic log splitters, and suits hydraulic systems across agriculture, forestry, construction and industry. With a 25 GPM flow rate and up to 3626 PSI working pressure, it delivers efficient, controlled power for demanding splitting tasks.

Key Features

• 1-spool design ideal for hydraulic log splitters and small tractors and loaders
• High 25 GPM (95 L/min) flow rate for efficient splitting of heavy, thick logs
• Standard spool with built-in spring return that automatically resets to the neutral position
• Additional spring at the base of the handle for smoother, easier joystick control
• Hydraulic safety valve rated to a maximum 25 MPa / 3626 PSI to help prevent damage
• Solid vermicular graphite cast iron construction for long-term service

Specifications

• Brand: VEVOR
• Spools: 1
• Maximum flow rate: 25 GPM (95 L/min)
• Maximum pressure: 25 MPa / 3626 PSI
• Working port: 1/2'' NPT
• Inlet/outlet ports: 3/4'' NPT
• Material: vermicular graphite cast iron
• Spool return: spring return to neutral

Installation

Installing or replacing the valve is straightforward: identify the ports, connect the pipelines and tighten each interface. Release the hydraulic pressure before disassembling the pump or adapter for safety.
