HORUSDY 7L Manual & Pneumatic Oil Extractor Fluid Transfer Pump

The HORUSDY 7L Manual & Pneumatic Oil Extractor is a versatile fluid transfer pump for quickly removing engine oil, gear oil and other fluids from cars, motorcycles, marine engines and machinery. It works either with standard shop air or by hand, so you can extract waste fluids in almost any situation.

Key Features

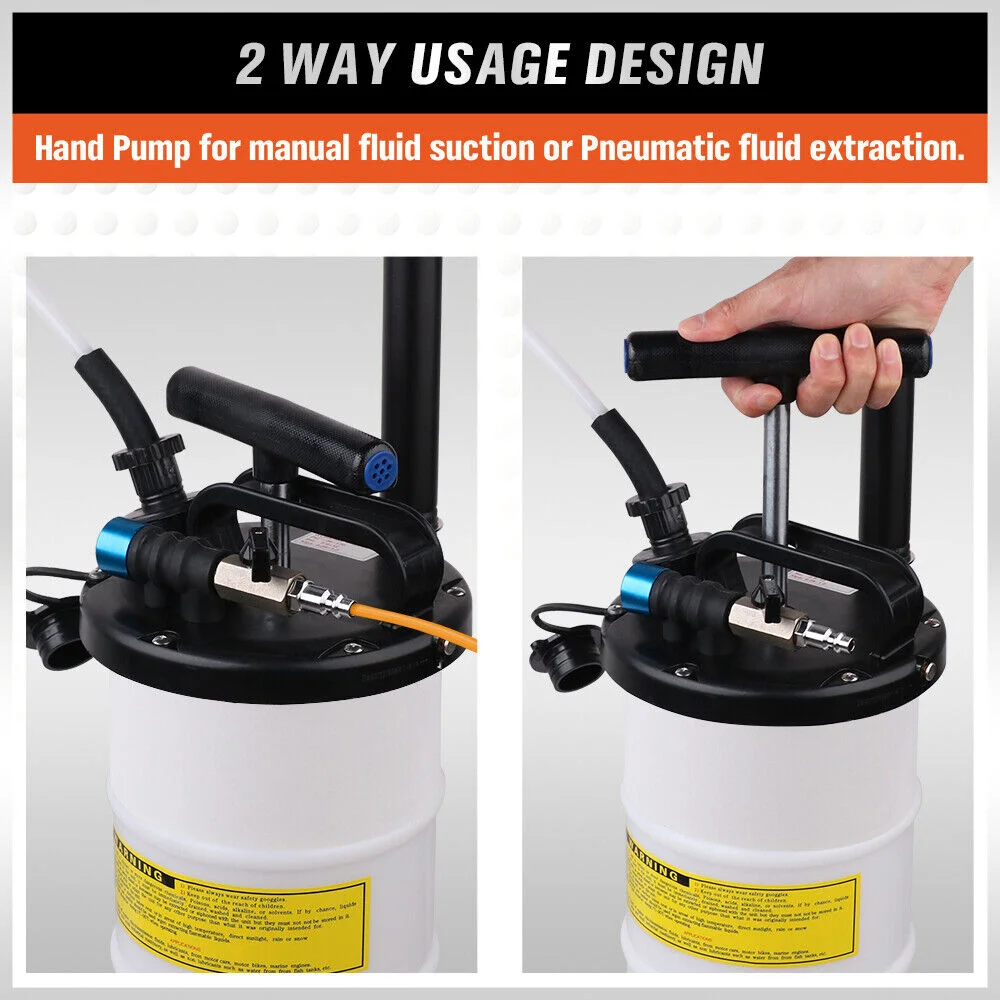

• Dual operation: use pneumatically with standard shop air, or manually when compressor air is not available
• Suitable for engine oil, gear oil, coolant fluid, power steering fluid and brake fluid from cars, motorcycles, marine engines, stationary engines and industrial machinery
• Also suitable for low viscosity fluids such as water, so it can be used for draining fish tanks, basins and sinks
• Simple push-button operation for quick, easy suction from tanks
• Automatically shuts off when the suction unit reaches full, leaving no spills or mess
• Supplied with 4mm, 6mm and 10mm suction probes

Specifications

• Capacity: 7 litres
• Operation: manual and pneumatic
• Suction probes: 4mm, 6mm and 10mm

Pneumatic Operation

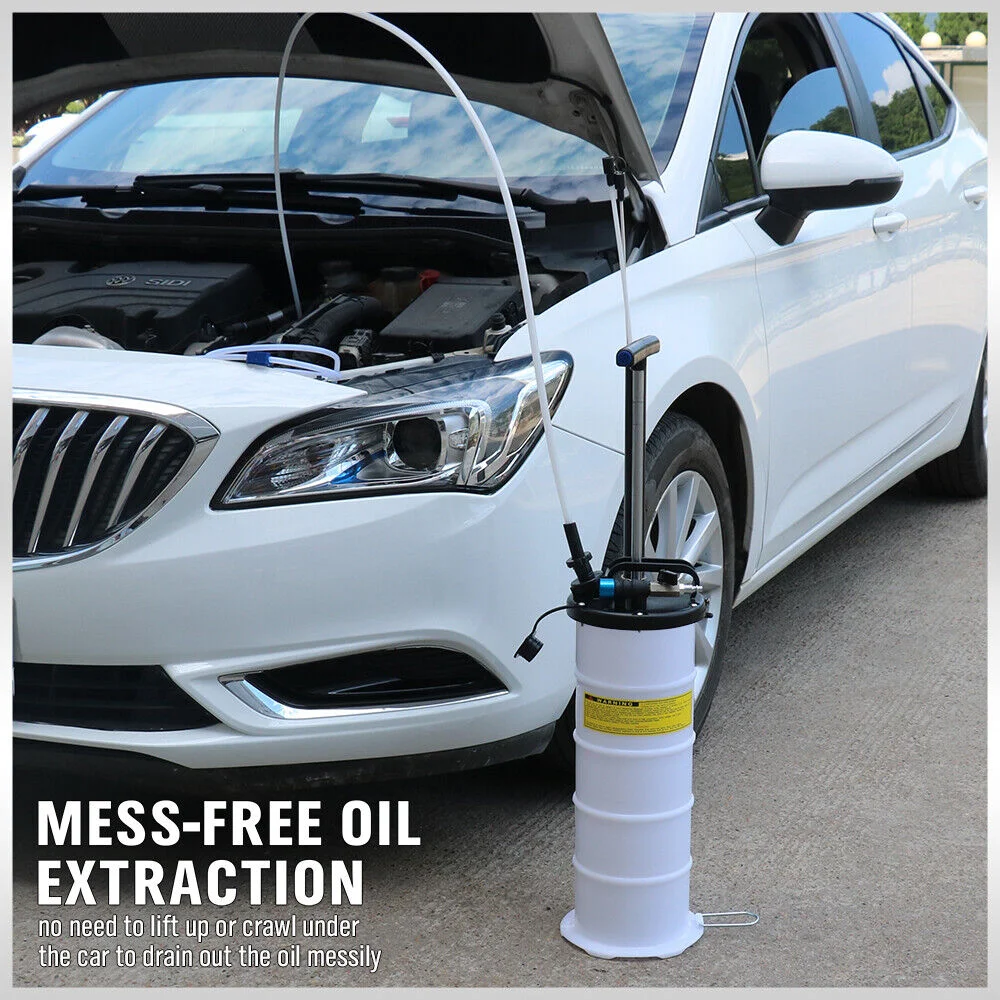

• Insert the extraction tube into the dipstick until it reaches the bottom of the oil pan, turn the air valve to open and push the operating button

Manual Operation

• With the engine turned off, open the front cover of the car and pull out the dipstick
• Adjust the upper locking clamp of the oil suction pipe so the length of the pipe end extending into the engine room equals the length of the dipstick
• Insert the oil suction pipe into the dipstick hole and make sure it touches the engine oil pan
• Close the oil drain valve of the pumping unit
• Press the vacuum suction handle 4 to 6 times to extract the waste oil

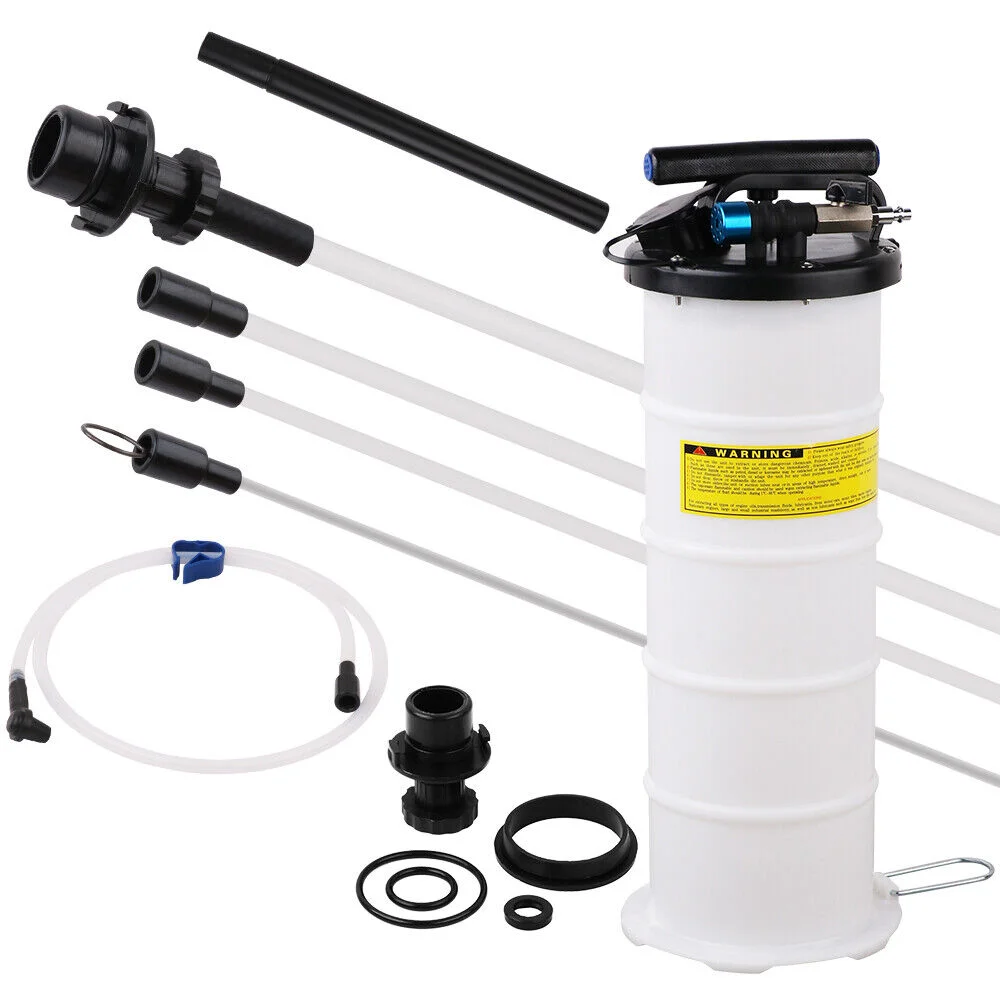

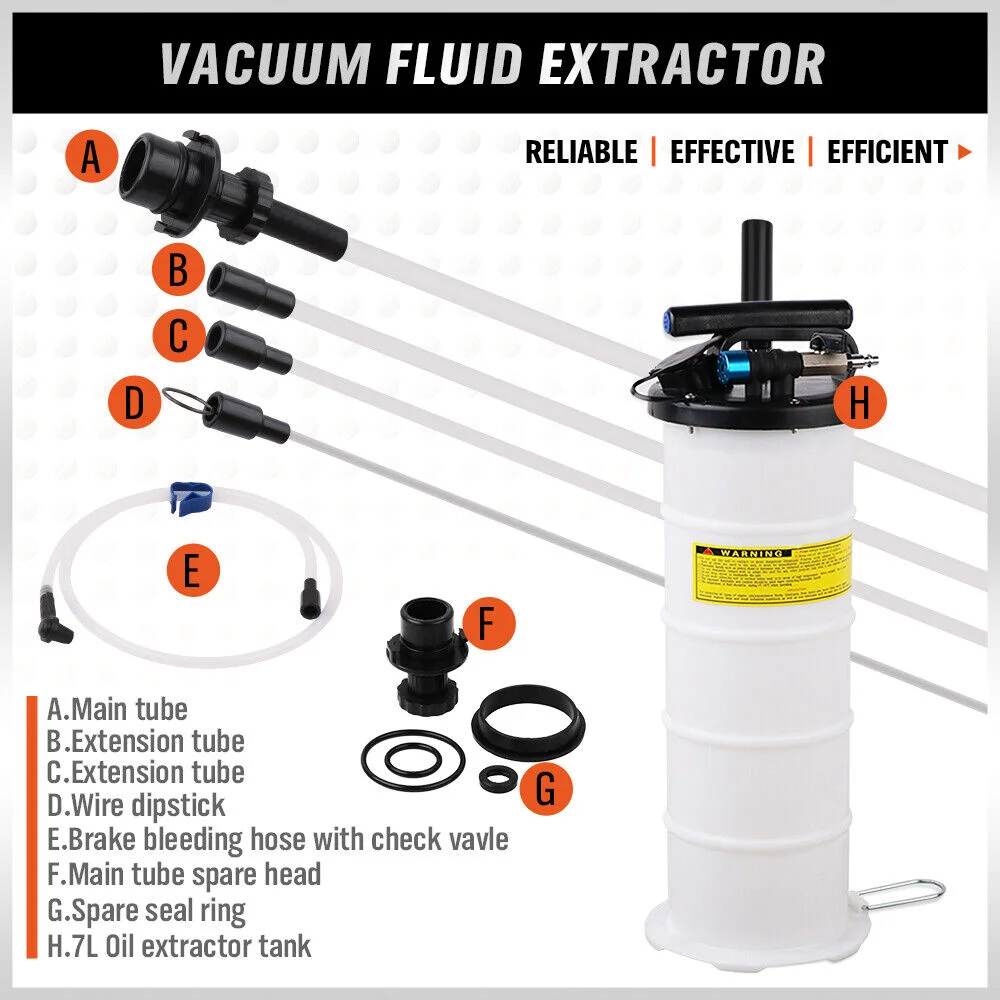

What's in the Box

• 1x 7 litre pneumatic and manual fluid extractor

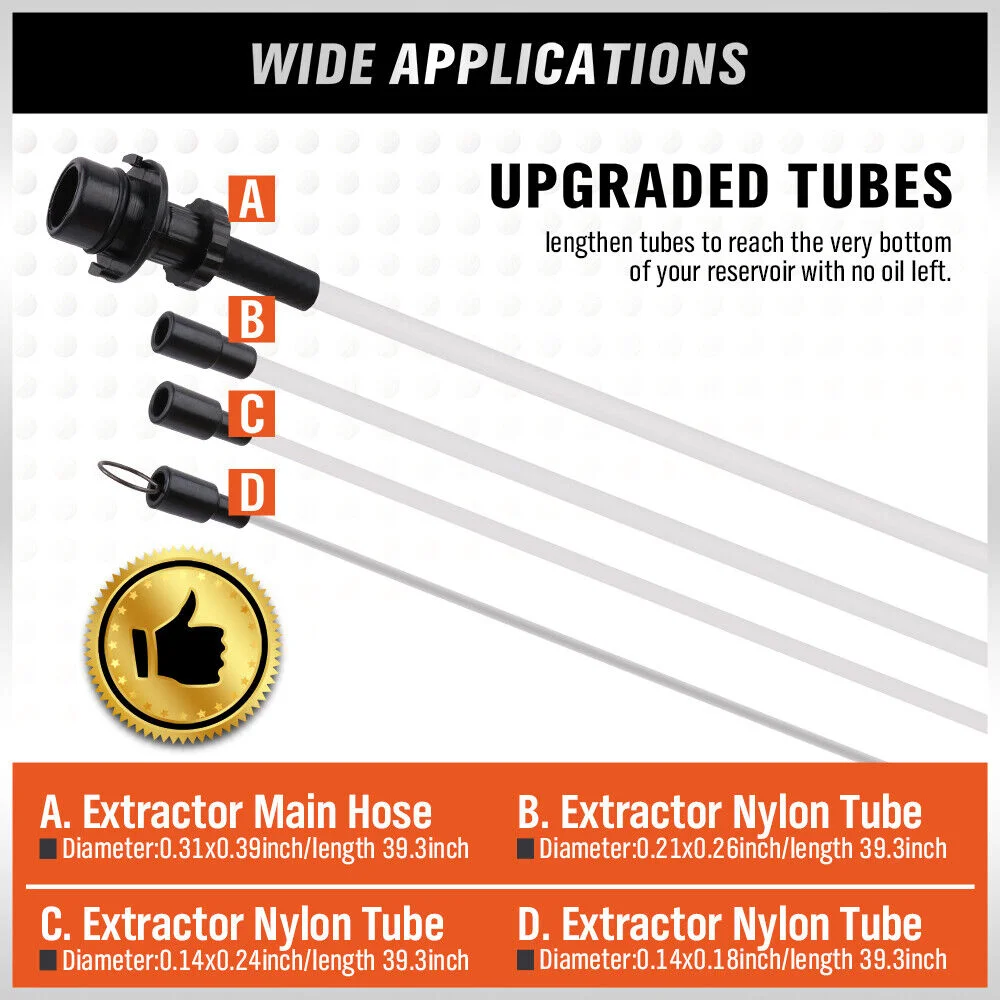

• 1x 0.31 inch suction tube
• 1x 0.21 inch suction tube
• 1x 0.14 inch suction tube
• 1x 0.14 inch brake tube
• 1x wire pipe
