12T Hydraulic Shop Press H-Frame Benchtop with Relief Valve

The 12-tonne hydraulic shop press is a heavy-duty workshop tool for removing and installing automobile bushings, bearings, ball joints, U-joints, pulleys and gears, and for metalworking tasks such as bending, straightening and stamping. Its H-frame structure and reinforced triangular base keep the press stable during demanding jobs.

Key Features

• 12-tonne (2600 lbs) rated load for heavy lifting and pressing tasks

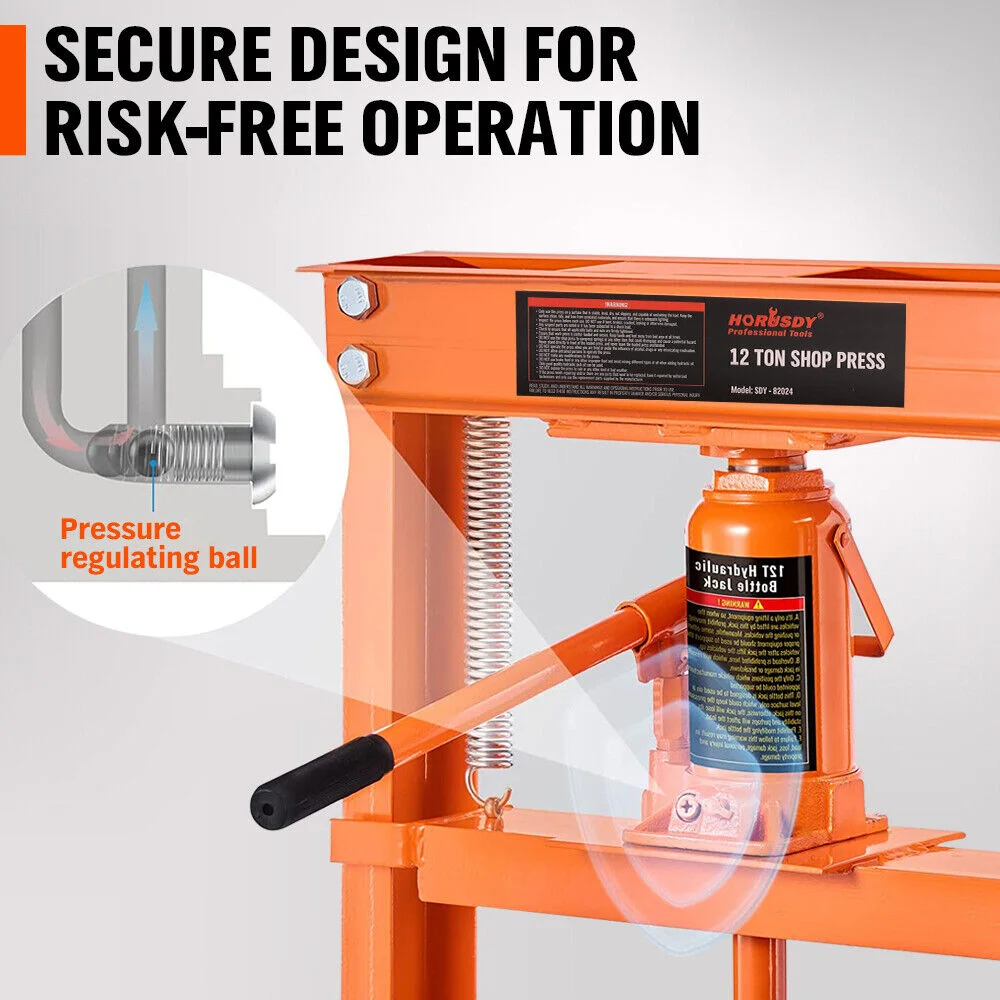

• Built-in relief valve automatically releases when pressure exceeds 12T to help prevent overpressure damage
• H-shaped frame structure provides a sturdy, stable base that resists wobble and shake

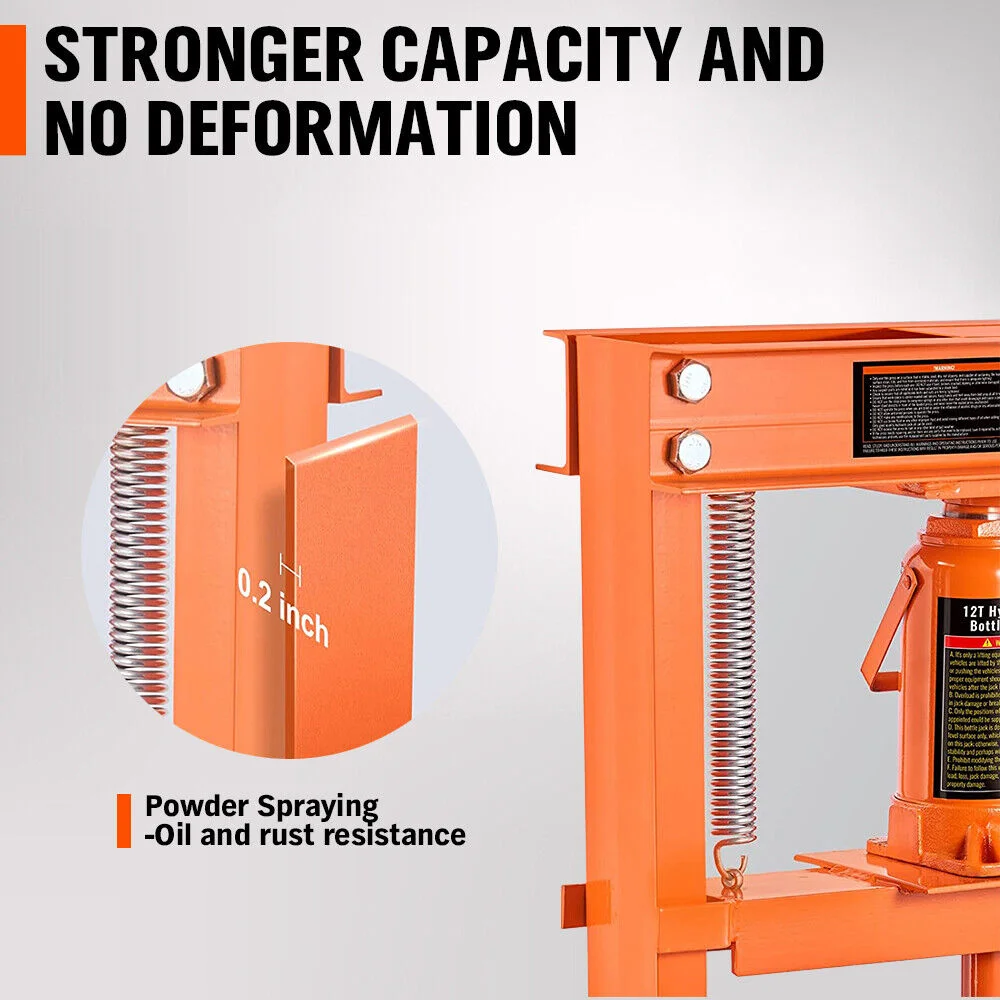

• Robust 0.2-inch carbon steel body with a powder-coated, corrosion-resistant finish that is easy to clean

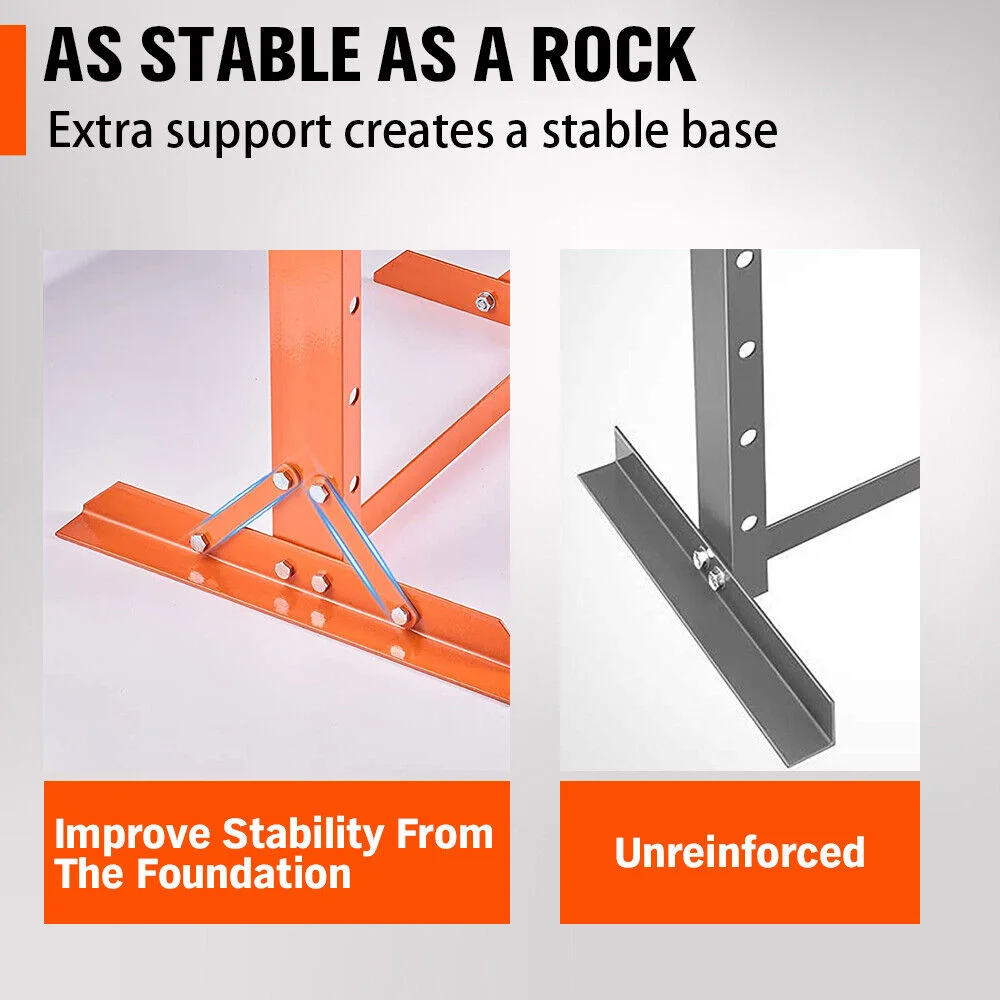

• Reinforced triangular base structure for improved stability during operation

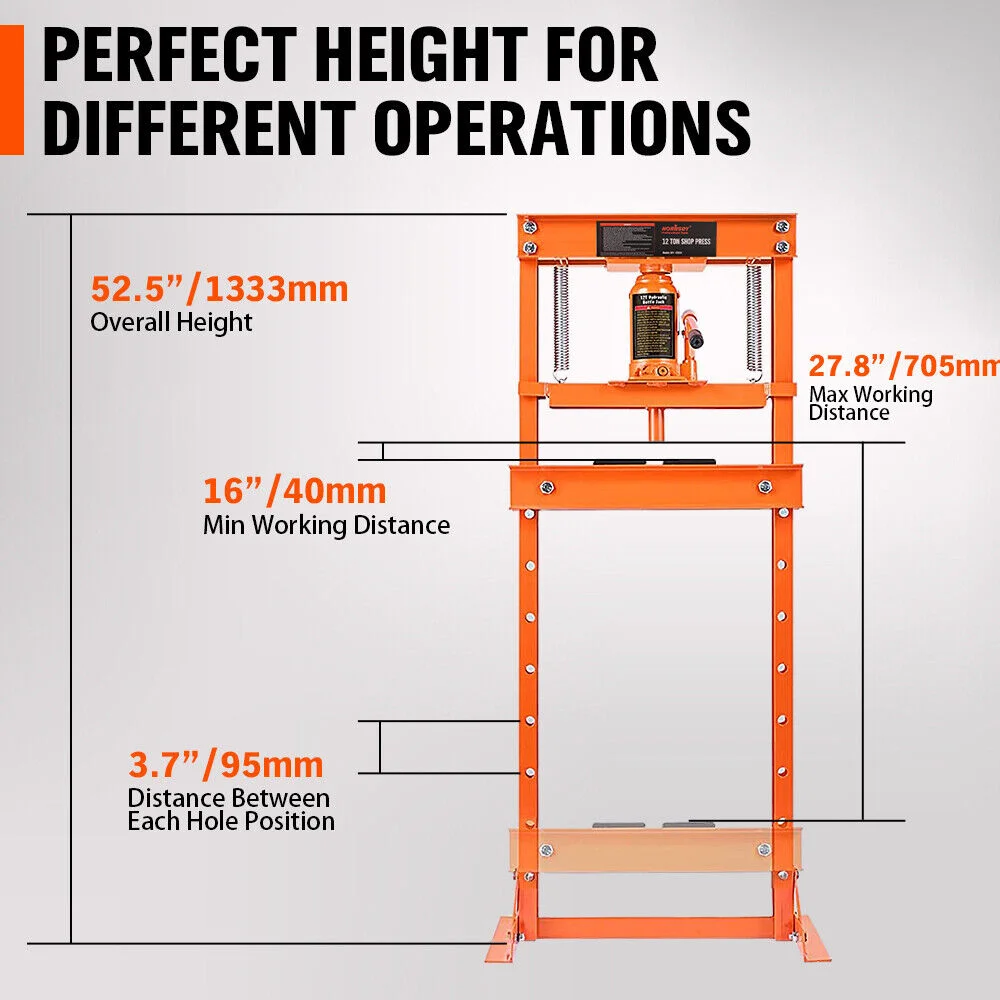

• Working height adjustable from 40 mm to 705 mm using a convenient pin system
• Two movable arbor plates for securing small parts during use

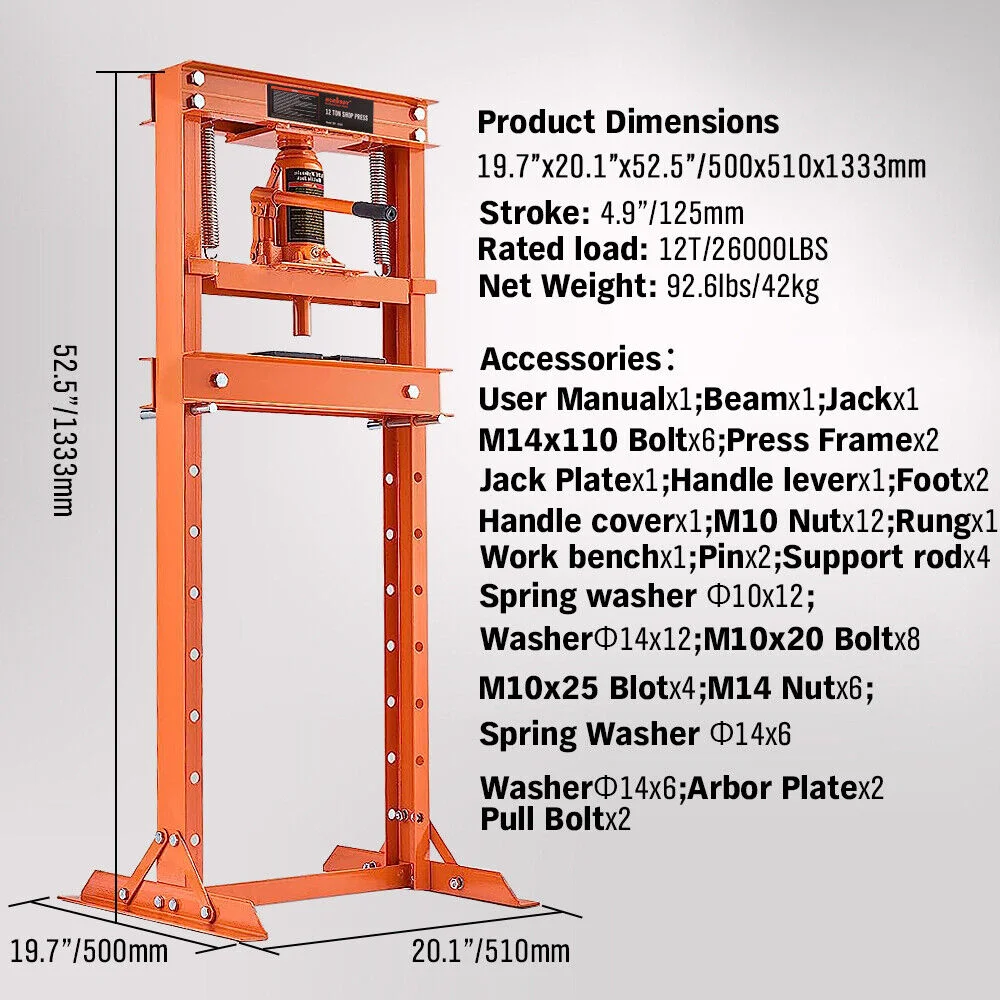

Specifications

• Rated load: 12T / 2600 lbs
• Stroke: 4.9 in / 125 mm
• Dimensions: 19.7 x 20.1 x 52.5 in / 500 x 510 x 1333 mm
• Net weight: 92.6 lbs / 42 kg
• Working height range: 40 mm to 705 mm

What's in the Box

• User manual x1
• Beam x1
• Jack x1
• Press frame x2
• Jack plate x1
• Handle lever x1
• Handle cover x1
• Foot x2
• Rung x1
• Work bench x1
• Pin x2
• Support rod x4
• Arbor plate x2
• Pull bolt x2
• M14x110 bolt x6
• M10 nut x12
• M10x20 bolt x8
• M10x25 bolt x4
• M14 nut x6
• Spring washer 10 x12
• Washer 14 x12
• Spring washer 14 x6
• Washer 14 x6
