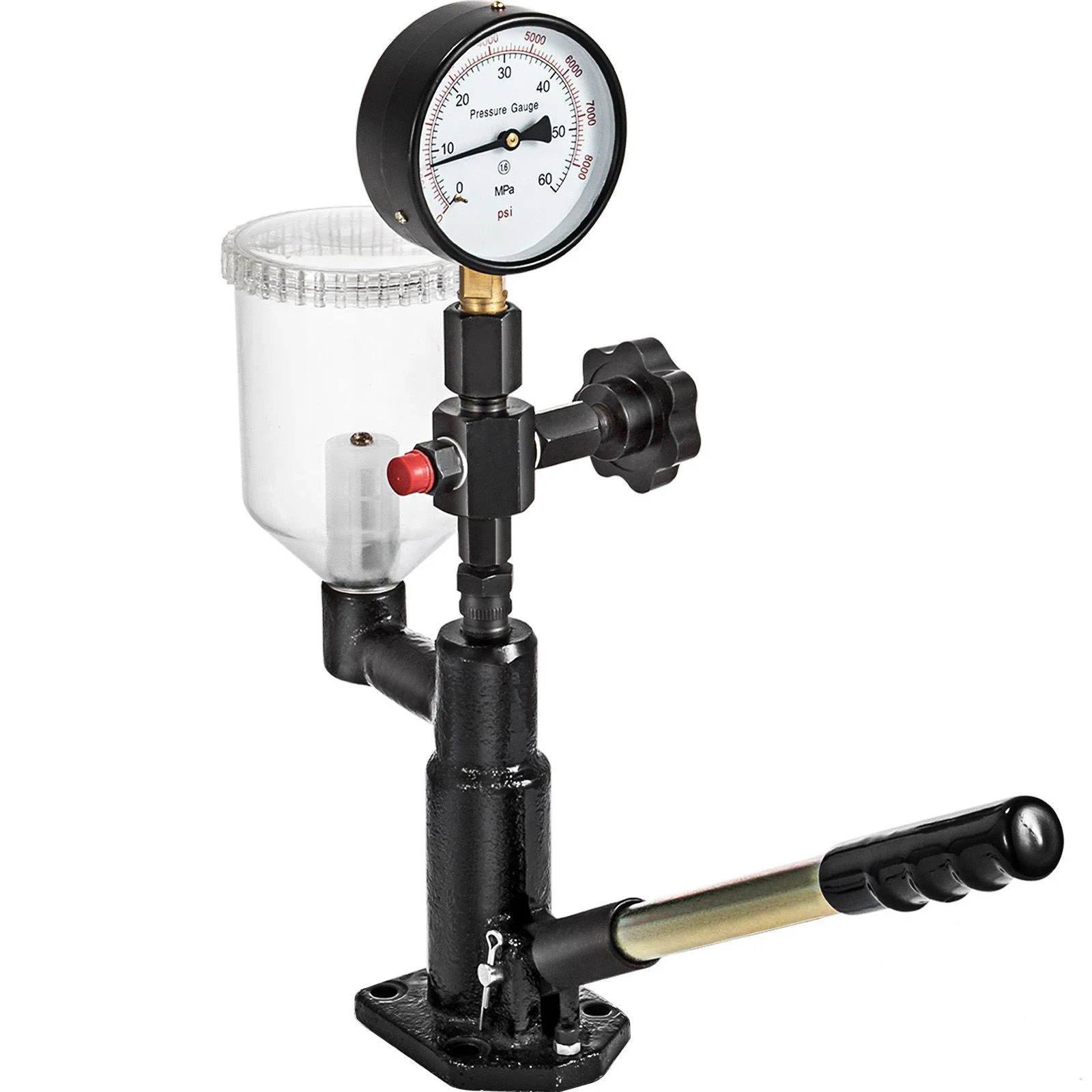

VEVOR Diesel Injector Nozzle Pressure Tester 0-600 Bar Dual Scale Manometer

The VEVOR diesel injector nozzle pressure tester is a workshop tool for checking injection nozzle opening pressure, leakage, chattering, spray pattern and atomisation. Its dual scale manometer reads 0-600 bar (0-8000 psi) with a maximum test pressure of 60 MPa.

Key Features

• Premium aluminium construction with a casting process for increased durability and rigidity
• Plastic fuel cup to contain the fuel
• Stainless pressure gauge for precise air pressure readings
• Precision dual scale gauge with a 100 mm dial and 3/8" BSP thread
• Transparent 0.8 L fuel measuring cup with filter to help conduct a range of injector nozzle tests
• Capable of injection nozzle opening pressure test, leakage test, chattering test, and inspection of spray pattern and atomisation
• Suitable for calibrating fuel injectors on diesel engines in automobiles and tractors
• Suitable for all types of diesel injectors except CRDI Common Rail Diesel Injectors

Specifications

• Measuring range: 0-600 bar / 0-8000 psi
• Maximum test pressure: 60 MPa
• Dial size: 100 mm
• Gauge thread: 3/8" BSP
• Fuel cup capacity: 0.8 L oil
• Fuel cup filter: 5-micron original Bosch filter
• Connection nuts: A and B type with m.m. size nuts (12 x 1.5) and (14 x 1.5)

What's in the Box

• 60 MPa pressure gauge
• Handle
• High-pressure pipes
• A and B type connection nuts (12 x 1.5) and (14 x 1.5)
• 0.8 L fuel cup with 5-micron original Bosch filter
• Piston/element
• Delivery valve
• Two extra oil pipes
