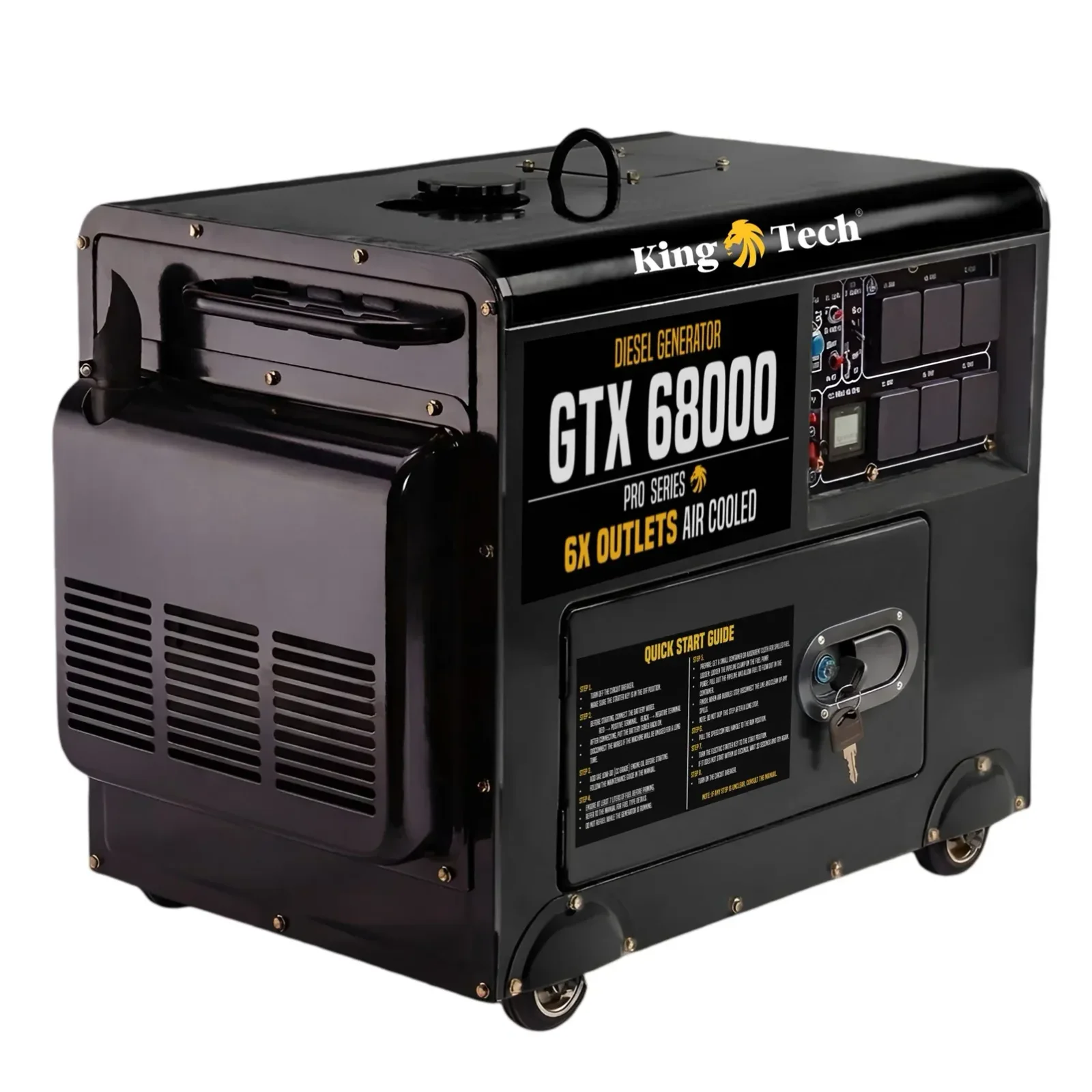

King Tech GTX68000 Portable Diesel Generator 8.4kVA Max 6kVA Rated 13HP

The King Tech GTX68000 portable diesel generator delivers dependable single-phase power for worksites, farms, caravans and home backup. With 8.4 kVA maximum output, a 13 HP diesel engine and a super-silent 74 dB enclosure, it runs tools and appliances quietly for up to 8 hours on a 15 L tank.

Key Features

• 8.4 kVA max output and 6 kVA continuous output for tools, equipment and home backup
• 13 HP single-cylinder diesel engine for dependable, long-life performance
• Super-silent enclosure rated 74 dB at 7 m

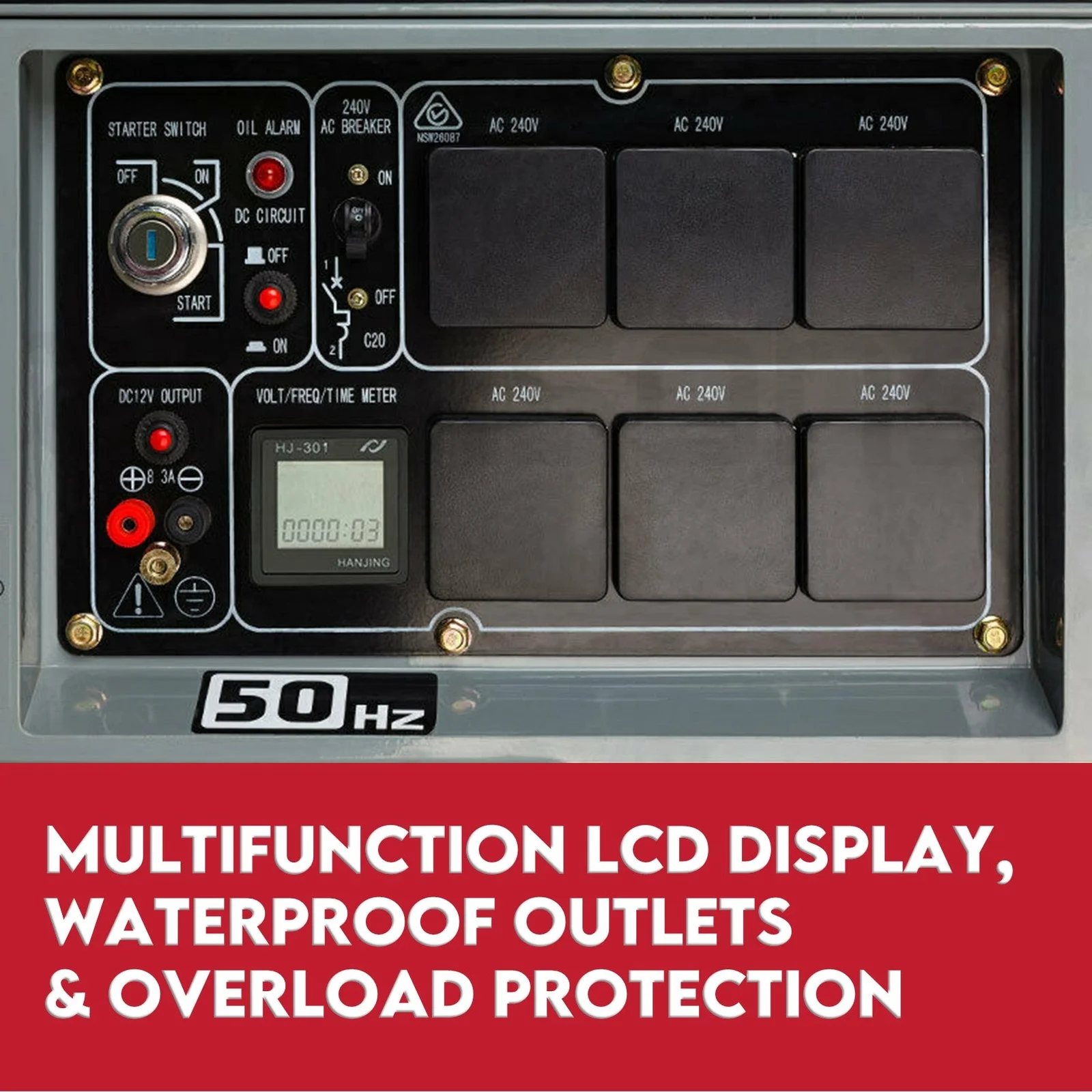

• 6 × 240 V AC outlets plus 12 V DC (8.3 A) output
• Fuel-efficient 15 L tank with up to 8 hours run time (usage dependent)
• Electric start for easy ignition
• Digital AVR (automatic voltage regulation) for steadier output under load
• Fail-safe protection with low-oil, overload and over-temperature shutdowns

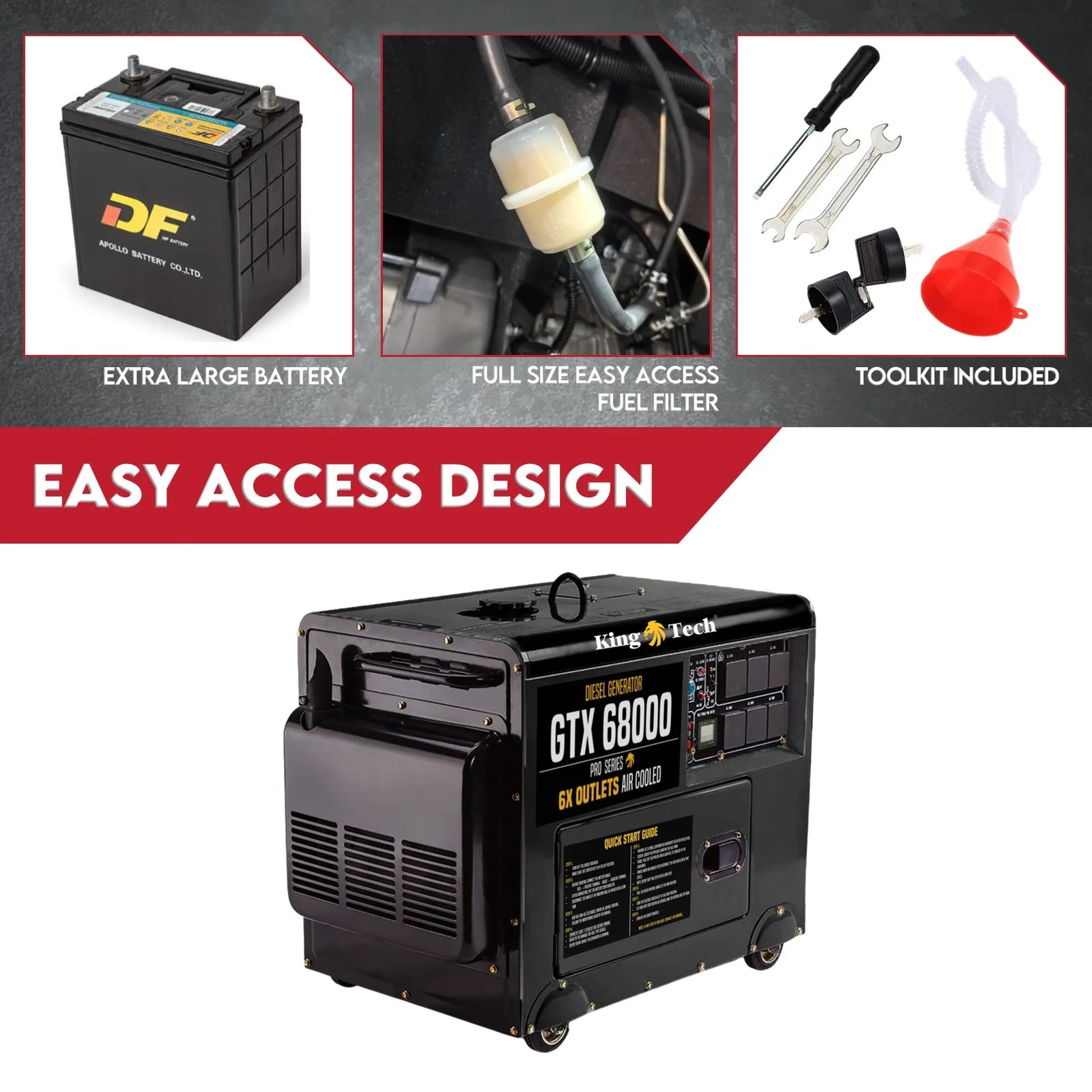

• Easy-access service points for filters, fluids and battery
• Air-cooled 4-stroke, direct-injection diesel engine
• Rated continuous operation of 4 hrs at 100% load or 6 hrs at 50% load
• Built-in key lock system for safe, authorised operation
• Suitable for home backup, worksites, farms and RVs

Specifications

• Max output: 8.4 kVA / 8400 W
• Continuous output: 6.0 kVA / 6000 W
• AC voltage / frequency: 240 V / 50 Hz
• DC output: 12 V — 8.3 A
• Engine type: single-cylinder, 4-stroke, air-cooled, direct-injection diesel
• Engine power: 13 HP at 3600 rpm
• Displacement: 460 cc
• Fuel tank capacity: 15 L
• Rated continuous operation: 4 hrs at 100% load / 6 hrs at 50% load
• Noise level: 74 dB at 7 m
• Alternator / regulation: permanent brush magnet with digital AVR
• Weight: 159 kg
• Starting system: electric start

Important Notes

• Continuous rated output is the reliable power this generator provides — use this when sizing your needs.
• Power from generators can fluctuate ±8%. Use a suitable surge protector for sensitive electronics.
• A qualified electrician is required to carry out termination to your DB.
• Use only commercially available diesel fuel and recommended engine oils.
