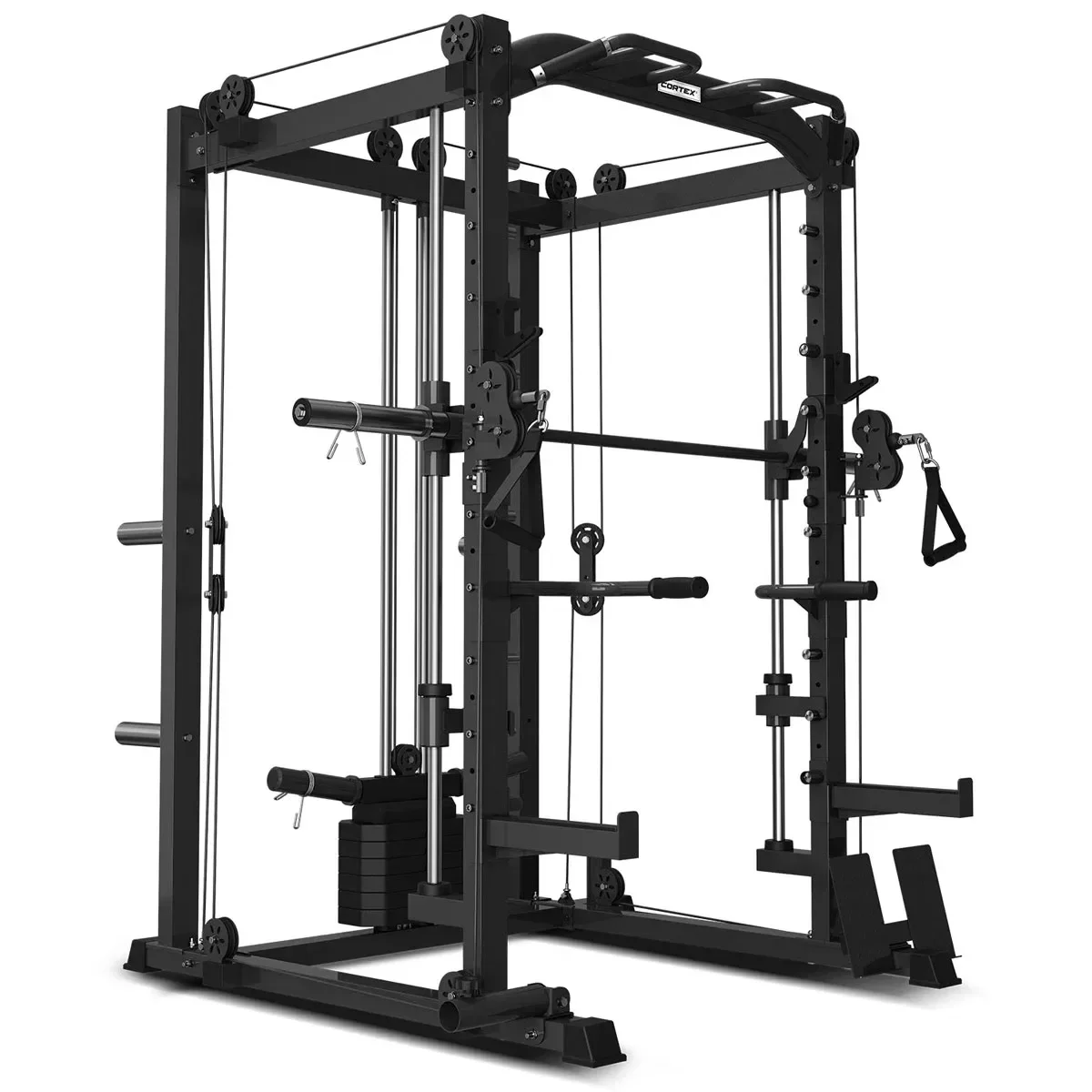

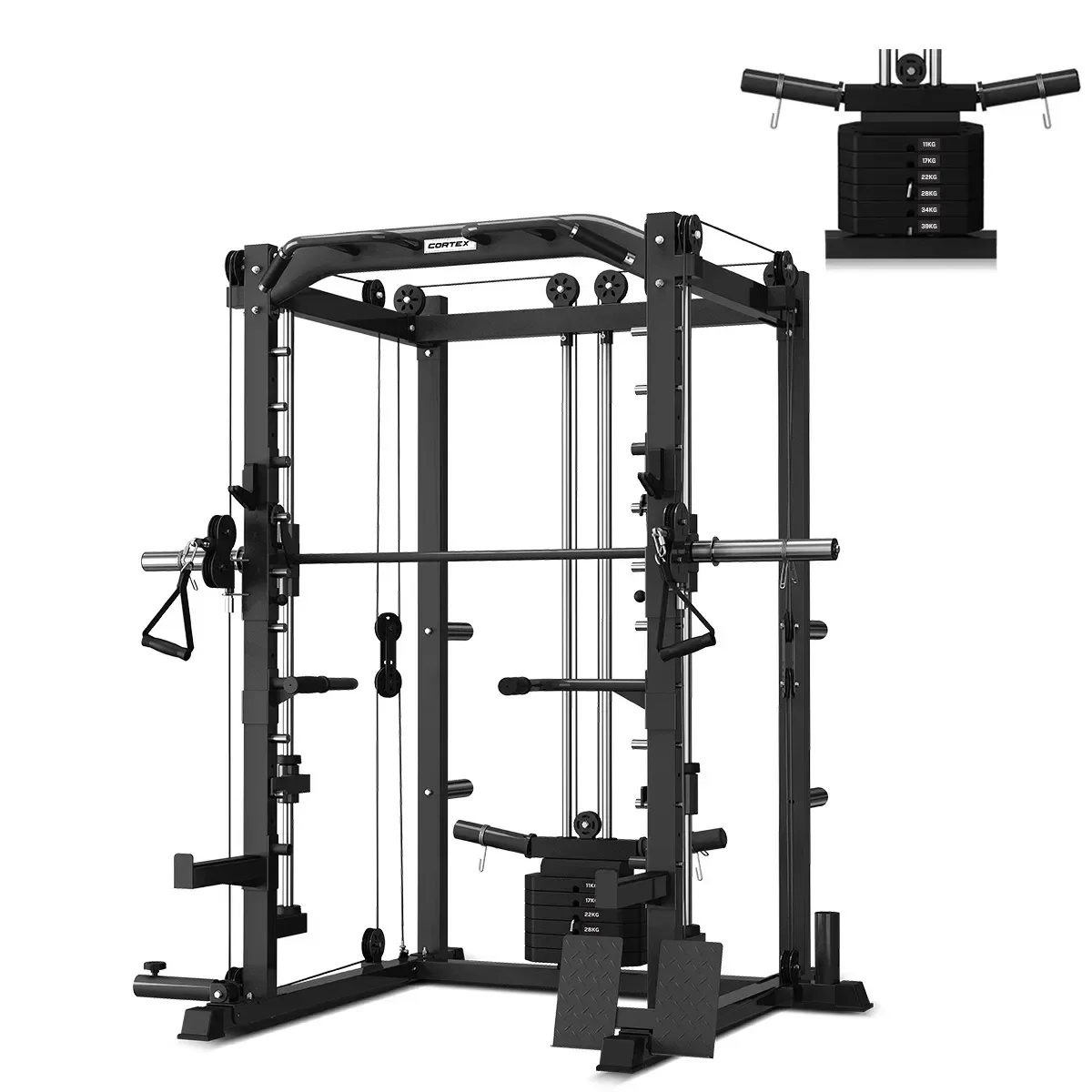

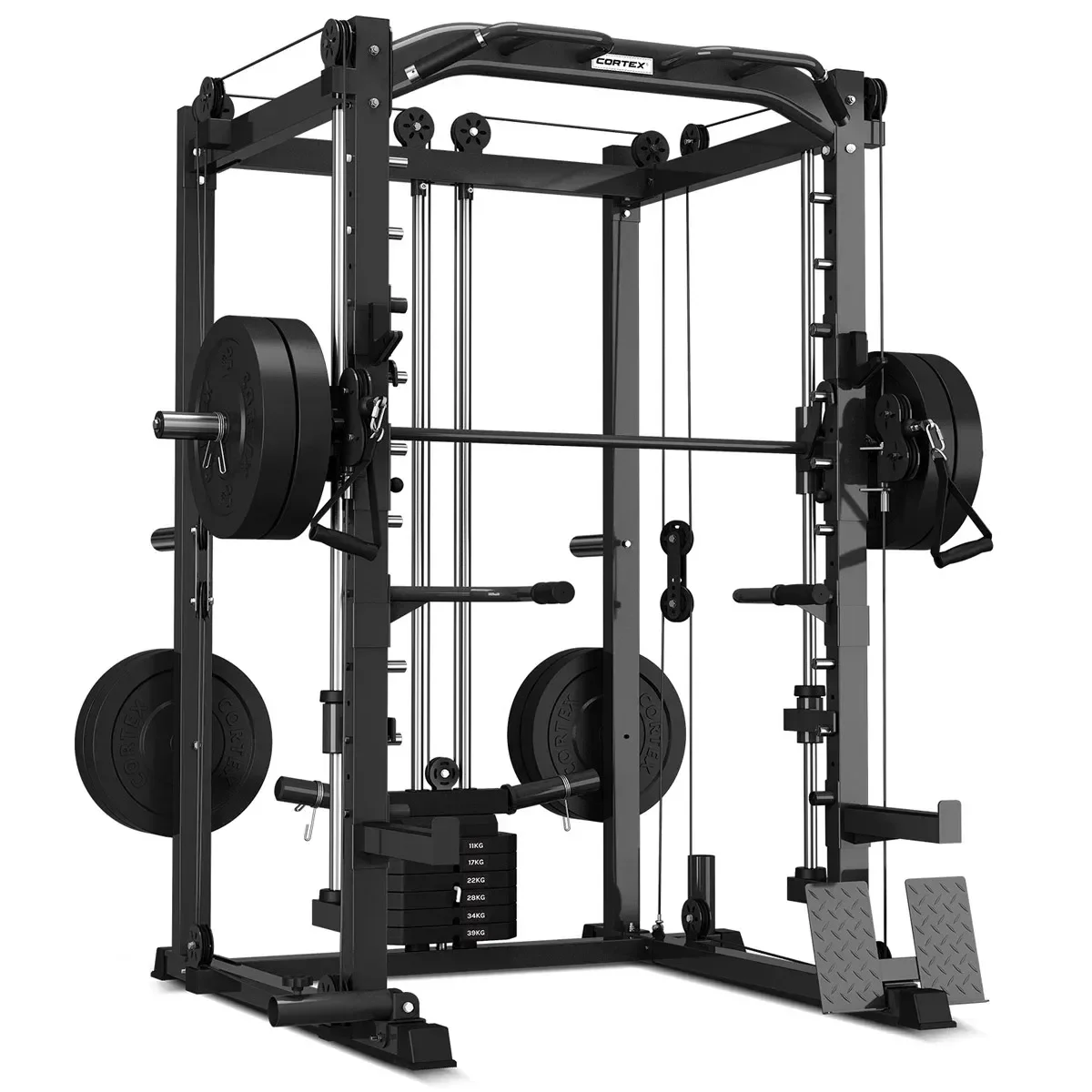

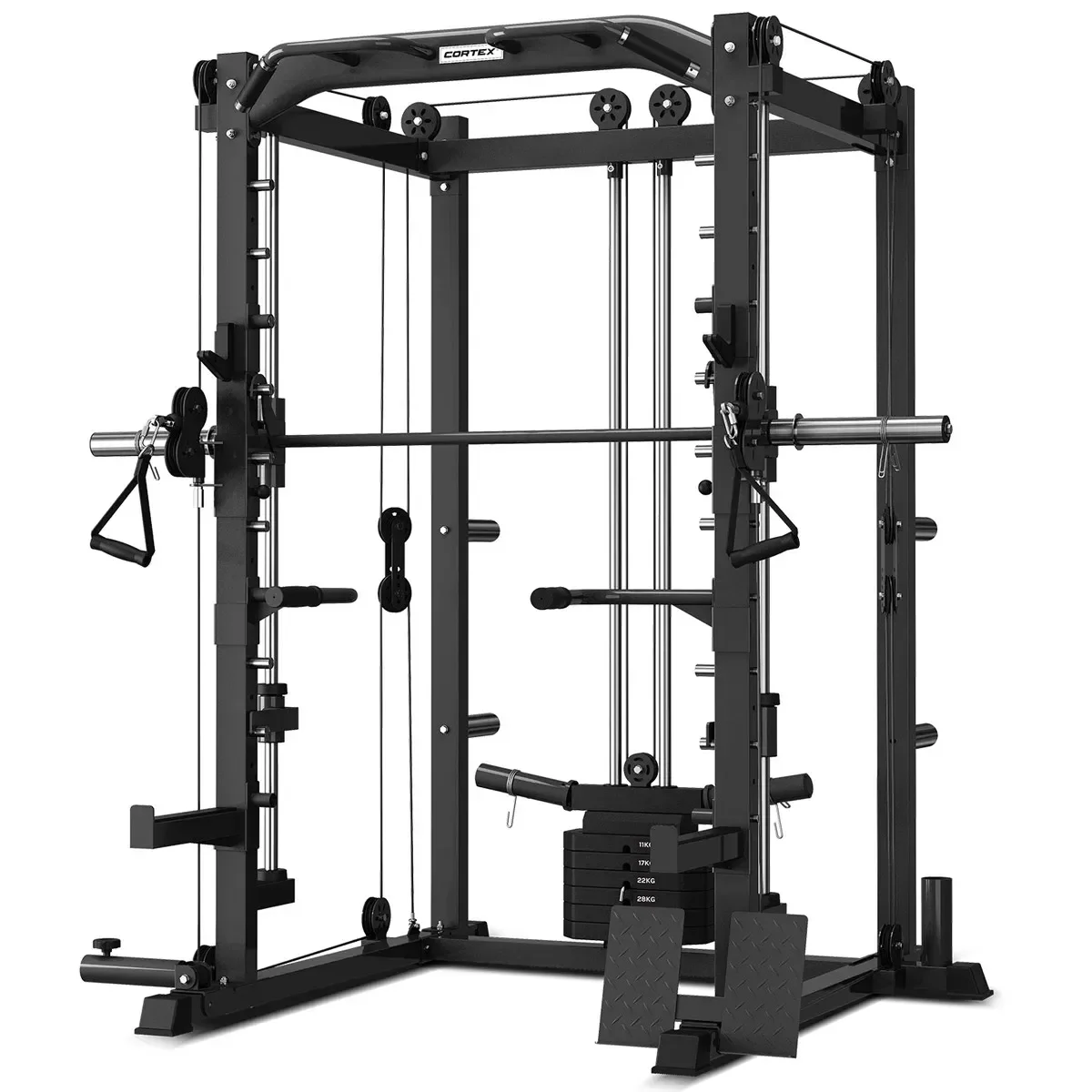

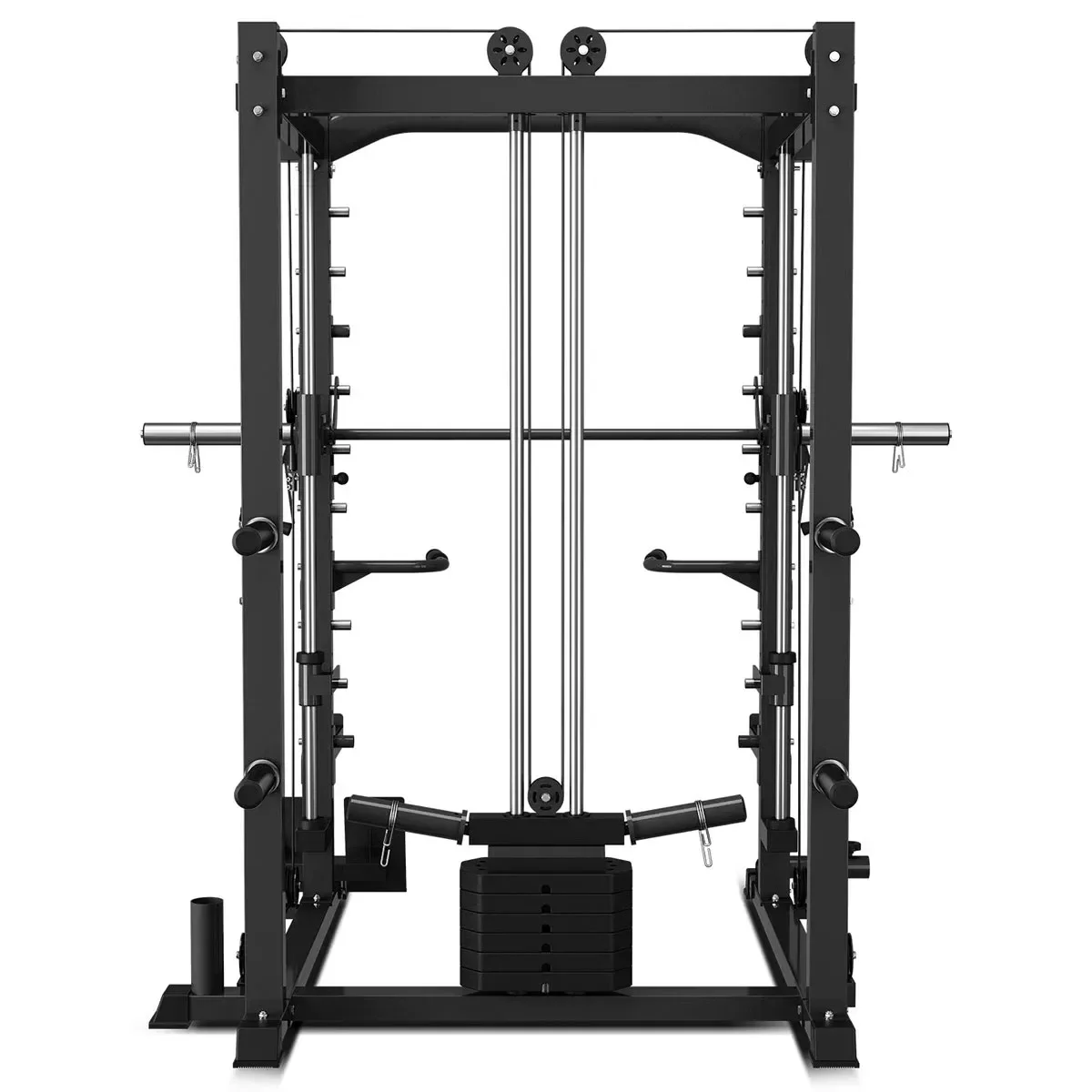

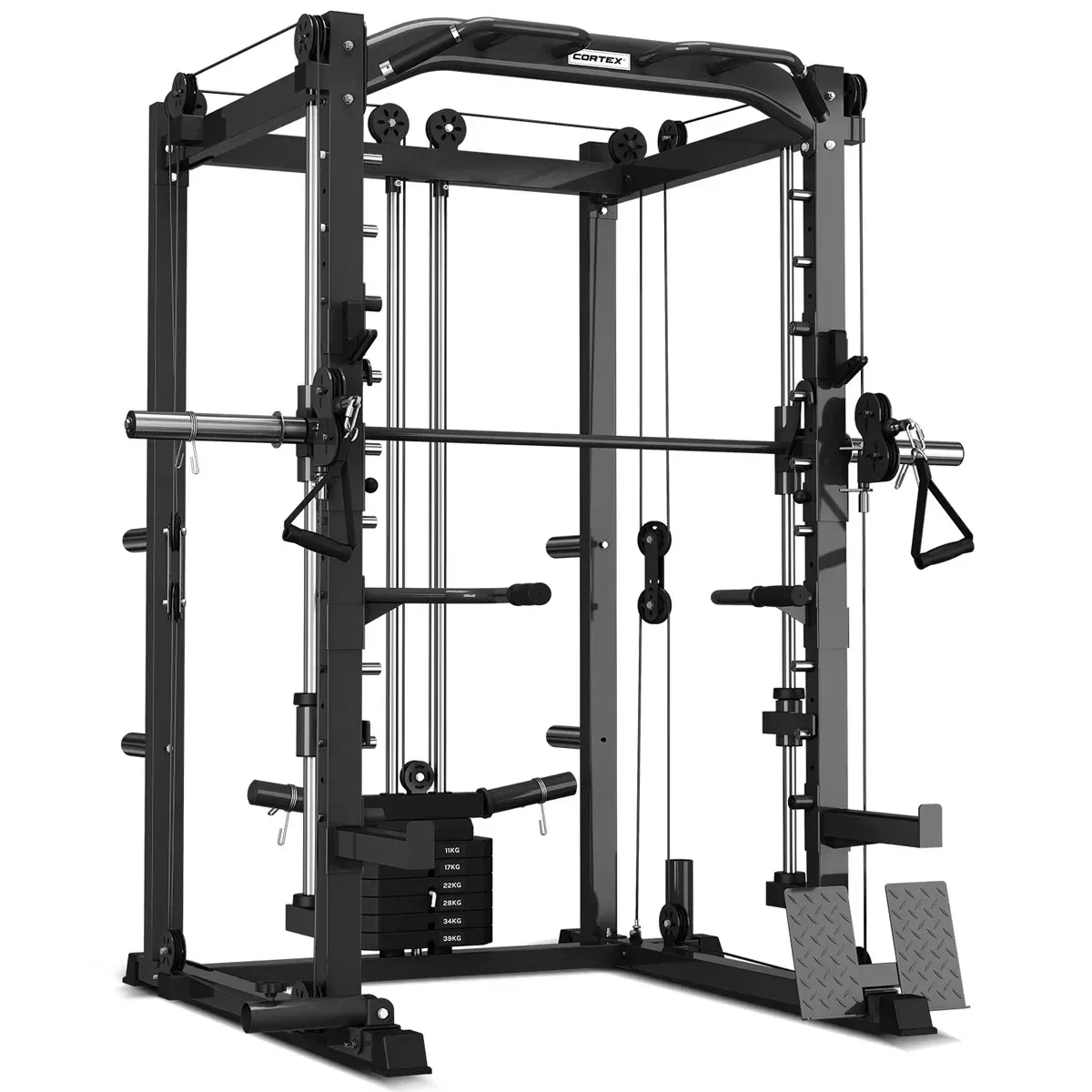

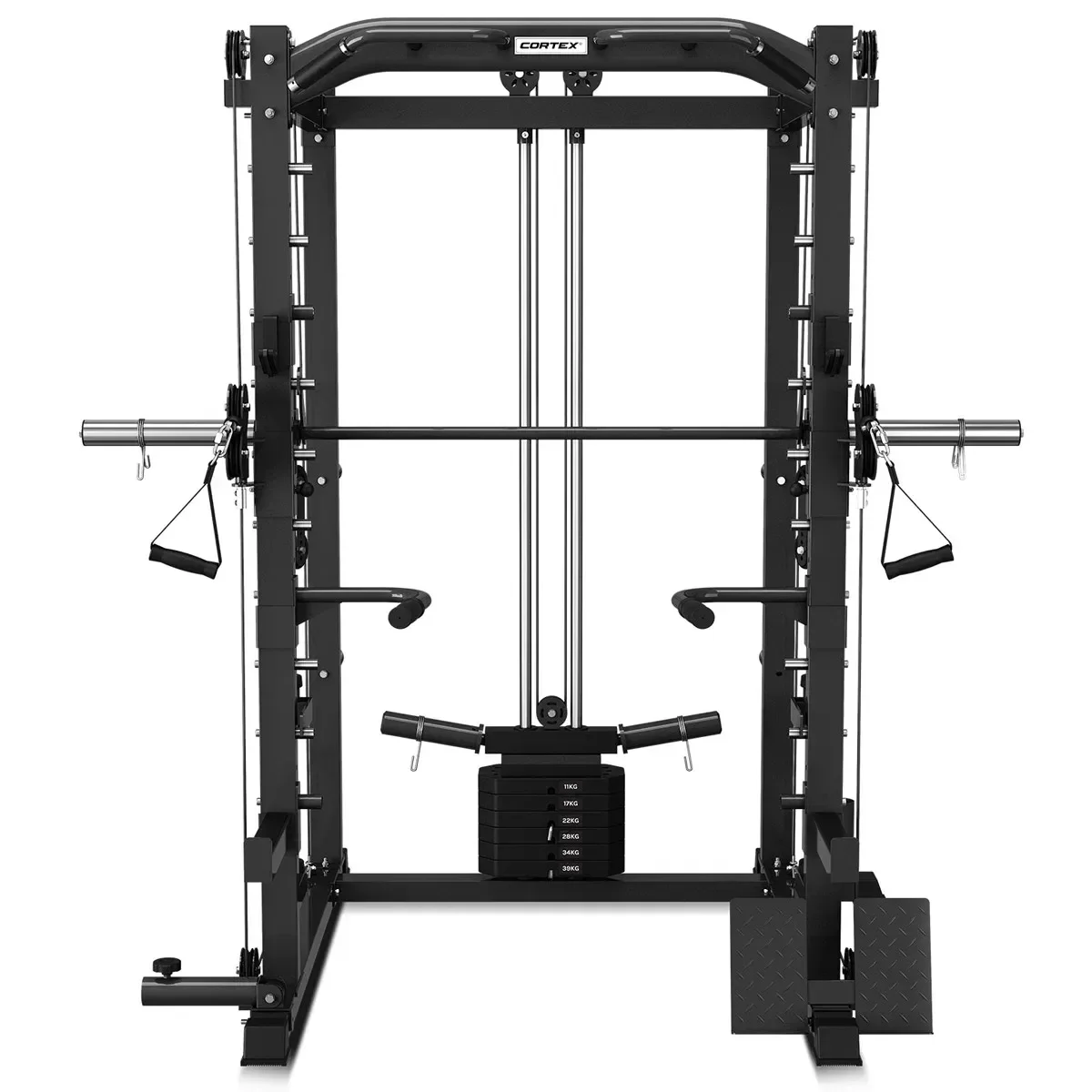

Cortex SM-20 6-in-1 Power Rack with Smith Machine & Cable Machine

The Cortex SM-20 is a 6-in-1 power rack that combines a Smith machine, cable pulley machine, half rack, landmine, chin-up bar and dip station in one compact strength training setup. With an adjustable weight stack and multiple safety features, it suits a wide range of fitness levels and training styles.

Key Features

• Multifunctional 6-in-1 design: Smith machine, power rack, barbell landmine, chin-up, dips and weight storage

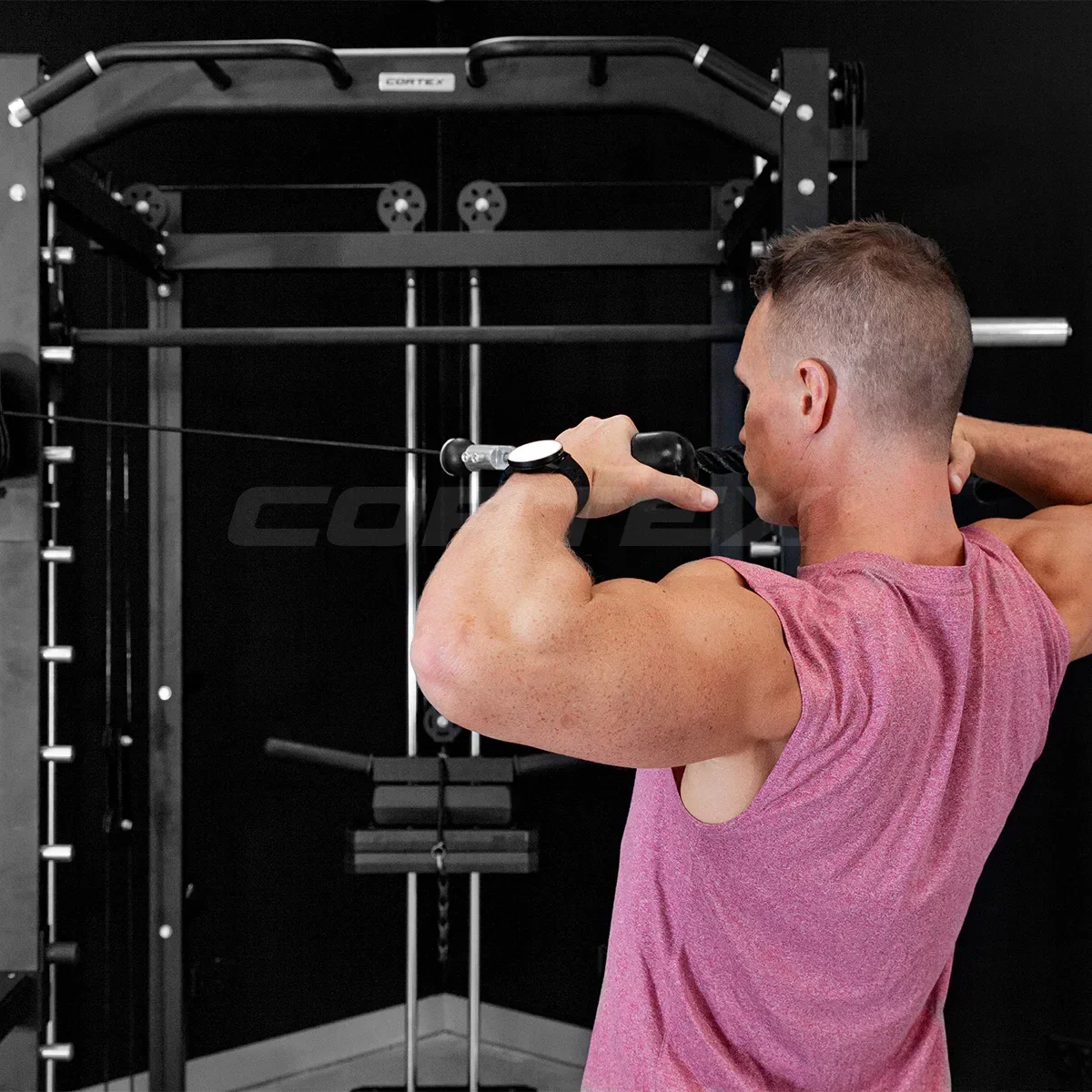

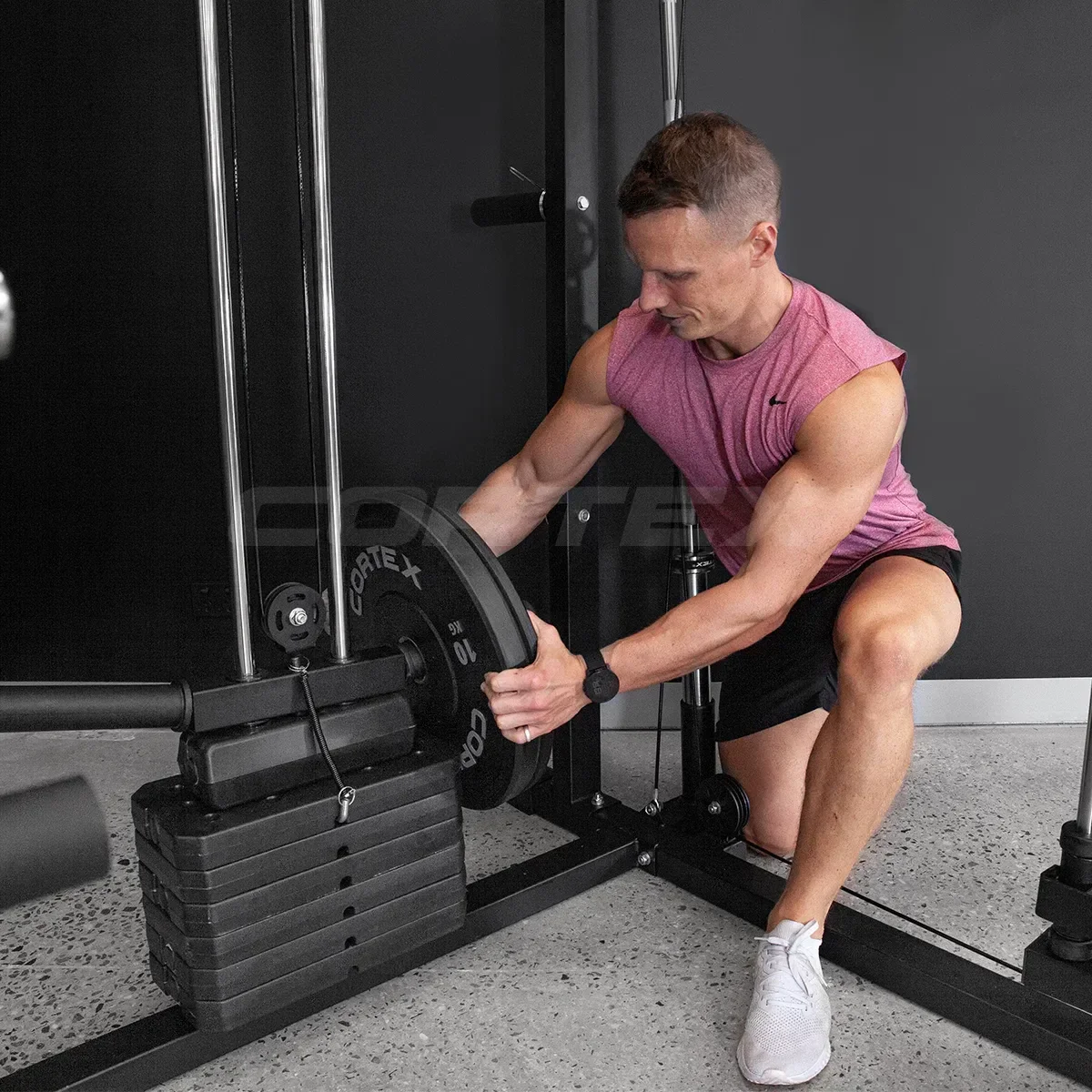

• Adjustable cable pulley machine with a 45kg weight stack and additional weight plate intake (25/50 mm weight plate)

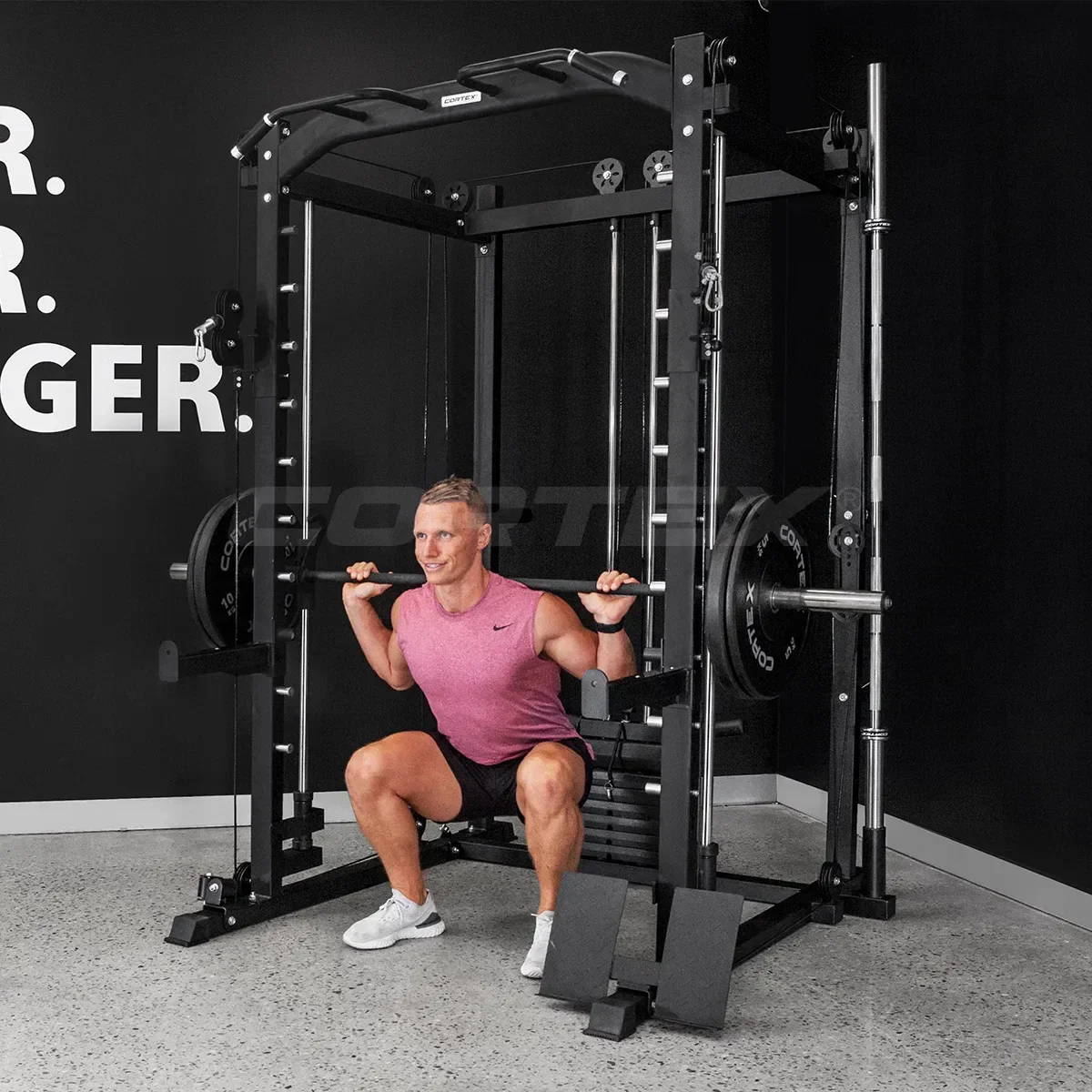

• 203cm Smith machine/guided Smith barbell with Olympic 50mm intakes
• Cable ratio 2:1 — unilateral pulley ratio 0.46; bilateral pulley ratio 0.92
• Two adjustable safety spotters with rubberised bearing surface

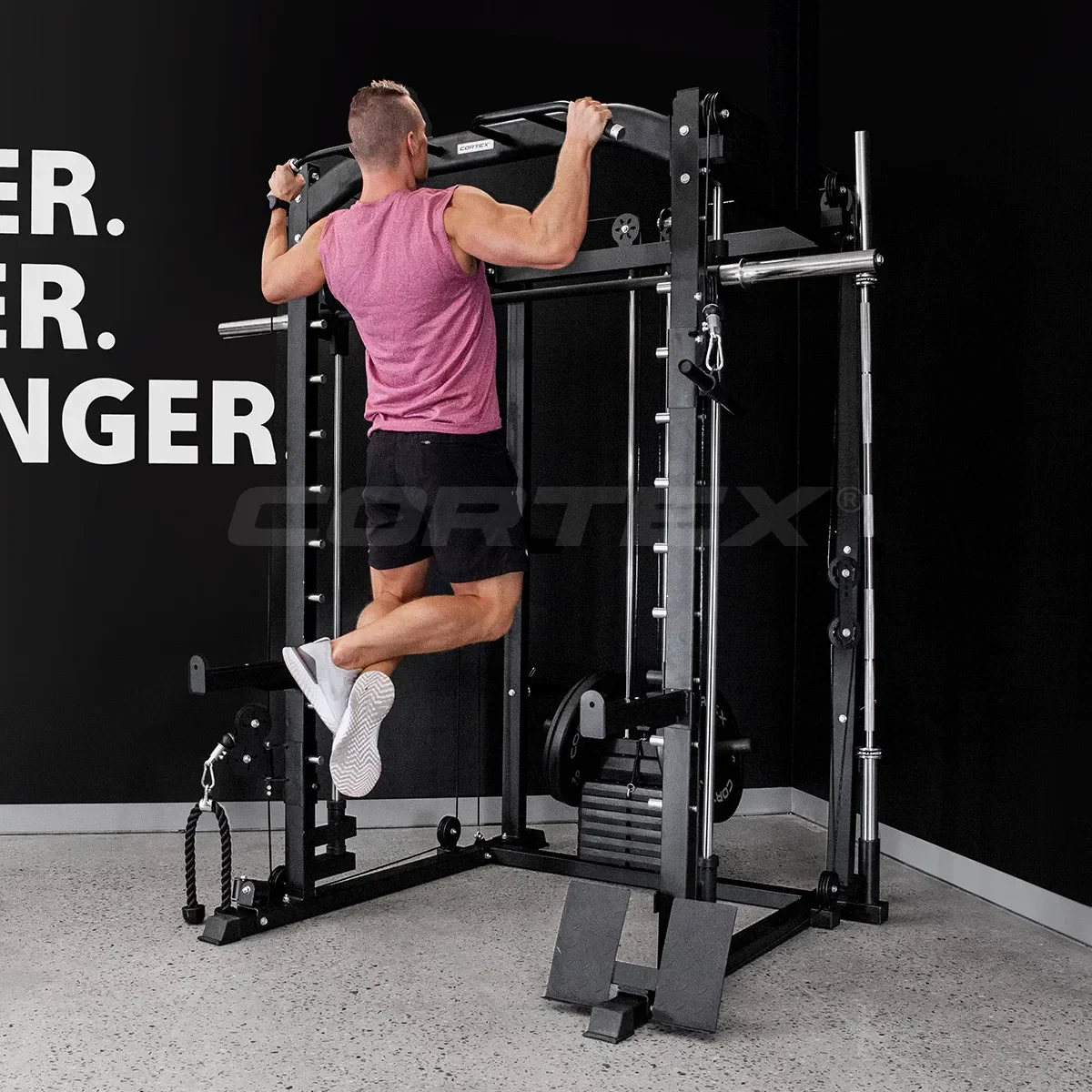

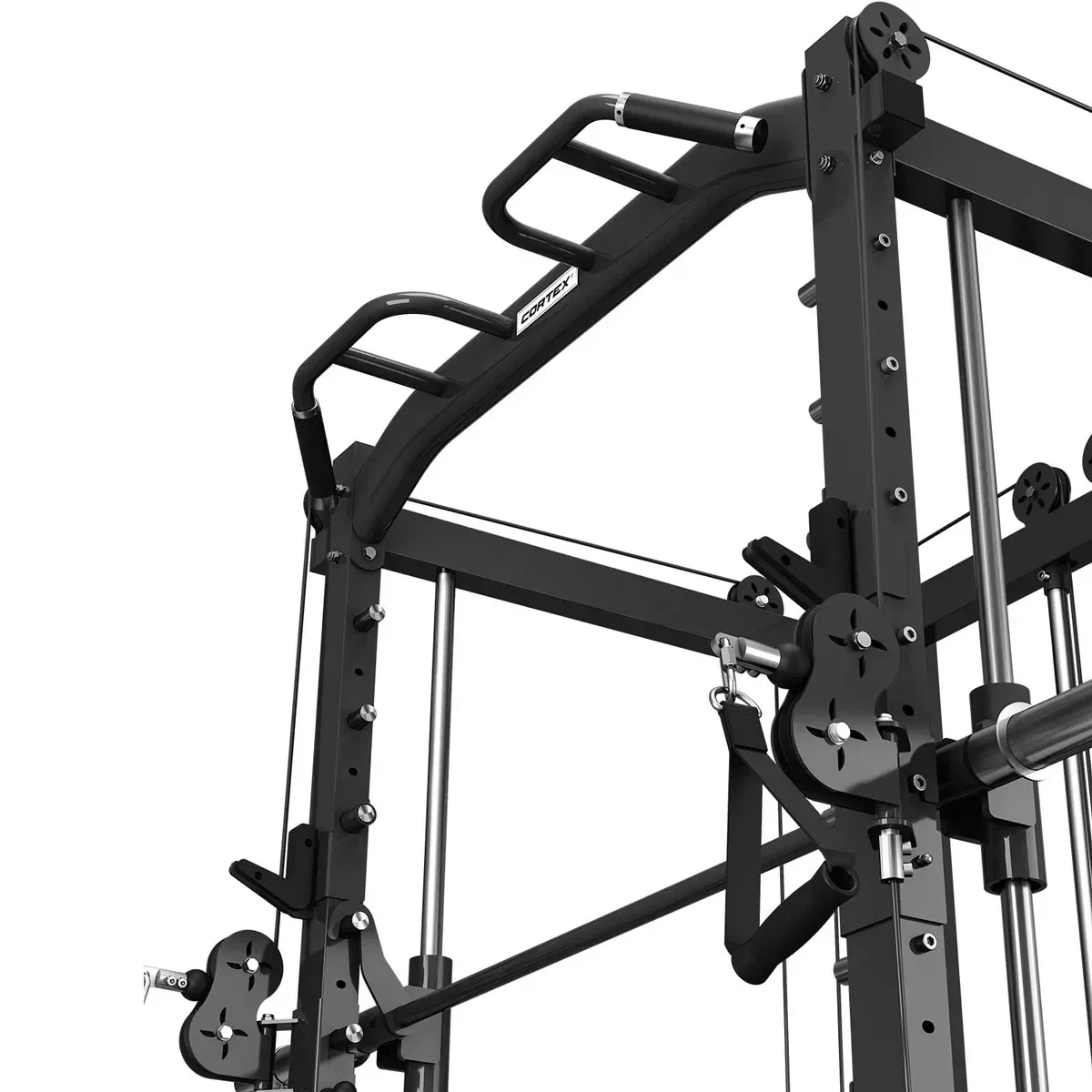

• Multi-grip double chin-up bar with two handle options
• Height adjustable dip bars that can be removed

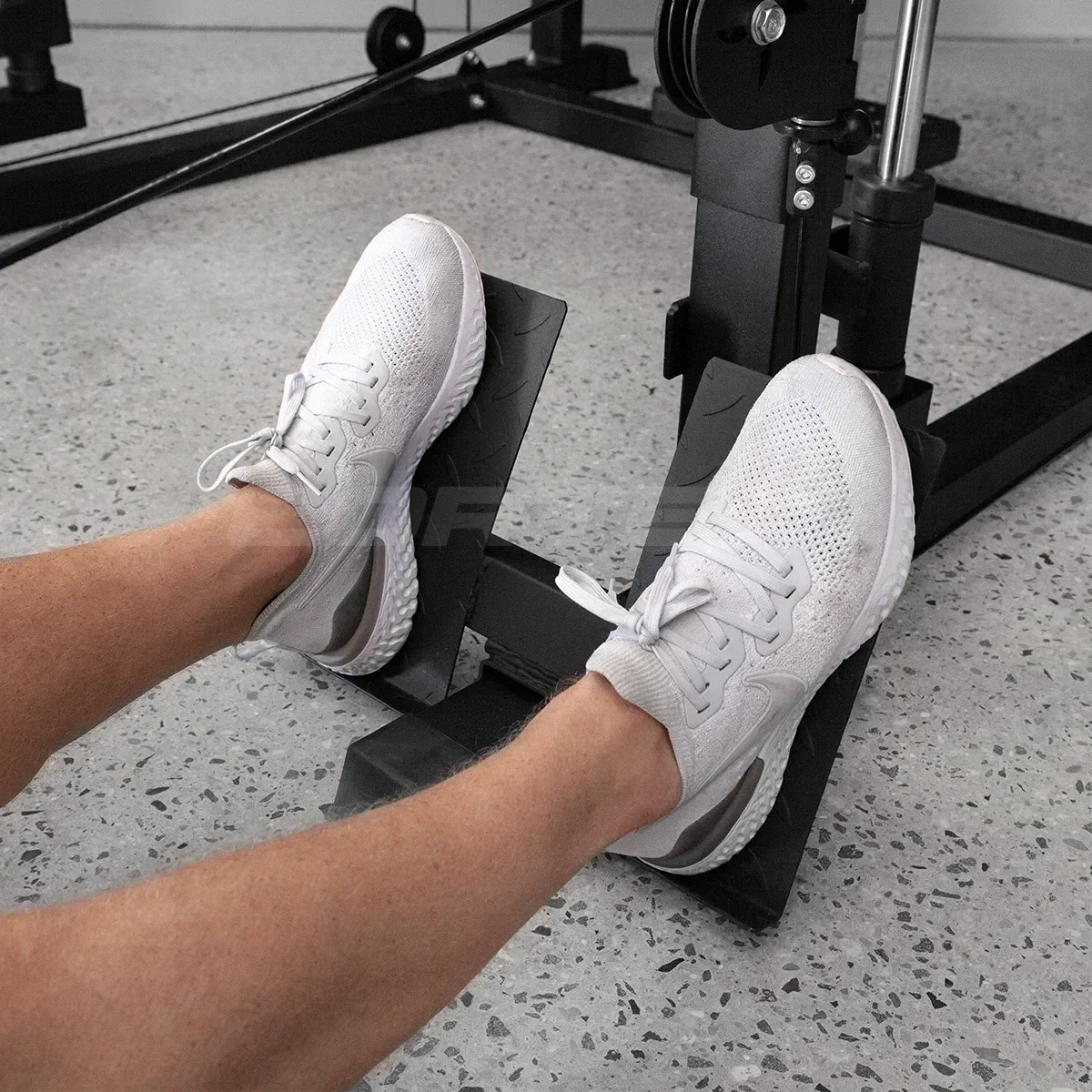

• Foldable foot plates
• Height adjustable Smith machine spotter
• Two J-hooks with rubber bearing surface

Specifications

• Occupancy size: 203cm x 170.4cm x 211cm (L x W x H)
• Bottom feet only: 160cm x 150cm (L x W)
• Rear weight storage column length: 28cm
• Net weight: 181kg
• 10 height positions for safety spotter and J-hooks
• 10 height positions for Smith machine bar
• Smith barbell weight: 16kg
• 350mm long safety spotter arm
• Weight stack weights: 1x top plate with rod 5.8kg, 1x small plate 5kg, 6x large plate 5.7kg
• 4 weight storage pegs (50mm plates only), 50kg per post
• Material: powder-coated 16-gauge steel (1.5mm)
• Load-bearing capacity control cable: max. 100kg per side
• Load-bearing capacity safety spotter: max. 200kg
• Load-bearing capacity J-hooks: max. 180kg
• Load-bearing capacity weight disc holder: 50kg
• Load-bearing capacity pull-up bar: max. 200kg
• Load-bearing capacity dip handles: 120kg
• Load-bearing capacity Smith barbell: 150kg

Warranty

• 12 months parts replacement warranty
