Della Francesca 90cm Frameless Diamond Shower Screen Brushed Gold F-Brackets

The Della Francesca 90cm frameless diamond shower screen brings a striking diamond corner configuration to your bathroom while making smart use of the available shower space. Crafted from 10mm tempered safety glass and finished with brushed gold hardware, it pairs a sleek frameless look with smooth dual-action operation.

Key Features

• Diamond corner configuration creates an elegant centrepiece and optimises shower space
• Frameless design removes hard-to-clean channels and corners for easier maintenance
• 10mm tempered safety glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25 degree position and centre within 25 degrees

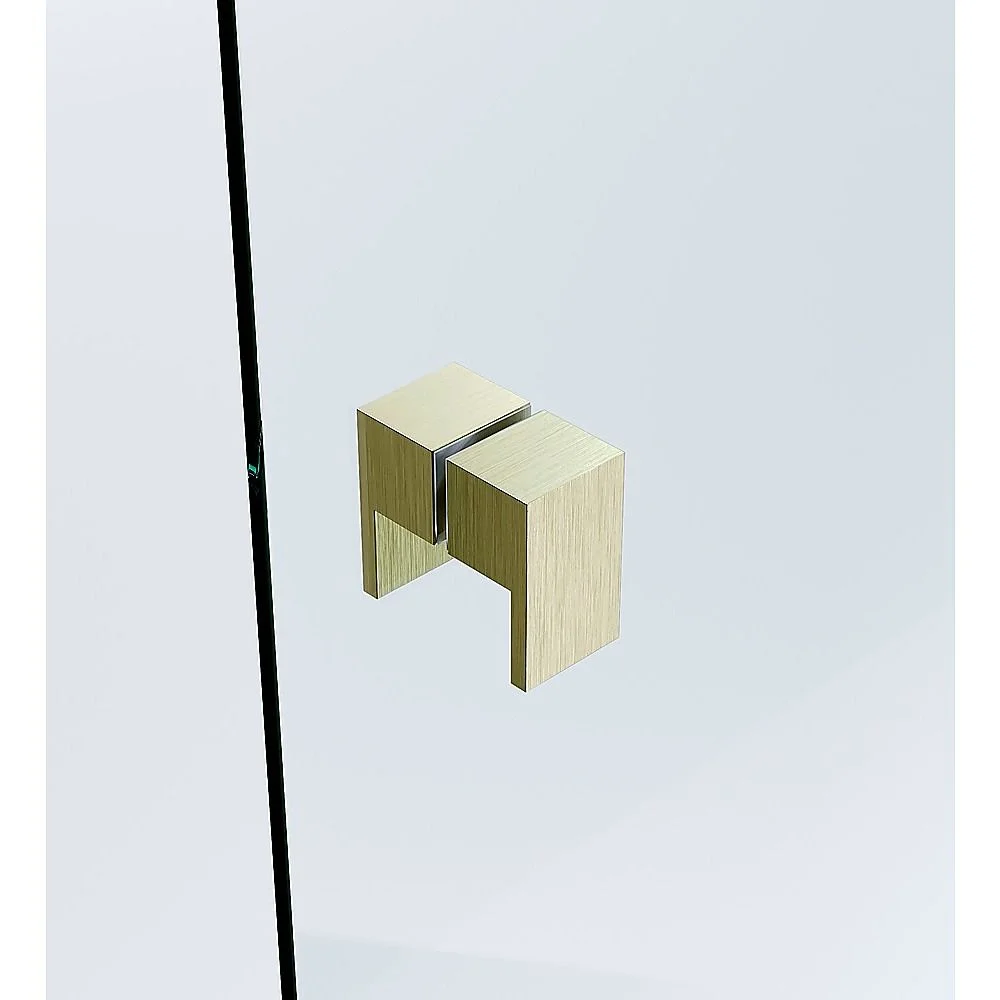

• Solid brass double pull handle with a smooth, rust- and corrosion-resistant finish
• Offset F-brackets secure the glass without drilling, using two compression/friction screws
• Slimline 2mm rear wall on the brackets helps minimise the gap for a neater silicone joint

Specifications

• Size: 90cm
• Colour: Gold
• Bracket type: F-brackets
• Handle type: Square double pull

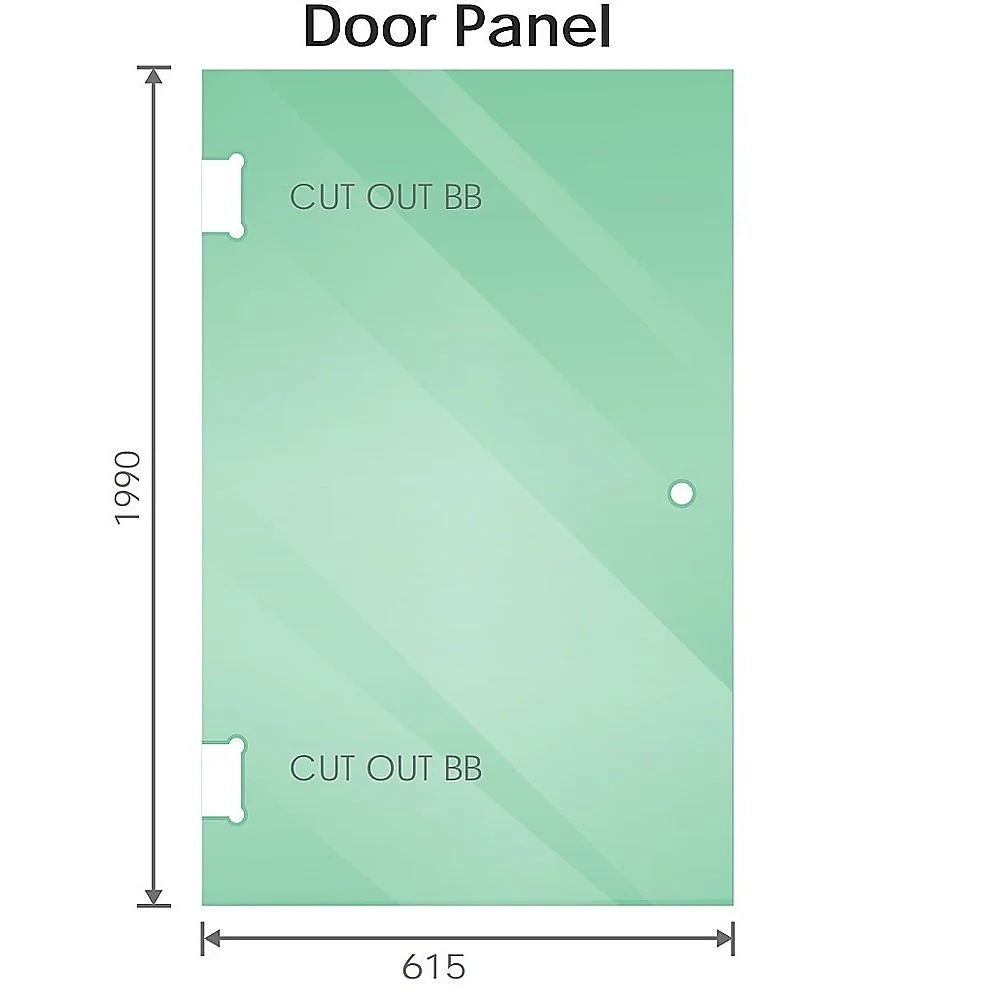

• Door panel: 615 x 1990mm, 10mm glass

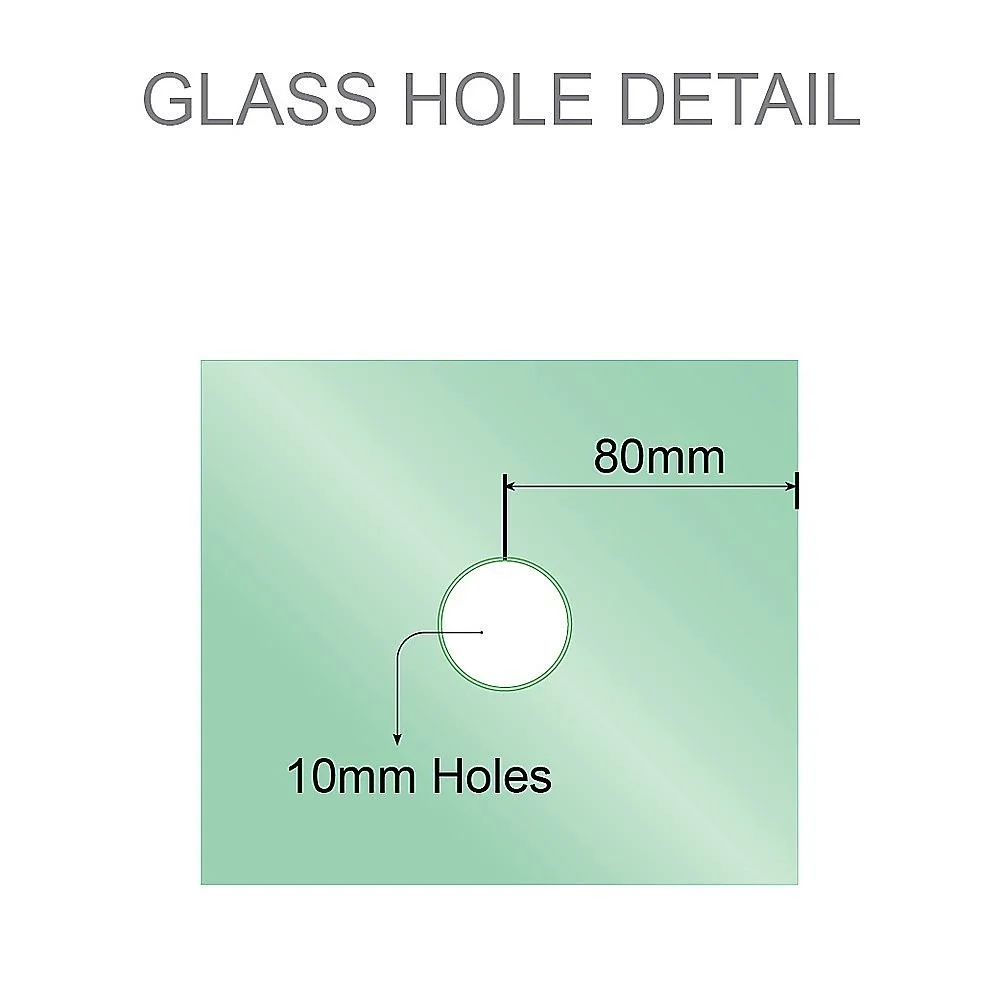

• Door handle hole: 10mm

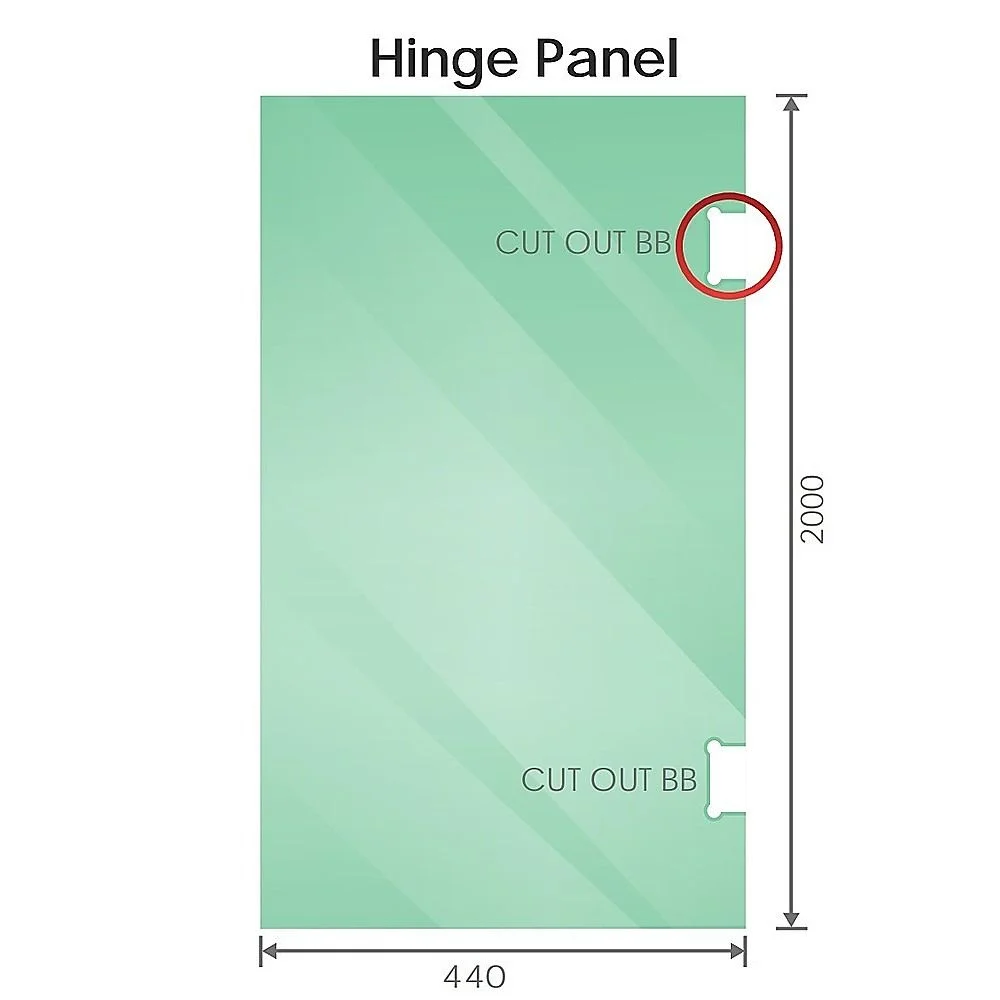

• Hinged panel: 440 x 2000mm, 10mm glass
• Fixed panel: 440 x 2000mm, 10mm glass

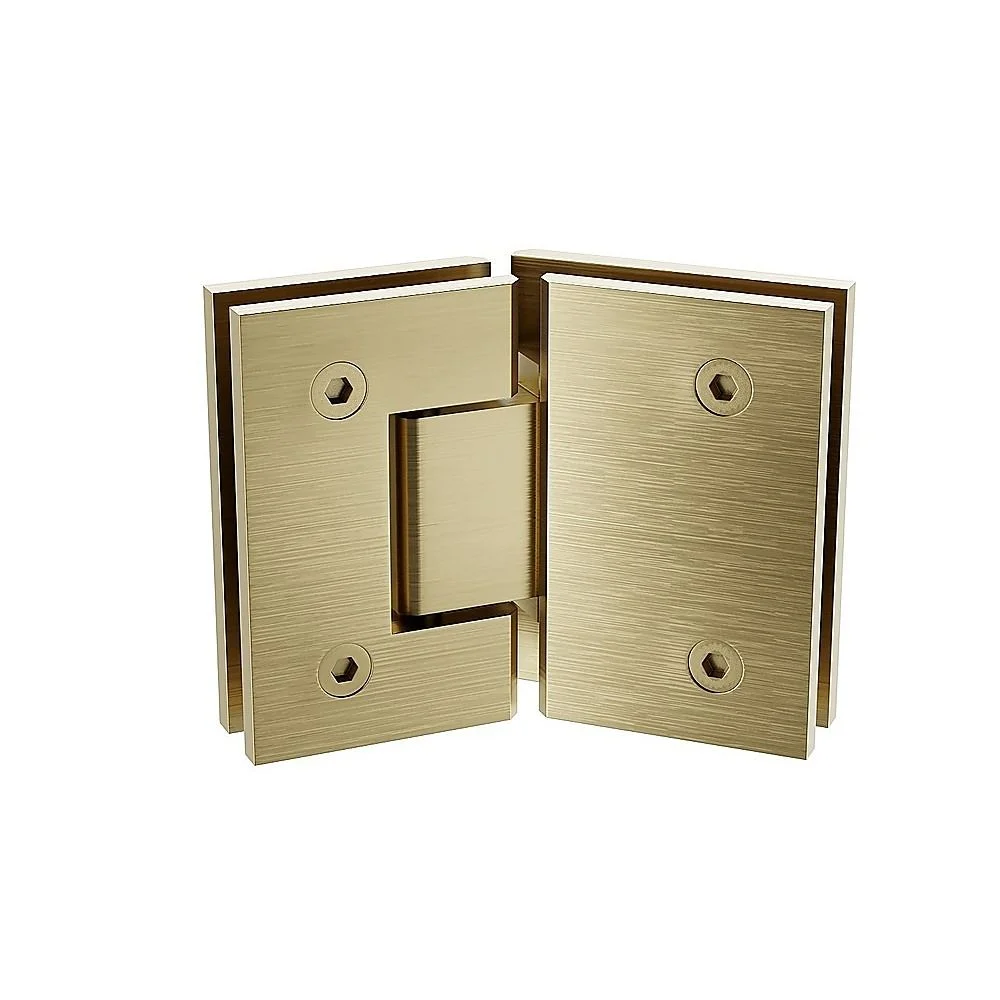

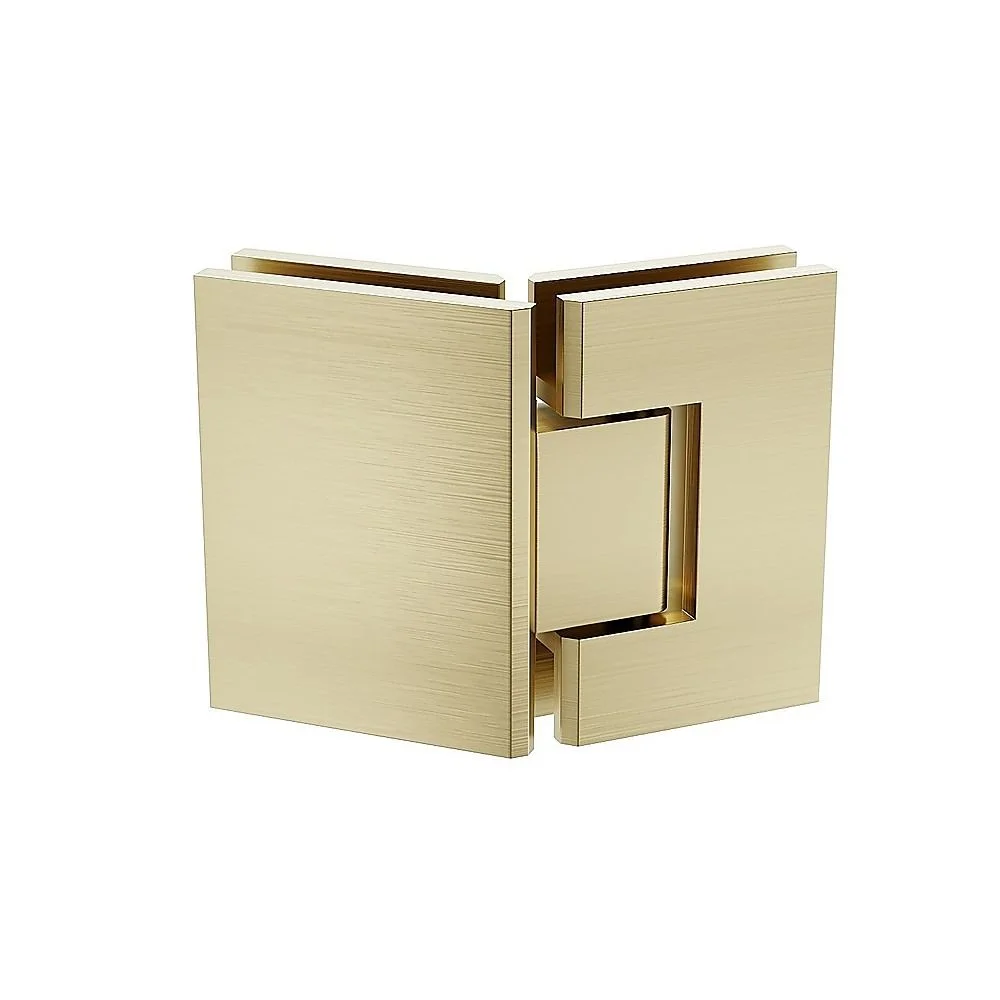

• Hinge: 135 degree glass-to-glass, stainless steel, for 10mm glass, maximum weight 45kg, brushed gold finish

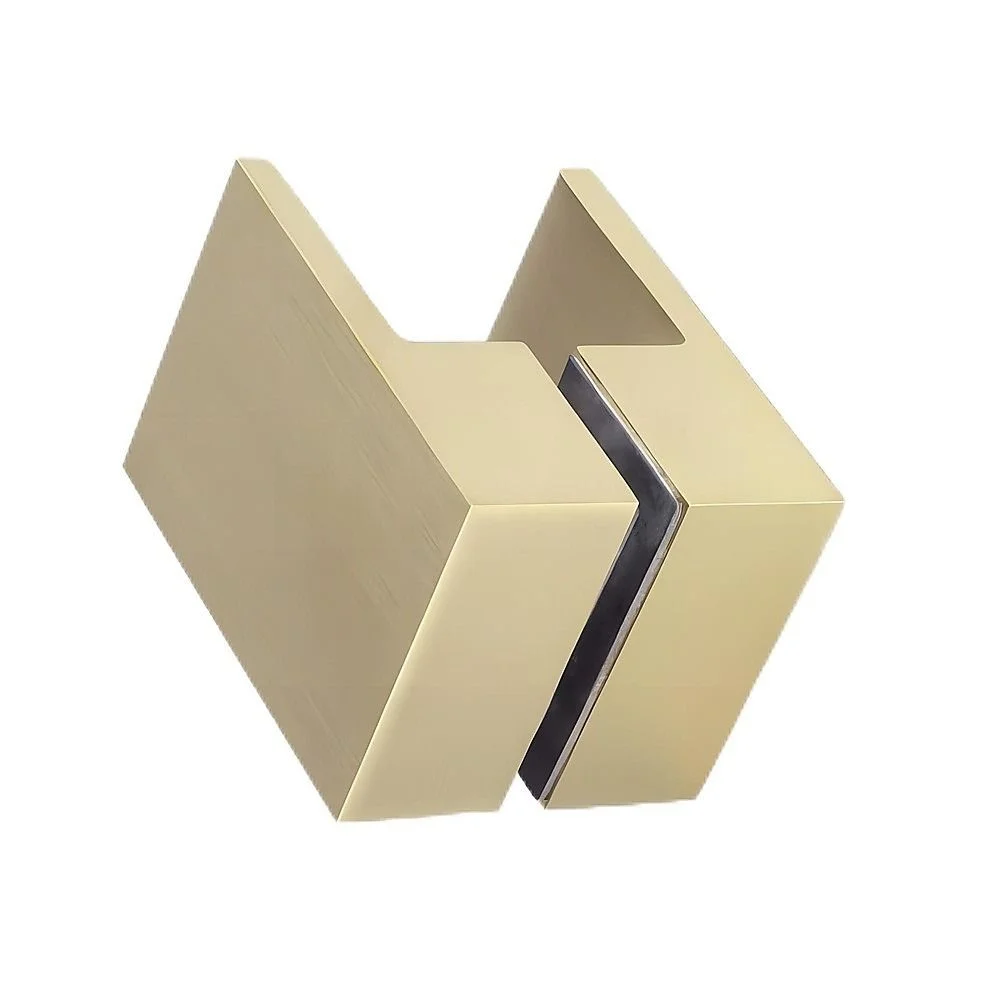

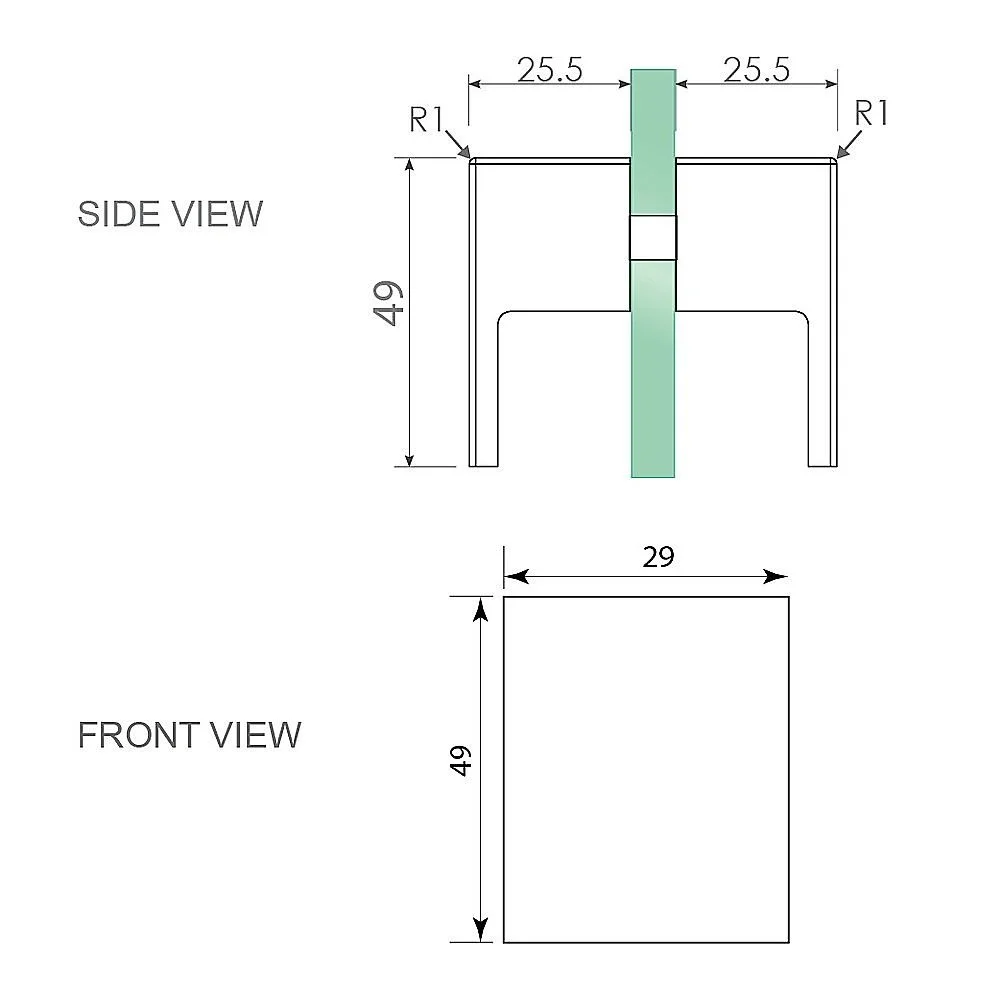

• Handle: 49mm x 25mm double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gold finish

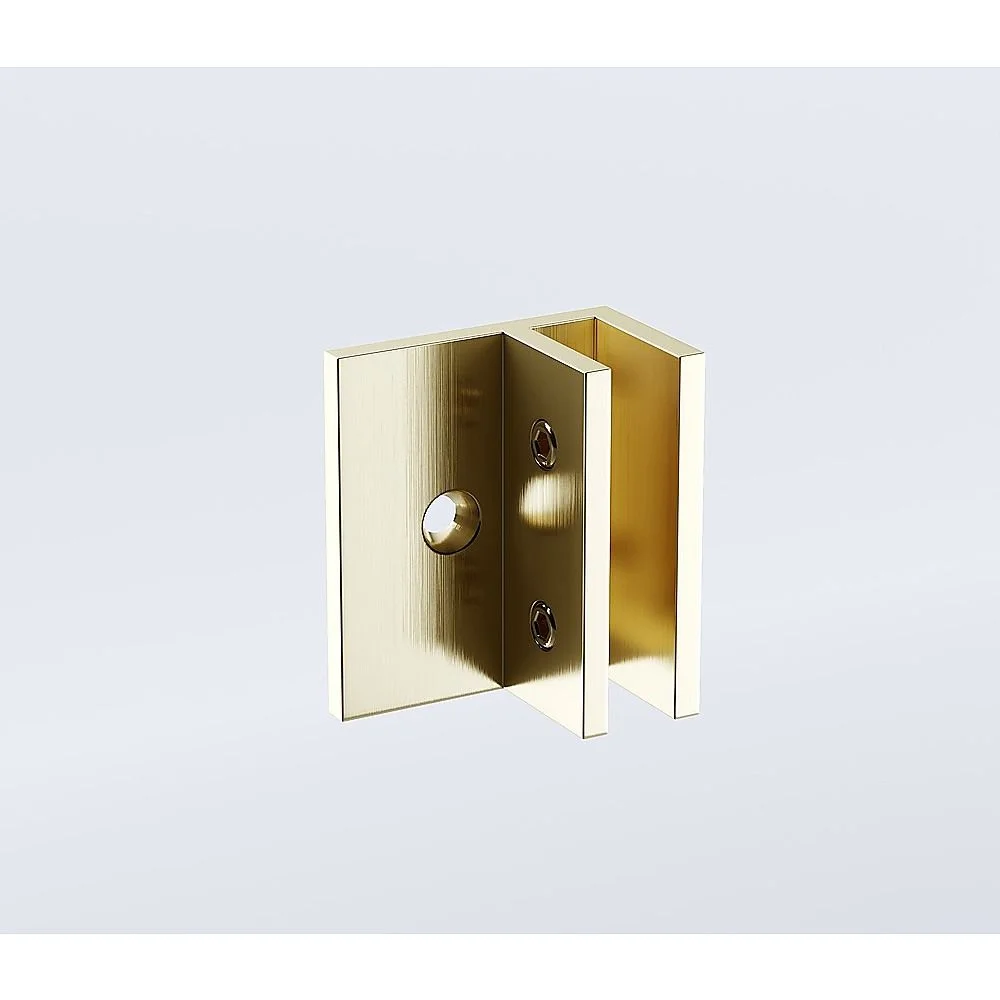

• F-bracket: for 10mm glass, solid brass, brushed gold finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 440mm clear glass fixed and hinged panel set for diamond shower screen
• 1 x 135 degree glass-to-glass stainless steel square shower hinge in brushed gold
• 1 x 25mm brass shower door double pull handle in brushed gold
• 4 x 10mm glass-to-wall/floor offset F-brackets in brushed gold

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.
