Della Francesca 90cm Frameless Diamond Shower Screen Gunmetal U-Brackets

The Della Francesca 90cm Frameless Diamond Shower Screen brings a striking diamond-corner configuration to your bathroom, creating an elegant centrepiece while making efficient use of shower space. Crafted from 10mm tempered safety glass with brushed gunmetal hardware, it combines a sleek frameless look with smooth dual-action operation.

Key Features

• Tempered safety glass to AS-NZS2208 standard
• Frameless diamond corner configuration for a modern, open feel

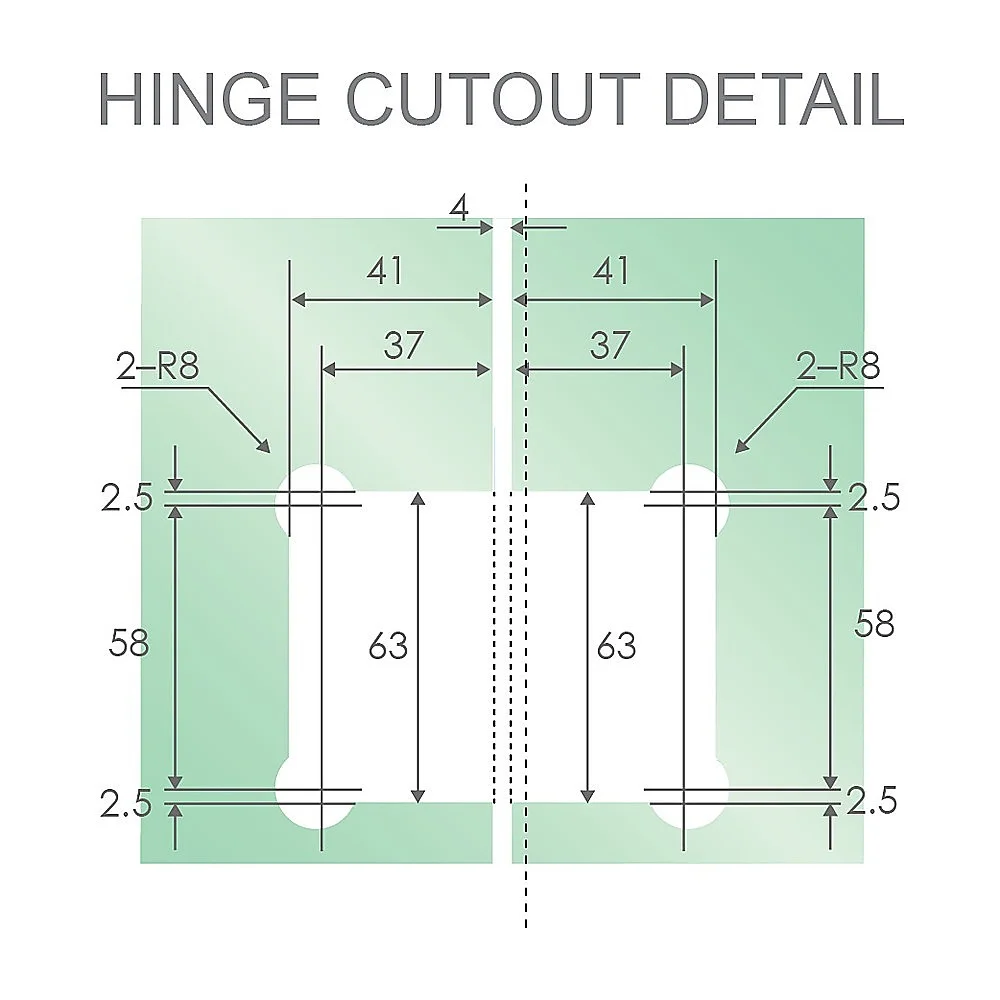

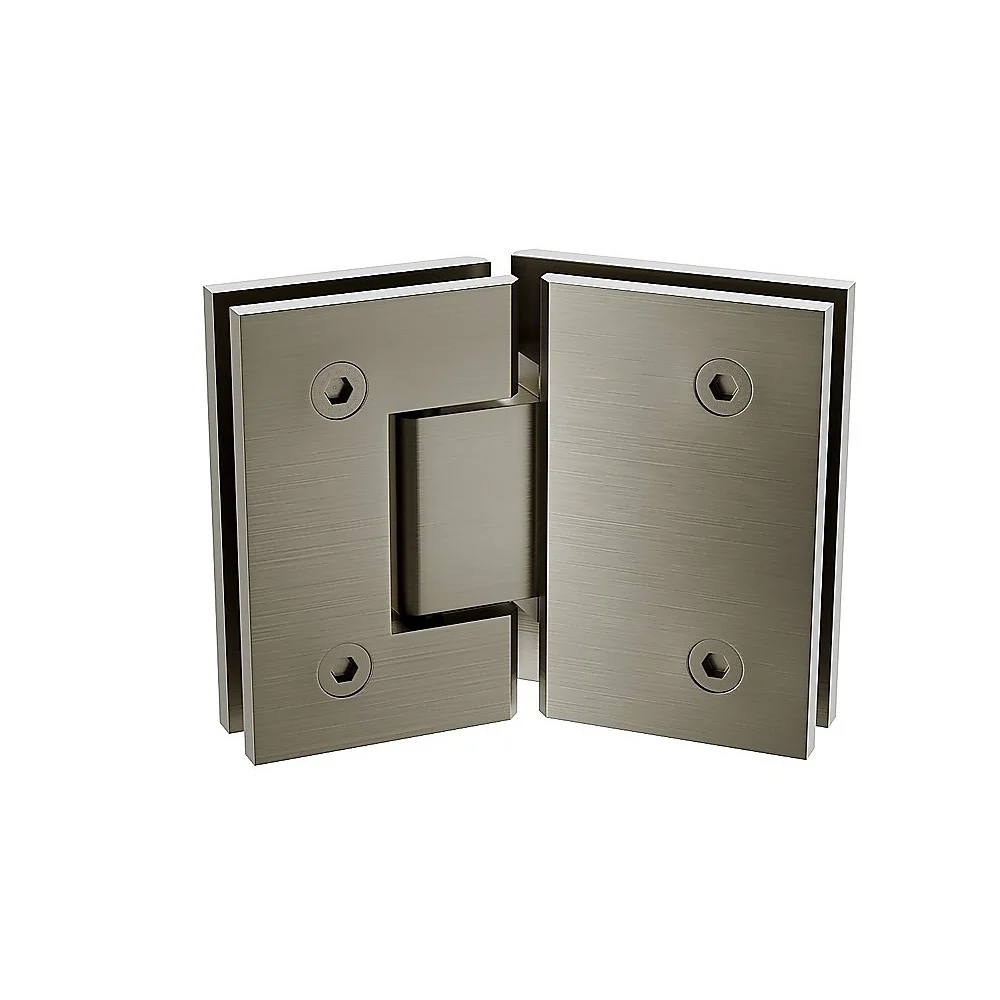

• Stainless steel square-edge hinges with dual action, opening inwards and outwards
• Hinges self-close from the 25° position and centre within 25°

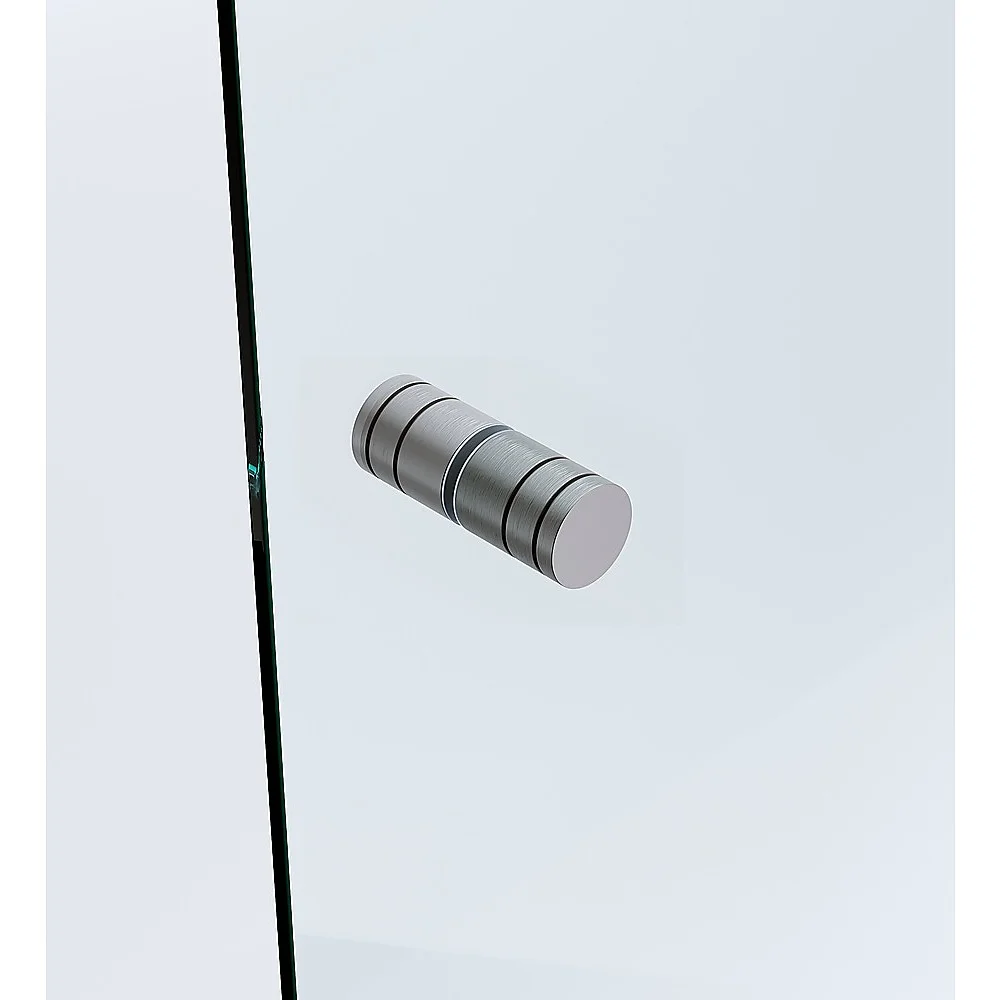

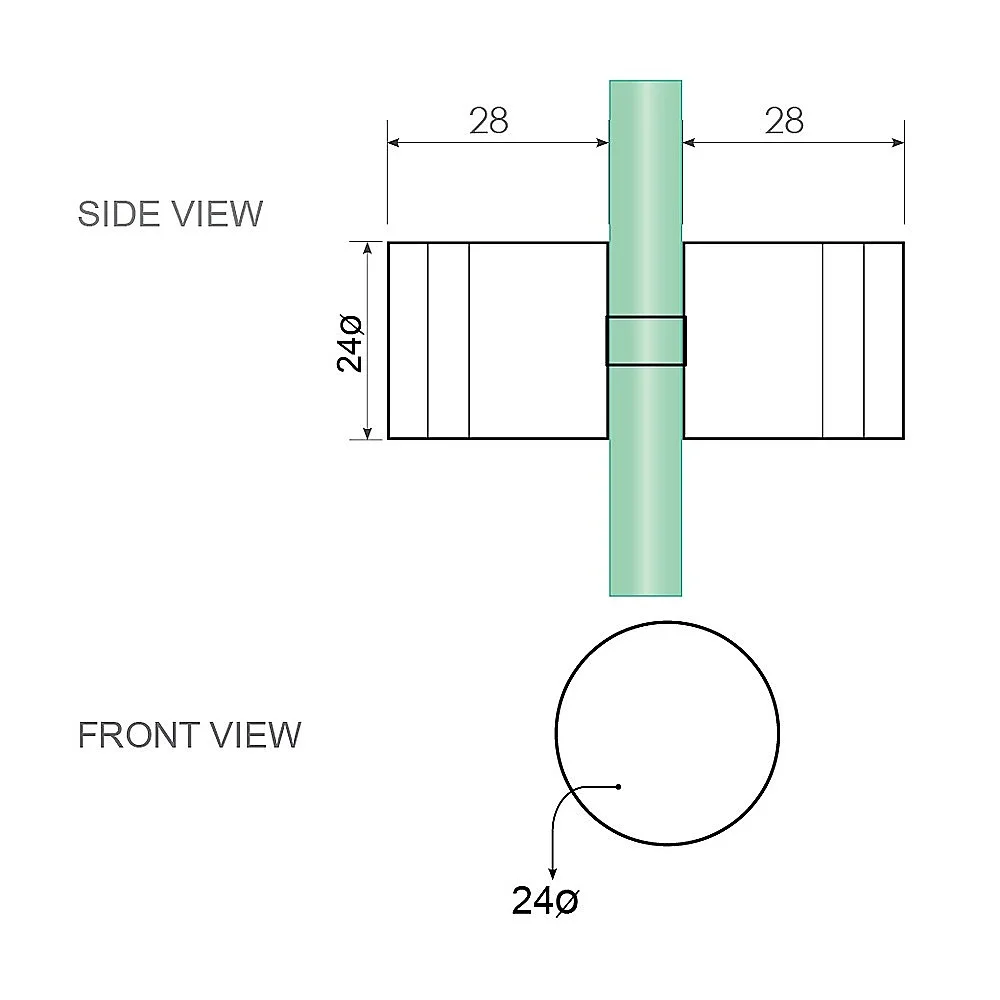

• Slimline Ø24mm round knob handle with two circular grooves
• Brass handle is rust and corrosion resistant with a smooth finish

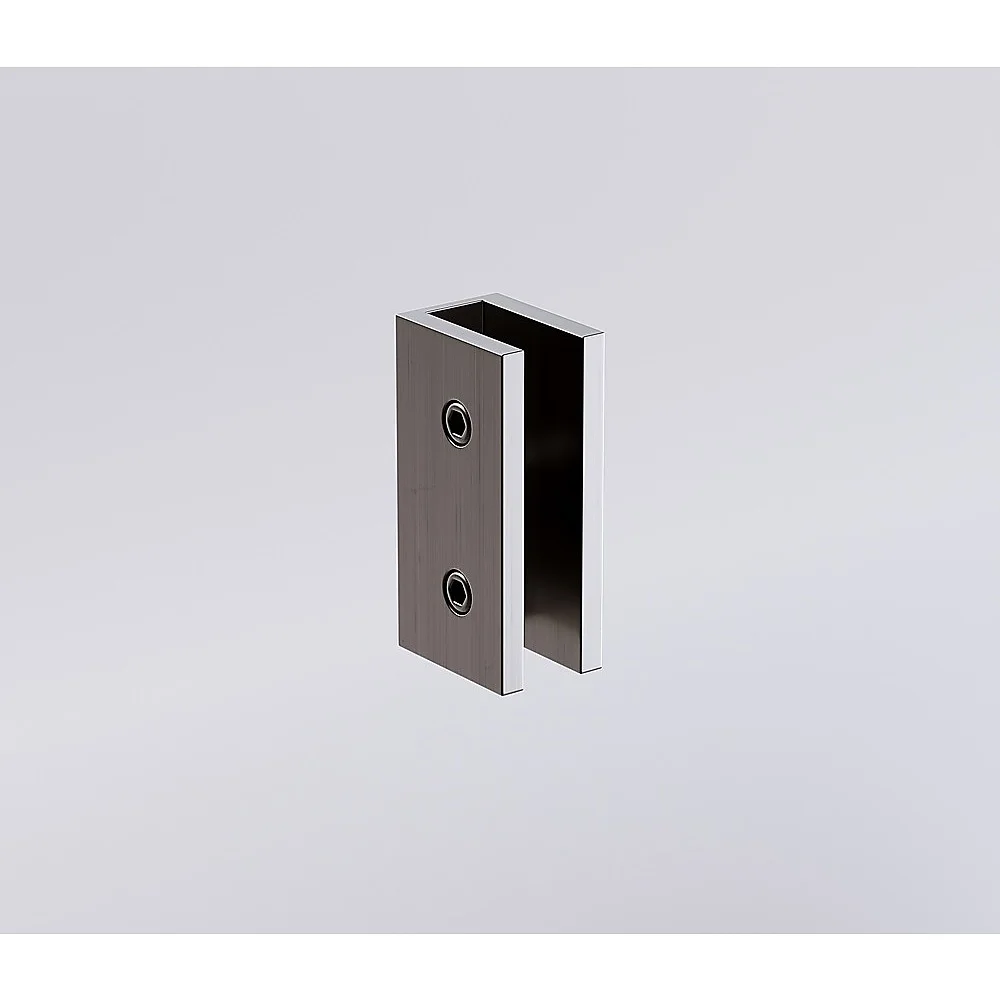

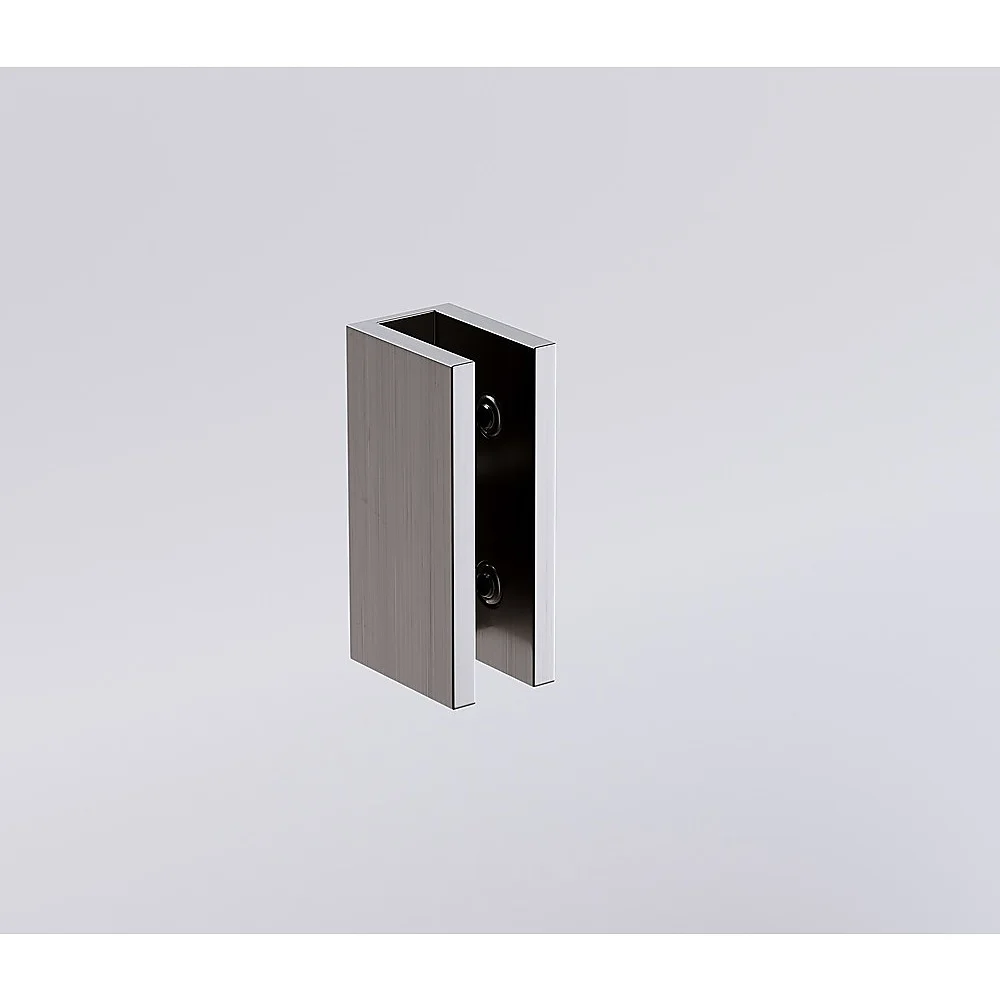

• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• U-brackets require no glass drilling, secured by two compression screws
• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint

Specifications

• Size: 90cm
• Colour: Gunmetal
• Bracket type: U-Brackets
• Handle type: Round knob
• Glass thickness: 10mm

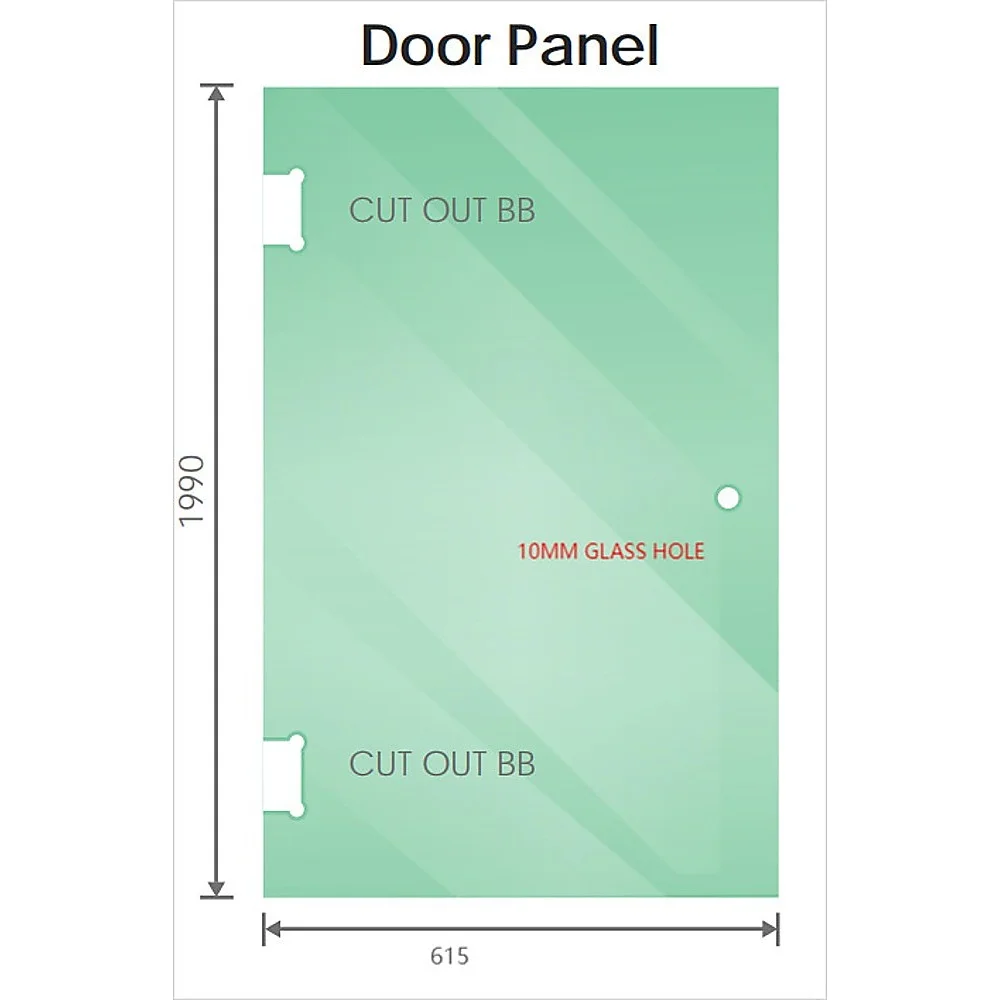

• Door panel: 615 x 1990mm

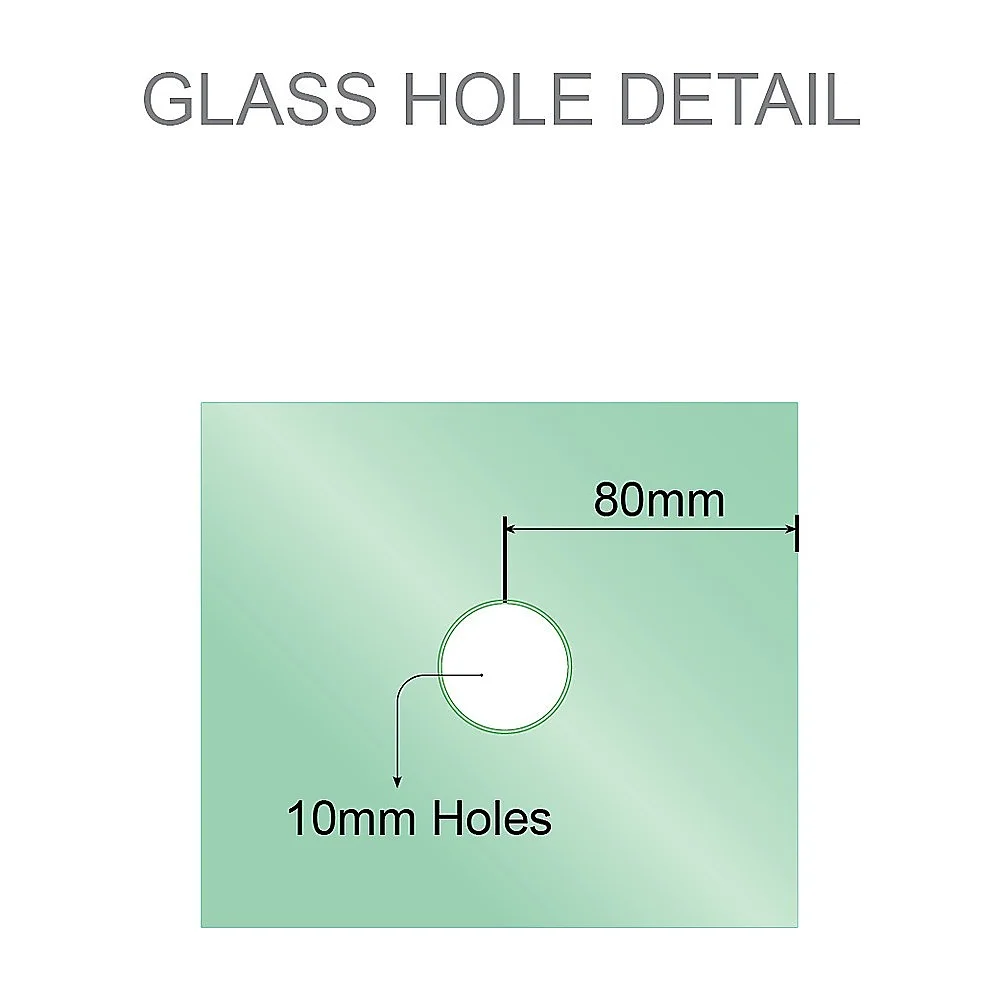

• Door handle hole: 10mm

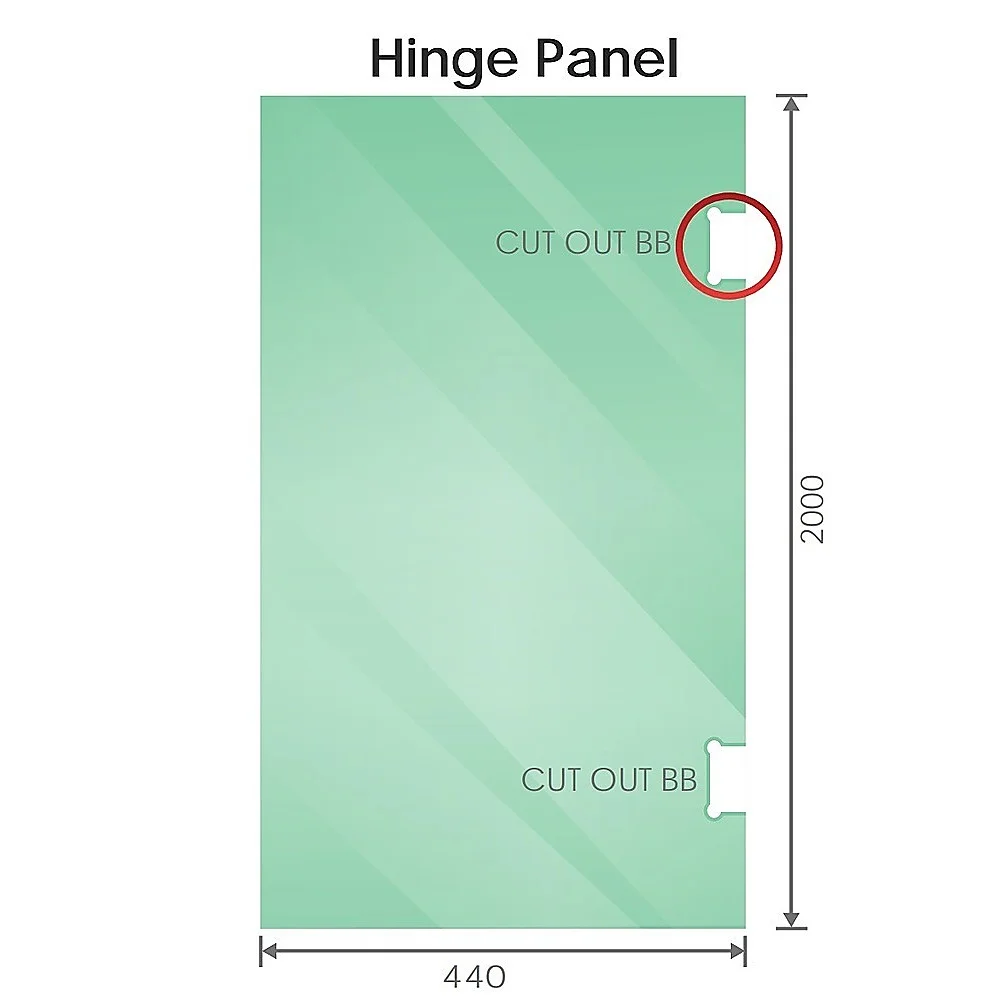

• Hinged panel: 440 x 2000mm
• Fixed panel: 440 x 2000mm
• Hinge glass thickness: 10mm
• Hinge maximum weight: 45kg
• Hinge finish: Brushed gunmetal
• Handle material: Brass
• Handle suits 6mm, 8mm, 10mm and 12mm thick glass
• Handle finish: Brushed gunmetal
• U-bracket material: Solid brass
• U-bracket suits 10mm glass
• U-bracket finish: Brushed gunmetal

What's in the Box

• 1 x Frameless door panel, 615 x 1990mm
• 1 x Hinged panel, 440 x 2000mm
• 1 x Fixed panel, 440 x 2000mm

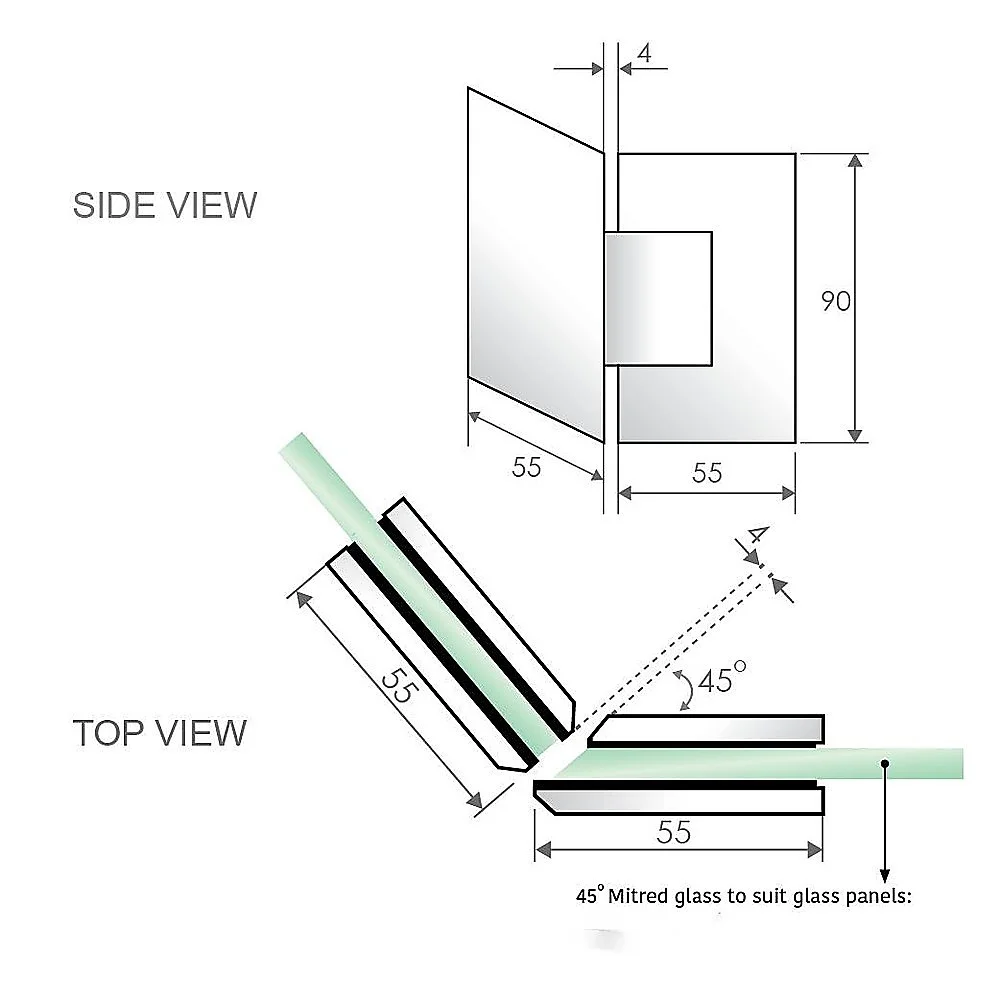

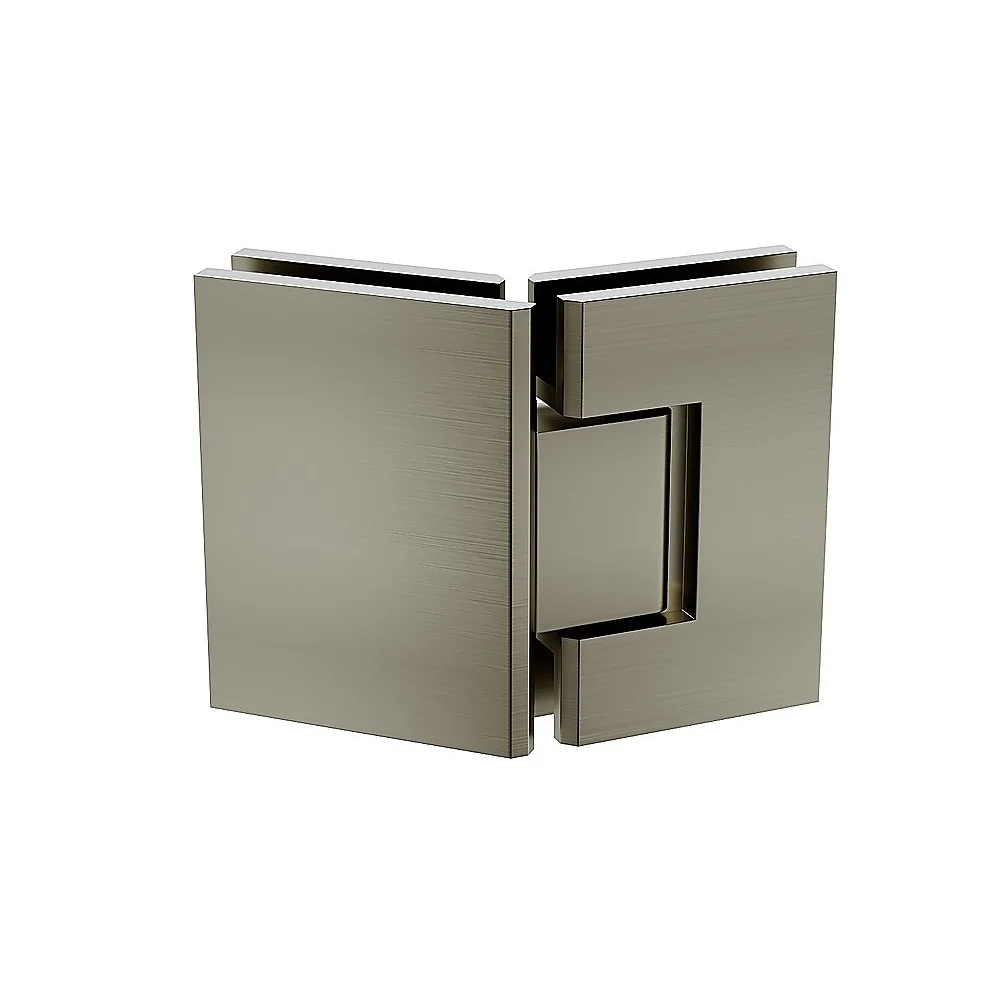

• 1 x 135° glass-to-glass square shower hinge, brushed gunmetal
• 1 x 24mm brass round shower door handle, brushed gunmetal
• 4 x 10mm glass-to-wall/floor U-brackets, brushed gunmetal

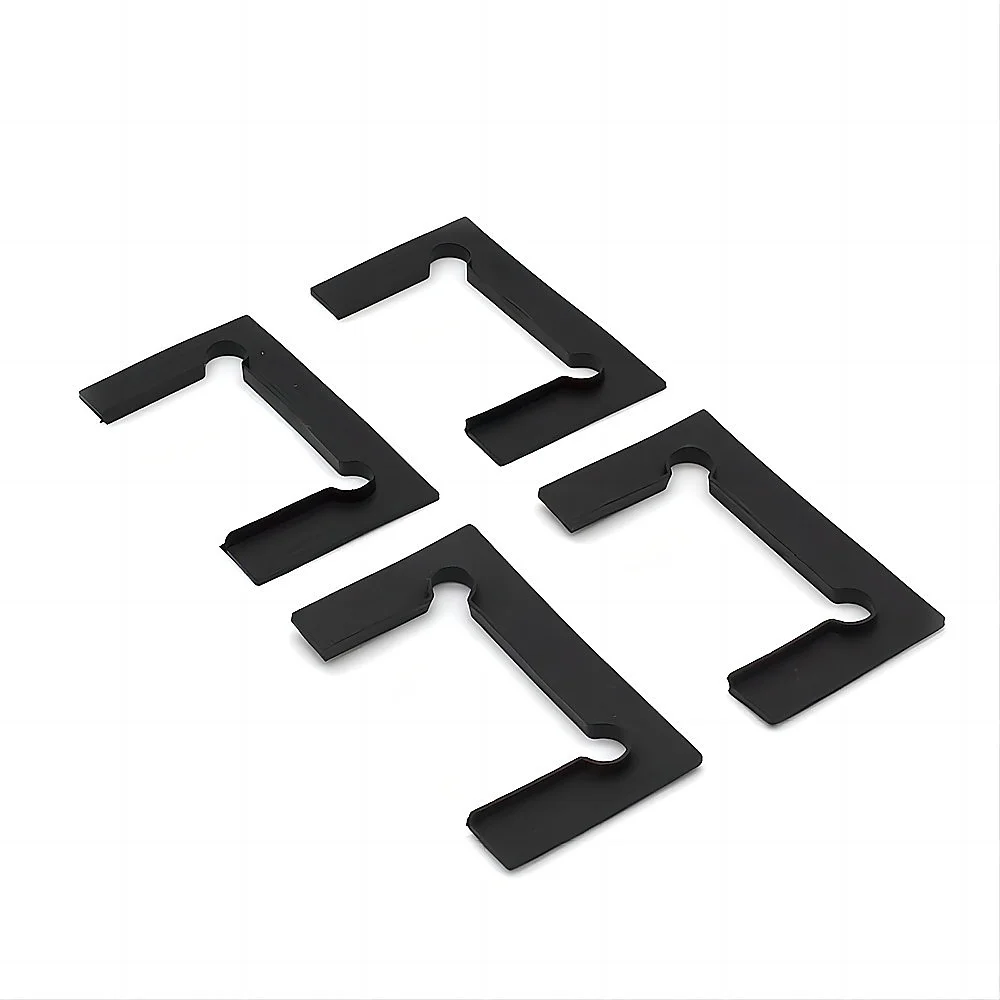

• Fixing screw and clear gaskets for U-brackets
• Plastic gaskets for handle

Colour intensity may vary from actual product due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories and colours specified above are included.
