Della Francesca 90cm Frameless Diamond Shower Screen Gunmetal Brass Hinges

The Della Francesca 90cm Frameless Diamond Shower Screen brings a sleek, open look to your bathroom while keeping the space around your shower dry. Crafted from 10mm tempered safety glass with brushed gunmetal brass hardware, this diamond corner enclosure combines a minimalist frameless design with solid, durable fittings.

Key Features

• Diamond corner configuration maximises space and adds architectural interest
• Frameless design for an uninterrupted, open visual flow
• Solid brass hinges with squared edges and dual-action swing that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees
• Square double pull handle in solid brass, comfortable to touch and resistant to rust and corrosion

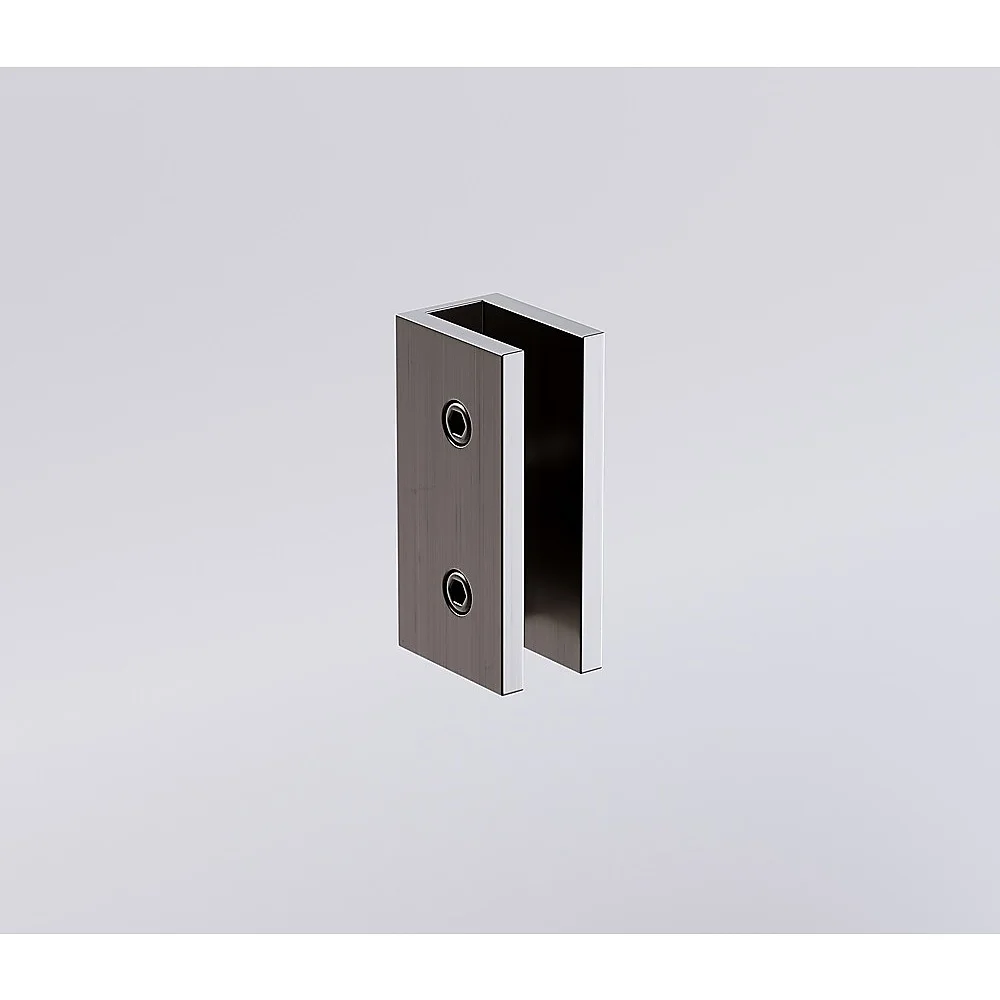

• Glass-to-wall or floor U-brackets with concealed fixing for a clean, streamlined finish
• U-brackets require no glass drilling, secured by two compression screws
• Slimline 2mm rear wall on U-brackets minimises the gap for a neater silicone joint
• Polished edges and seamless connections for a premium look

Specifications

• Size: 90cm
• Colour: Gunmetal
• Bracket type: U-brackets
• Handle type: Square double pull
• Glass: 10mm, AS-NZS2208 standard tempered glass

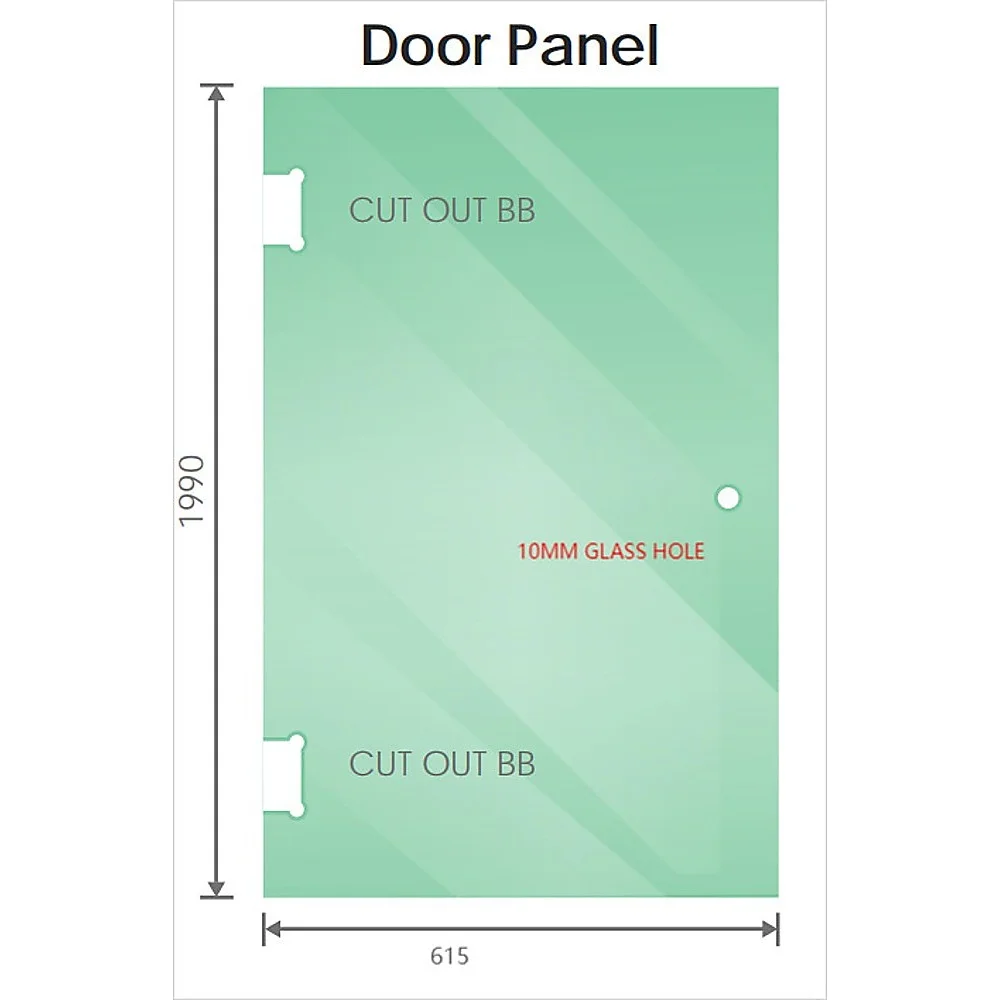

• Door panel: 615 x 1990mm

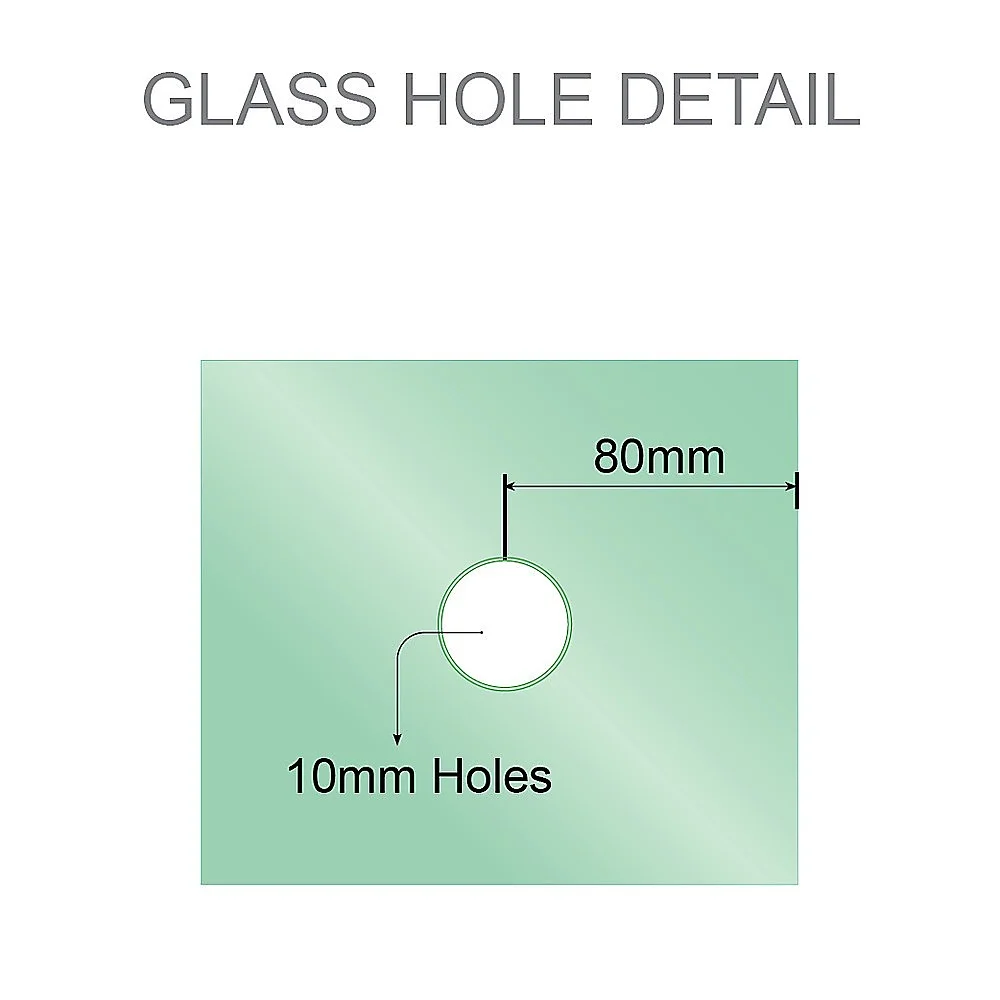

• Door handle hole: 10mm

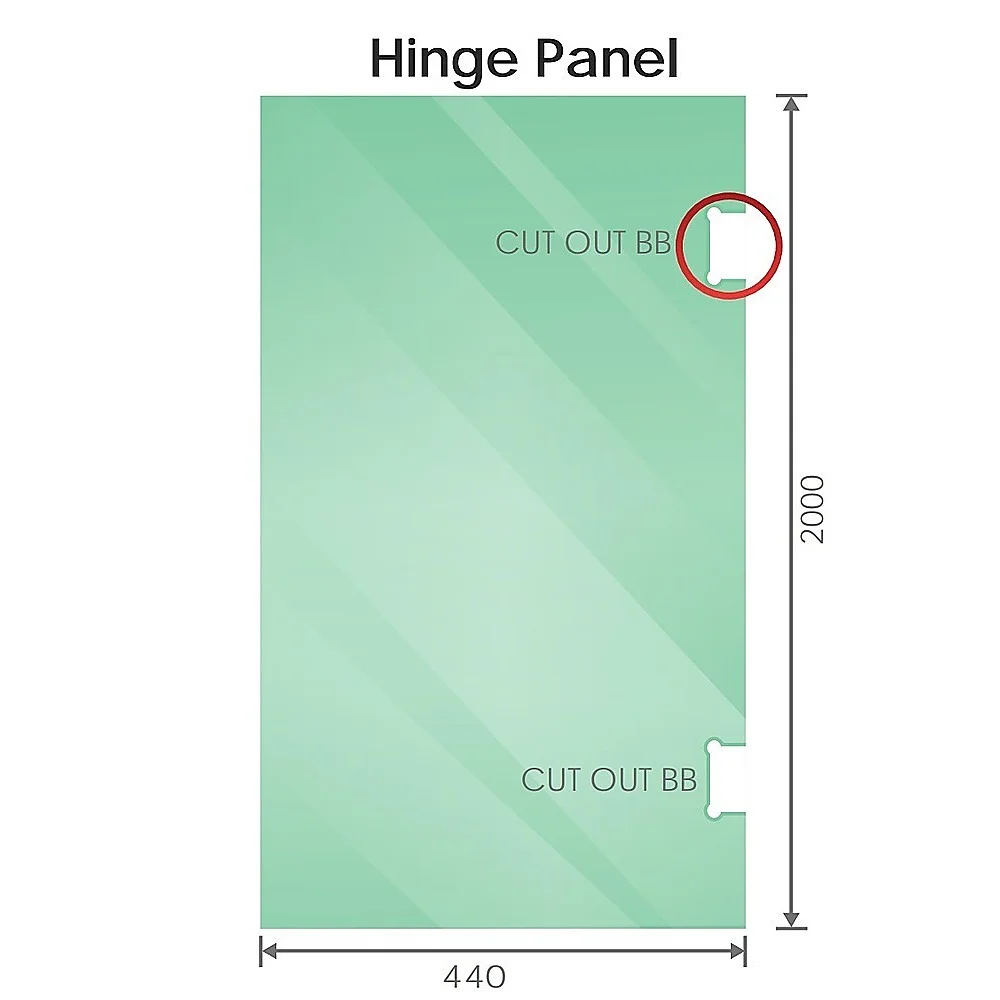

• Hinged panel: 440 x 2000mm
• Fixed panel: 440 x 2000mm

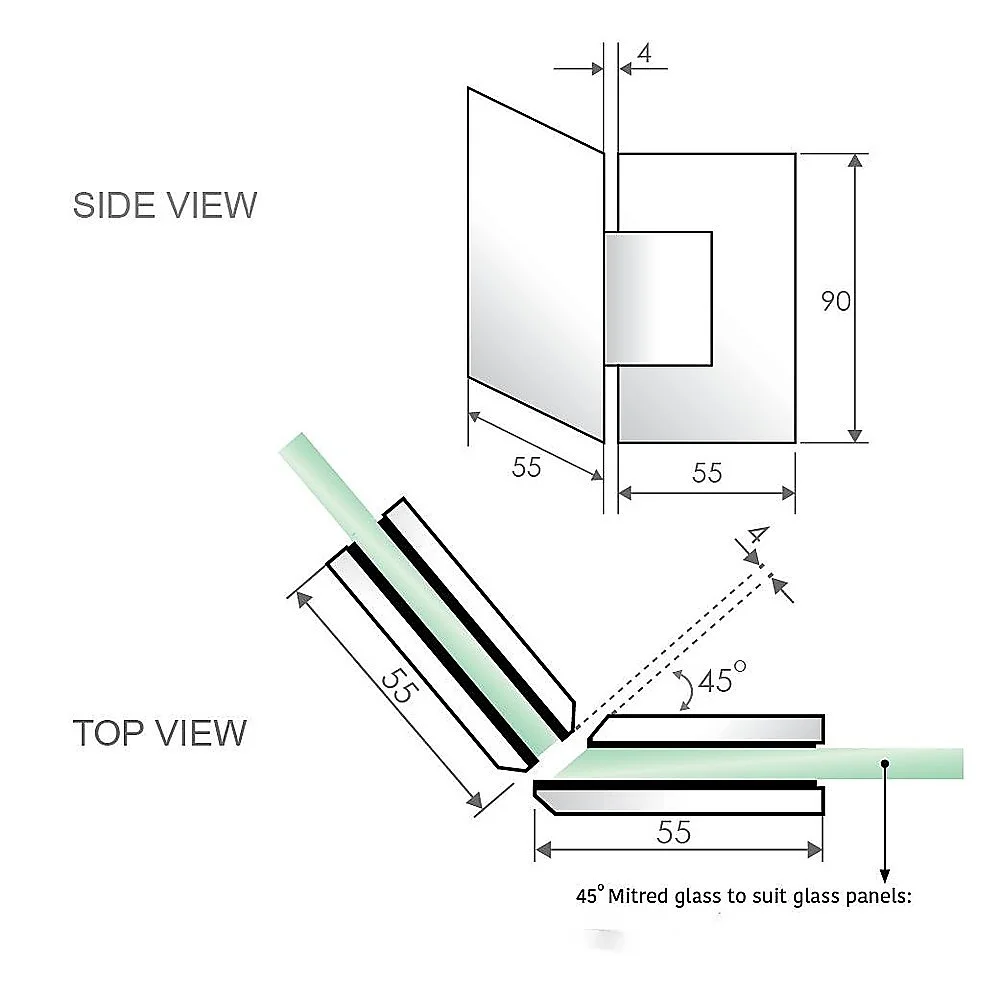

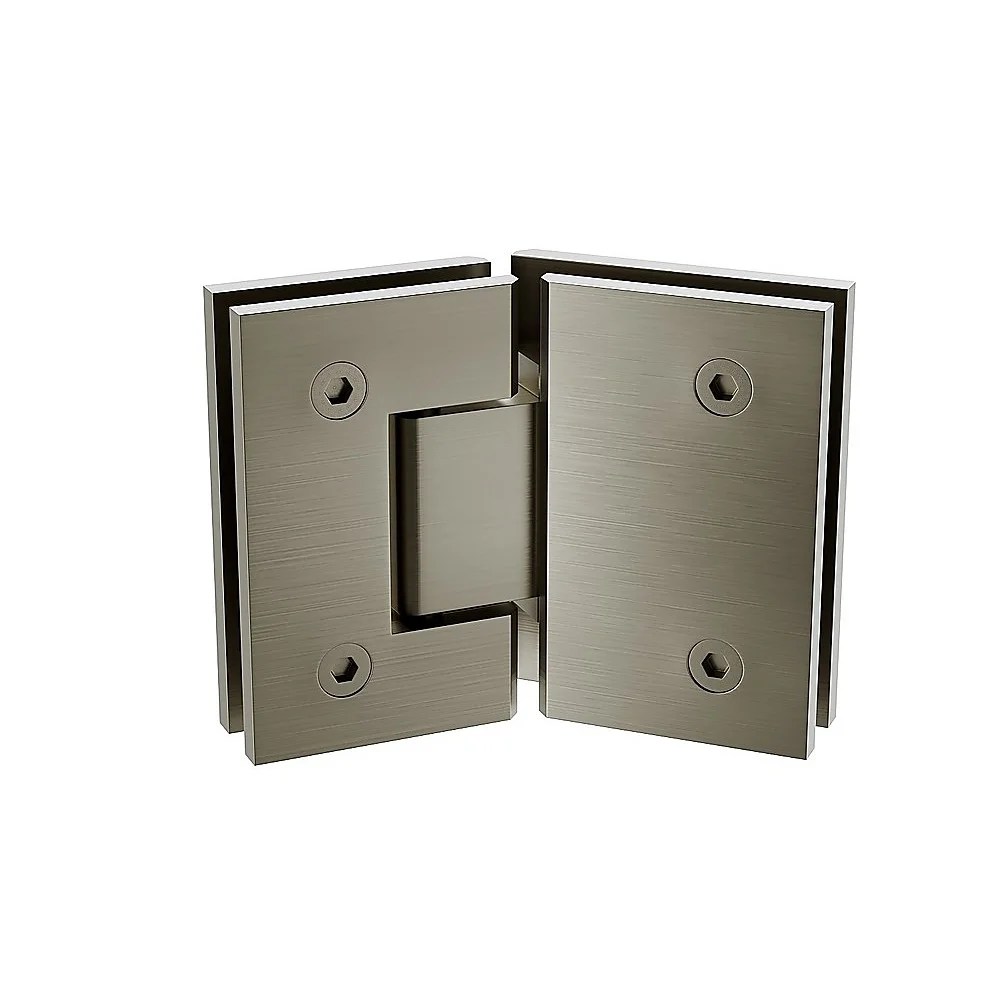

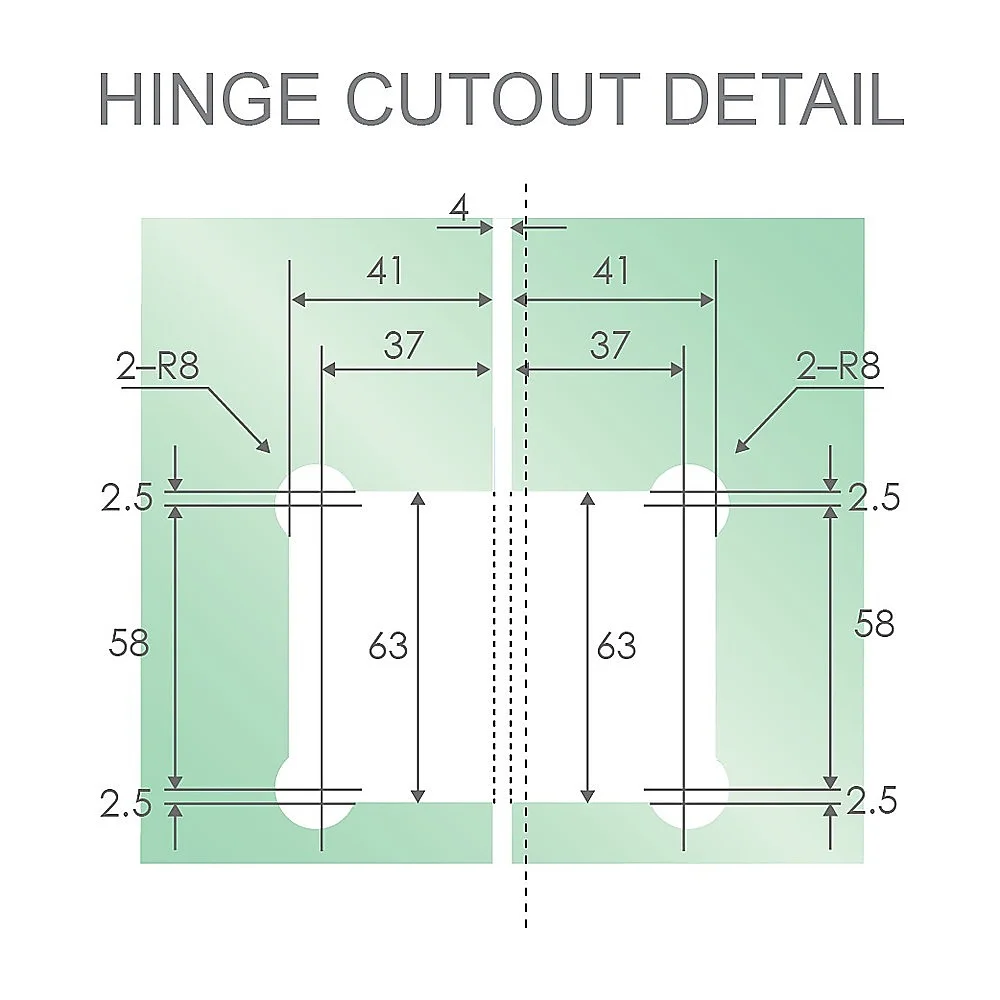

• Hinge: 135-degree glass-to-glass, suits 10mm glass, maximum weight 45kg, brushed gunmetal finish

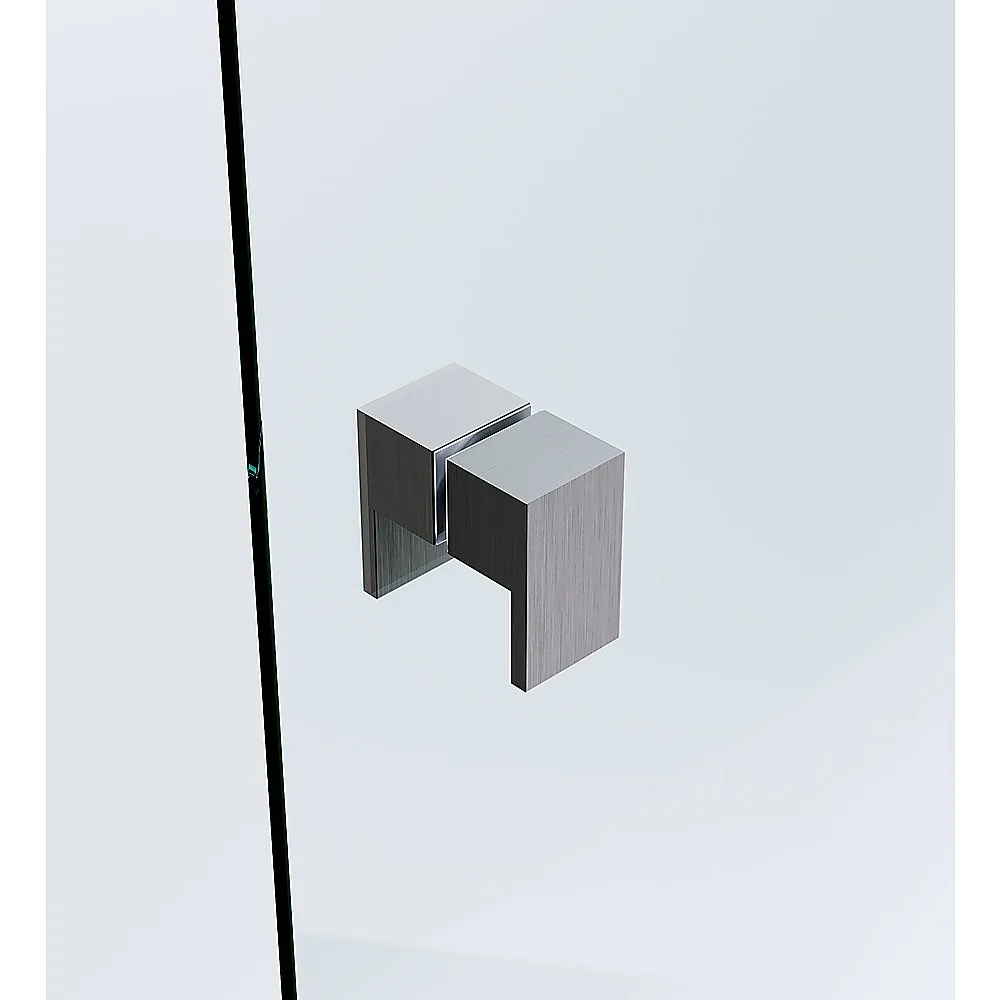

• Handle: 49mm x 25mm double pull knob, suits 6mm, 8mm, 10mm and 12mm thick glass, brass with brushed gunmetal finish

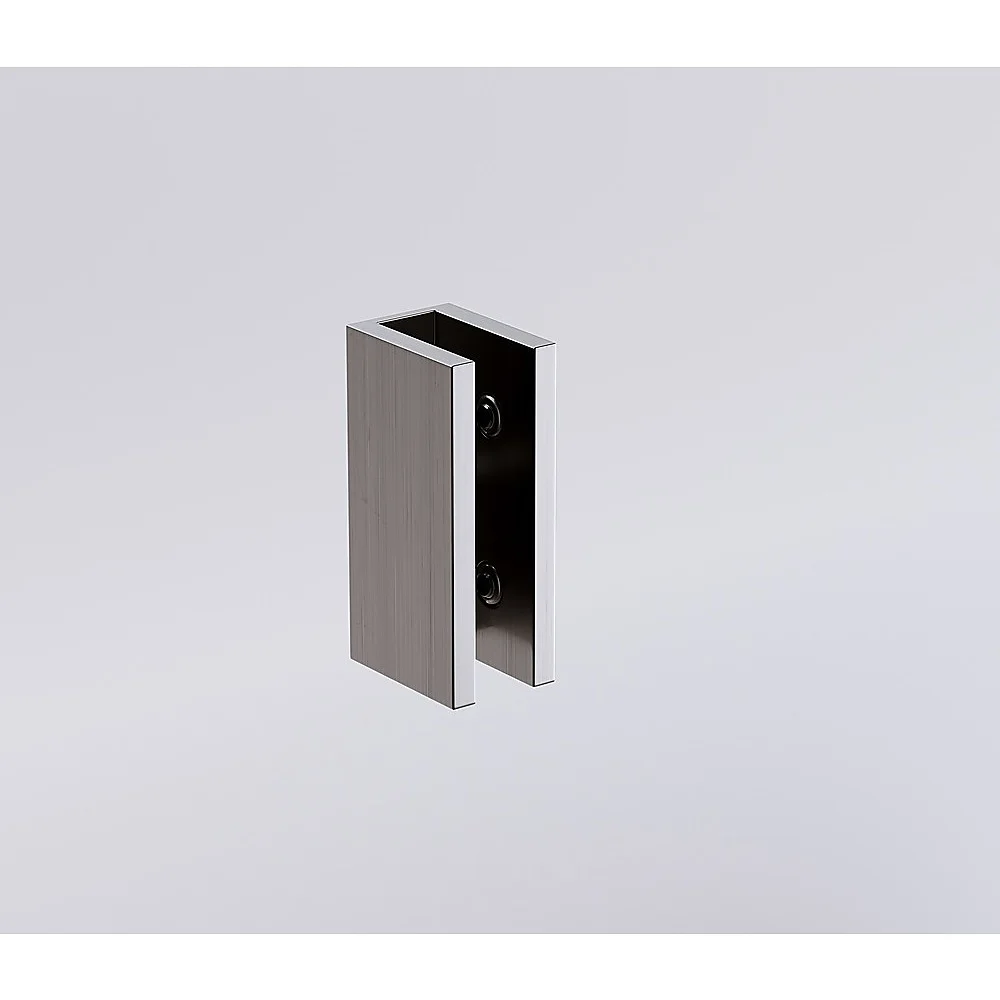

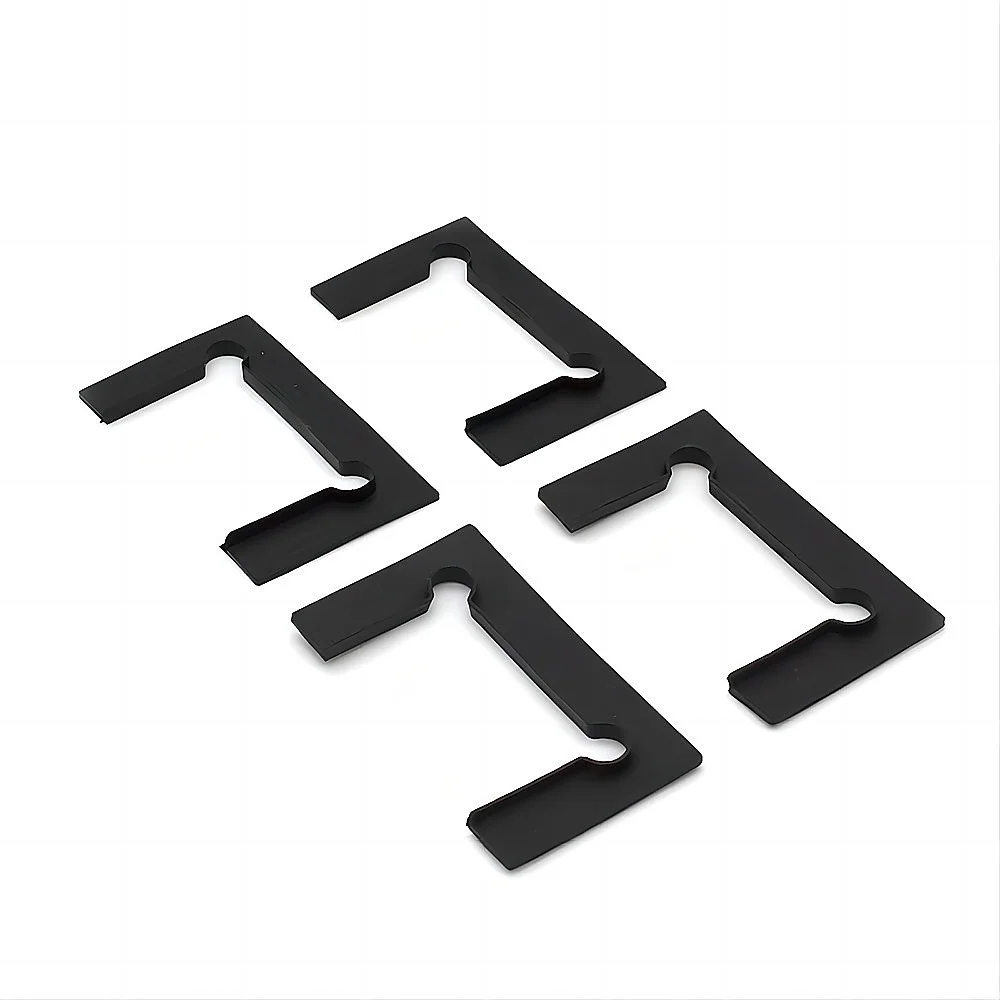

• U-bracket: suits 10mm glass, solid brass with brushed gunmetal finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 440mm clear glass fixed and hinged panels for diamond shower screen (1 x hinged panel 440 x 2000mm, 1 x fixed panel 440 x 2000mm)
• 1 x 135-degree glass-to-glass brass square shower hinge in brushed gunmetal
• 1 x 25mm brass shower door double pull handle in brushed gunmetal
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gunmetal

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories specified above are included.
