Della Francesca 90cm Frameless Diamond Shower Screen with Gold U-Brackets & Round Knob Handle

The Della Francesca 90cm Frameless Diamond Shower Screen brings a distinctive diamond corner configuration to your bathroom, maximising usable shower space while adding architectural flair. Crafted from 10mm tempered safety glass with brushed gold fittings, it combines clear transparency with a sleek, modern finish.

Key Features

• Unique diamond corner configuration creates visual interest and optimises shower space
• Frameless design eliminates hard-to-clean channels and corners
• Stainless steel hinges with squared edges offer dual action, opening inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

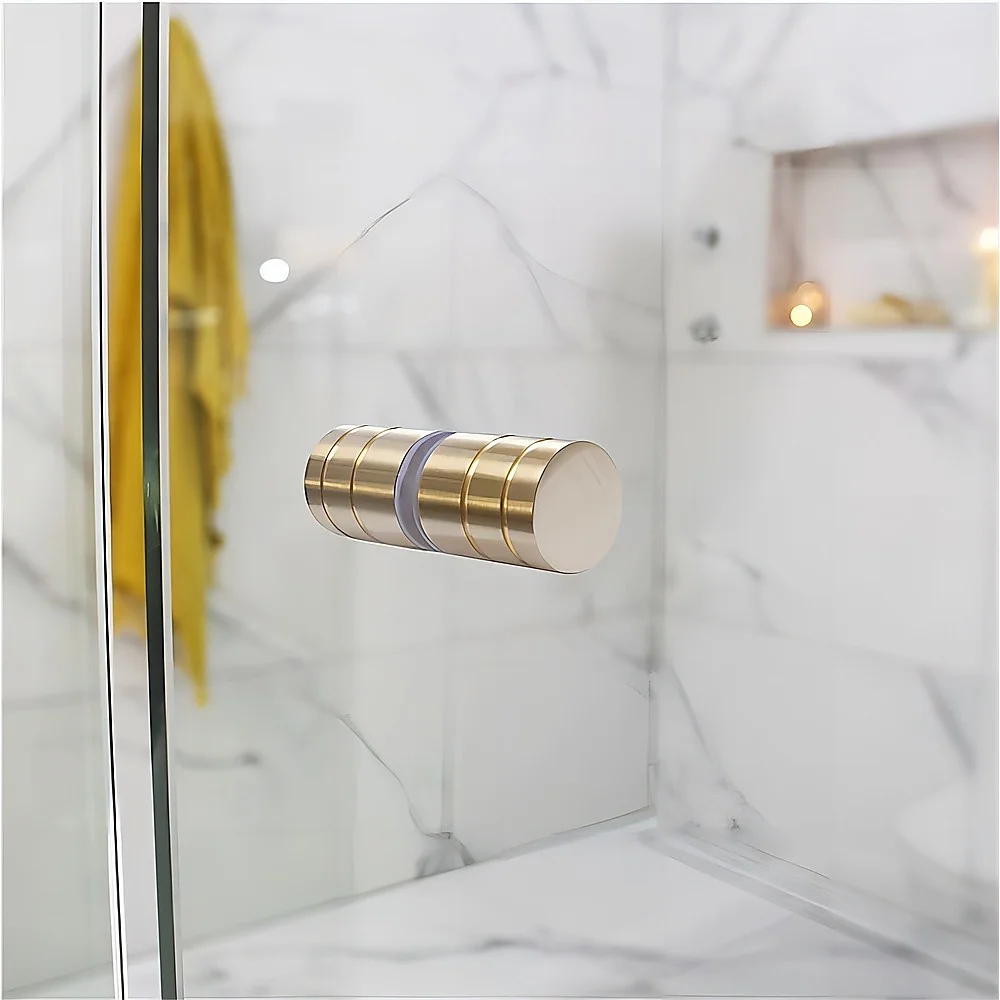

• Round brass knob handle with two circular grooves for a comfortable grip
• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• U-brackets require no glass drilling, secured by two compression/friction screws
• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint

Specifications

• Size: 90cm
• Colour: Gold
• Bracket type: U-Brackets
• Handle type: Round Knob
• Glass: 10mm AS-NZS2208 standard tempered glass
• Door panel: 615 x 1990mm

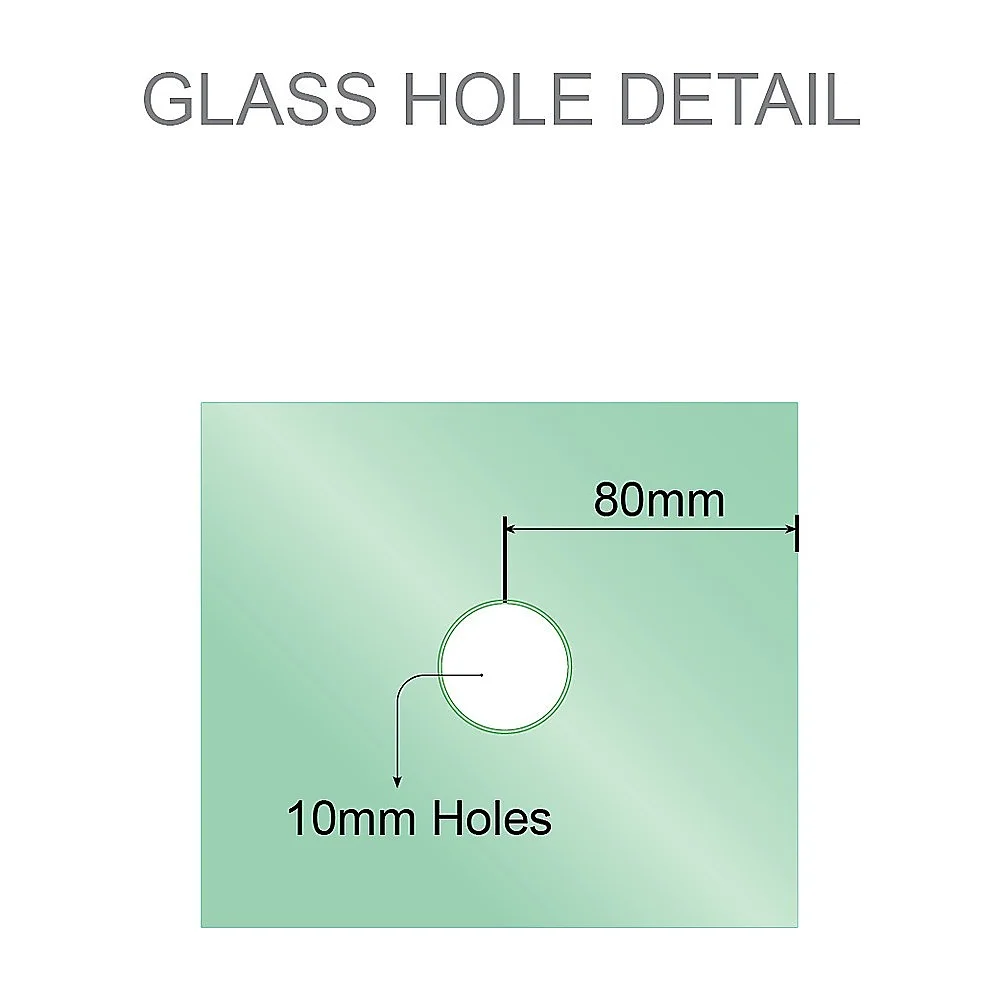

• Door handle hole: 10mm

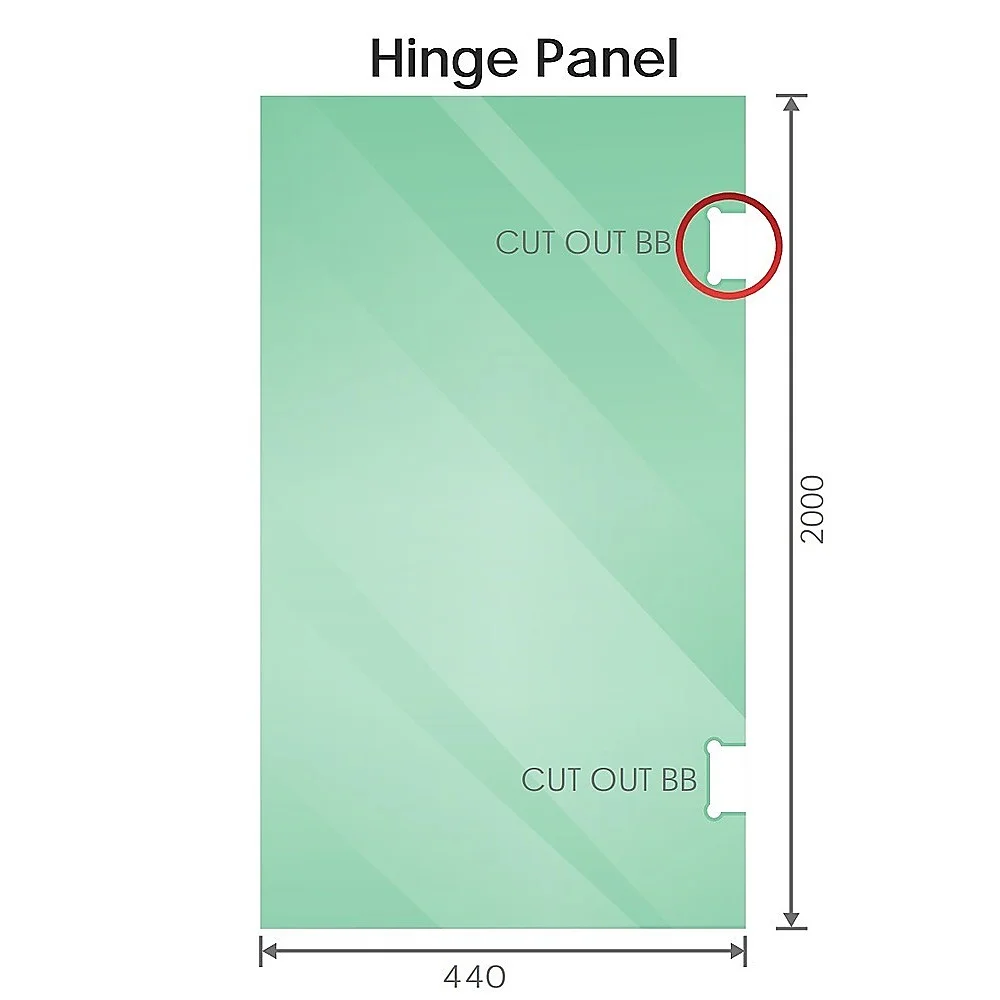

• Hinged panel: 440 x 2000mm
• Fixed panel: 440 x 2000mm

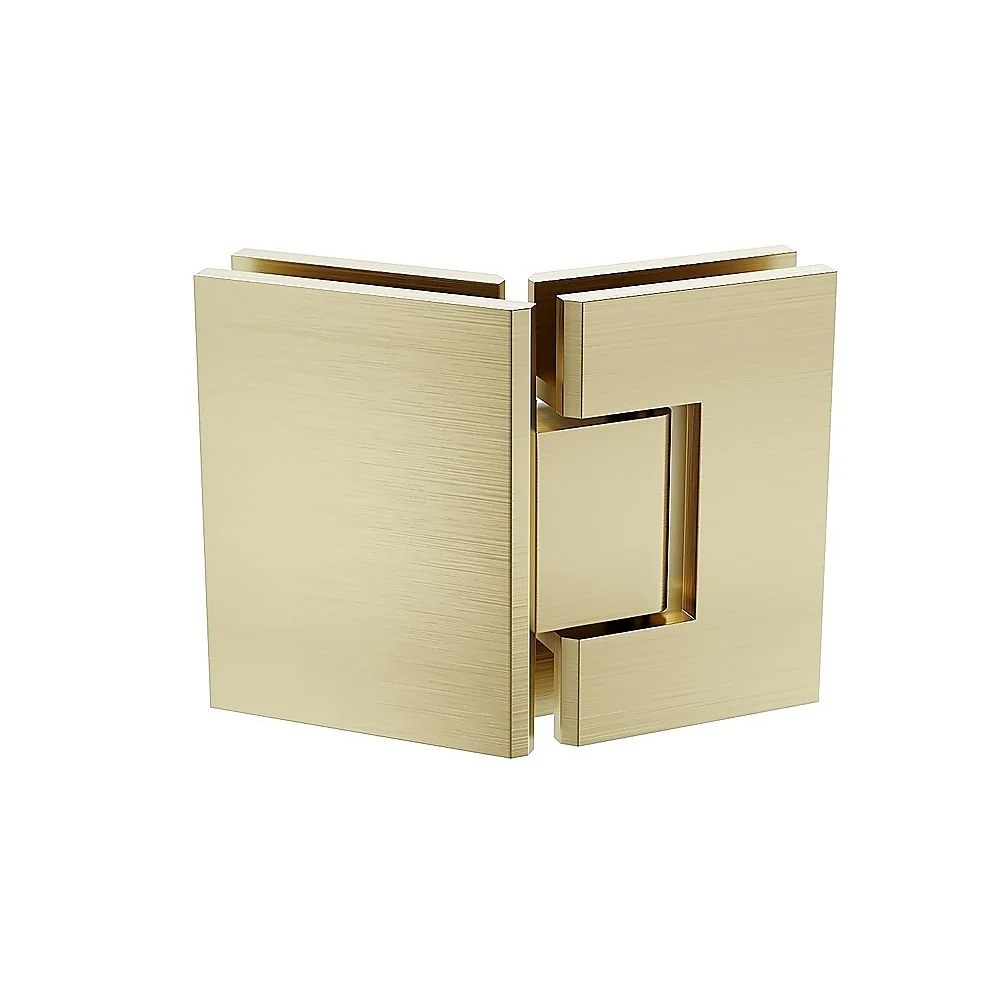

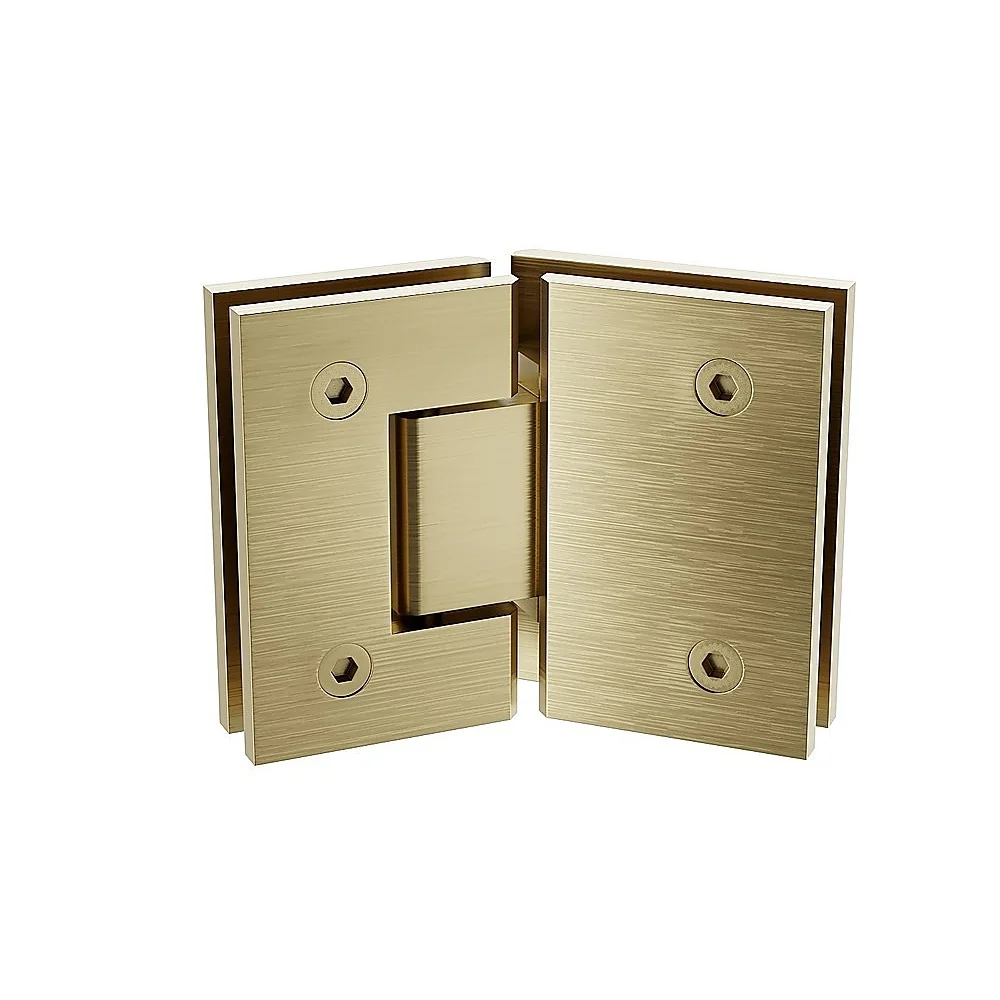

• Hinge: 135-degree glass-to-glass, stainless steel, for 10mm glass, maximum weight 45kg, brushed gold finish

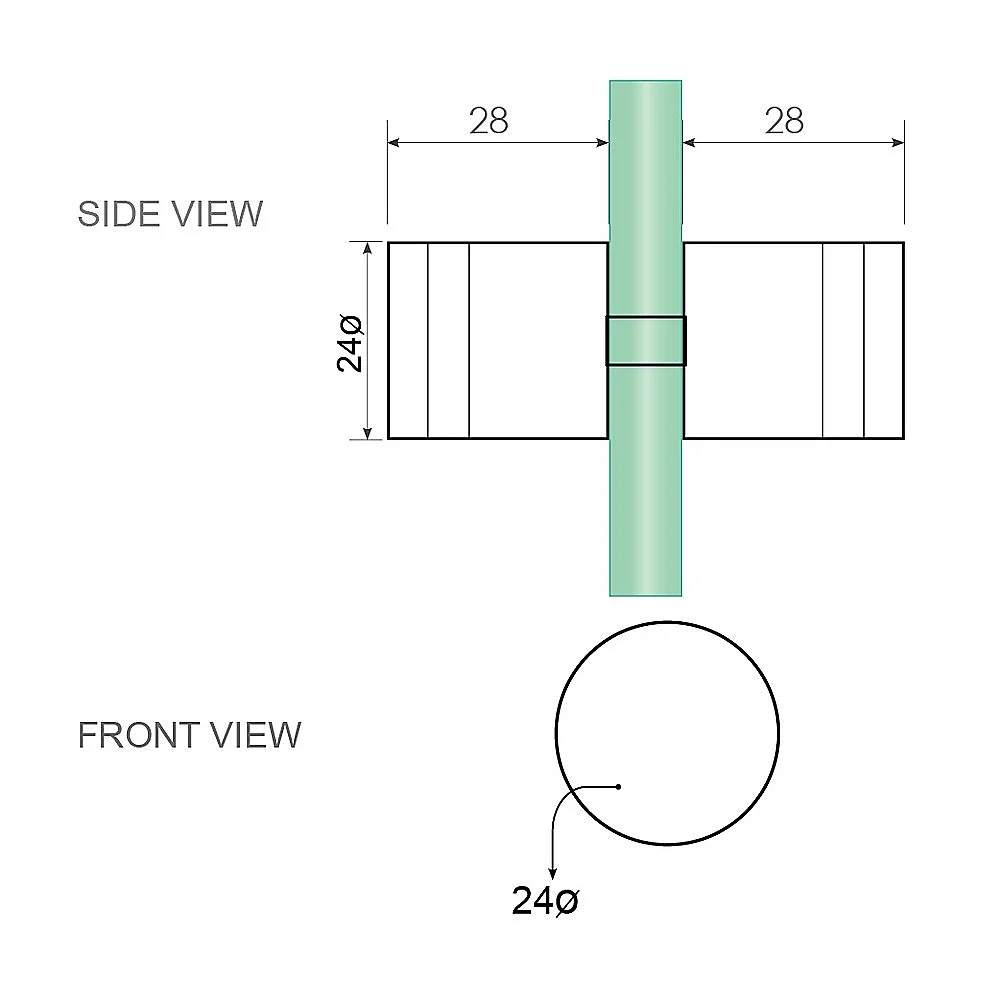

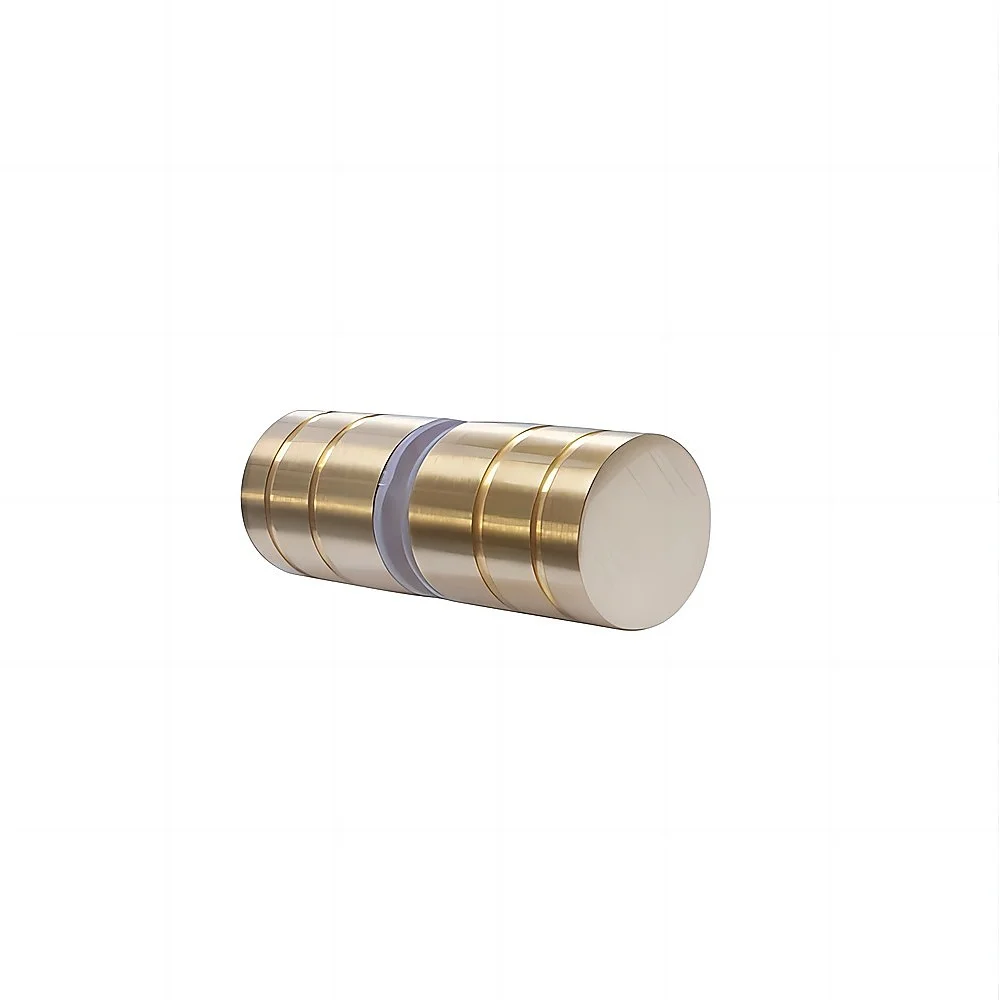

• Handle: slimline 24mm double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gold finish

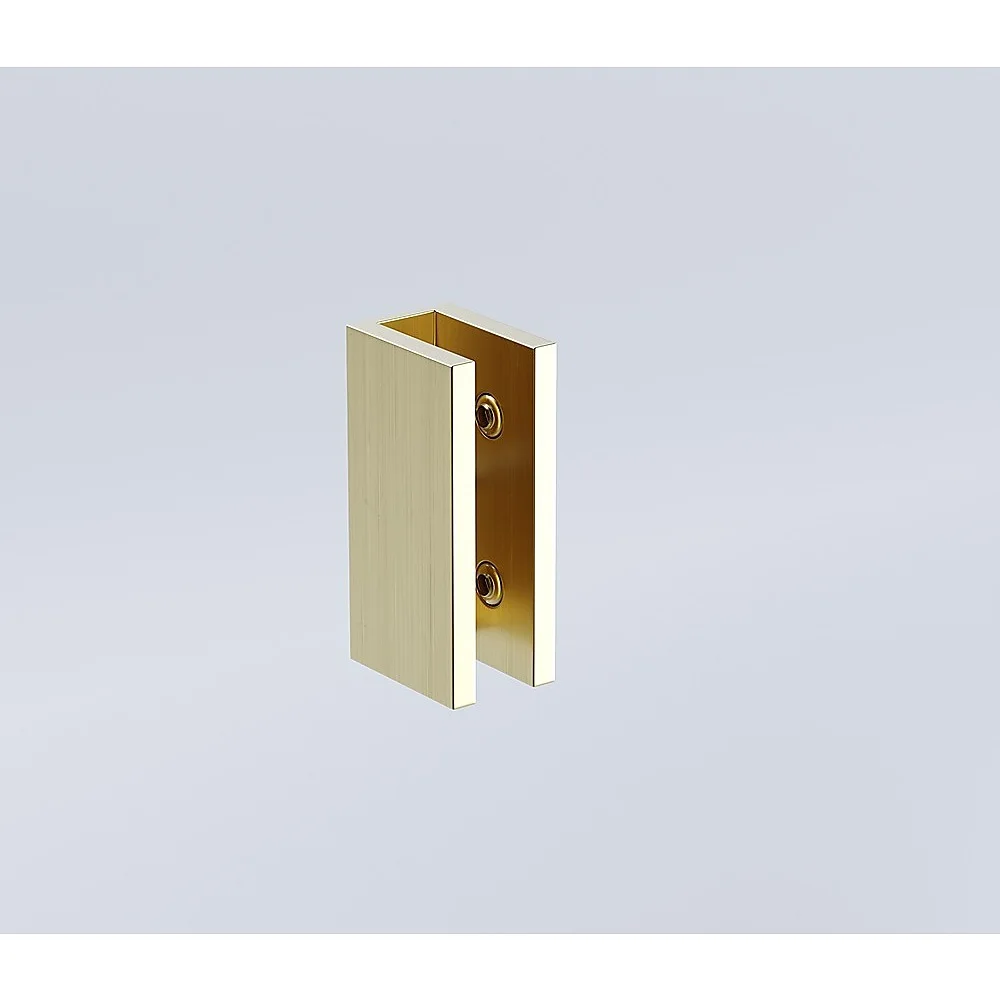

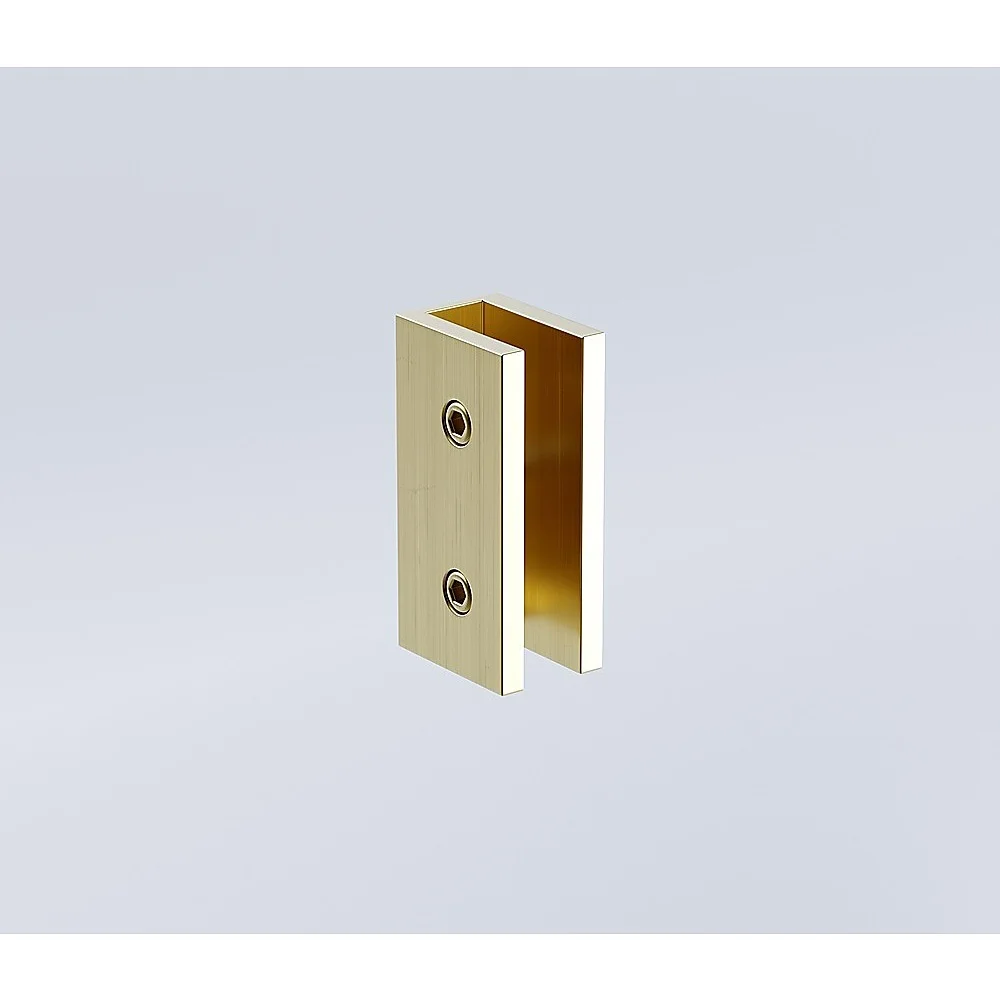

• U-bracket: for 10mm glass, solid brass, brushed gold finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 440mm clear glass fixed panel (440 x 2000mm)
• 1 x 440mm clear glass hinged panel (440 x 2000mm)
• 1 x 135-degree glass-to-glass stainless steel square shower hinge in brushed gold
• 1 x 24mm brass shower door round handle in brushed gold
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gold

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.
