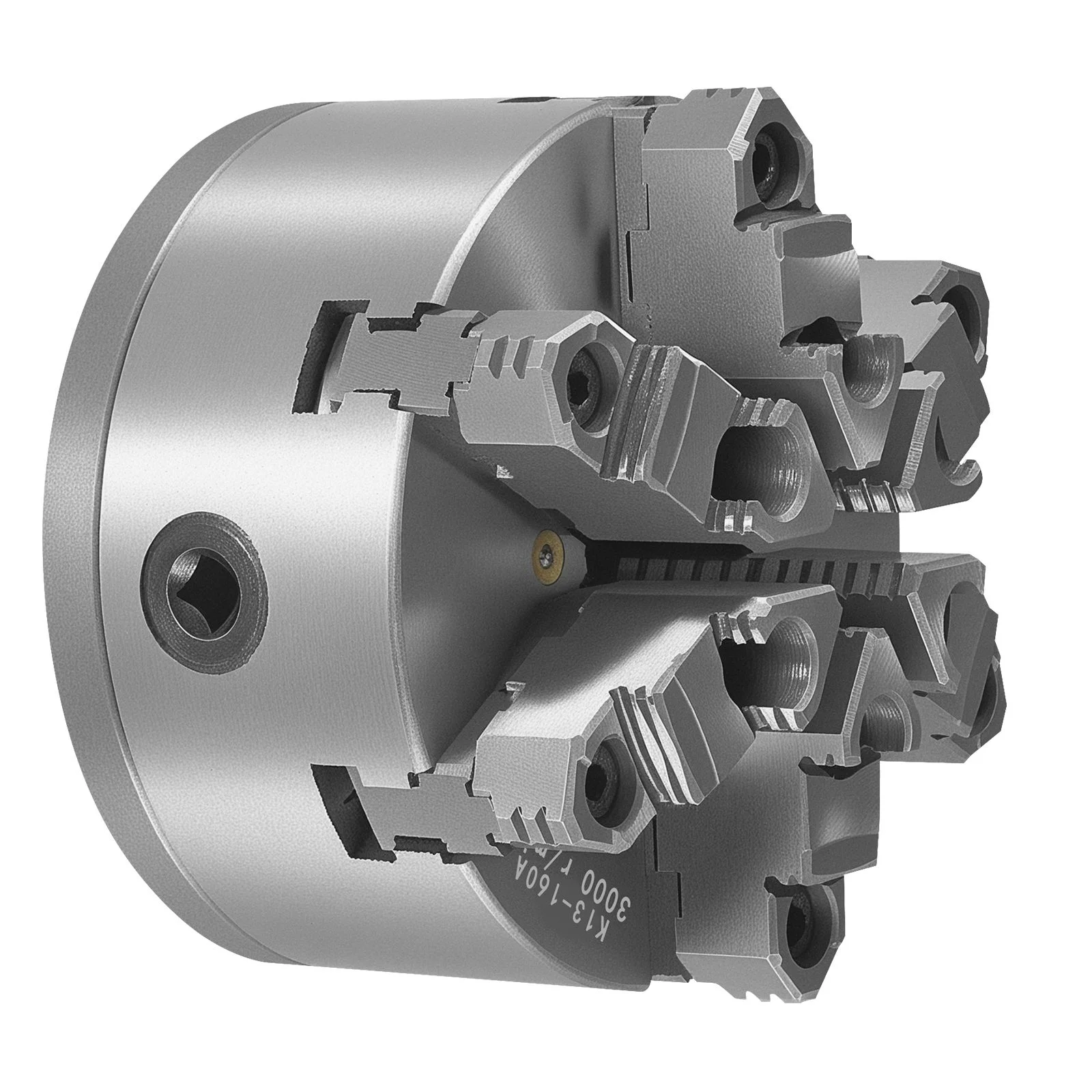

VEVOR 6-Jaw 160 mm Self-Centering Lathe Chuck with D1-4 Cam Lock Plate

The VEVOR 6-jaw lathe chuck is a 160 mm self-centering chuck with a D1-4 cam lock backing plate, built for precise, repeatable clamping on wood and metal lathes. Made from HT300 cast iron, it offers a 3–145 mm clamping range for versatile workholding.

Key Features

• Outstanding hardness: jaws rated ≥53 HRC and scroll plate ≥45 HRC, quench-hardened for durability and rust resistance
• Self-centering function for hassle-free use without repeated calibration, maintaining clamping accuracy and stability
• D1-4 cam lock adapter backing plate for a faster, more stable connection to your machine
• Simple, compact design with a T-shaped tool for straightforward installation
• Suitable for metal turning, drilling and milling on most lathes

Specifications

• Brand: VEVOR
• Chuck type: 6-jaw self-centering lathe chuck
• Outer diameter: 6 in (160 mm)
• Inner diameter: 1.57 in (40 mm)
• Clamping range: 0.12–5.71 in (3–145 mm)
• Backing plate: D1-4 cam lock
• Material: HT300 cast iron
• Jaw hardness: ≥53 HRC
• Scroll plate hardness: ≥45 HRC

What's in the Box

• 6-jaw lathe chuck
• D1-4 cam lock backing plate
• T-wrench
• Screws
