550-Piece Deutsch DT Connector Plug Kit with Genuine Automotive Crimp Tool

This 550-piece Deutsch DT connector plug kit gives you a complete, professional solution for wiring circuits across motorcycles, cars, trucks, boats and more. Built for high-vibration applications, the connectors stay locked and secure without unlocking or physical damage.

Key Features

• Connector plugs made from high-quality, environmentally friendly nylon that is corrosion-resistant and wear-resistant for long-term use
• High-precision terminals with a phos-copper plating process to improve conductivity
• Terminals are easy to install by soldering or crimping
• Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out, while still allowing easy removal when needed
• DT Series connectors offer reliability and rugged quality, with optional flange mounting, multi-pin arrangements, lower cost and design flexibility

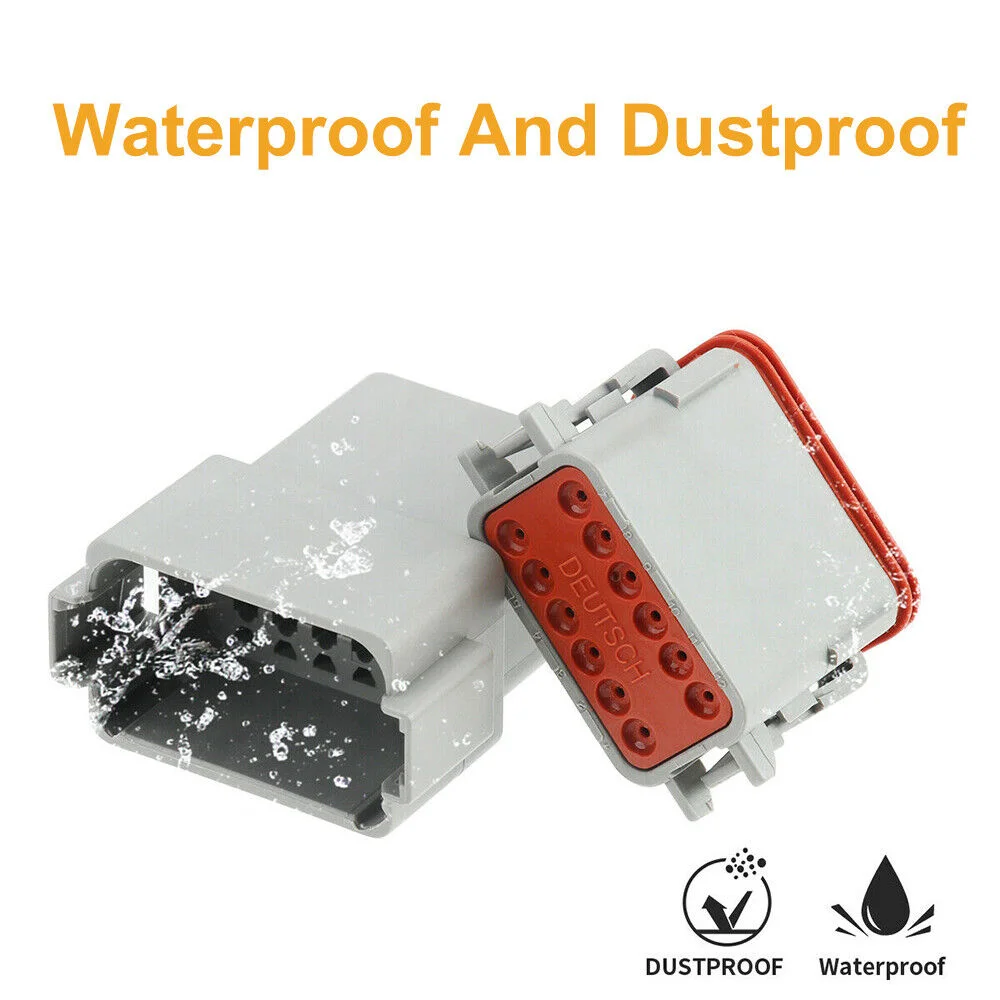

• Waterproof and dustproof without loss of electronic qualities or leakage once installed
• Withstands sinusoidal vibration levels of 20 Gs at 10 to 2000Hz
• Suitable for wiring on motorcycles, scooters, cars, trucks, quad bikes, caravans, marine craft, jet skis and boats

Specifications

• Terminal type: #16 Green band pins and sockets to suit 2.00mm 2 wire
• Pin part number: 0460-215-16141
• Socket part number: 0462-209-16141
• Sealing blank part number: 114017 (white)
• Mounting bracket part number: 1011-026-0205 (suits all but 8-way)

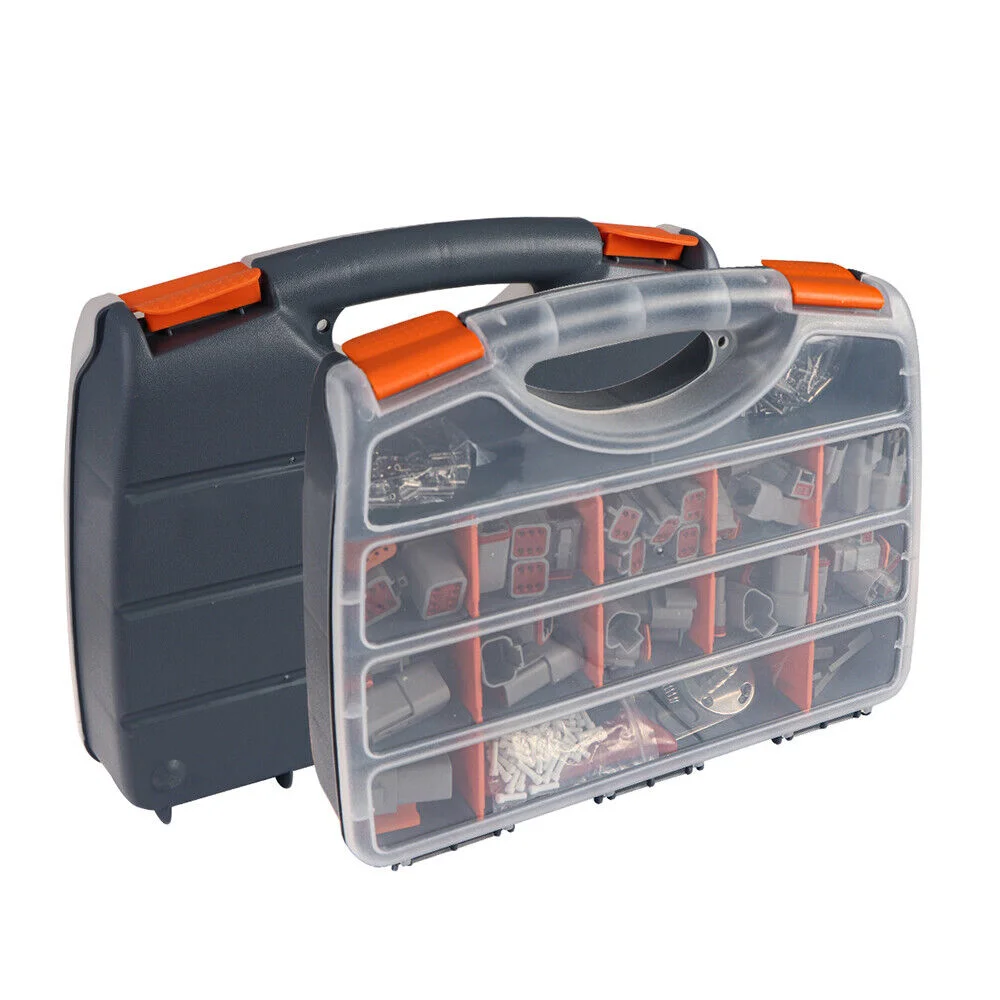

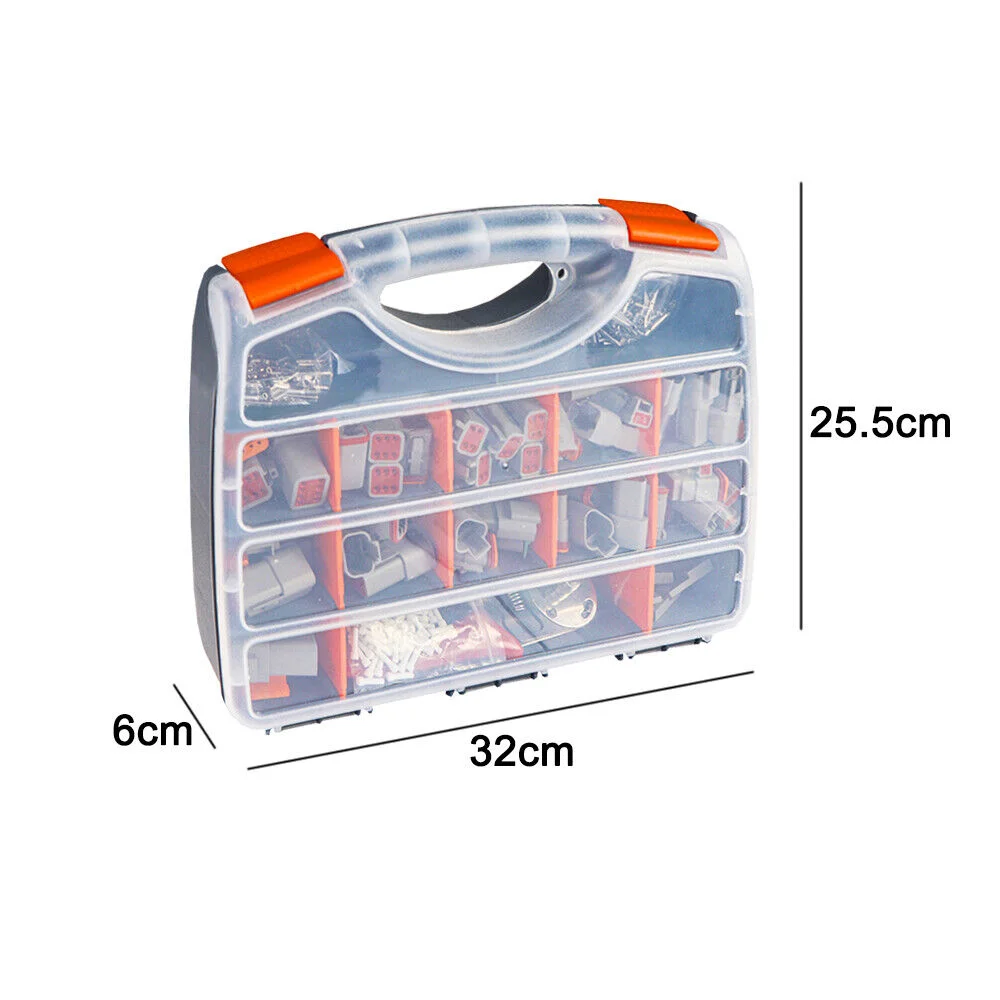

• Case: 15-compartment heavy-duty case with removable partitions

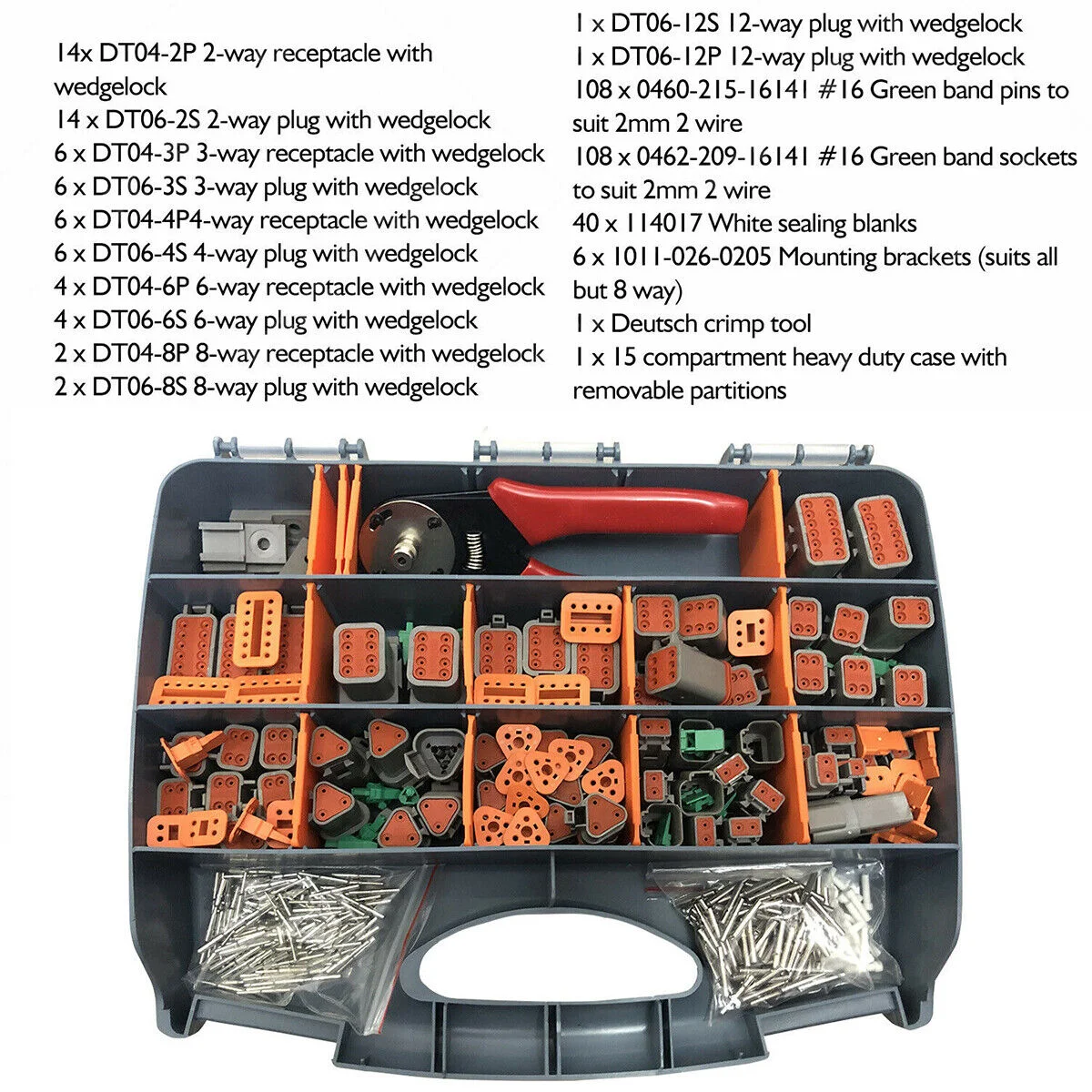

What's in the Box

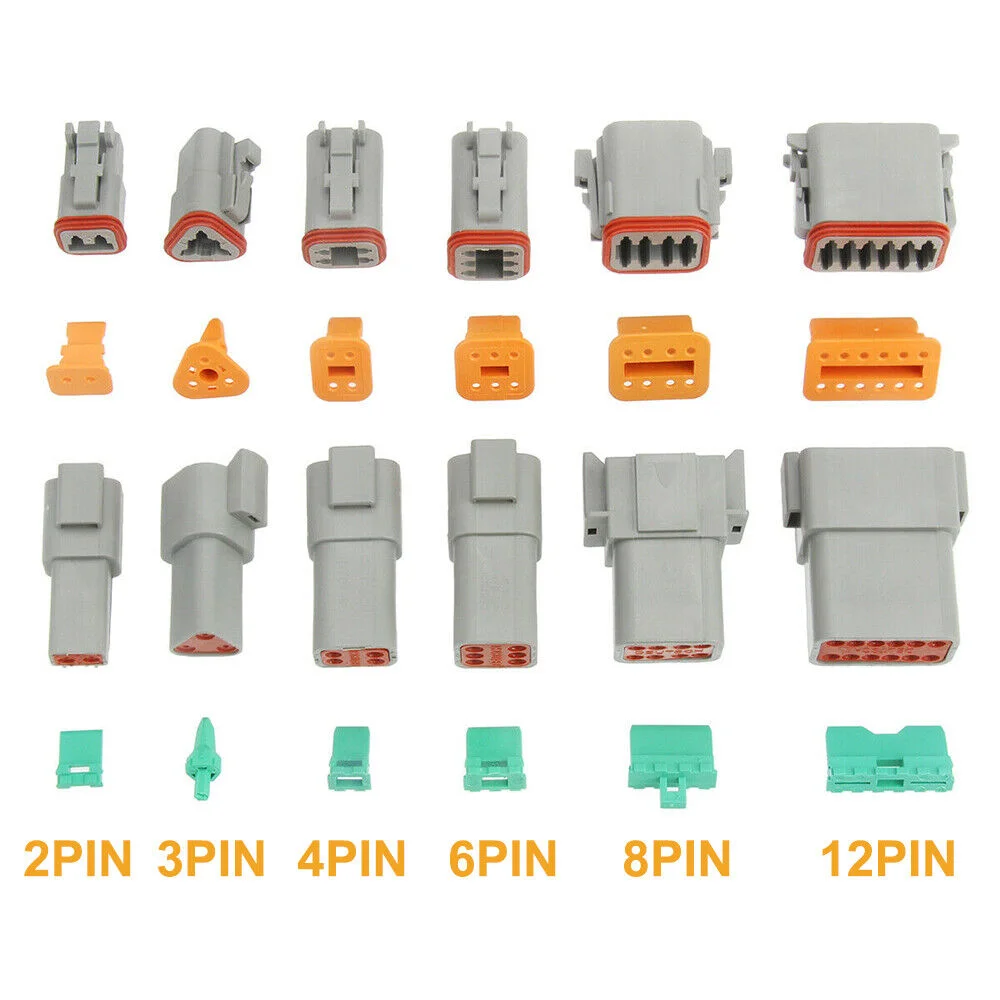

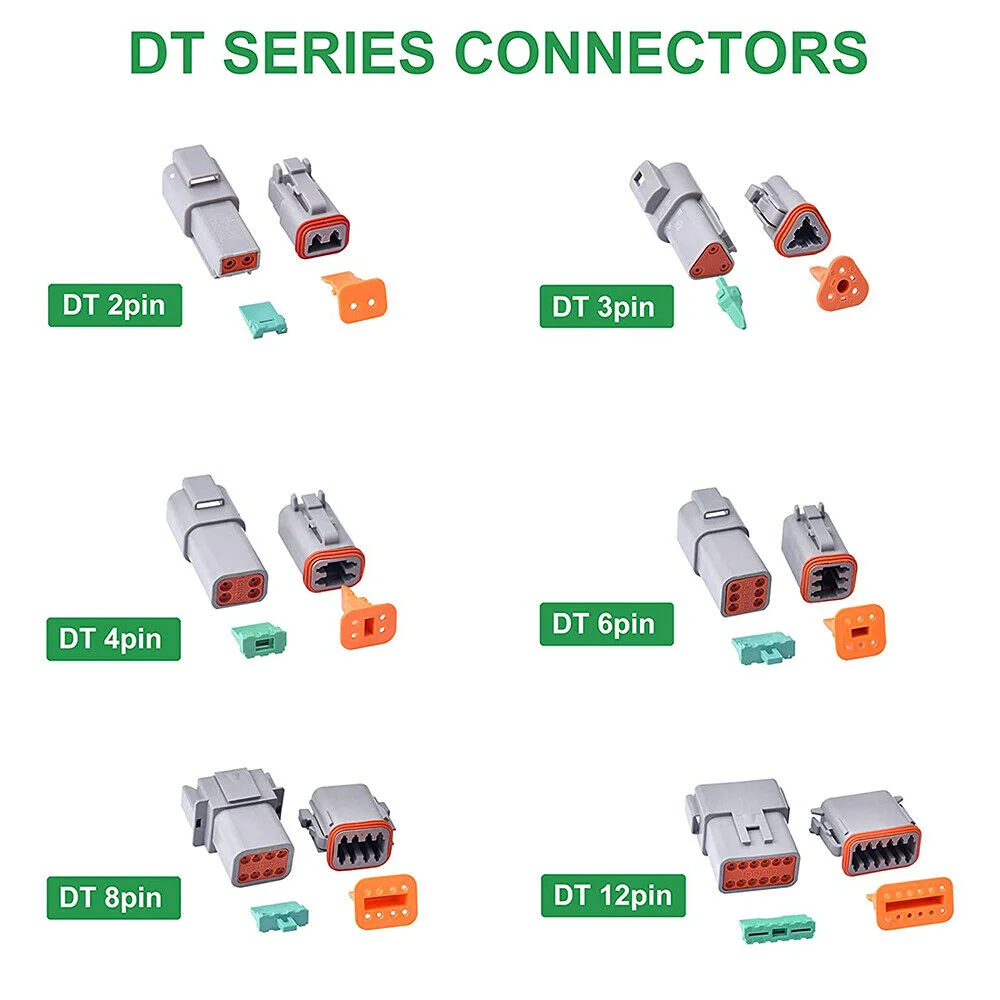

• 15 x DT04-2P 2-way receptacle with wedgelock
• 15 x DT06-2S 2-way plug with wedgelock
• 6 x DT04-3P 3-way receptacle with wedgelock
• 6 x DT06-3S 3-way plug with wedgelock

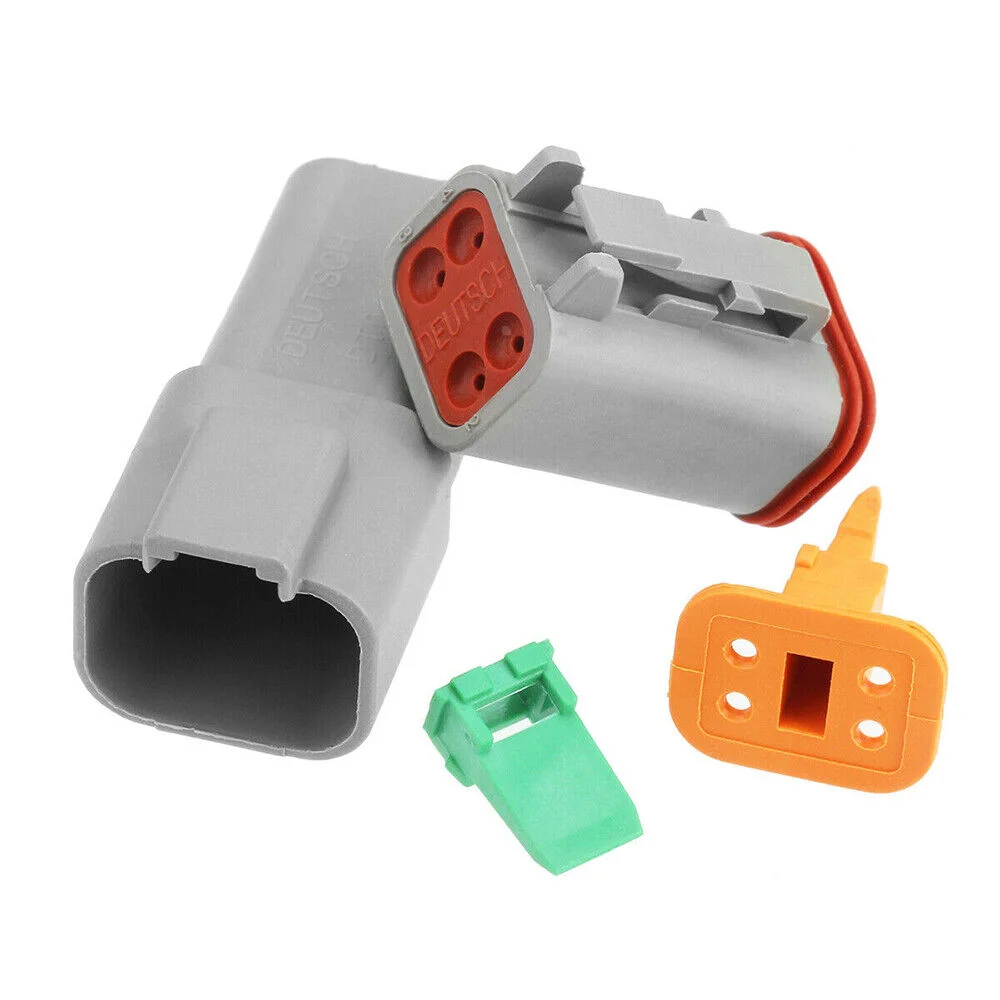

• 6 x DT04-4P 4-way receptacle with wedgelock
• 6 x DT06-4S 4-way plug with wedgelock
• 4 x DT04-6P 6-way receptacle with wedgelock
• 4 x DT06-6S 6-way plug with wedgelock
• 2 x DT04-8P 8-way receptacle with wedgelock
• 2 x DT06-8S 8-way plug with wedgelock
• 1 x DT04-12P 12-way receptacle with wedgelock
• 1 x DT06-12S 12-way plug with wedgelock
• 106 x 0460-215-16141 #16 Green band pins to suit 2.00mm 2 wire
• 106 x 0462-209-16141 #16 Green band sockets to suit 2.00mm 2 wire
• 55 x 114017 white sealing blanks
• 6 x 1011-026-0205 mounting brackets (suits all but 8-way)

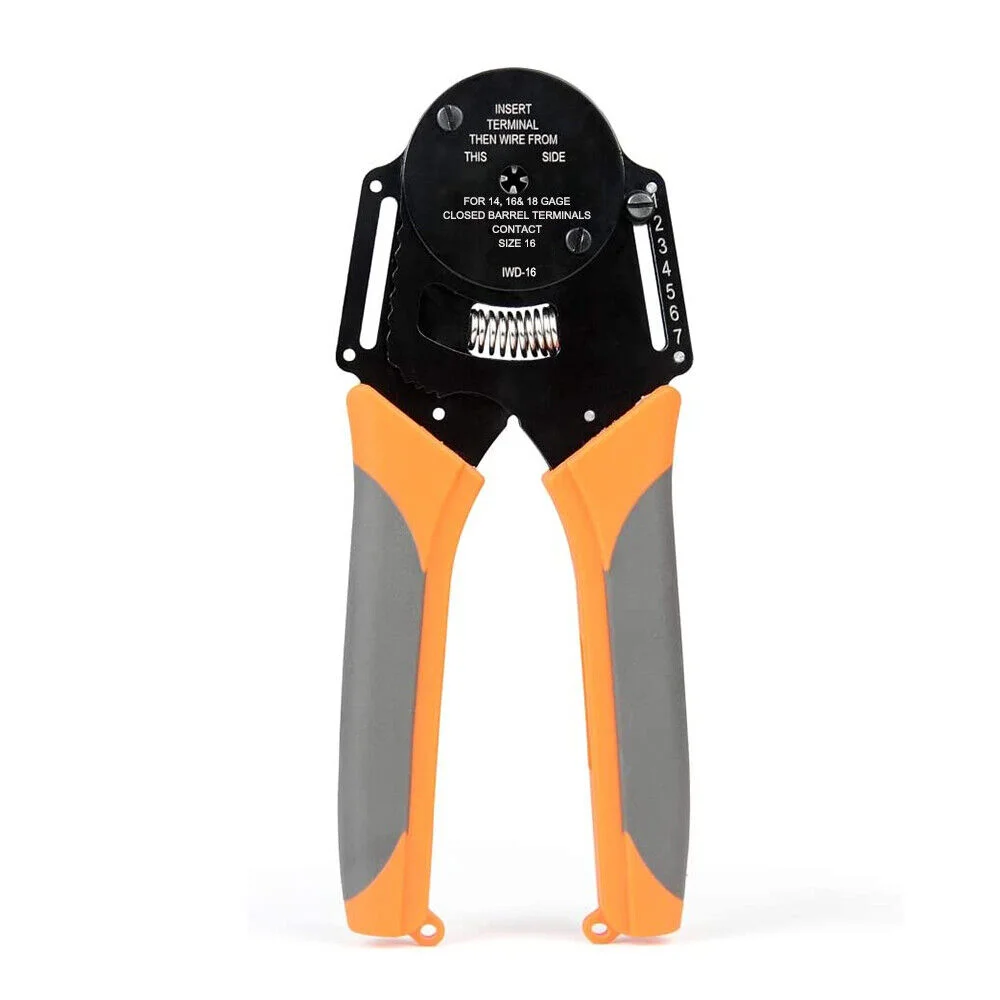

• 1 x Deutsch crimp tool

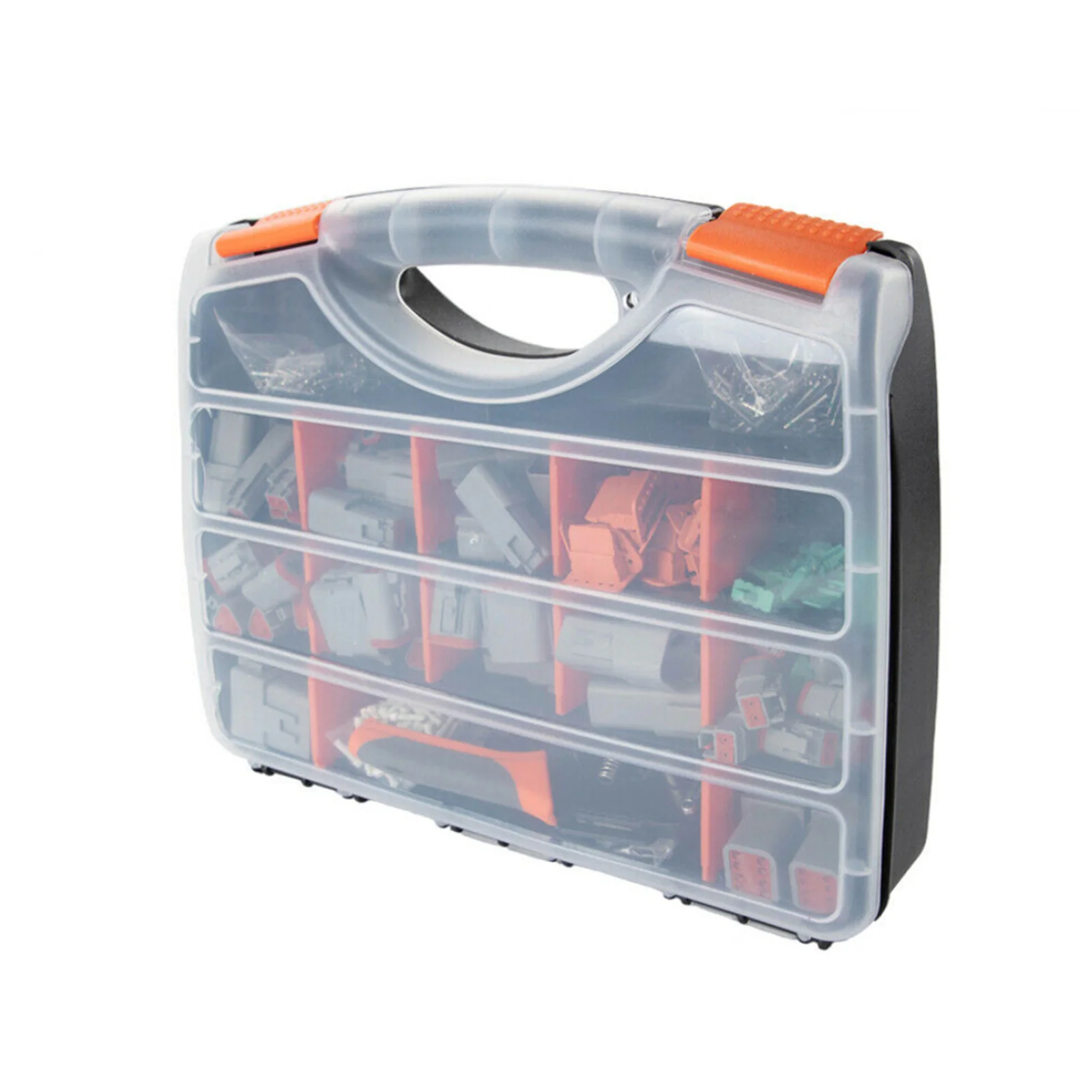

• 1 x 15-compartment heavy-duty case with removable partitions
